Description

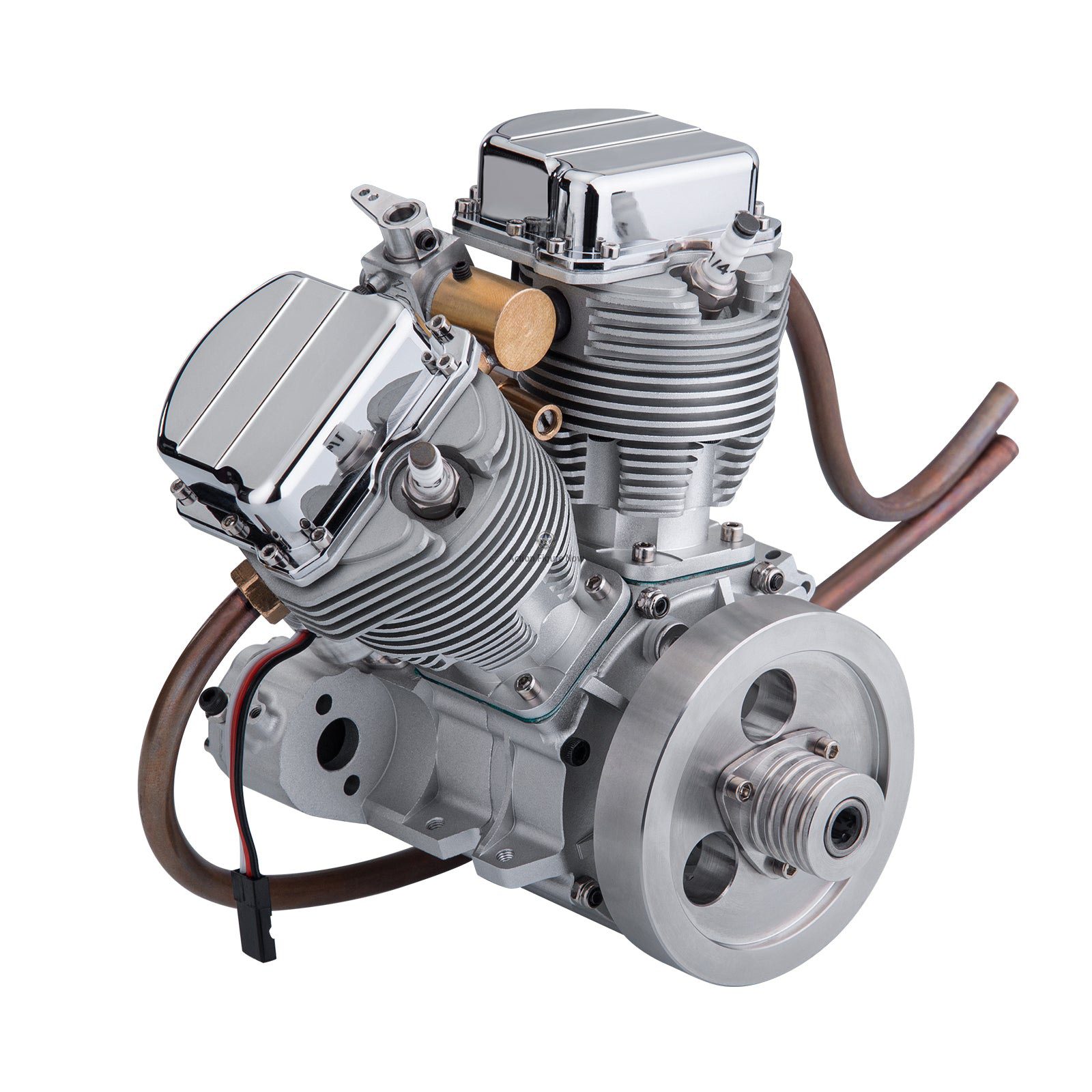

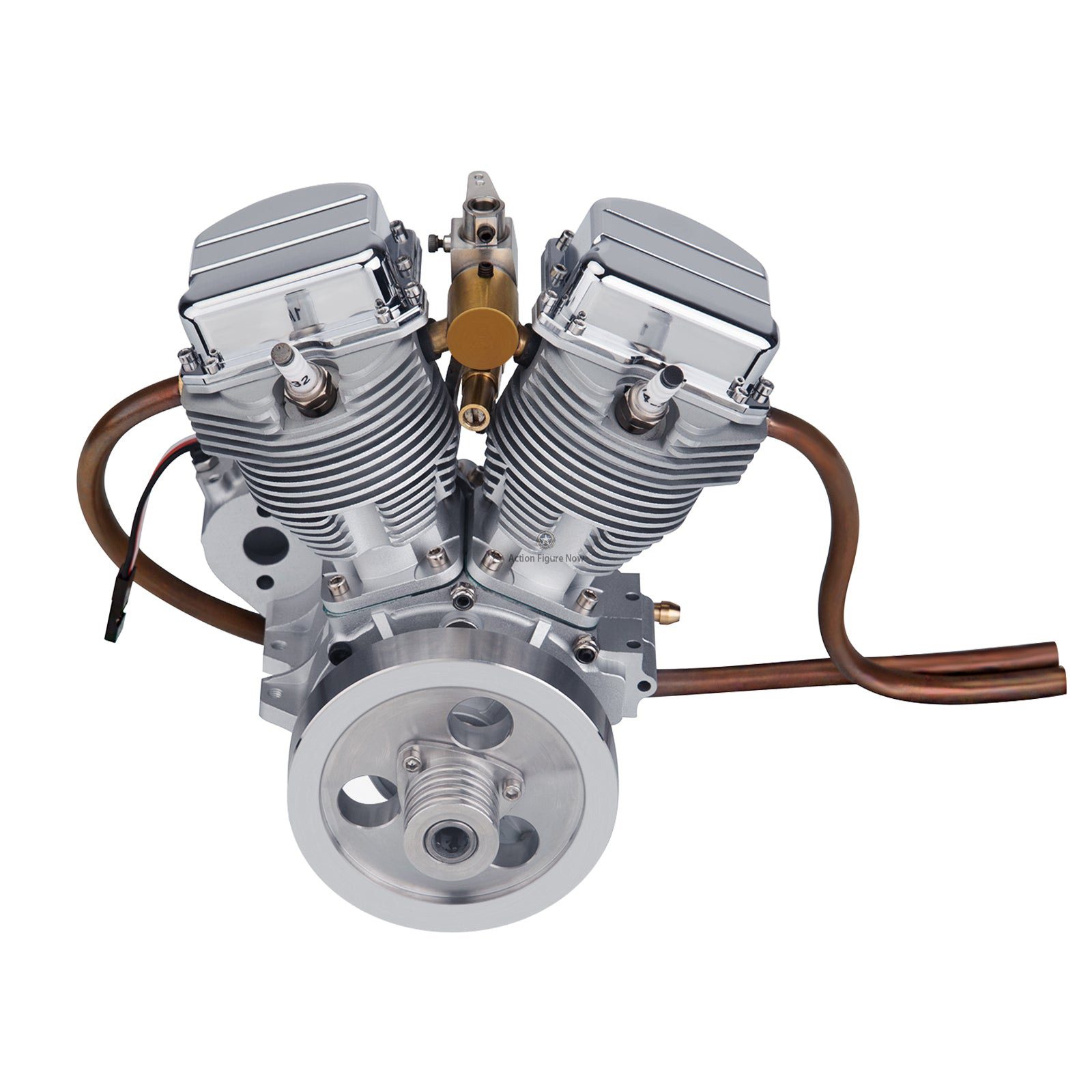

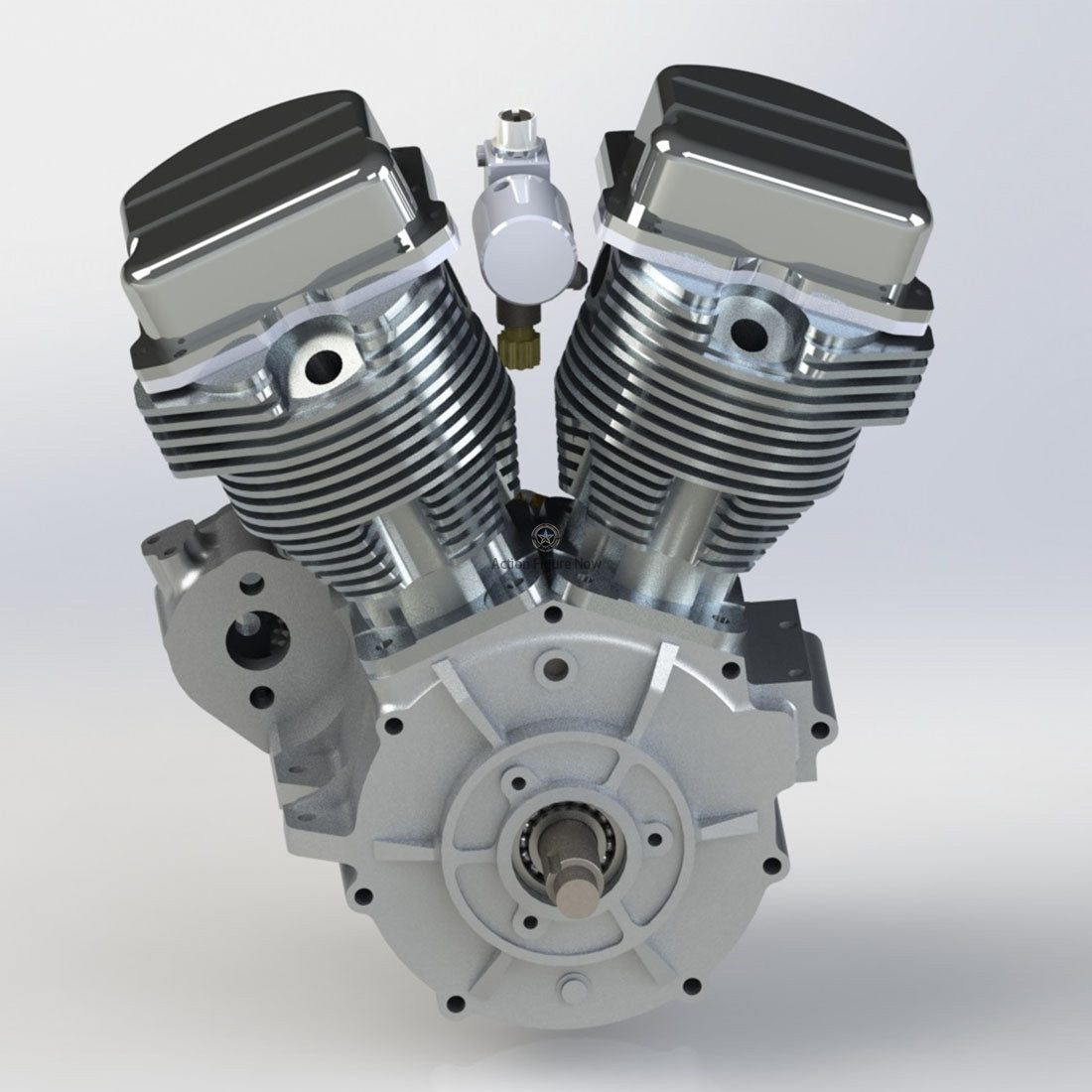

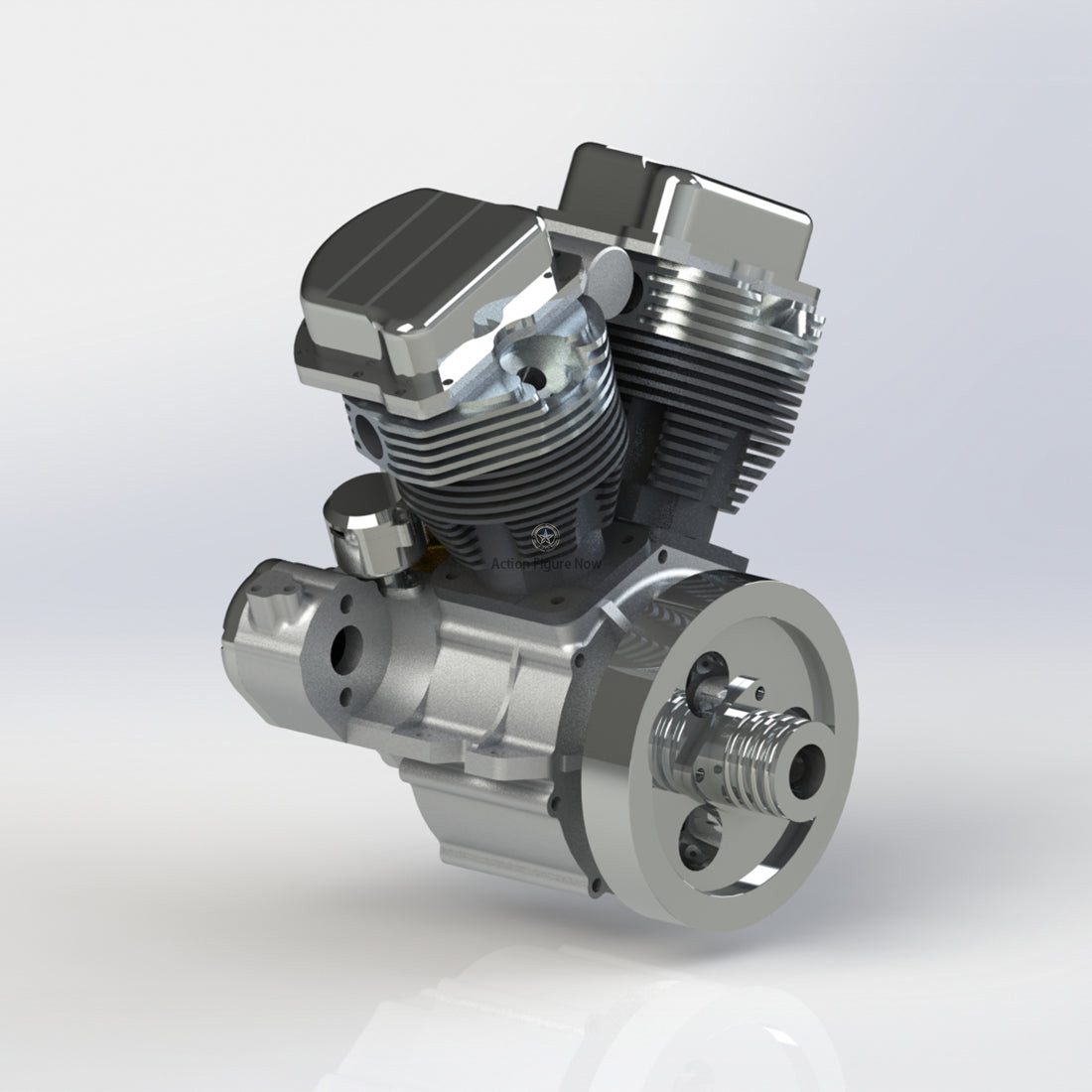

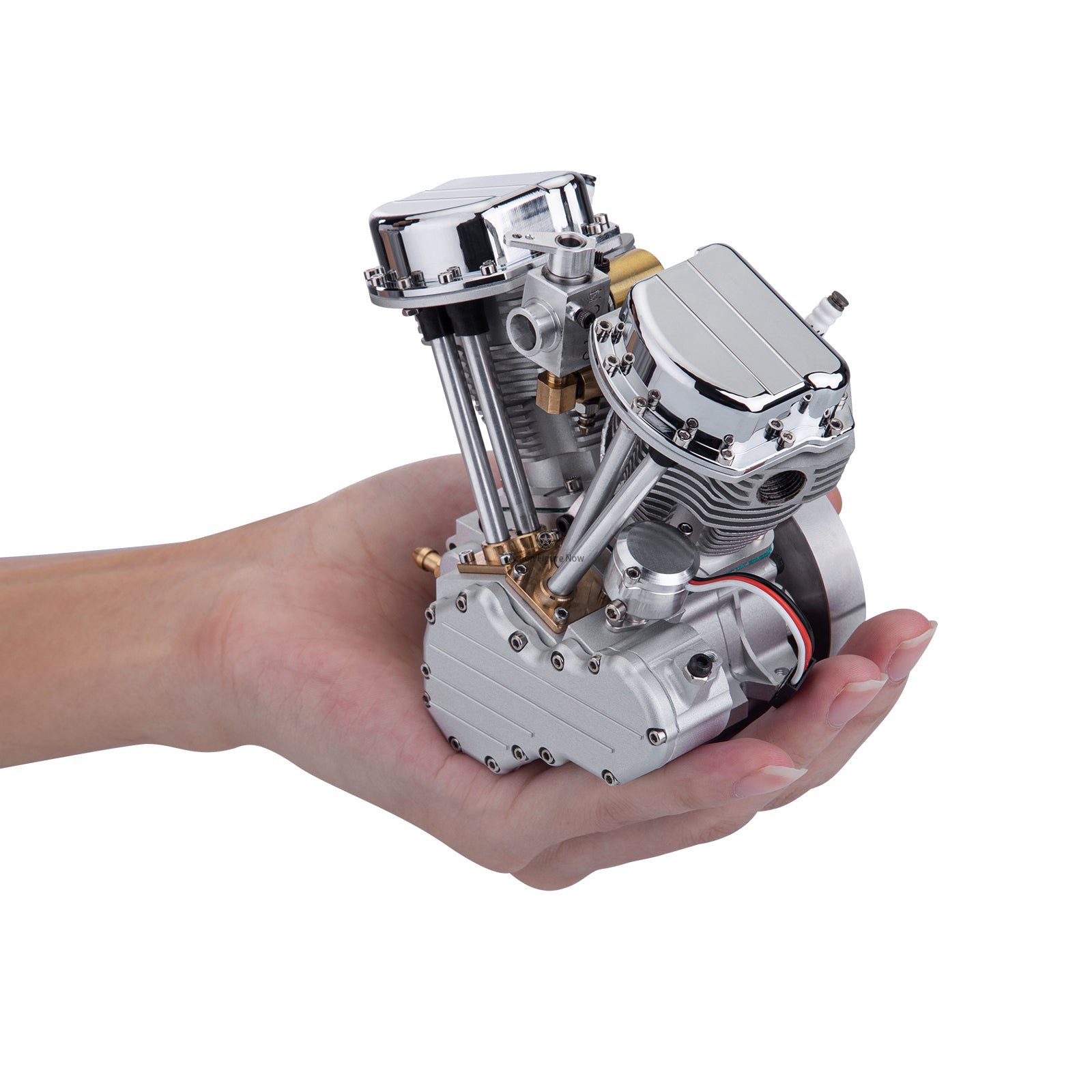

CISON FG-VT9 9cc V2 Engine V-Twin Dual Cylinder 4-Stroke Air-Cooled Gasoline Engine Motorcycle RC Engine Model
Product Details:
- Material: Metal
- Brand: CISON
- Model: FG-9VT
- Item: V-type dual cylinder four-stroke gasoline engine
- Form: finished product (assembled)
- Cylinder: V-type twin-cylinder;
- Stroke: 4 strokes
- Displacement: 9(4.52)cc
- Bore: 16.67mm
- Stroke: 21mm; Angle: 45°
- Speed: 2000-8000rpm (Idle Speed Minimum: 1350rpm)
- Power: 0.8ps
- Starting power: 2S-3S lithium battery..
- Cooling method: air cooling
- Starting method: electric drill start
- Fuel: gasoline (mixed lubrication 25:1)..
- Product Weight: 1500g
- Package Dimensions: 20 x 20 x 25cm
- Package Weight: 2000g
Features:
Highly Impressive Simulation:
The highly simulated classic look and elegant silver appearance recreates how a real motorcycle engine looks. Upgrade based on the original design to improve performance and reliability represents the most significant feature of motorcycles.
Reliable Structure:

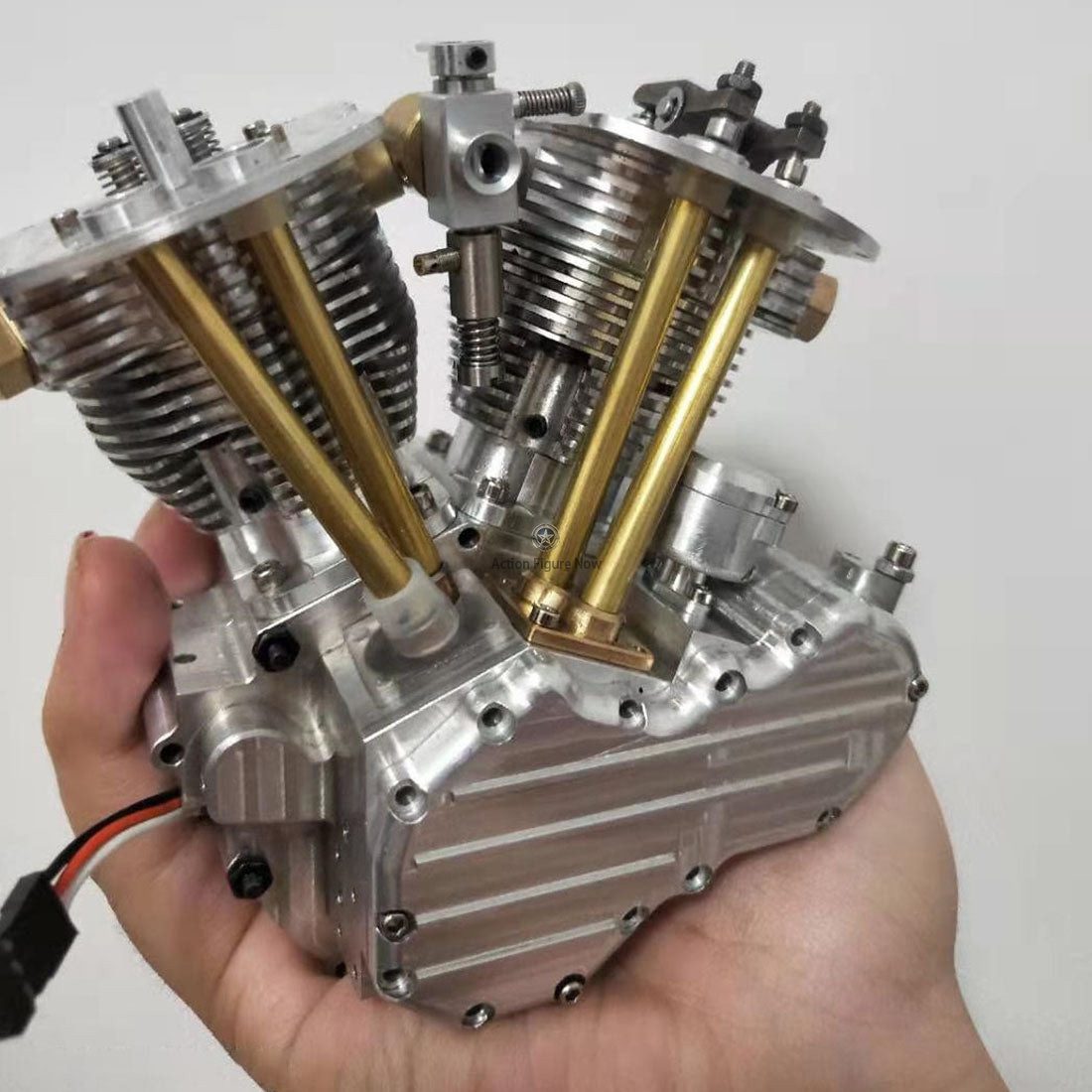

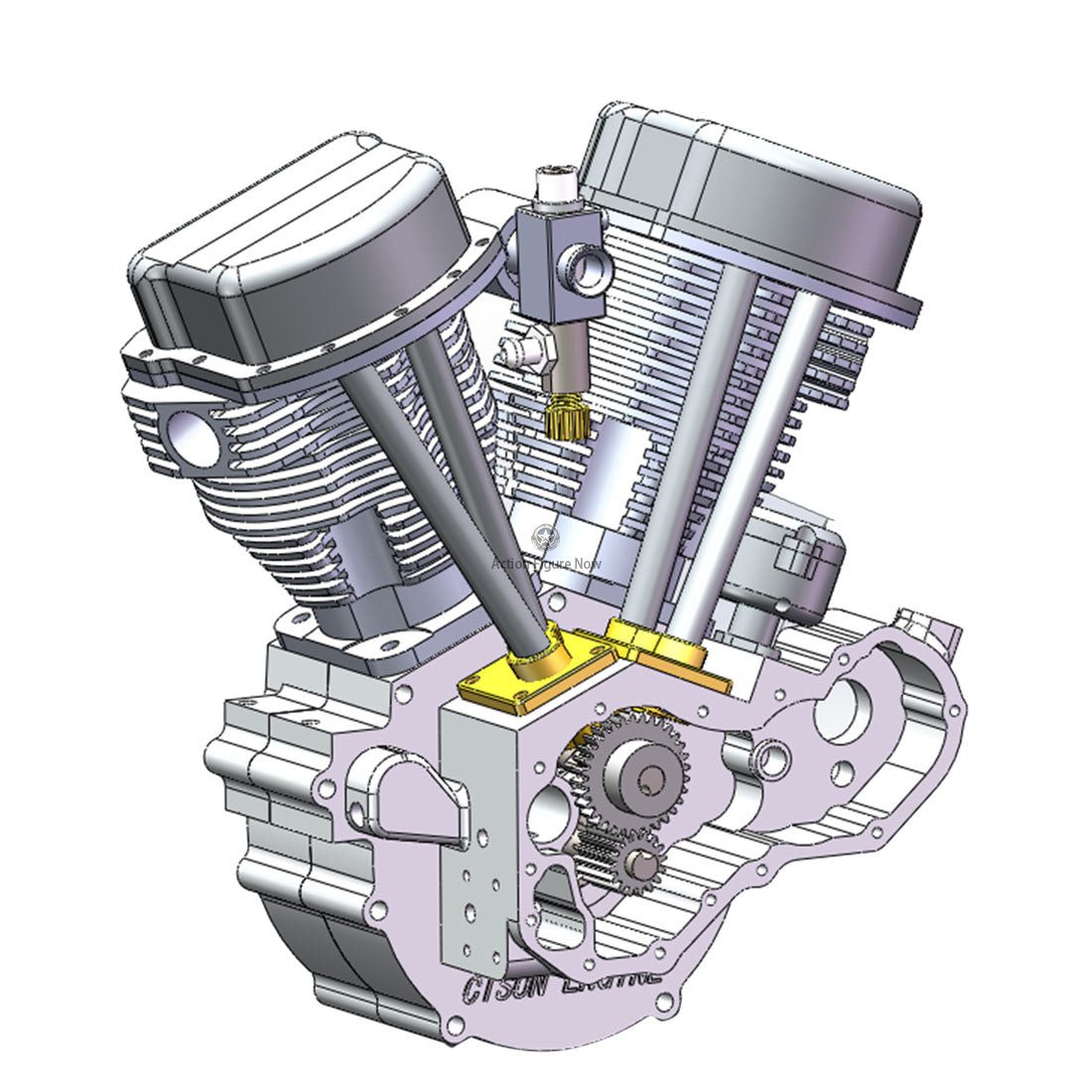

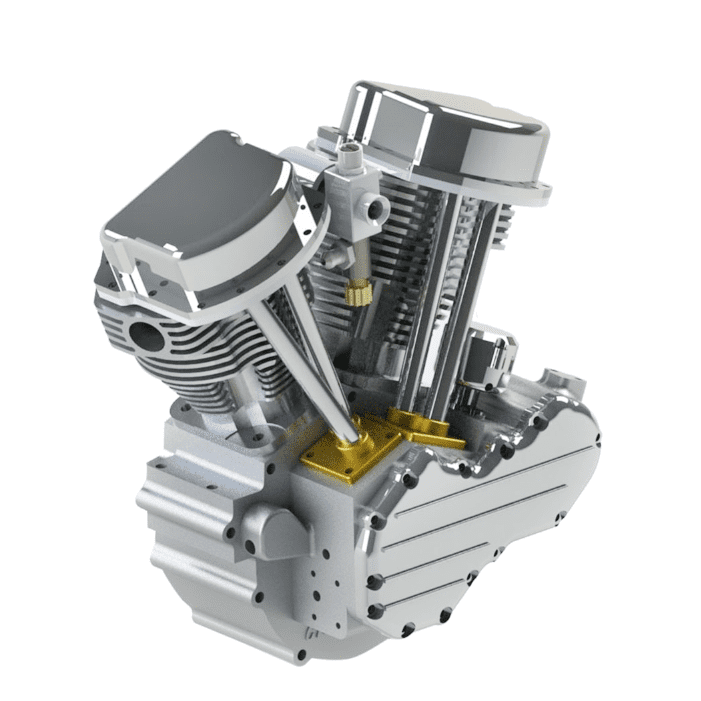

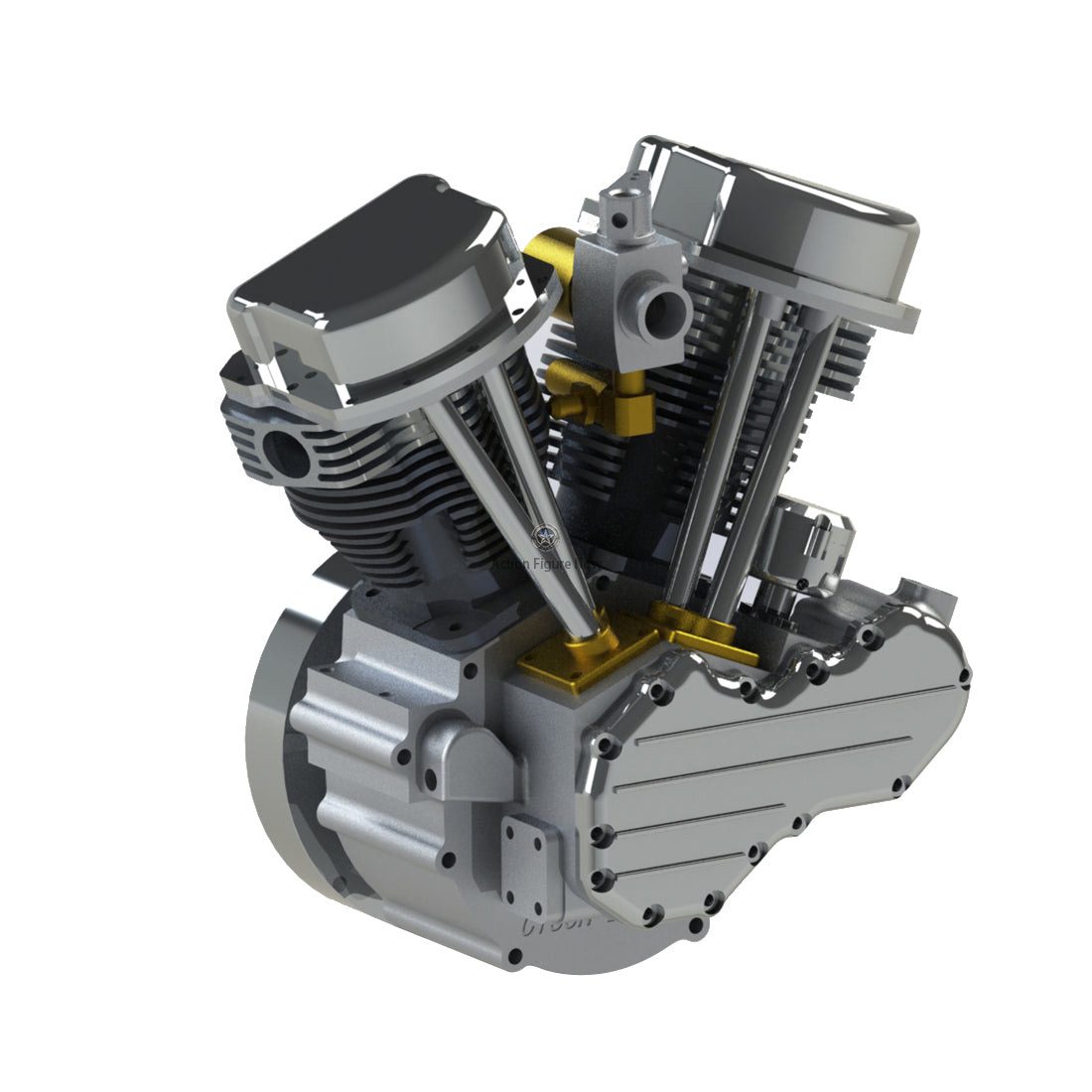

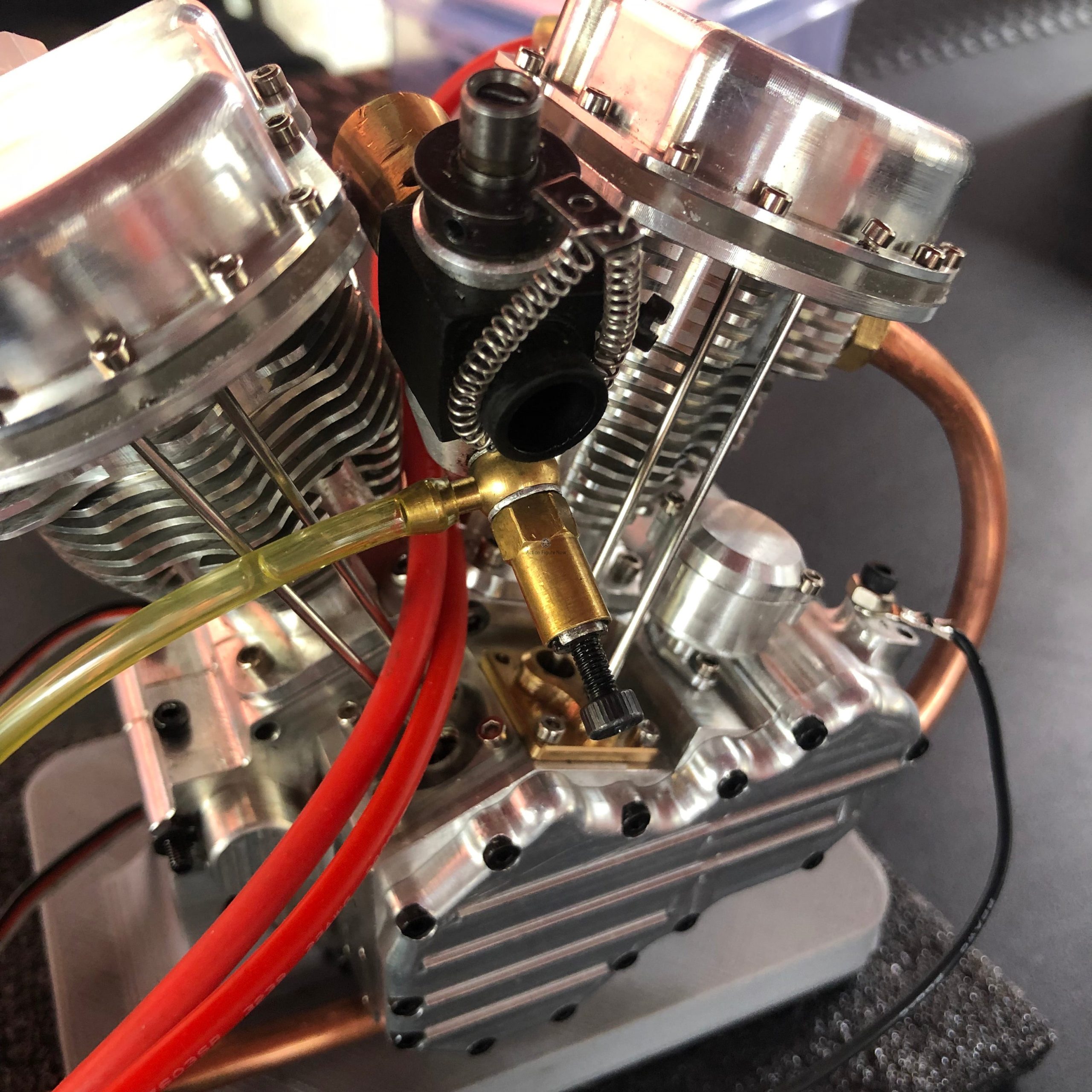

Designed with OHV (overhead valve) bottom camshaft top rod air distribution structure, two cylinder cylinders are at a 45° angle, each cylinder has two valves,.The rocker arm and the connecting rod cooperate more smoothly, and the independent intake and exhaust design to ensure more accurate switch.
Fine Processing:

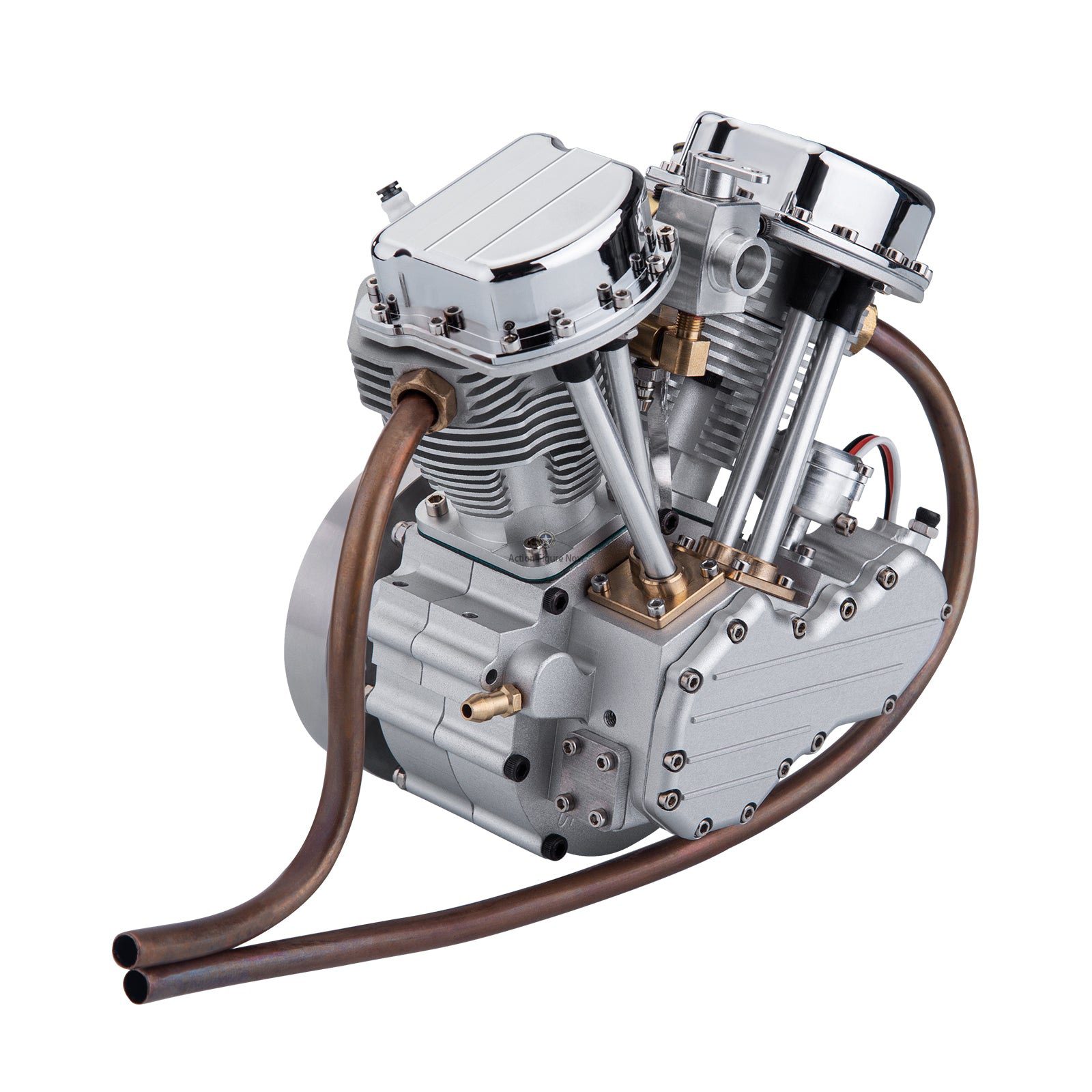

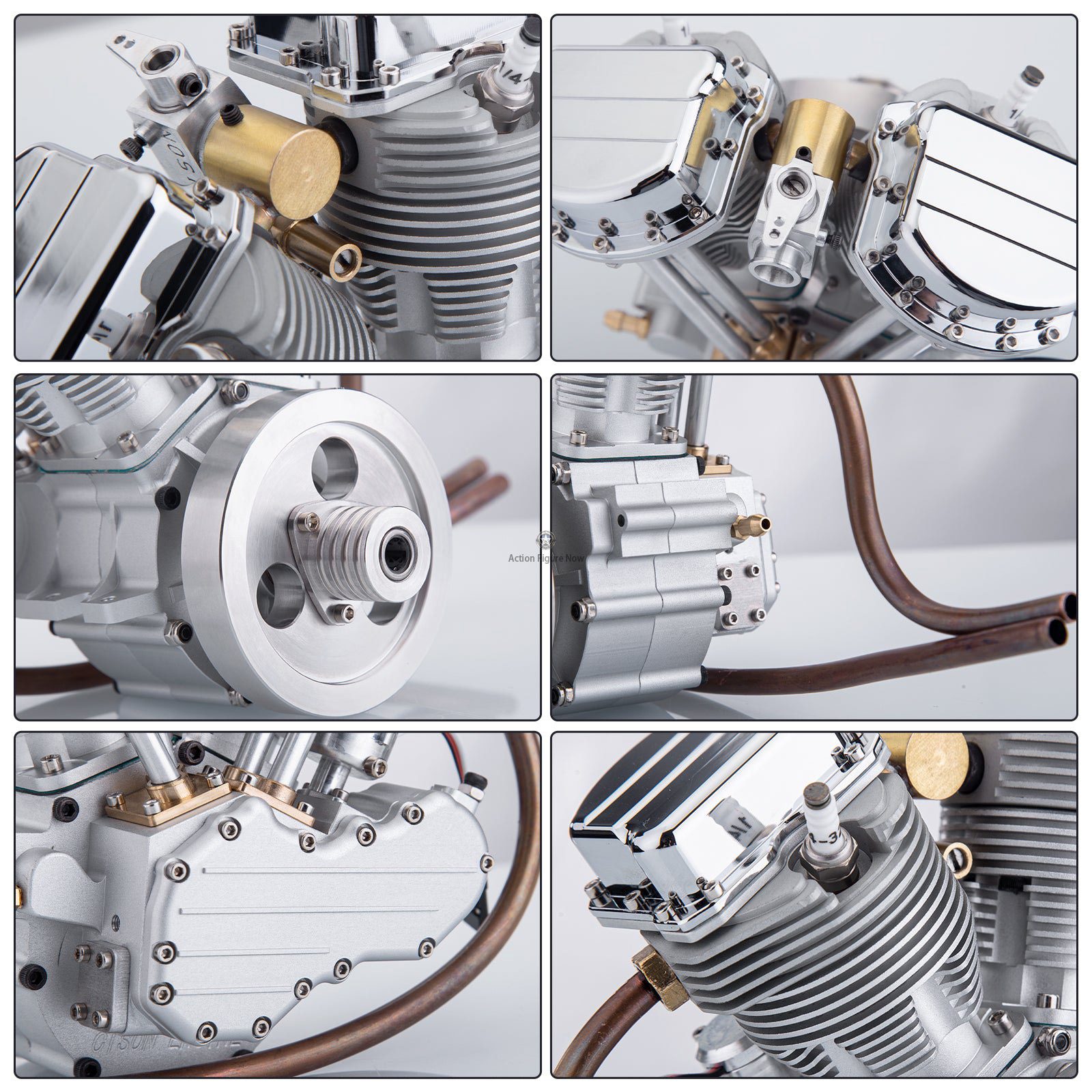

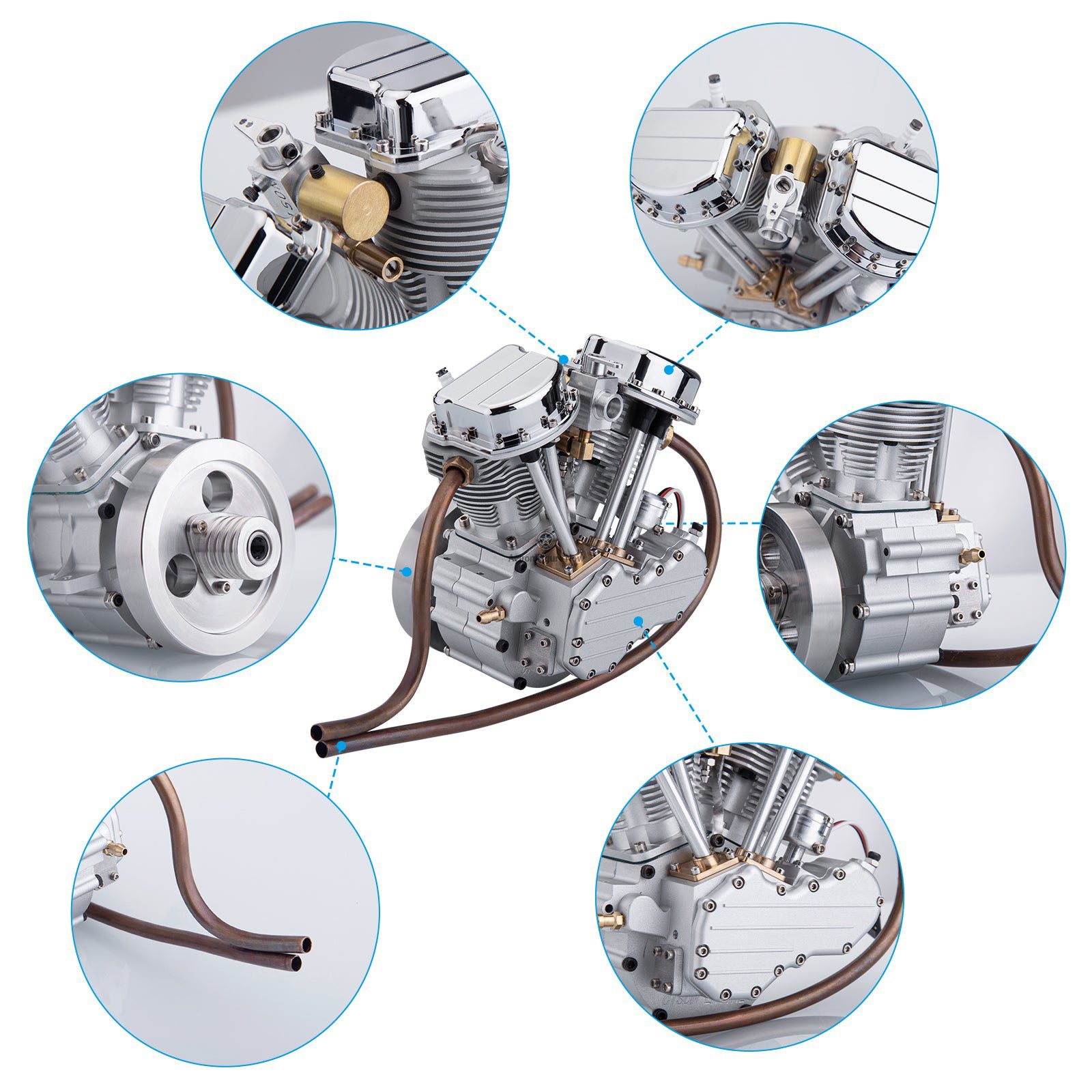

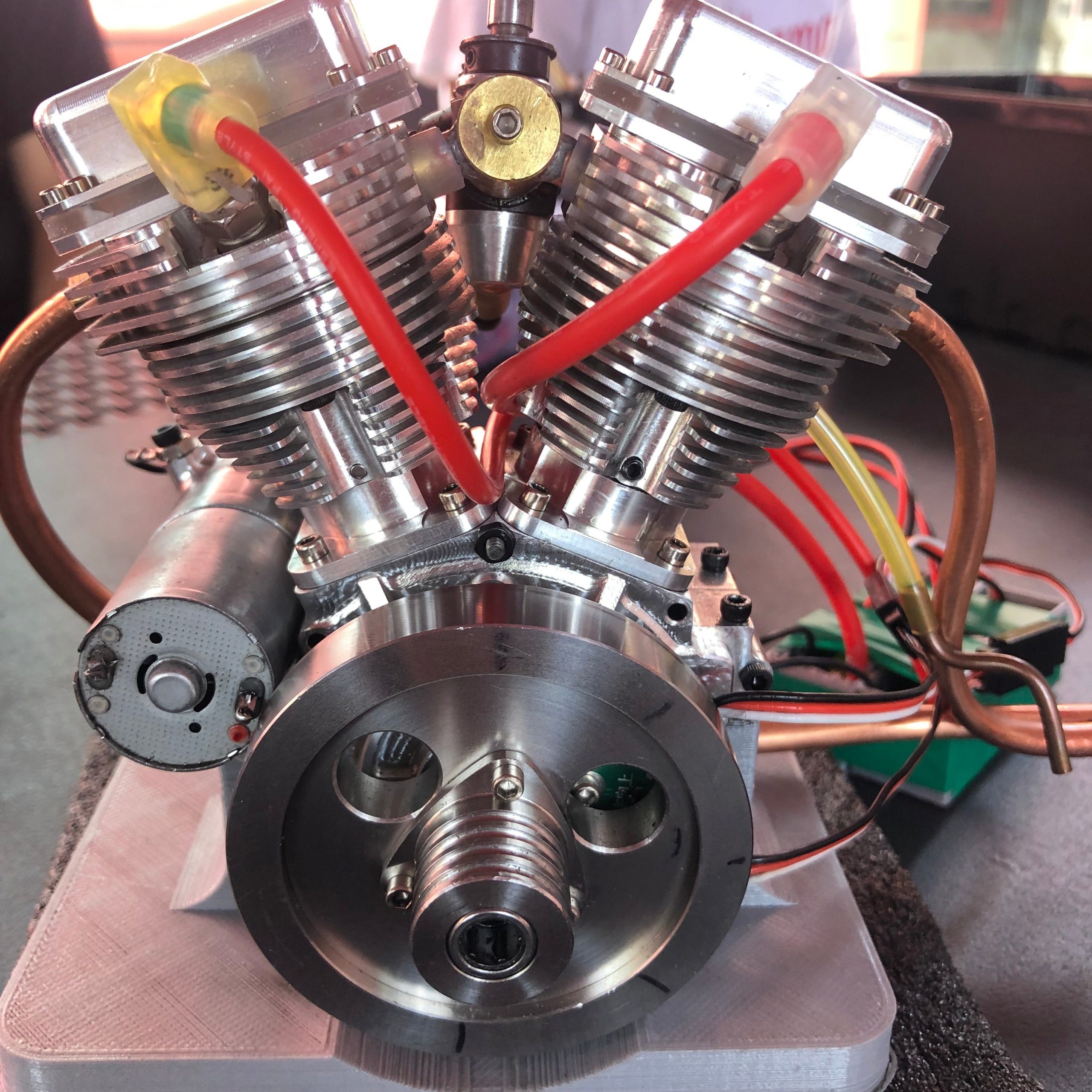

The body is manufactured with aluminum CNC precision processing, and the two copper exhaust elbows are more distinctive. The surface of the cylinder block is anodized and the rocker cover is chrome-plated. The engine will remain bright and clean for a long time, which makes a visually pleasing artwork
Stable Performance:
The crankshaft runs smoothly with large-area heat sink featuring ideal air-cooling effect, ensuring prolonged yet stable performance. The sensitive single carburetor throttle response and the normal speed range of 2000-8000rpm are our highlights
Wide Application:

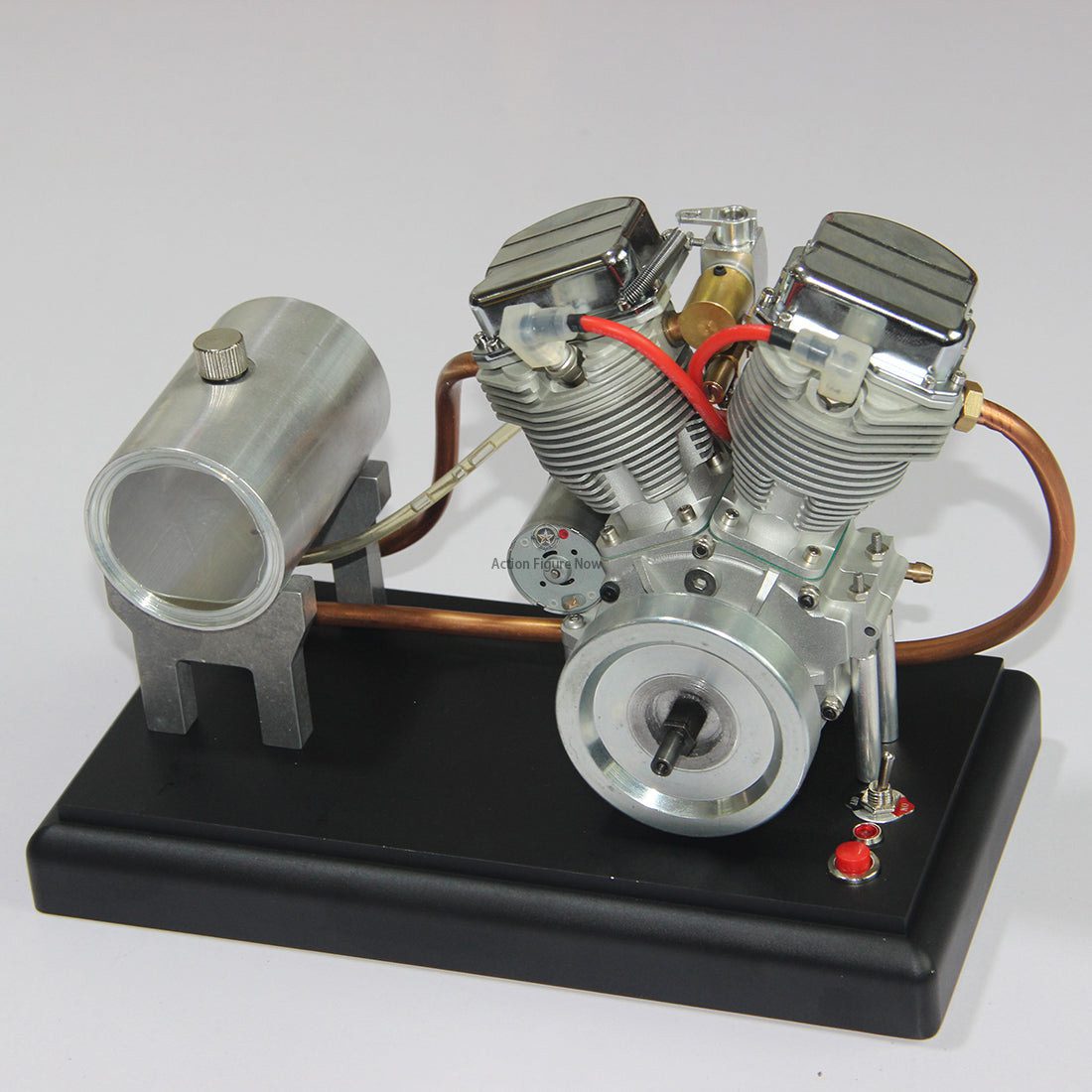

Whether it is used as a static model collection or started and applied to an RC model car, it is not inferior at all. The model reserves many upgradeable parts, giving players a lot of room for hands-on modification. At the same time, it is also an excellent personalized gift for model engine lovers
Note:

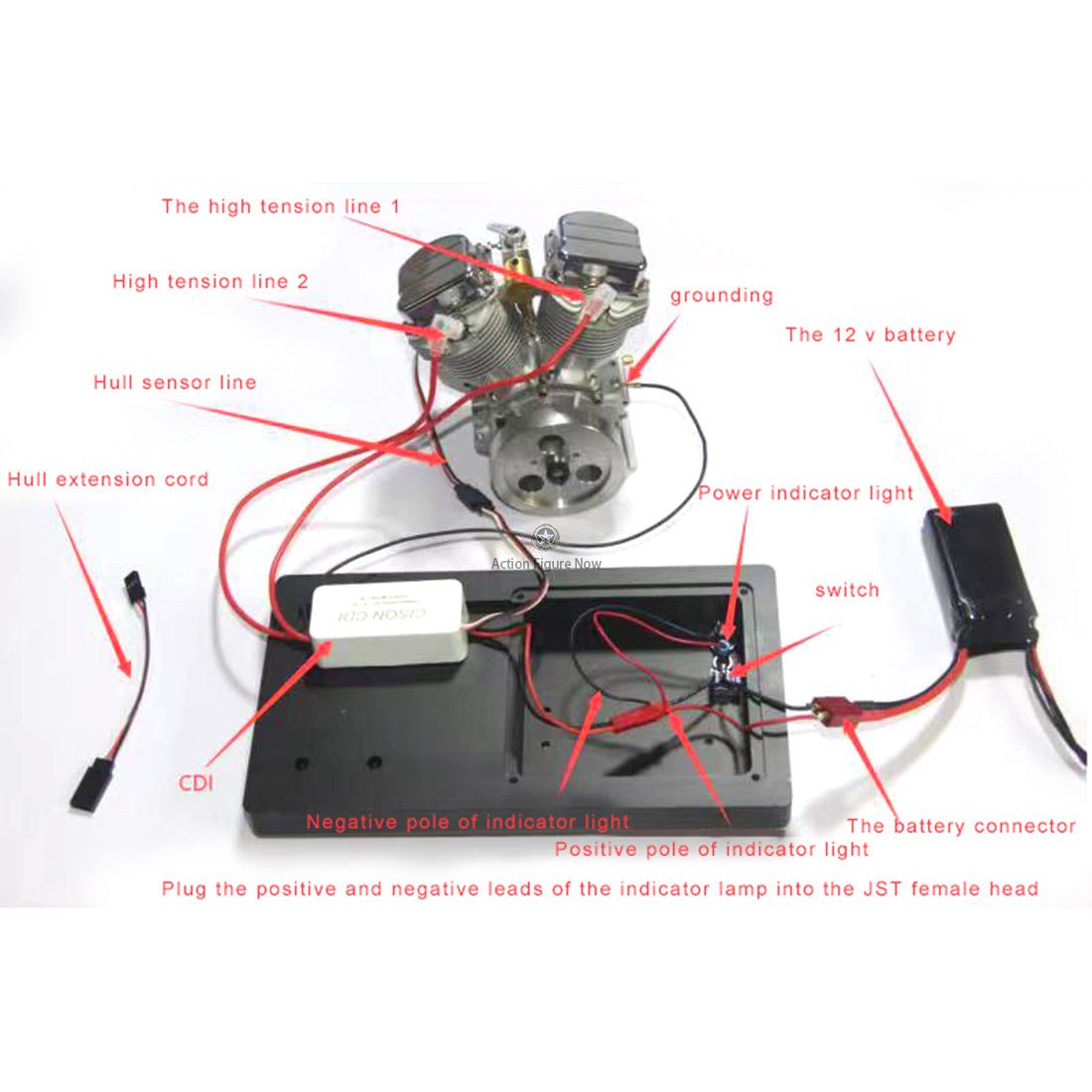

The engine comes with a spark plug and CDI igniter, does not include the fixed storage base of the engine and the electric starting device, please contact us if you have any requirements. Please operate the engine according to the instructions in the manual to avoid damage to the engine due to improper operation. Age Recommendation: 14 years old and up

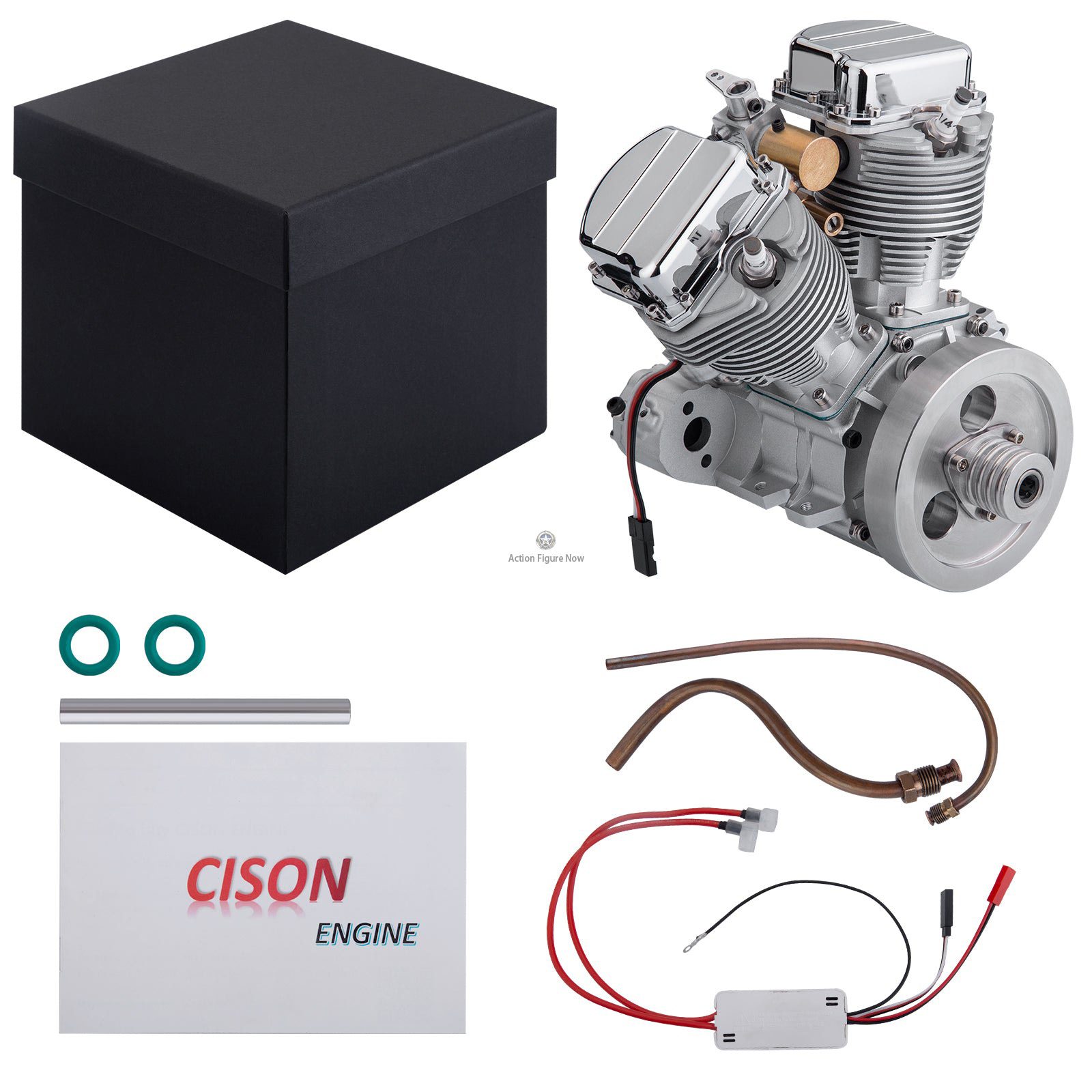

Package List:
- 1 x V2 Engine
- 1 x Electric drill starter
- 2 x Spark plug
- 1 x CDI igniter
- 2 x Copper exhaust pipe
- 1 x Instruction

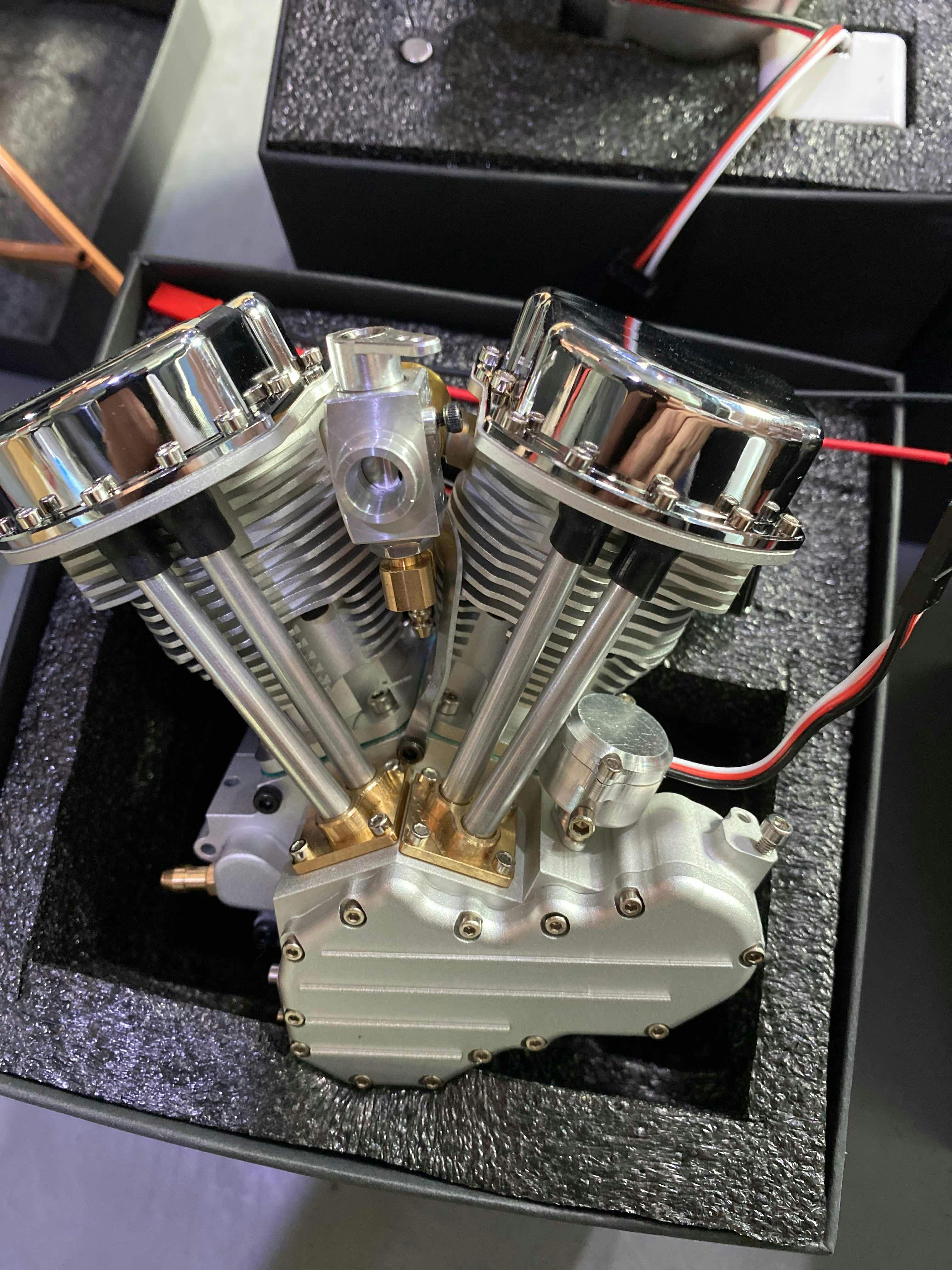

I received my engine in perfect condition and well packed but I would very much appreciate it if there would come an update for this engine in the form of an oil pump and certainly an electric starter motor assembly. I'm sure that I'm not the only one asking for such things.
Also I would consider changing the piston assembly to one that is fitted with real piston rings instead of the O-ring for better durability.
One last remark may be the exhaust pipes which don't match the overall quality and the esthetic looks of the engine.
Keep me informed on future updates please..
With kind regards,
Guy Van Brussel
now here comes the crap. Mounted engine and assembled electrical as specified went to start and got a couple of burps out of it.
Contacted Cisco service department and they advised me on how to troubleshoot CDI unit and igniter. I found igniter was faulty.
Strangely repair parts were sent with engine so they new there was a problem with the unit. Also flywheel and engine case had already been
Drilled to accept repair parts. This was not mentioned in there sales add yet it was sold anyway. In the process of trying to get running
Starter drive bearing gave up and that’s where I am now and I gave up.. Hope you have better luck than I have. $500.00 bucks for a wall hanger
Well done CISON :)

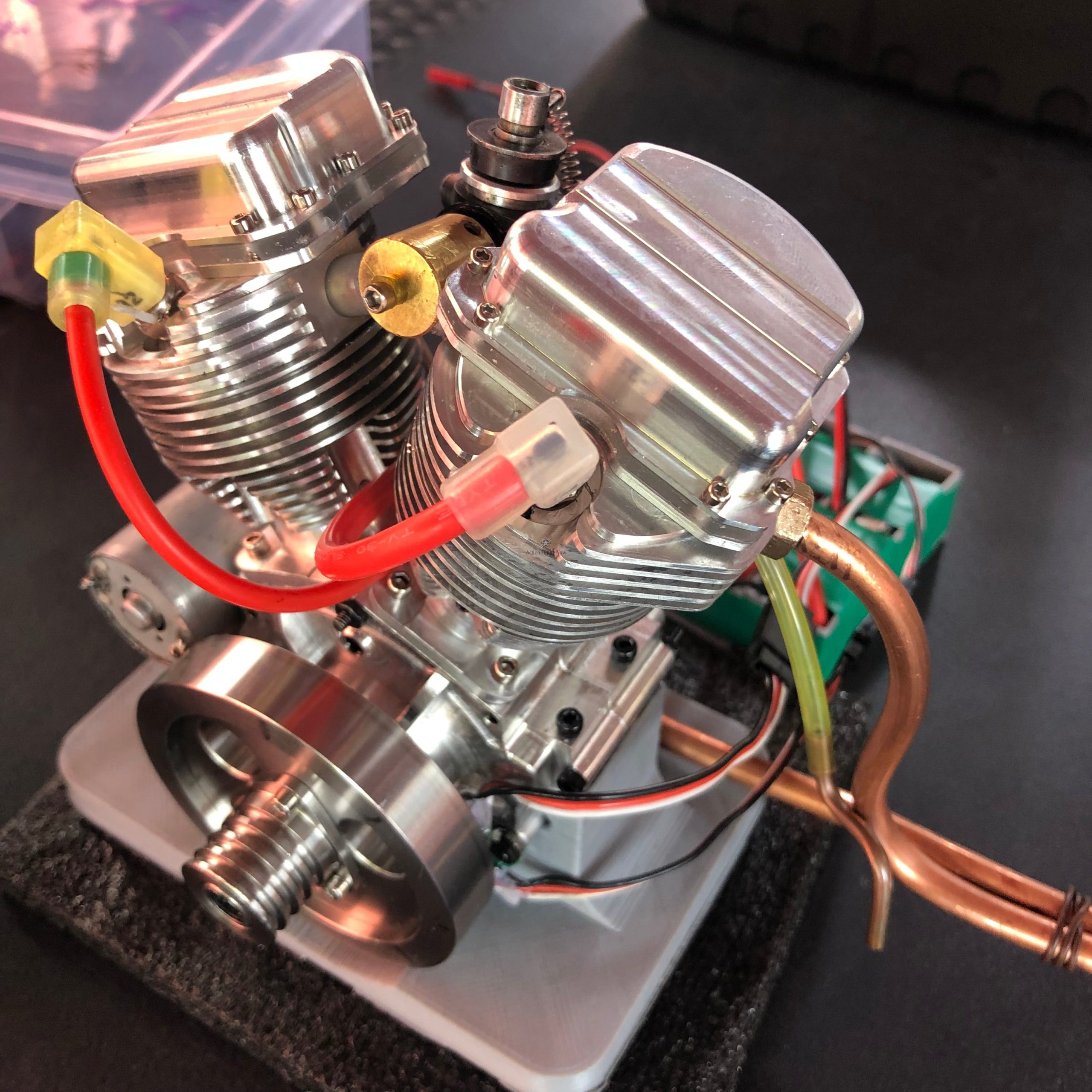

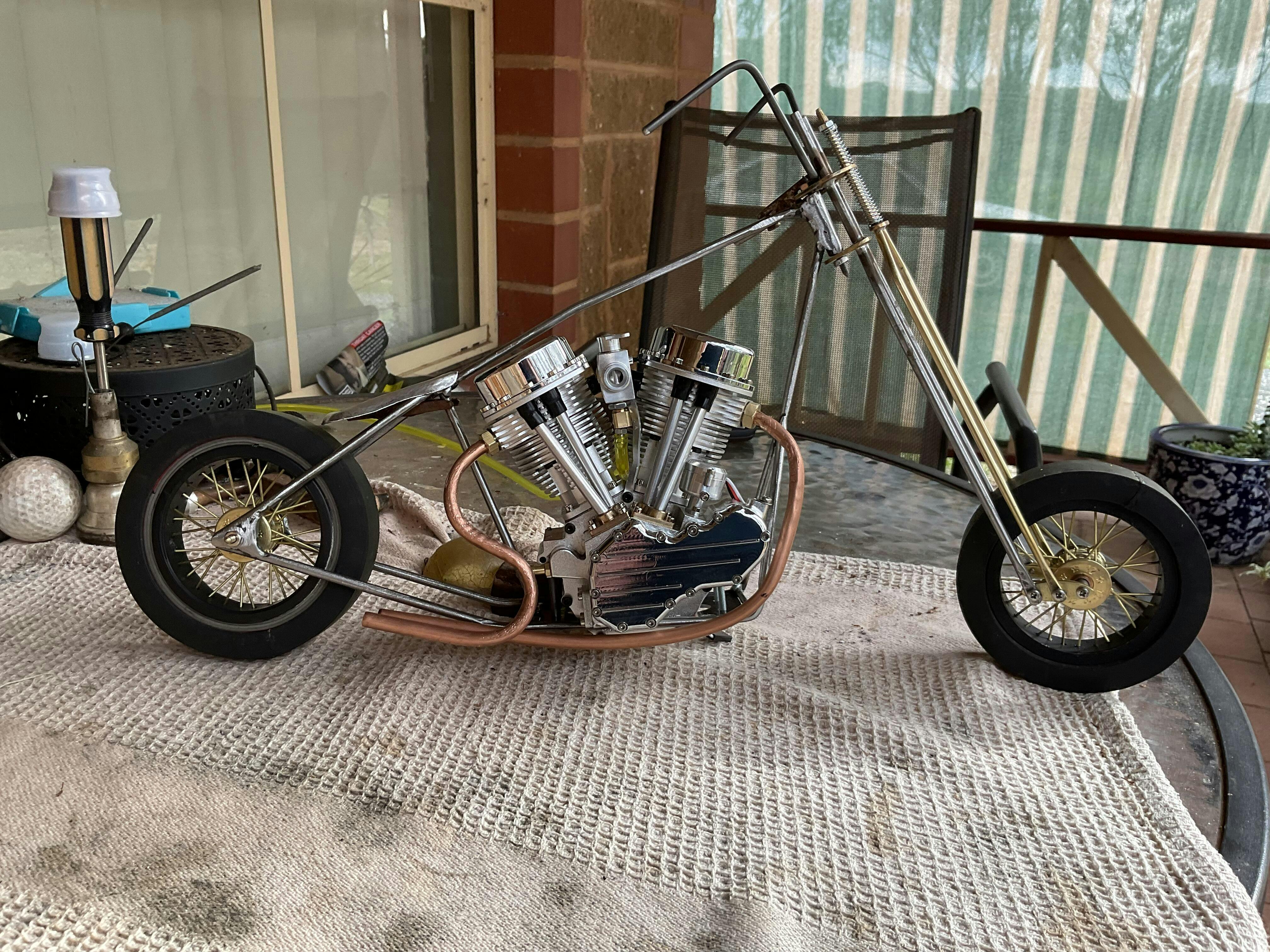

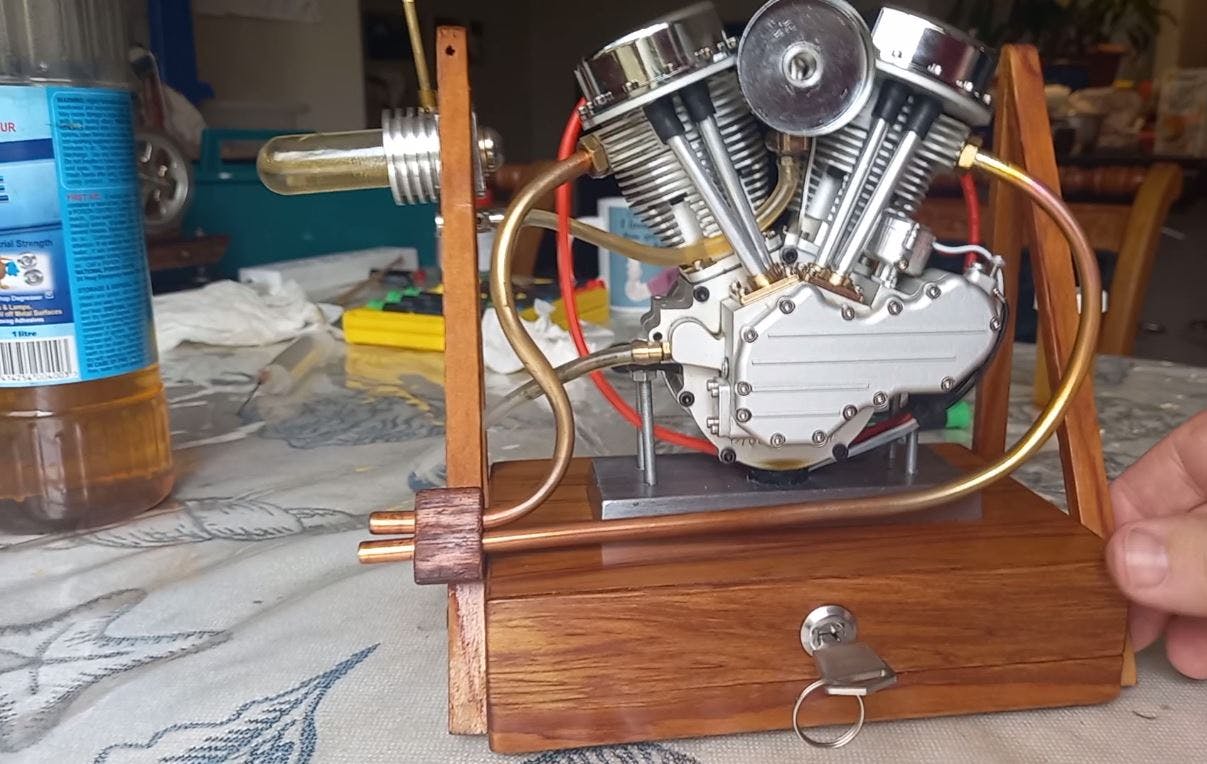

I love it...it's pretty well made (9/10) starts easily with lots of priming and sounds AMAZING. I took time to build adjustable rubber mounts so it twists a little when I rev it. Check out the few cosmetic tweaks - chrome flywheel cover, generator, key ignition. Overall 10/10 MANY THANKS CISON!
It is great really nice and start-up is also very good.

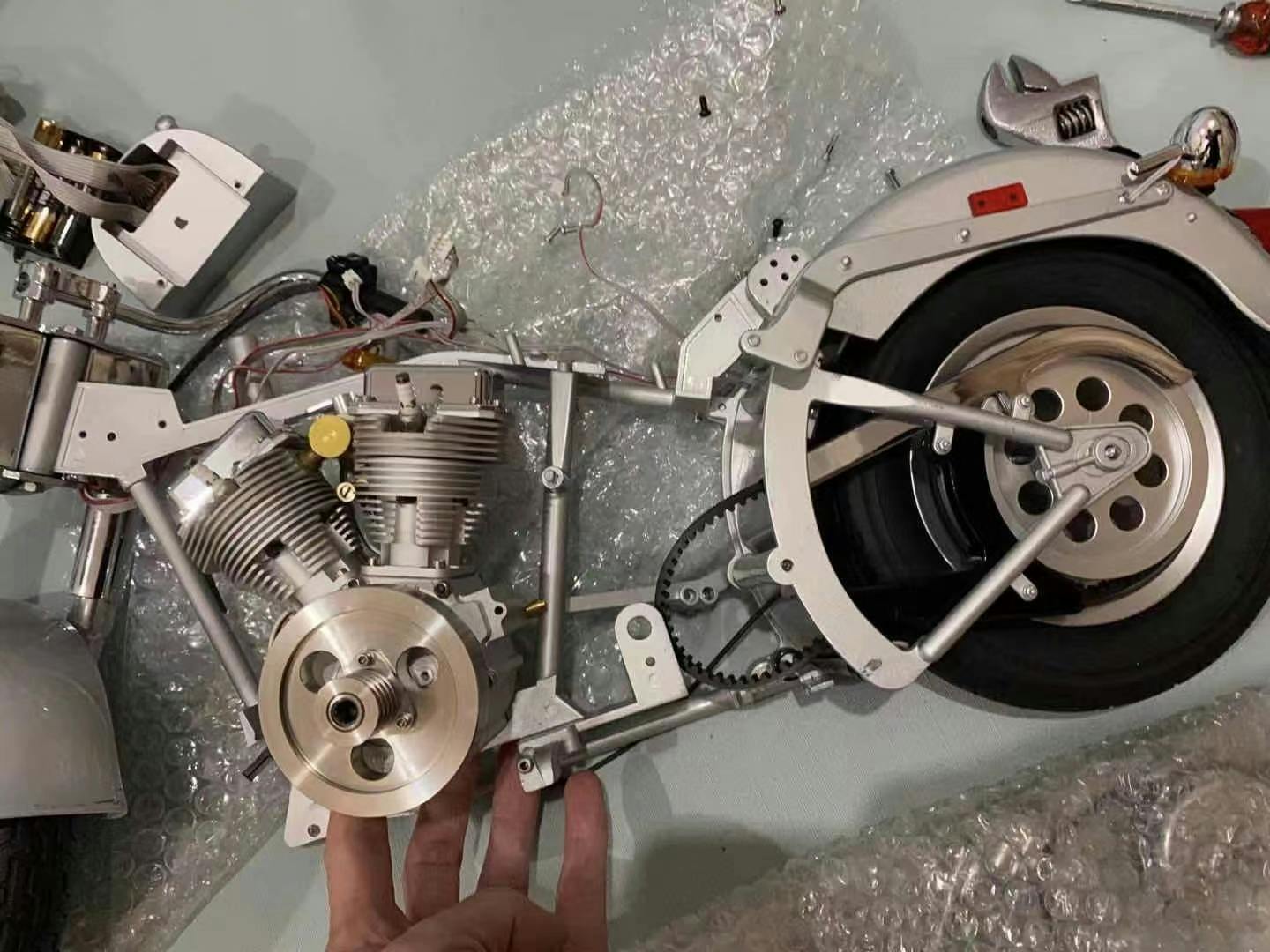

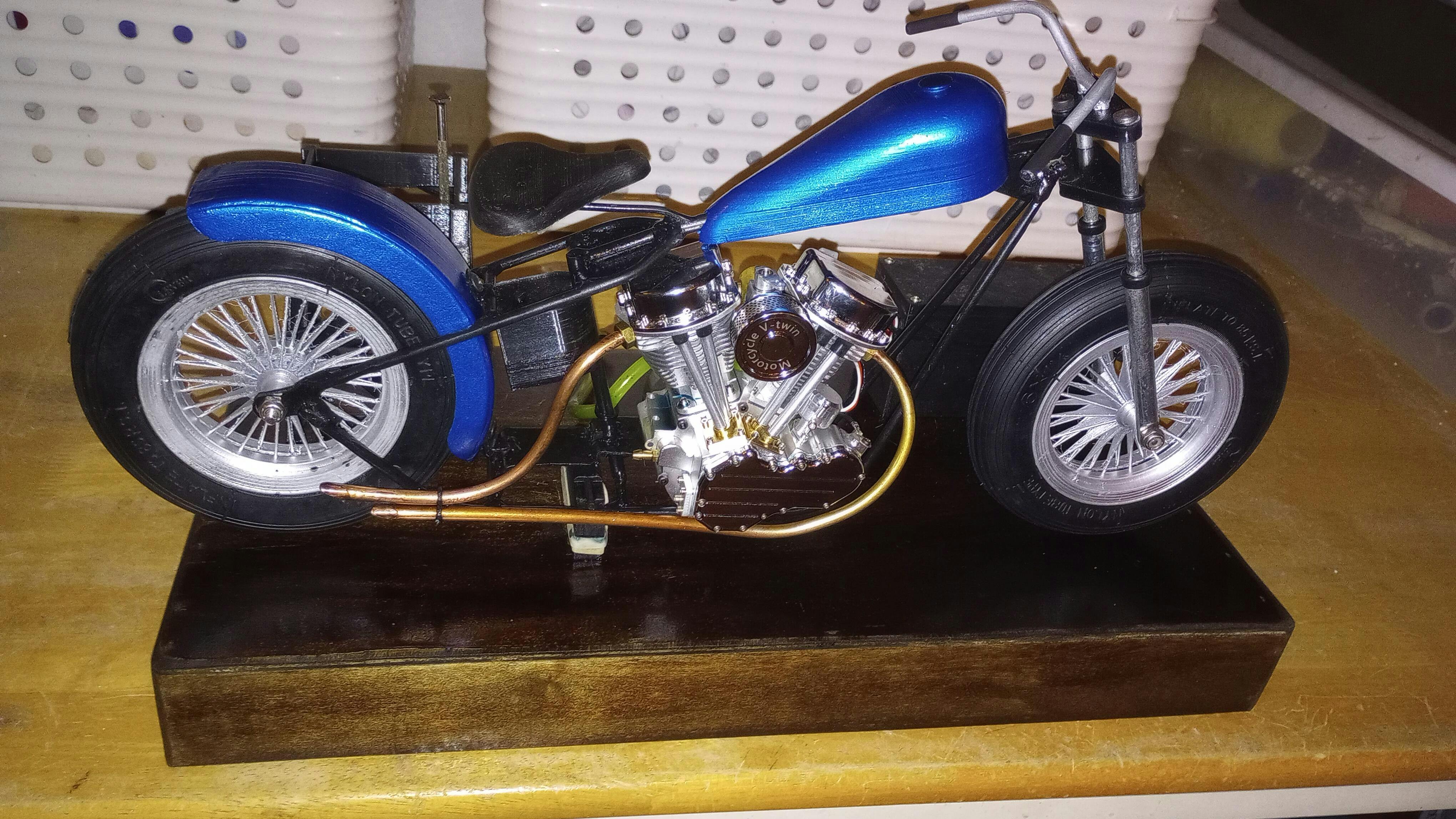

I have modified the V2 engine to a 1/4 scale motorcycle DeAgostini Diego Harley FatBoy
