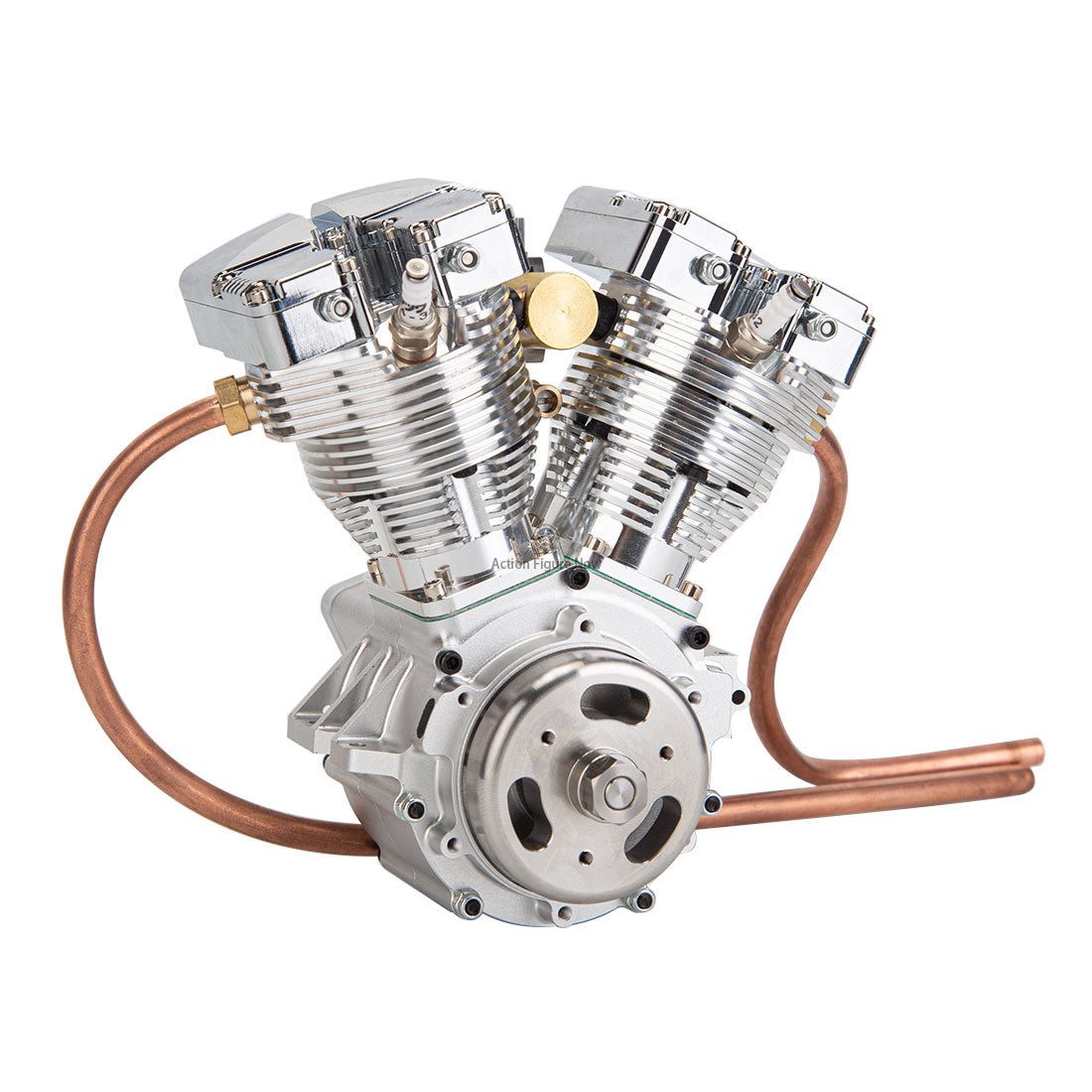

CISON V2 V-Twin Engine Model 4-Stroke Air-Cooled Gasoline RC Engine Model – Panhead & Shovelhead Collection
SKU
€510.59 €1,021.11Price range: €510.59 through €1,021.11
- 🚚 Free Shipping: Available on all products.
- 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

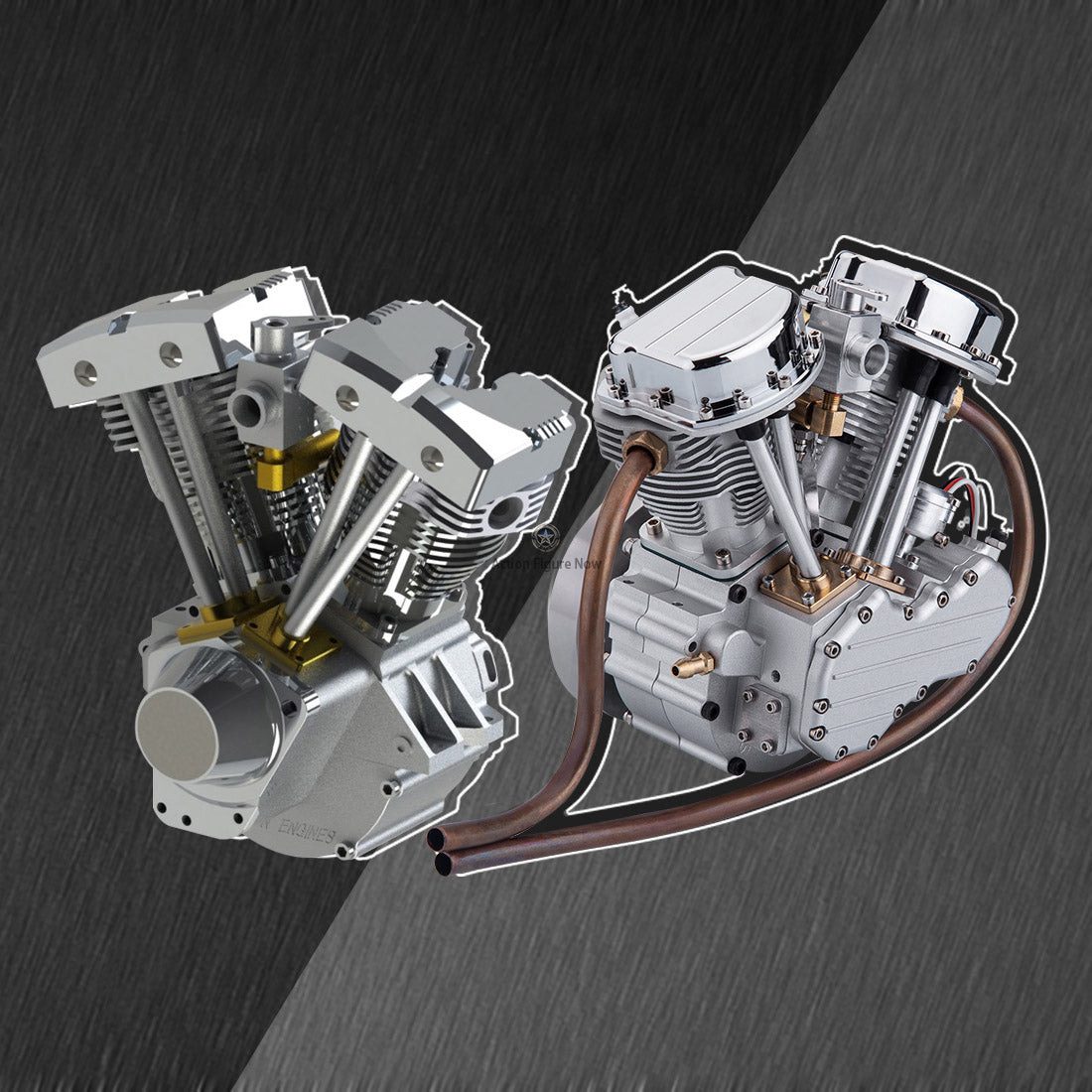

CISON V-twin Engine Collection
– FG-VT9 9cc Panhead V2 Engine
– FG-VT157 15.7cc OHV Shovelhead V2 Engine
ActionFigureNow and Brand CISON are committed to industrial culture and offering high-performance model engines. We specialize in miniature scale model engines for model building. CISON has released 5 engines and is continuously producing more. In 2021, they launched the L100 engine and Panhead V2 engine. In 2022, they released the FL4-175 flathead engine, Shovelhead V Twin engine, and OHV L4 engine.
In September 2021, the first Panhead V2 engine received positive feedback from engine model enthusiasts. In response to suggestions, we launched the Shovelhead V2 engine in November 2022 to enhance the V2 series.
The FG-VT157 V2 engine has similar dimensions and parts as the FG-VT9. However, it also introduces unique design elements:
– Classic and simulated appearance
– Larger piston and cylinder liner
– Spherical combustion chamber
– V-shaped angle valve
– Improved carburetor
Read more: Why Decided to Make This Shovelhead V2 Engine?

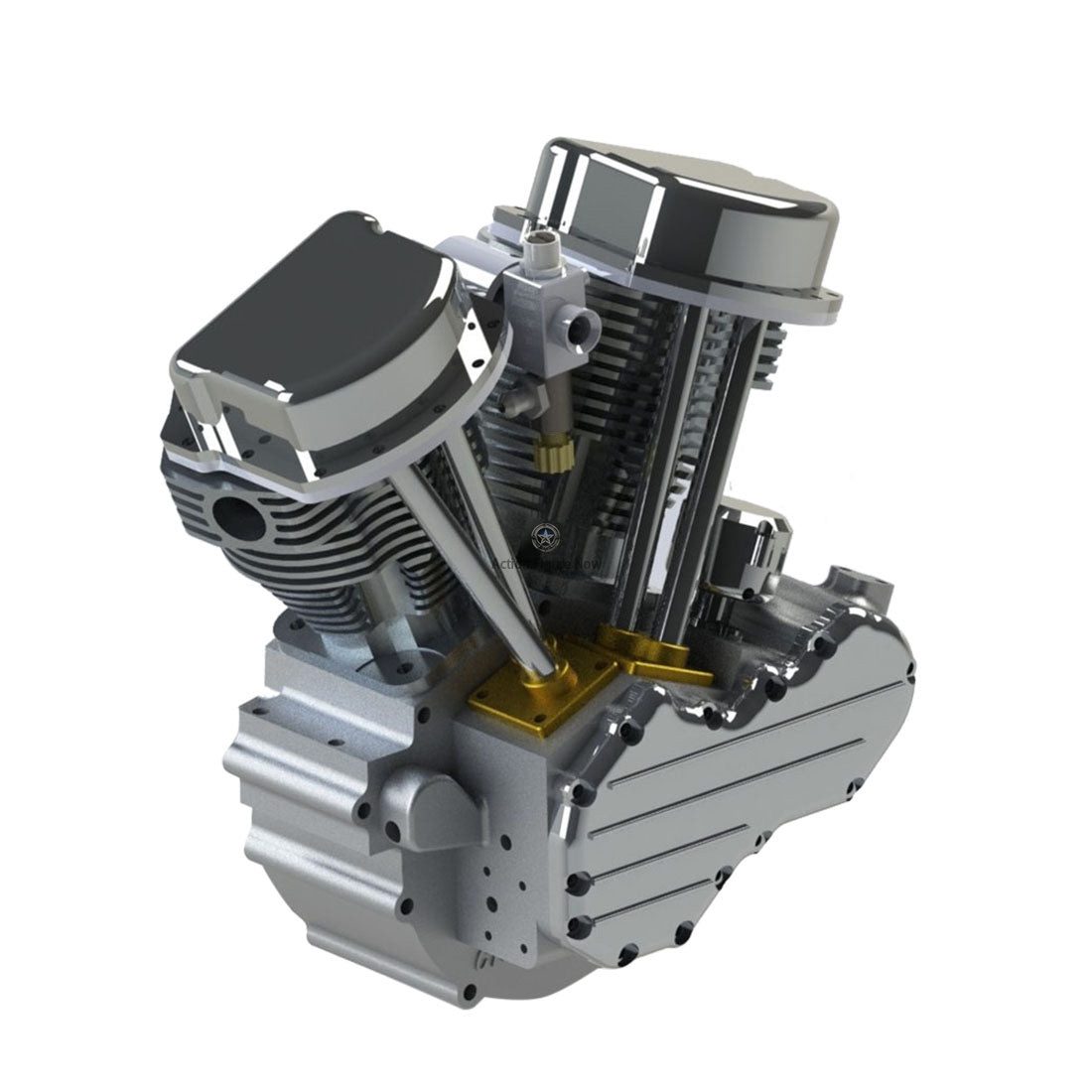

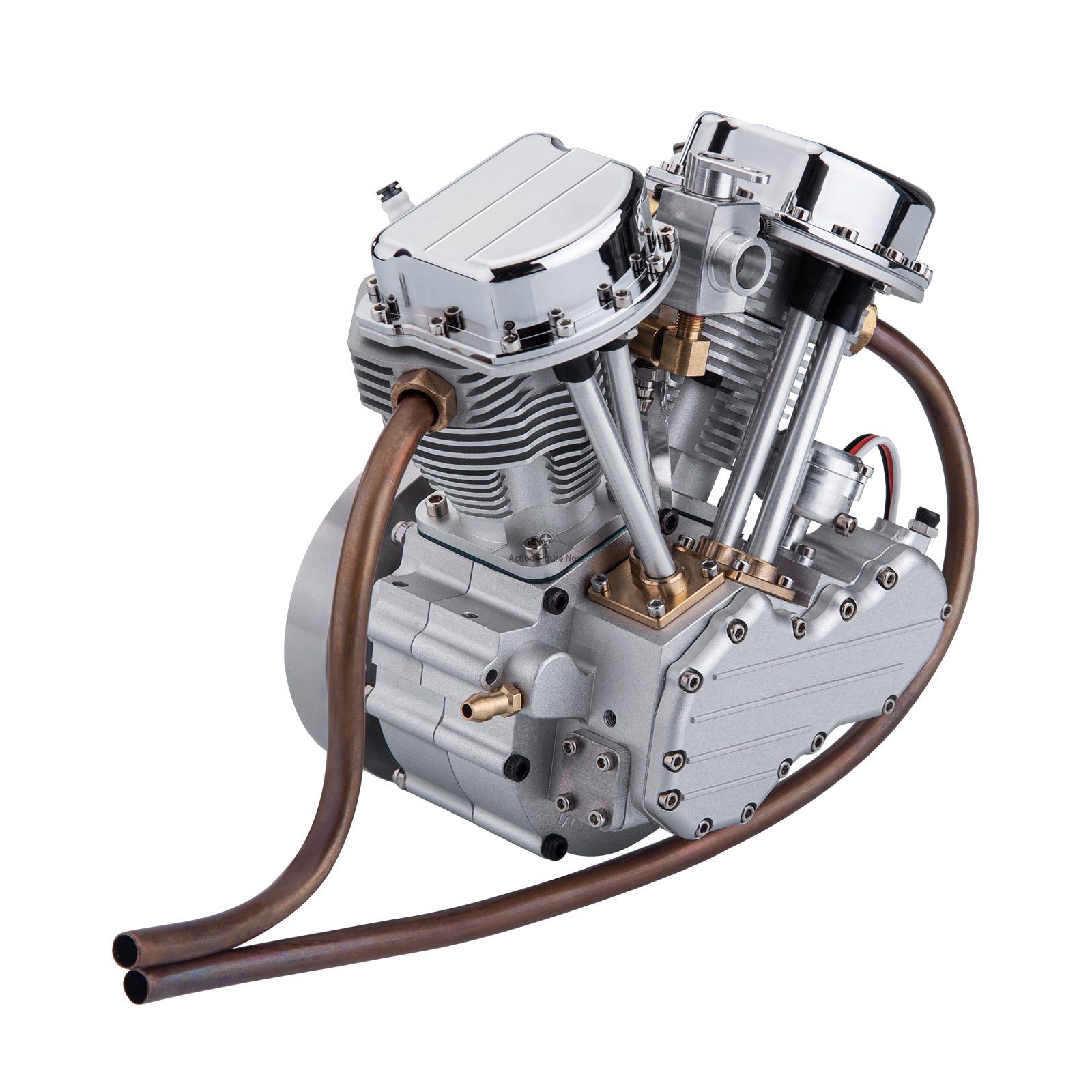

CISON FG-VT9 9cc Panhead V2 Engine
Specifications:
– Material: Metal
– Brand: CISON
– Model: FG-9VT
– Type: V-type dual cylinder four-stroke gasoline engine
– Cylinder arrangement: V-type twin-cylinder
– Stroke: 4 strokes
– Displacement: 9(4.52)cc
– Bore: 16.67mm
– Stroke: 21mm
– Angle: 45°
– Speed: 2000-8000rpm (Idle Speed Minimum: 1350rpm)
– Power: 0.8ps
– Starting power: 2S-3S lithium battery
– Cooling method: Air cooled
– Starting method: Electric drill start
– Fuel: Gasoline (mixed lubrication 25:1)
– Weight: 1500g
– Dimensions: 20 x 20 x 25cm

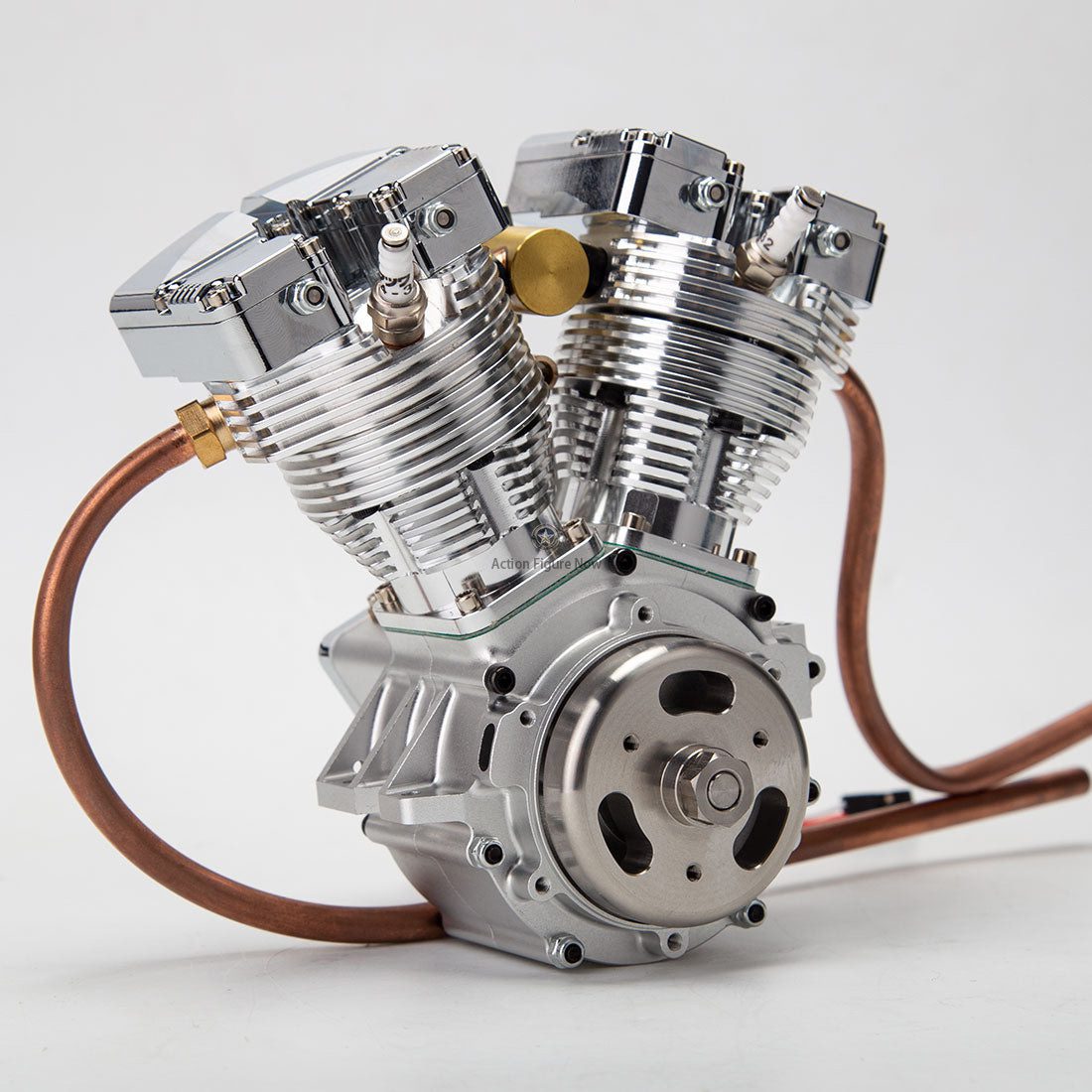

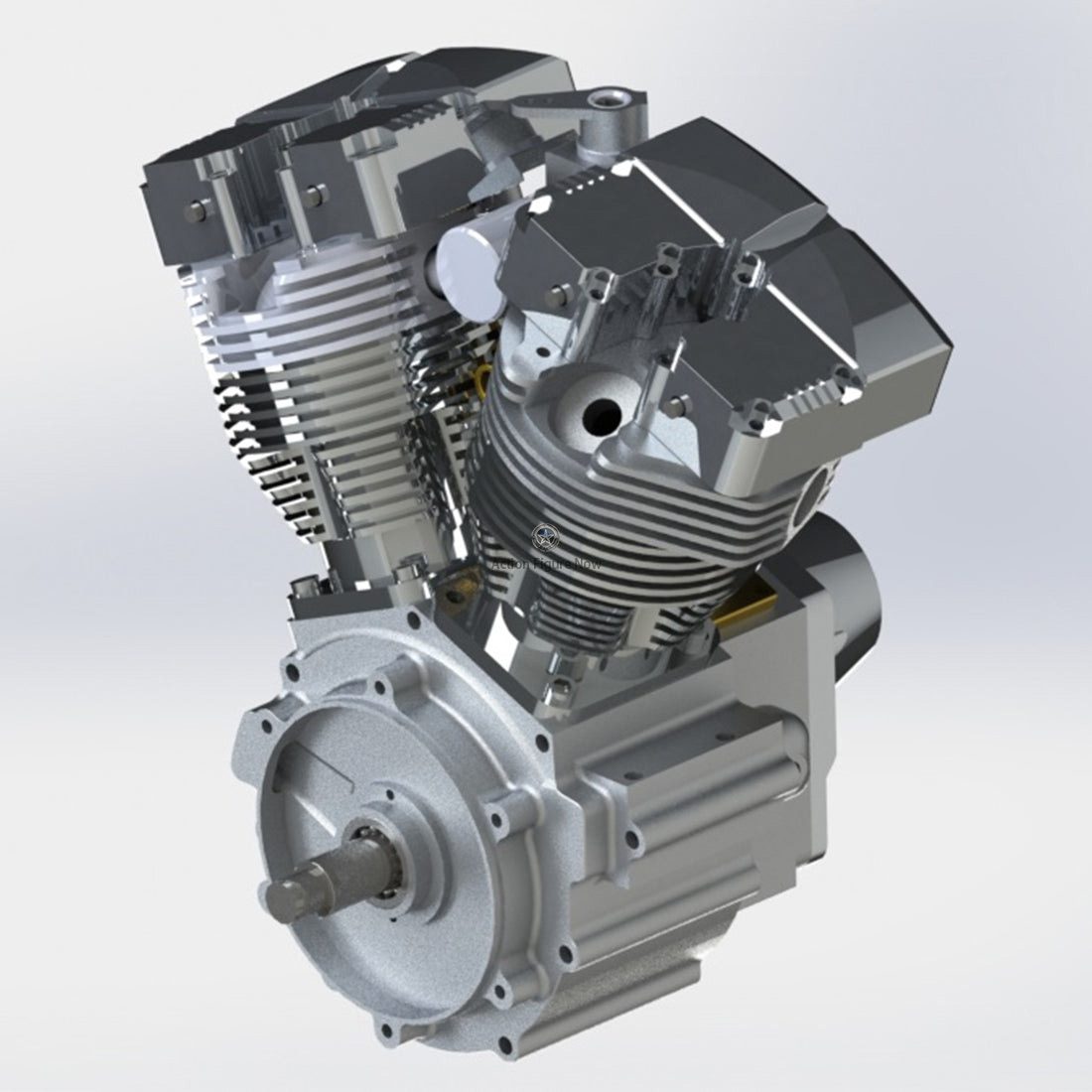

CISON FG-VT157 15.7cc OHV Shovelhead V2 Engine
Specifications:
– Material: Metal
– Brand: CISON
– Item No: FG-VT157
– Form: Ready to Run
– Type: Gasoline Engine
– Valve Mechanism: OHV
– Displacement: 15.7cc
– Cylinder: V-Twin
– Stroke: Four Strokes
– Cylinder Diameter: 20mm
– Stroke: 25mm
– Angle: 45°
– Speed: 1500-8000 rpm
– Power: 0.8 ps
– Cooling Mode: Air Cooling
– Lubrication Method: Mix Lubrication (Gasoline/Engine Oil =30/1)
– Starting Mode: Electronic Drill Starting
– Ignition Method: CDI Igniter (Included)
– Spark Plug Type: 1/4-32 Thread ME8 Spark Plug (Including 2)
– Starting Power: 6-7.4V Battery (Not Included)
– Fuel Type: 92 Gasoline and Above
– Engine Oil Type: 2T Engine Oil
– Dimensions: 10.5 x 6.5 x 12.1cm
– Weight: 1500g
