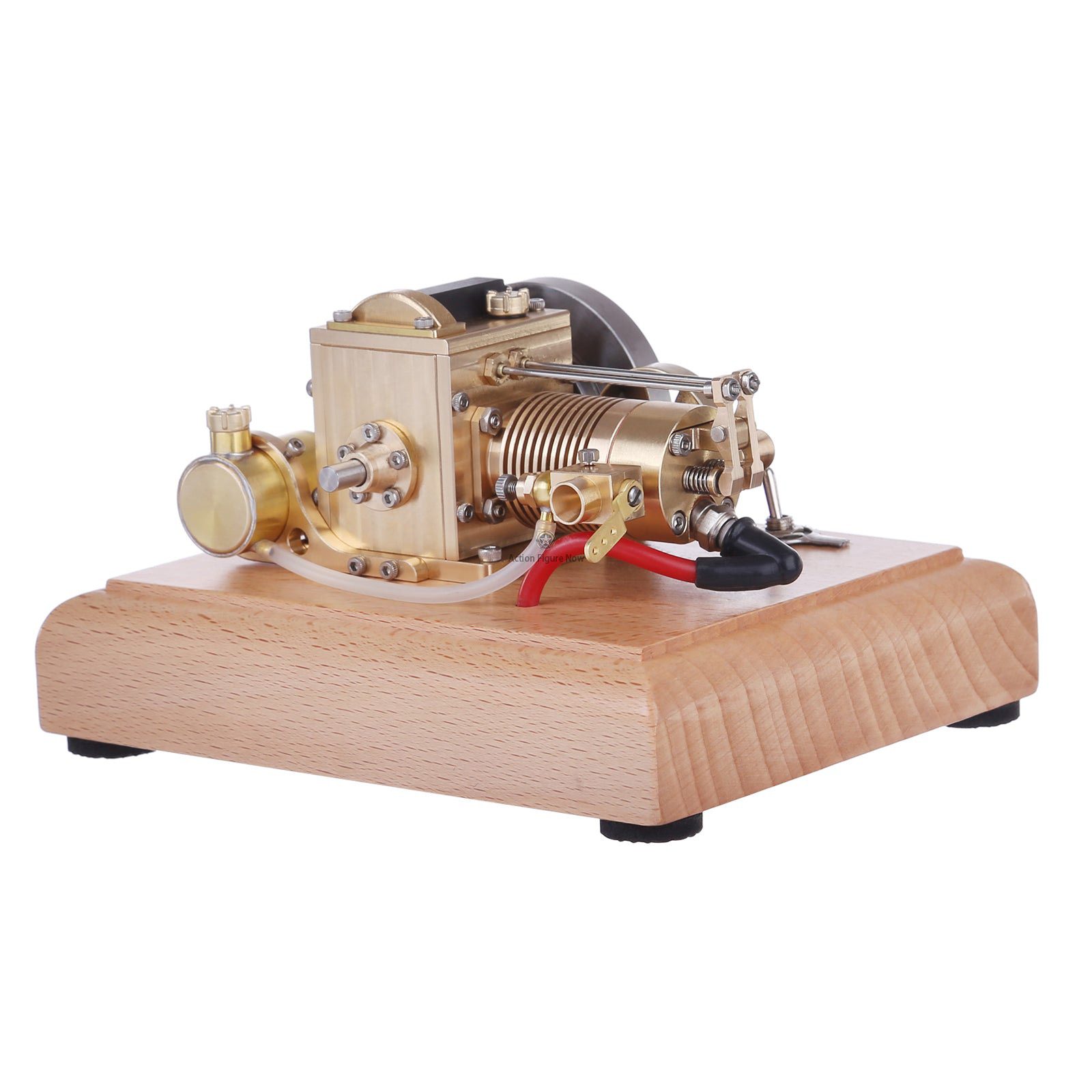

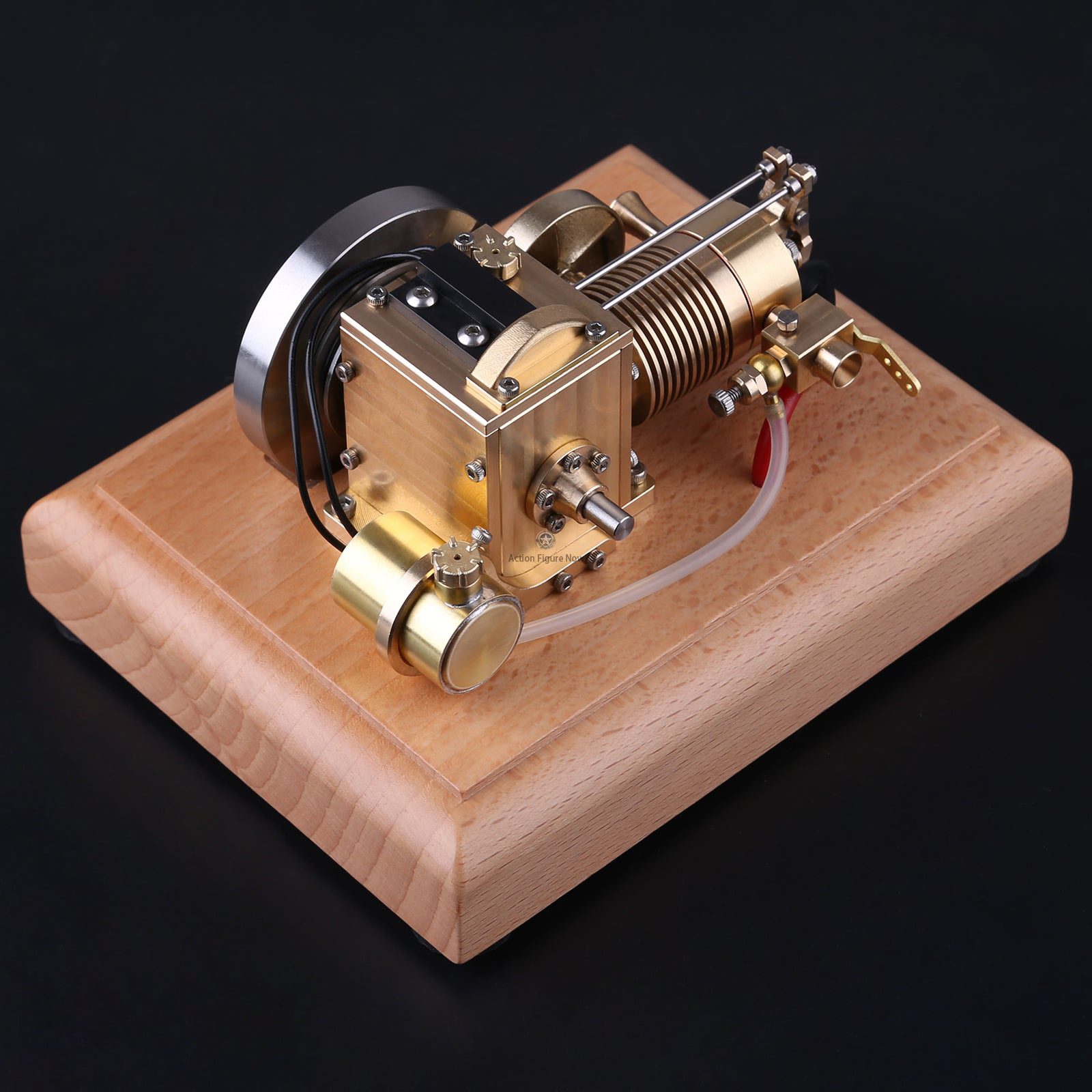

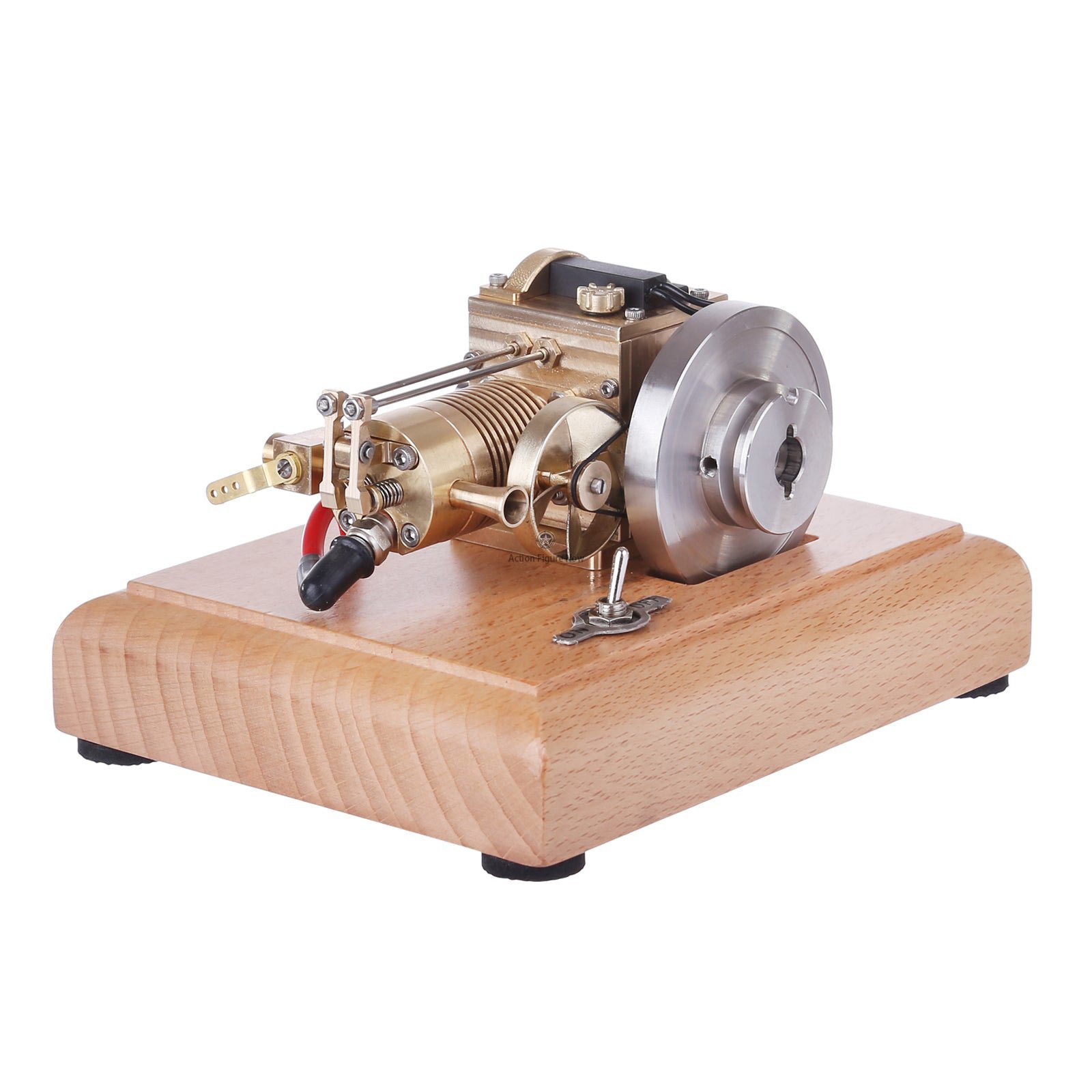

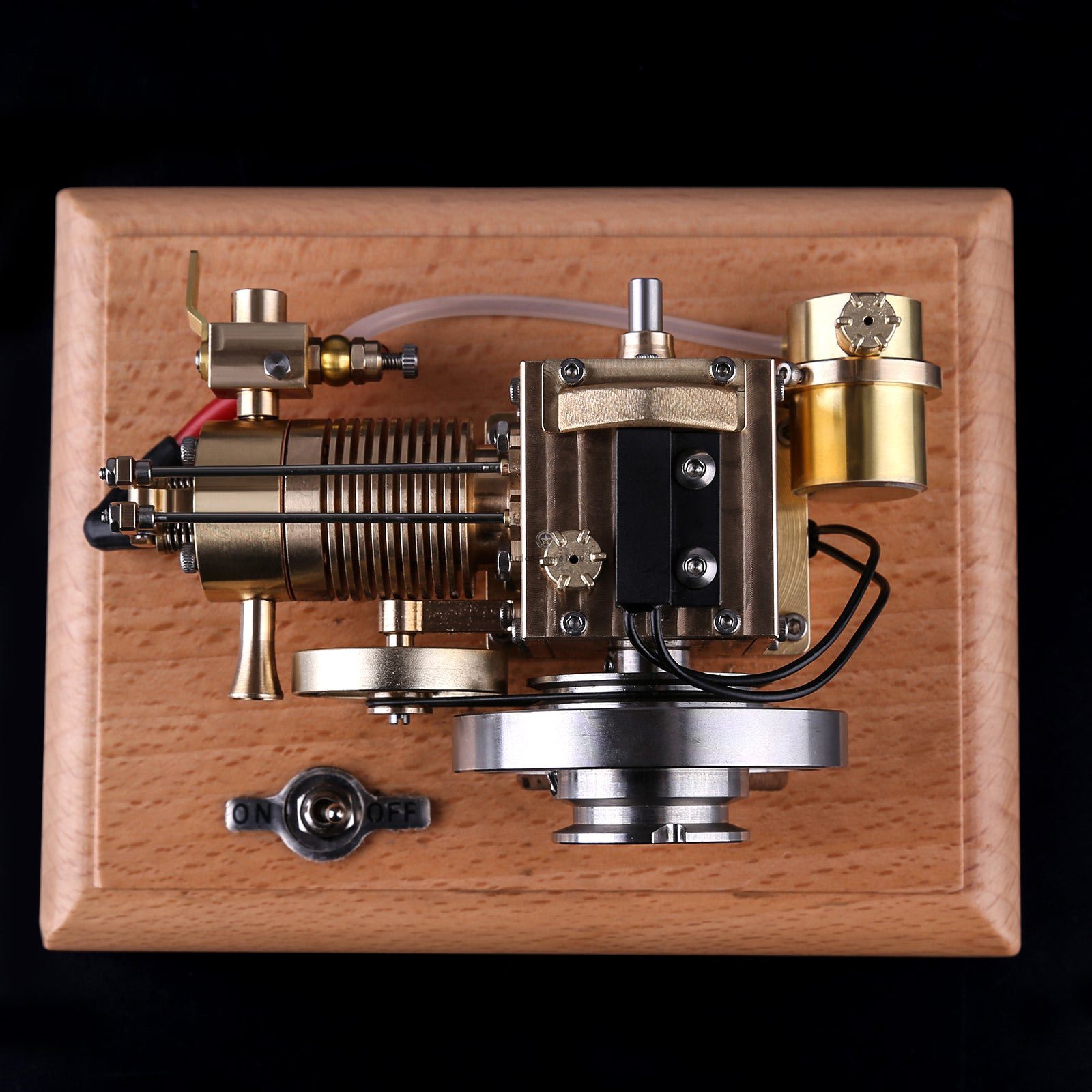

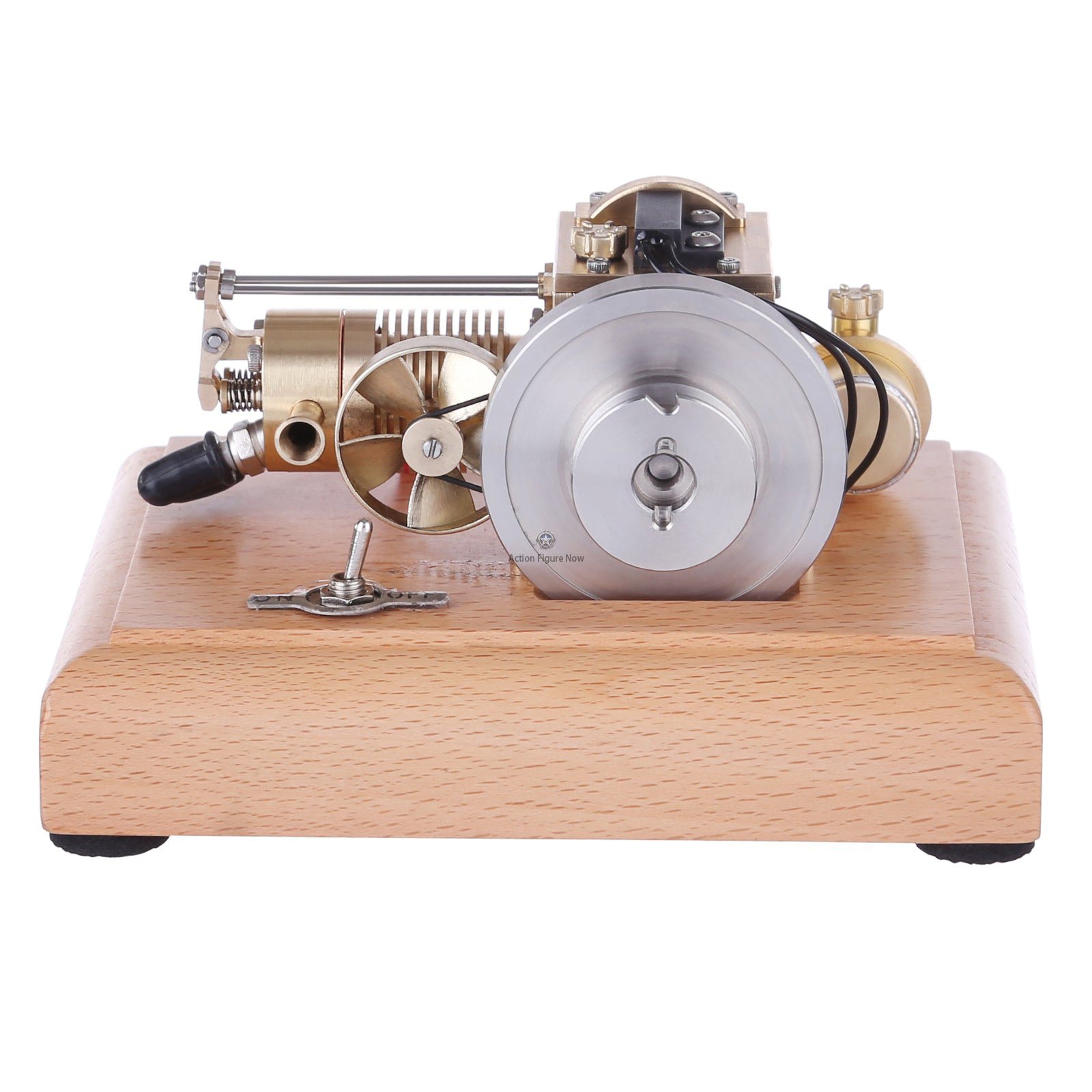

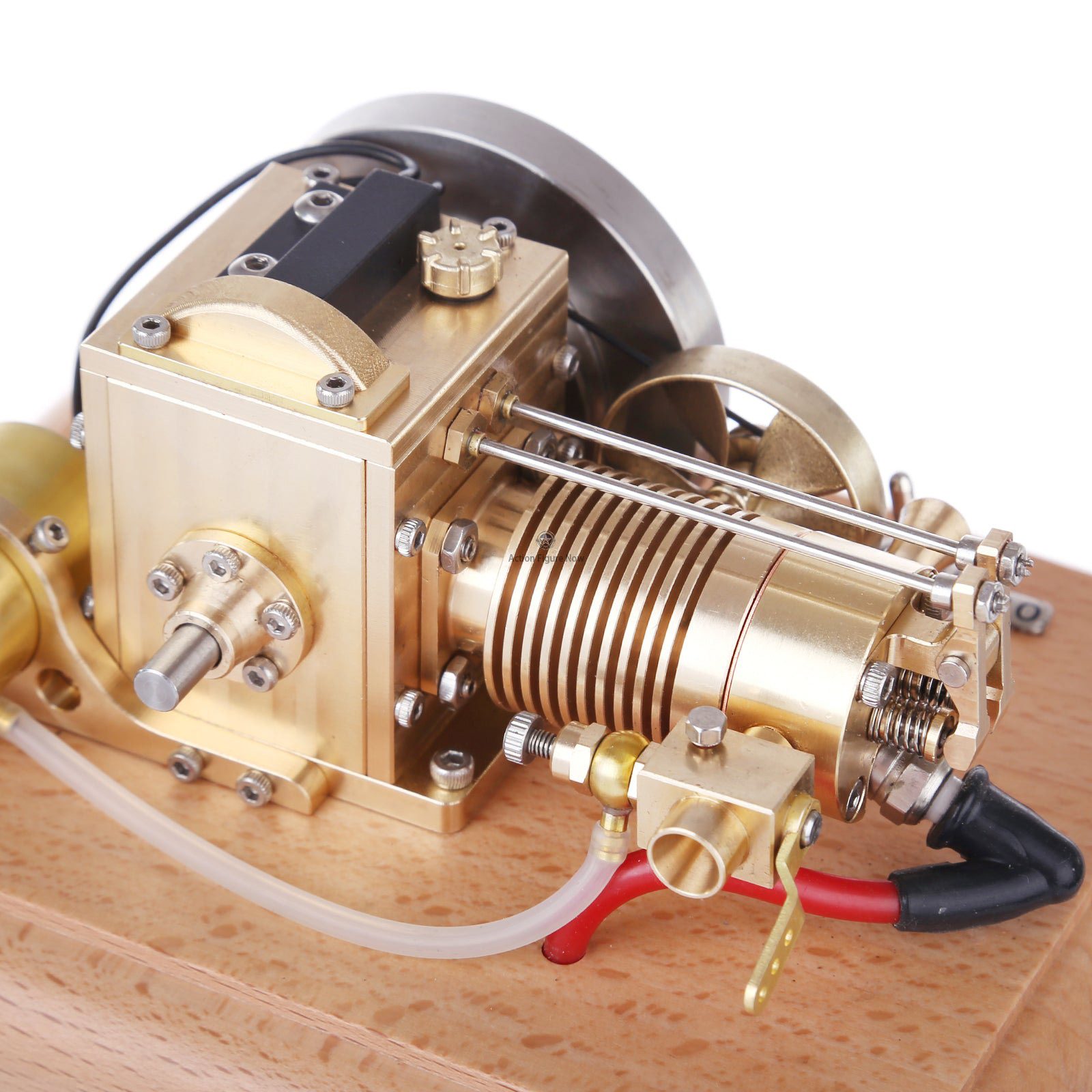

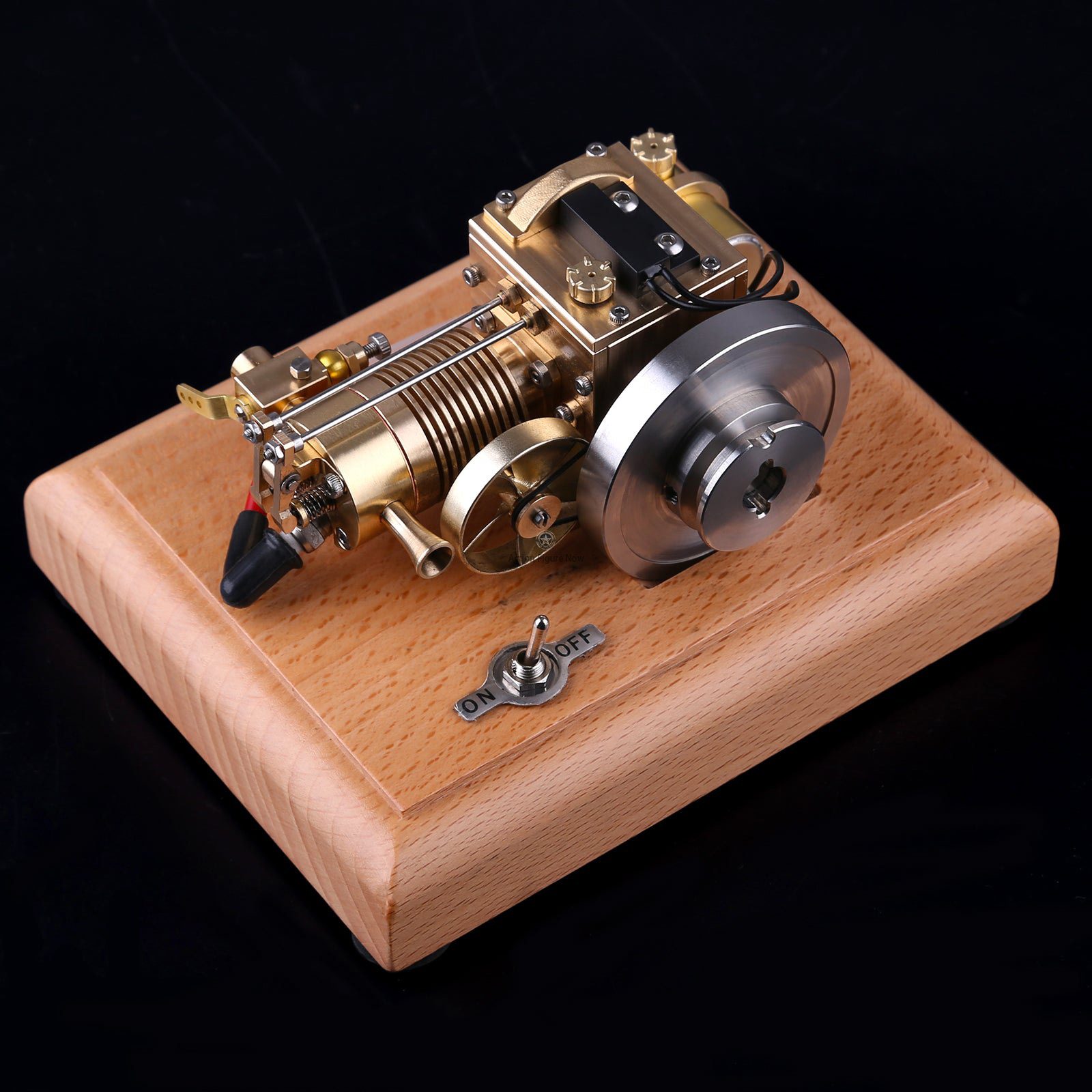

M16B 1.6cc Mini 4-Stroke Gas Engine Model, Horizontal Air-Cooled, Single Cylinder Internal Combustion Engine with Wooden Base

Description

1.6cc Mini Horizontal Air-cooled Single-cylinder Four-stroke Gasoline Internal Combustion Engine with Wooden Base

Features:

• Miniature engine with air-cooled structure and adjustable-speed carburetor.
• Constructed from durable brass and stainless steel for precision and elegance.
• Stable and reliable structure with a convenient wooden base for operation.
• Antique and sophisticated engine model for enthusiasts.

Engine Start Steps:

1. Connect engine wiring, tank tubing, and insert 3 AA batteries (4.5V).
2. Fill tank with 95 gasoline and rotate flywheel clockwise to fuel the cylinder.
3. Turn on power switch and quickly turn flywheel clockwise to start the engine.

Notes:

• Adjust carburetor needle if ignition and compression are present but starting is difficult.
• Loosen main fuel pin 1/4 turn after tightening to achieve optimal fuel mixture ratio.
• Turn off power switch when the machine stops running.

Specifications:

• Color: As shown
• Material: Brass + Stainless Steel + Wood
• Displacement: 1.6cc
• Cylinder Diameter: 13mm
• Flywheel Diameter: 56mm
• Tank Capacity: 8ML

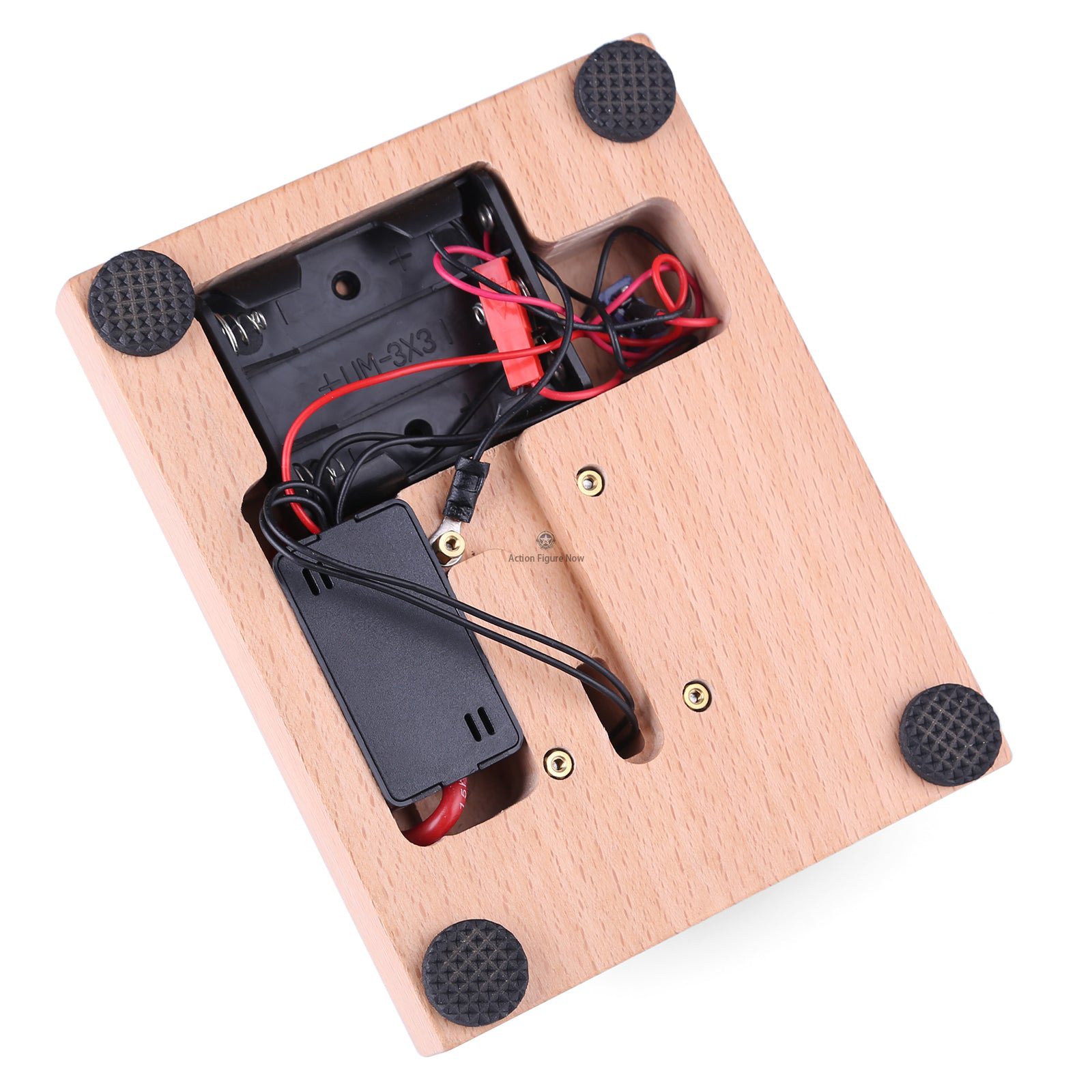

• Ignition Device Voltage: 4.5V (3 AA batteries, not included)

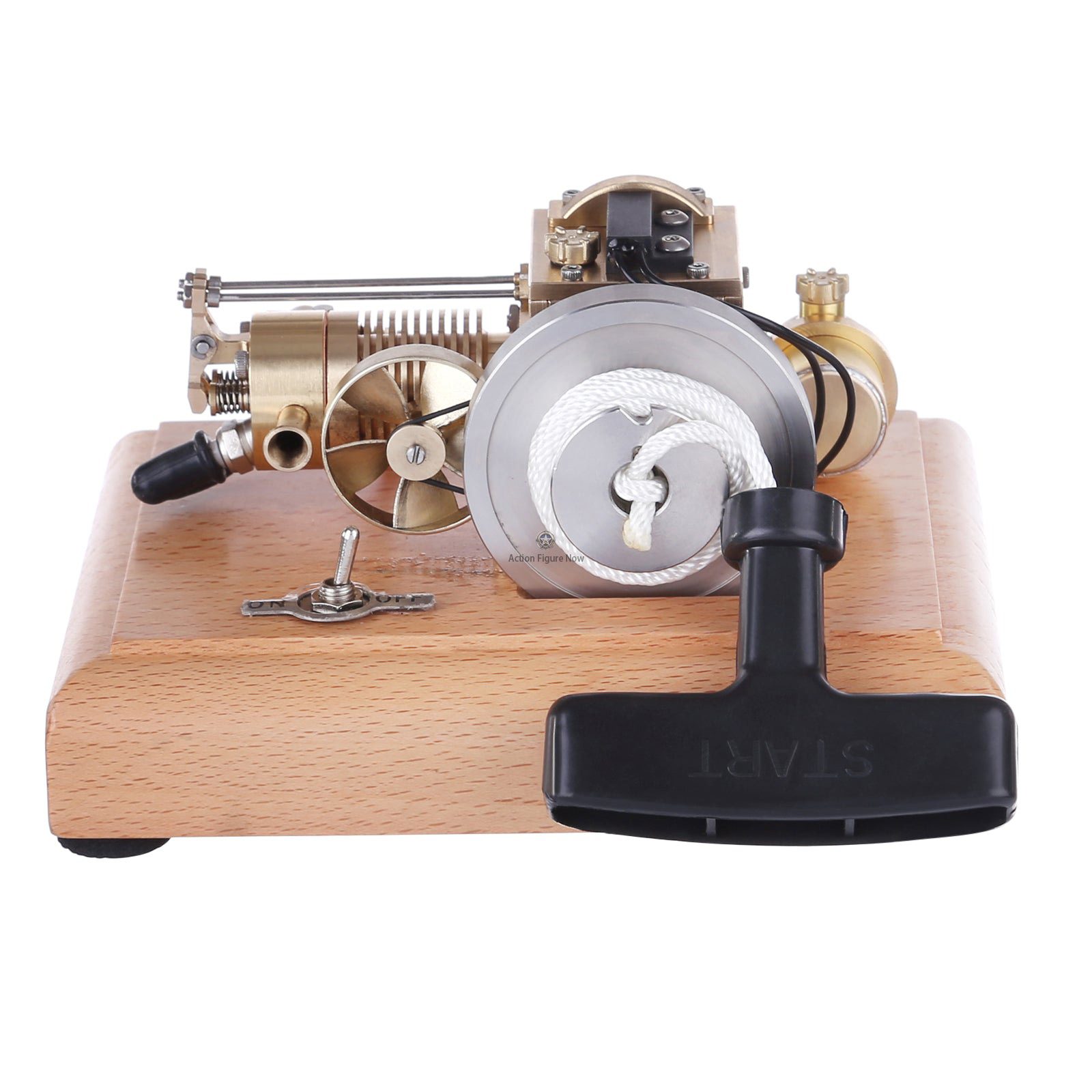

• Start Mode: External Force (electric drill) or Hand Pull Start
• Fuel: Gasoline or Aviation Kerosene

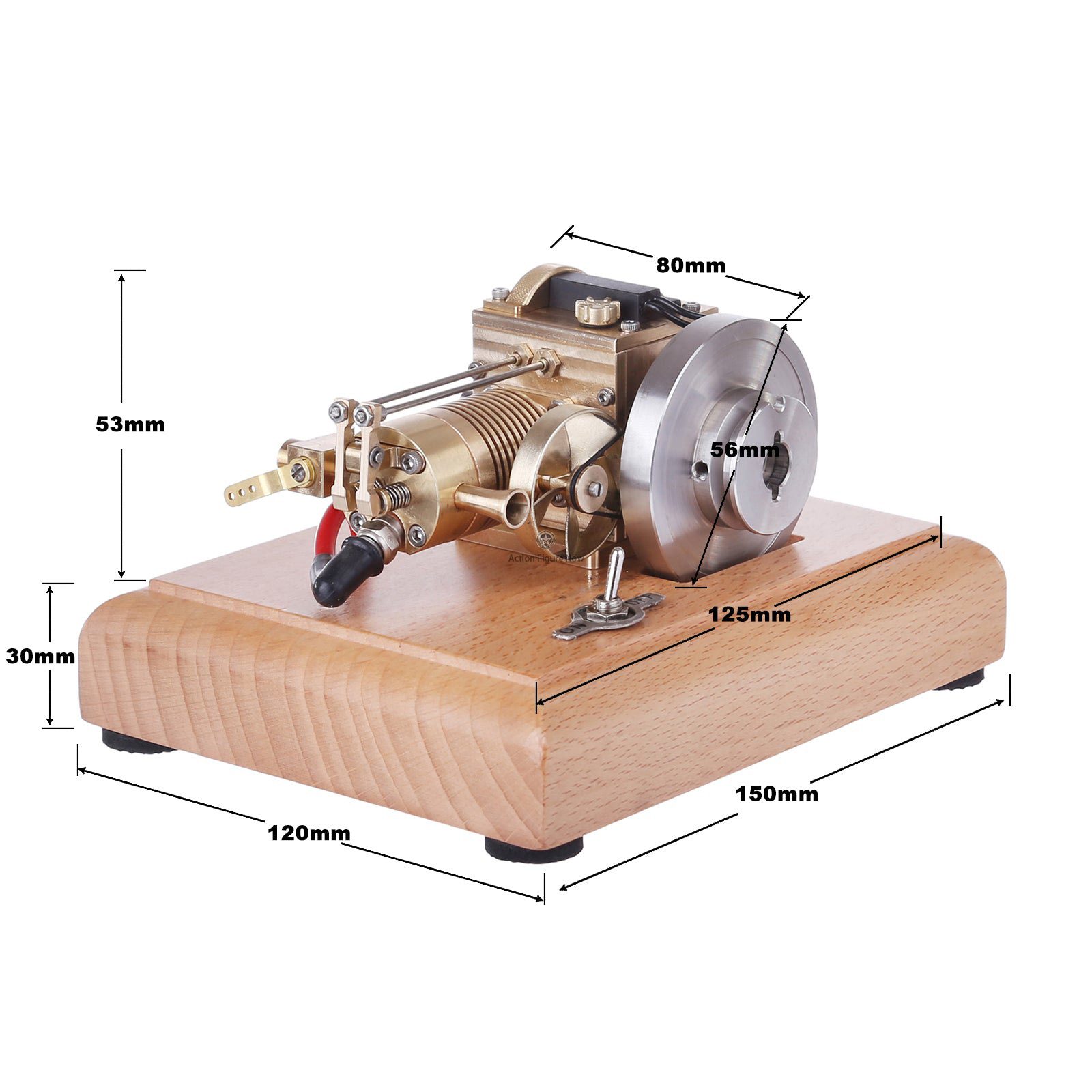

• Overall Size: 150 x 120 x 83mm
• Engine Size: 125 x 80 x 53mm
• Base Size: 150 x 120 x 30mm
• Product Weight: 980g
• Package Dimensions: 20 x 20 x 20cm
• Package Weight: 1500g

Package Includes:

• 1 x Engine Model
• 1 x Puller
• 1 x User Guide
