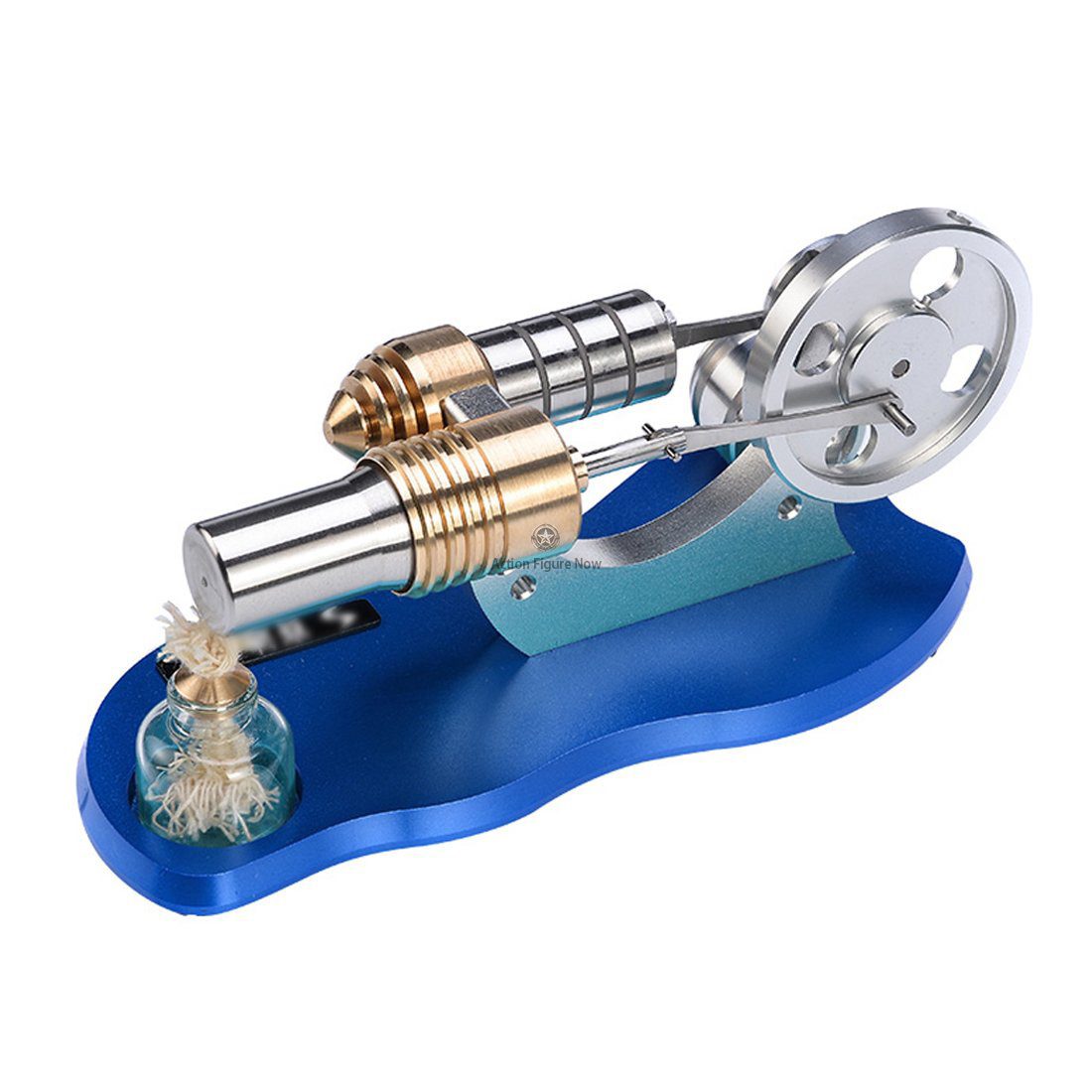

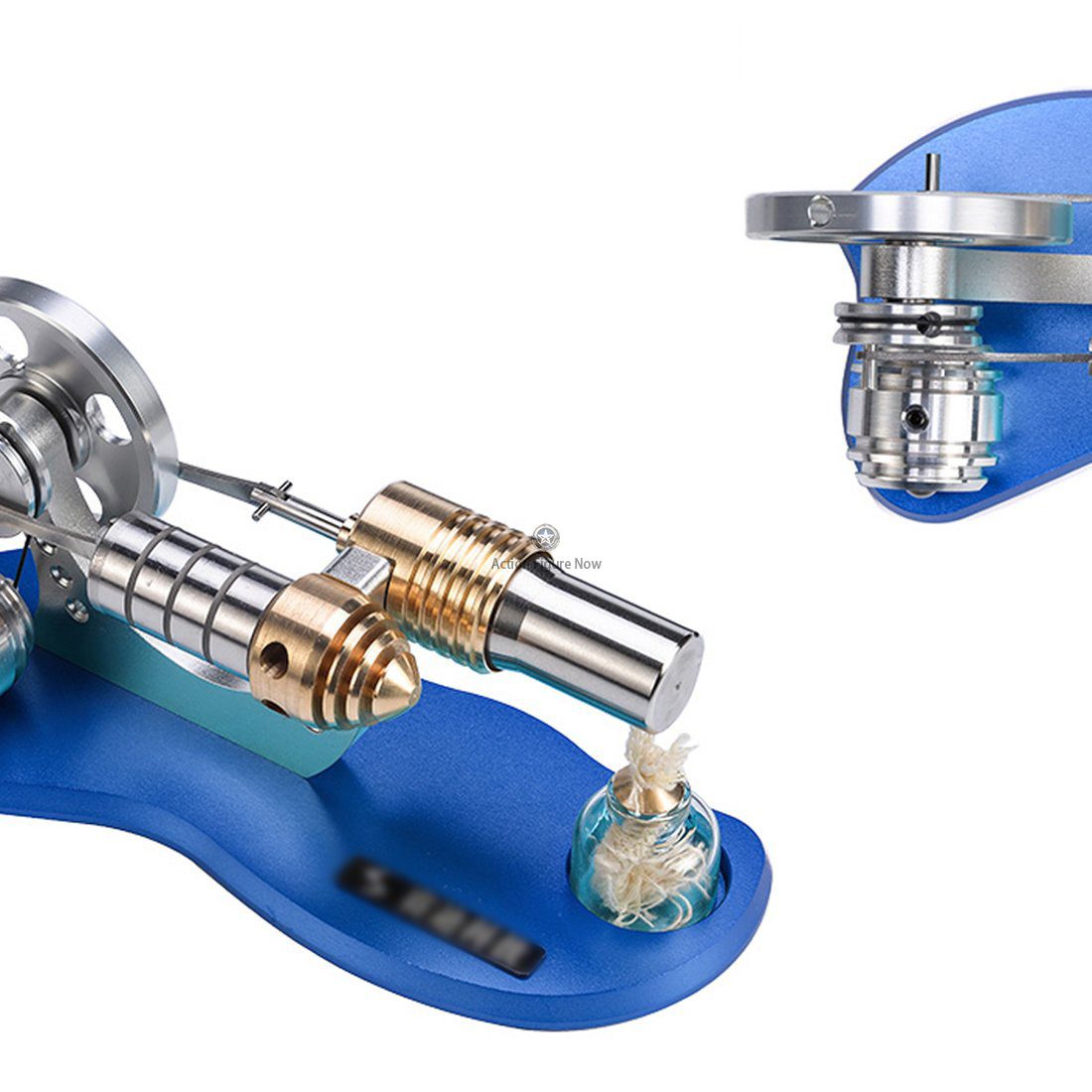

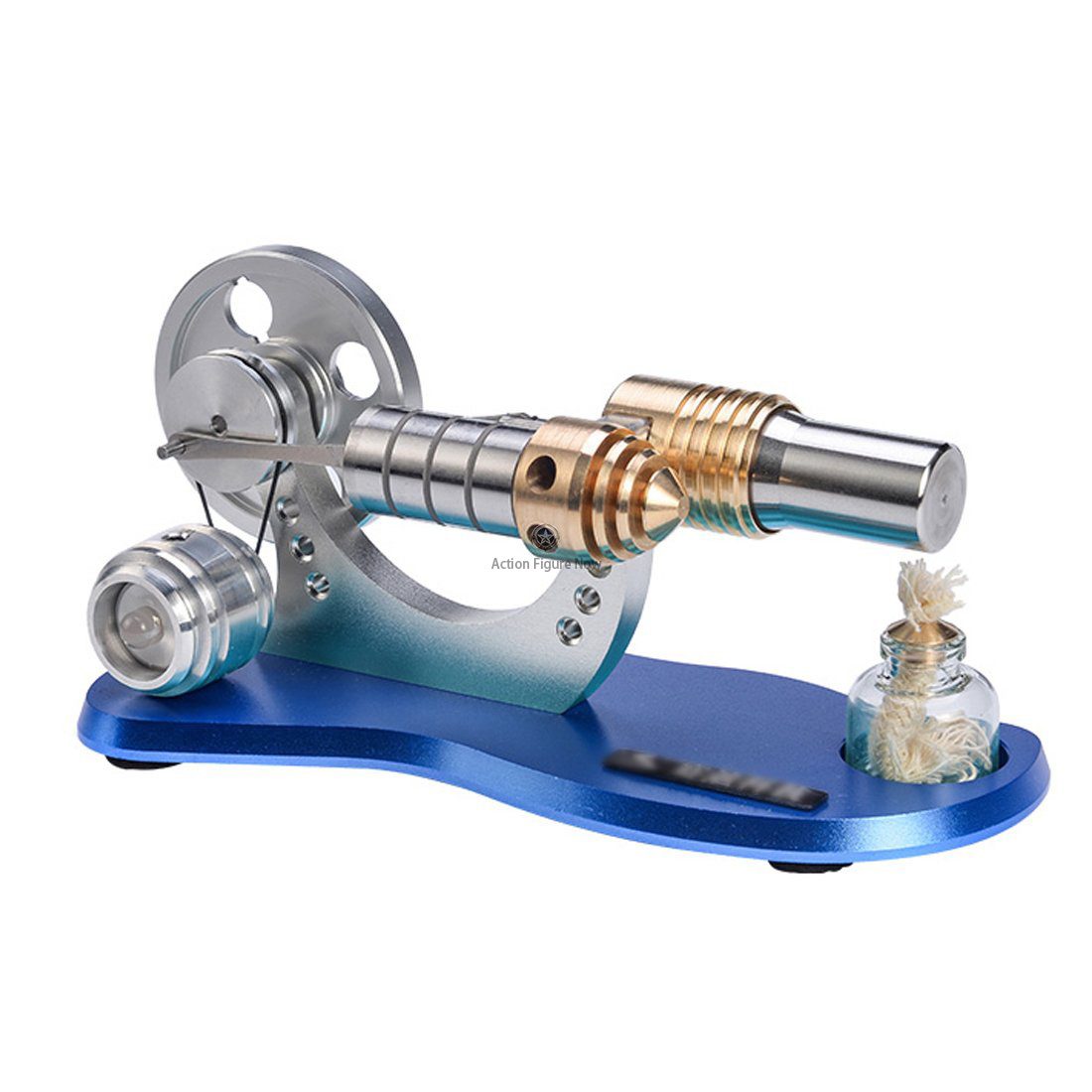

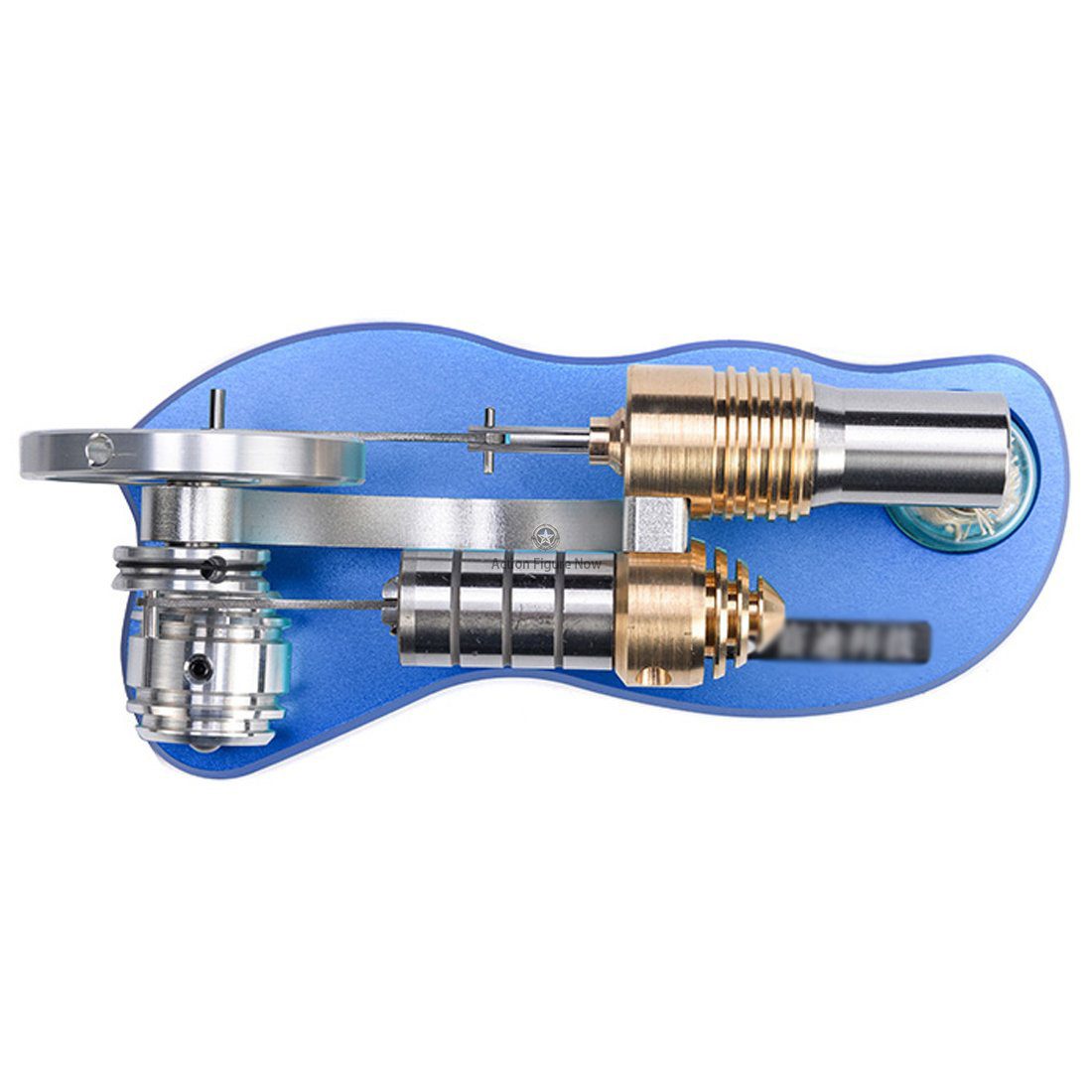

Stirling Engine Kit Metal Stirling Engine Electricity Generator Model with Alcohol Burner Education Toy

Stirling Engine Generator Model is an interesting model toy that uses the heat from an alcohol lamp to generate electricity. This electricity will light up the LED light to emit different colors.

Features:

1. STIRLING ENGINE GENERATOR WITH ATTRACTIVE COLORFUL LED —– The Stirling engine model’s power generation voltage is 4-9v and matches a colorful LED light. The flywheel rotating faster will make the generator’s LED lights flicker wildly. When the machine works, it will be very shocking and attract eyeballs.
2. EXTREMELY WELL-MADE—- The base, bracket, and 2 flywheels are made of 6061 aluminum alloy (high strength, weldability, and corrosion resistance); the power cylinder and power piston are SUJ2 material’s fine grinding surface of special treatment, with high hardness, no wear high-speed ultra-long-running; axle joints connected with very high precision miniature bearings, stability without lubrication; the power and heat cylinder is made of brass and 304 stainless steel, with a long service life.
3. EASY OPERATION & LONG LASTING—- Fill the alcohol burner with 95% alcohol (recommended fuel) and light it. Let the light burn the round-ended cylinder for about 20 seconds, then give the wheel a gentle push, and it will run like a charm. According to one customer’s test, it can run for 8+ hours continuously without breaking.
4. PRIORITY GIFT OPTION FOR MANY APPLICATIONS—- It is an amazing and fantastic product at this price. Its elegant gift package makes it spruce up and presentable. It has a wide range of applications, such as a great gift for kids’ science projects, physical/mechanical learning, teacher’s demo props in class, birthday gifts for friends, families, parents, kids, etc. Many of our customers come from schools, colleagues, etc.

Instructions:

1. By hand, toggle the flywheel in a horizontal position to see if it is smooth. If there is a strong sense of raw astringent, check if the connecting rod is normal, whether the cylinder has oil or dust, and if so, please use toilet paper to erase it. Not smooth. Toggle the flywheel to feel pressure rebound within the cylinder body is a normal phenomenon, and the cylinder is sealed.
2. Please go to the pharmacy to buy 95% purity alcohol; anhydrous industrial alcohol is better. Fill the alcohol lamp to less than two-thirds.
3. Light the alcohol lamp about 20 seconds before the flywheel starts to operate. During the heating process, do not touch it with your hands.

Tips:

1. After use, please let the engine cool naturally. Don’t touch the alcohol burner, heated tube, or metal to avoid scalding.
2. 95% alcohol (self-prepared) should be used in the operation. Water, kerosene, gasoline, lighter oil, and liquor should not be added.
3. The Stirling engine model is suitable for people over 14 years old. Please operate under adult supervision.

Specifications:

• Item Name: Stirling Engine with Generator
• Status: Assembled
• Speed: 1300-1500 RPM (revolutions per minute)
• Material: Alloy Steel + Aluminum Alloy
• Model Size: 1989791mm
• Power Generation Voltage: 4-9v
• Packing: Carton Box

Package Content:

• 1 x Stirling Engine Model with LED
• 1 x Alcohol Lamp
