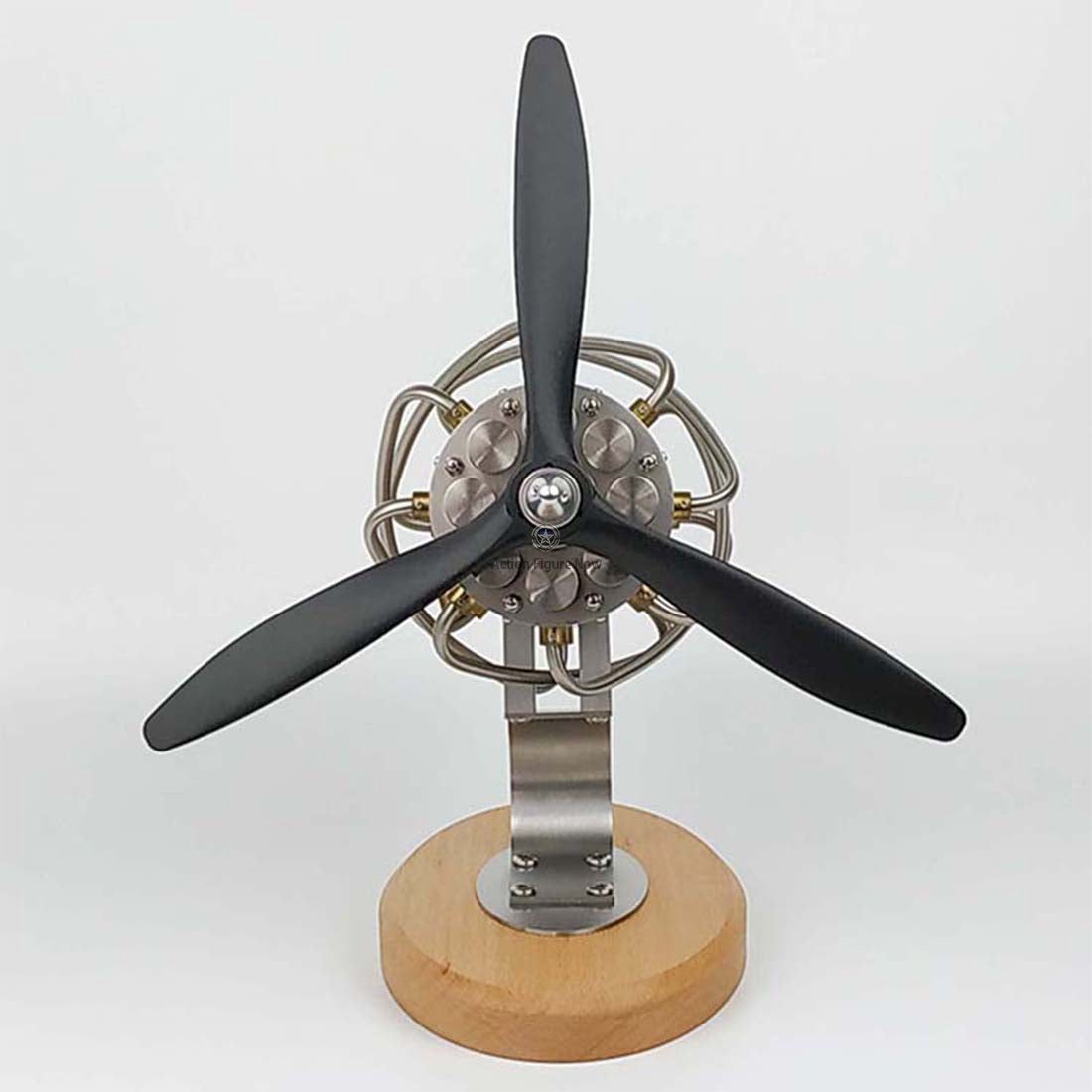

16 Cylinder Swash Plate Engine Stirling Engine Model Physics Educational Toys

Features:

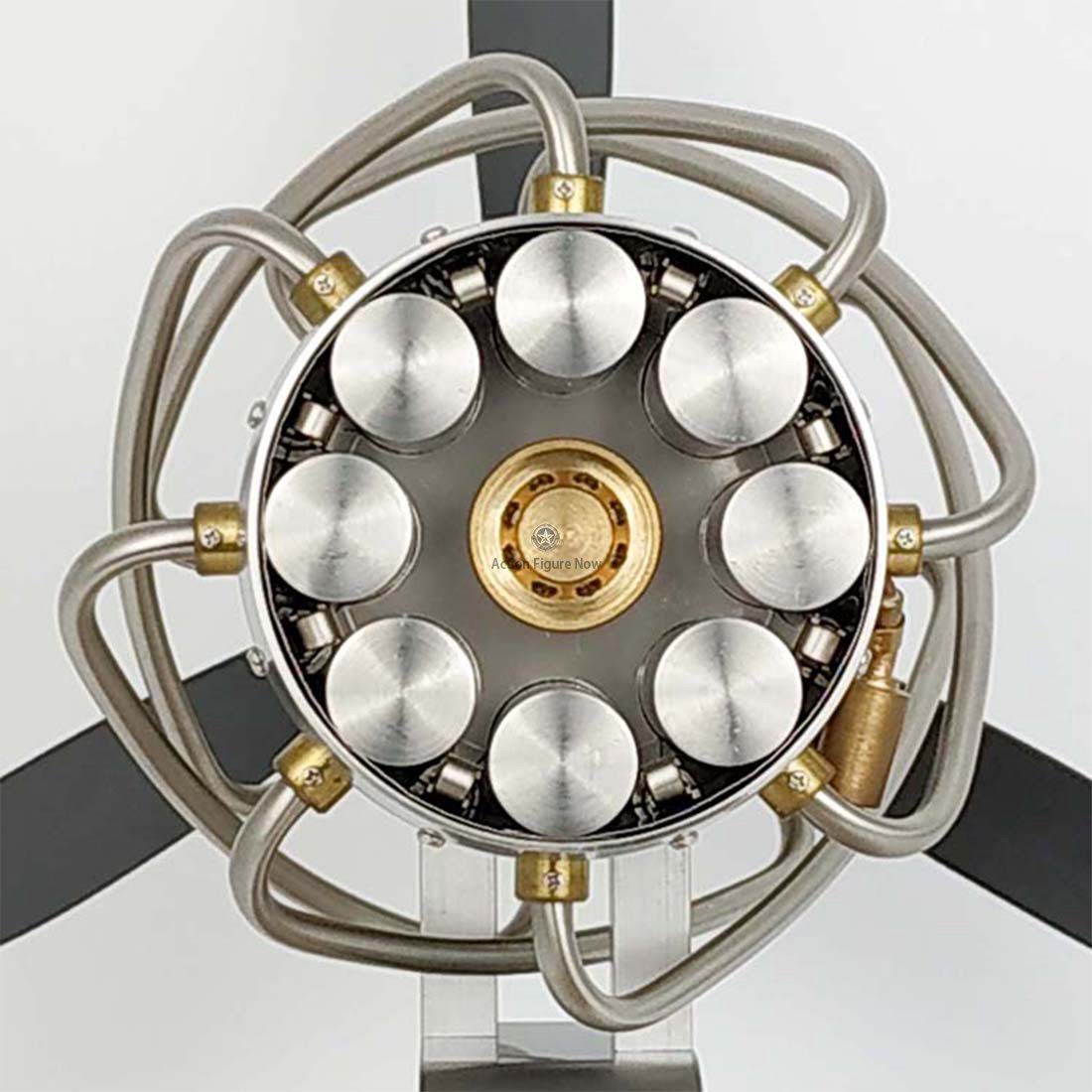

• 16-cylinder Stirling engine model of swash plate construction
• Materials: Stainless steel, brass, alloy aluminum
• Bright and tough appearance
• Stable and exquisite operation

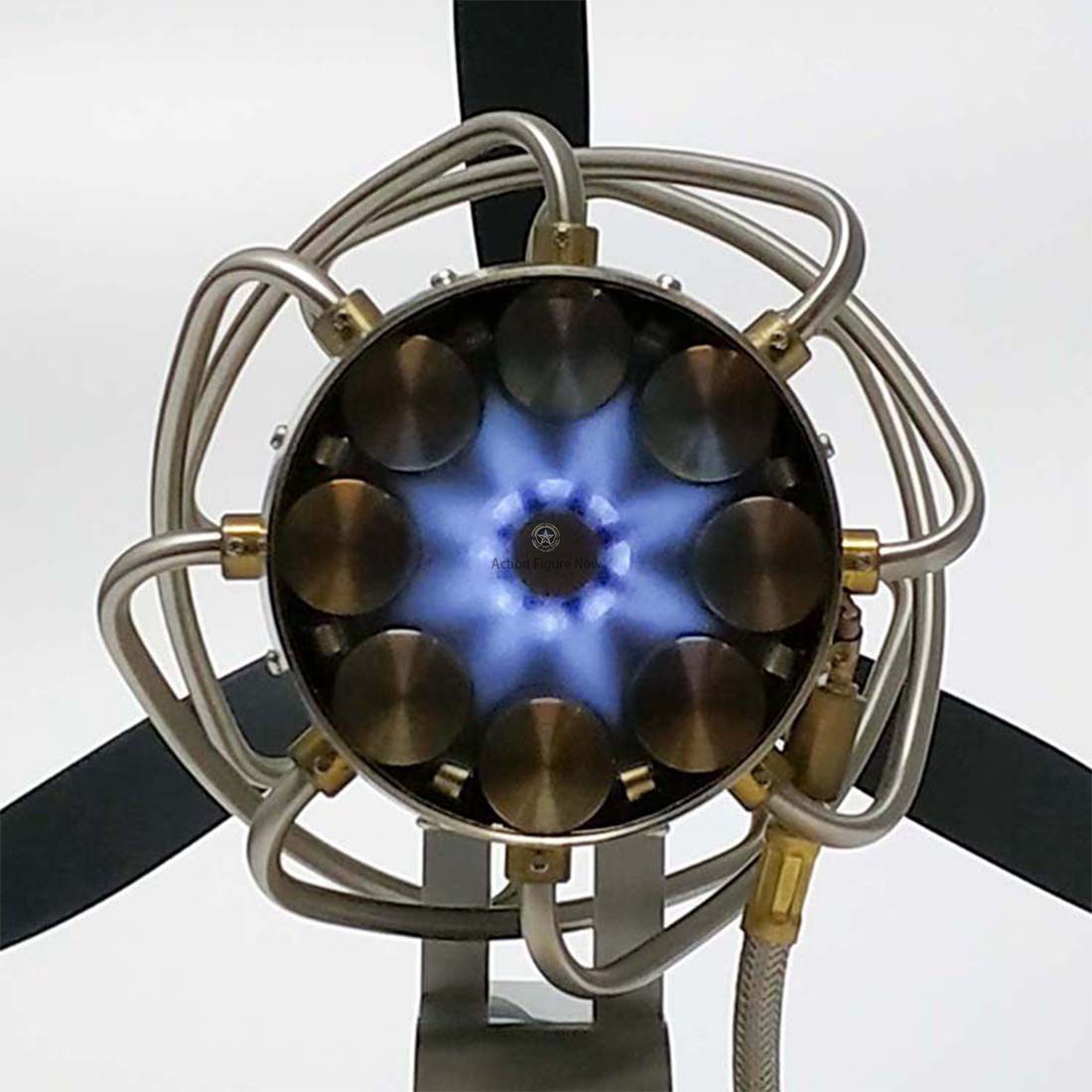

• Sounds of propellers, fire-distributor, and flame create a “blue lotus” effect
• Both a technically sophisticated model and an industrial style artwork

Operation Steps:

1. (1) Clean dust from piston and turn main shaft to ensure smooth movement
2. (2) Connect gas pipe and butane gas tank
3. (3) Ignite at tail with lighter, adjust flame size
4. (4) Heat for 1-3 minutes
5. (5) Turn propeller to start engine (counterclockwise)
6. (6) Close air valve to stop engine

Cleaning and Maintenance:

• (1) Blow off dust and dirt with air or brush
• (2) Wipe body with soft cloth
• (3) Clean yellow discoloration on tail cover with silver cloth

Operation Precautions:

• (1) No lubricating oil on cylinder piston
• (2) Handle model by base or support

Safety Tips:

• (1) Keep away from flammable and explosive materials
• (2) Ventilate well when operating indoors
• (3) Tail cover is hot after ignition, avoid touching
• (4) Keep body parts away from propeller
• (5) Adult supervision required for children

For Crowd:

• 14+ years

Specifications:

• Color: As Shown
• Material: Metal + Glass + Plastic + Beech
• Bore Diameter: 12.7mm
• Stroke: 18mm
• Speed: Around 1800rpm (High speed)
• Fuel: Liquefied butane gas
• Product Weight: 2180g
• Package Dimensions: 30 x 20 x 30cm
• Package Weight: 2700g
• Packing: Carton Box

Package Content:

• 1 x Stirling Engine
• 1 x C-shaped Support
• 1 x Support Gasket
• 1 x Base
• 1 x Propeller
• 1Set x Butane Gas Pipe + Cylinder Relief Valve + Cylinder Adapter
• 1 x Socket Wrench
• 3 x Hexagonal Wrench
• 8 x Swash Plate Counter Shaft (Spare)
• 2 x Silver Cleaning Cloth
• 1 x Manual
