Description

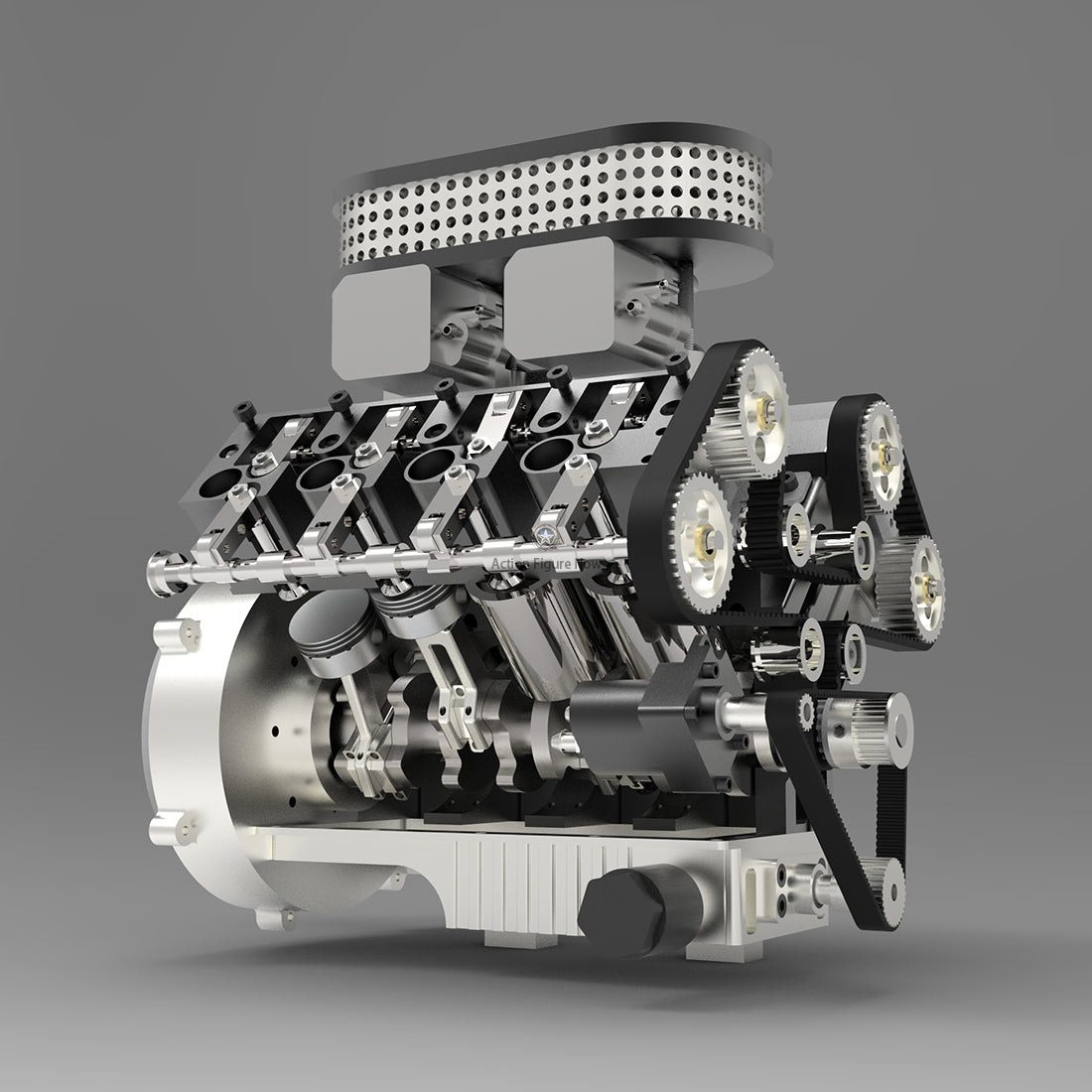

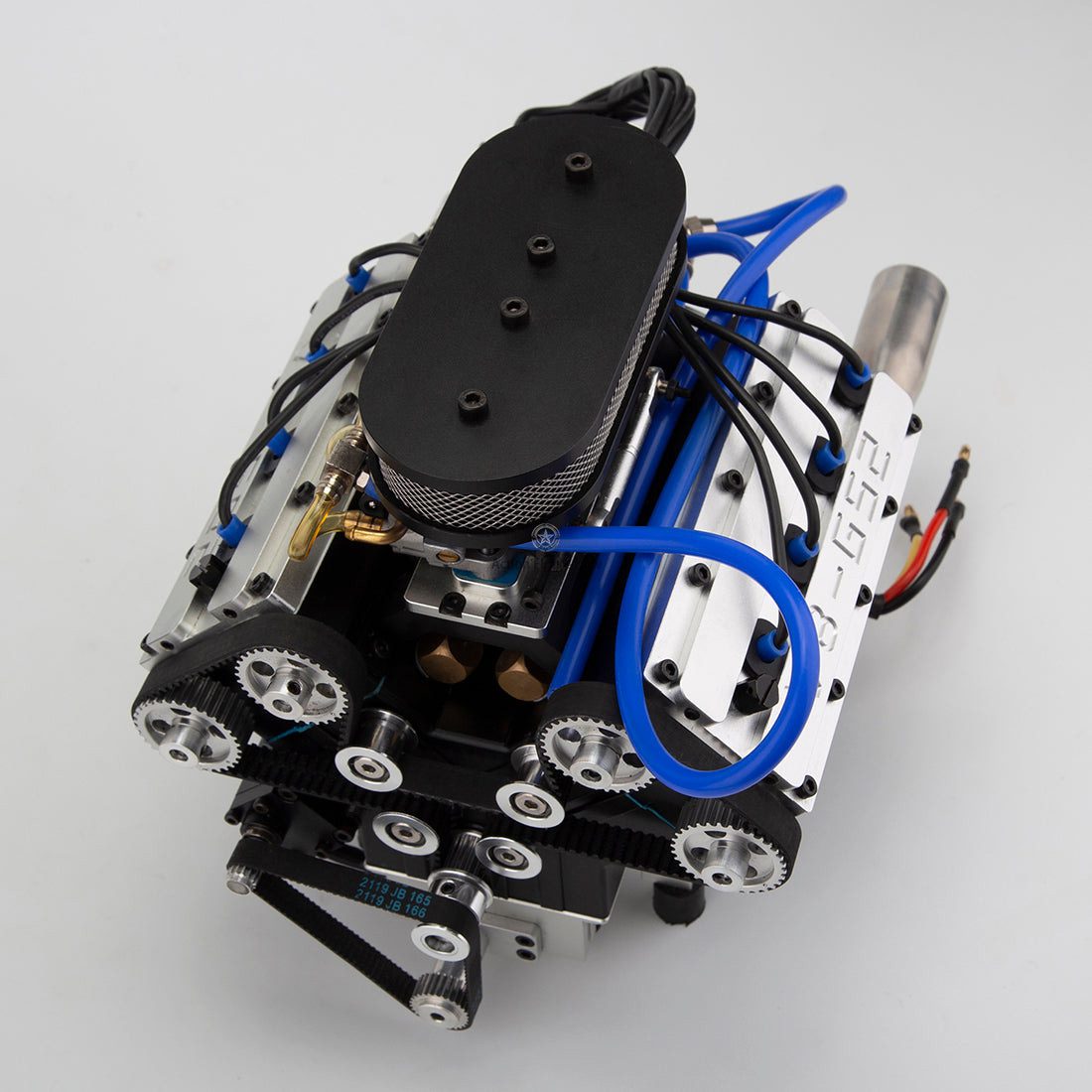

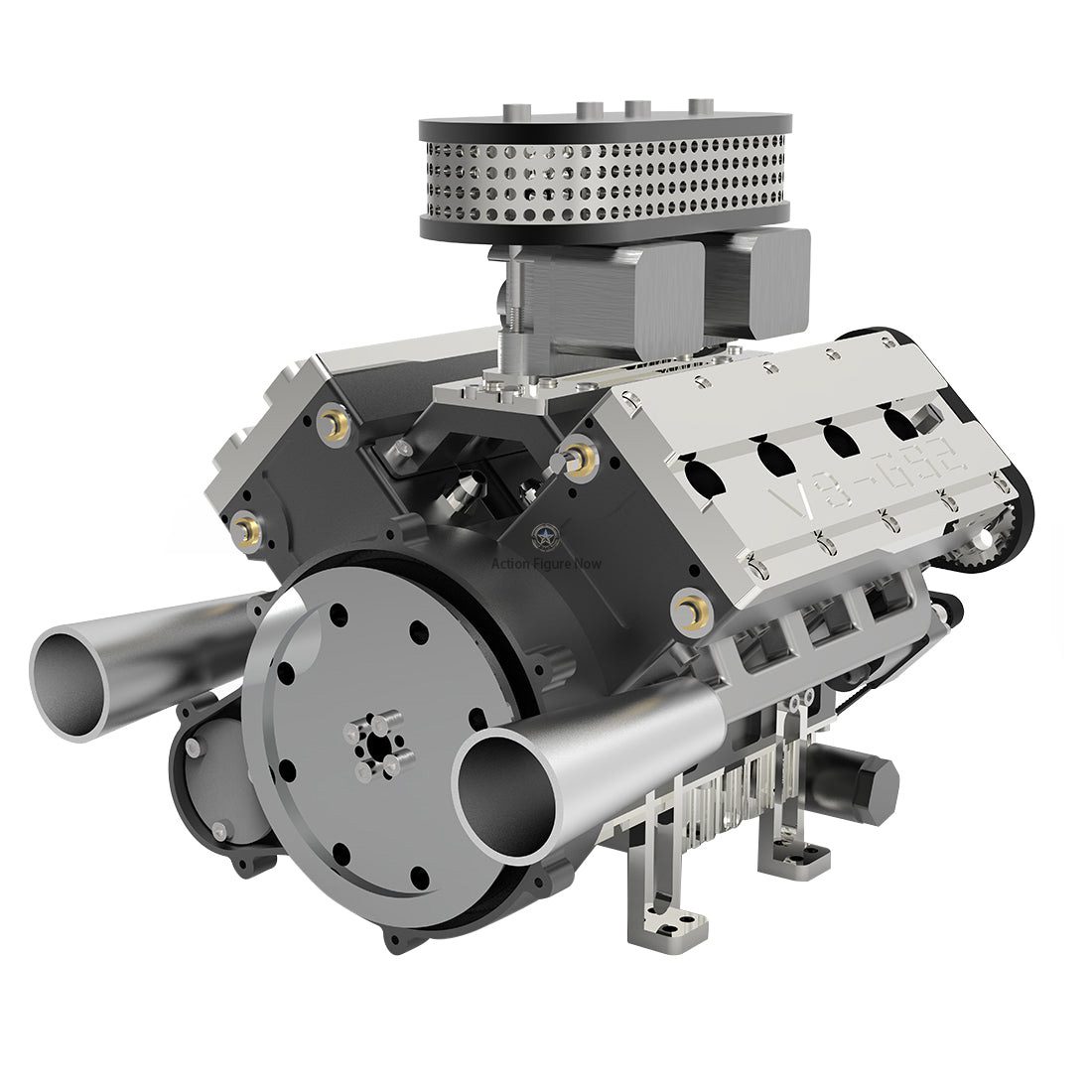

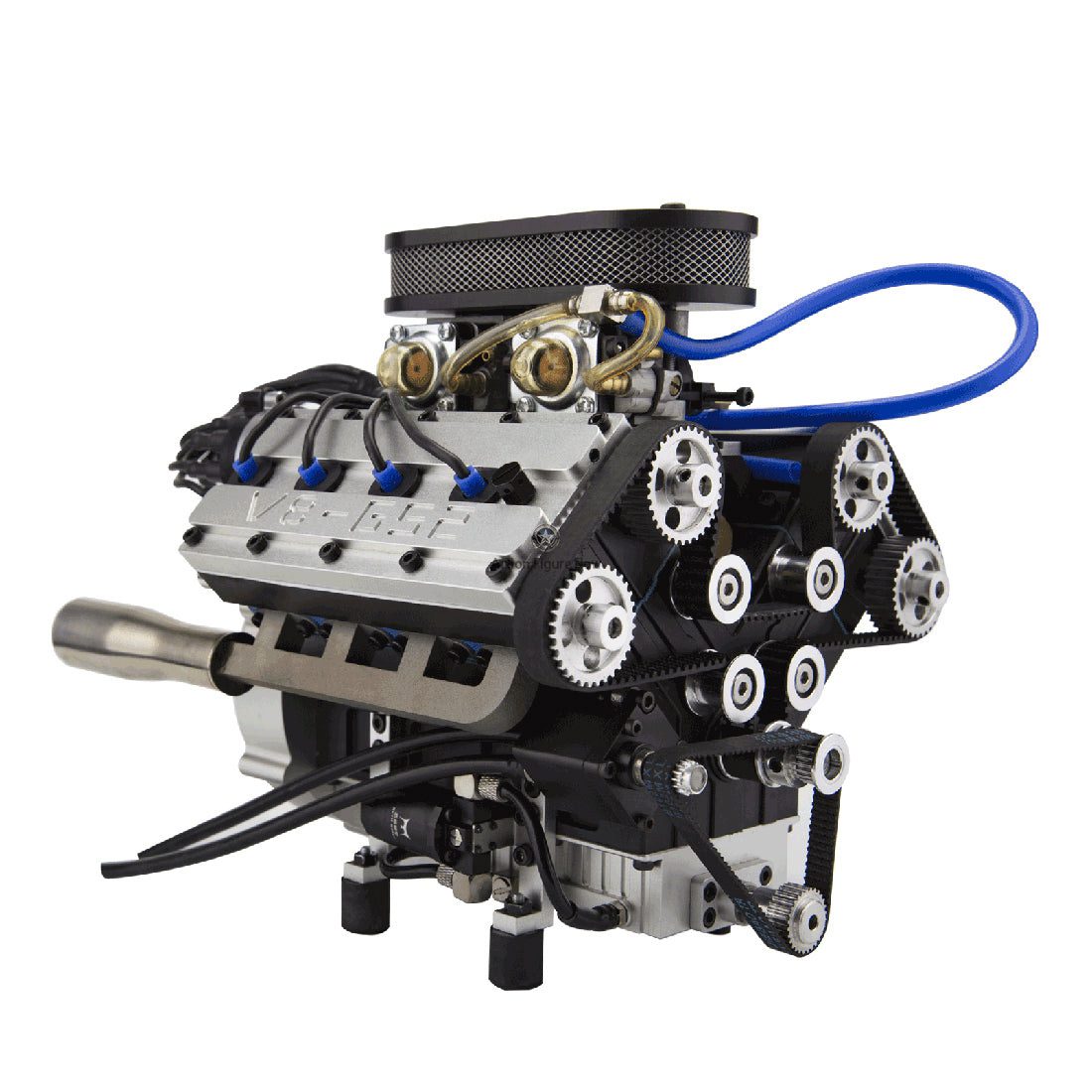

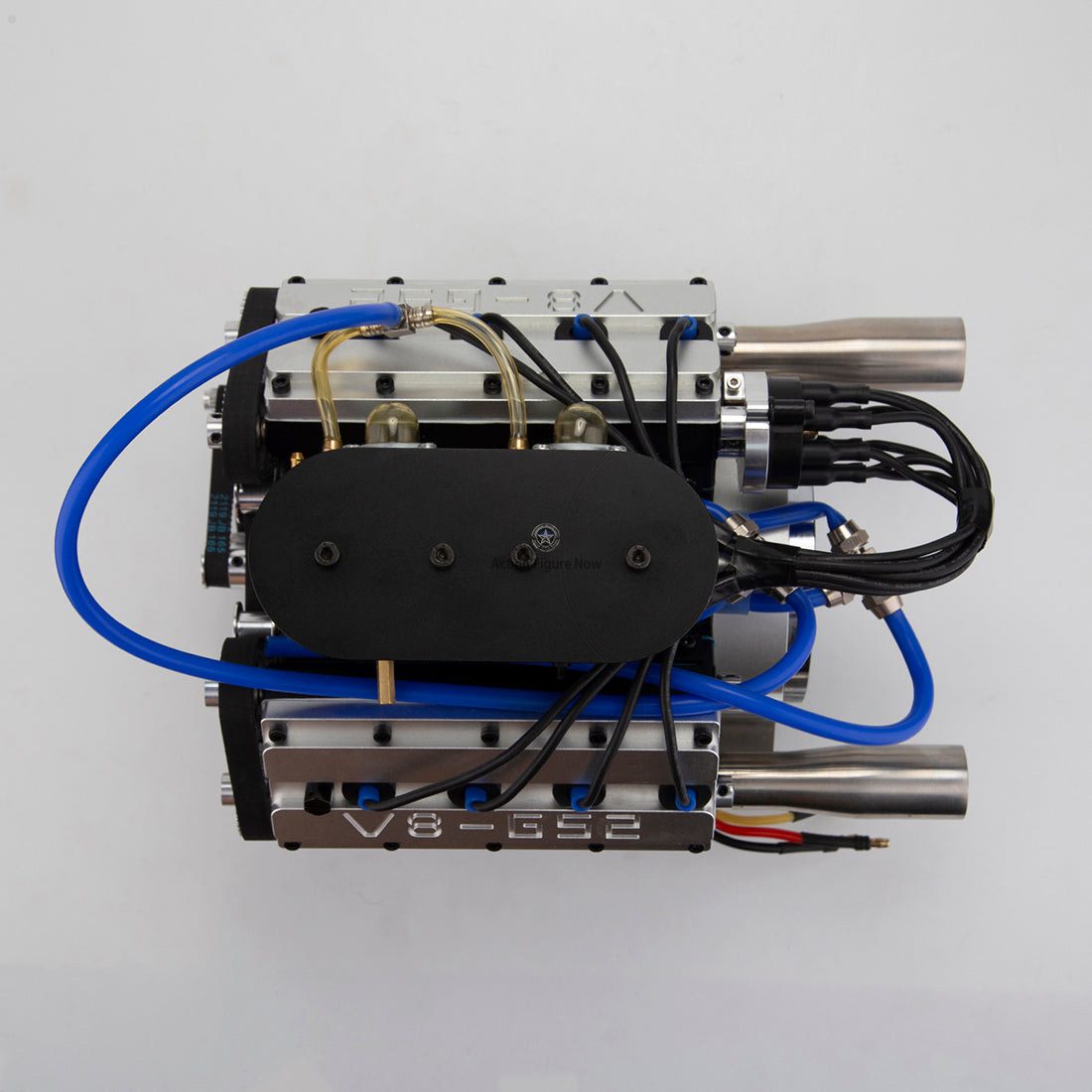

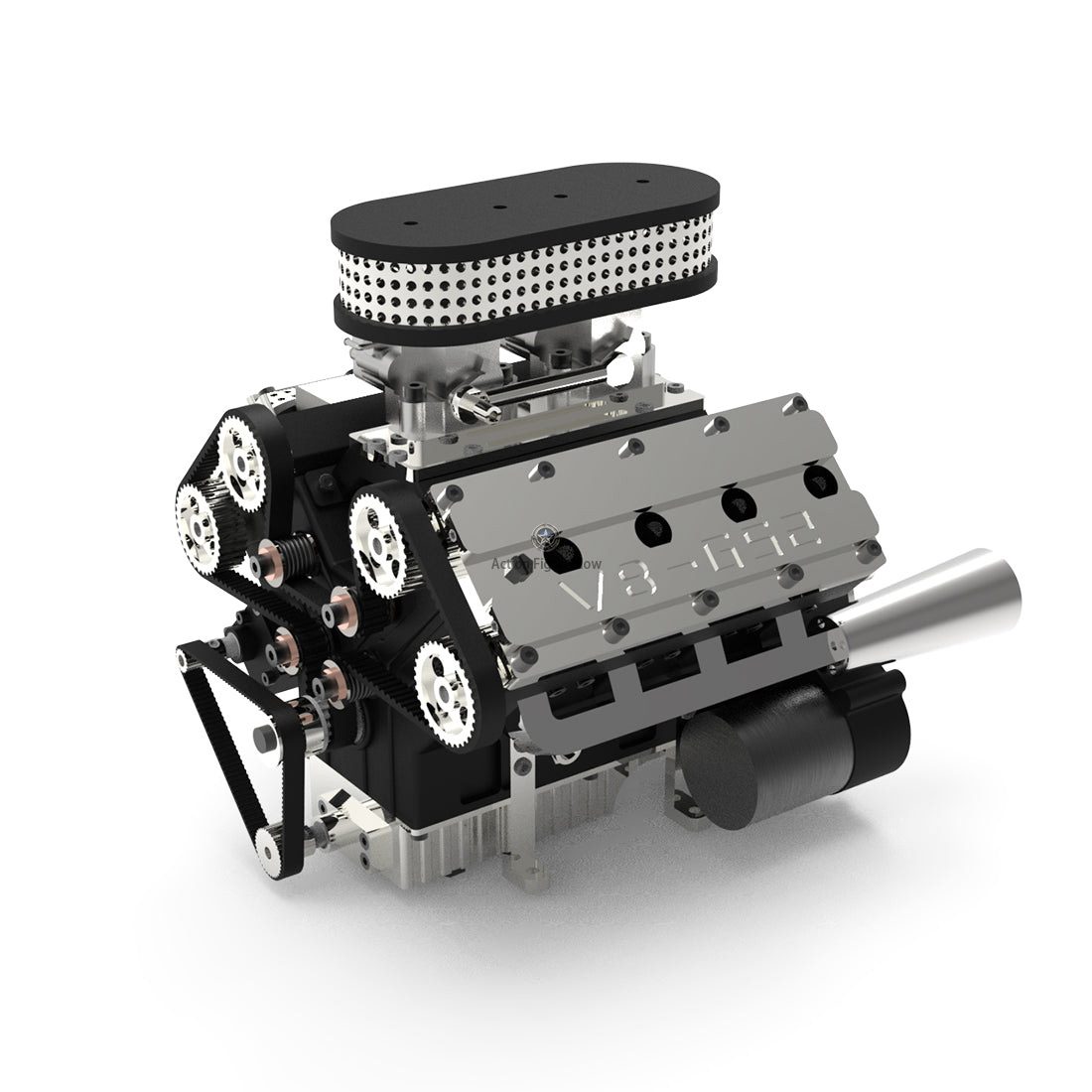

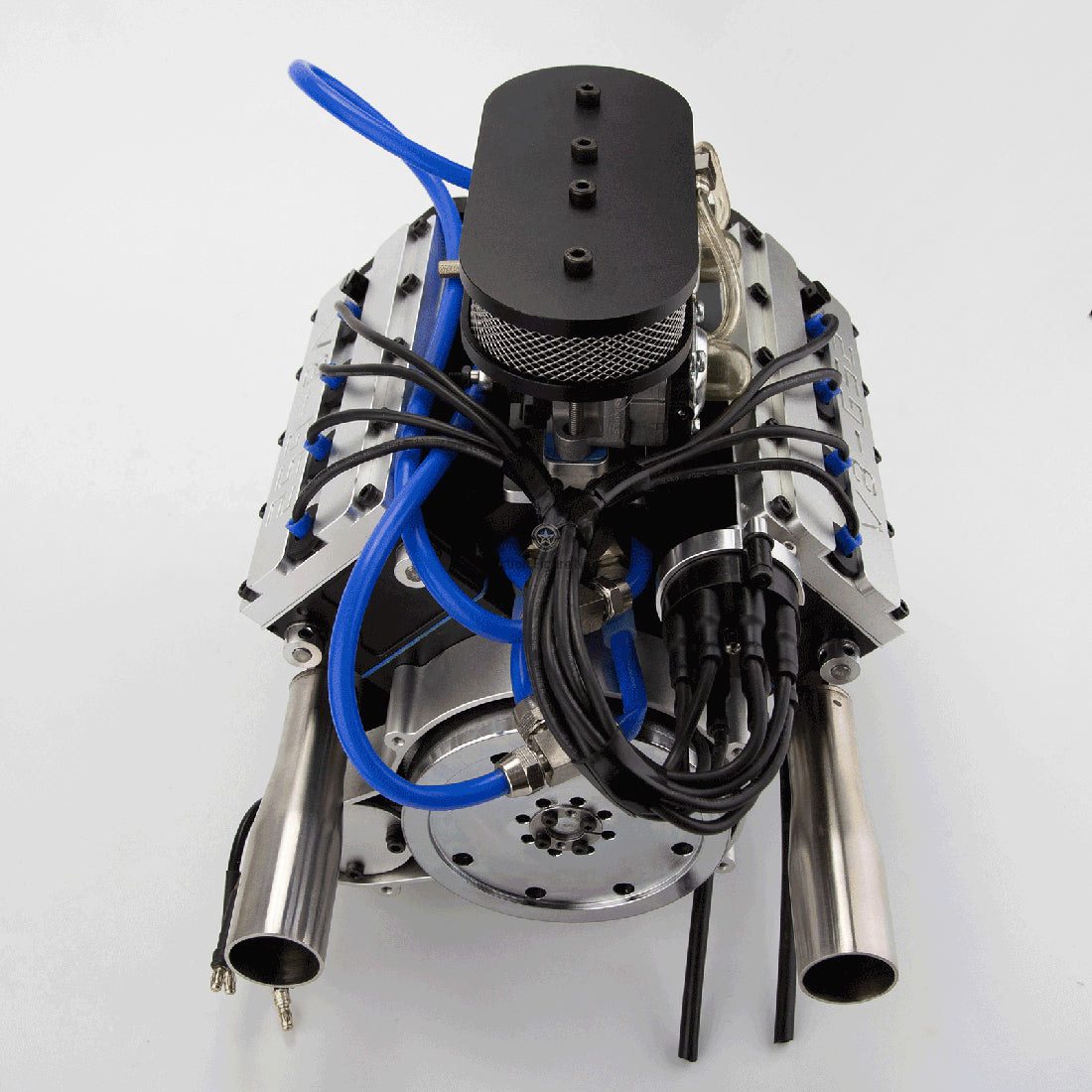

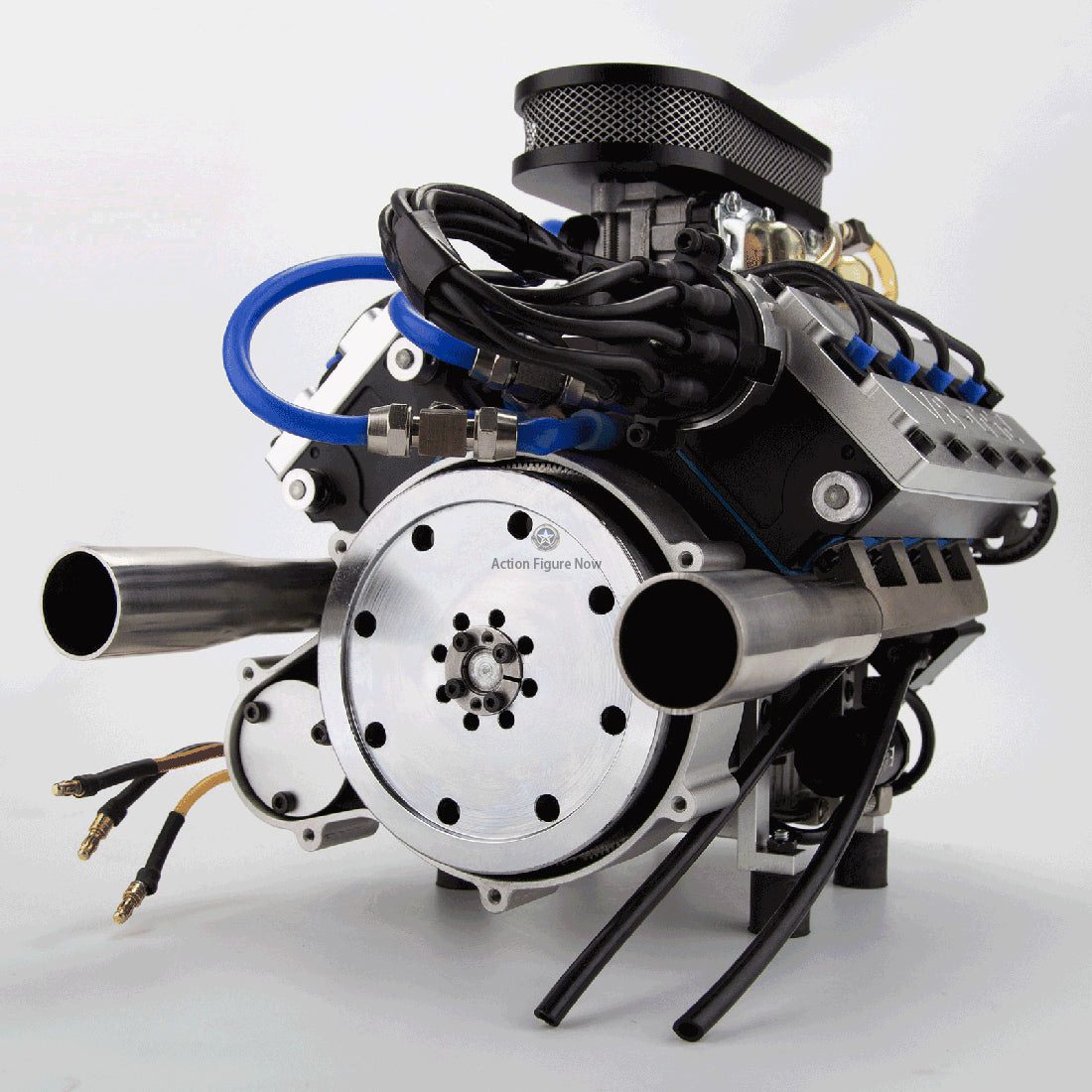

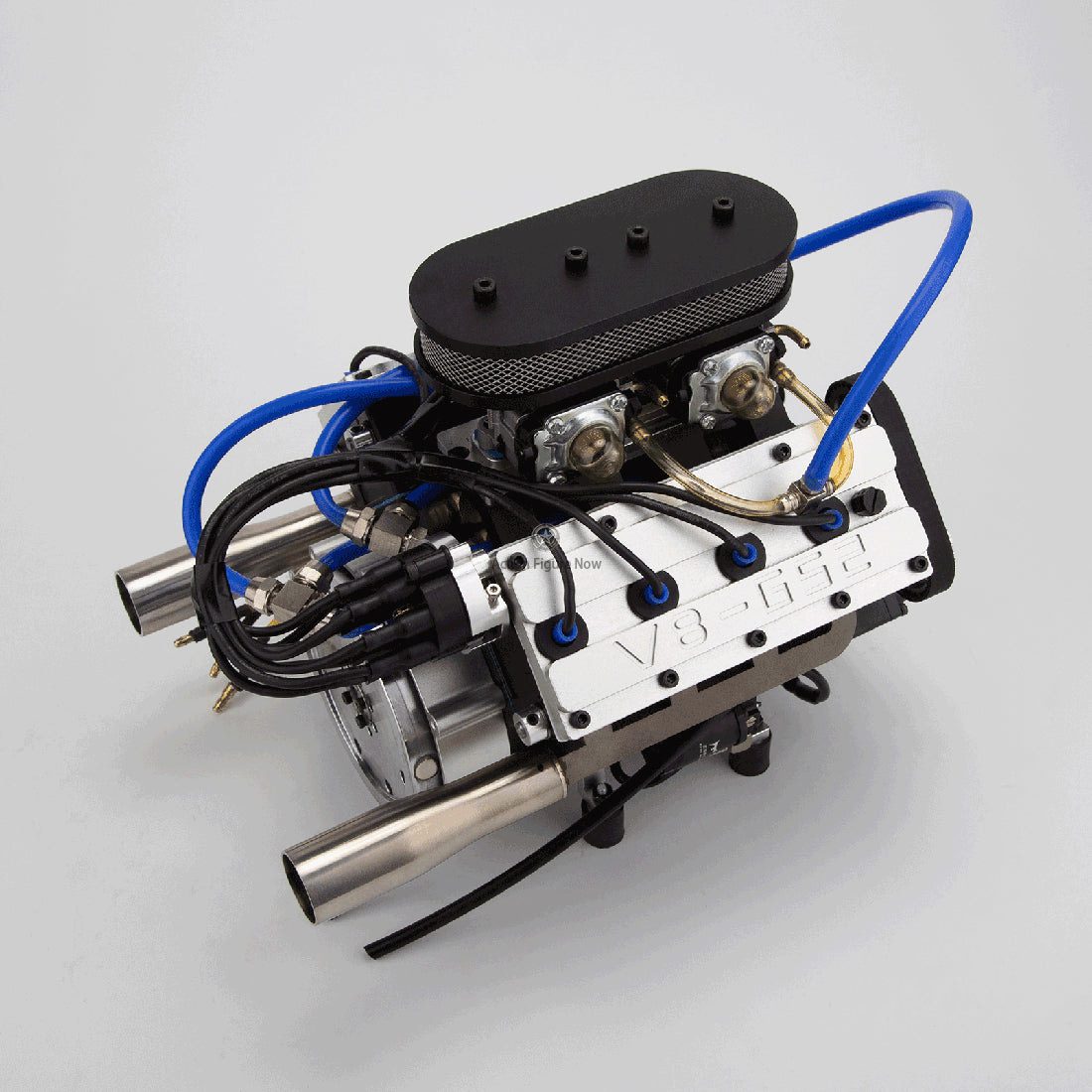

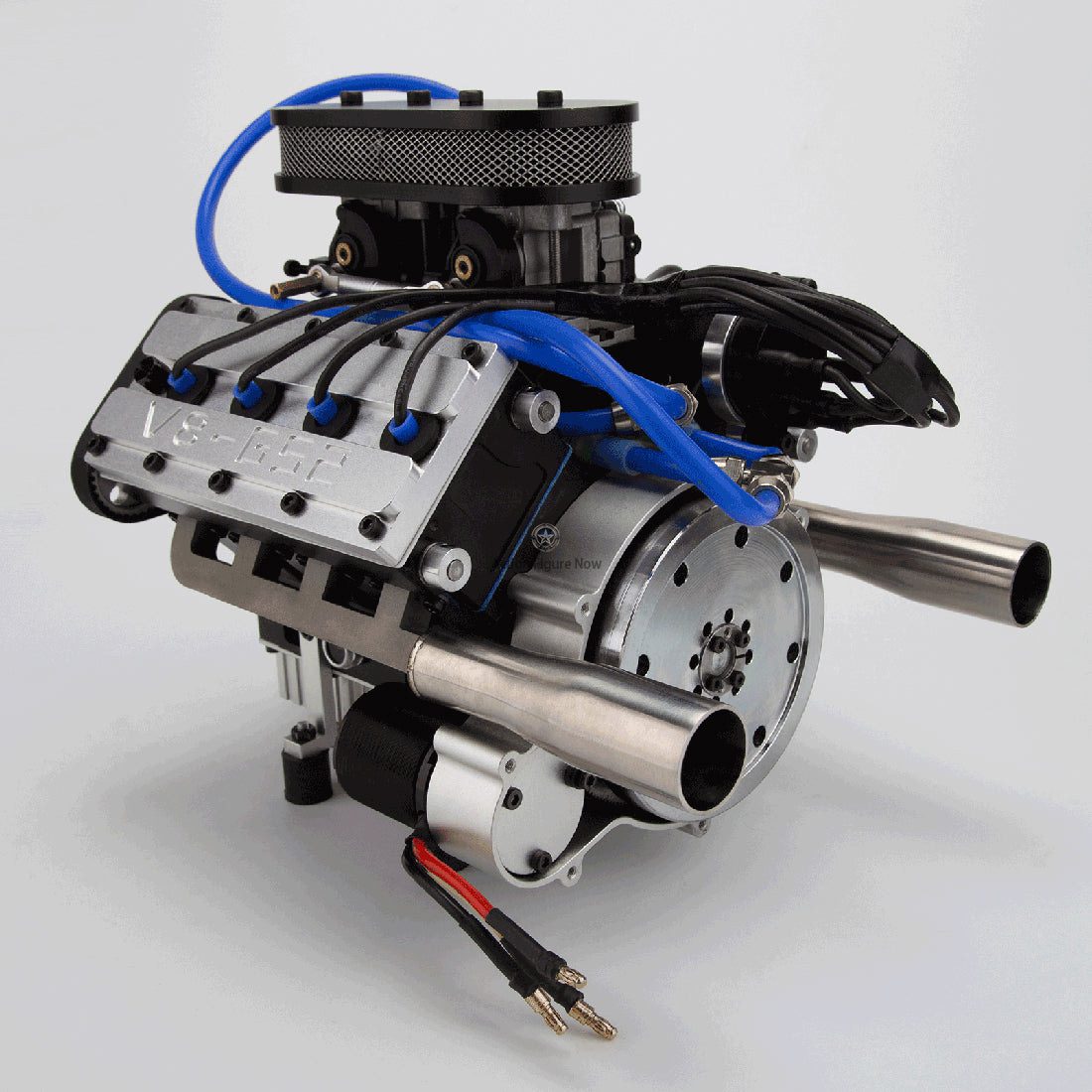

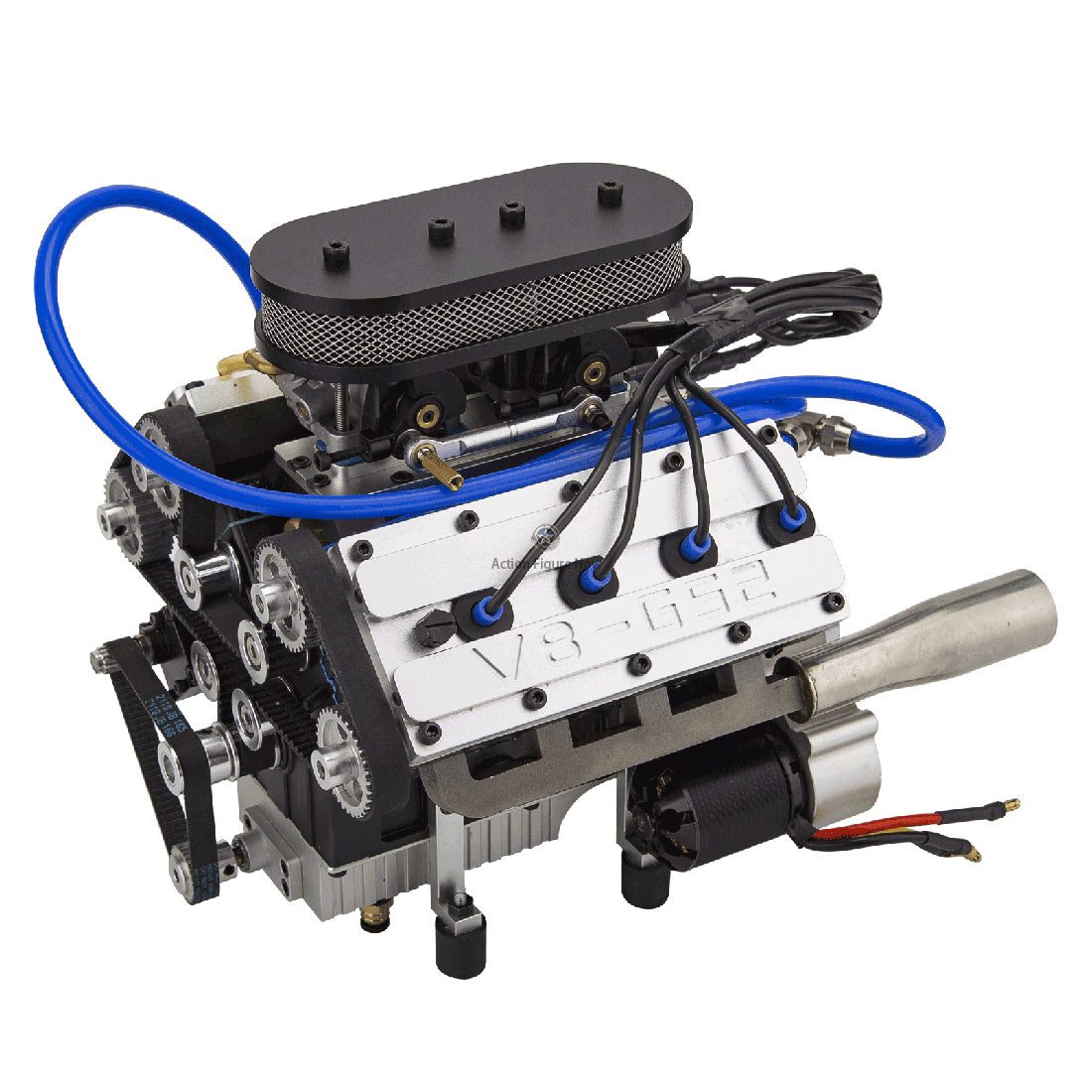

ENJOMOR V8 Engine G52 78cc DOHC 4-Stroke 8-Cylinder IC Engine

Features:

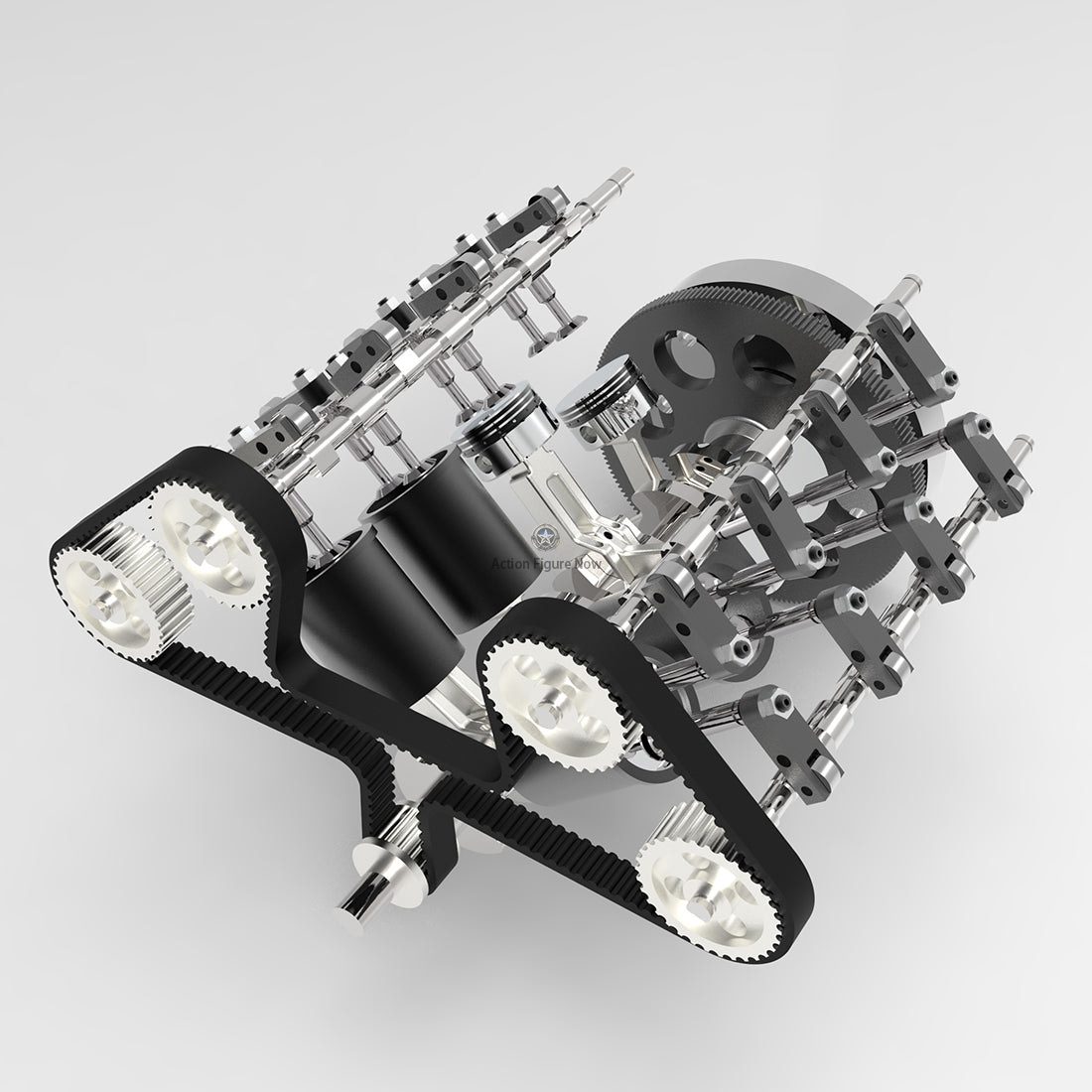

• DOHC valve mechanism

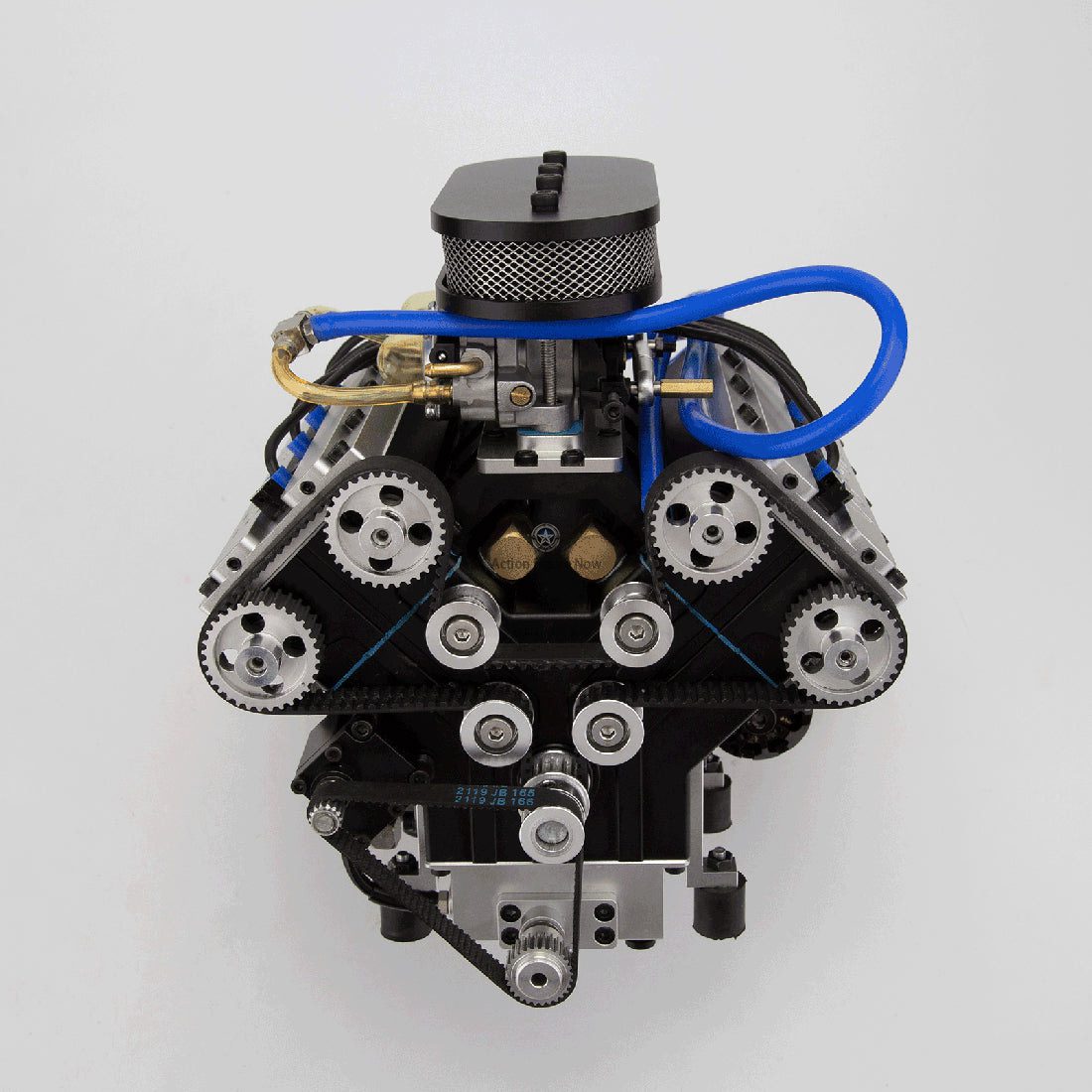

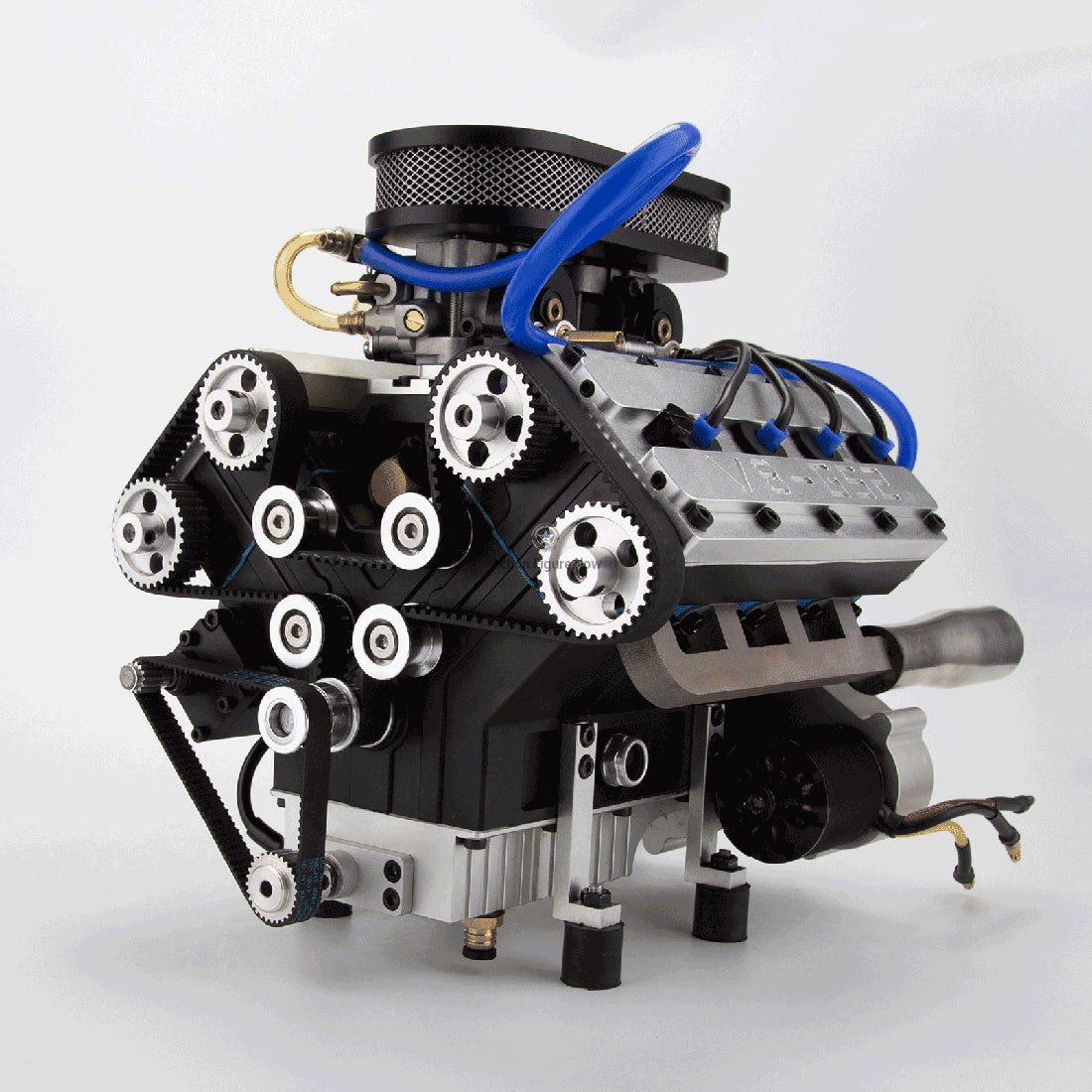

• Exposed timing belt
• High level of performance
• Extraordinary power
• Independent lubrication system
• Oil pump
• Recyclable oil
• Side water-cooling pump
• Effective heat dissipation
• CDI pulse split ignition
• 3548 brushless starter motor
• One-key operation
• Full aluminum CNC housing
• Precision manufacturing
• Realistic appearance
• Integrated exhaust manifold
• Three piston rings (gas ring, taper ring & oil ring)
• Super hard piston cylinder liner
• Full bearing support (three big bearings in the middle, small bearings at both ends)
• Outstanding strength and durability
• Wide range of applications
• Model cars
• Boats
• Tanks
• Desktop DIY engine model

Specifications:

• Material: Metal
• Brand: ENJOMOR
• Item NO.: GS-V8
• Status: Finished Version
• Type: Gasoline Internal Combustion Engine
• Valve: DOHC
• Displacement: 78cc
• Cylinder: V-shaped Eight-cylinder
• Stroke: Four-stroke
• Bore: 22.9mm
• Stroke: 20.00mm
• Output Shaft Diameter: 10mm
• Compression Ratio: 1/14
• Maximum Speed: 9000rpm
• Maximum Power: 3.8kw
• Cooling: Water-cooling
• Lubrication: Independent Lubrication (Oil Pump Lubrication)
• Starting: Electric Starting (with Brushless Starter Motor)
• Ignition: CDI igniter & Distributor
• Spark Plug Type: ME8 Spark Plug with 1/4-32 Thread
• Ignition Voltage: 10-12V
• Starting Power: 24-48V Battery (Not Included)
• Fuel: 95 Gasoline
• Oil: 20W and above, Oil Volume: 50ml
• Product Dimensions: 13.6 x 17.9 x 13.8cm
• Product Weight: 4500g
• Package Dimensions: 35 x 20 x 20cm
• Package Weight: 5500g

Package List:

• 1 ENJOMOR V8 Engine
• 8 Spark Plugs
• 1 V8 Pendant
• 1 Gift Card
• 1 Special Gift from ActionFigureNow

Age Recommendation: 18+
