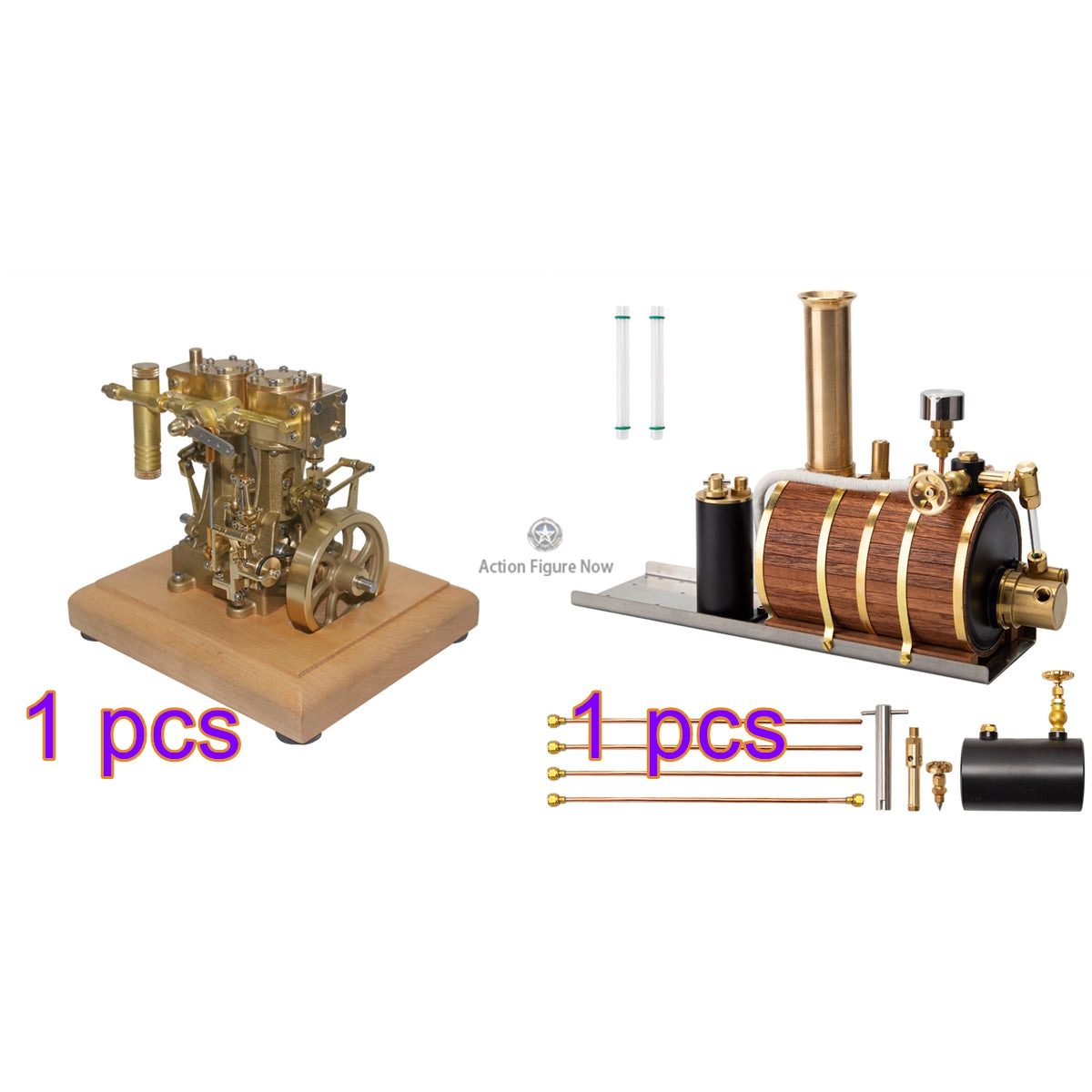

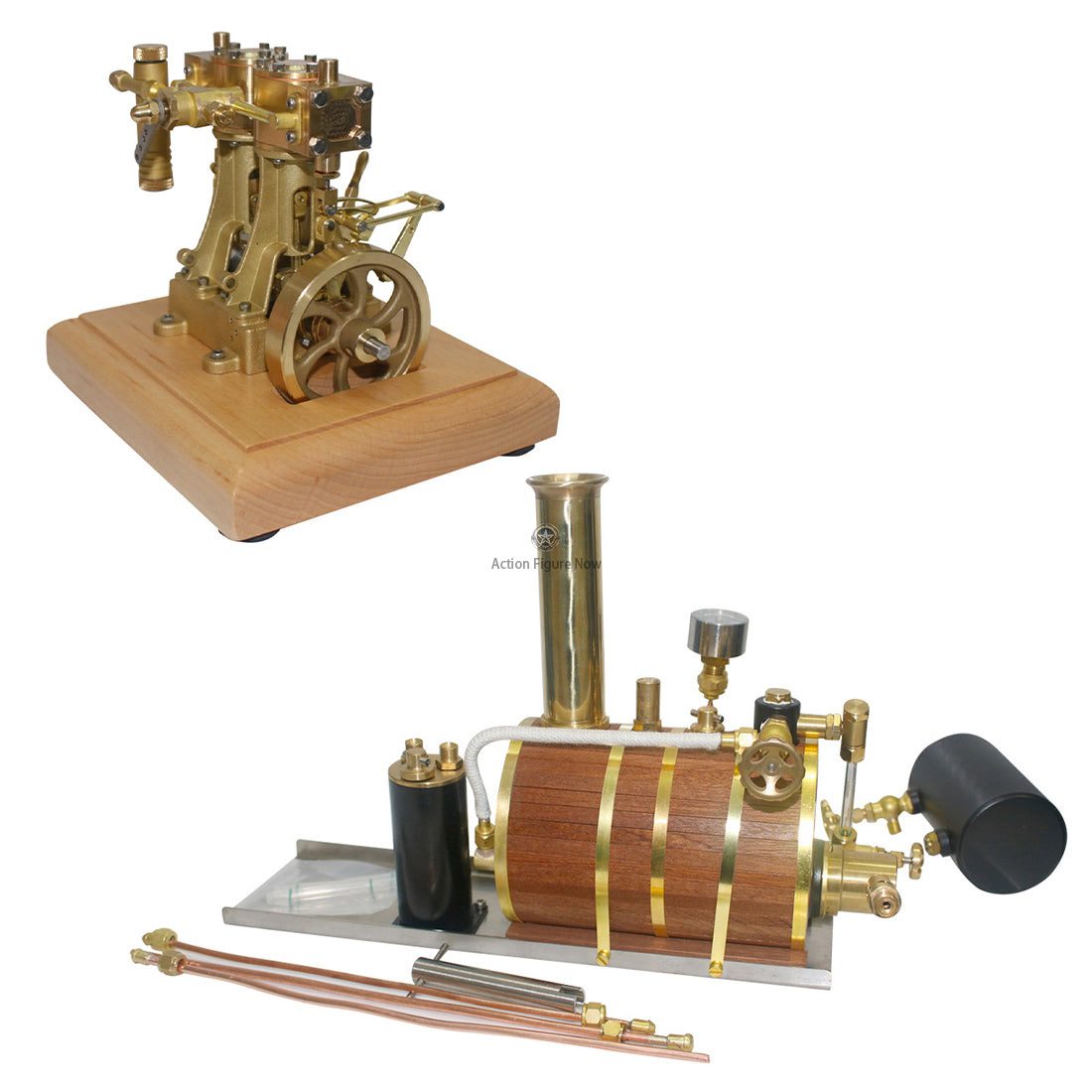

3.7CC Retro Vertical Reciprocating Double-Acting Model Steam Engine with 200ml Steam Boiler

Description

3.7CC Retro Vertical Double-acting Reciprocating Steam Engine with 200ml Steam Boiler

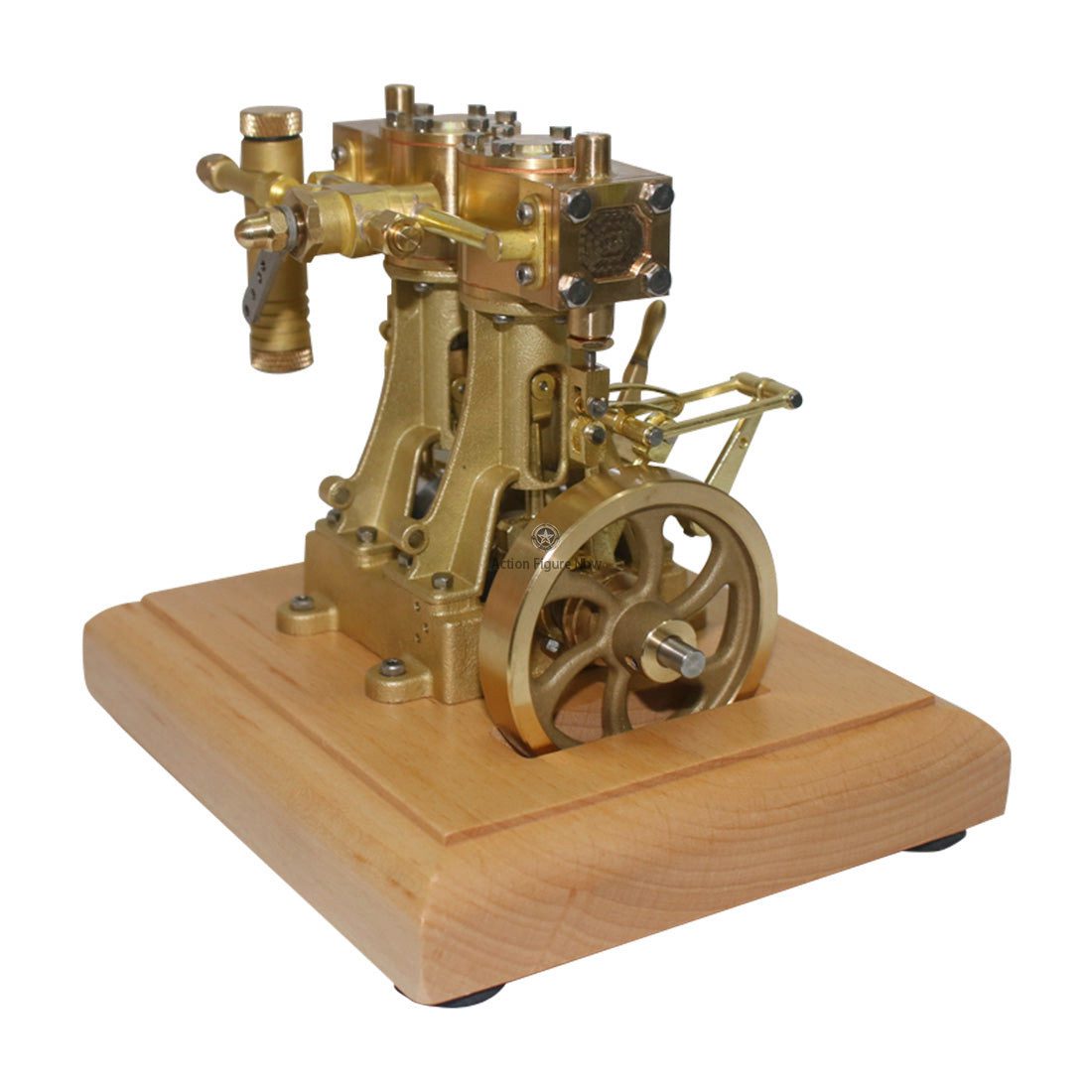

Steam Engine Model

– Exquisite and Compact: Easy to install and operate, making it a captivating desktop model.
– Premium Construction: Made of brass with CNC machining, ensuring durability and a refined finish.
– High-Quality Components: Abrasion-resistant beryllium copper main shaft sleeve ensures smooth operation.
– Simple to Operate: Intuitive operation allows users to experience the charm of steam engines.
– Educational Value: Ideal for enthusiasts and learners, offering insights into steam engine principles and hands-on experience.
– Collectible Piece: An exceptional addition to any steam engine collection, showcasing both engineering prowess and aesthetic appeal.

Instructions:

1. Steam engine converts steam energy into mechanical work.
2. Lubricate friction points, fill the boiler with water, and heat to boiling.
3. Gently turn the flywheel until the engine starts running automatically.

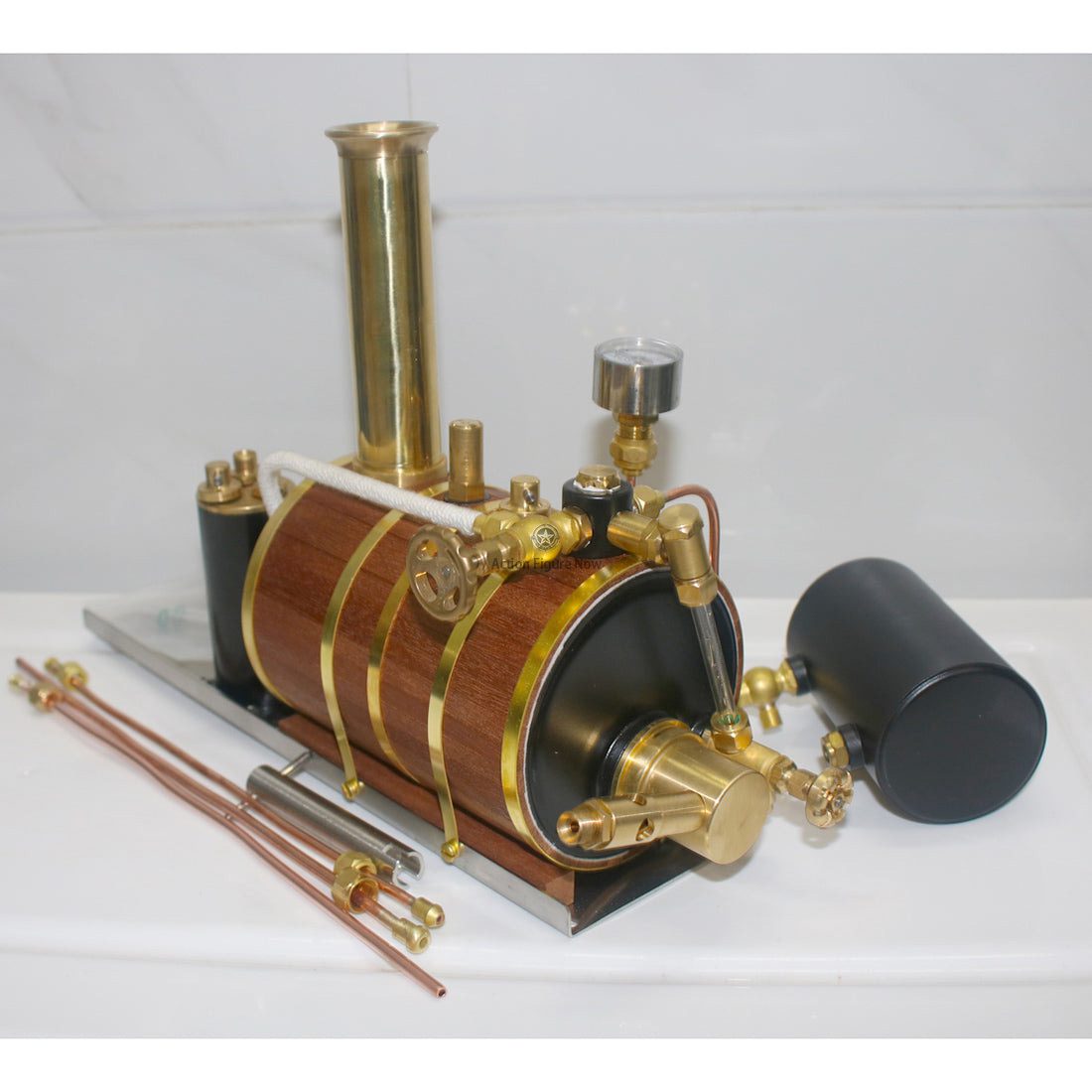

200ml Steam Boiler

Full Equipment:

– Pressure gauge
– Main valve
– Water level meter
– Waste water tank

Excellent Performance:

– Made of pure copper with mahogany insulation
– Reserved interfaces for additional accessories
– Rapid heating, reaching 0.4MPa air pressure in 8 minutes
– Safety ensured by pressure relief valve
– Maximum working time: 25 minutes

Applications:

– Vintage art collection
– Power source for 1.0-1.5m steam boats
– Can drive a triple-cylinder steam engine for racing boats

Instructions:

1. Fill with water to 3/5 capacity.
2. Maintain pressure at around 0.4MPa.
3. Monitor burning time and refill water as needed.
4. Drain remaining water after use.
5. Use in conjunction with a fire control system for safety and gas conservation.

Specifications:

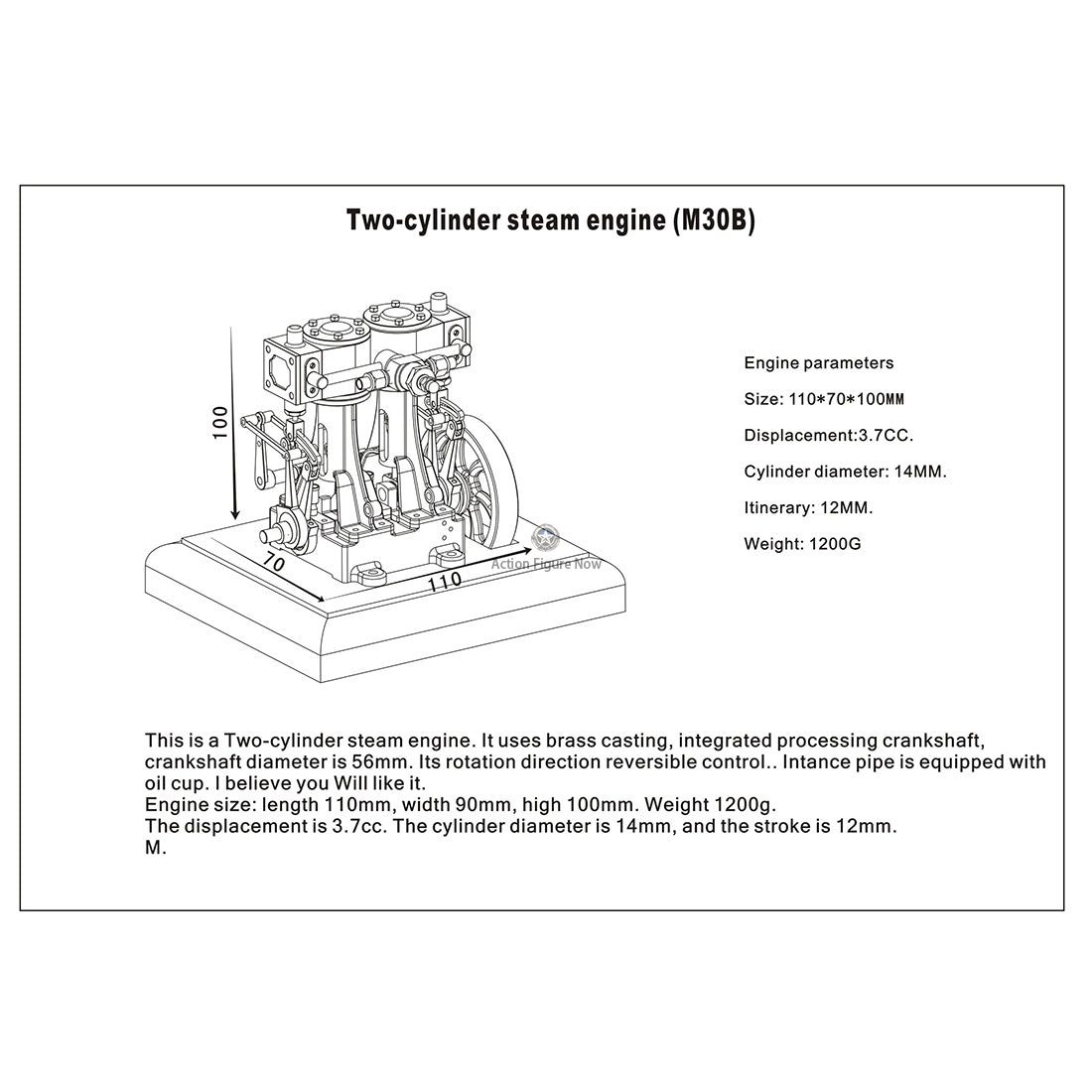

Steam Engine Model:

– Material: Copper
– Type: Vertical Double-cylinder Double-acting
– Displacement: 3.7CC
– Recommended Air Pressure: 0.4MPa-0.6MPa
– Bore: 14mm
– Stroke: 12mm
– Air Inlet Thread: 1/4-40TPI
– Product Dimensions: 11 x 9 x 10cm
– Product Weight: 1200g

200ml Steam Boiler:

– Material: Brass + Mahogany
– SKU: B-1
– Outside Diameter: 80mm
– Length: 130mm
– Height: 200mm
– Weight: 1900g
– Full-load Capacity: 200ml
– Valve Pressure: 0.4MPa
– Pipe Joint: 1/4-40mm
– Product Dimensions: 13 x 8 x 20cm
– Product Weight: 1900g
