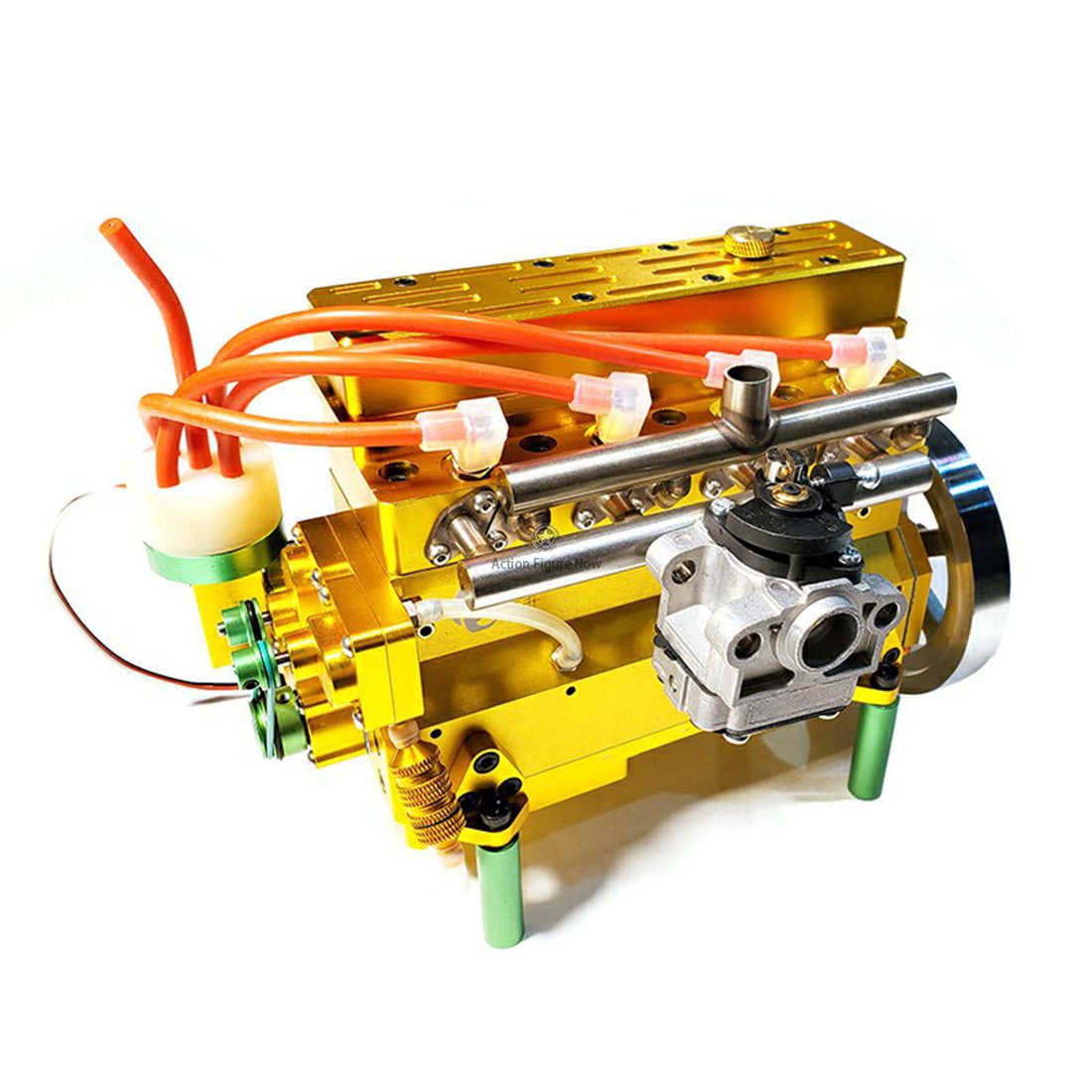

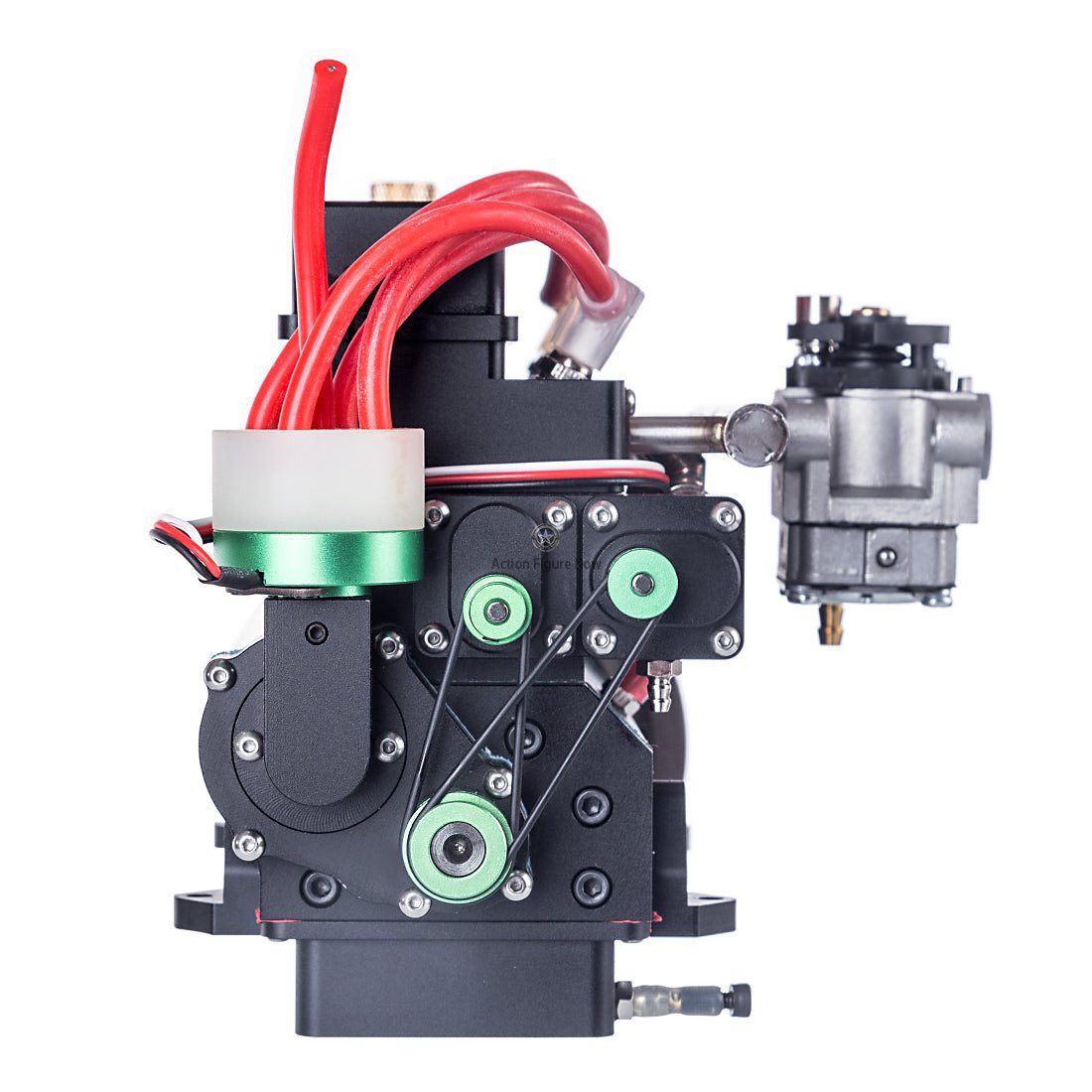

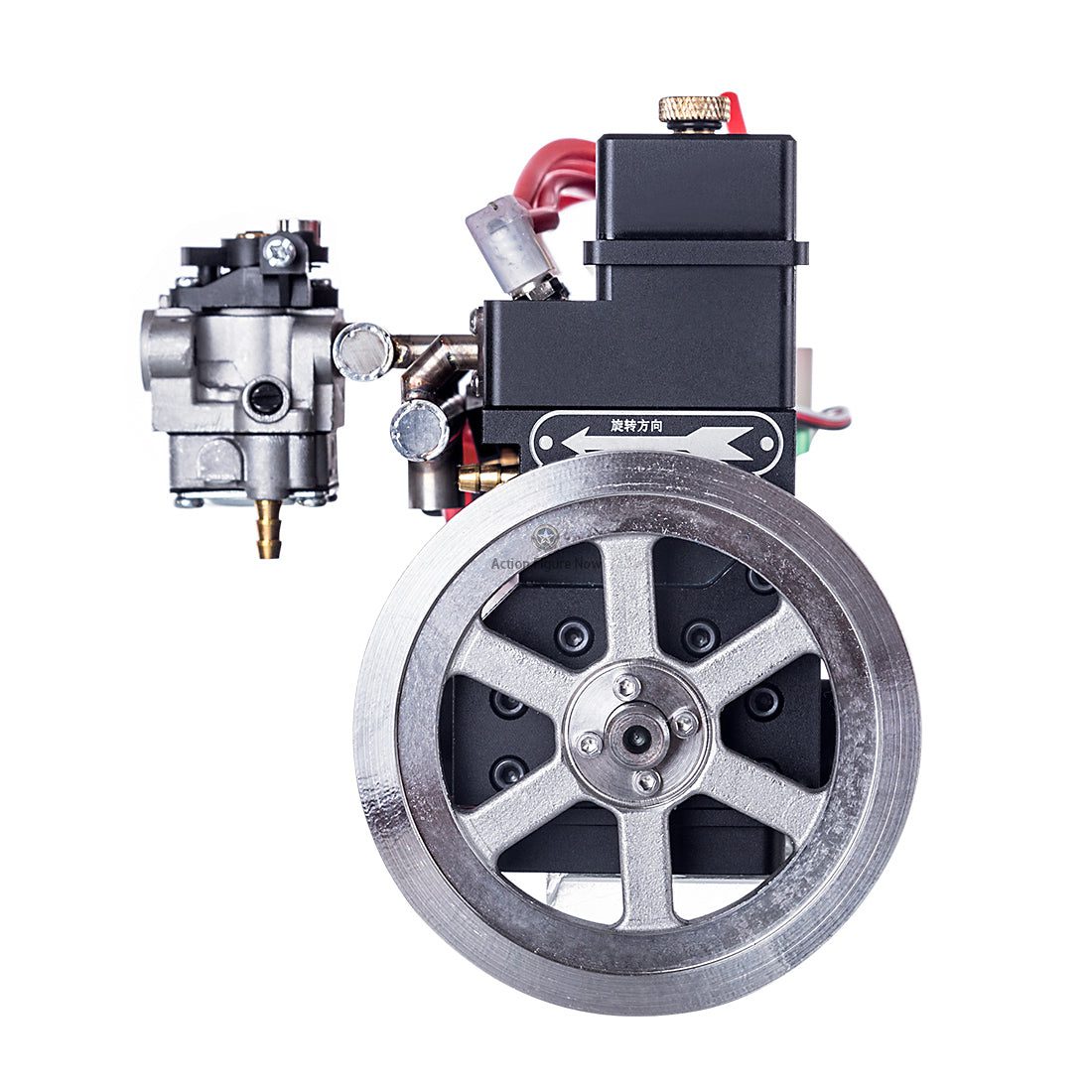

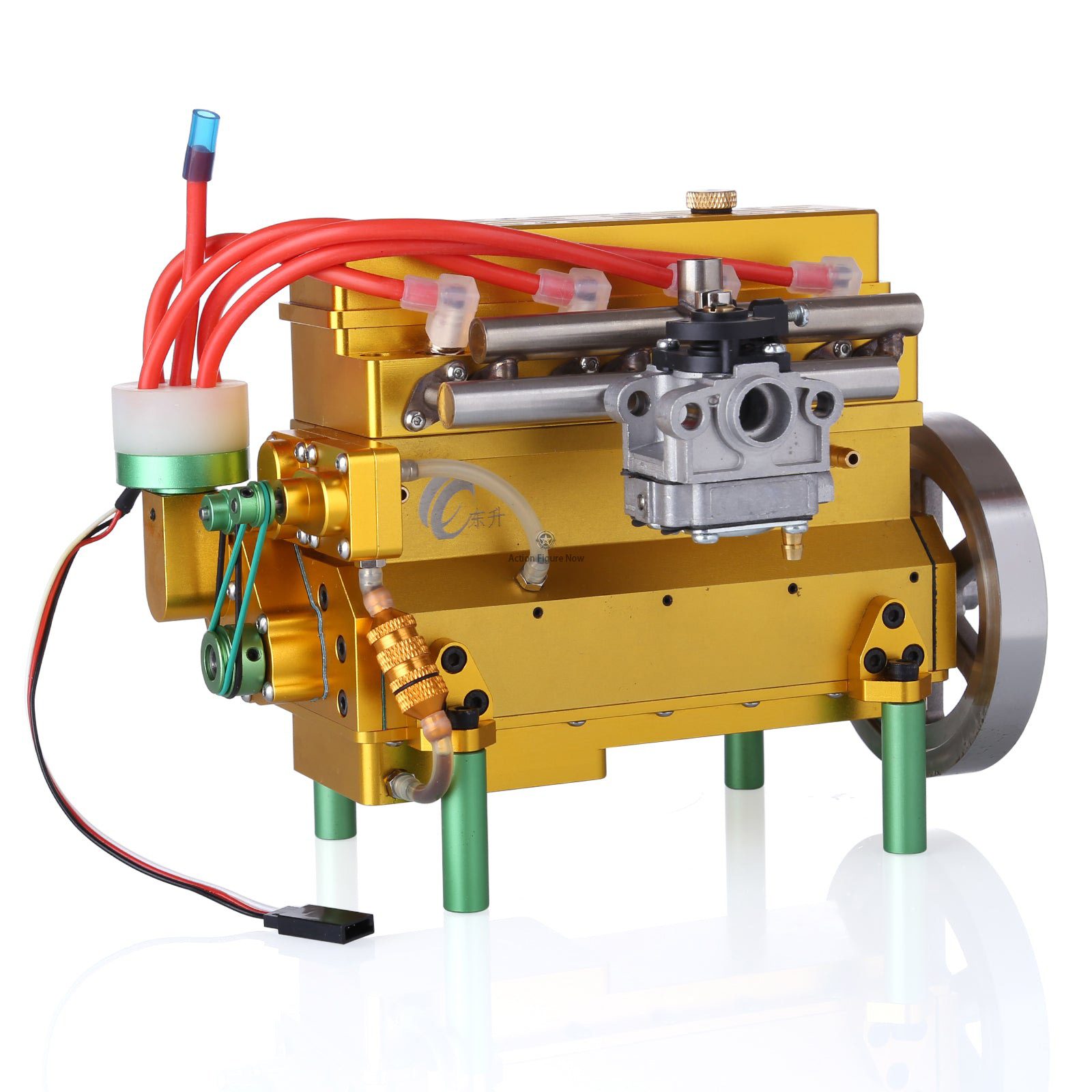

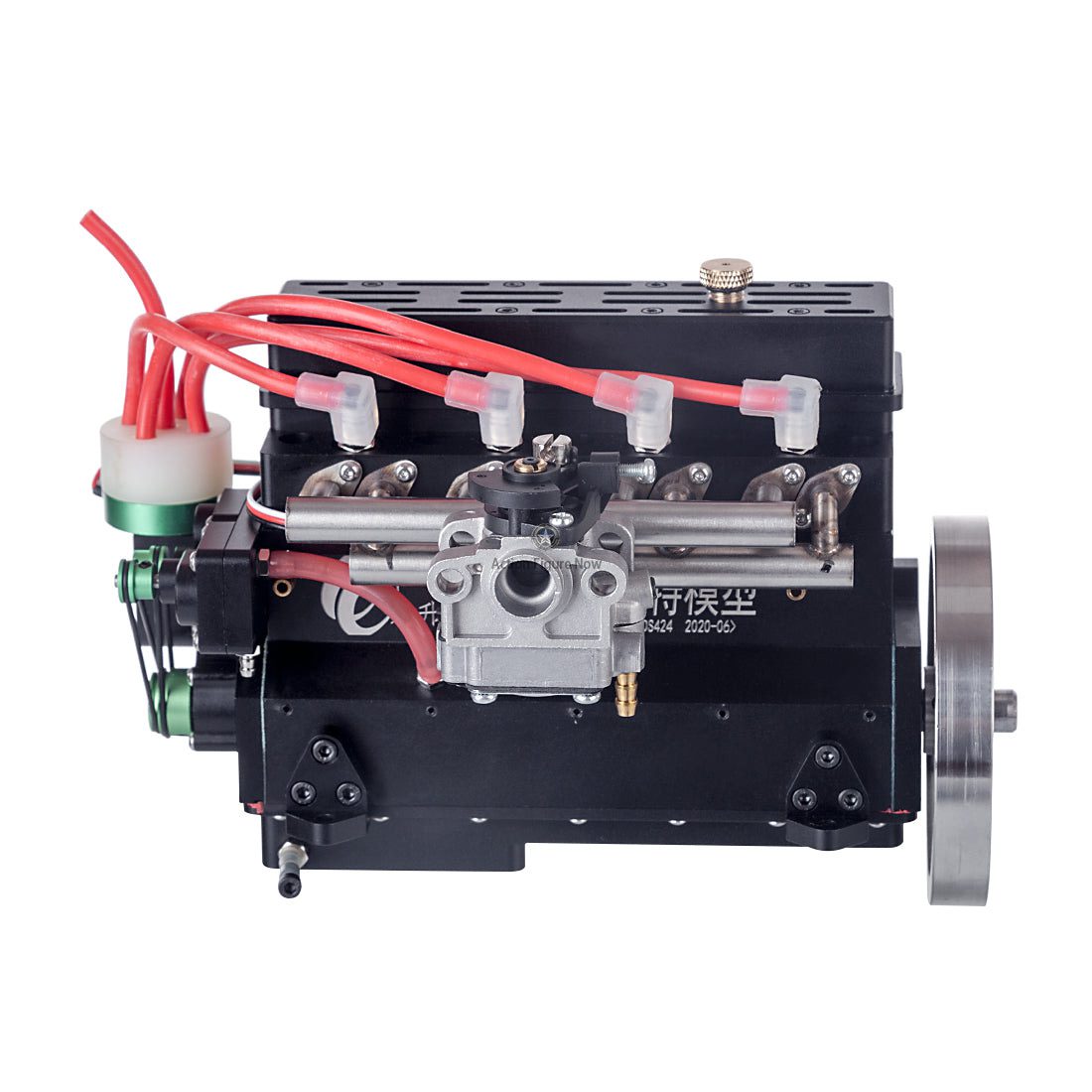

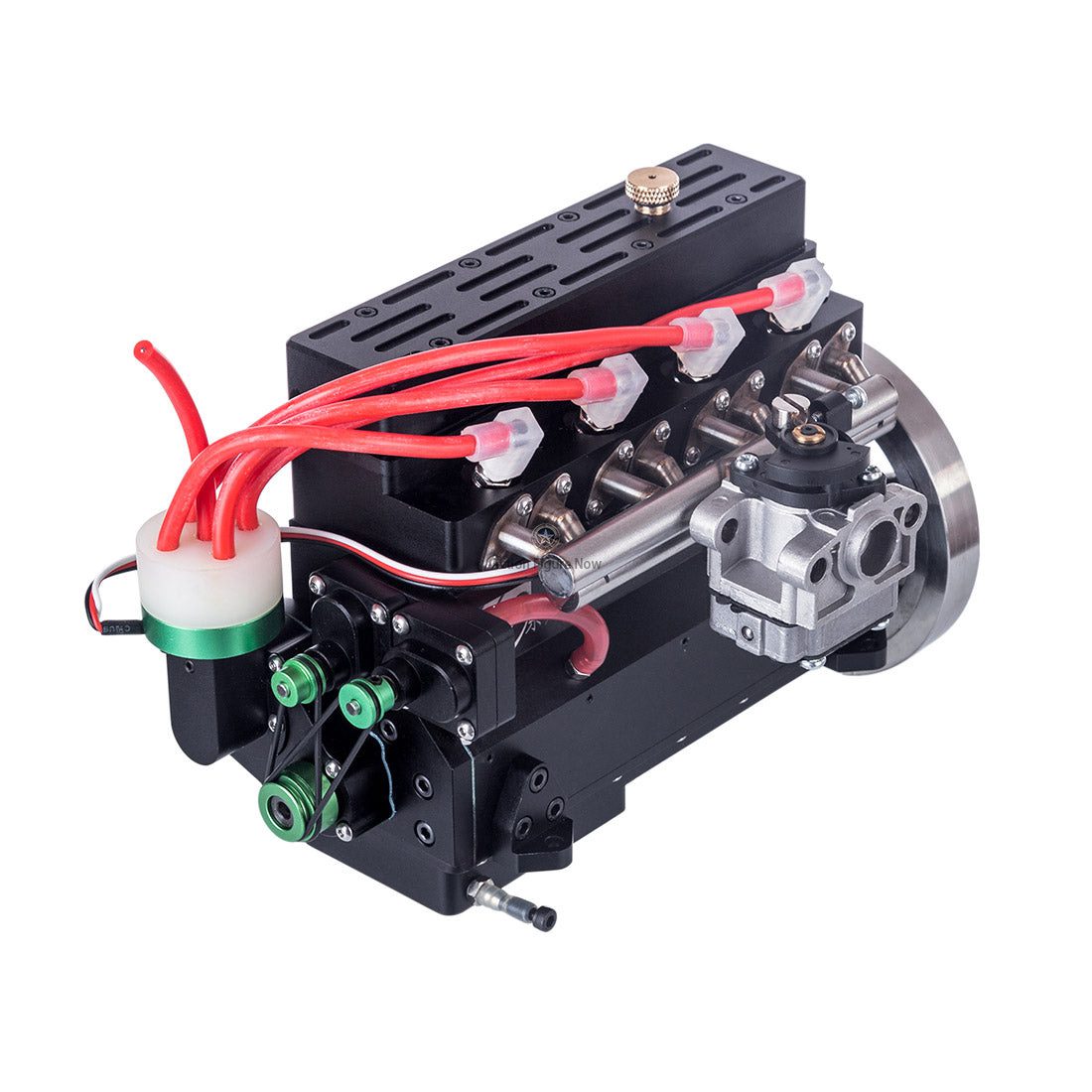

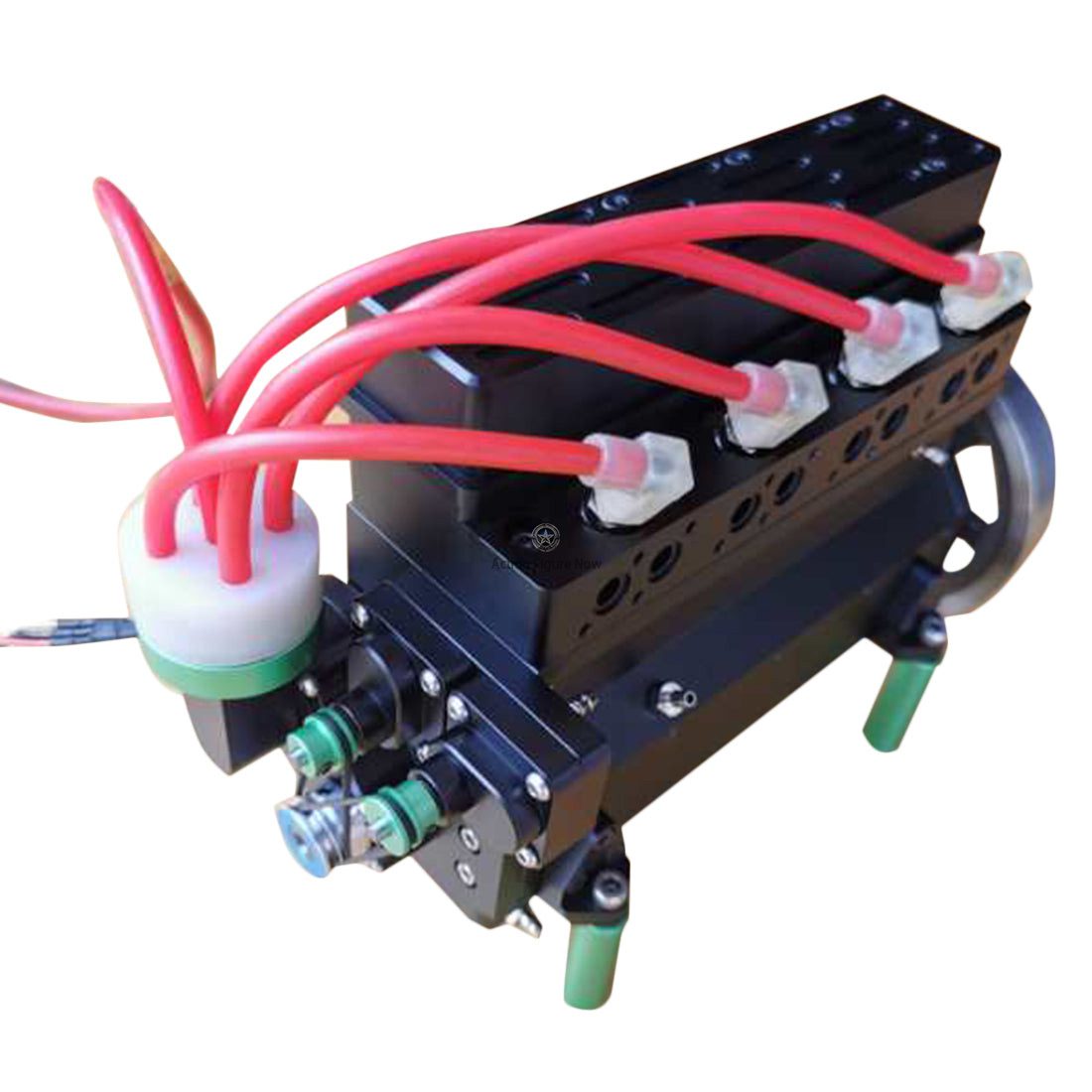

32cc Inline-4 Water-Cooled Petrol Engine for 1:5 Scale RC Car, Boat, and Airplane

32cc Inline-4 Water-Cooled Petrol Engine for 1:5 Scale RC Car, Boat, and Airplane

Name: 32cc Inline-4 Water-Cooled Petrol Engine for 1:5 Scale RC Car, Boat, and Airplane
SKU: ENGINE-Fnhj5X
Availability: InStock

SKU ENGINE-Fnhj5X

Be the first to leave a review.

$949.99

Style

Black

Clear

🚚 Free Shipping: Available on all products.
💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Shipping & Delivery

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

Returns & Exchanges

For more information click here returns and exchange

Item in Blue- SKU: 33ED3085161

Features:

Displacement: 32cc (8cc 4)
Cylinder length: 150mm
Width: 60mm

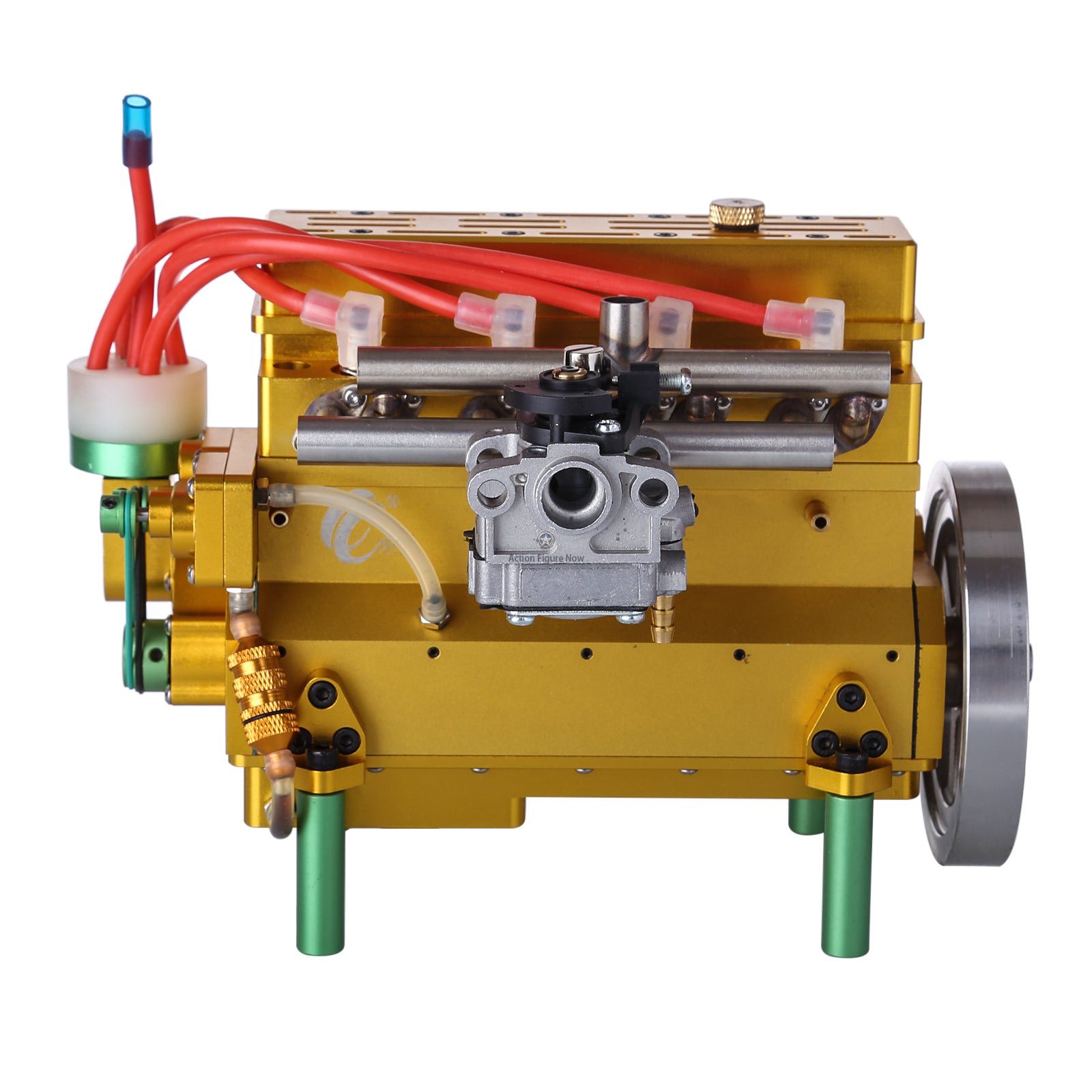

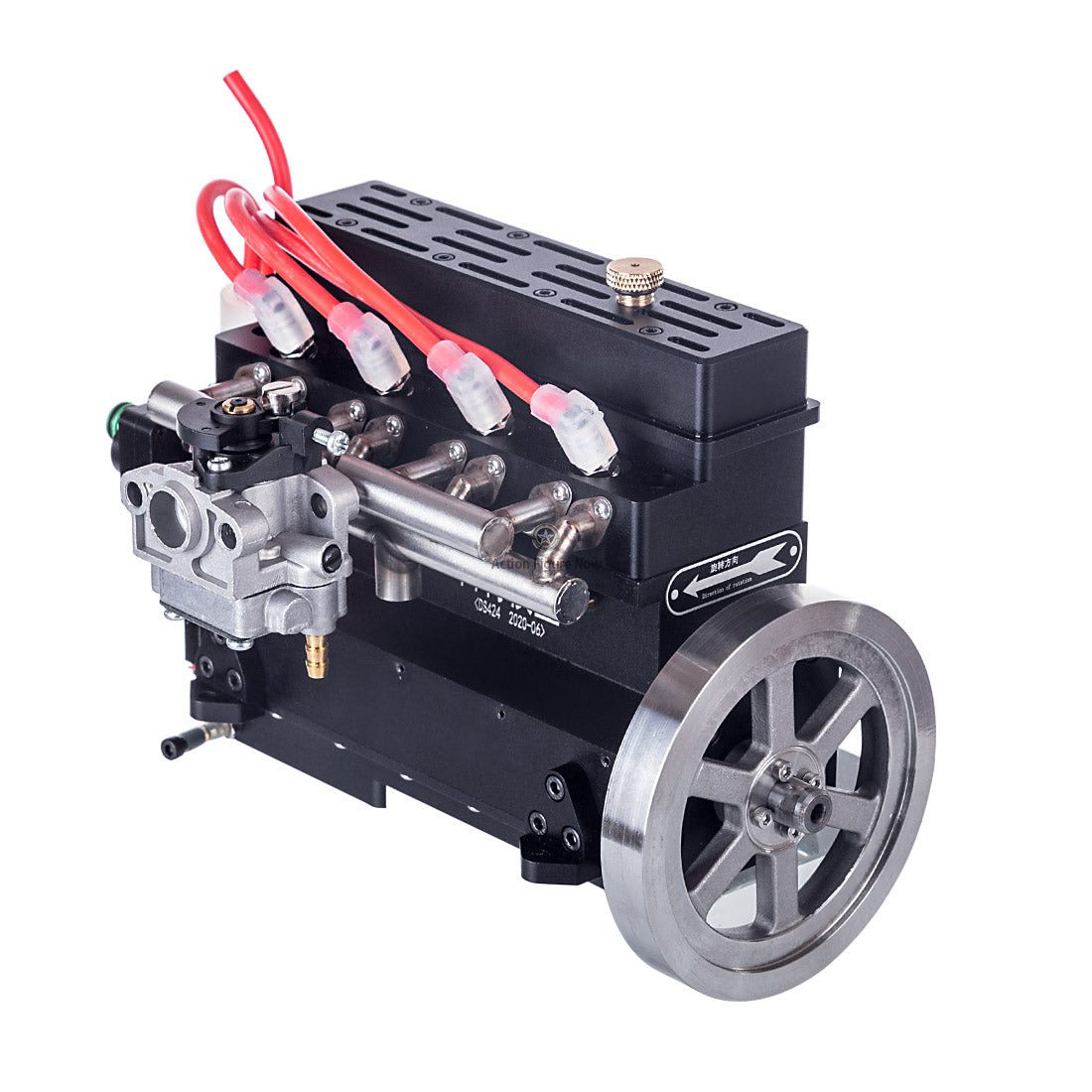

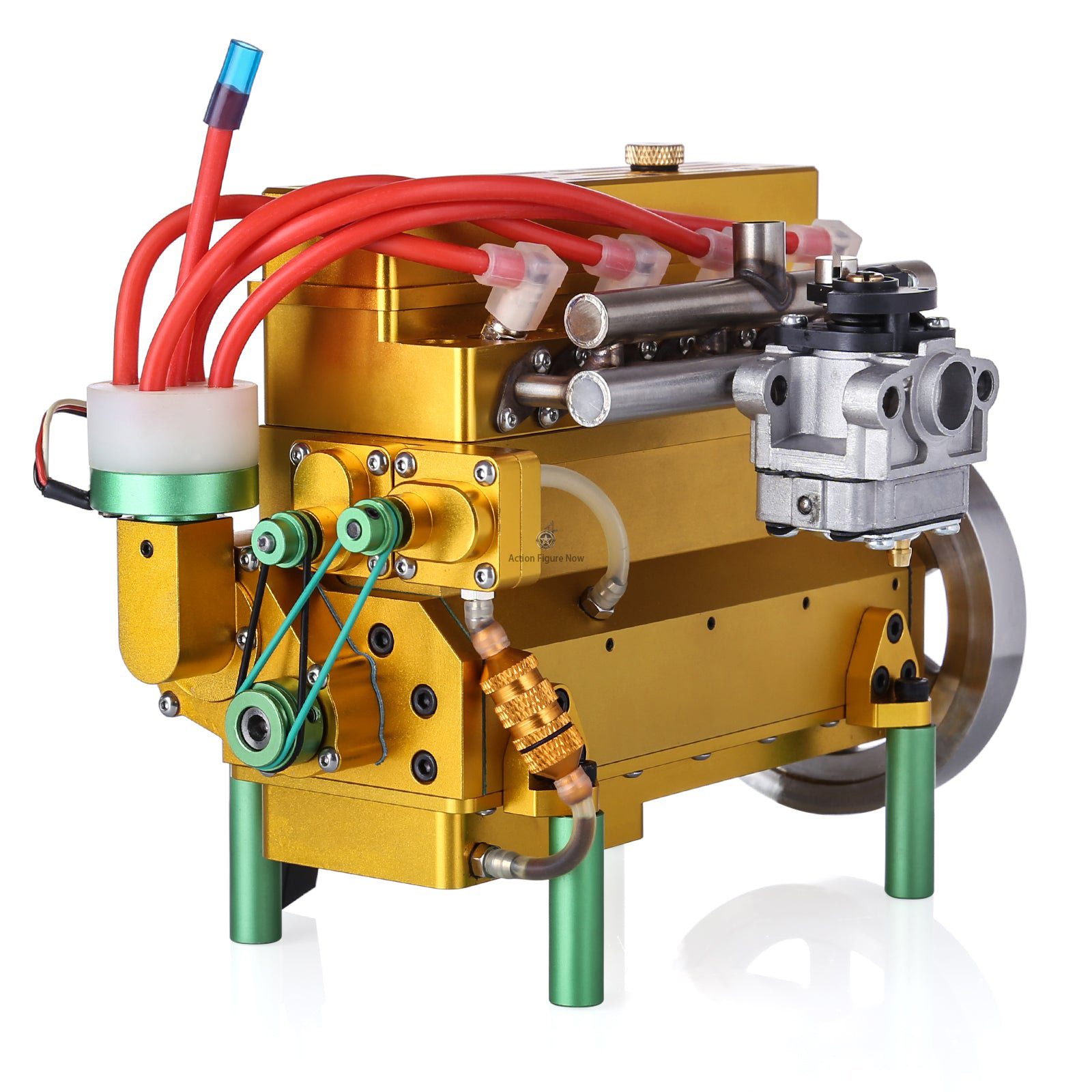

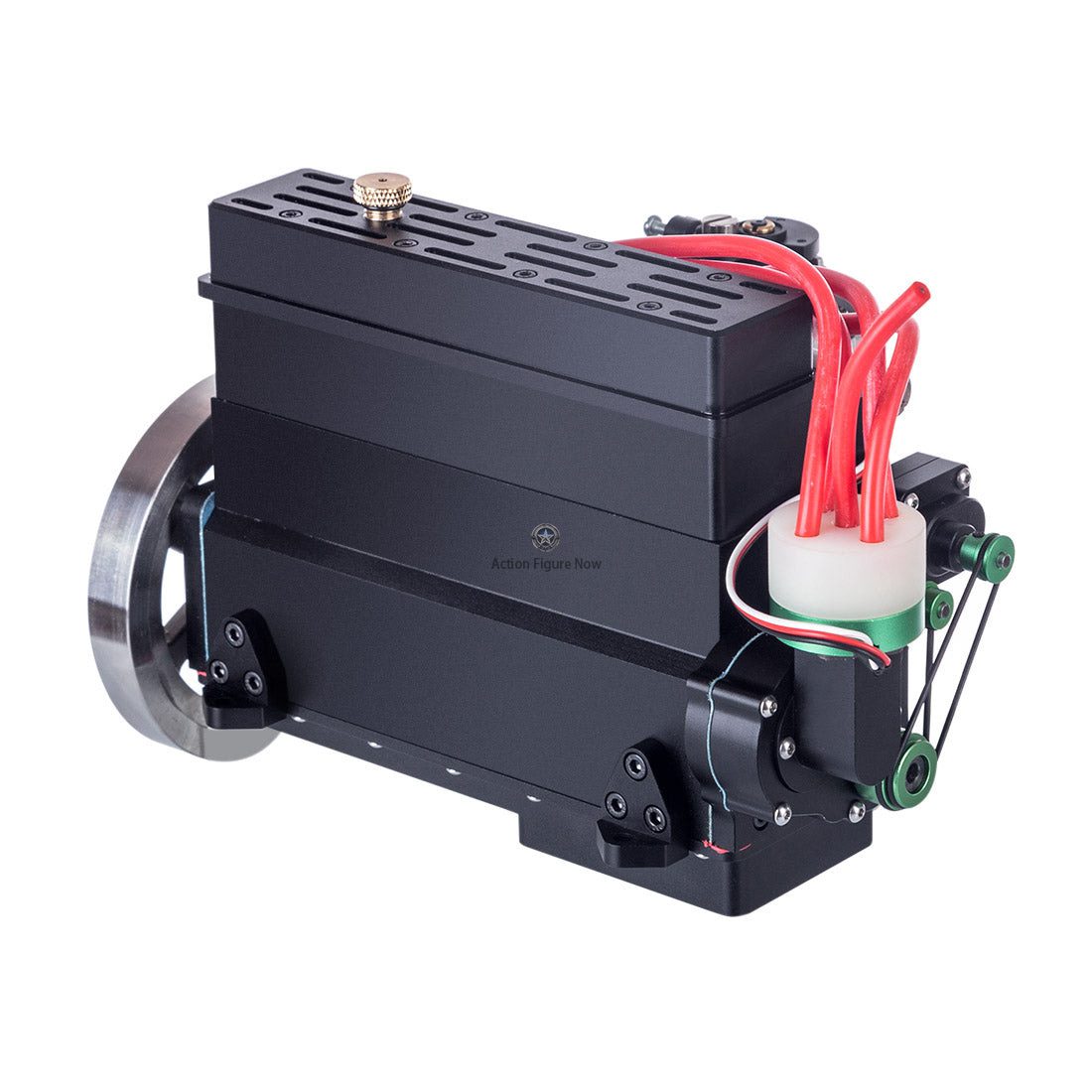

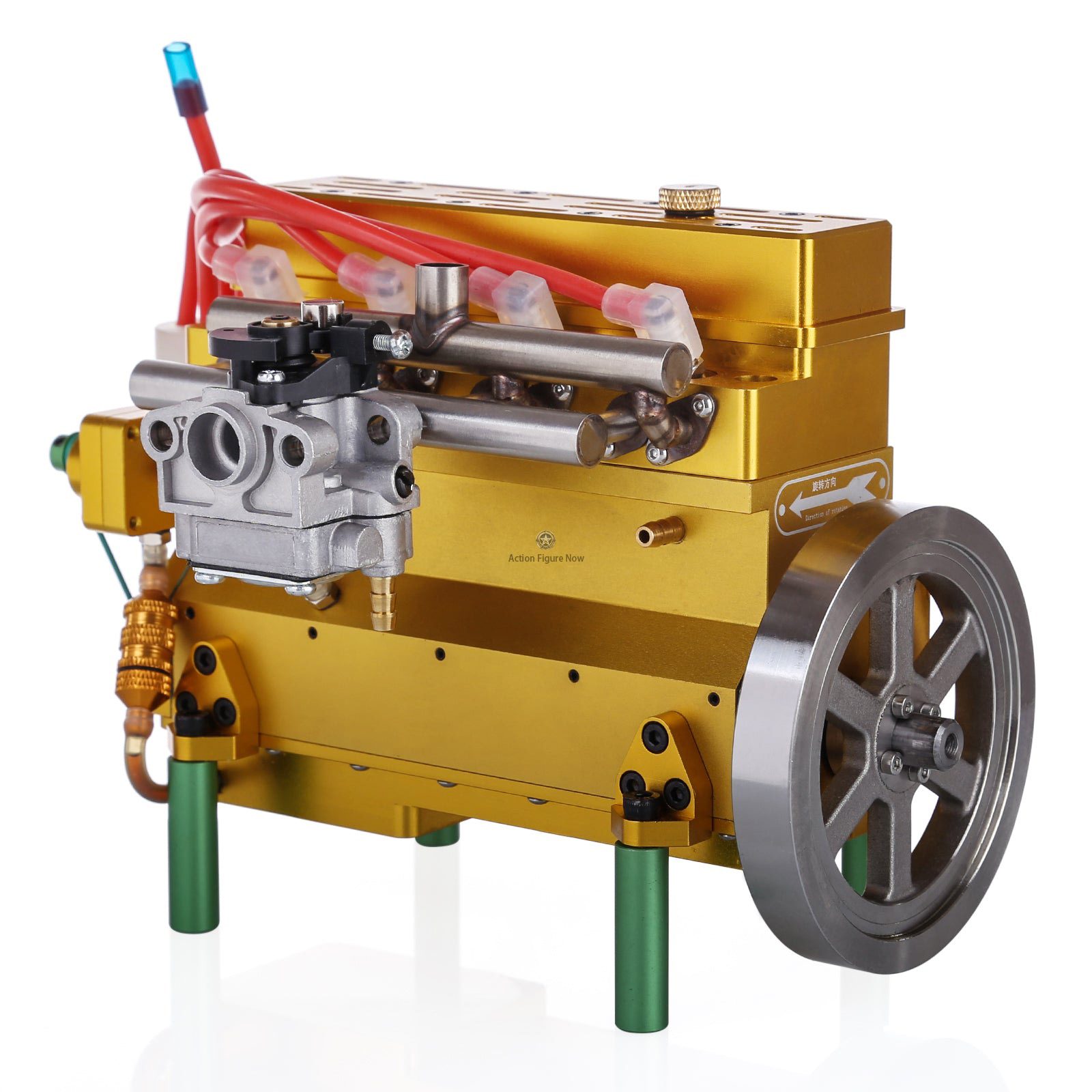

In-line four-cylinder water-cooled gasoline engine model
Gasoline independently lubricated

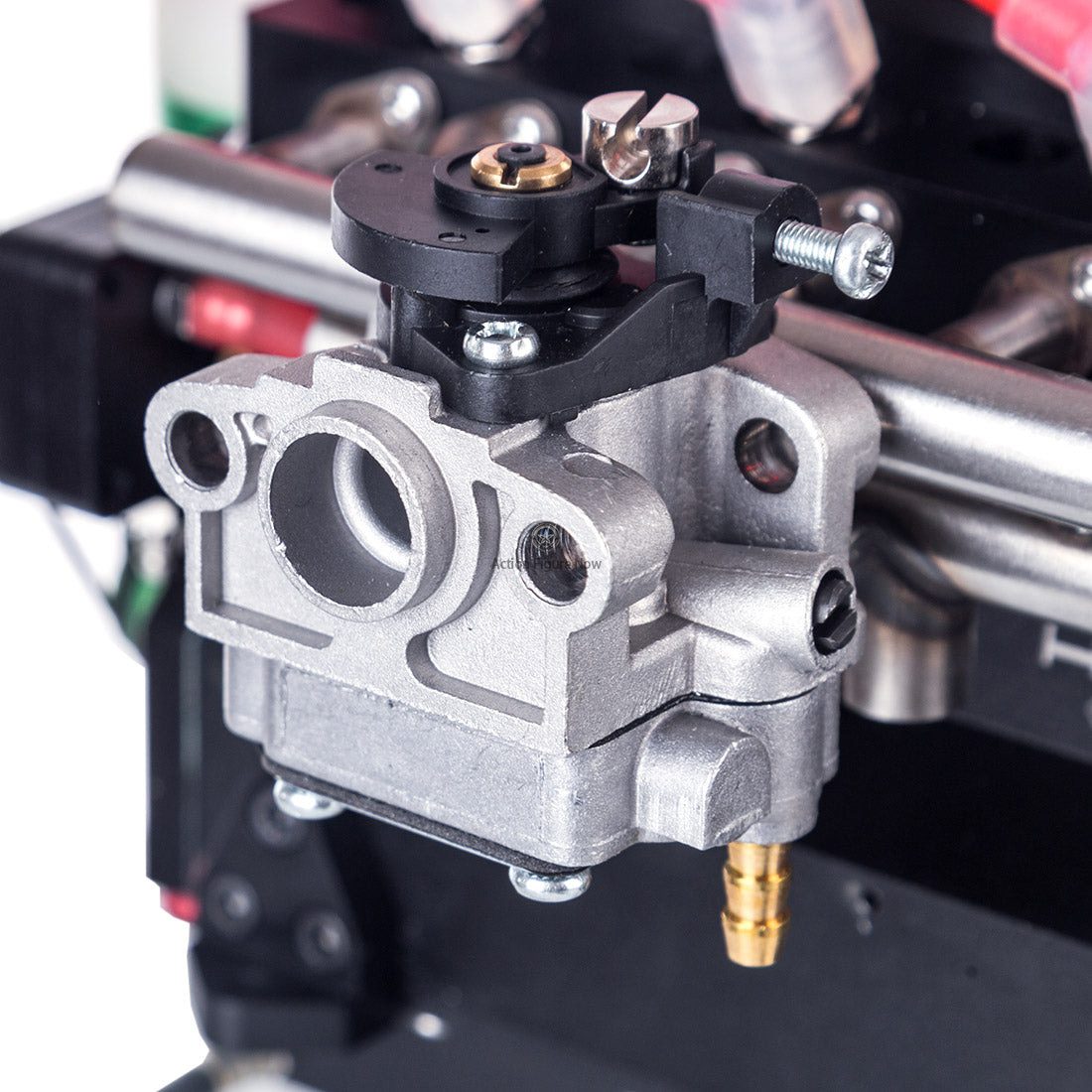

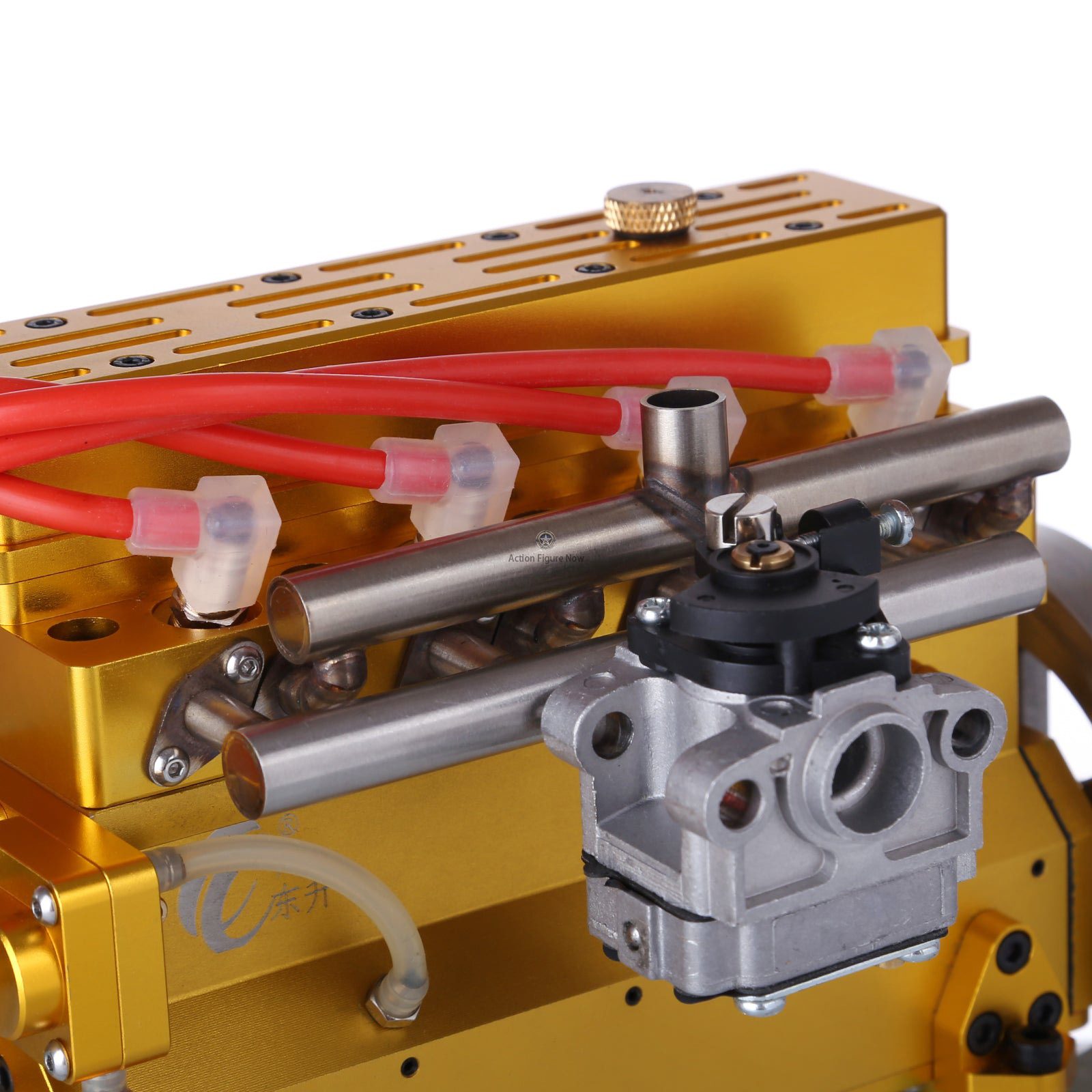

With intake and exhaust carburetor
Oil pump with water pump
With spark plug and igniter
With fuel tank and without cold exhaust

Tips:

Before starting, check engine oil level and add if necessary.
Connect water cooling to avoid damage.
This is an independent lubricated model four-cylinder engine that burns pure gasoline.
Each machine is factory tested and may have oil marks or start signs upon receipt.

For Age:

14+

Specifications:

Material: Aluminium Alloy
Item Name: Gasoline Engine Inline Four Cylinder Model
Displacement: 4 x 8CC
Model: GN-N100
Size of Engine: 210 x 120 x 150mm (L x W x H)
Cylinder Diameter: 24mm
Stroke: 20mm
Voltage: 6-12V
Fuel: Gasline 95 / 97 / 98
Best Tappet Clearance: 0.5mm
Cylinder Liner: Stainless Steel Cylinder Liner
Piston: Double Groove 7075 Aluminium Alloy Piston
Piston Ring: Double Metal Piston Ring
Connecting Rod: One-piece Casting
Crankshaft: One-piece Casting, Later Quenching
Cylinder: 7075 Aluminum Alloy, Anodized
Lubrication Method: Independent Lubrication (independent lubrication of crankshaft and camshaft, splash lubrication for the rest)
Product Size: 21 x 12 x 15cm
Product Weight: 3000g
Package Dimensions: 28 x 23 x 22cm
Package Weight: 3800g
Packing: Carton Box

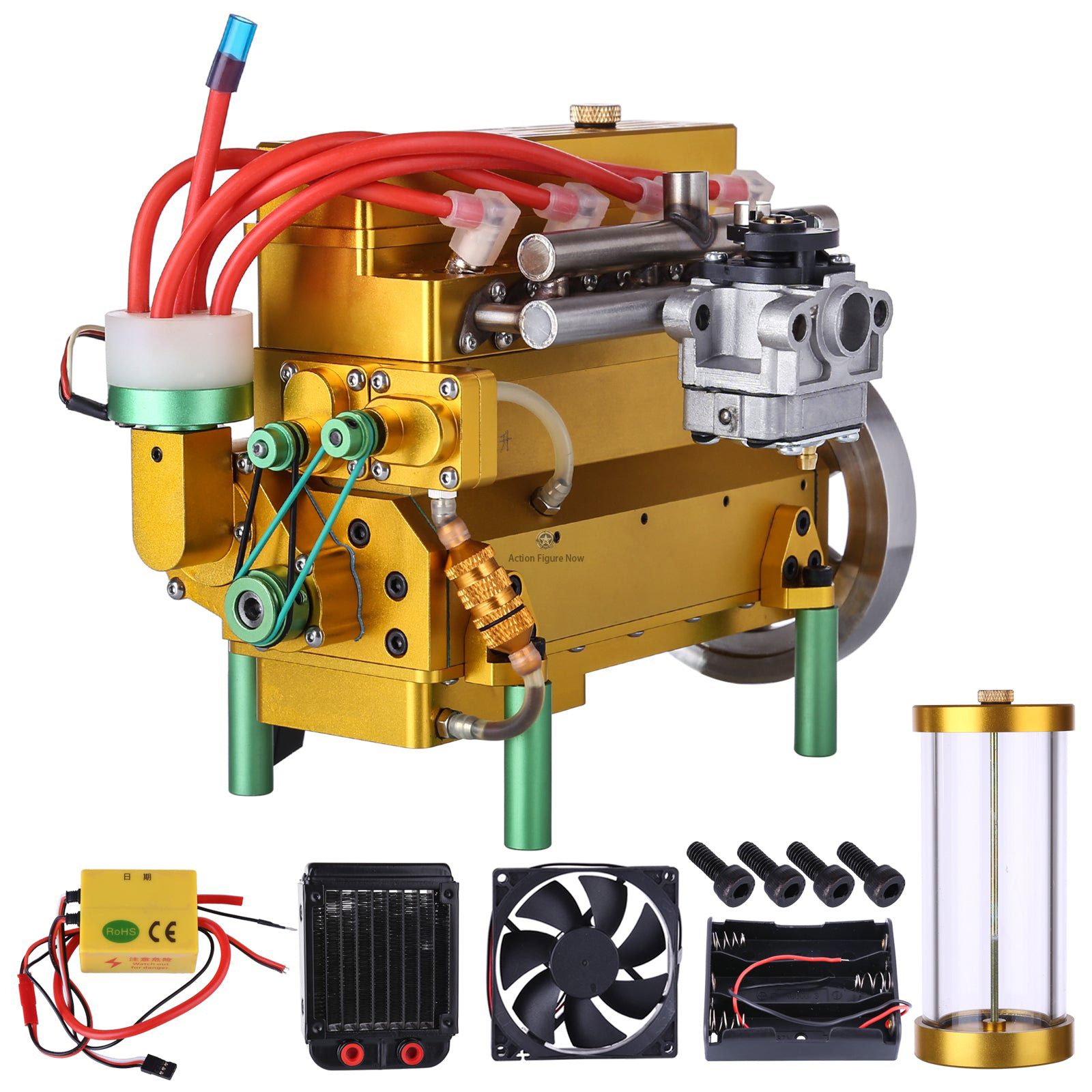

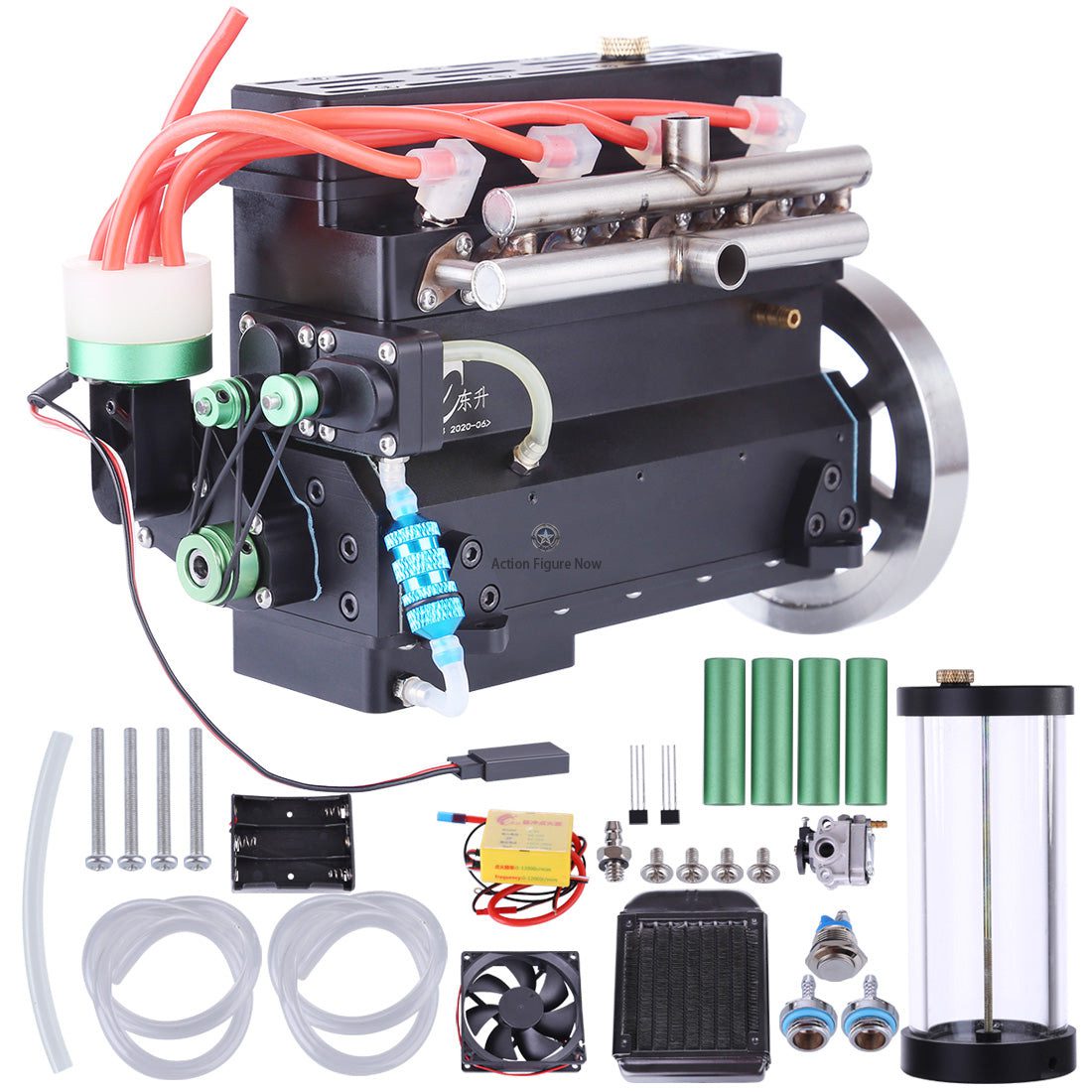

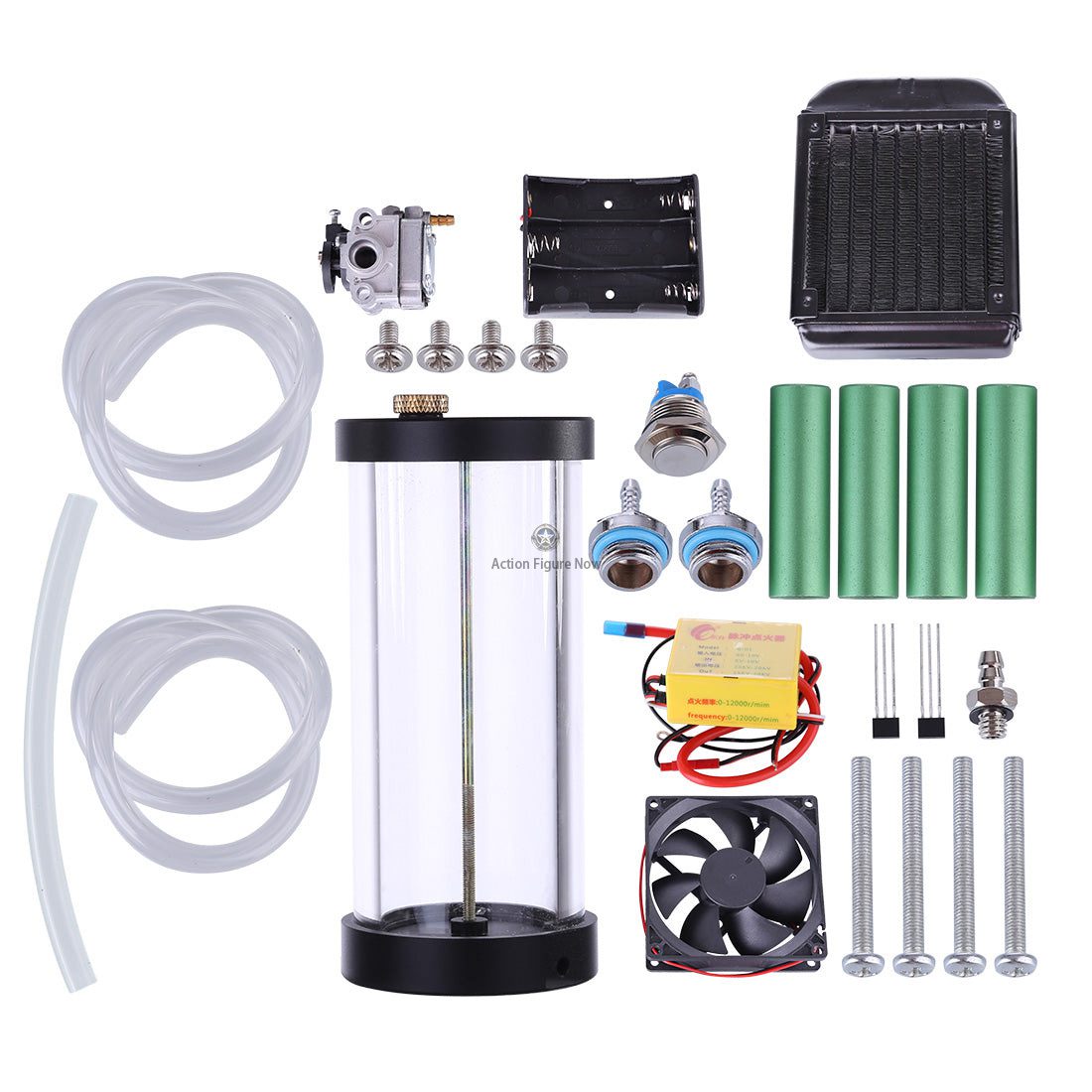

Package Content:

1 x Engine Model
1 x Fuel Tank
1 x Igniter
1 x Battery Box
2 x Hall Sensor
1 x Fuel Pipe
2 x Water Cooled Pipe
1 x Filter
1 x Water Cooled Platoon Kit
1 x Push Botton Switch
1 x Manual
