4-Stroke Hot-Bulb Engine Simulation, Horizontal Water-cooled Gasoline Retro Engine Model
SKU
$594.99
- 🚚 Free Shipping: Available on all products.
- 💸 Discounts: 3% off for 3 items, 5% off for 5 items.
Antique 4-Stroke Hot-bulb Engine
– Horizontal Water-cooled Tractor Engine
– Internal Combustion Engine Model Collection
How This Hot Bulb Engine Runs:
[Video Link]History of Hot-bulb Engine:
– Appeared in Europe in the early 20th century
– Known for reliability, multiple fuel compatibility, and extended operating duration
– Used in agriculture, forestry, and marine applications for pumping, powering machinery, road rollers, and tractors
What is Hot-bulb Engine:
– Fuel ignites upon contact with a red-hot metal surface in a bulb
– Air (oxygen) is introduced into the bulb chamber by the rising piston
– Most hot-bulb engines are 1 or 2-cylinder, low-speed, 2-stroke units
Inspired by Hot Bulb Engine:
– Horizontal four-stroke gas engine
– Features a characteristic large cast iron flywheel
– Made from numerous cast iron castings
– Surface treated with dark green paint for a retro aesthetic
RTR (Ready to Run):
– Includes spark plugs and igniter
– Battery and fuel not included
Compression Ratio & Stroke Adjustable:
– Uses CDI high pressure ignition
– Fuel: light gasoline
– Compression ratio and stroke can be adjusted
– Cooling method: plunger pump water cooling
– Simulated crank handle for engine cranking
Collection or Gift Choice:
– High-grade wooden base
– Maintains low speed and runs stably
– Ideal for engine model collectors and enthusiasts
– Perfect gift for engineers, collectors, and hobbyists
Age Recommendation: 14+
Specifications:
– Color: Dark Green
– Material: Metal + Wood Base
– Rack: Cast Iron, Dark Green Paint
– Flywheel: Cast Iron, Dark Green Paint, Diameter 225mm, Thickness 20mm
– Base: Wood, Red Paint
– Weight: approx. 6.5kg
– Length: 350mm
– Height: 230mm
– Bore: 22mm
– Stroke: 24mm
– Form: Ready to Run
– Cooling method: Water Cooling
– Start Mode: Shake the handle to start
– Ignition method: CDI Igniter;
– Spark Plug Type: CM-6 spark plug with 10mm screw diameter and 8.6mm thread length (2022); 1/4-32 thread ME8 spark plug (2023)
– Lubrication method: mixed oil splash lubrication (gasoline/oil=25/1)
– Fuel Type: 92 and above gasoline
– Oil type: 2T oil
– Start-up Power: 6-10V
– Packaging: Carton
Packing List:
– 1 x Hot Bulb Engine
– 1 Set Original Accessories
– 1 x Instruction

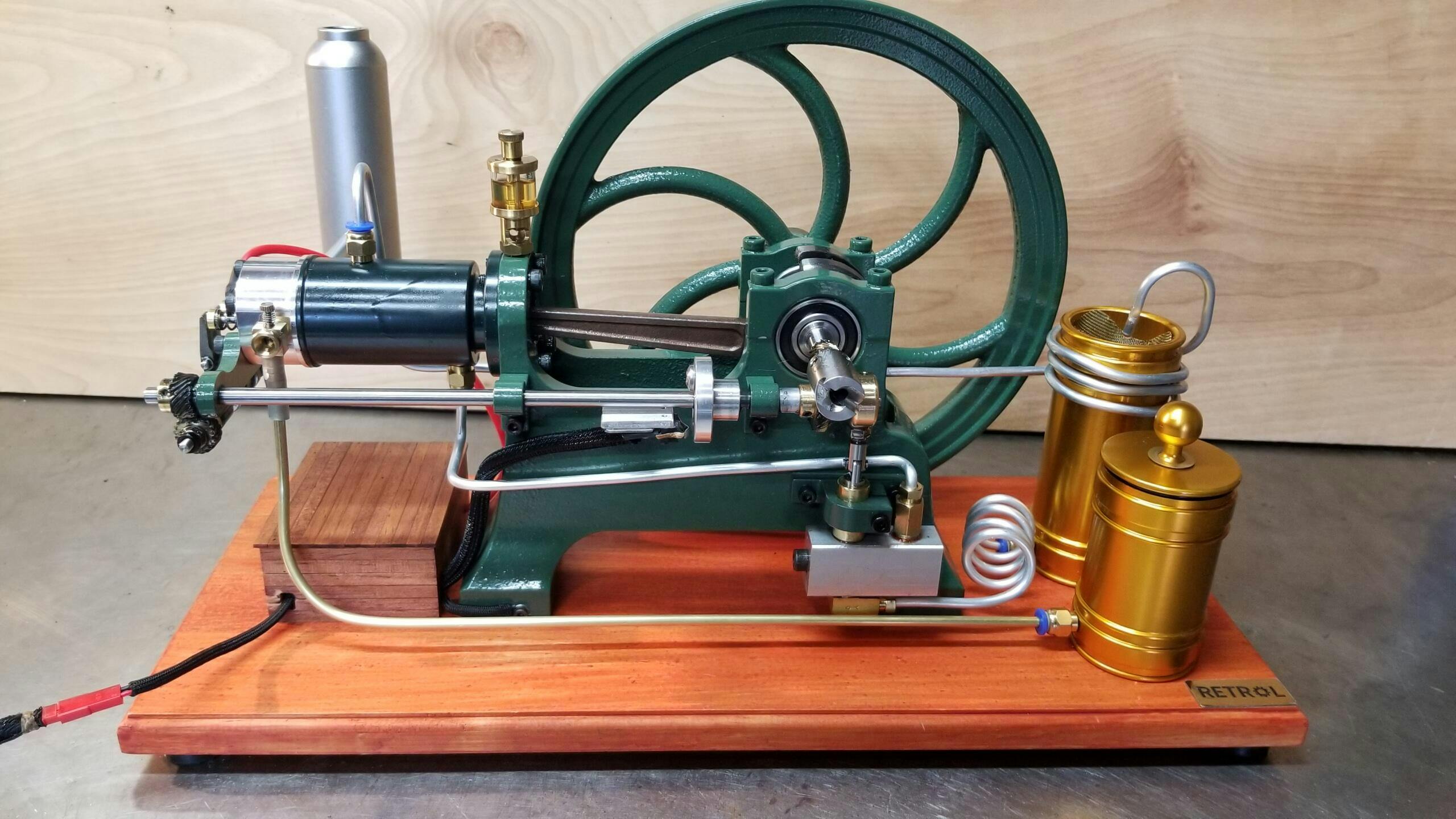

This thing will blow smoke rings for days, so use it outside or with the garage door open.
The engine runs quite well, the mixer/carb is set to run rich for low speed and lean for high speed. Lean condition for too long will cause the engine to run hot, so run it rich and slow.
Fuel mixed 25/1 per directions, using Marvel Mystery oil as it does not gum up.
With a little attention to detail, it can be dressed up to look quite remarkable.
Brass fuel pipe is 4mm, 1/4" wire loom to hide the wire, replaced the brass/copper exhaust fittings for a clean straight pipe, made the wooden box to hide the electronics and added the cylinder oiler. This should come with it imo, but it was fun to search for one and this looks pretty good. Info on the oiler can be found in the video description. 10/32 thread for the oiler.
Would recommend.
Ein sehr gelungener Motor mit einem schönen Klang. Er ist problemlos und bequem über das Schwungrad zu starten.
Als Treibstoff verwende ich Superbenzin mit 4% Zweitakt-Motoröl.
run out of the box.
with 95 gasoline 4%oil or zippo benzine, or diesel. (WD40 too :)
My engine on Youtube:
https://youtu.be/emzRhegpaog

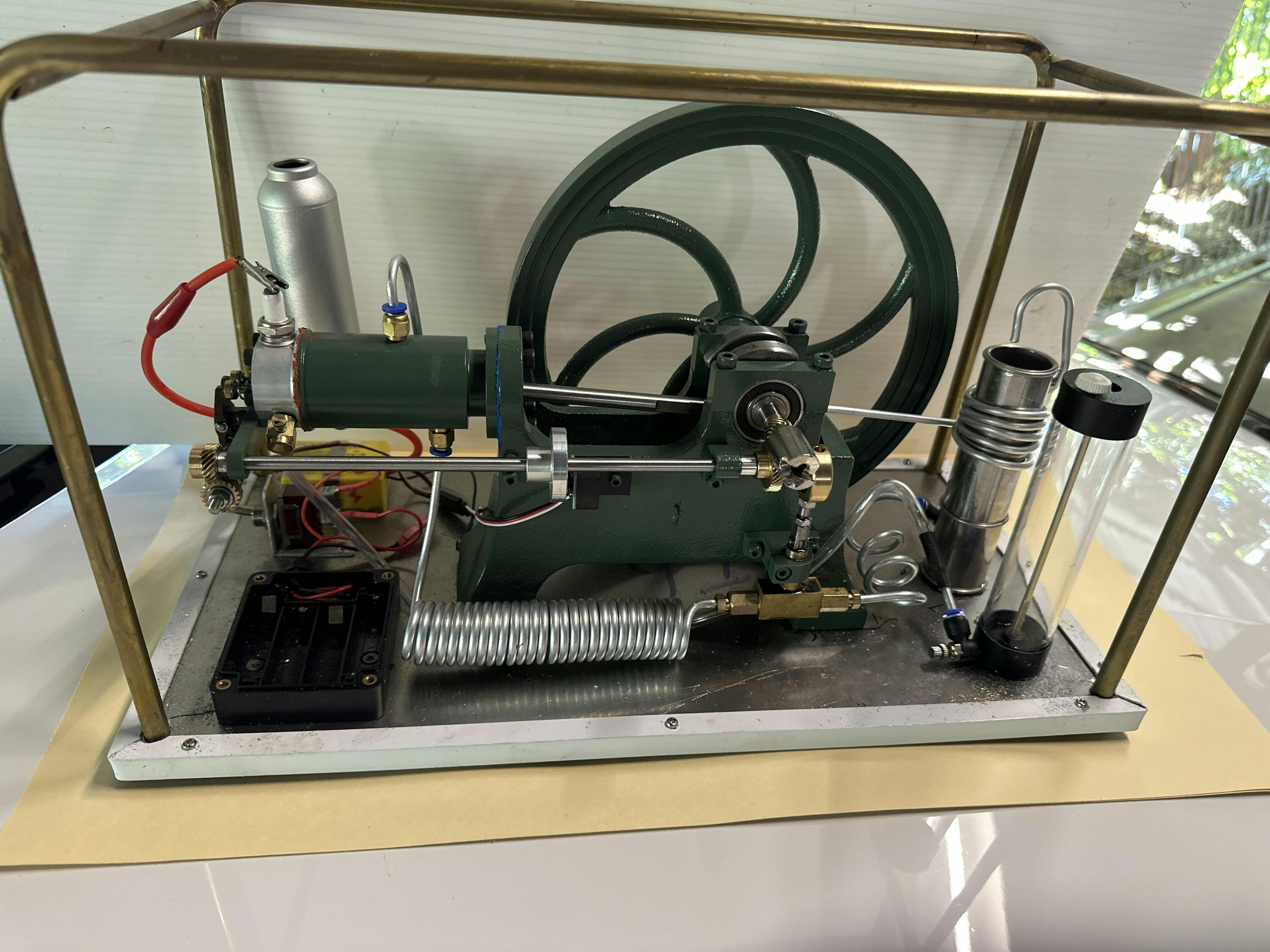

This was not a problem as I planned to make a 6mm aluminium plate base for it
No instructions included at all.
Made the base and protective carry guard and put it all together .
It worked after a bit of adjustment on the mixture screw
Runs perfectly and makes smoke rings from the exhaust
I used 2 stroke mix as fuel
The coolant water is circulated by the piston pump and cools the system efficiently
The large flywheel certainly helps keep the engine rotating while making minute adjusments to the mixture screw
Overall I am very impressed
Einen Vorschlag habe ich aber an den Hersteller eine Riemenscheibe zum antreiben von Geräten würde wünschenswert sein
Ich hoffe die Riemenscheibe wird noch angeboten zum nachrüsten
