Educational Steam Engine Model for Physics Labs
SKU
$125.99
- 🚚 Free Shipping: Available on all products.
- 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

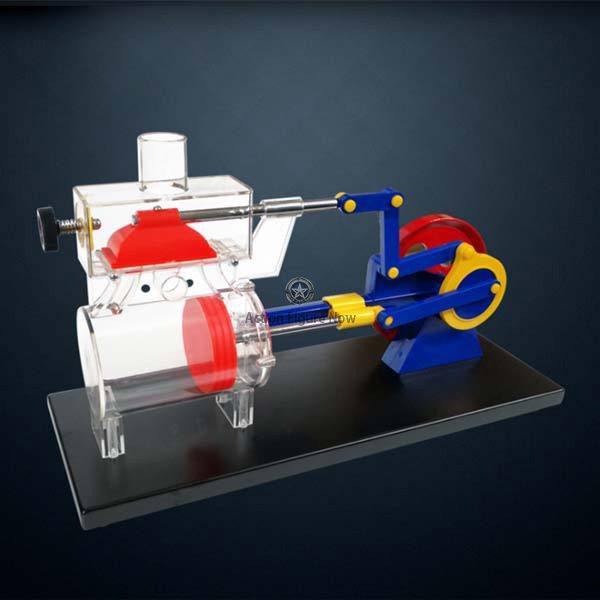

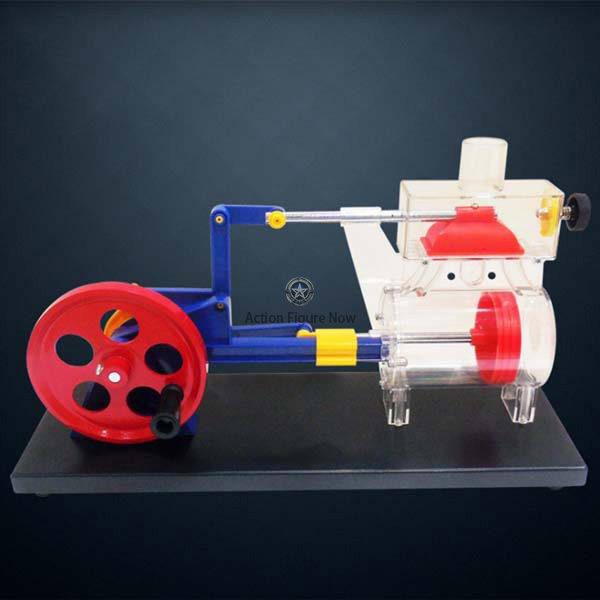

Steam Engine Model – Physical Lab Equipment Teaching Tool
The steam engine model is a pneumatic, double-pushing steam engine with adjustable airflow. The steam is controlled by a reversing valve, which can alternately push the piston from the steam inlet at both ends of the cylinder.
Features:
– When the gas source supplies enough simulated steam, the model’s high-speed operation creates a stunning visual effect.
– Ingenious Design: The model is fixed on a bottom plate for easy placement, with transparent parts to facilitate observation of the working details of its various components without any blind spots.
– Simulated steam pressure adjustment mechanism for machine speed adjustment.
– Instrument Composition and Parameters: Cylinder, piston, air supply cover, air flow reversing valve, crankshaft linkage, flywheel, bracket, and bottom plate. The transparent cylinder, air chamber, and air passage make the working principle visible.
Tips:
– This instrument requires a small air source for operation.
– Maintenance: Clean and maintain the instrument after use to ensure its longevity.
Specifications:
– Item Name: Steam Engine Model
– Material: Metal + Plastic
– Piston Size: 68mm
– Piston Stroke: 54mm
– Instrument Safety Speed: ≤600r/min
– Instrument Dimensions: 395140230mm
– Steam Engine Weight: 2000g
– Package Weight: 2200g
– Packing: Carton Box
Package Includes:
– 1 x Steam Engine Model
