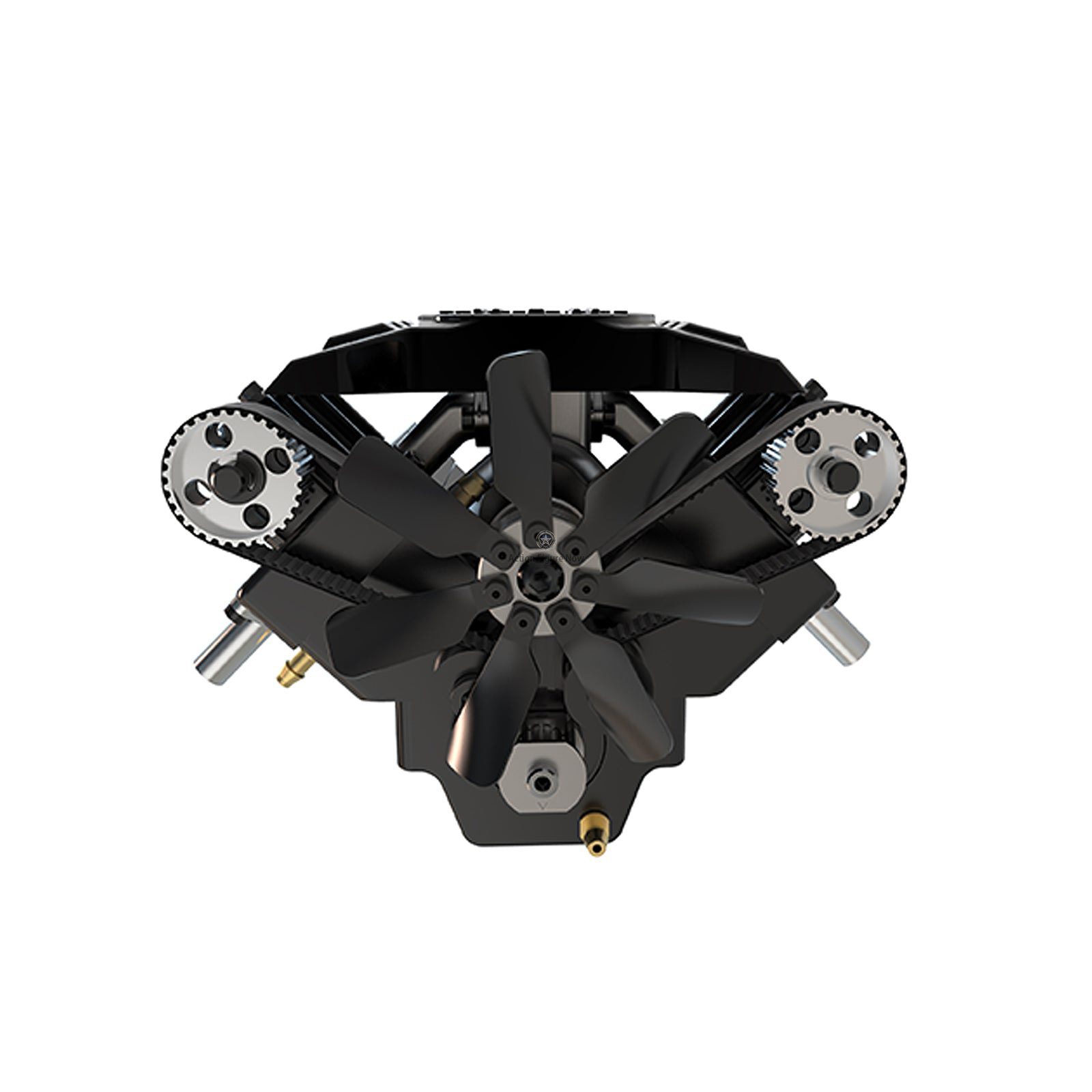

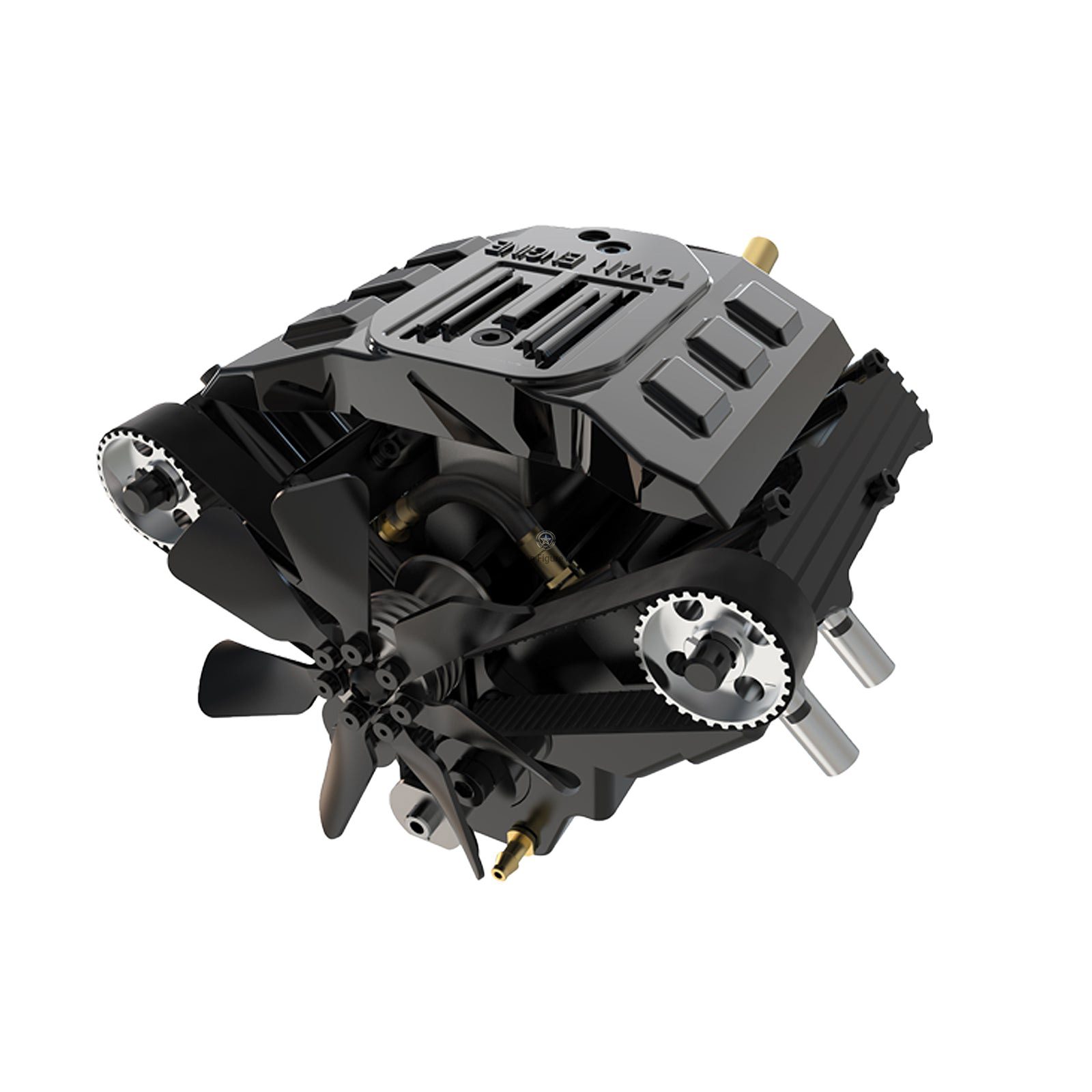

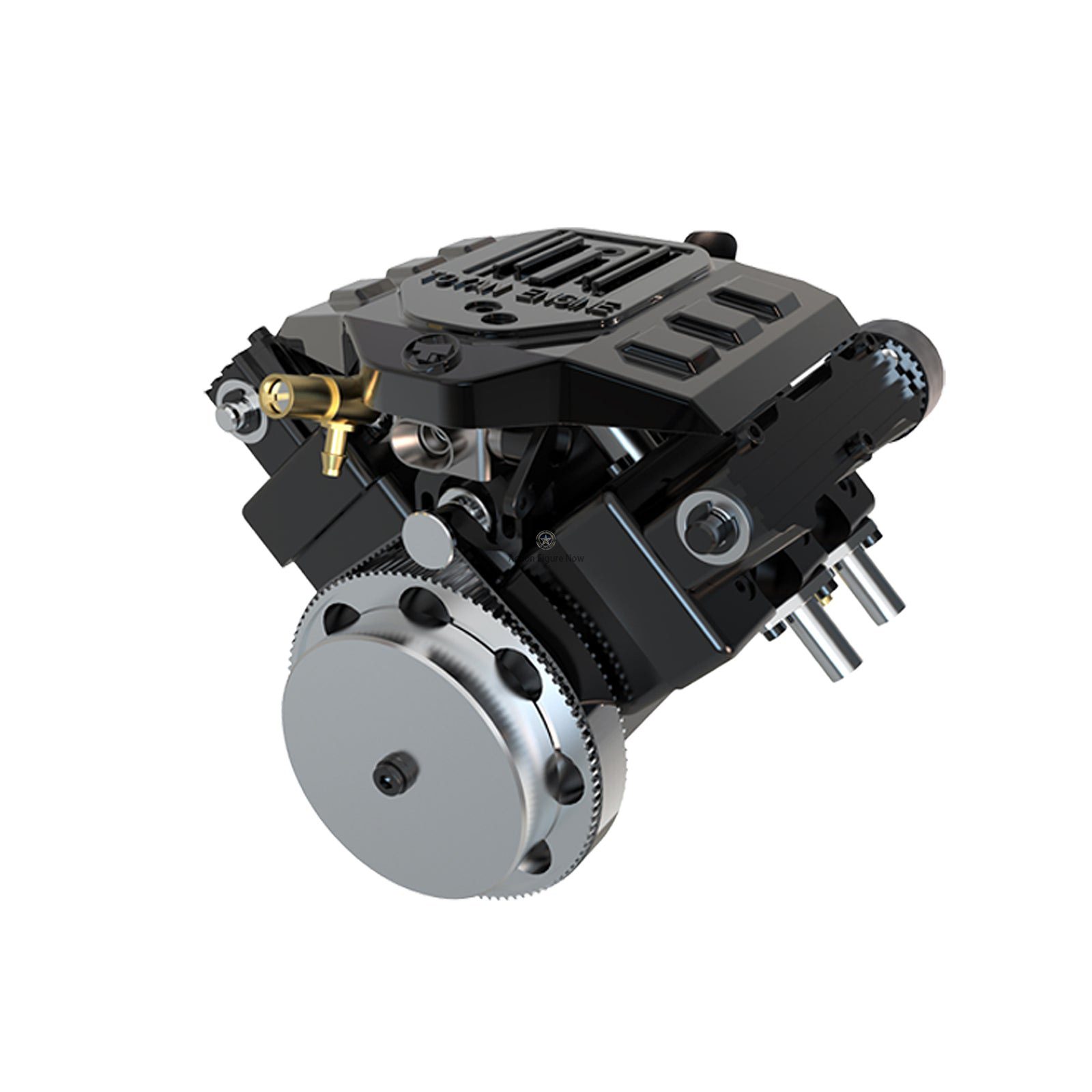

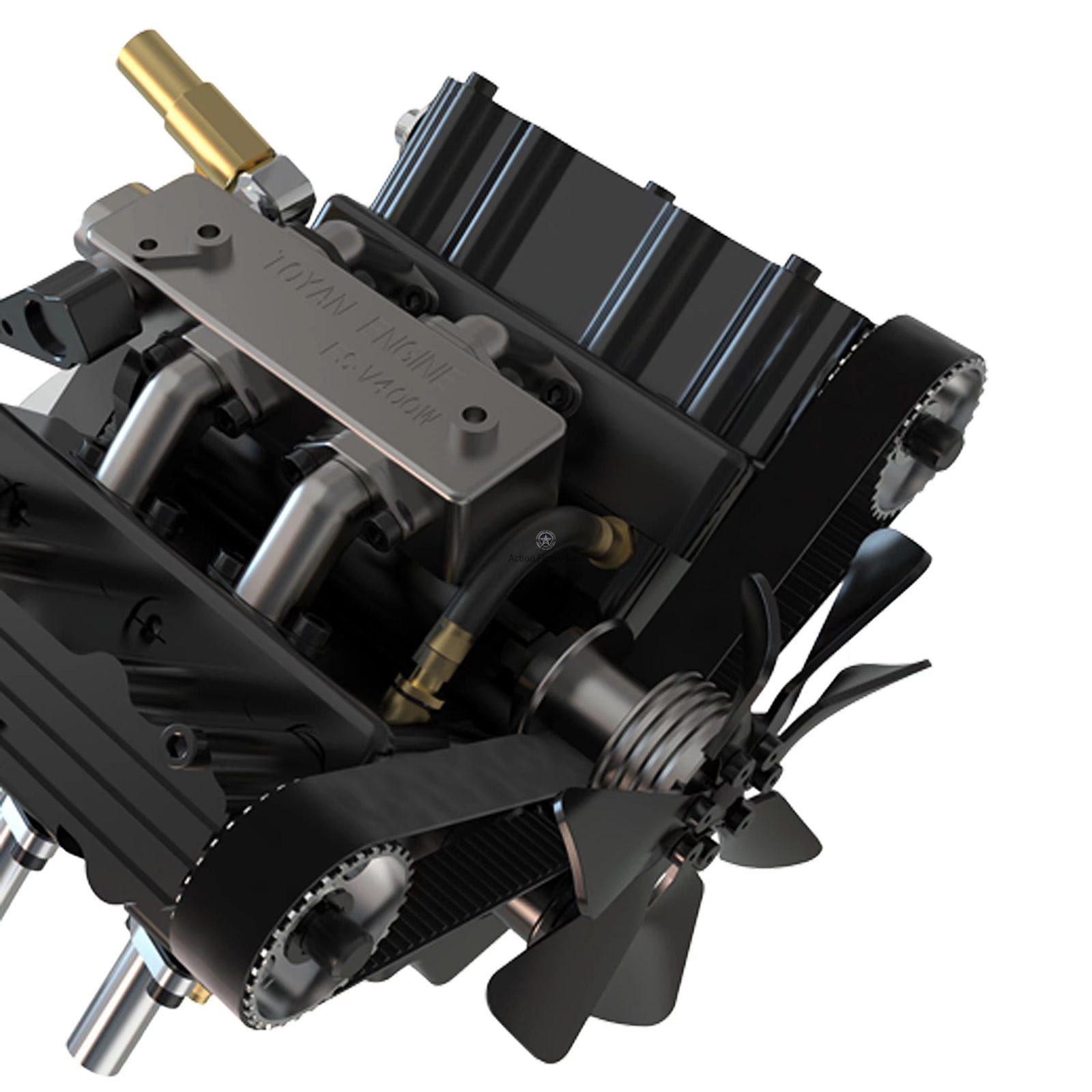

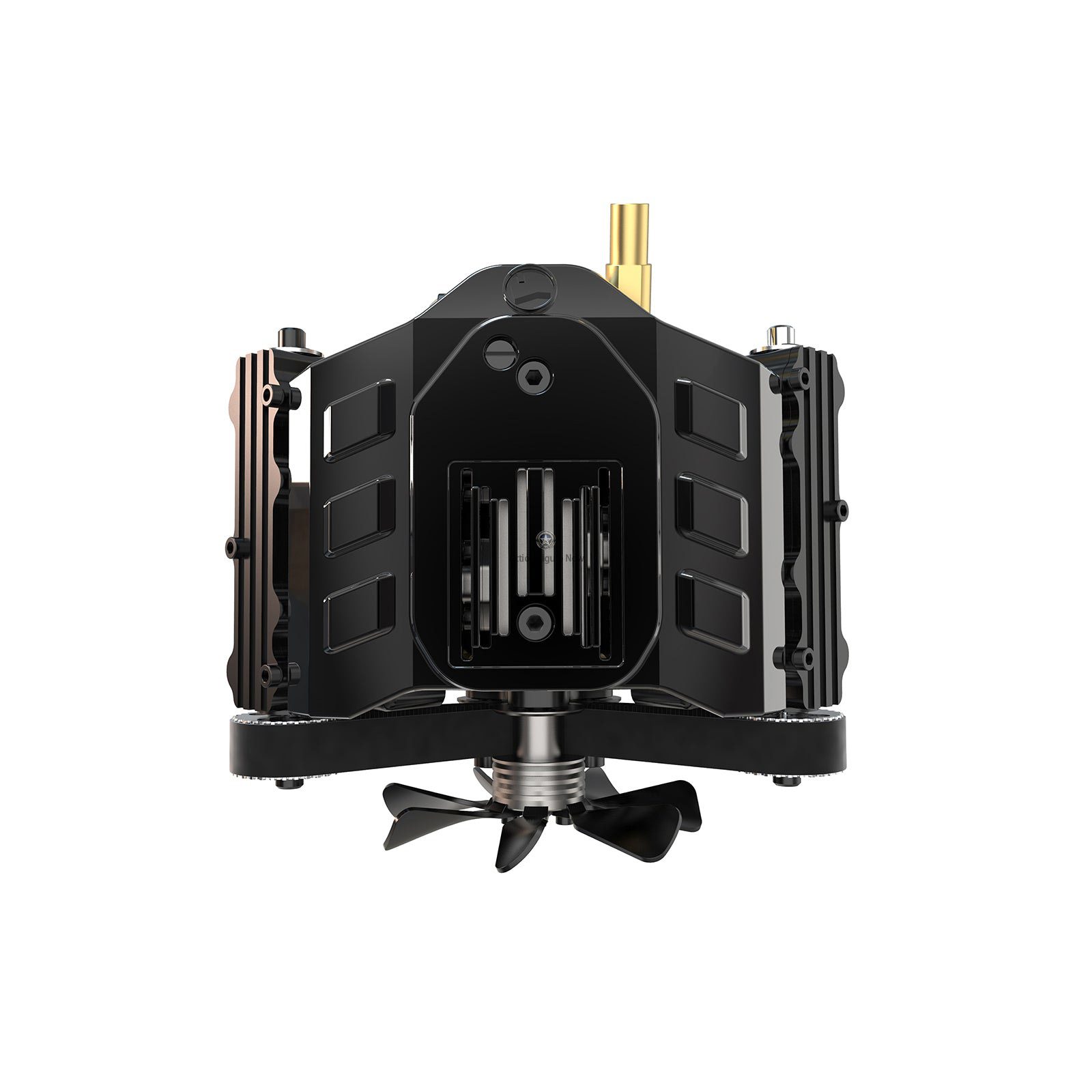

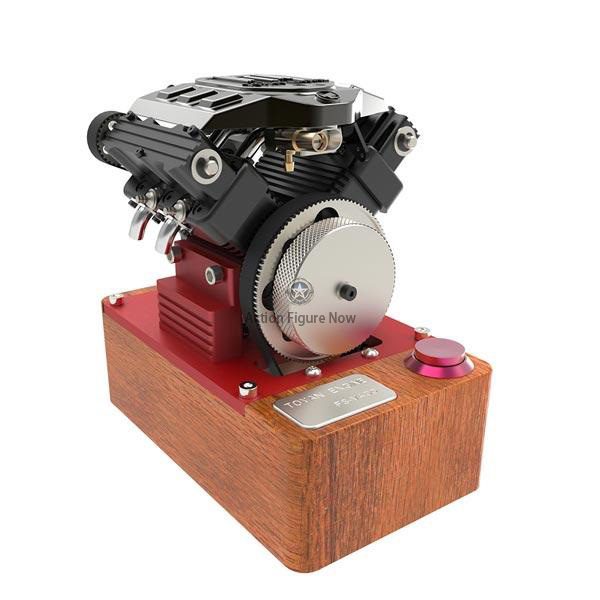

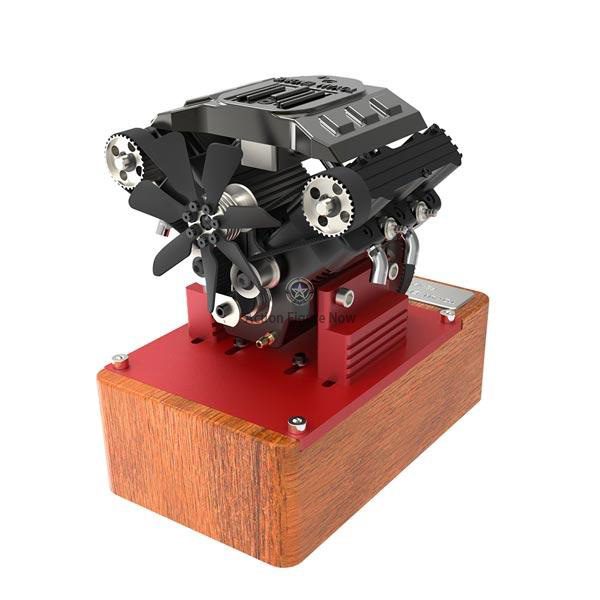

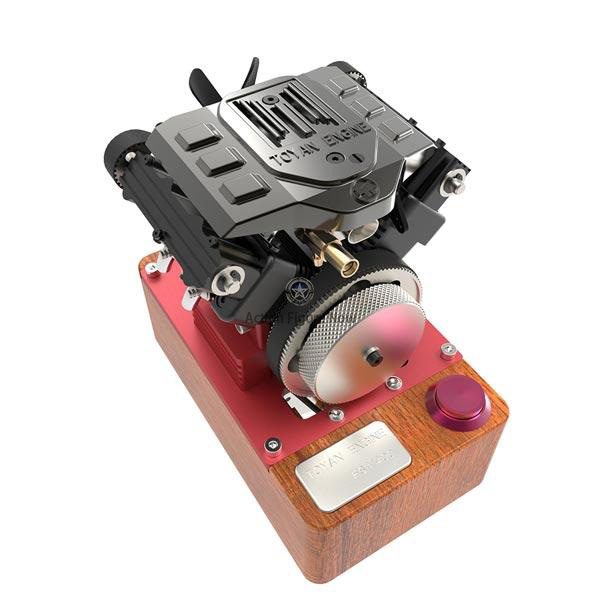

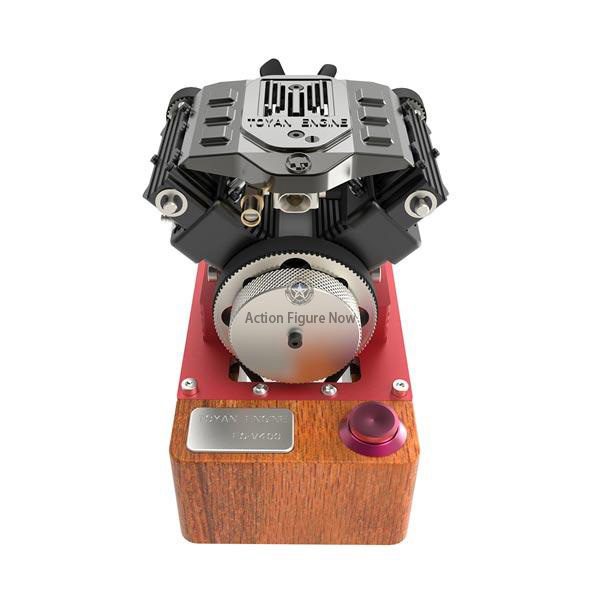

TOYAN Engine V4 FS-V400A Four Cylinder Four Stroke Methanol RC Engine

A four-stroke (also four-cycle) engine is an internal combustion (IC) engine in which the piston completes four separate strokes while turning the crankshaft. A stroke refers to the full travel of the piston along the cylinder, in either direction.

Why Use Methanol Injection Fuel?

1. Increase the engine working power by 2
2. Cooler intake temperatures allow you to run more aggressive timing and/or boost (forced induction applications)
3. Reduced chance of detonation
4. More economical for the street: water/methanol is a less expensive high-octane alternative to pure race gas for guys running high compression engines on the street
5. Built-in engine maintenance: The atomized water effectively steam cleans the valves, valve seats, and even the piston tops and intake, reducing carbon build up

Working of a Four Stroke Methanol Engine

A stroke is the movement of the piston from the top, to the bottom of the cylinder. The Four Stroke Petrol Engine uses a cycle of four strokes and Methanol as the fuel. Each cycle includes 2 rotations of the crankshaft and four strokes, namely:

1. An Intake Stroke
2. A Compression Stroke
3. A Combustion Stroke also called Power Stroke
4. An Exhaust Stroke

Features:

• Powerful Performance: While it starts, the rotate speed can up to 2500-9600rpm / Mins.
• Fuel: Using methanol as fuel. The fuel formula is generally: 20% castor oil, nitromethane 5-30%, the rest is methanol; this product does not require high concentration methanol fuel, and can be used at a concentration of 20-25%. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke.
• Parts Required for Operation: Requires a 7.4v or 11.1v battery to start the battery. The battery needs a T plug, the female end is on the engine side, and the electric fire head is needed. The electric fire head is a general-purpose product, which can be used in our shop or in other stores.
• Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10, 1:12, 1:14 scale car model or ship model and other equipment. Also, it can be used for classroom display as teaching Aids. Besides, it is ideal Gift for engine lovers.

Tips:

1. Do not touch the motor fan with your hands to avoid scratching.
2. Do not touch the cylinder department with your hands to prevent burns.

Descriptions:

• Item Name: Toyan FS V400A V4 Four Stroke RC Engine
• Material: Plastic + Metal
• Engine Dimensions: 113.37 x 97.54 x 100.9mm
• Cylinder Diameter: 17mm
• Piston Diameter: 16.6mm
• Displacement: 3.5cc x 4
• Output Power: 3.2zzps horsepower
• Speed: 2500-9600rpm
• Needle valve debugging 3.5 laps, idle mixture 3.5 laps, idle speed throttle minimum 2.5mm
• Product Dimensions: 15 x 15 x 15cm
• Product Weight: 1150g
• Package Dimensions: 11.37 x 9.75 x 10.09cm
• Package Weight: 2000g
• Packing: Box

Packing List:

• 1 x Toyan Engine V4 Four Stroke RC Engine
• 4 x Start Modules
• 4 x Glow Plugs

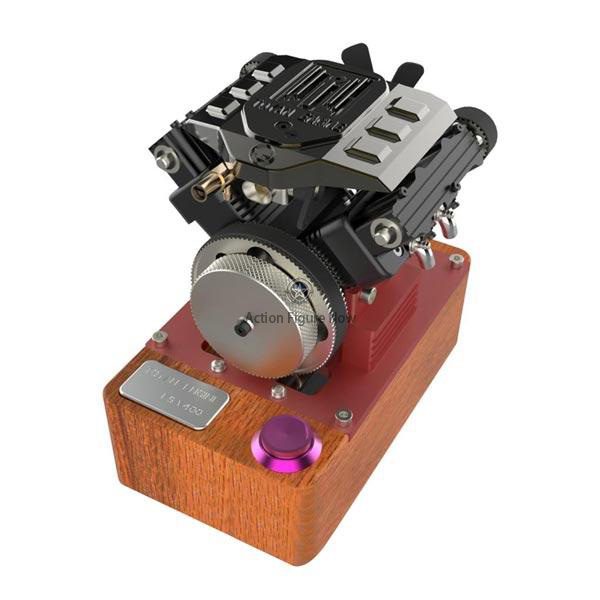

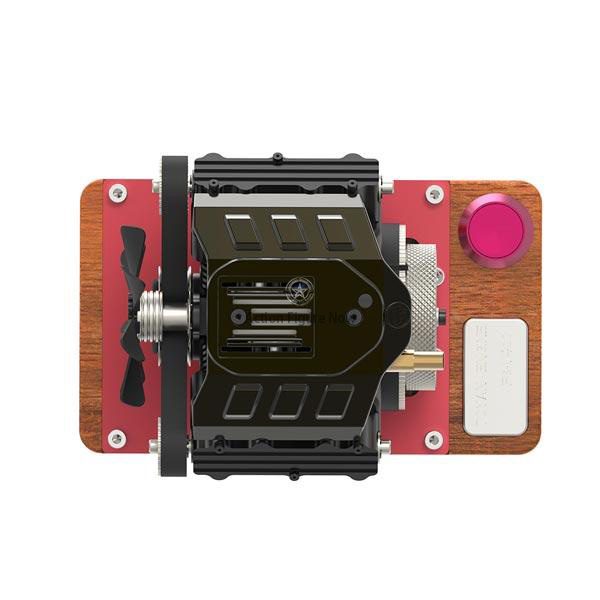

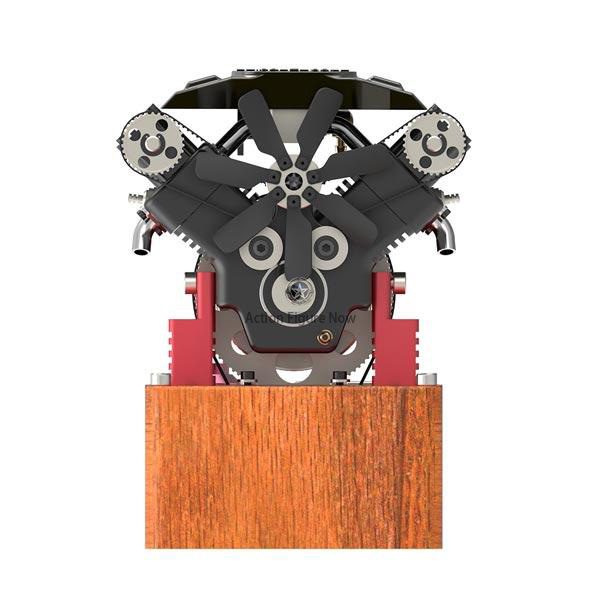

Note: No Wooden Base included.
