Description

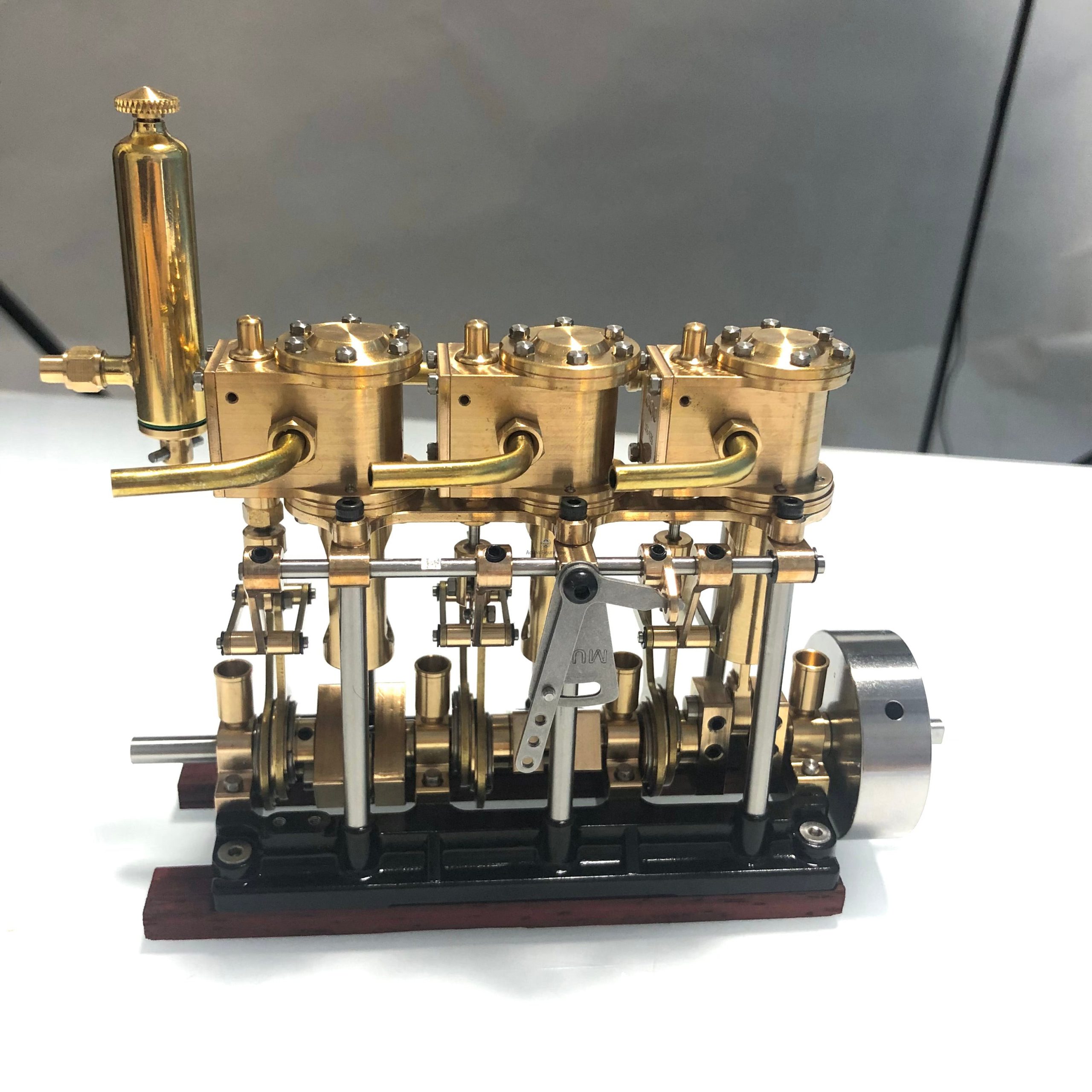

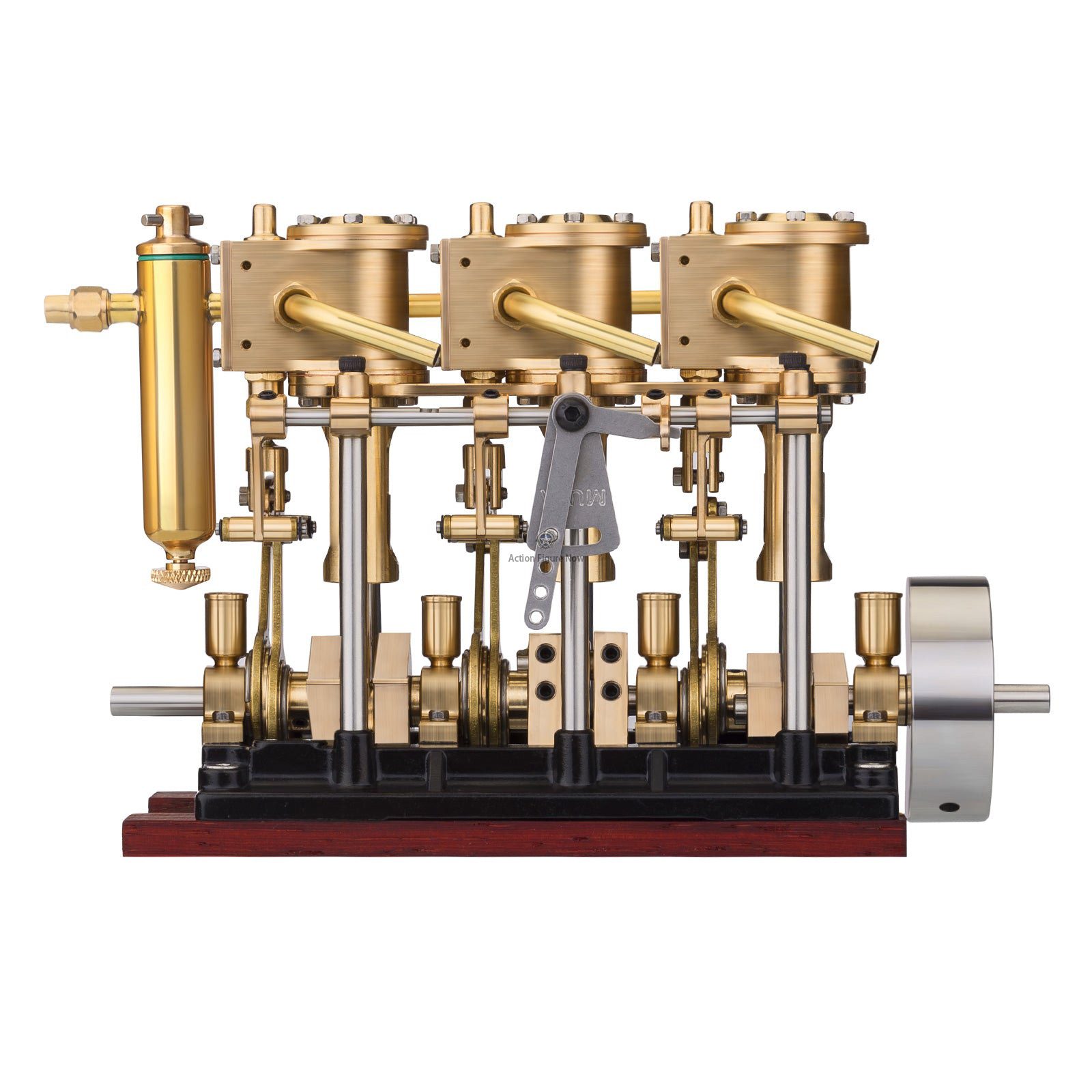

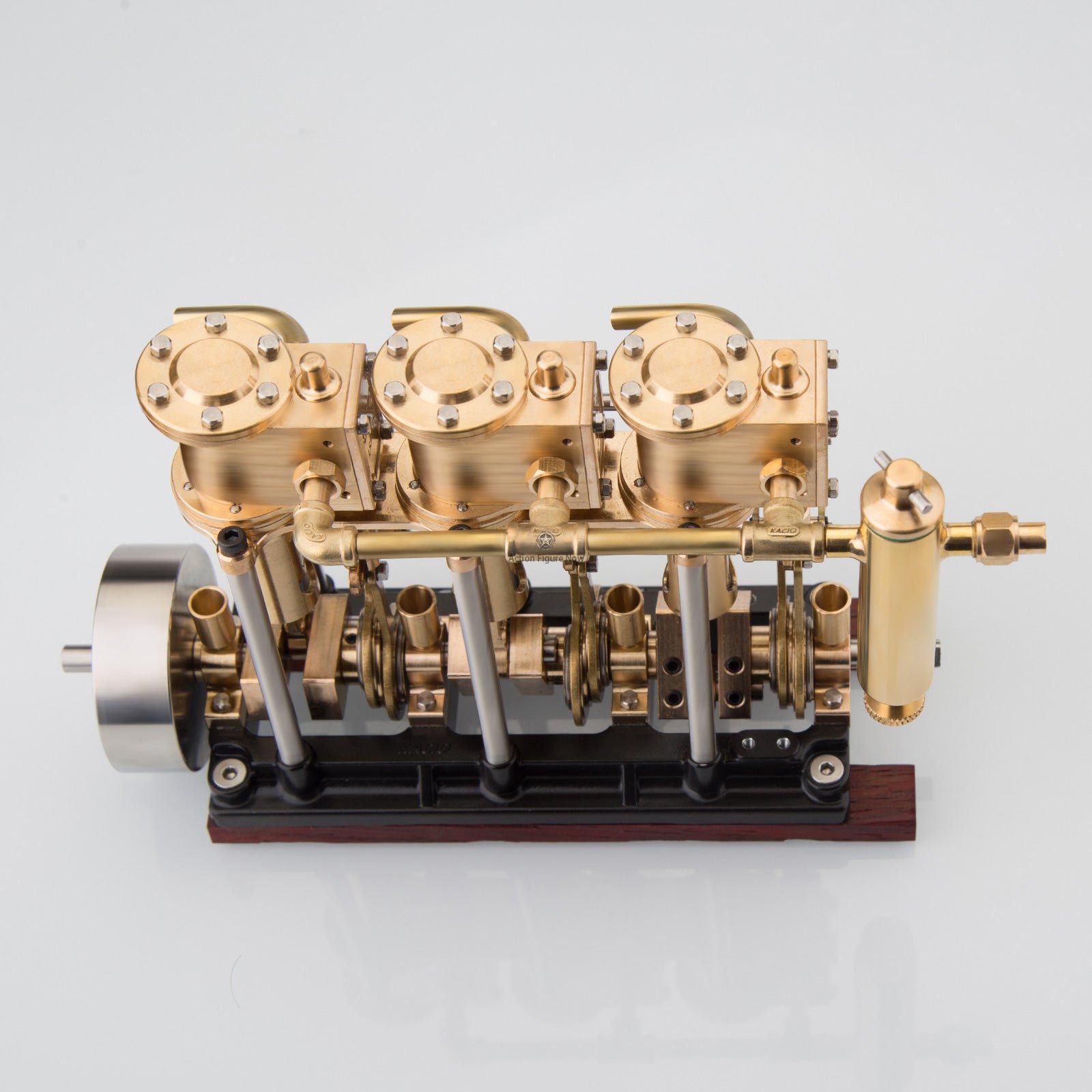

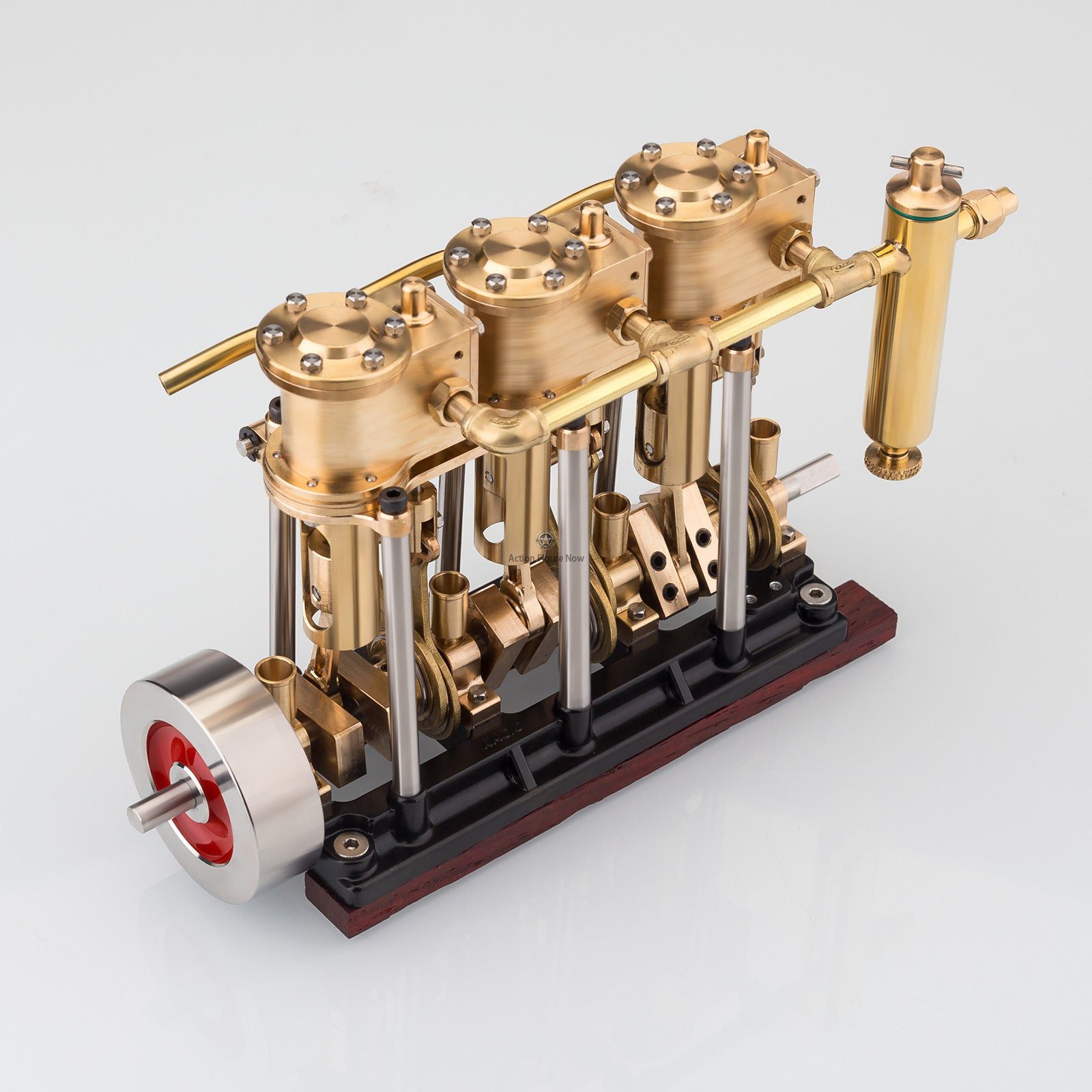

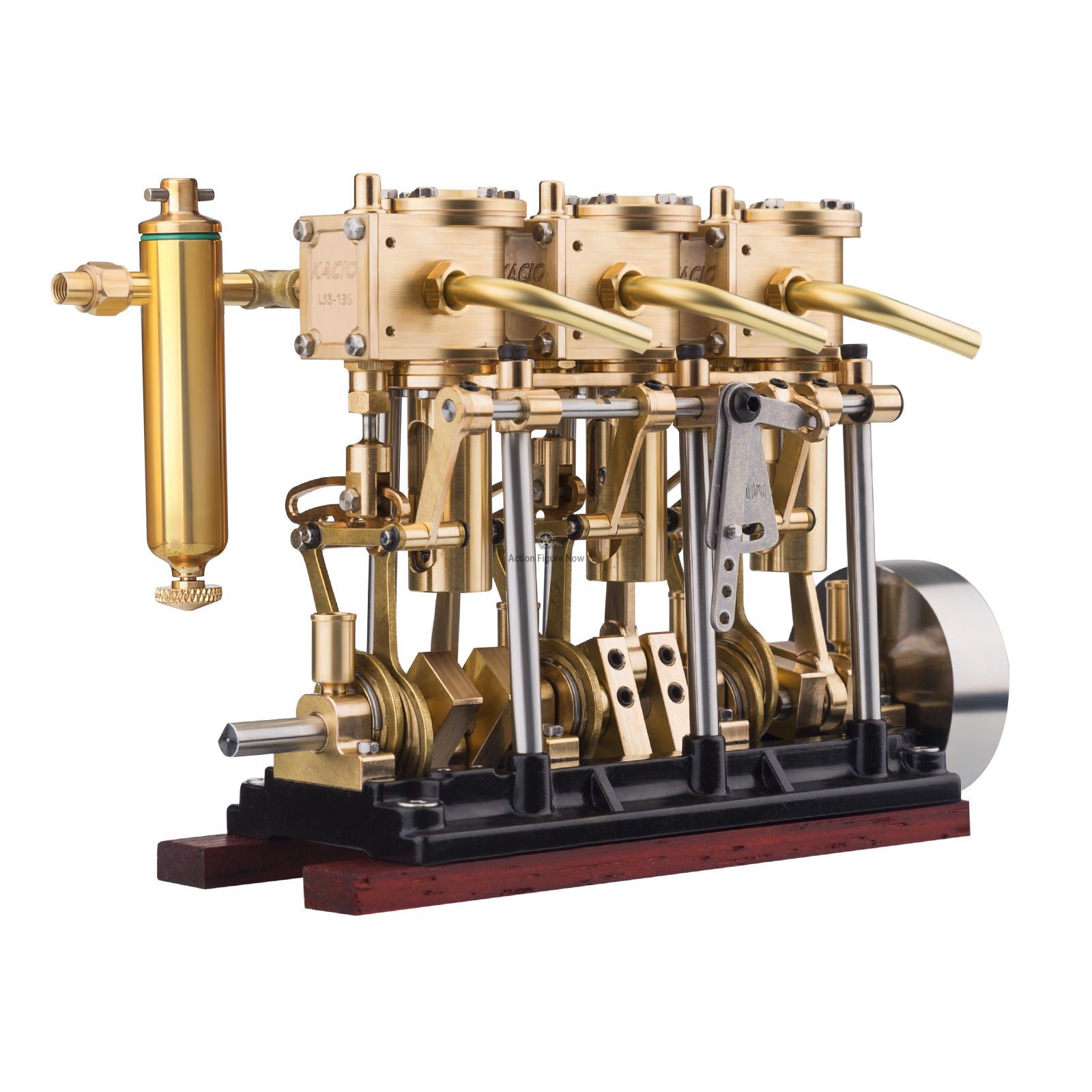

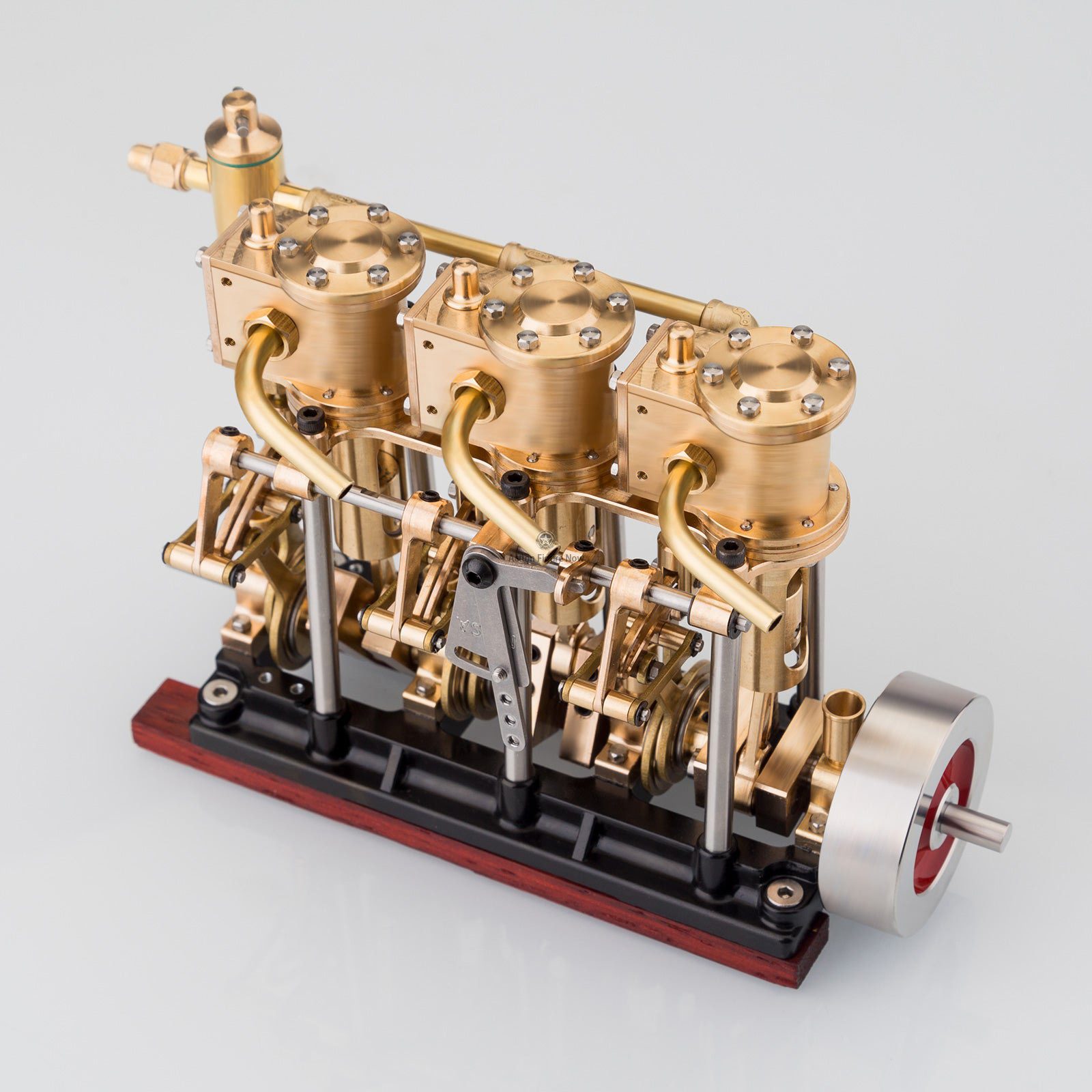

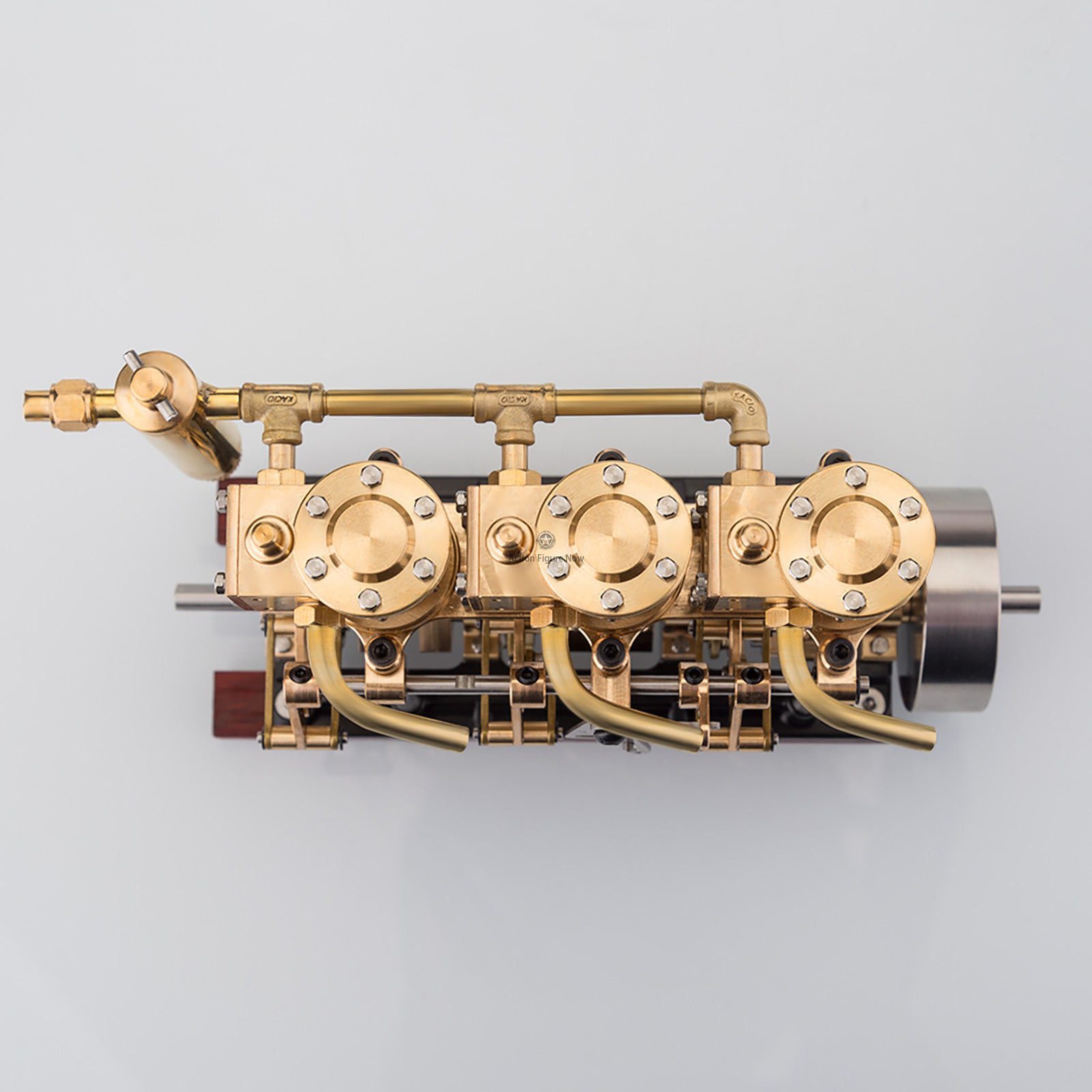

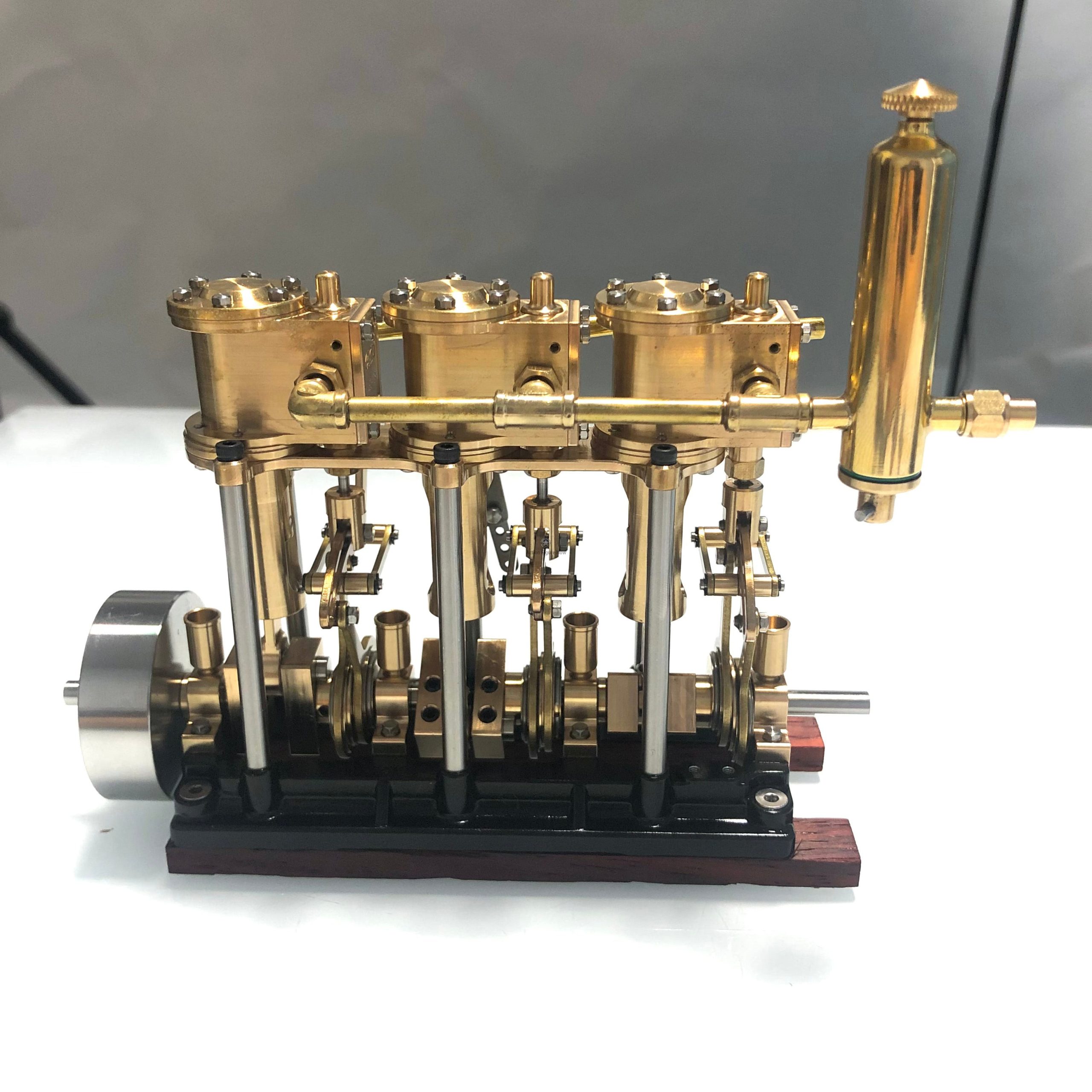

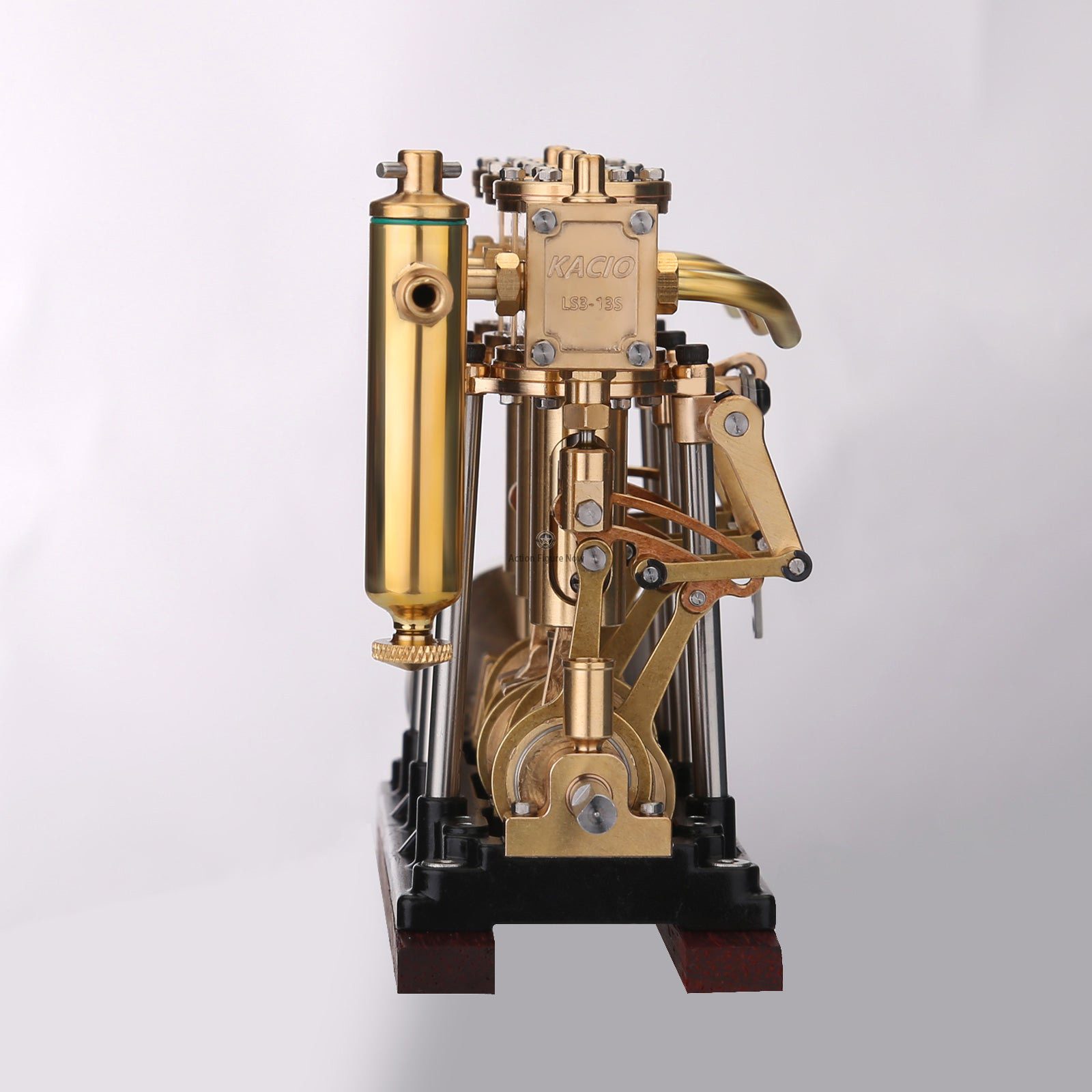

Kacio LS3-13S Reciprocating Steam Engine Model

Features:

• 3-cylinder steam engine suitable for 80-120CM steam model ships (boiler not included).
• Precision cast base, CNC finishing, and ladder frame structure for enhanced durability.
• 0.08mm red copper sheet seals cylinder head for heat and corrosion resistance.
• High hardness beryllium copper spindle bearing for stable operation.

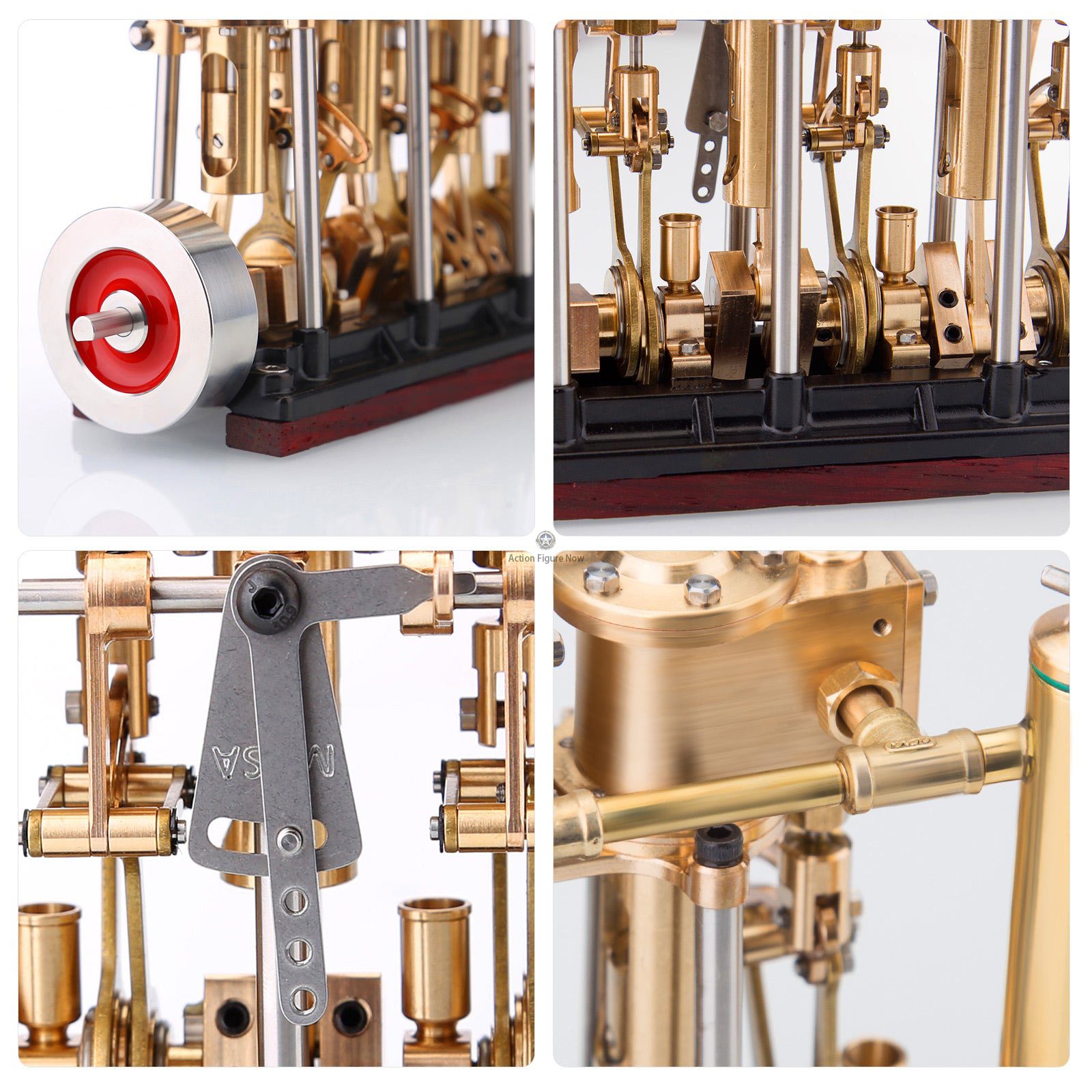

• Oil cup with discharge function and lubrication ports for friction surfaces.
• Supports forward and reverse rotation with a large diameter cylinder for strong torque.

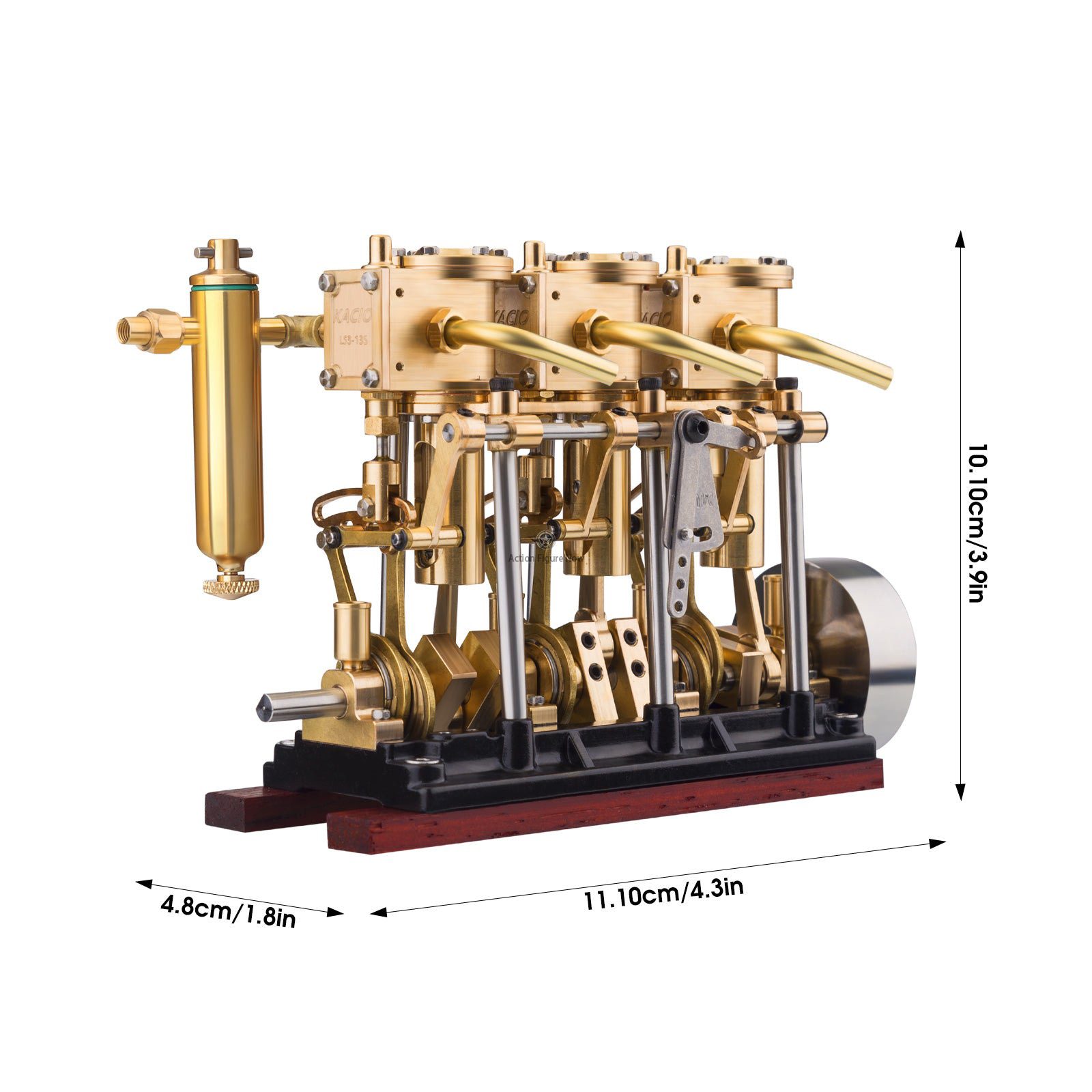

• Dimensions: Base (48mm W x 111mm L x 95mm H) + 6mm sleepers.
• Cylinder diameter: 14.0mm
• Stroke: 12.0mm
• Spindle diameter: 5.0mm
• Spindle center ground height: 17.0mm
• Operating pressure: 0.05-0.8MPa
• Recommended air pressure: 0.2-0.6MPa
• Inlet interface thread: M6-0.5 / 1/4-40

Specifications:

• Material: Copper
• Model: LS3-13S
• Product Dimensions: 11.1 x 4.8 x 10.1cm
• Product Weight: 930g
• Package Dimensions: 21 x 16 x 16cm
• Package Weight: 1200g
