SKU ENGINE-YdKLyN

(8 customer reviews)

$299.99 $399.99Price range: $299.99 through $399.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

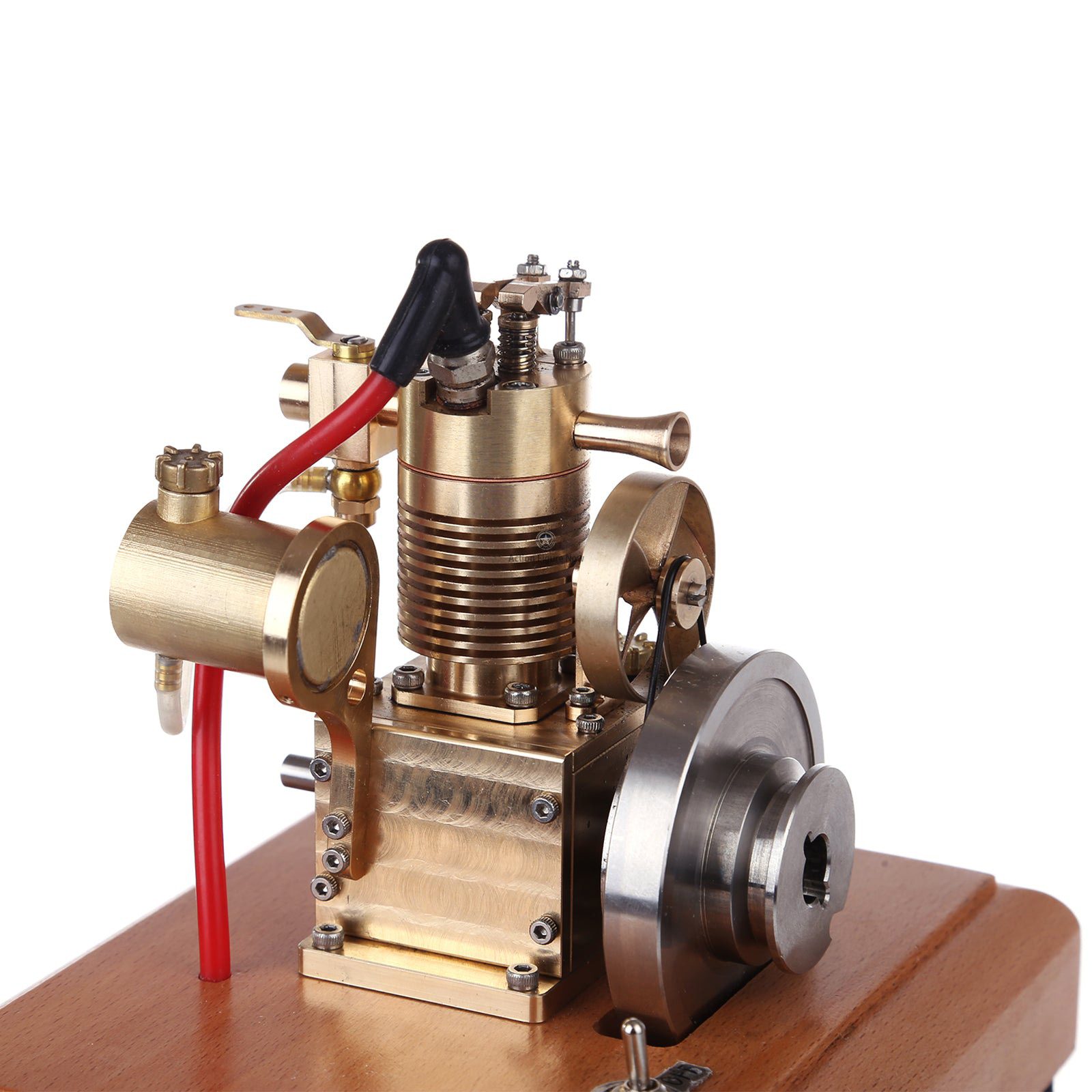

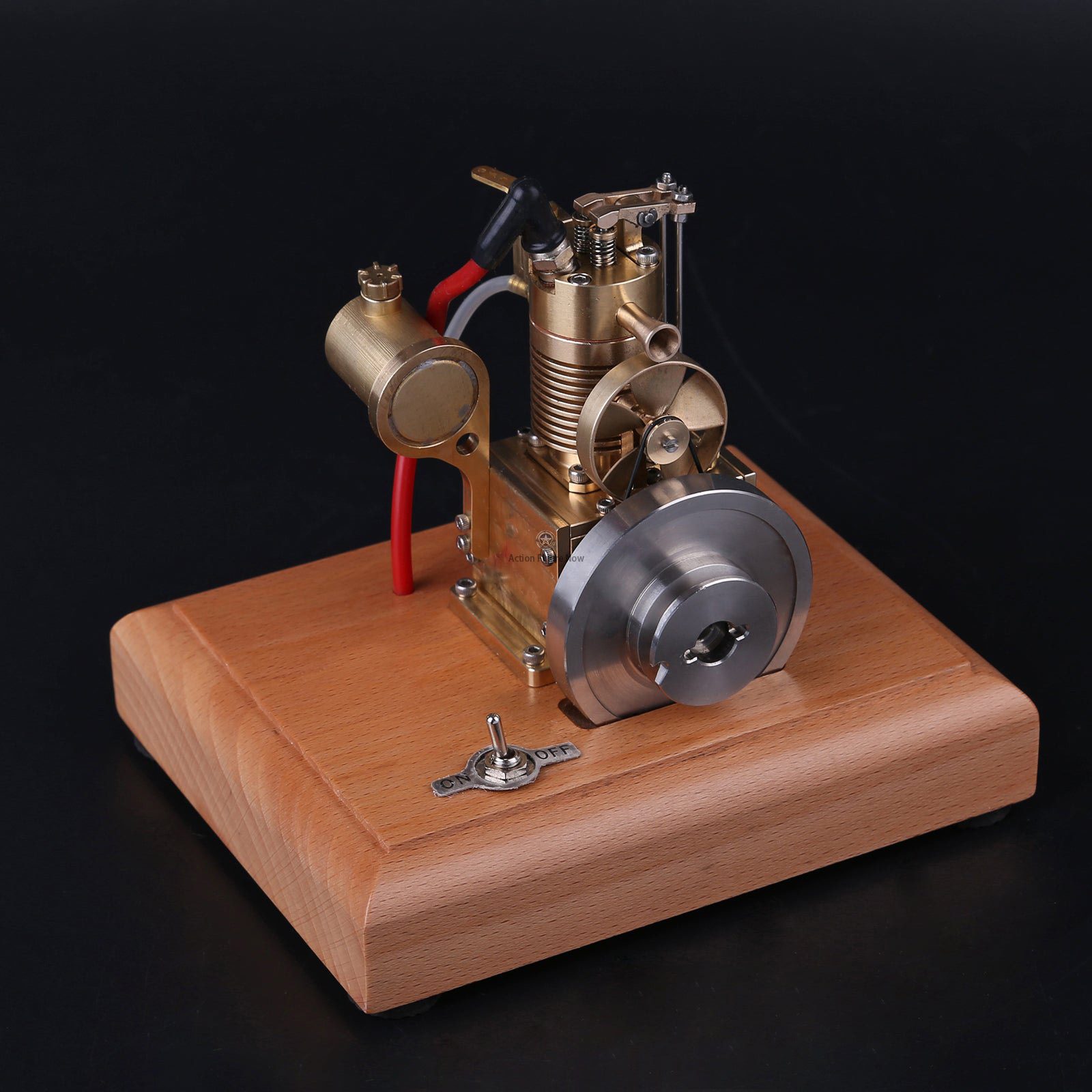

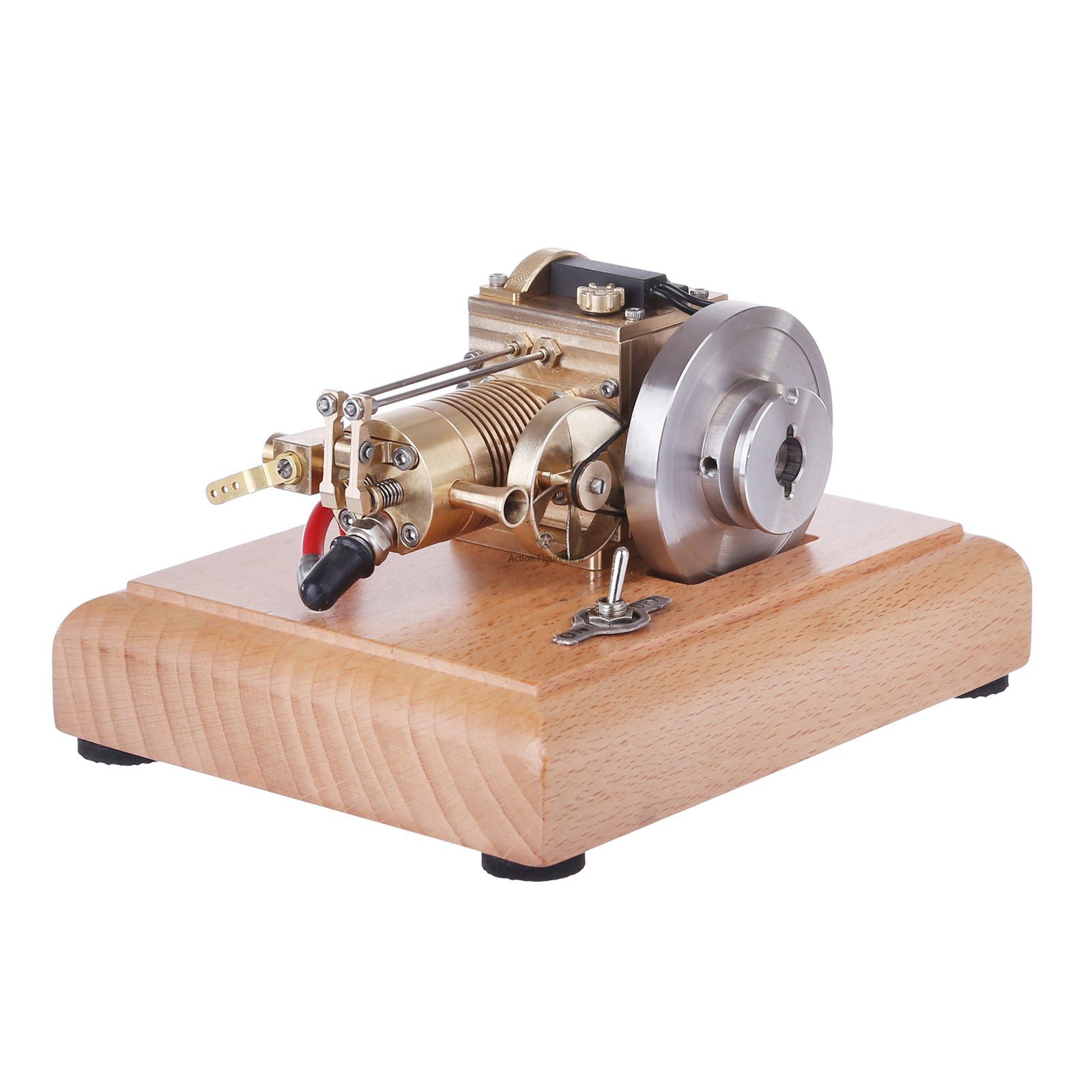

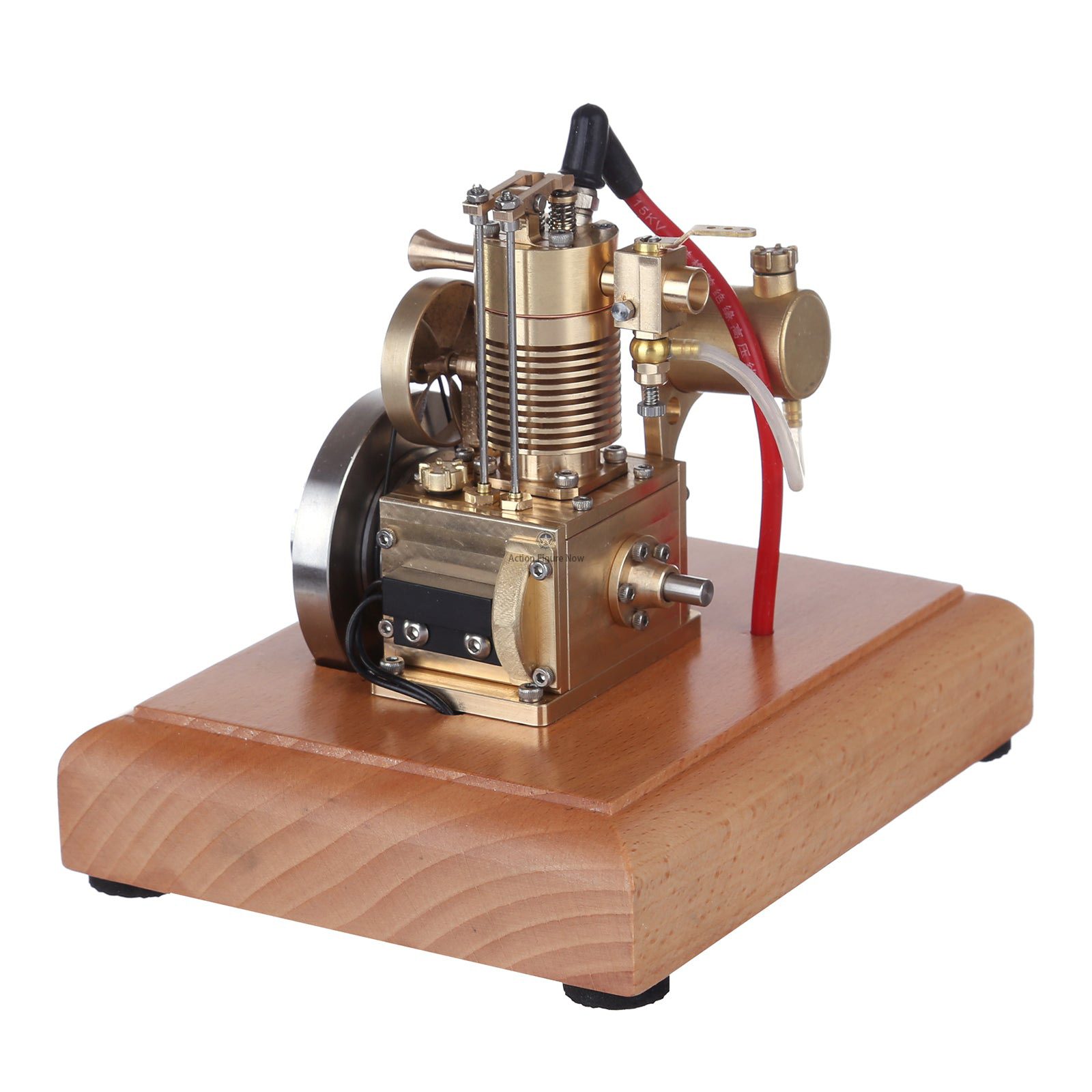

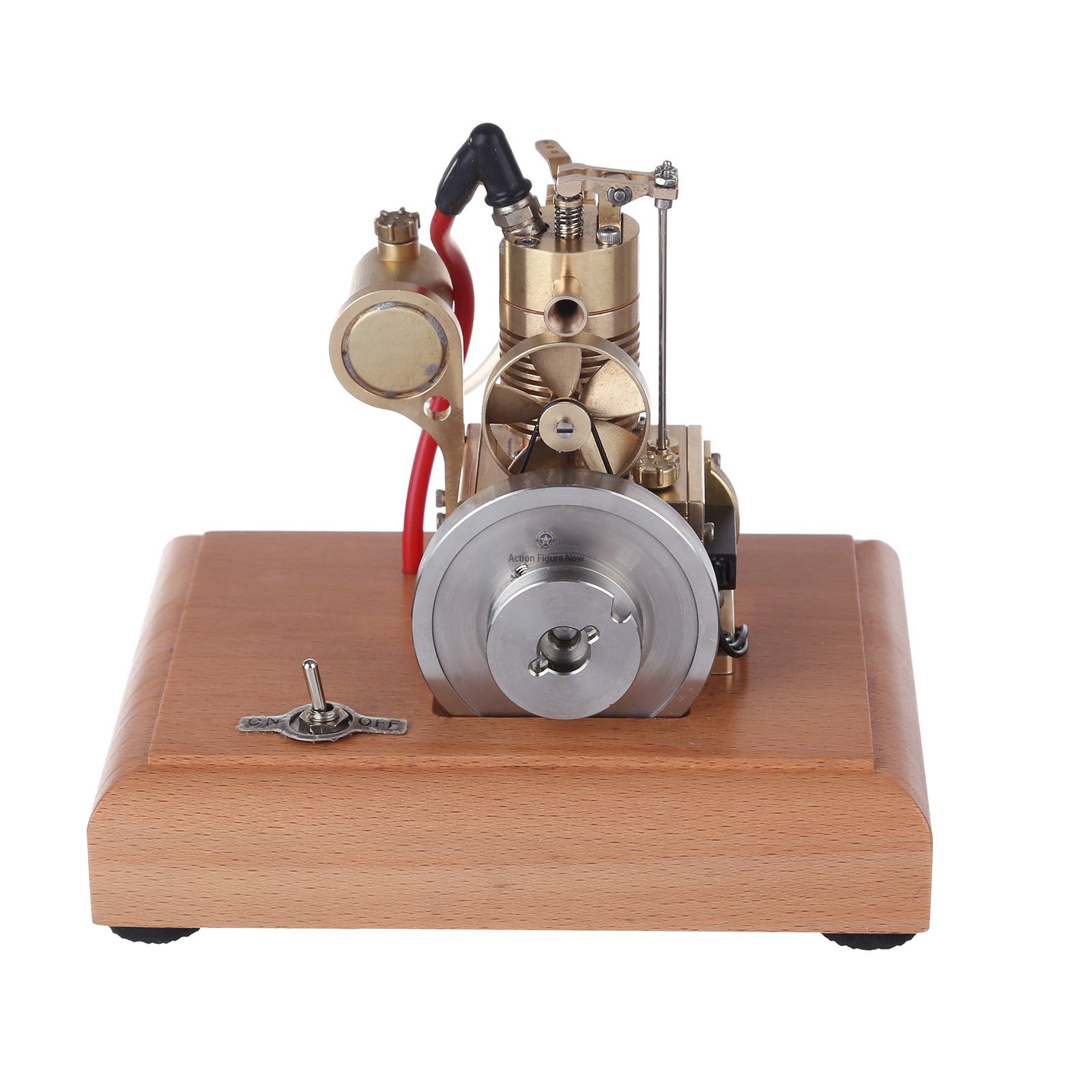

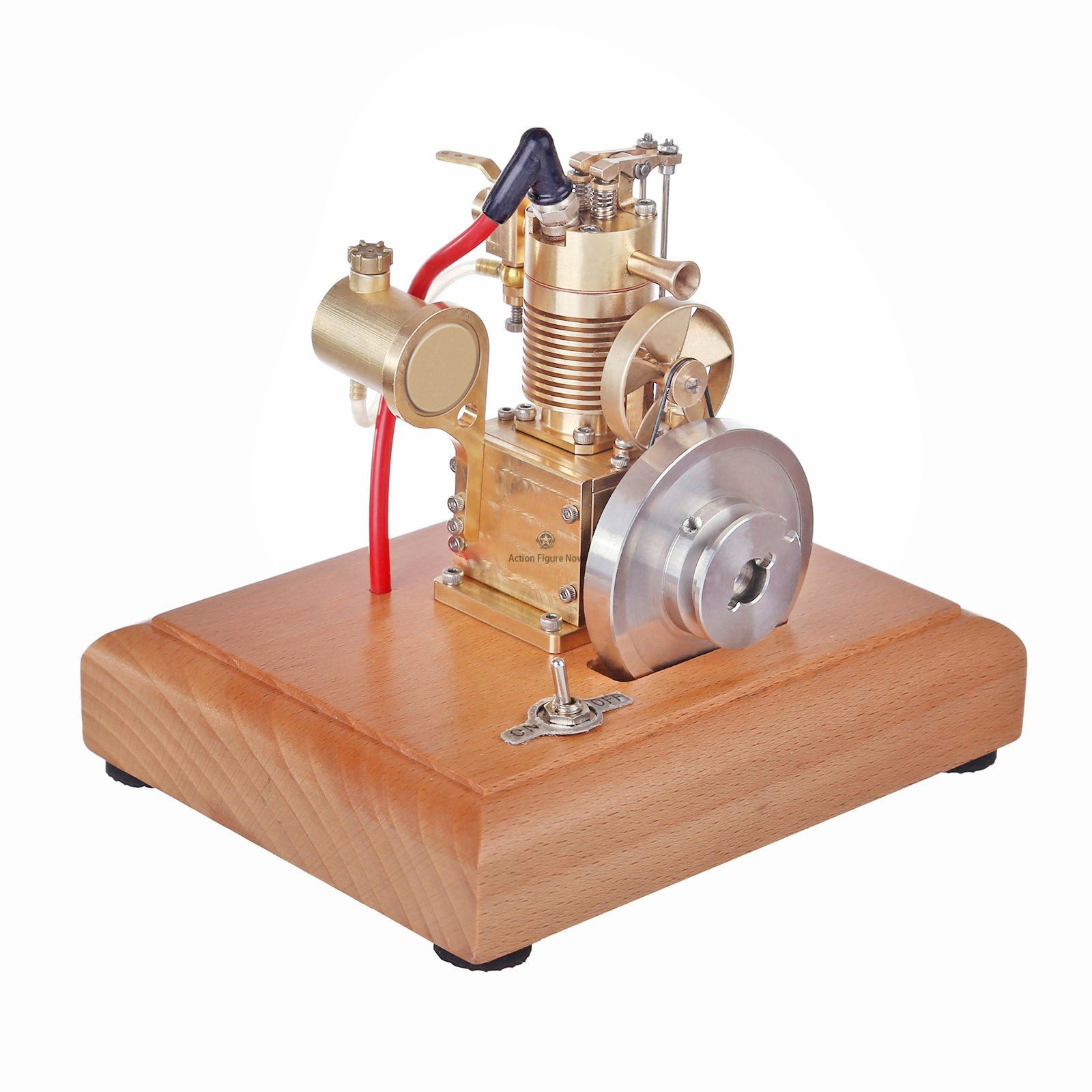

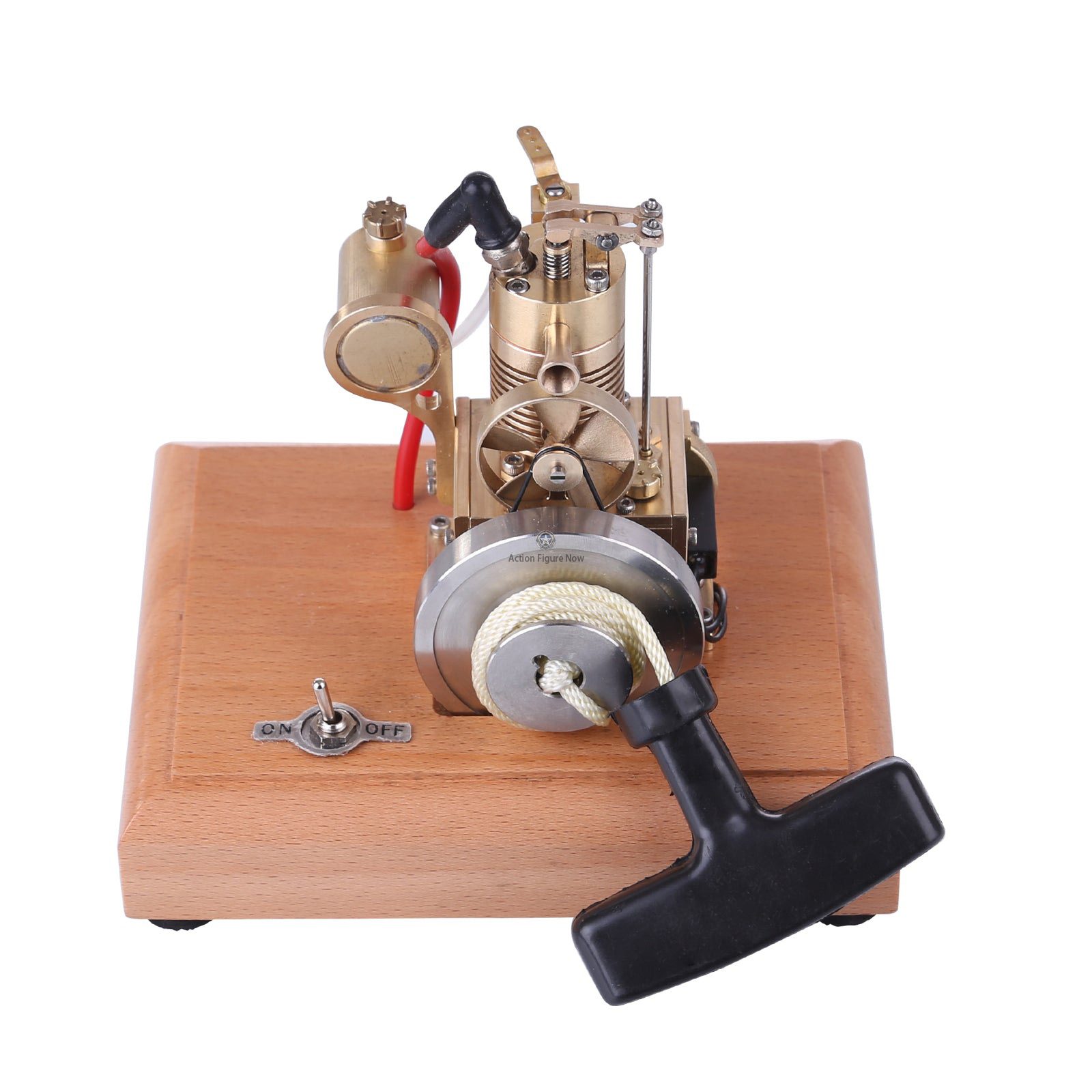

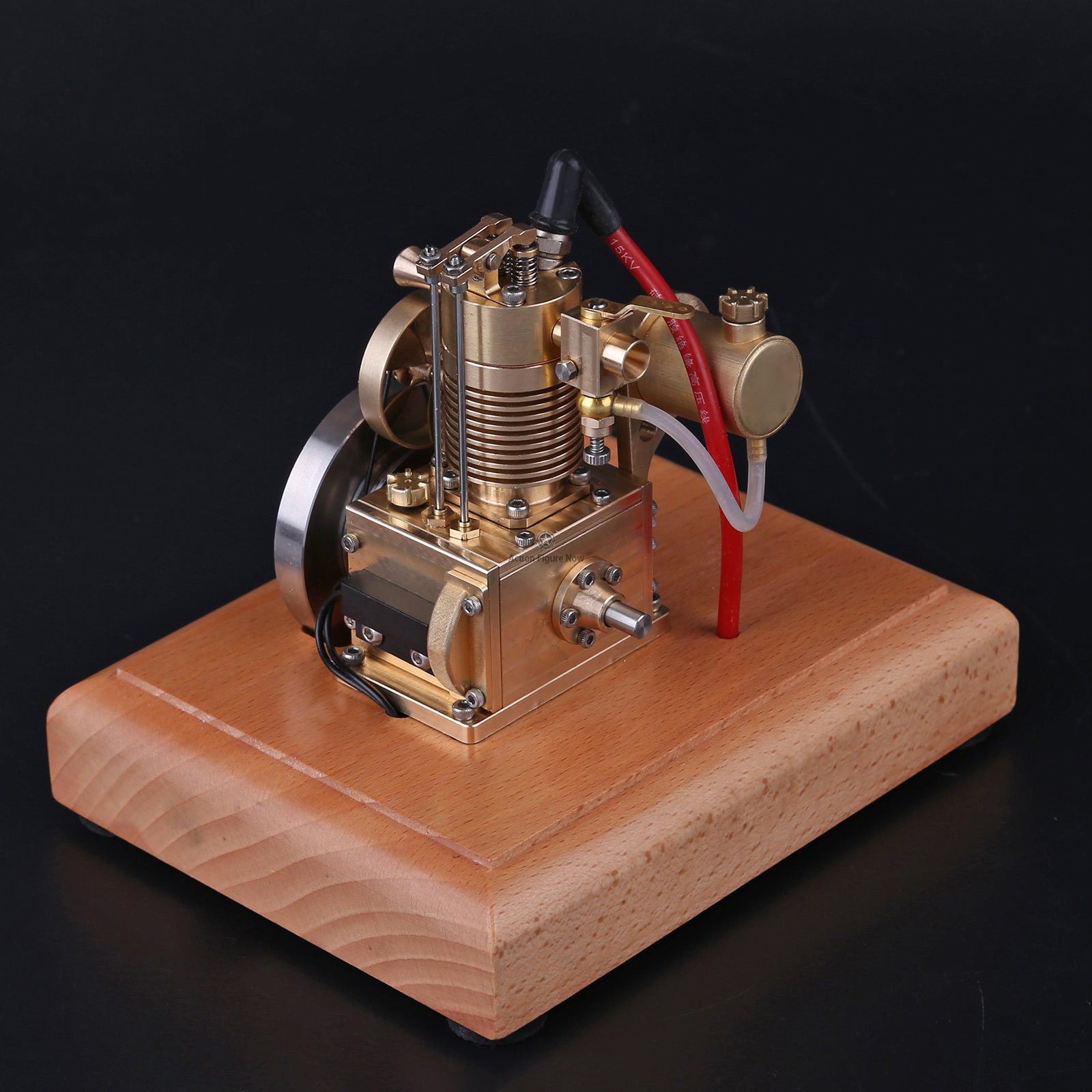

M16 1.6CC Mini Vertical Air-cooled Single-cylinder Four-stroke Gasoline Engine Hit Miss Complete Engine with Wooden Base

Features:

  • Mini engine with an air-cooled structure and adjustable speed carburetor.
  • Crafted from brass and stainless steel for durability and precision.
  • Stable and reliable structure for efficient operation.
  • Convenient wooden base for easy mounting and operation.
  • Retro and refined design that appeals to engine enthusiasts.

Engine Start Steps:

1. Connect wiring, tubing, and install 3 AA batteries (4.5V).
2. Fill tank with 95 gasoline and rotate flywheel clockwise to prime fuel.
3. Turn on power switch and quickly rotate flywheel clockwise again.

Notes:

1. Adjust carburetor needle if ignition and compression are normal but the engine fails to start.
2. Loosen main fuel pin on carburetor by 1/4 turn after tightening for optimal fuel-air ratio.
3. Turn off power switch when stopping the engine.

Excellent Gift:

Discover the workings of an engine with this easy-to-operate model. Perfect for mechanical craft enthusiasts as a personalized gift.

Specifications:

  • Color: As Shown
  • Materials: Brass + Stainless Steel + Wood
  • Displacement: 1.6cc
  • Cylinder Diameter: 13mm
  • Flywheel Diameter: 56mm
  • Tank Capacity: 8ML

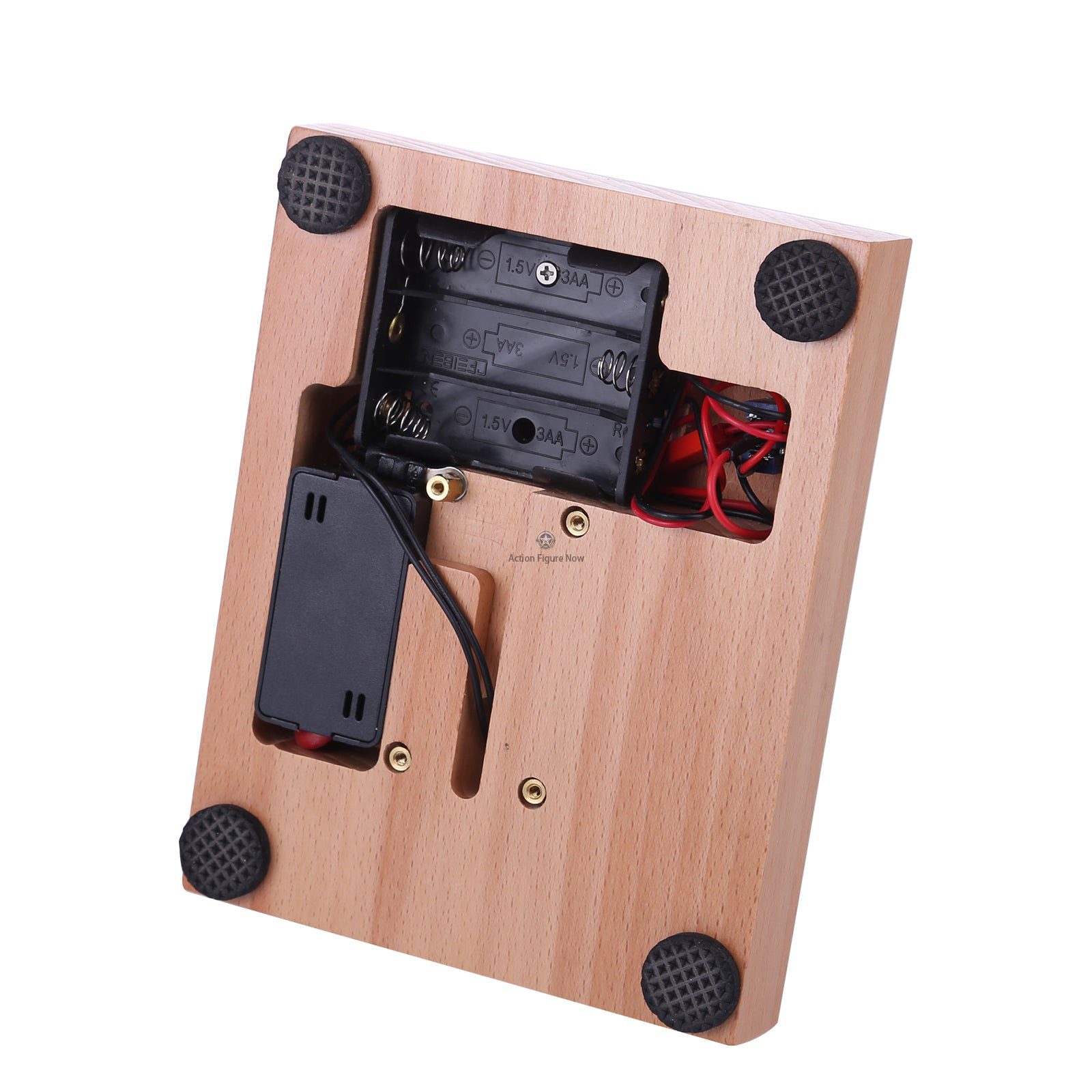

  • Ignition Device Voltage: 4.5V (3 AA batteries not included)
  • Start Mode: External Force or Hand Pull
  • Fuel Used: Gasoline or Aviation Kerosene

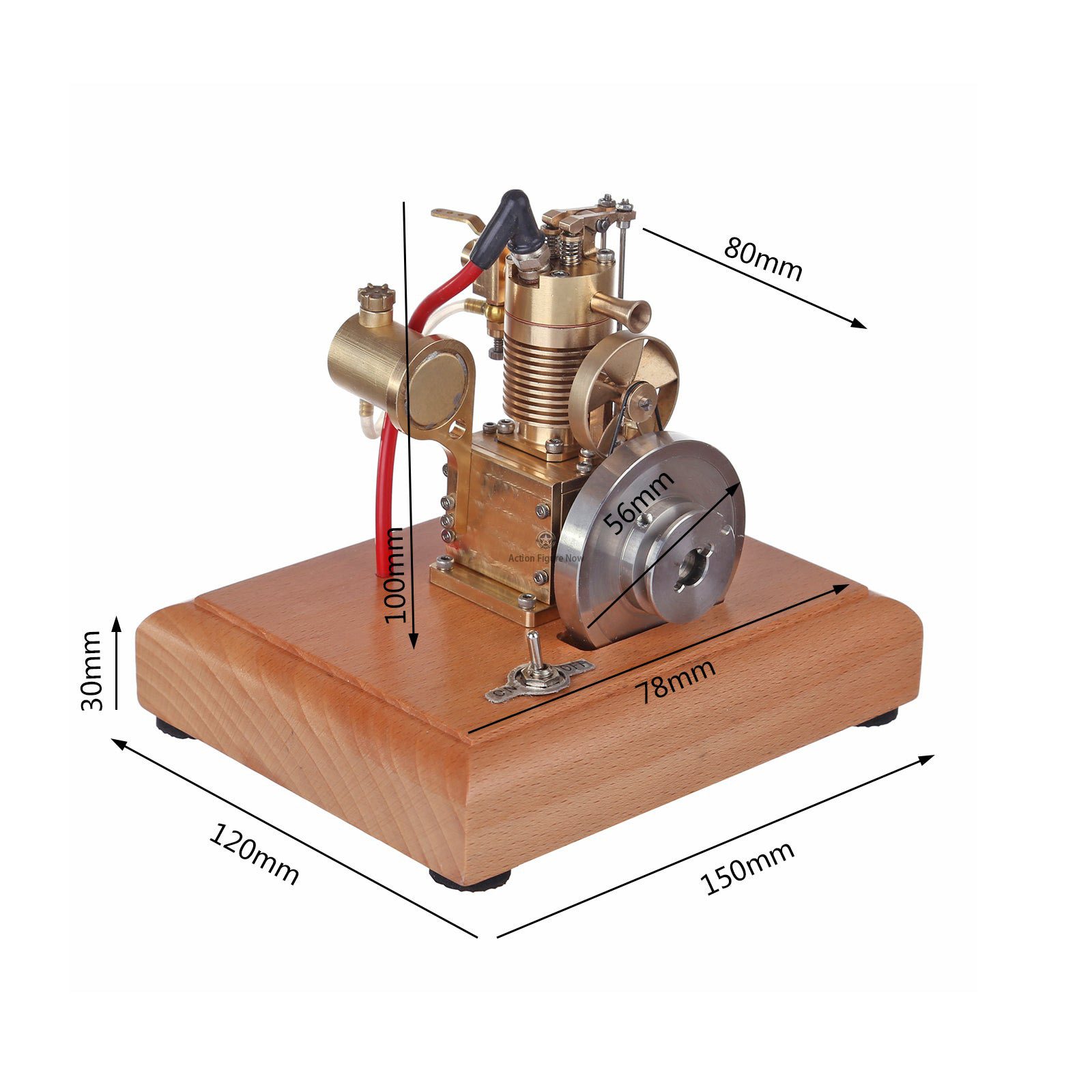

  • Engine Size: 8 x 7 x 10cm
  • Package Dimensions: 20 x 20 x 15cm

Package Content:

  • 1 x Engine Model
  • 1 x User Guide

Customer Reviews (4.88)

(8 customer reviews)

8 reviews for M16 1.6CC Mini 4-Stroke Gasoline Engine Model: Vertical, Air-Cooled, Single-Cylinder Hit & Miss Engine with Wooden Base

  1. Robert Hartlieb
    May 22, 2023
    Funny little puffing engine, works strait off the box. To be used in a vehicle is still to be tested...
    STAVROS IOANNIDIS
    January 31, 2023
    The simplest of them all, a true collectors item. Fascinating little mechanical wonder, with only a few steps to run it. I love it.
    Marc Troïa
    September 19, 2022
    Very nice work, beautiful design and precise machining. Compression ratio is correct but compression is a bit low even if the engine is starting easil...More
    Very nice work, beautiful design and precise machining.
    Compression ratio is correct but compression is a bit low even if the engine is starting easily.
    Valve stroke is probably a bit short and carburetor full throttle is not enough, making the max rpm quite low and combustion a bit smoky.
    Florian
    January 15, 2022
    Ich hätte nie gedacht, dass 4 takt Motoren so klein werden können.

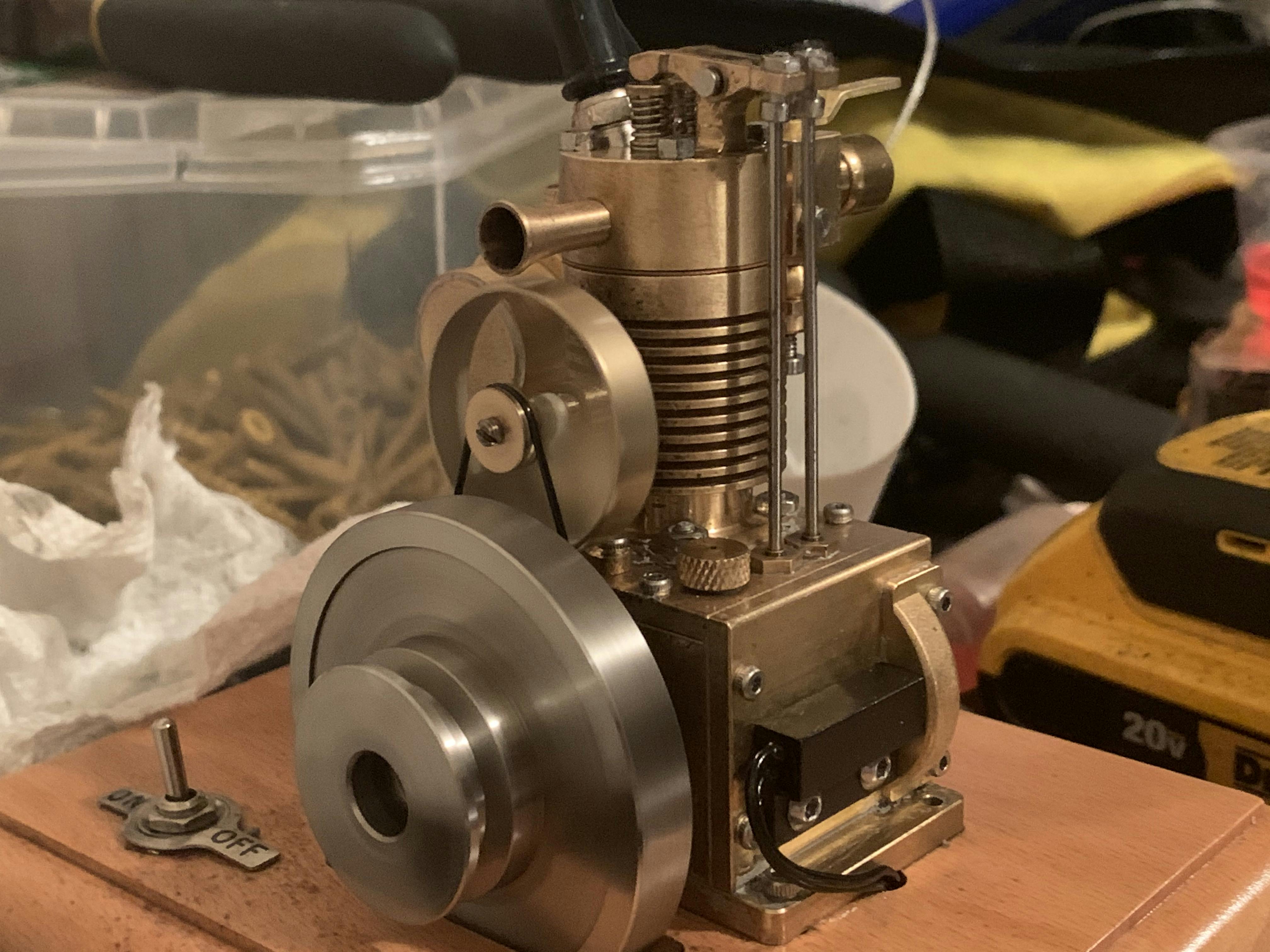

    M16 1.6CC Mini 4-Stroke Gasoline Engine Model: Vertical, Air-Cooled, Single-Cylinder Hit & Miss Engine with Wooden Base photo review
    Jack Scuderi
    September 7, 2021
    What an amazing little engine. I bought an m12, however it was faulty. I sent it back and actionfigurenow sent me a m16, with a little camshaft tuning...More
    What an amazing little engine. I bought an m12, however it was faulty. I sent it back and actionfigurenow sent me a m16, with a little camshaft tuning and proper engine knowledge, the engine runs FANTASTIC! I have never had such a reliable running engine before. With actionfigurenow’s tremendous customer service, they got me an amazing running model. Starts up every single time, I’ve put around 13-15 hours of run time on it, and a lot of fuel through it, I’ve fully disassembled it twice, it’s a solid runner. If you are somewhat mechanically inclined, this is the ENGINE FOR YOU!

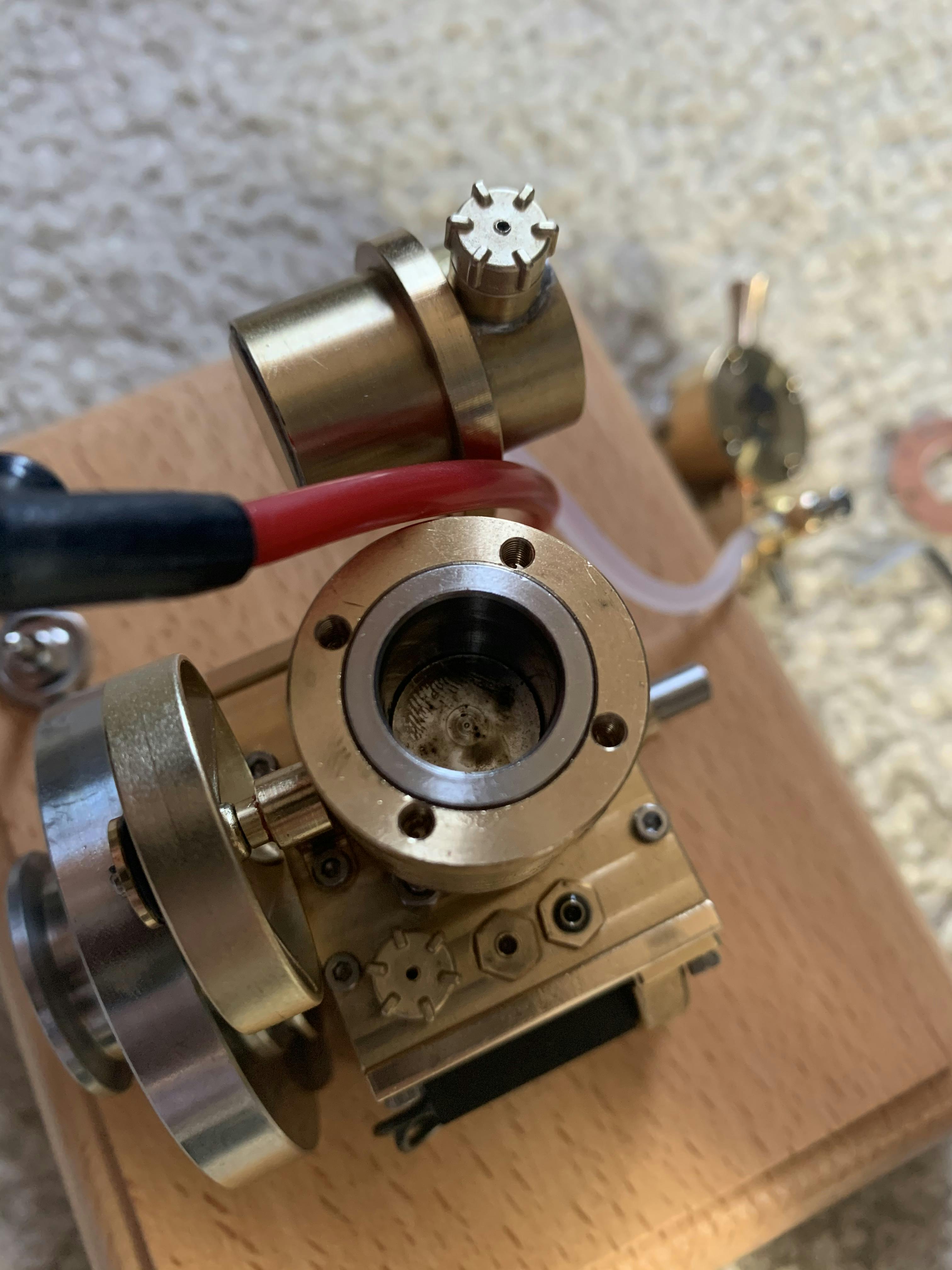

    M16 1.6CC Mini 4-Stroke Gasoline Engine Model: Vertical, Air-Cooled, Single-Cylinder Hit & Miss Engine with Wooden Base photo review
    Jack Scuderi
    April 16, 2021
    Forget my other review. I had a defective carburetor on my engine, within 12 days, engine diy send me a new carburetor and ignition unit. They got it ...More
    Forget my other review. I had a defective carburetor on my engine, within 12 days, engine diy send me a new carburetor and ignition unit. They got it here fast! And they care about their customers! With the new carburetor and ignition, my little engine runs amazing! It idles perfect, and loves to rev up every once and a while. This engine doesn’t like to stay at full throttle. Obviously the small carburetor can’t handle constant throttle, and with the long stroke, however it does run very nice. Every carburetor is different. So that was just mine. Anyways this engine really is great. A bit of choke and priming, and the thing just goes! Runs great. I’m a very, satisfied customer!
    Ned Calonge
    March 19, 2021
    This is a very nice miniature working gasoline engine. I'm pleased to add it to my collection, and always appreciate the products that actionfigurenow...More
    This is a very nice miniature working gasoline engine. I'm pleased to add it to my collection, and always appreciate the products that actionfigurenow makes available.
    Customer
    January 9, 2021
    This Model and the type M12 2.6cc Min are NOT „Hit and Miss“ regulated as written in the description ! The regulation is to do by throttle at the carb...More
    This Model and the type M12 2.6cc Min are NOT „Hit and Miss“ regulated as written in the description ! The regulation is to do by throttle at the carburator continusely like every standard gasoline engine !!
