SKU ENGINE-16CqRE

(4 customer reviews)

$254.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

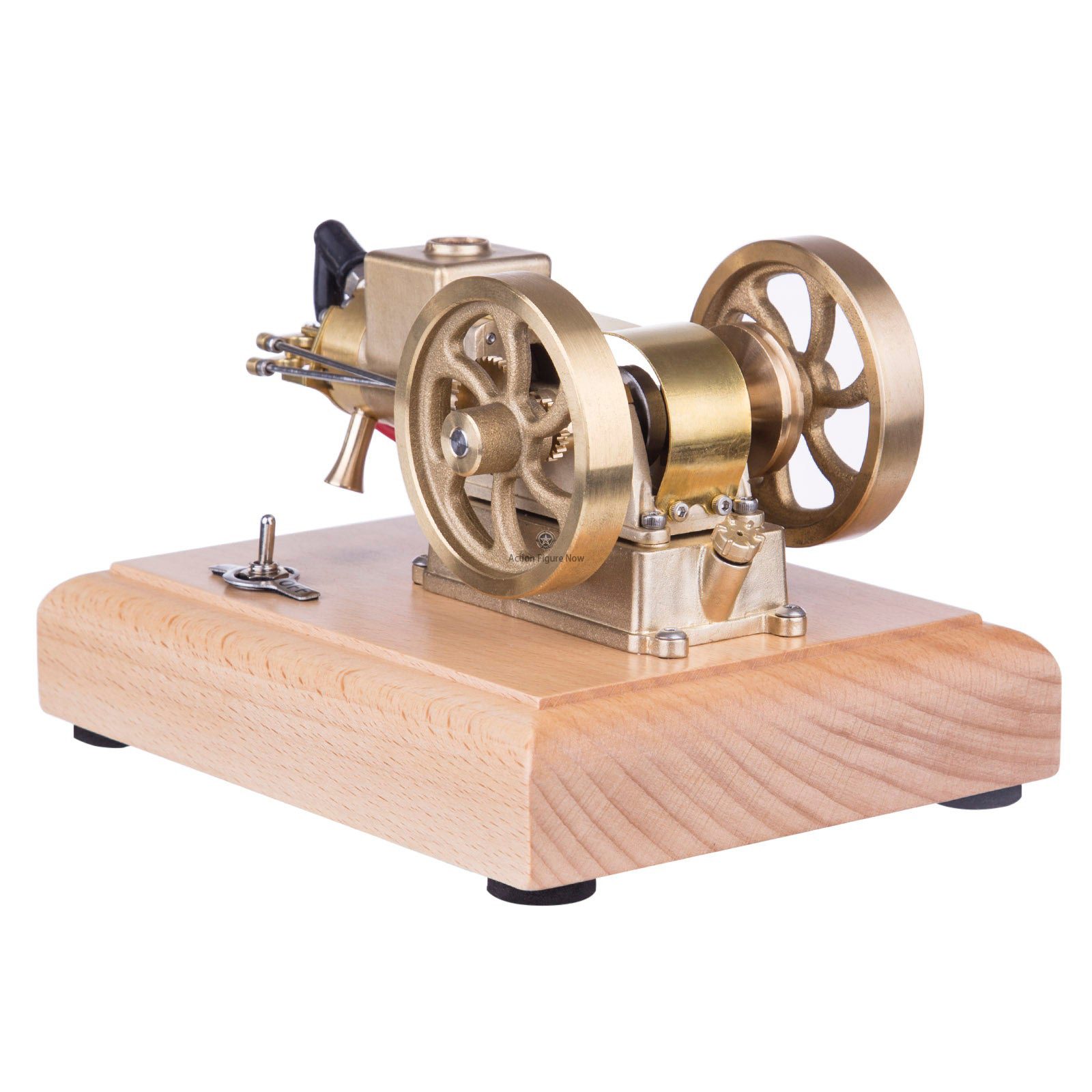

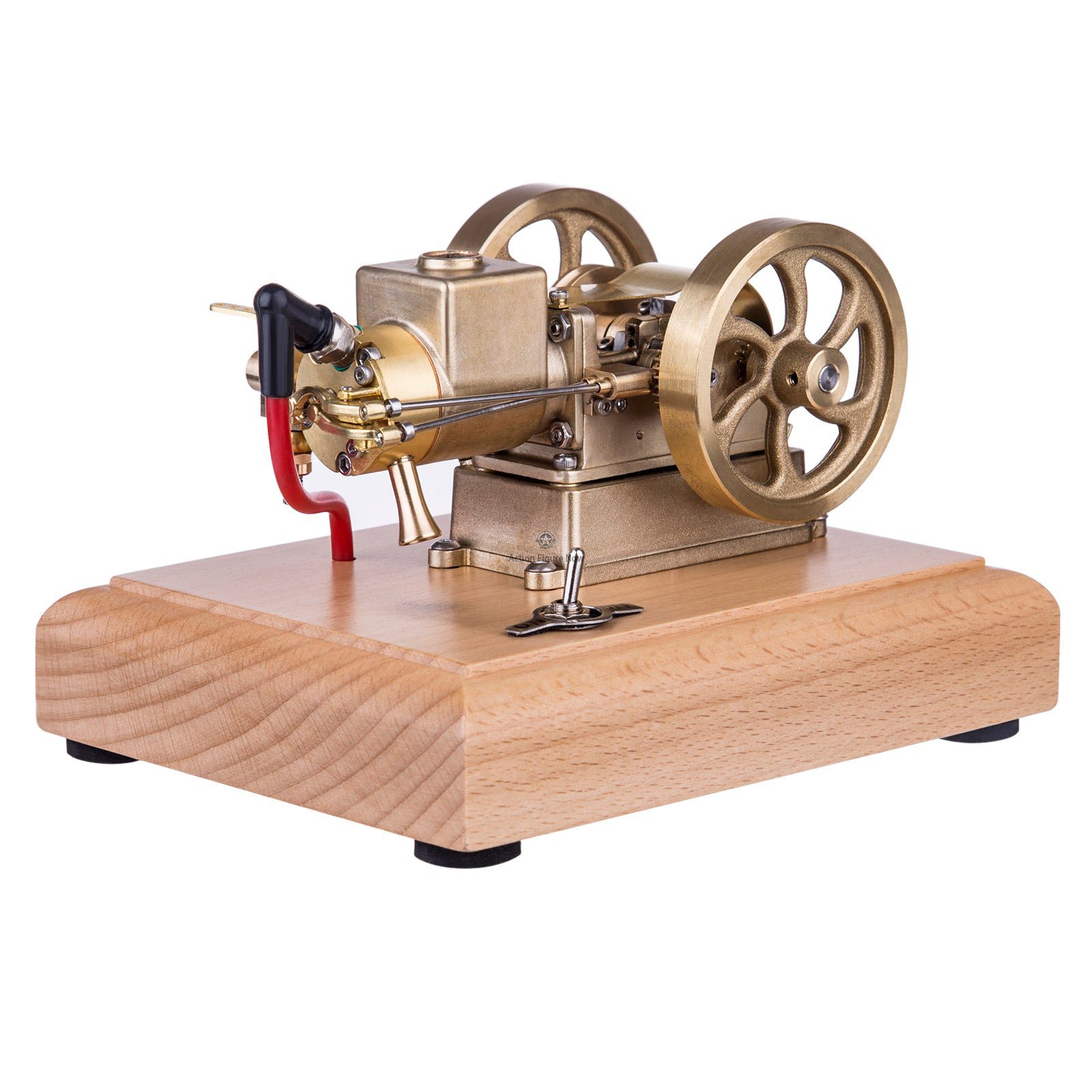

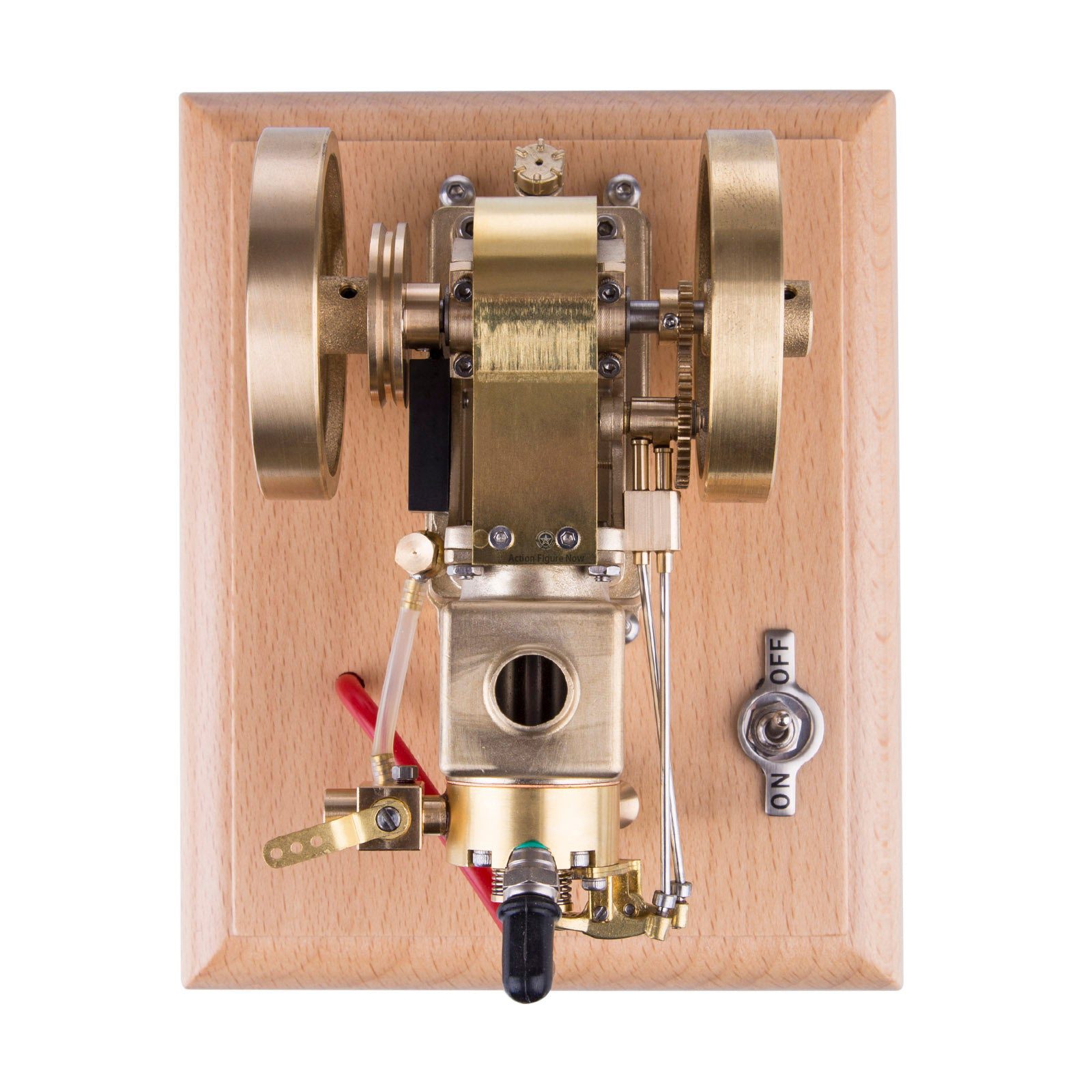

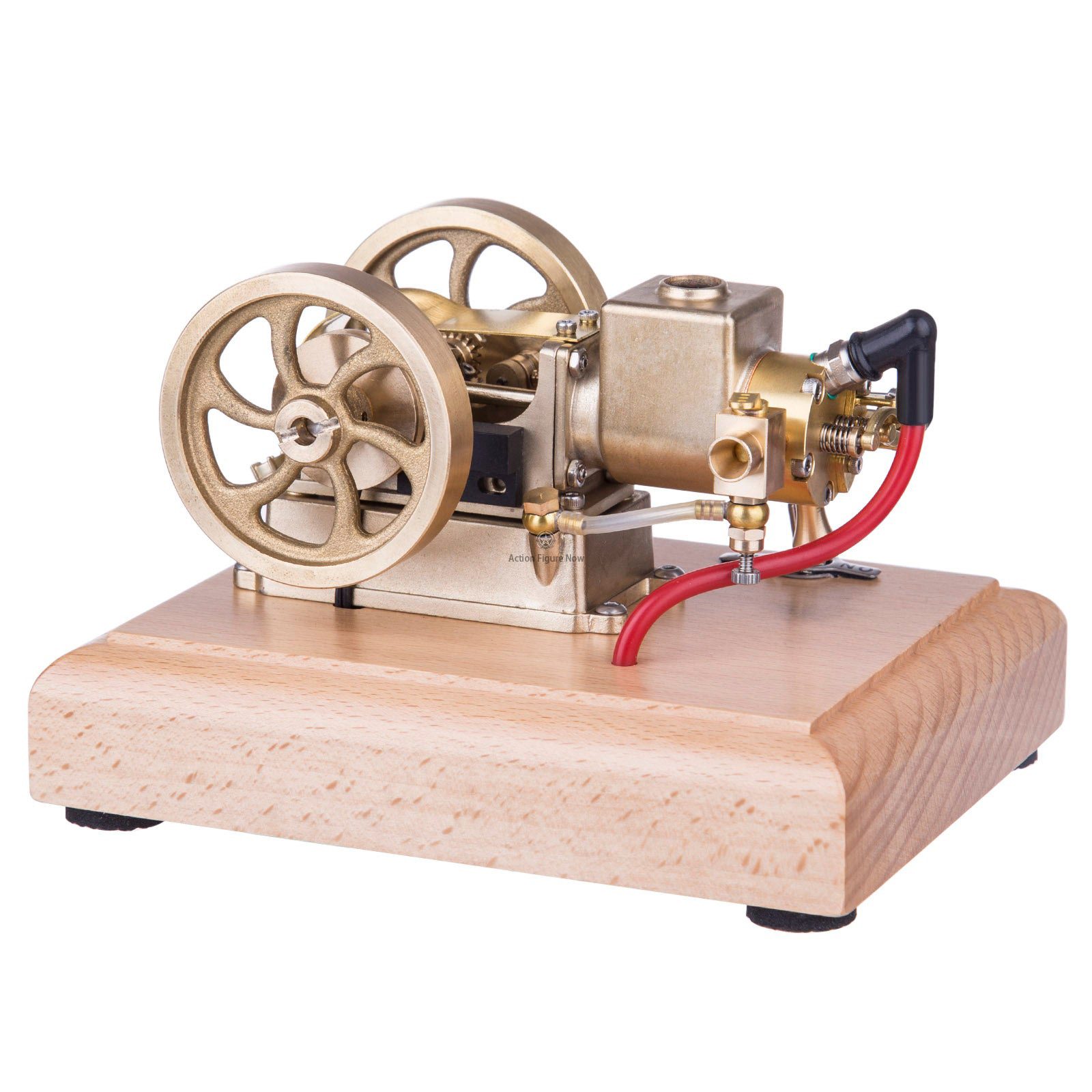

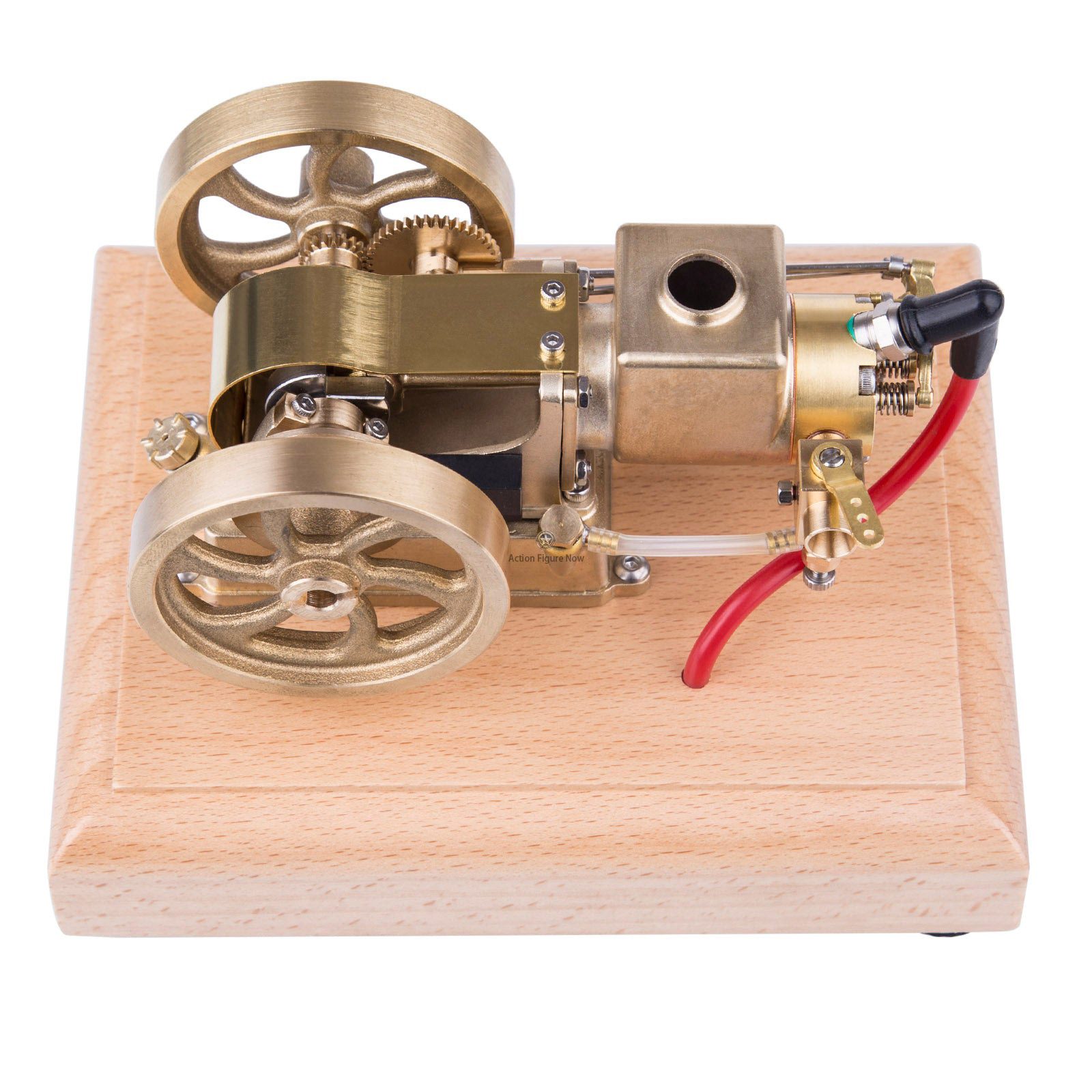

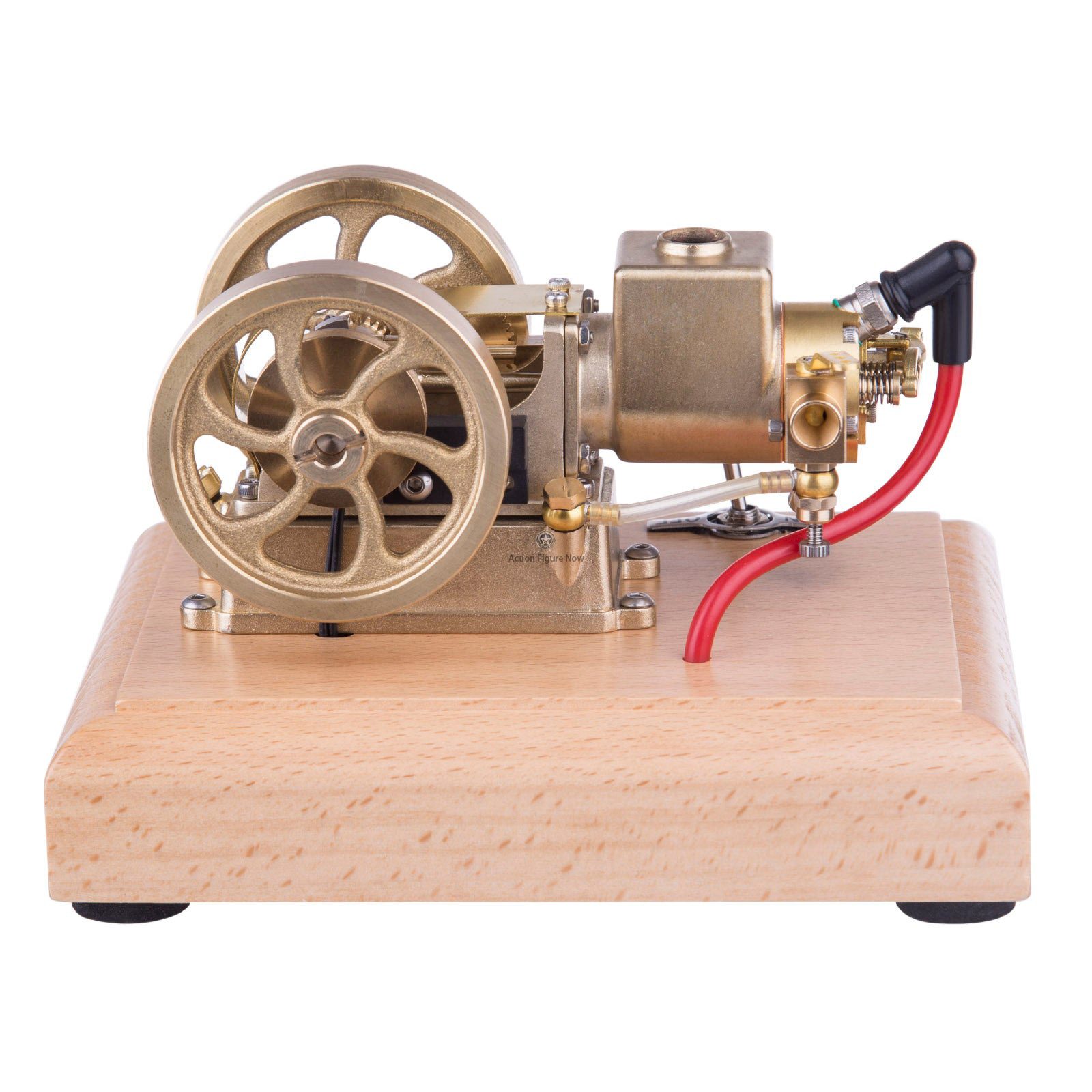

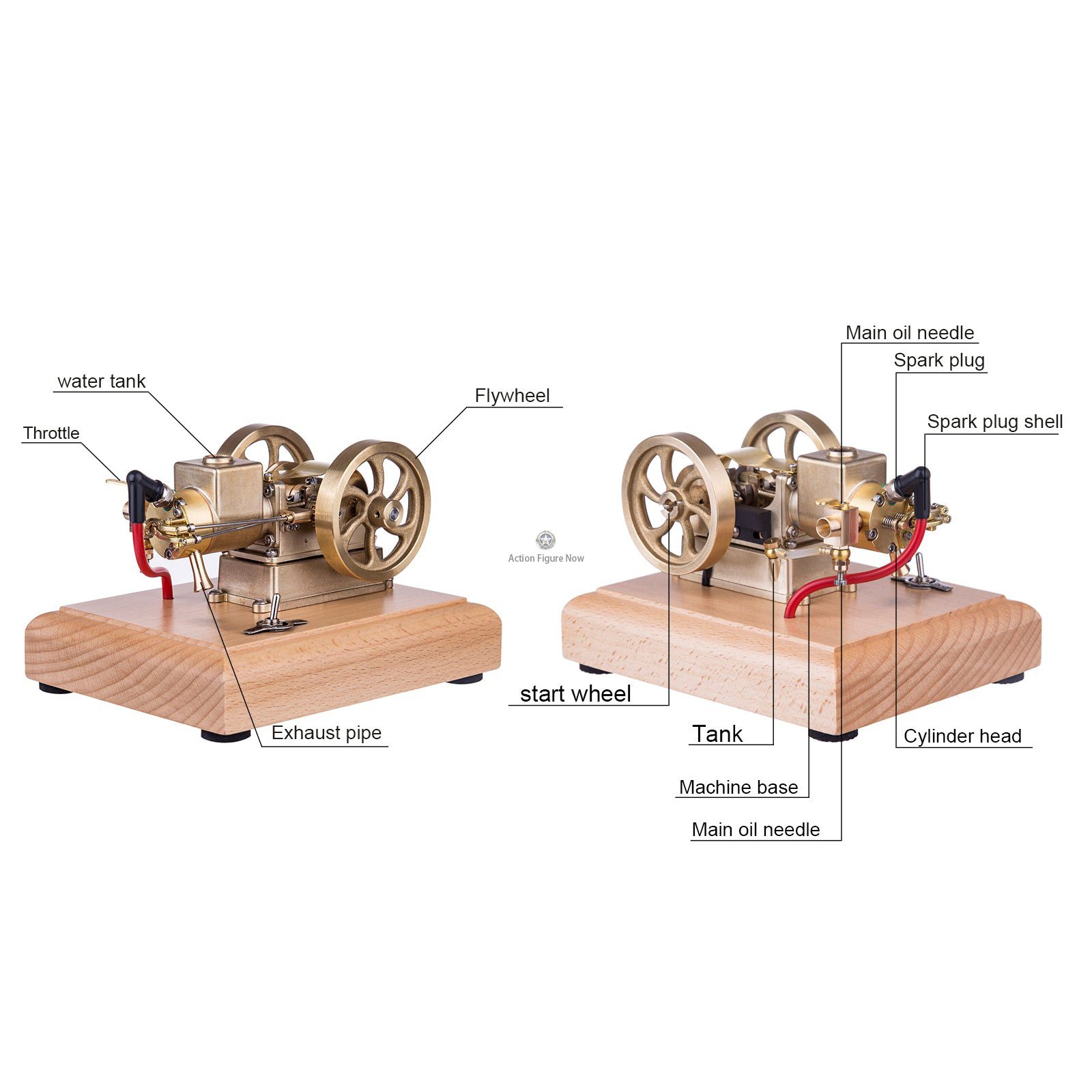

M17B 1.6cc Mini 4-Stroke Micro Horizontal Water-cooled Gasoline Engine

Metal Adjustable Speed Micro Horizontal Water-cooled Gasoline Engine Internal Combustion Engine Model

  • Mini Engine: 1.6cc displacement, 13mm cylinder diameter , 12mm stroke , 4.5V ignition device power supply voltage, external force or Manual start.
  • Exquisite: Unique and exquisite shape, stable and reliable structural design, high in quality, sophisticated in craftsmanship, stable in performance.
  • Excellent Model: Amazing mechanical craft, feel the charm of the engine when it is working. Great for personal use or as a personalized high-end model gift.
  • For Crowd: Suitable for individuals aged 14 and above.
  • Engine Startup Steps:

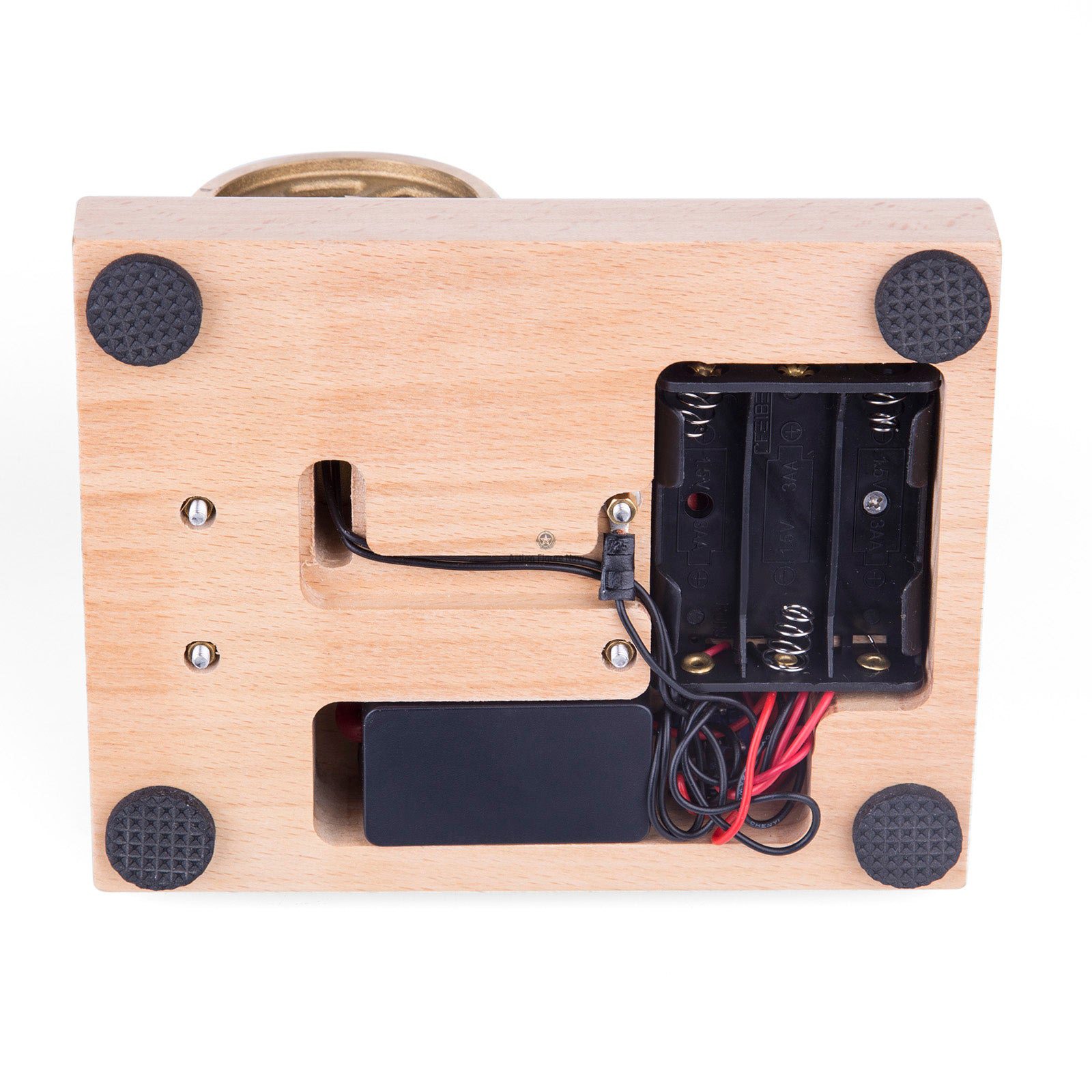

    1. Connect the fuel tank oil pipe and install 3 AA batteries.
    2. Fill the fuel tank with 95 gasoline and 4% lubricating oil.
    3. Rotate the flywheel clockwise and switch it on to start the engine.

Specifications:

Attribute Value
Color As Shown
Material Brass + Stainless Steel + Wood
Displacement 1.6cc
Cylinder Diameter 13mm
Stroke 12mm
Ignition Device Power Supply Voltage 4.5V (3-cell AA Batteries Needed but Not Included)
Start Mode External Force (Electric Drill) or Manual

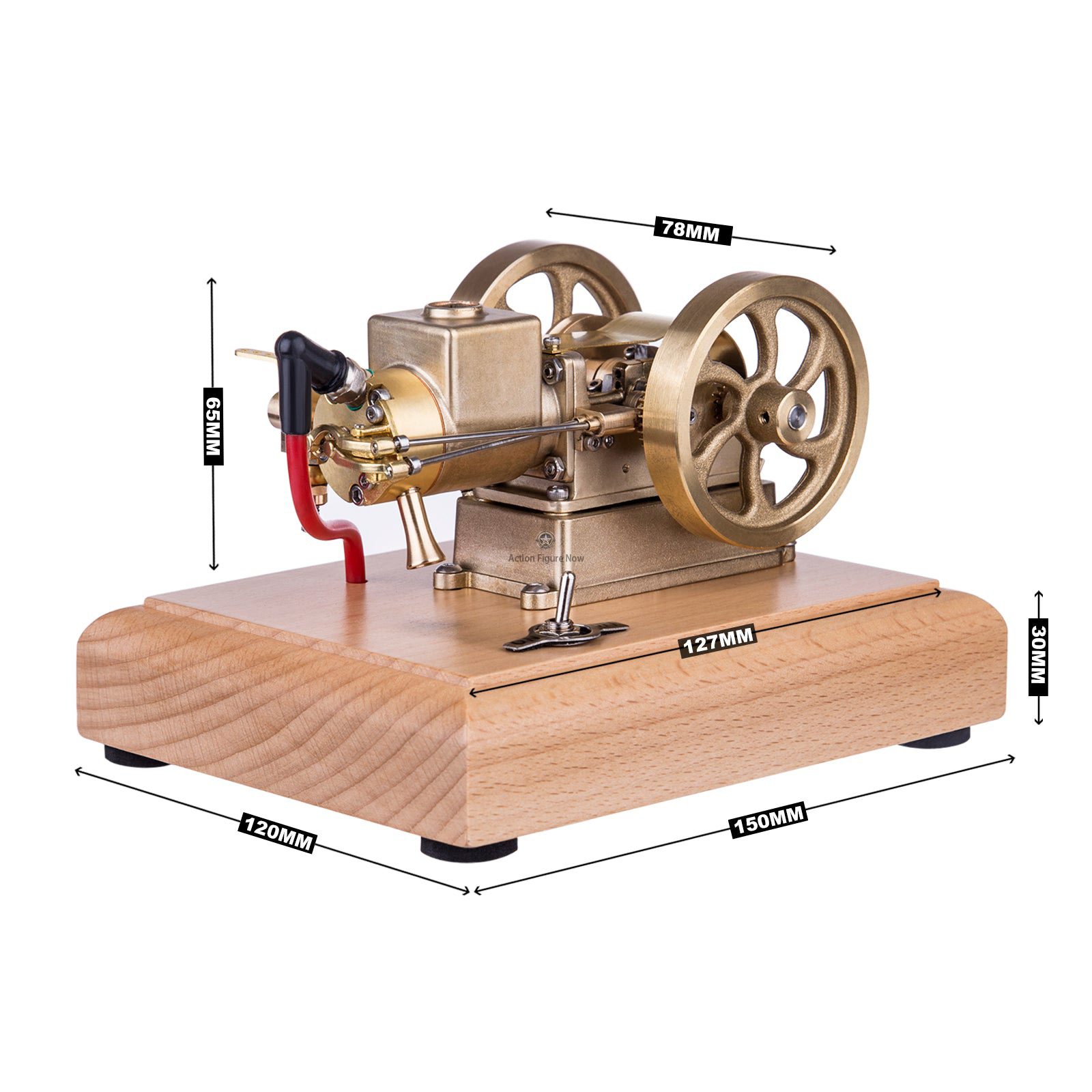

Whole Size 150 x 120 x 95mm
Engine Size 127 x 78 x 65mm
Wood Base 150 x 120 x 30mm
Product Weight 1100g
Package Dimensions 20 x 20 x 15cm
Package Weight 1500g

Packing:

  • 1 x Engine
  • 1 x Hand Start Device
  • 1 x User Guide

Customer Reviews (5.00)

(4 customer reviews)

4 reviews for M17B 1.6cc Mini 4-Stroke Water-Cooled Horizontal Gasoline Engine

  1. Noel Langman
    January 9, 2024
    I am absolutely amazed at the workmanship of this miniature engine.Started only after a few turns of the flywheel there is no doubt that actionfiguren...More
    I am absolutely amazed at the workmanship of this miniature engine.Started only after a few turns of the flywheel there is no doubt that actionfigurenow are experts in the field of miniature working engines.
    Damian Gamma
    November 19, 2023
    Received my M17B engine about a month ago. First Impact was the excellent packaging. After unpacking I had a very nice looking and extremely well made...More
    Received my M17B engine about a month ago. First Impact was the excellent packaging. After unpacking I had a very nice looking and extremely well made little engine. Same day I decided to start the engine up. Did an initial check about the timing but all was fine. Then I proceed putting oil and fuel in, cranked may by 3 times manually then switched the ignition on and gave it a flick on the Fly weel. The Engin started instantly. Had to adjust the the gas and it was running perfectly. I'm really pleased.
    Michael Martel
    July 20, 2023
    It took quite a while to get the engine to start and then it would not run more than 5 seconds. I was using new batteries and fresh gas. I hand to ope...More
    It took quite a while to get the engine to start and then it would not run more than 5 seconds. I was using new batteries and fresh gas. I hand to open the needle valve two turns to get it to start. I removed the carburator and a very tiny pipe fell out of it. It looks like it needs a new one.
    Remsen Haynes
    January 2, 2022
    Received my engine about month and a half ago arrived well packaged. Following day I decided to start the engine. After about 15 minutes of cranking I...More
    Received my engine about month and a half ago arrived well packaged. Following day I decided to start the engine. After about 15 minutes of cranking I realize something was wrong. Upon examination I found the timing was off a considerable amount after resetting the timing one flip the engine was running very well congratulations on the final looking product. I have been building miniature engines for over 60 years. I own a small hobby shop and display these engines to my customers some of them probably avoid engines from you by just our show. Sending you a video of a few of them keep up the good work. Thank you Remsen Haynes
