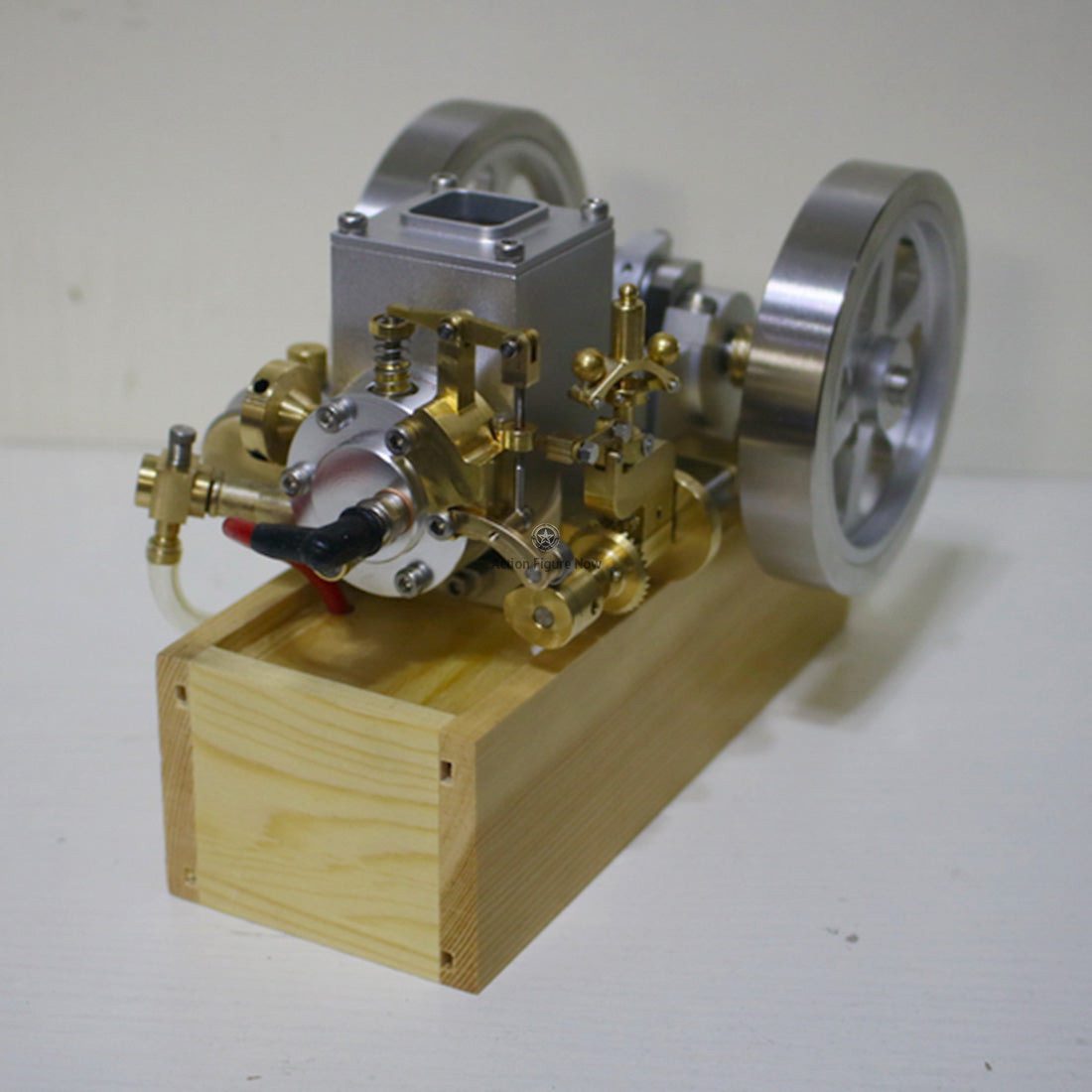

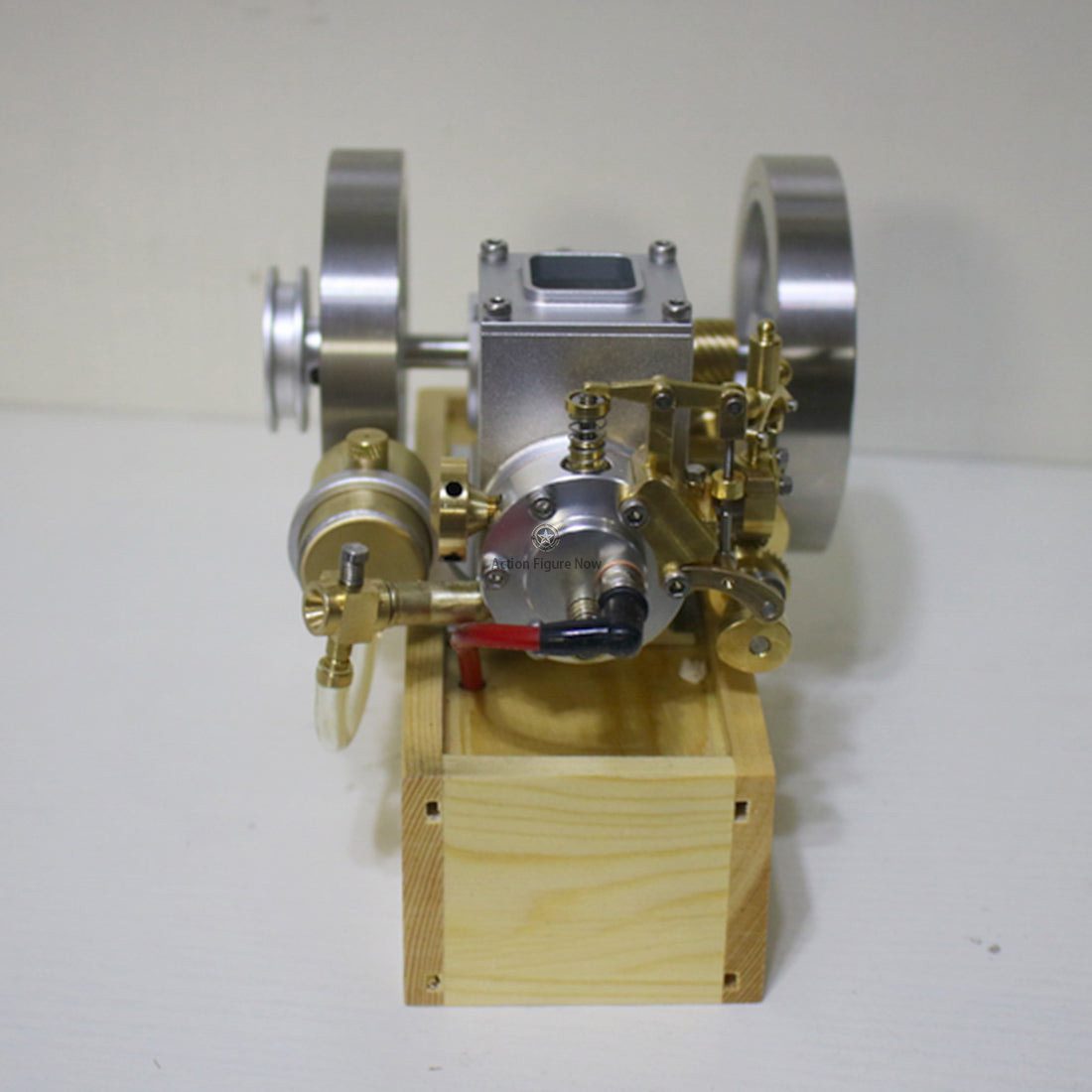

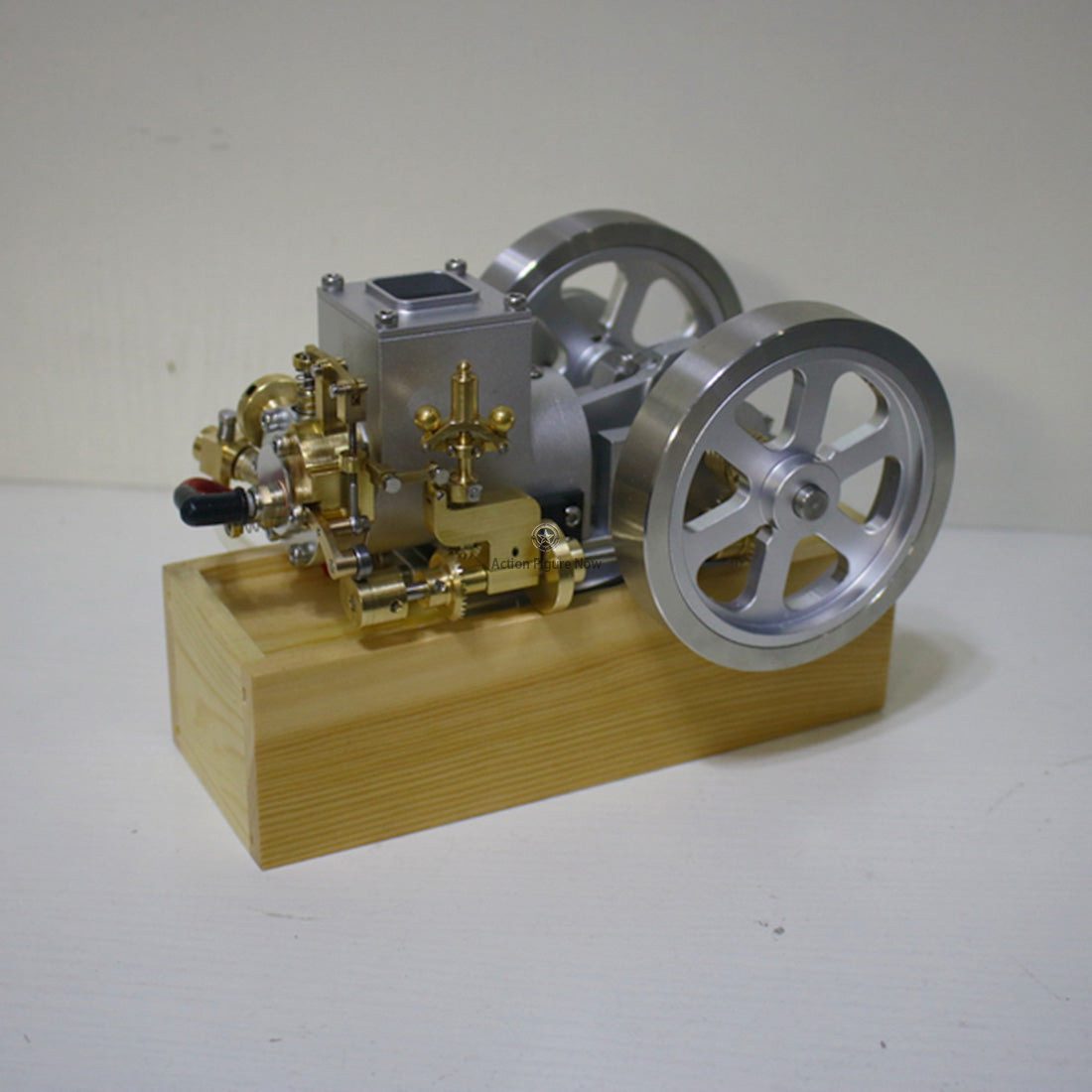

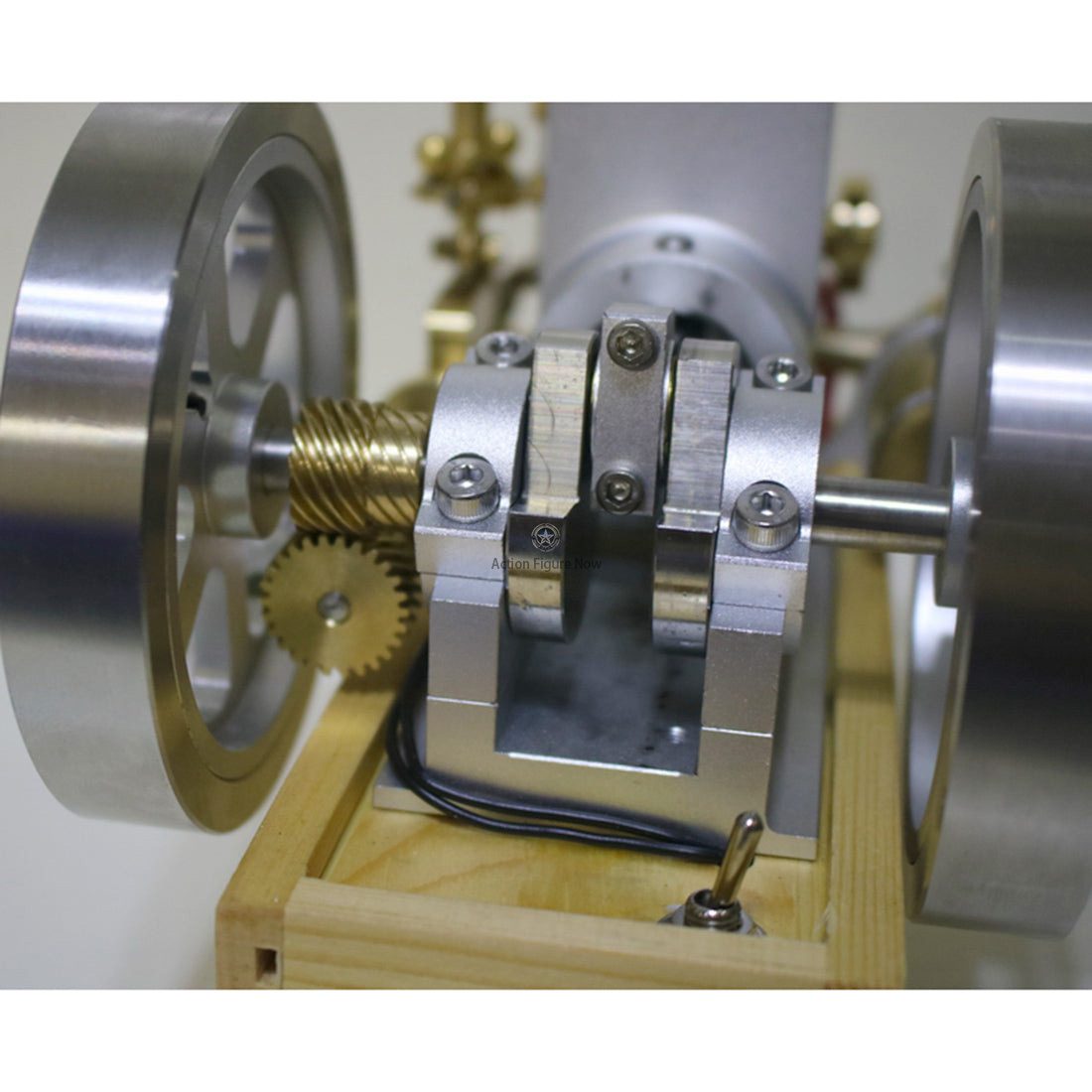

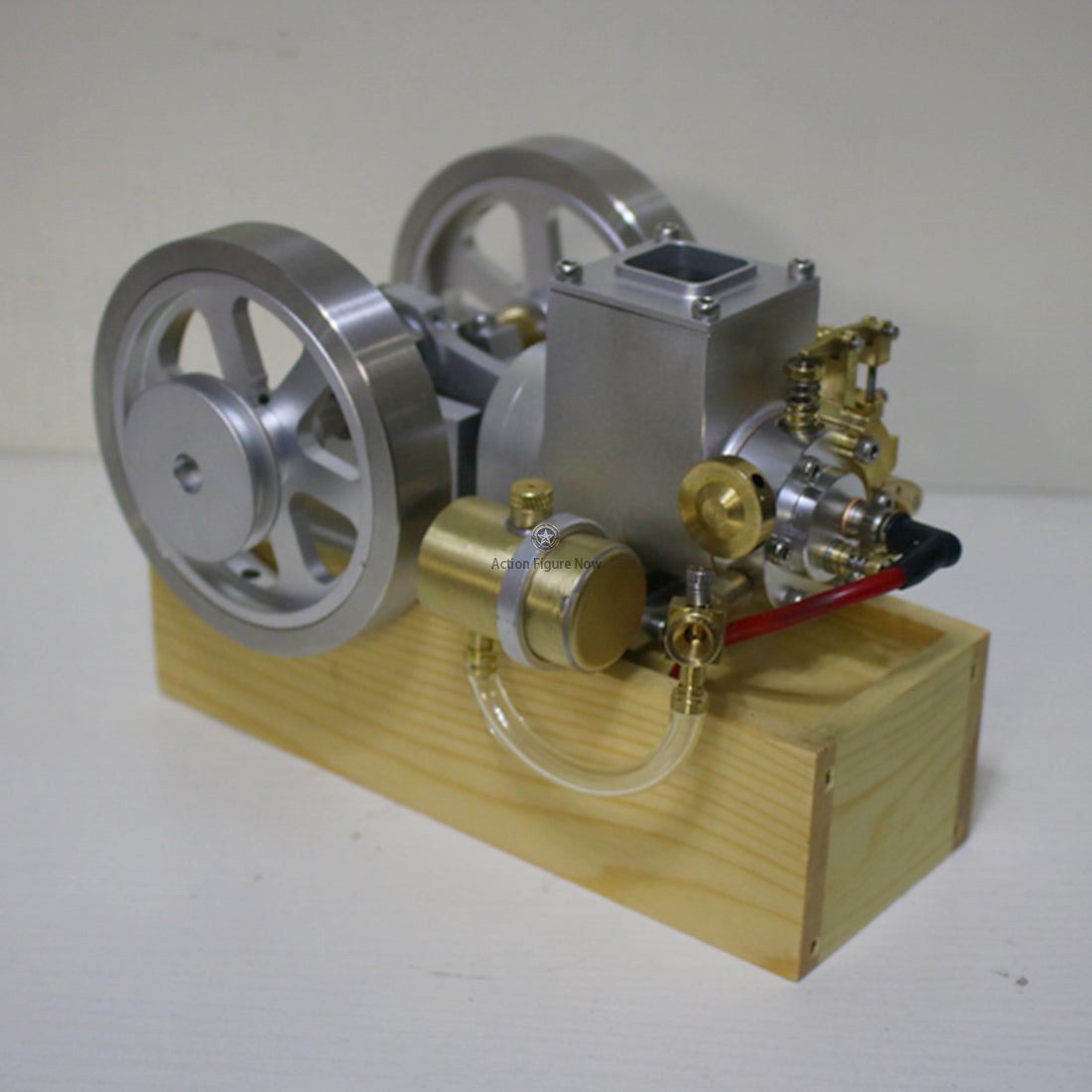

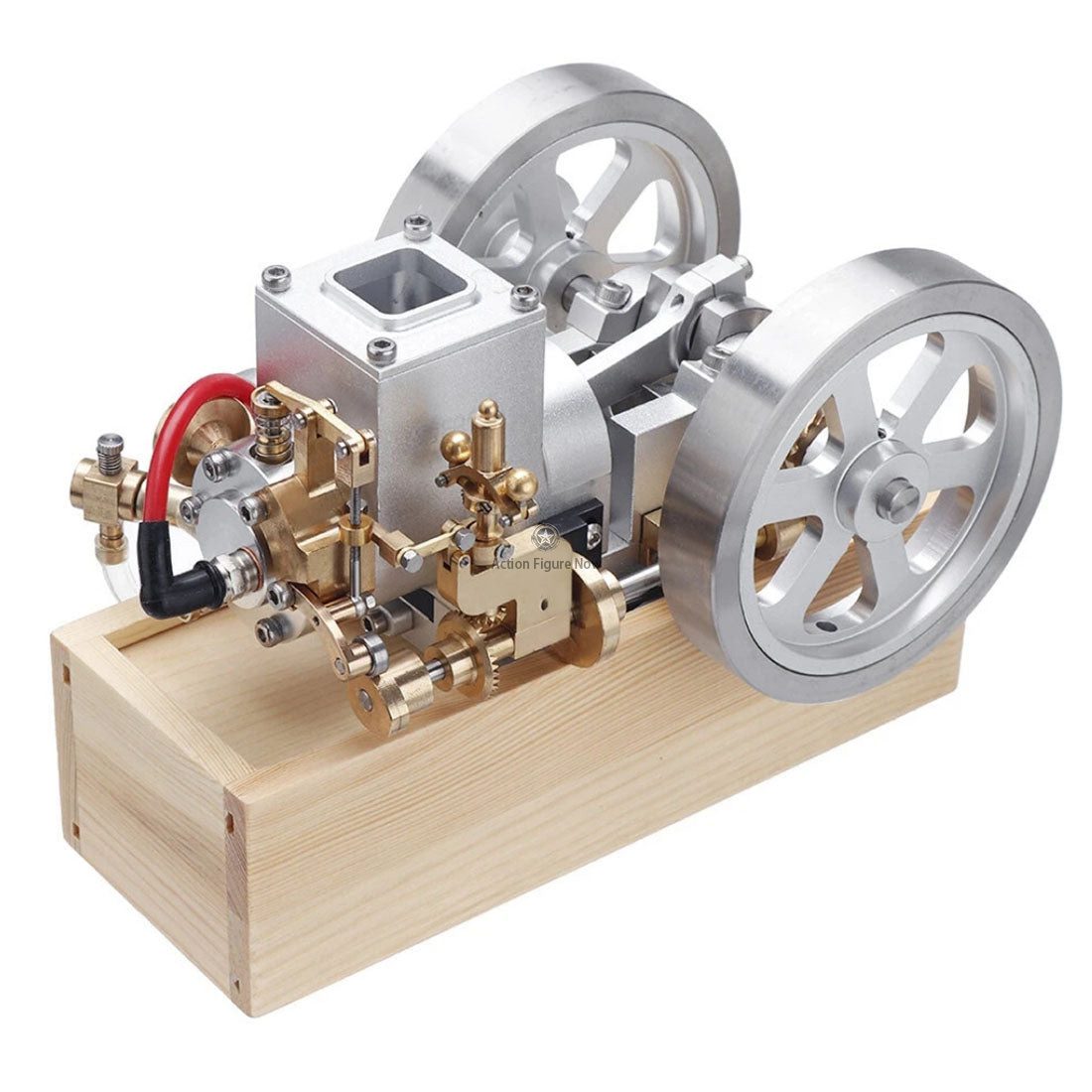

M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter
M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter

M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter

SKU ENGINE-AcJnX8

(2 customer reviews)

$332.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

M92 Metal Horizontal Hit and Miss Water-cooled Gasoline Engine Internal Combustion Engine Model

Features:

  • Horizontal gasoline engine model featuring a vintage water cooling system and fly ball speed limiter
  • Constructed from brass, aluminum, and stainless steel for durability and aesthetics
  • Unique and detailed design with a wooden base for stability and operation

Engine Starting Steps:

  1. Verify electrical connections, fuel line, and insert 3 AA batteries (4.5V).
  2. Fill the engine tank with water and the fuel tank with 95 gasoline. Rotate the flywheel clockwise twice to prime the fuel system.
  3. Power on the engine and quickly rotate the flywheel clockwise to start.

Note:

  1. Troubleshooting: Adjust carburetor fuel needle or air-fuel mixture if the engine fails to start.
  2. Power off the engine when not in use and allow it to cool down.

Excellent Gift:

  • Fun and educational model for observing engine principles
  • Ideal for model collectors, enthusiasts, and as a personalized gift

Specifications:

  • Material: Brass + Aluminum Alloy + Stainless Steel + Wood
  • Overall Size: 180125125mm
  • Engine Size: 18012575mm
  • Wooden Base Size: 1806650mm
  • Displacement: 6CC
  • Cylinder Diameter: 22mm
  • Stroke: 20mm
  • Flywheel Diameter: 88mm
  • Ignition Device Voltage: 4.5V (requires 3 AA batteries, not included)
  • Start Mode: External force or hand pull
  • Fuel: Gasoline
  • Product Weight: 1800g
  • Package Dimensions: 20 x 20 x 15cm
  • Package Weight: 2060g

Package Content:

  • 1 x Engine
  • 1 x Hand Puller
  • 1 x User Manual

Customer Reviews (4.00)

(2 customer reviews)

2 reviews for M92 Metal Hit-and-Miss Horizontal Water-Cooled Gasoline Engine Model with Flywheel and Speed Limiter

  1. Josh winans
    October 31, 2023
    The quality and machining is there. Just can’t seem to get it started. It ran for about 20-30 secs and then stopped. Much of a chore to get going. May...More
    The quality and machining is there. Just can’t seem to get it started. It ran for about 20-30 secs and then stopped. Much of a chore to get going. Maybe they can help with a new replacement engine. Not sure I trust a second purchase. I just want it to start easier to enjoy it.
    Anthony Miller
    October 4, 2023
    I am very pleased with this one. My first venture into the miniature engine realm and wanted one with a fairly complex mechanism. This did not disappo...More
    I am very pleased with this one. My first venture into the miniature engine realm and wanted one with a fairly complex mechanism. This did not disappoint. Fast, well packed shipping from actionfigurenow. Used a Zippo/Marvel Mystery oil blend and after a few rope start pulls I had it running nicely. After that initial start I was able to start simply by flipping the flywheel with my fingers. Runs quite well with no further tuning needed. Glad I tried one of these and look forward to adding more to my collection
