Metal Balance Stirling Engine Model

Description

Hot Air Stirling Engine Model

Product Description

This ENJOMOR Metal Balance Hot Air Stirling Engine Model is based on the working principle of the Stirling engine, enabling fast operation with strong power after heating with an alcohol lamp. It provides long-lasting performance and safe operation, thanks to its boiler shape, integrated steam channel, and baseplate design.

Key Features:

– Continuous Operation: Capable of working for approximately 30 minutes with heating from an alcohol lamp.
– Durability: Made with high-quality materials, including H59 brass, 6061 aluminum alloy, and SUS304 stainless steel.
– Precision Fit: Wear-resistant parts ensure precise fitting and long-term performance.
– Multipurpose: Ideal for teaching demonstrations, laboratory experiments, gifting, display, or desktop decoration.
– Impressive Aesthetics: Intriguing and imaginative mechanical craft with premium visual texture and aesthetic appearance.

How to Use:

1. Ensure smooth rotation by manually twirling the flywheel.

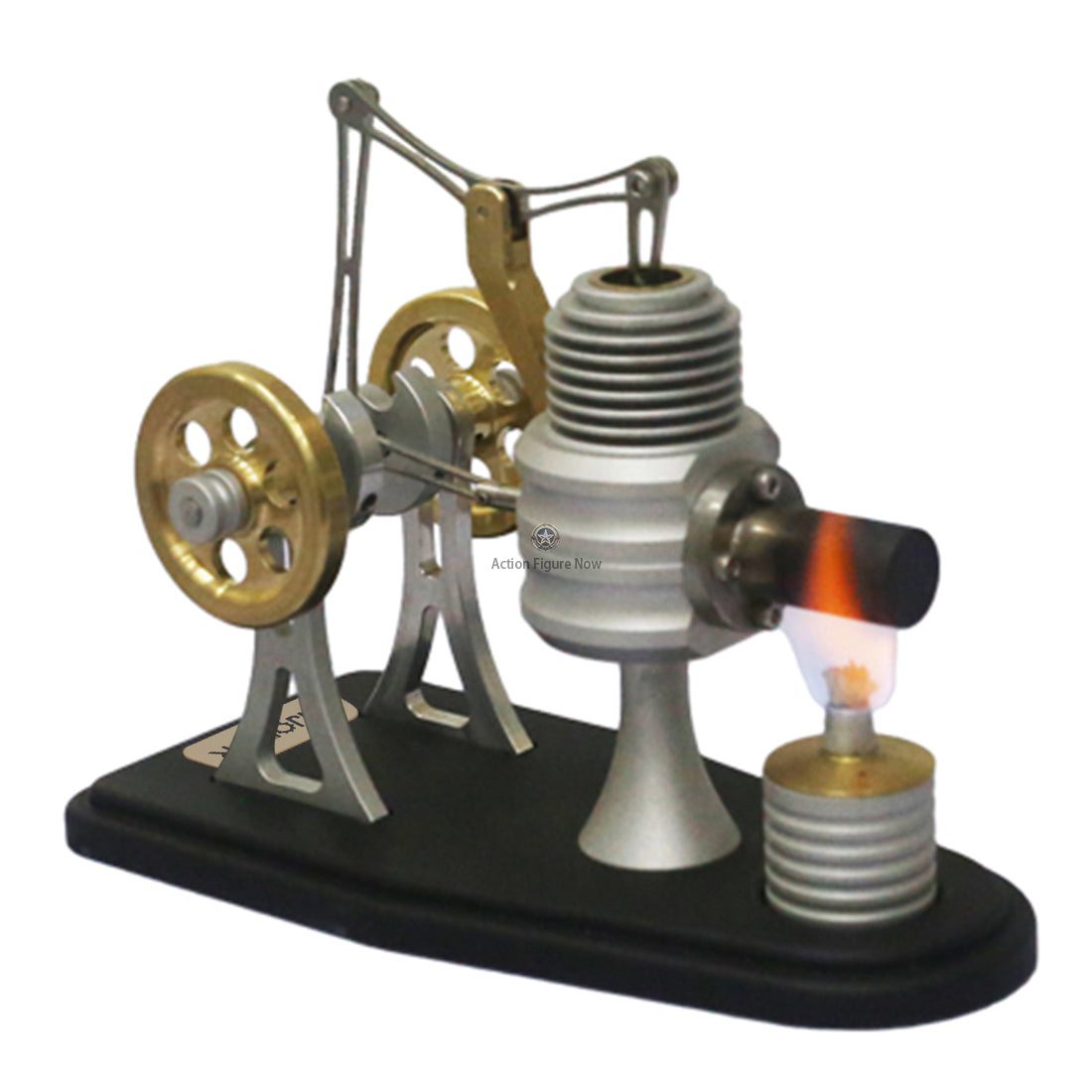

2. Fill the alcohol lamp and light it under safety precautions.
3. Heat the engine model for 30 seconds, then gently twirl the flywheel until it starts spinning automatically.

Caution: Do not touch the heating end and boiler during the heating process due to high temperatures.

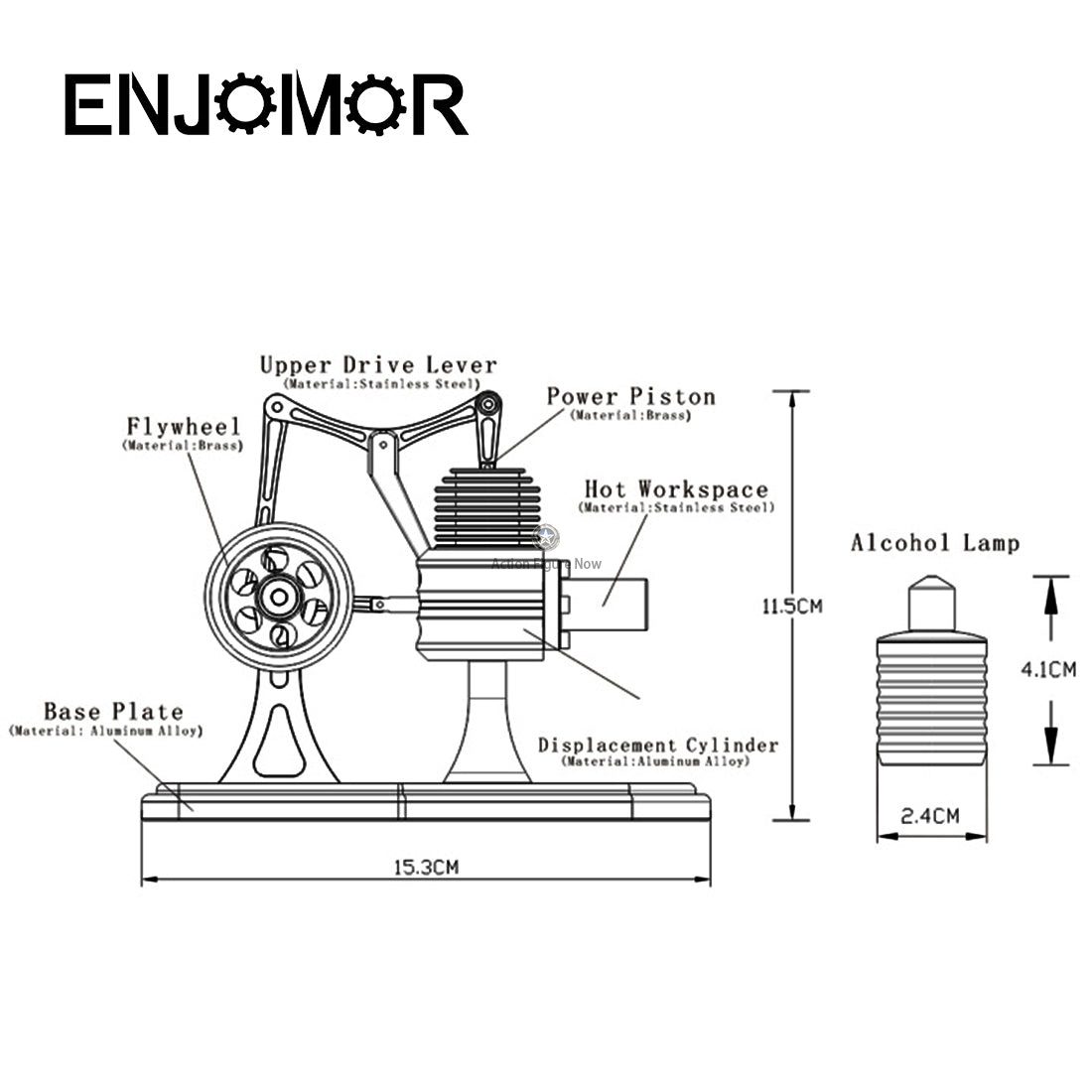

Specifications:

– Material: Aluminum Alloy + Brass + Stainless Steel
– Flywheel: 40mm (D)
– Boiler: 38mm (D), 64mm (L)
– Alcohol Lamp: 24mm (D), 41mm (H)
– Product Dimensions: 15.3 x 7.5 x 11.5 cm
– Product Weight: 517.5 g
– Package Dimensions: 20.5 x 11.5 x 18.5 cm
– Package Weight: 560 g

Package Includes:

– 1 x Balance Hot Air Stirling Engine Model
