Mini Horizontal 3.2cc V-Twin 4-Stroke OHV Petrol Combustion Model Engine

Mini Horizontal 3.2cc V-Twin 4-Stroke OHV Petrol Combustion Model Engine

Name: Mini Horizontal 3.2cc V-Twin 4-Stroke OHV Petrol Combustion Model Engine
SKU: ENGINE-Pw4ND4
Availability: InStock

SKU ENGINE-Pw4ND4

Be the first to leave a review.

$594.99

🚚 Free Shipping: Available on all products.
💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Shipping & Delivery

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

Returns & Exchanges

For more information click here returns and exchange

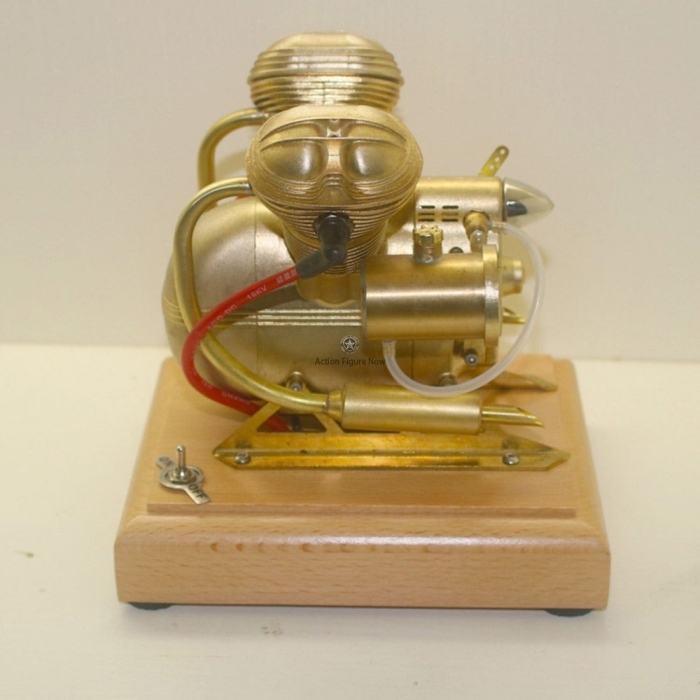

V35 3.2cc Mini OHV Horizontal V-Twin Four-stroke Gasoline Engine Internal Combustion Engine Motorcycle Engine Model

V35 OHV Horizontal V-Twin Engine For Sale Features:

Simulated Motorcycle Engine: Highlight the beauty of this engine with the 60-degree cylinder angle, hidden intake, and tiny metal chain transmission of the valve mechanism. Featuring the advantage that lies in its ingenious structural design, every component of the model restores the mechanical principle to make this all-metal engine model start and operate.
Sophisticated Manufacture: Treated with precision casting on the entire engine and carefully-crafted parts, the contour of the cylinder and other parts with casting process are very round. The engine model boasts the most significant feature of motorcycles in that era, providing you with the unique charm brought by the mechanical operation of the engine.
Steps to start the engine:
1. Check the engine wiring from the wooden base, connect the oil pipes of the fuel tank, and install 3 AA batteries (4.5V)
2. Fill the fuel tank with 95 gasoline. The flywheel rotates clockwise multiple times on the right side of the engine (the surface of the power switch). This will make the mixed fuel completely enter the cylinder and ensure that there is no air in the fuel pipe
3. Turn on the power switch and then quickly turn the flywheel clockwise. Start the engine on the right side (surface of the power switch)
Notes:
1. If the machine cannot start normally with normal ignition and cylinder compression, it is likely to need to adjust the carburetor oil needle
2. After tightening the main oil needle on the carburetor, loosen 1 /4 circle and start the flywheel to make the mixing ratio of gasoline and air reach the normal working mixing ratio
3. When the machine stops running, turn off the power switch
Superb Model & Gift: This stunning mechanical craft allows you to feel the allure of the engine when working, suitable for personal use and an impressive gift to friends, families and model lovers on major festivals.
