Description
M12C 3.2cc Mini Horizontal Water-cooled Double-cylinder 4 Stroke Gasoline Engine Upgrade Internal Combustion Engine Model
Features:
– Mini Horizontal Double-cylinder Engine: Water-cooled with adjustable carburetor, crafted from brass and stainless steel in exquisite shape, featuring stable structure and wooden base for easy placement.
– Starting the Engine:

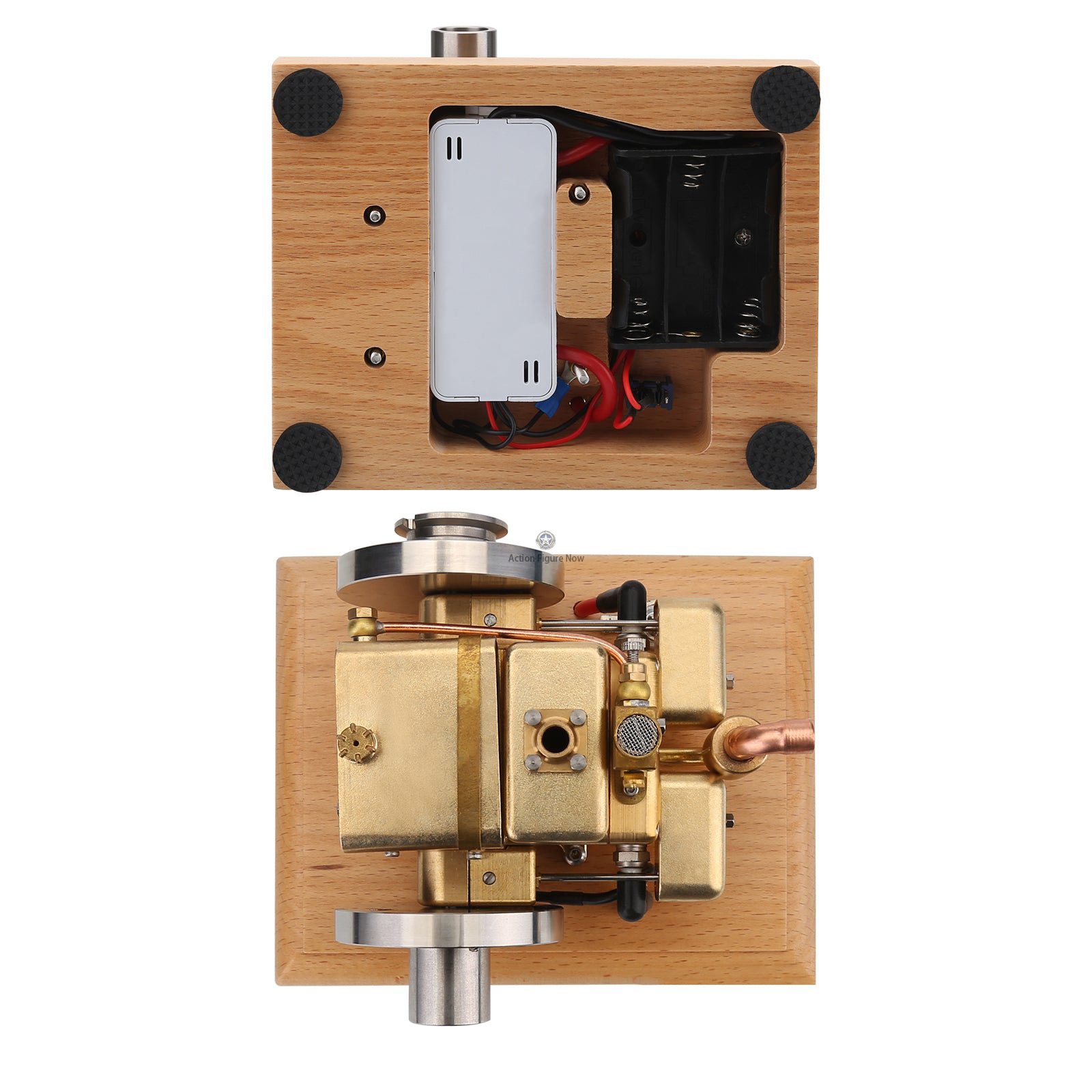

1. Connect wiring, fuel line, and 3 AA batteries (4.5V).
2. Fill the tank with 95 gasoline, rotate flywheel clockwise to prime the cylinder.
3. Turn on power, rotate flywheel clockwise to start.
– Notes:
1. Adjust carburetor oil needle if engine fails to start.
2. Loosen main oil needle by 1/4 turn to optimize the fuel-air ratio.
3. Turn off power switch when stopping the engine.
– Excellent Gift: Ideal as a desktop model, collectible, or personalized gift for model enthusiasts.
– Suitable for ages 14+.
– Contact seller for product or usage queries.
Specifications:
– Color: Shown in Image
– Material: Brass + Stainless Steel + Wood

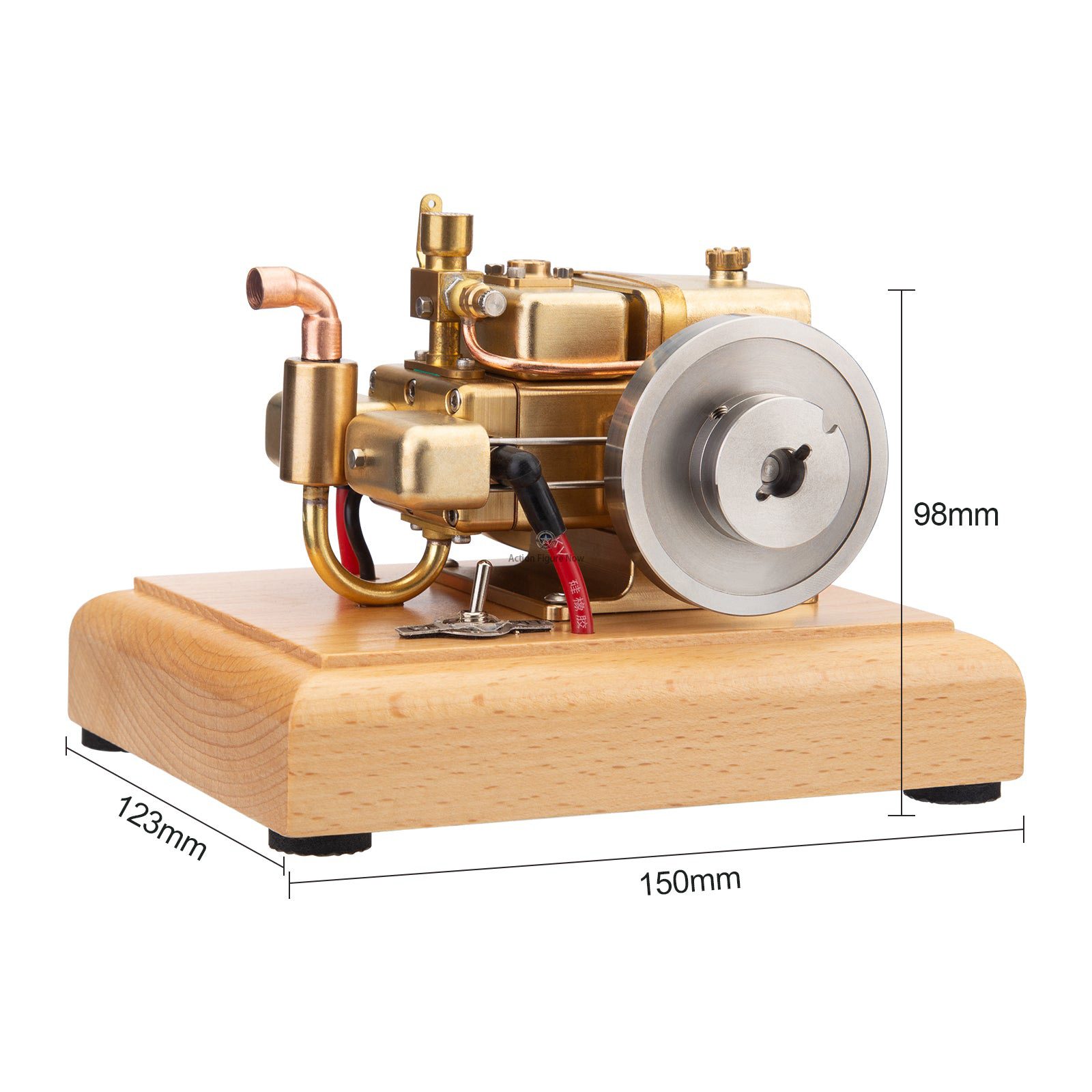

– Overall Size: 150 x 120 x 98mm
– Engine Size: 123 x 103 x 68mm
– Wooden Base Size: 150 x 120 x 30mm
– Displacement: 3.2CC
– Cylinder Diameter: 13mm
– Stroke: 12mm
– Flywheel Diameter: 56mm
– Ignition Voltage: 4.5V (Requires 3 AA batteries)
– Starting Method: External force (electric drill) or hand pull
– Fuel: Gasoline or aviation kerosene
– Product Weight: 1700g
– Package Dimensions: 20 x 20 x 20cm
– Package Weight: 2200g
Package Includes:
– 1 x Engine
– 1 x Puller
– 1 x Manual
