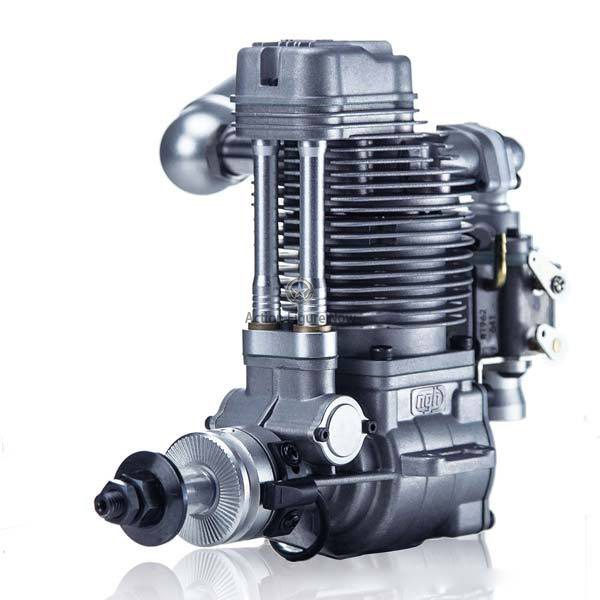

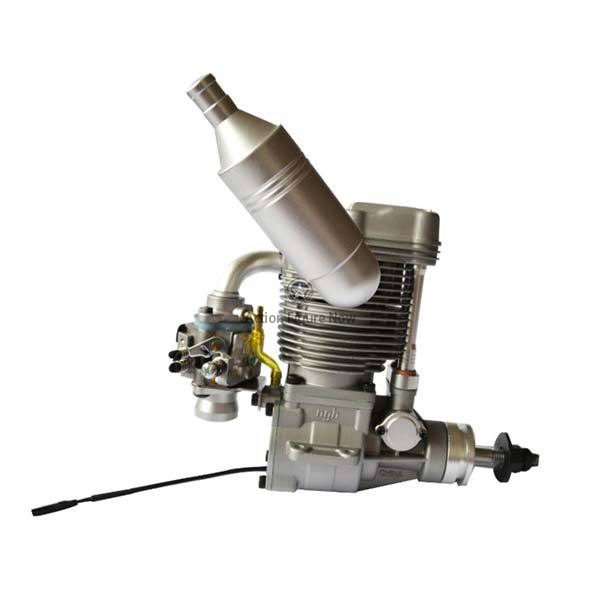

NGH GF30 30cc Four Stroke RC Engine for RC Drone

NGH Engines are renowned for their performance and value. These model aero engines are purpose-built, not converted chainsaw types. NGH’s ongoing development has made them among the best available on the market.

NGH continues to innovate with this gas 4-stroke engine, providing the benefits and sound of a 4-stroke with the economy of gas. Following the GF38’s success, NGH has launched a new 30cc four-stroke.

Slightly smaller, it serves as a perfect replacement for a 1.20 – 1.50 FS glow. Complete with a Walbro pumped carb and Rcexl ignition, it is designed for petrol and comes with a factory-built muffler system.

Its striking looks will turn heads on any flying field.

Features:

  • Four-stroke sound and efficiency
  • Twin roller CNC conrod
  • Twin ringed pistons
  • Angle adjustable exhaust system with baffler
  • Velocity Stack installed on the carb for improved throttle response
  • Compact and powerful design, ideal for scale model installations
  • Genuine Walbro carburetor for reliable running and easy tuning
  • Blue anodized ‘beam’ style engine mounts included
  • RCEXL Ignition with automatic advancing system
  • Ideal for 20-25cc 2 stroke class models
  • Powerful output and excellent reliability
  • Attractive blue anodized prop hub
  • Locking prop nut included
  • Clean burning, no more oily residue on your model
  • Purpose made, specifically designed from the ground up and optimized for gas powered RC planes

Specifications:

  • Type: Gas 4 stroke air-cooled engine
  • Cylinders: Single
  • Displacement: 29.91cc
  • Bore x Stroke: 36 x 29.4mm
  • Power: 2.7HP
  • Crank Type: Forged with dual bearing support
  • Carburetor: Walbro Custom WT1022
  • RPM Range: 1600 – 8500rpm
  • Ignition: Auto advanced RcEXL DC-CDI
  • Ignition Battery: DC 4.8~8.4V 1000mAh recommended
  • Spark Plug: CM6 RcEXL
  • Ignition Power: 4.8~6V DC (4~5 cell nimh battery)
  • Fuel: Unleaded Gas/Oil mix 35:1
  • Recommended Propellers: 15×10/16×8/17×8/17×10 2 blade
  • Weight: 1250g with ignition system

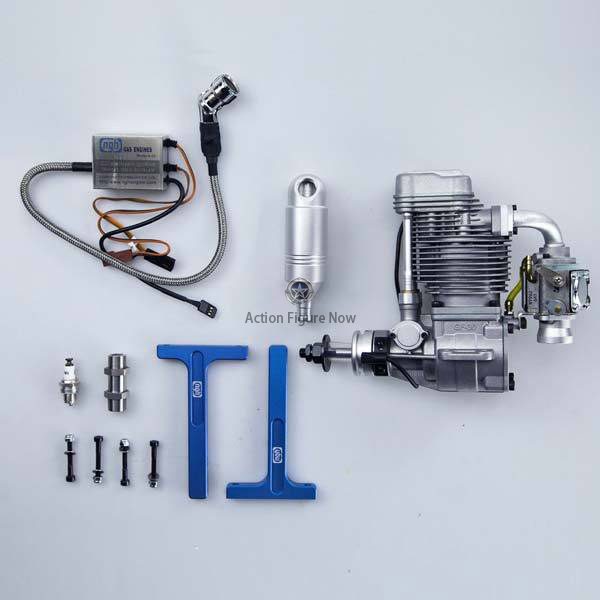

Package Including:

  • NGH GF30 30cc Four-Stroke Engine
  • CDI
  • Exhaust Pipe
  • Connecting Line
  • Spark Plug
  • Mounting Bracket Base
  • Screw Set
  • English Manual
