Otto Toyan FS-L200AC Engine – Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit

SKU ENGINE-T4Wlws

(29 customer reviews)

$199.99 $289.98Price range: $199.99 through $289.98

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

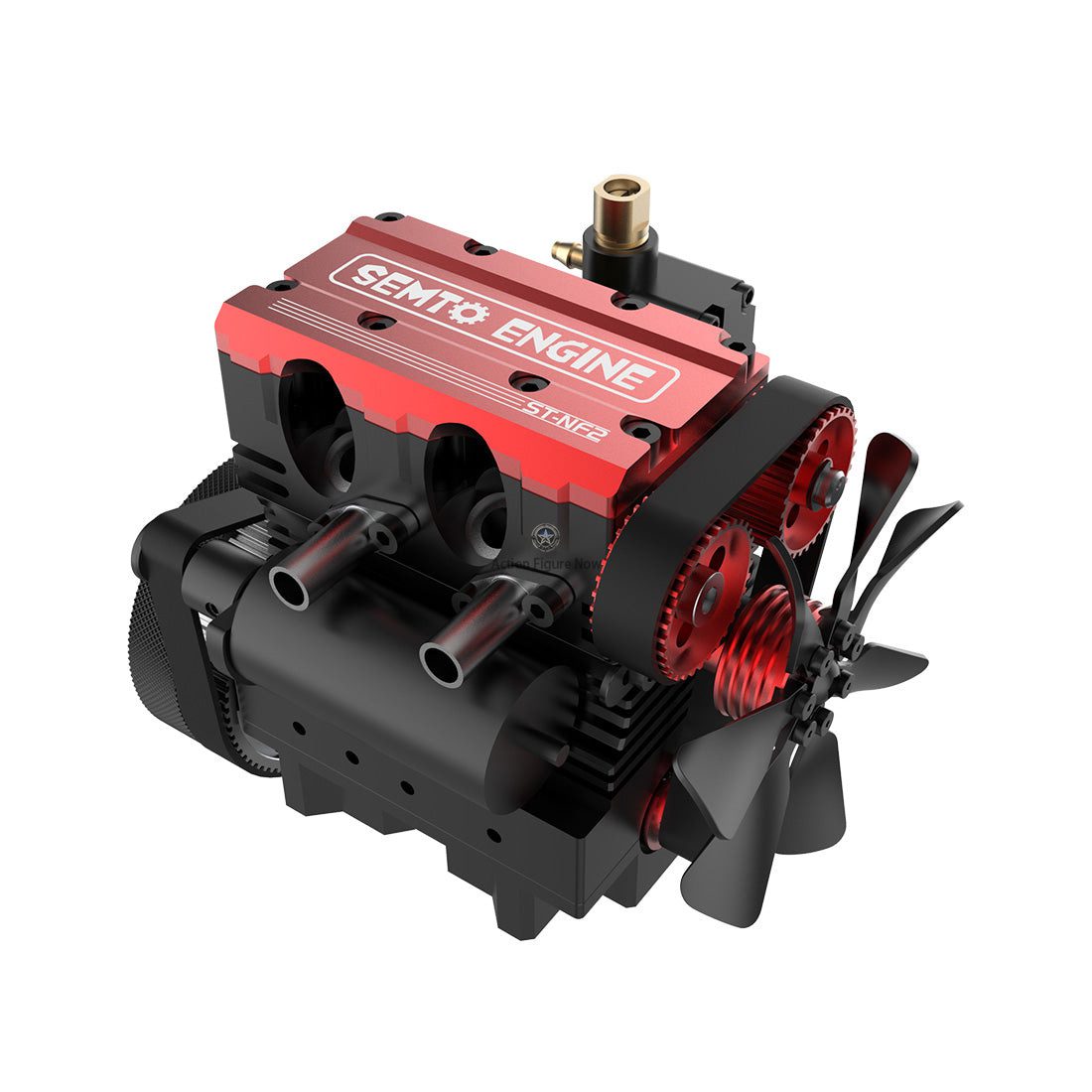

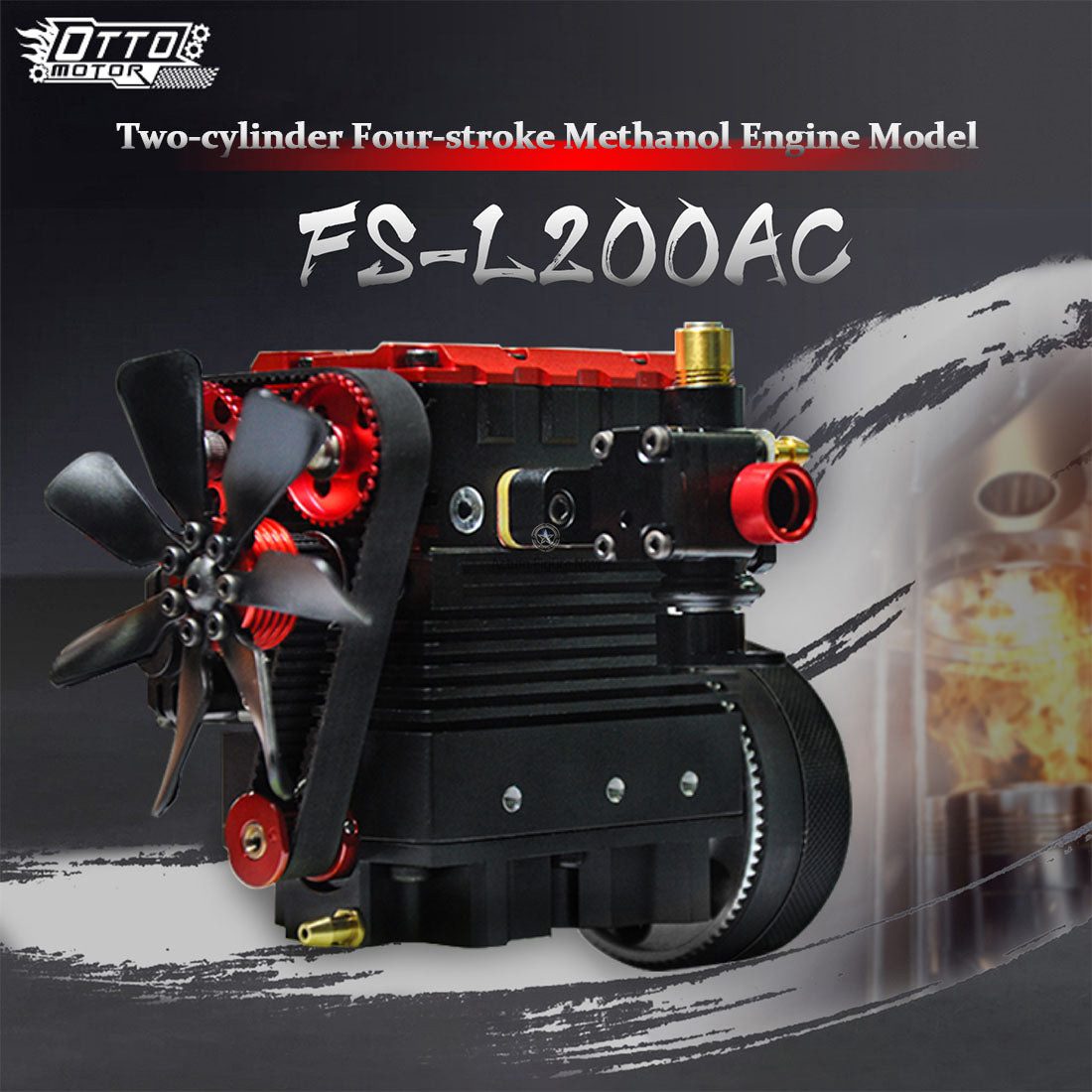

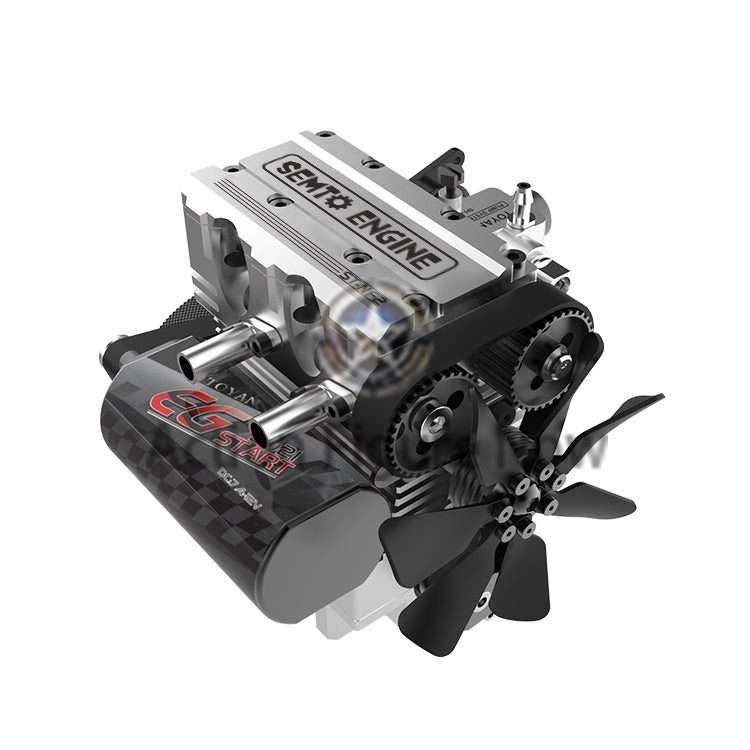

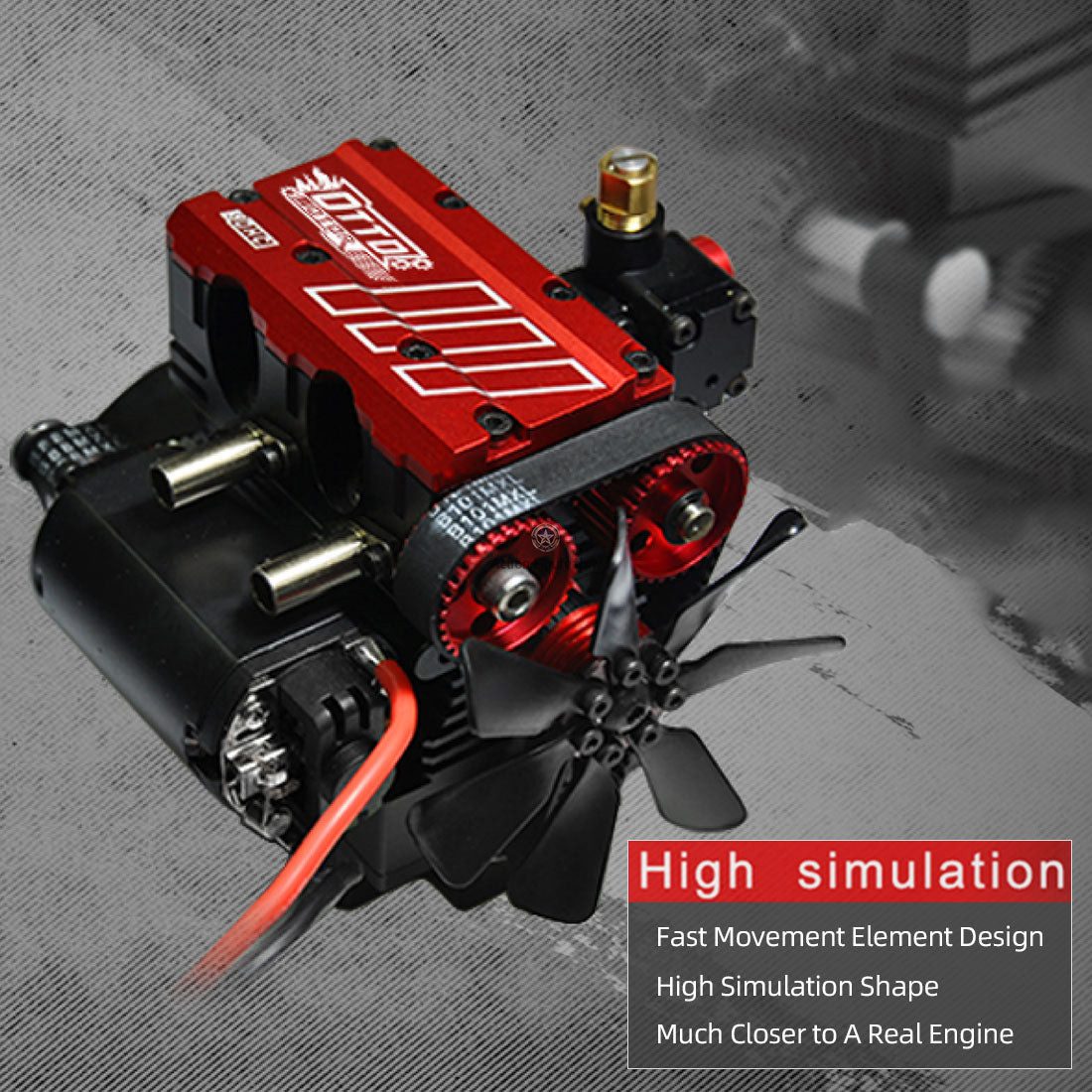

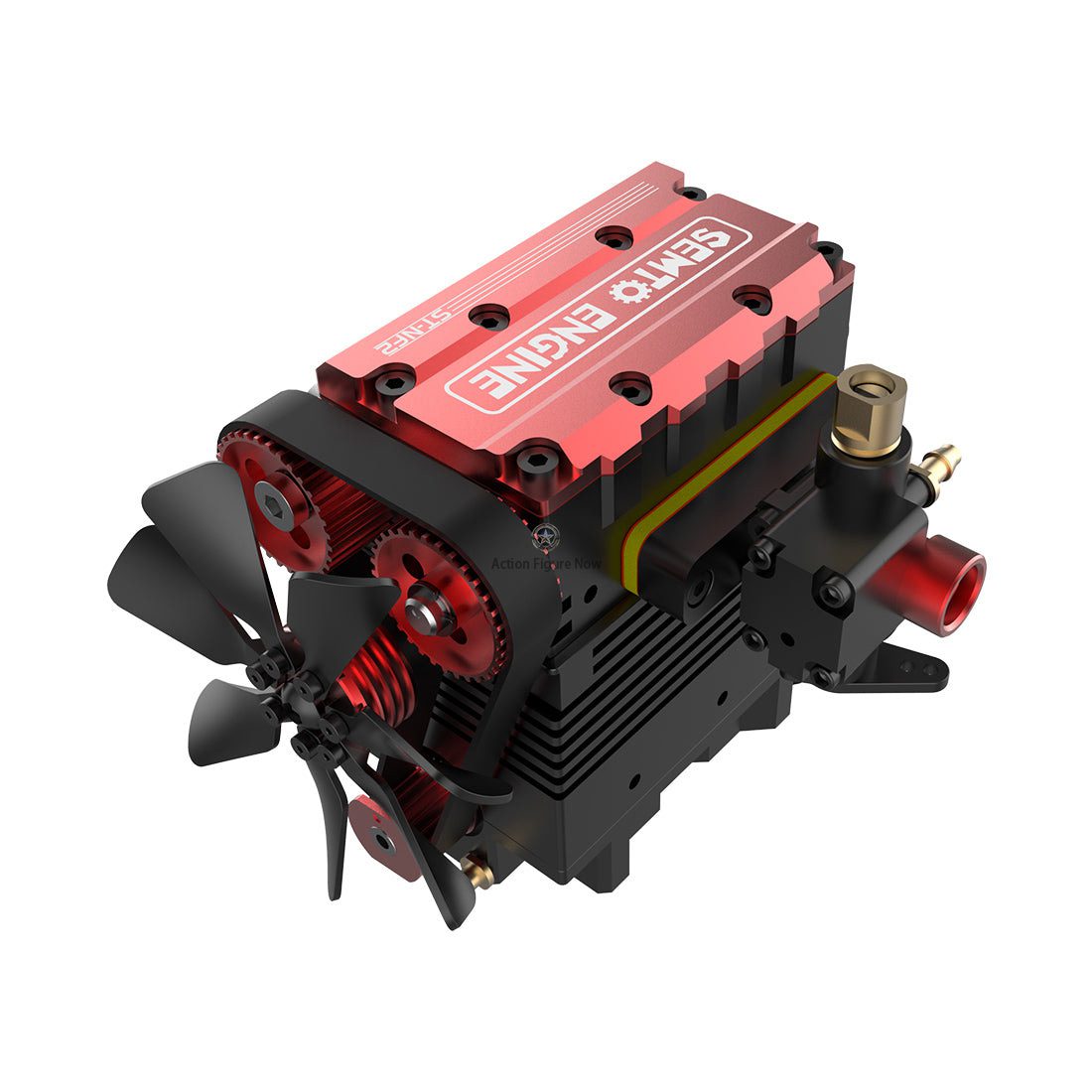

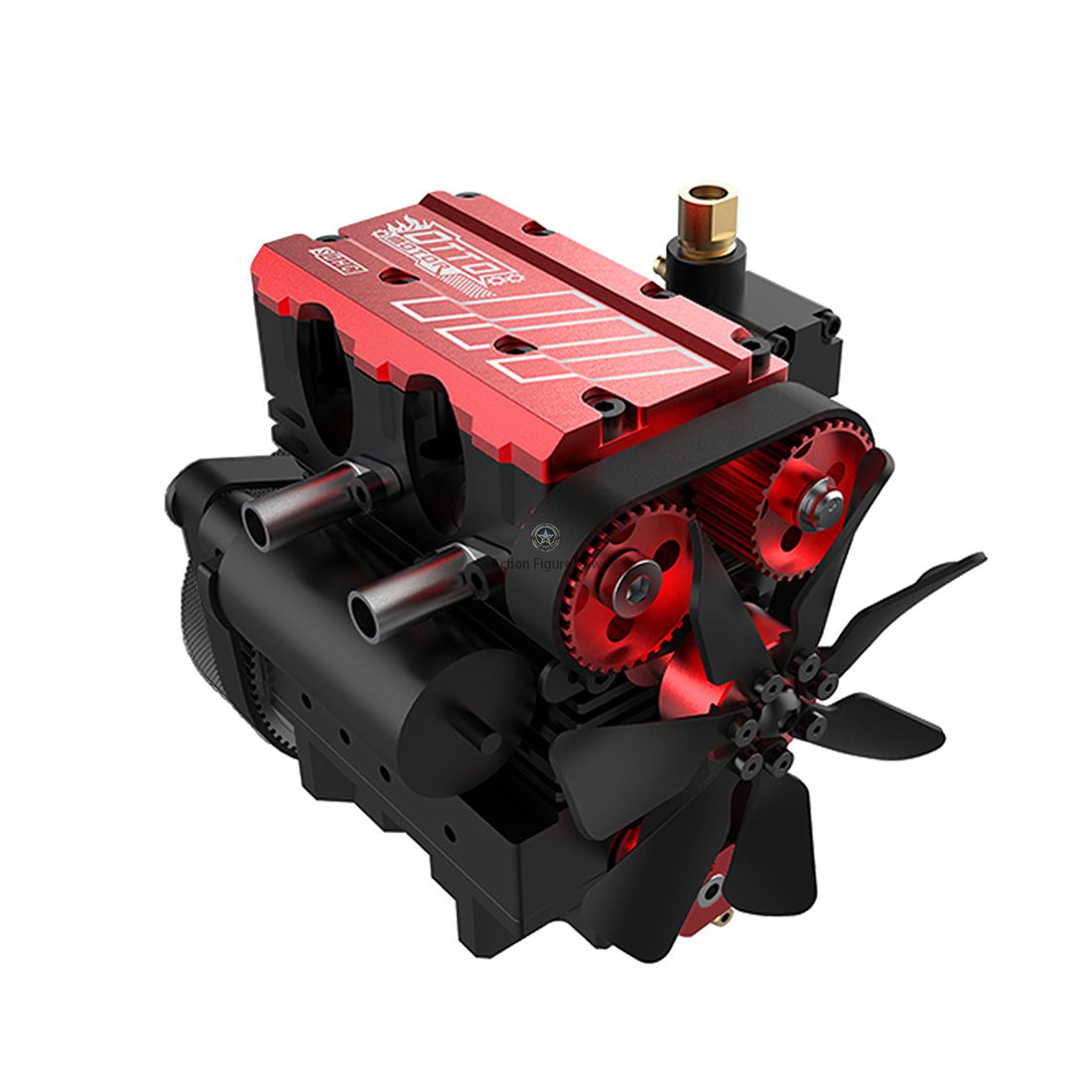

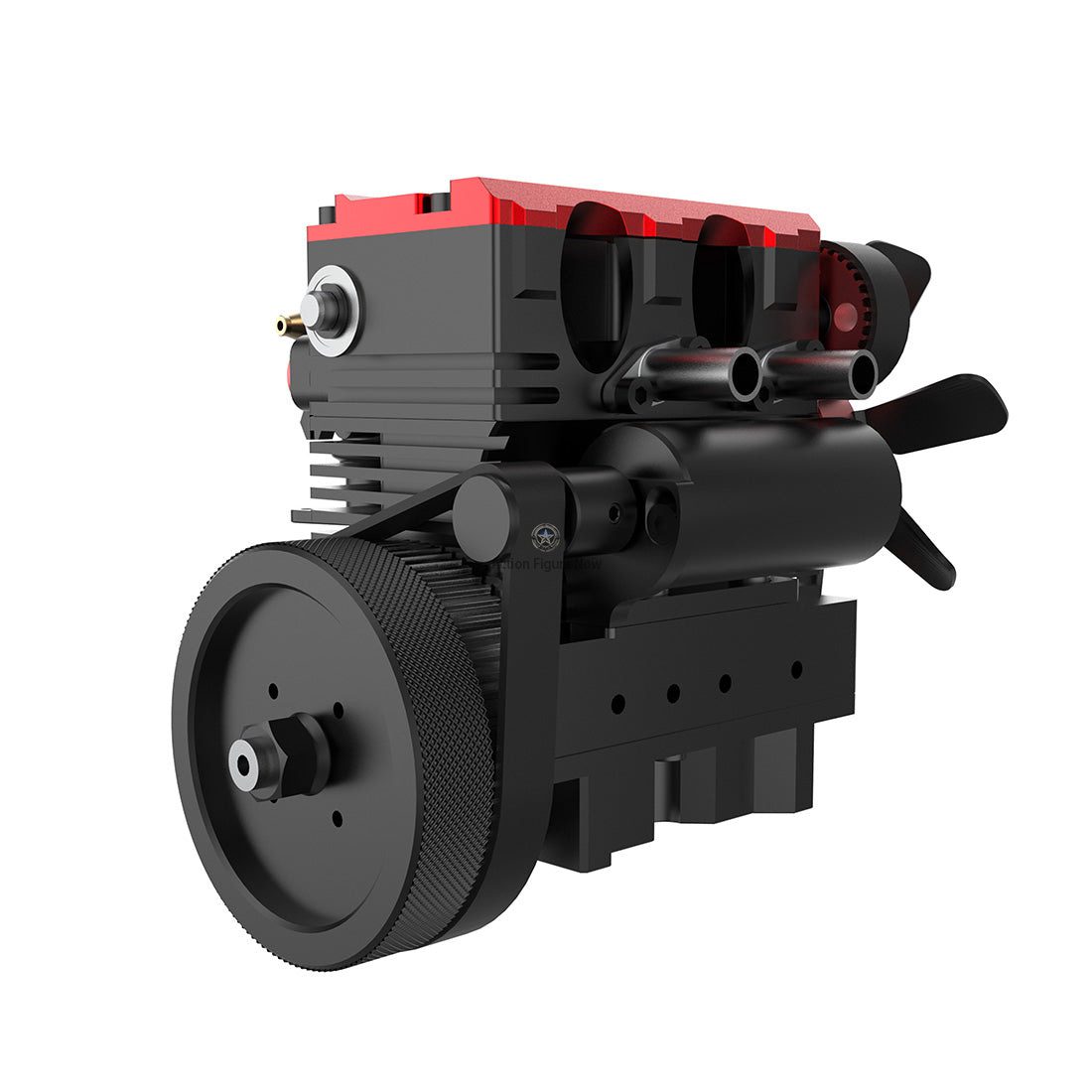

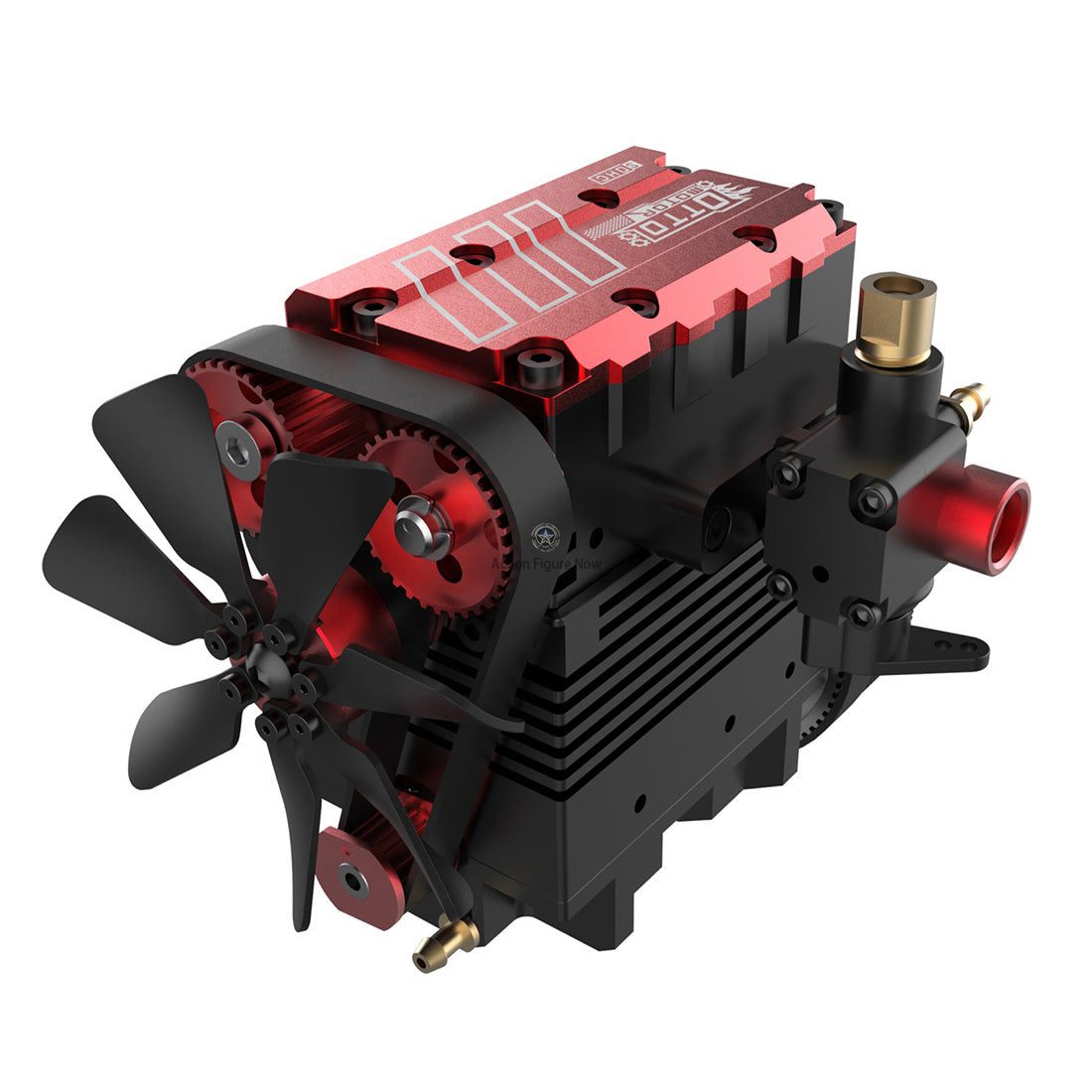

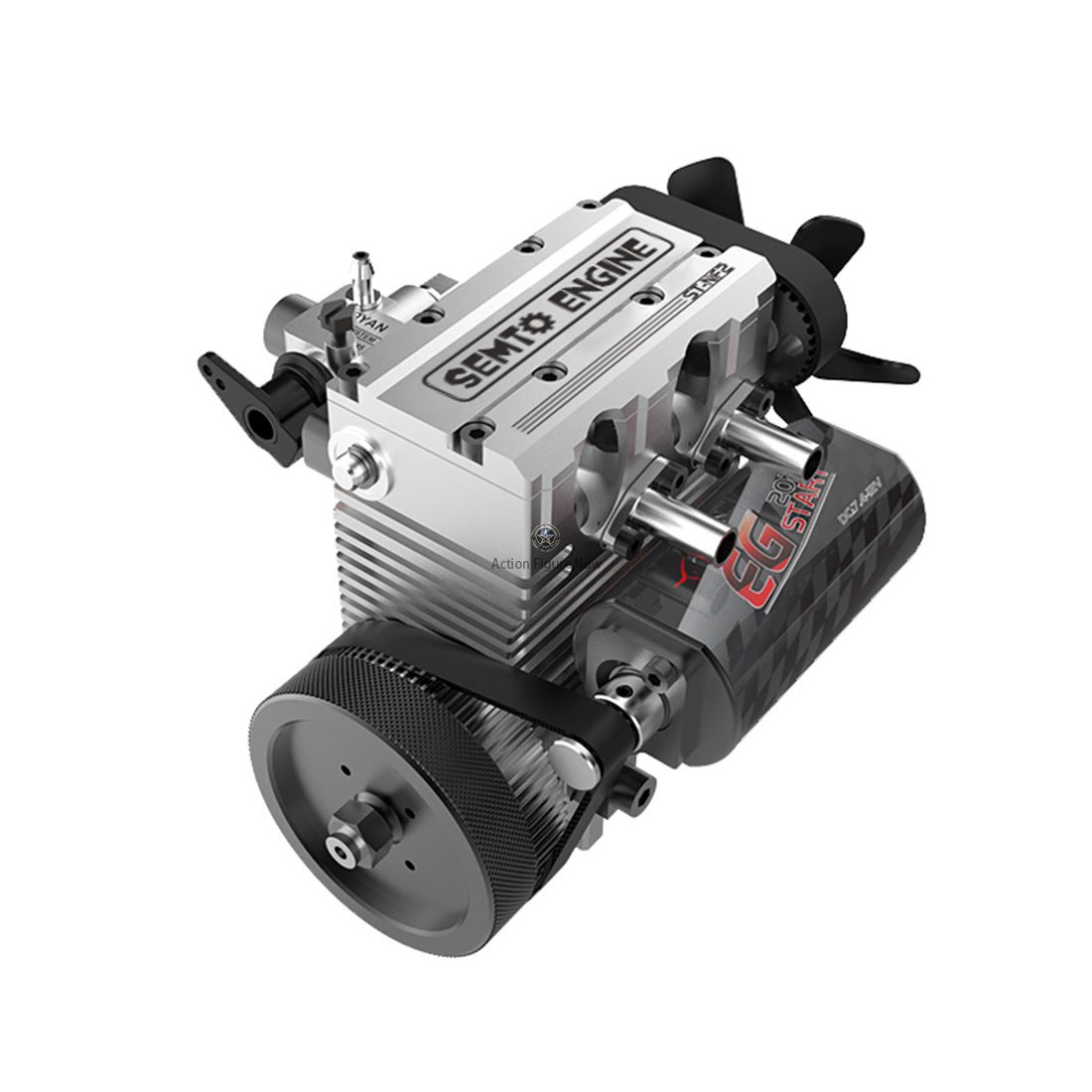

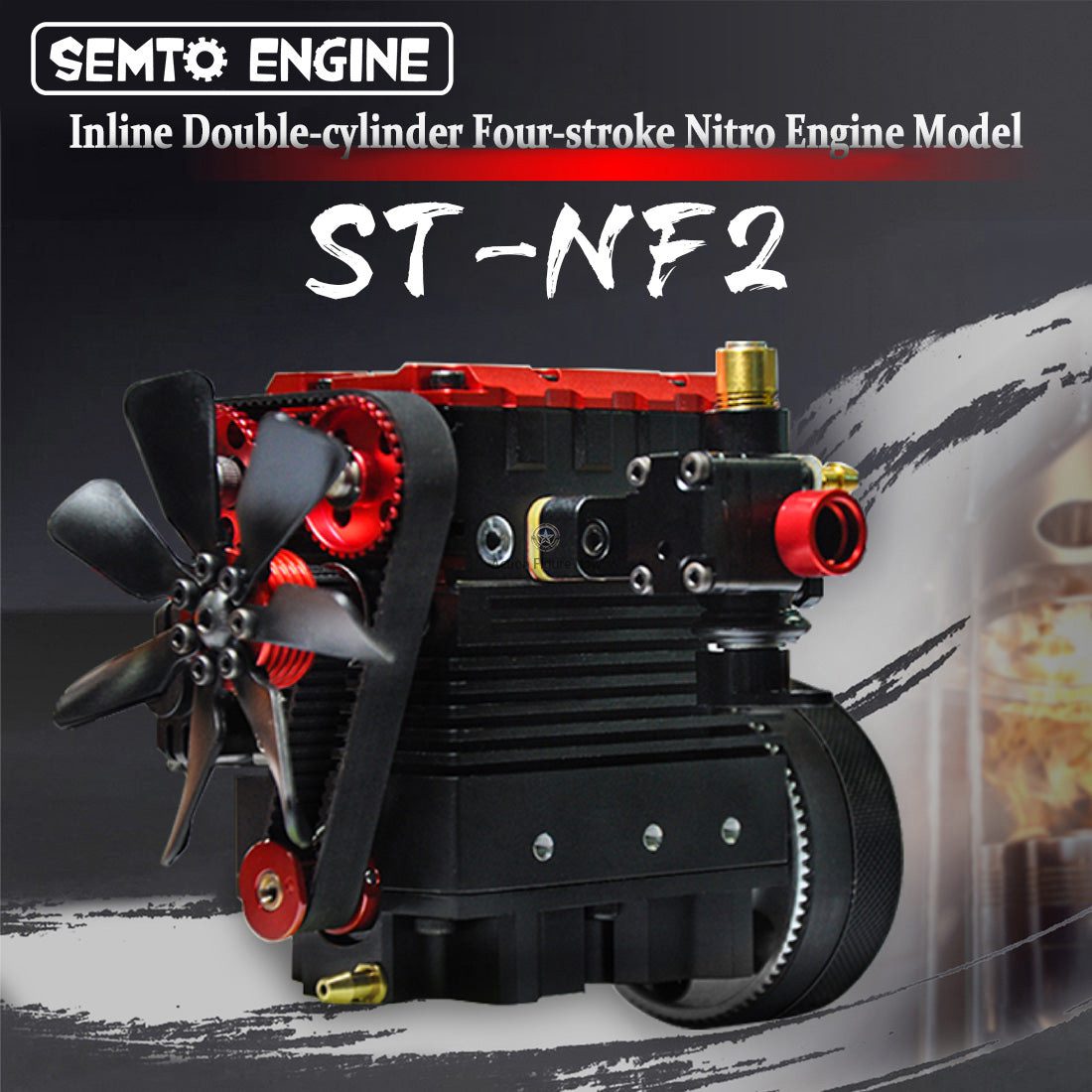

OTTO TOYAN FS-L200AC Engine 7cc SOHC 4-Stroke Nitro Engine Model Kit

Features:

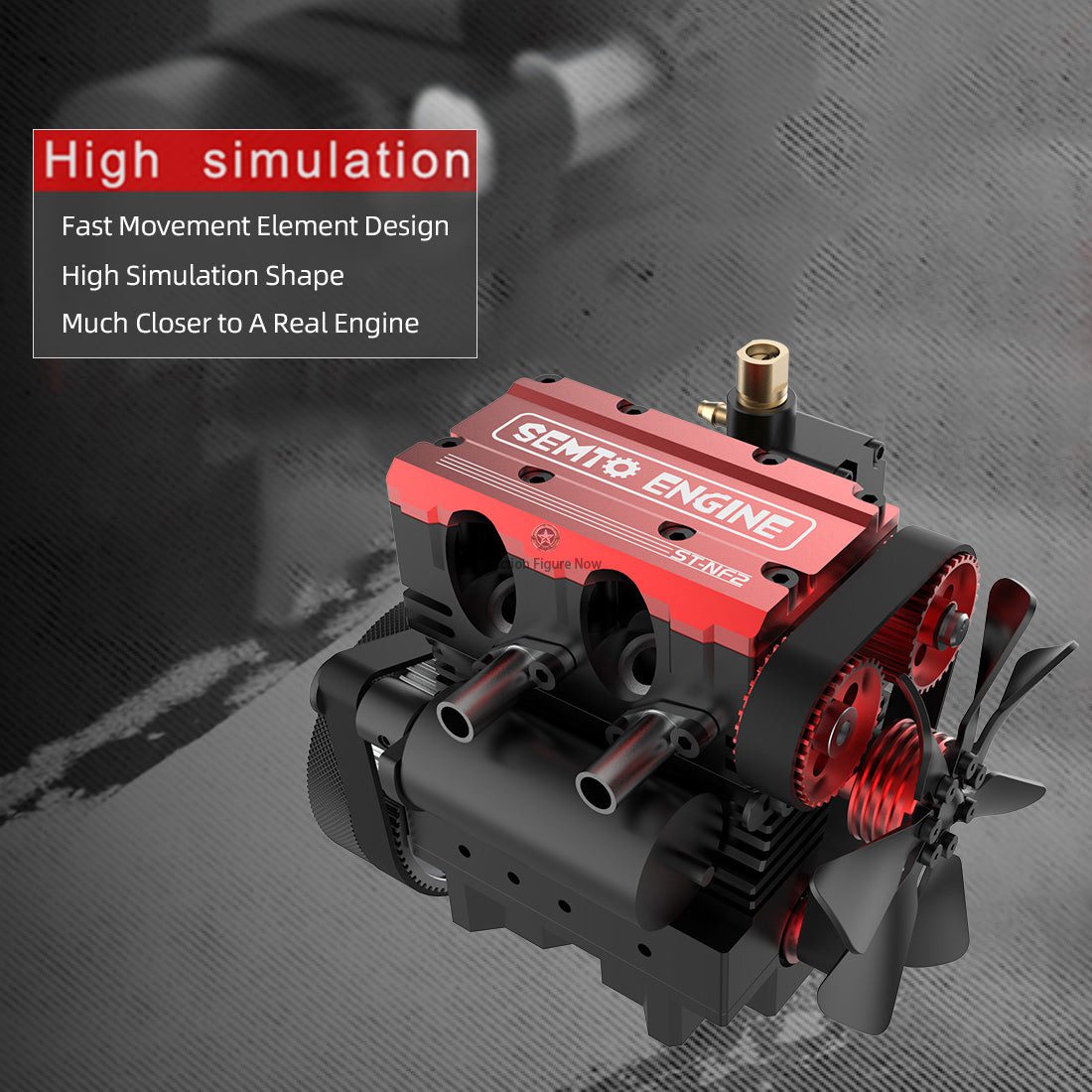

  • Realistic appearance and red sport elements for thunderbolt movement
  • Aluminum CNC processing and oxidation coloring

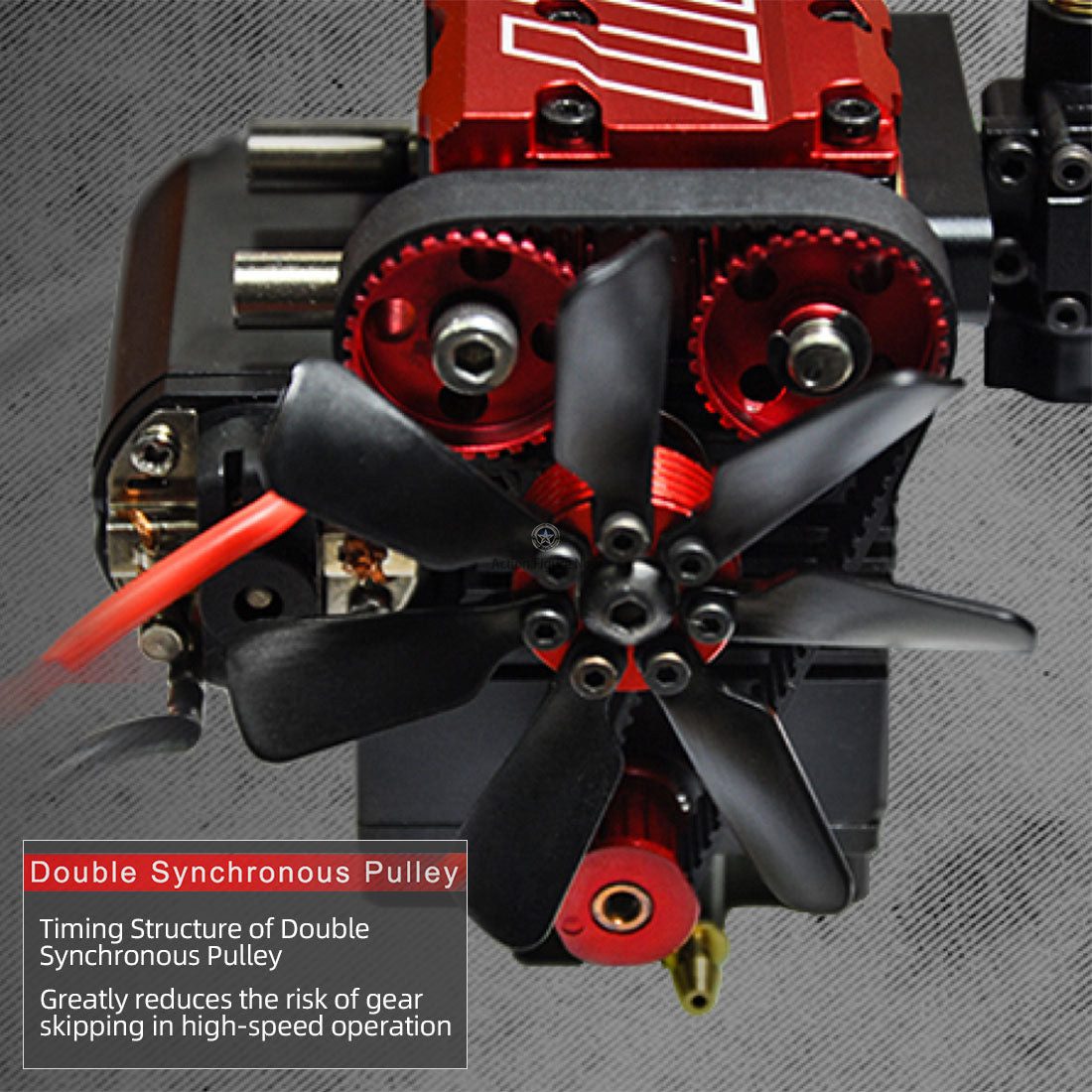

  • Dual synchronous belt pulley for reduced gear jumping
  • Short rocker arm for accurate valve switch operation

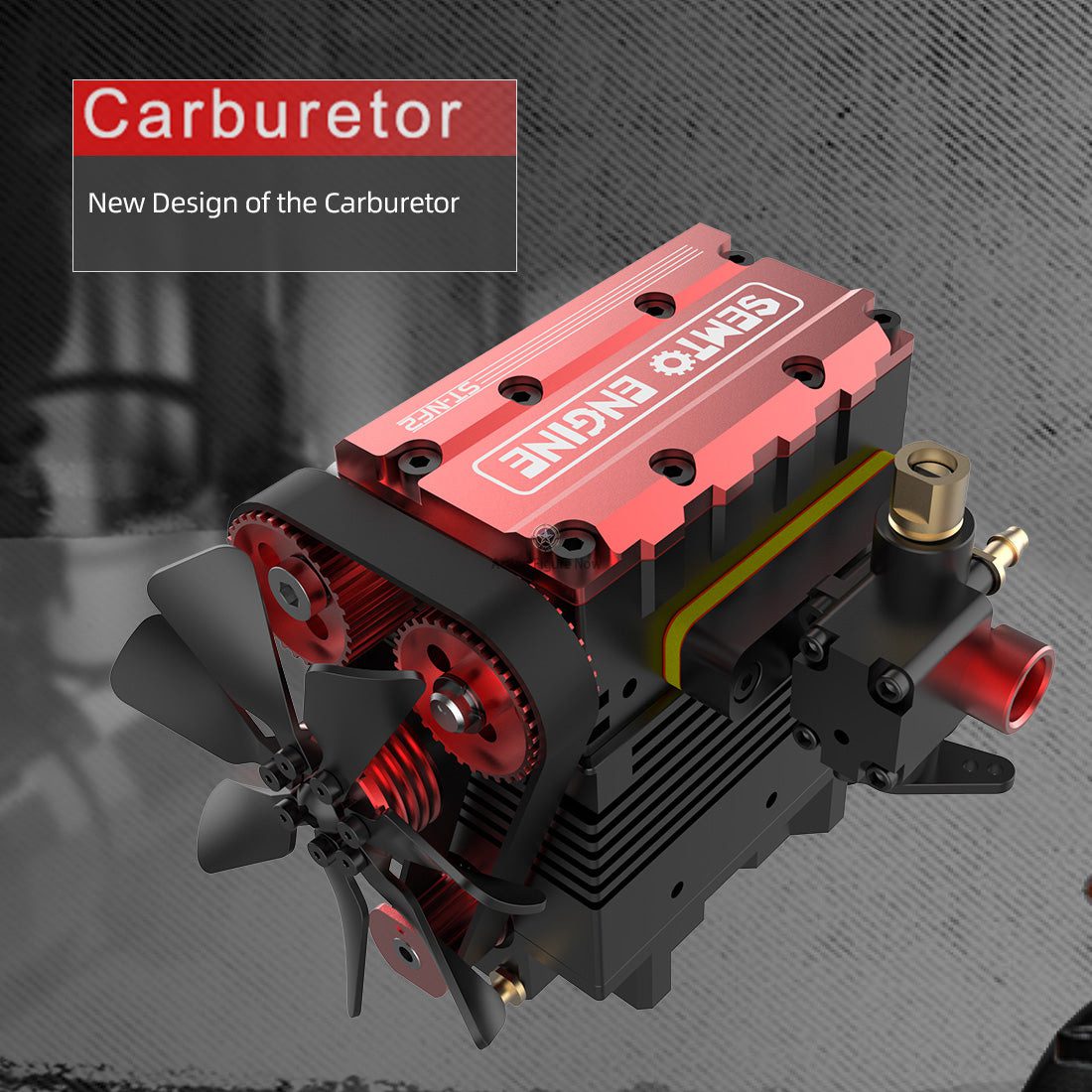

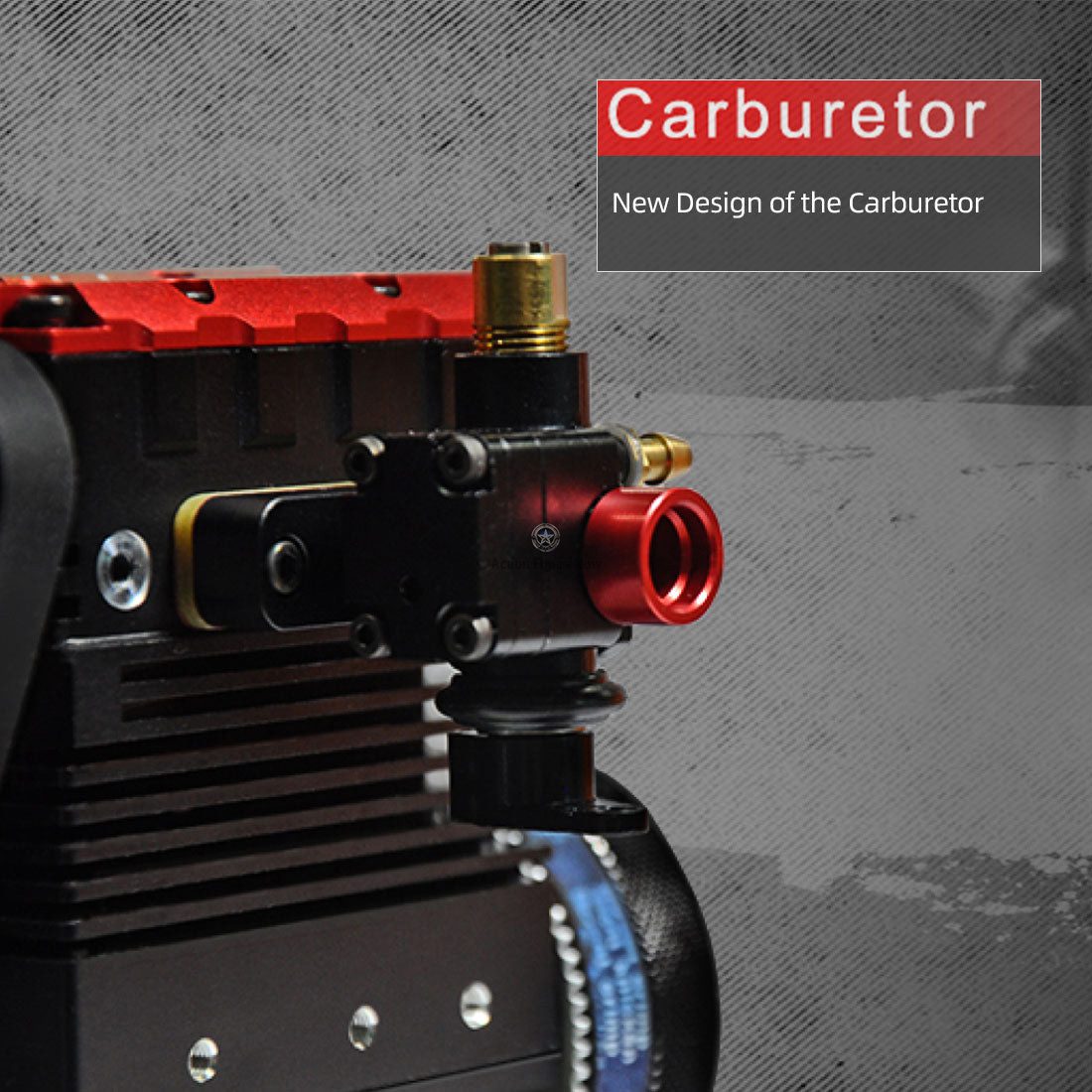

  • Brand-new signal carburetor for easier adjustment and sensitive throttle response
  • Electrical starting with high-torque starting motor for convenient and smooth start

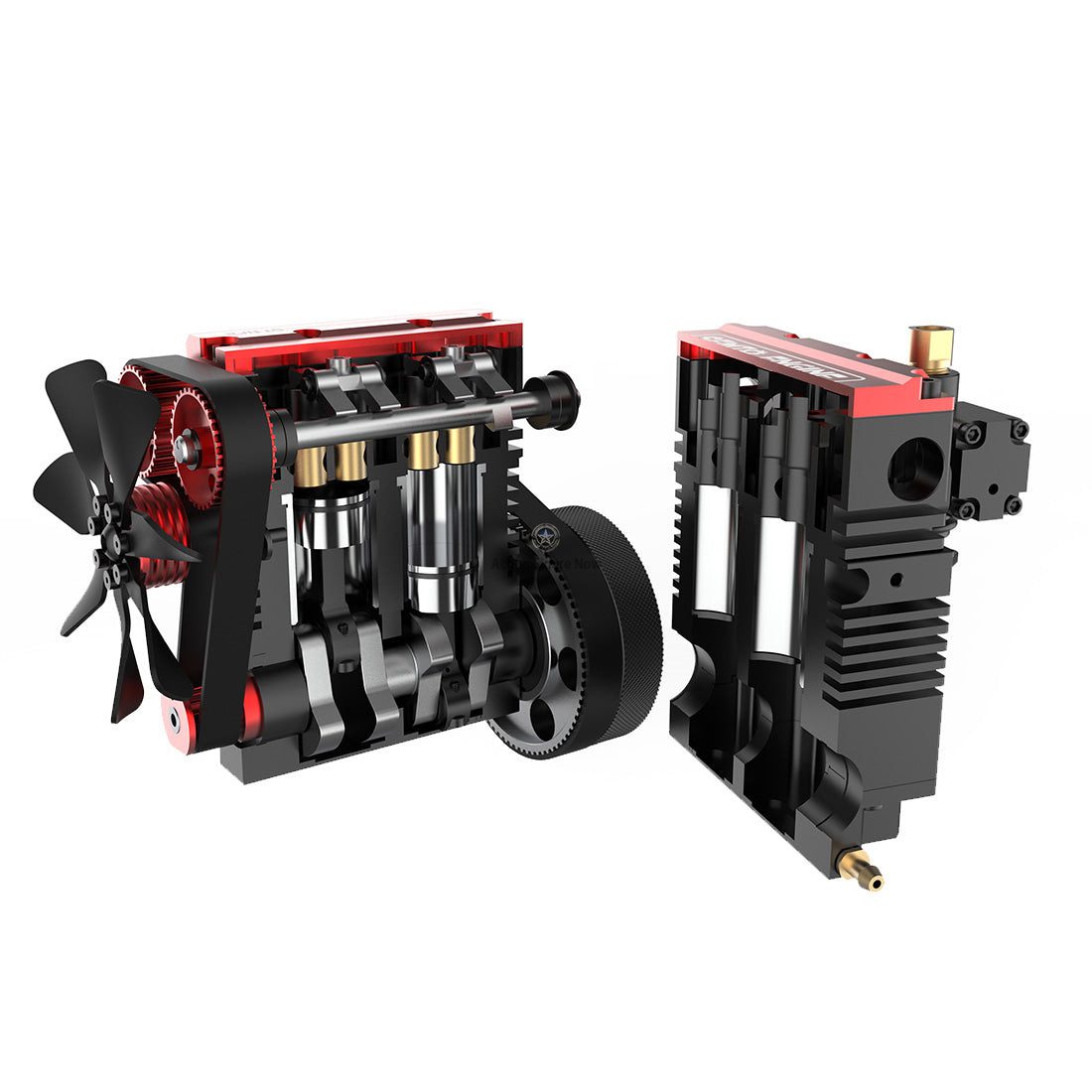

  • Internal structure and mechanical operation principle exploration
  • Perfect compatibility with gearbox for upgrades
  • Ideal mechanical artware, gift for engine enthusiasts, and teaching aid

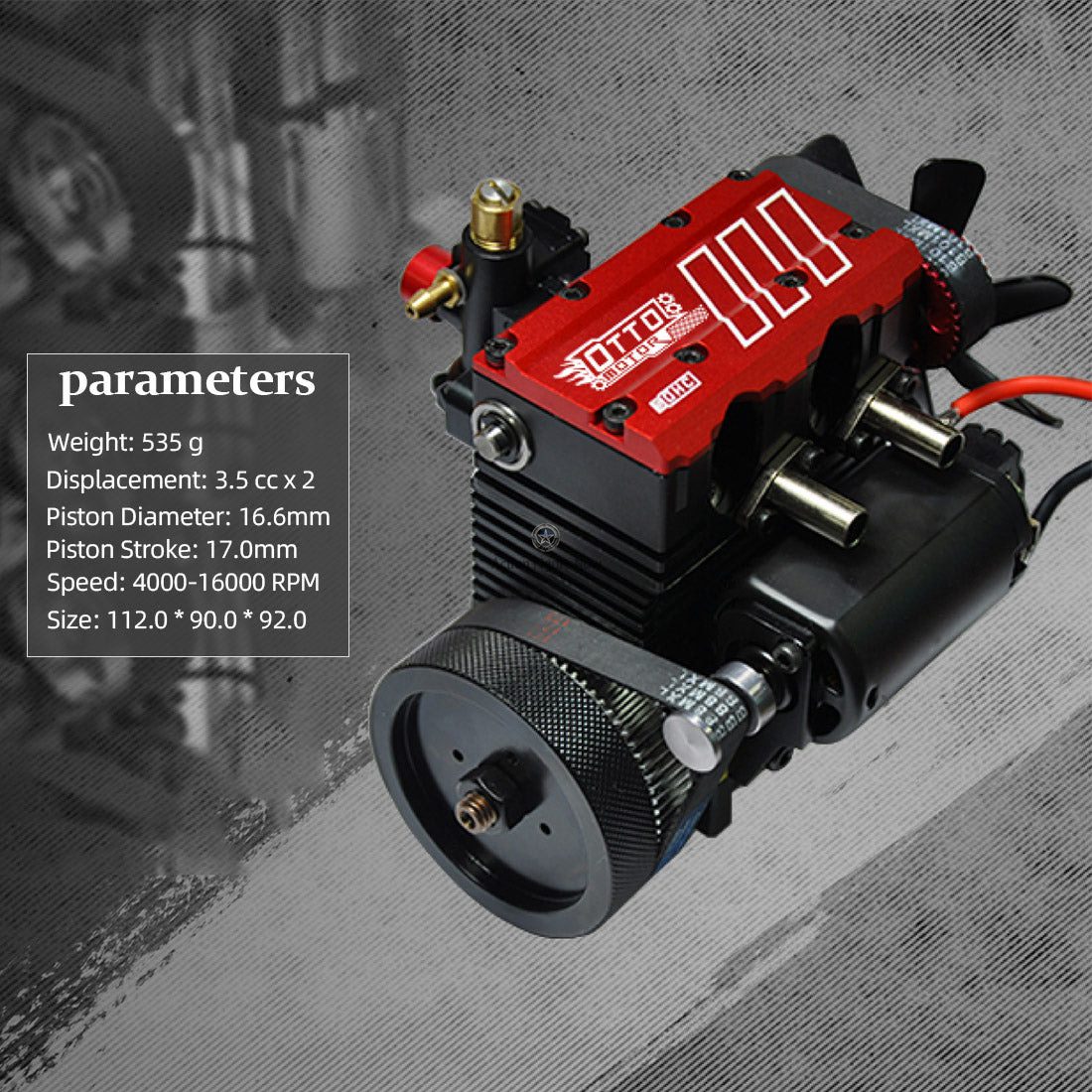

Specifications:

  • Material: Metal
  • Brand: SEMTO/OTTO MOTOR & TOYAN
  • Model: ST-NF2/FS-L200AC
  • Form: Kit Version
  • Engine Type: Nitro Internal Combustion Engine Model
  • Valve Mechanism: SOHC
  • Displacement: 7 (3.52)cc
  • Cylinder: Inline Double-cylinder
  • Stroke: Four Stroke
  • Cylinder Diameter: 16.6mm
  • Stroke: 17.00mm
  • Speed: 4000-16000rpm
  • Power: 0.6ps
  • Cooling Mode: Air Cooling
  • Lubrication Mode: Mixed Oil Lubrication (add grease)
  • Starting Mode: Electric

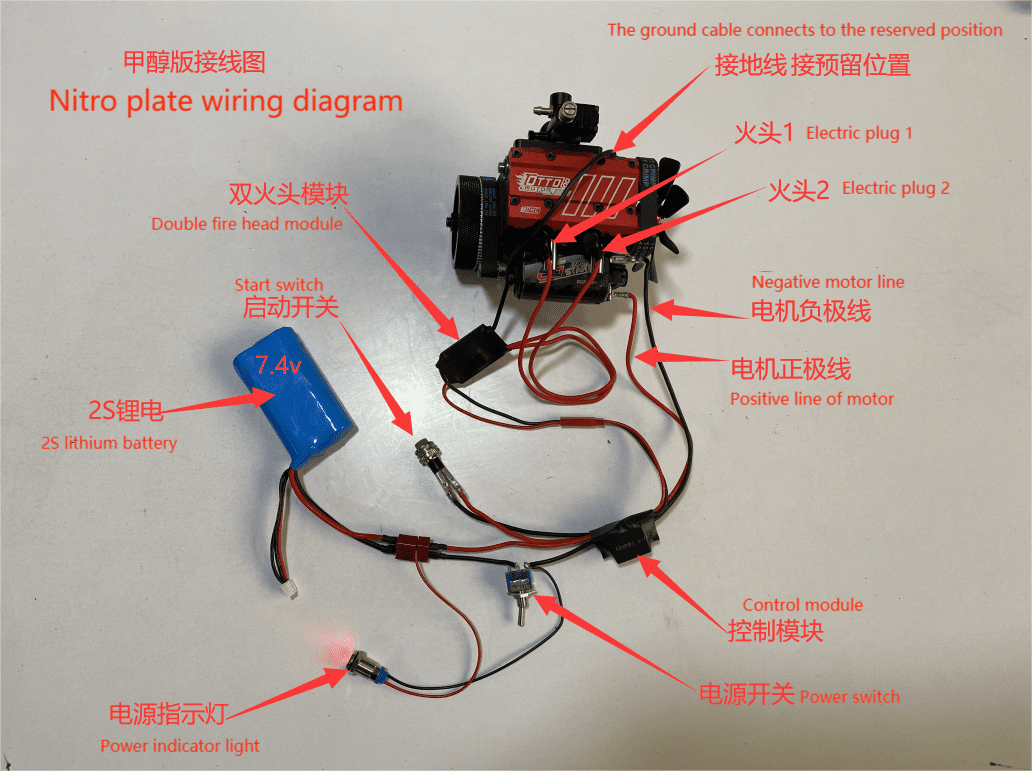

  • Ignition Mode: Ignition Modules (Not Included)
  • Type of Electric Plug: F-type Four-stroke Electric Plug (Not Included)
  • Starting Voltage: 7.4V 2S Li battery (Not Included)
  • Fuel Type: 20-25% Nitro Fuel

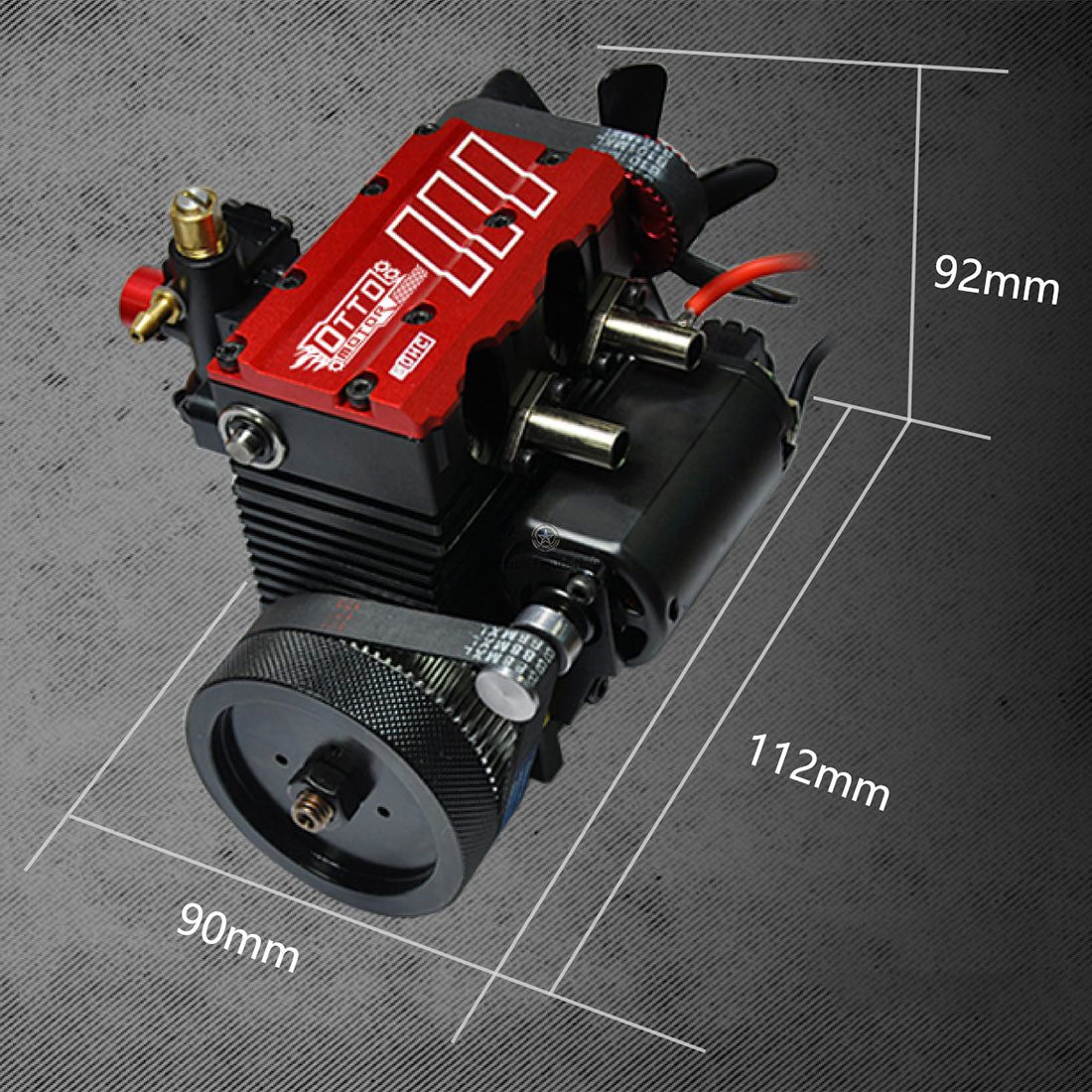

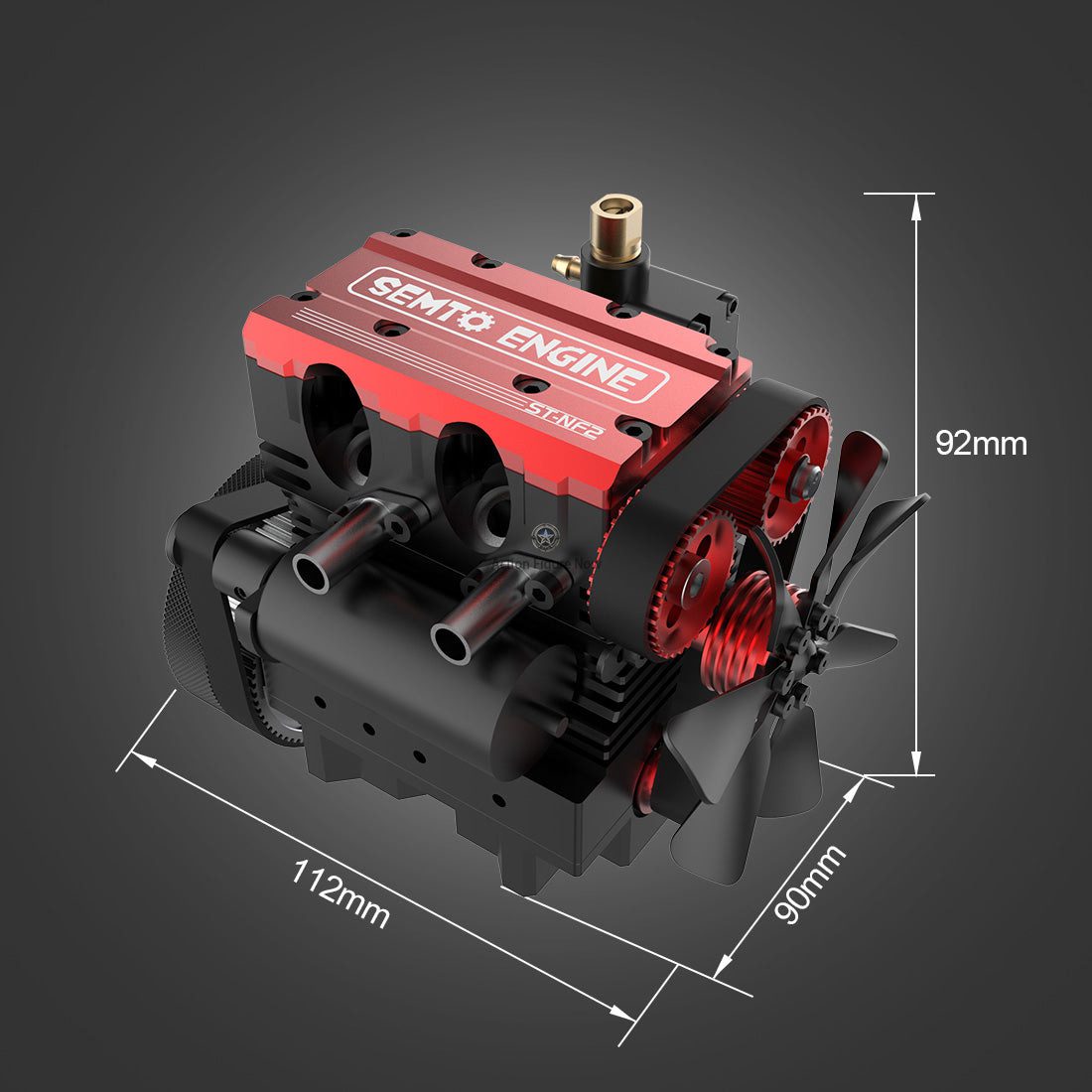

  • Product Dimensions: 11.2 x 9 x 9.2cm
  • Product Weight: 535g
  • Package Dimensions: 14.5 x 11 x 11.2cm
  • Package Weight: 800g
  • Packing: Graphic Carton
  • Ages: 14+

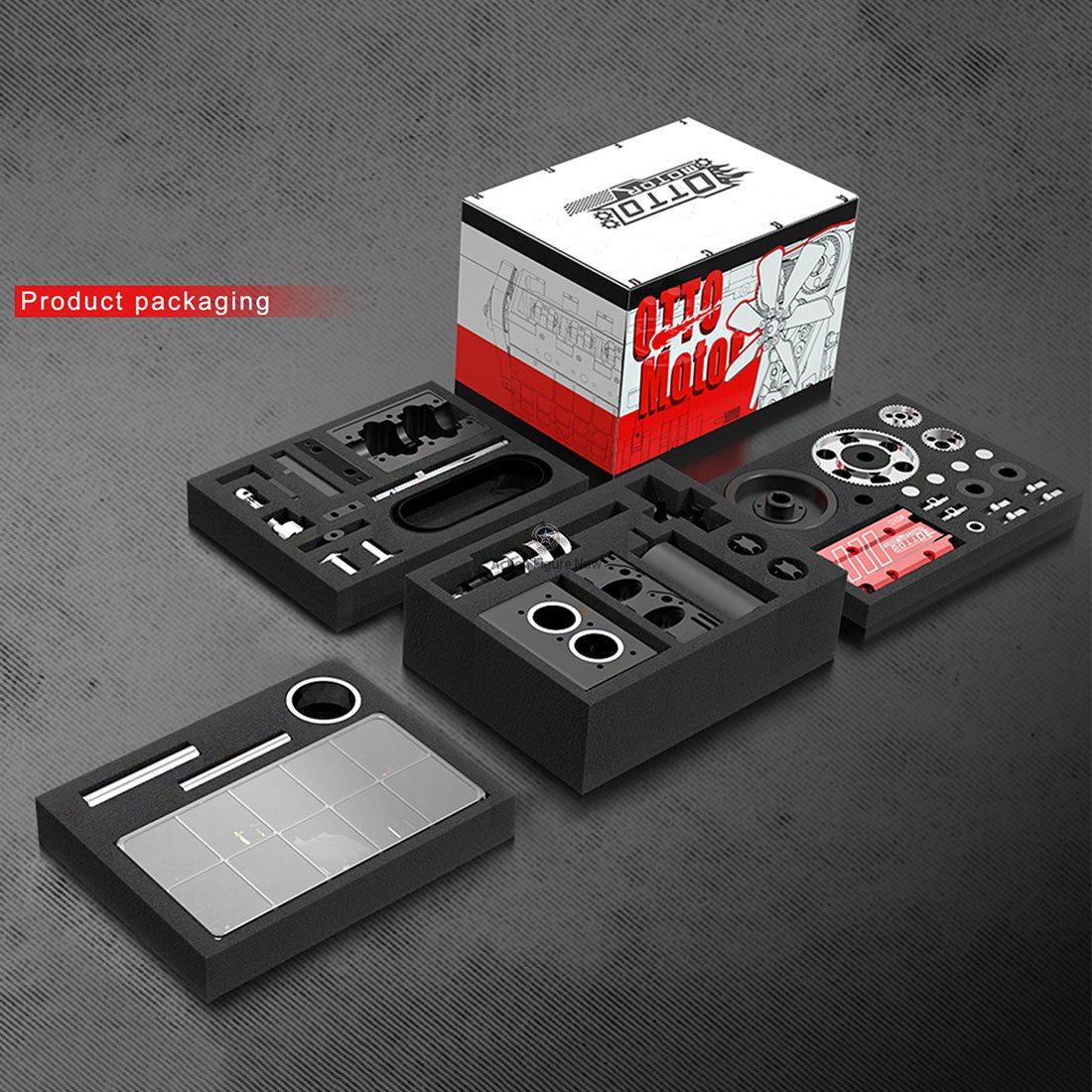

Package List:

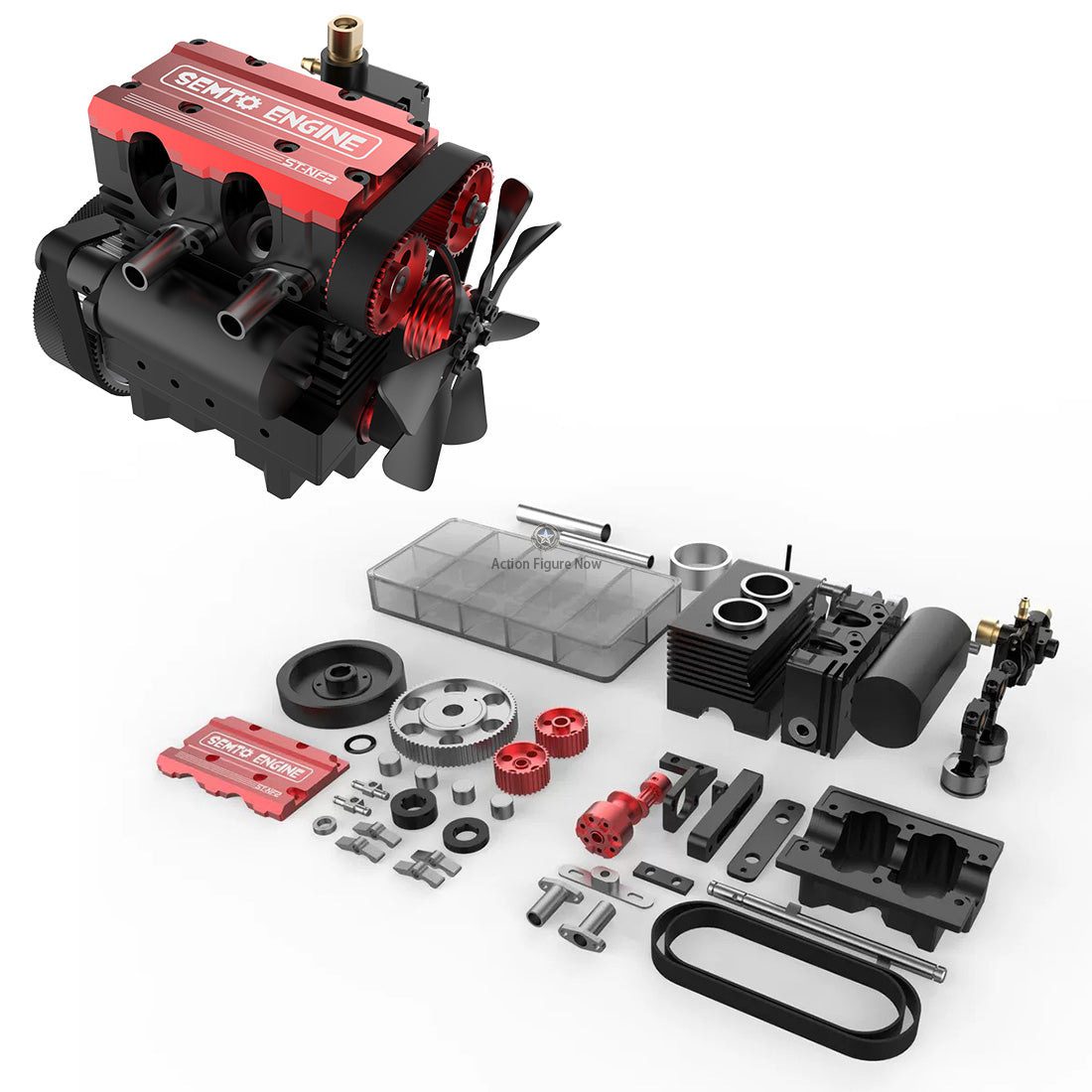

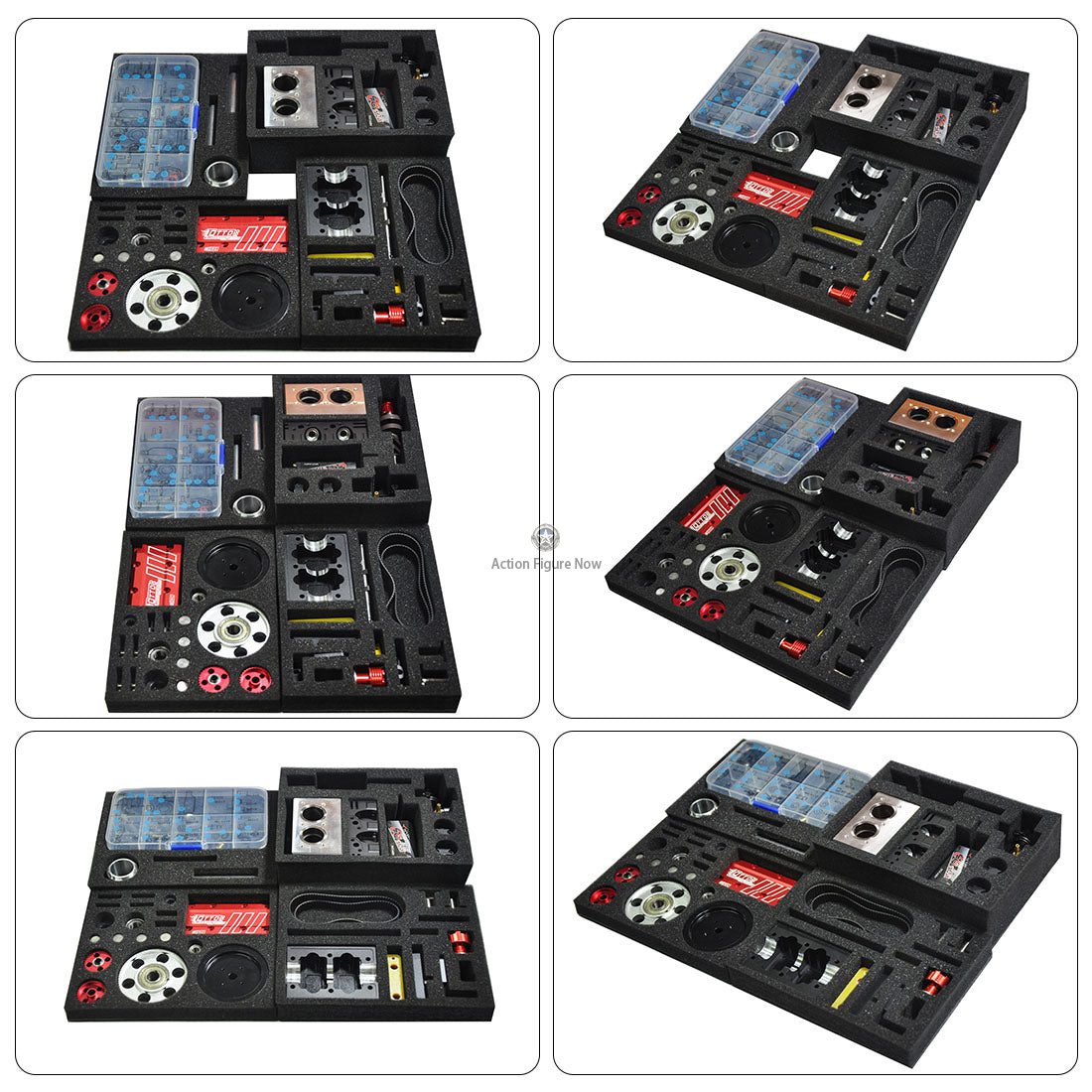

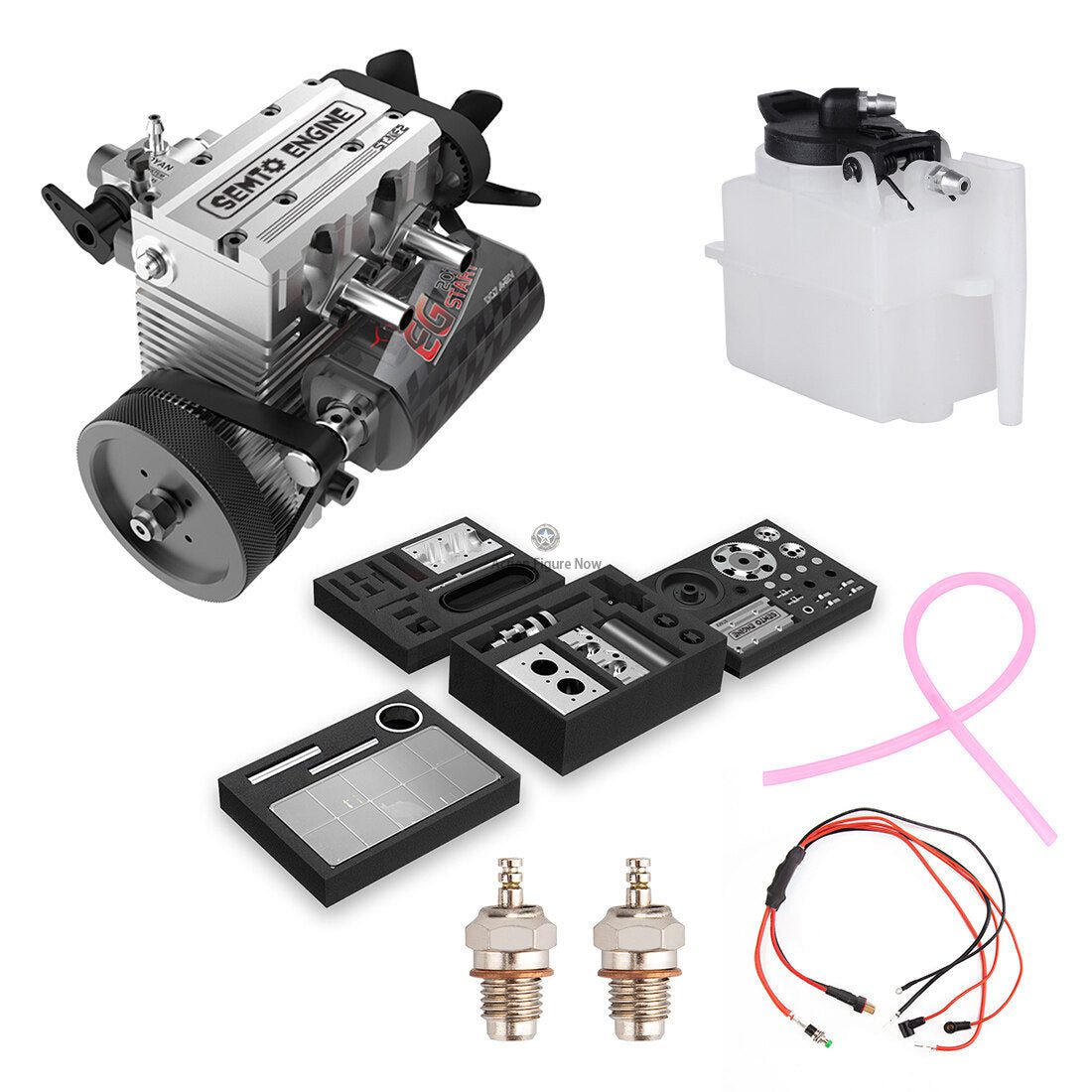

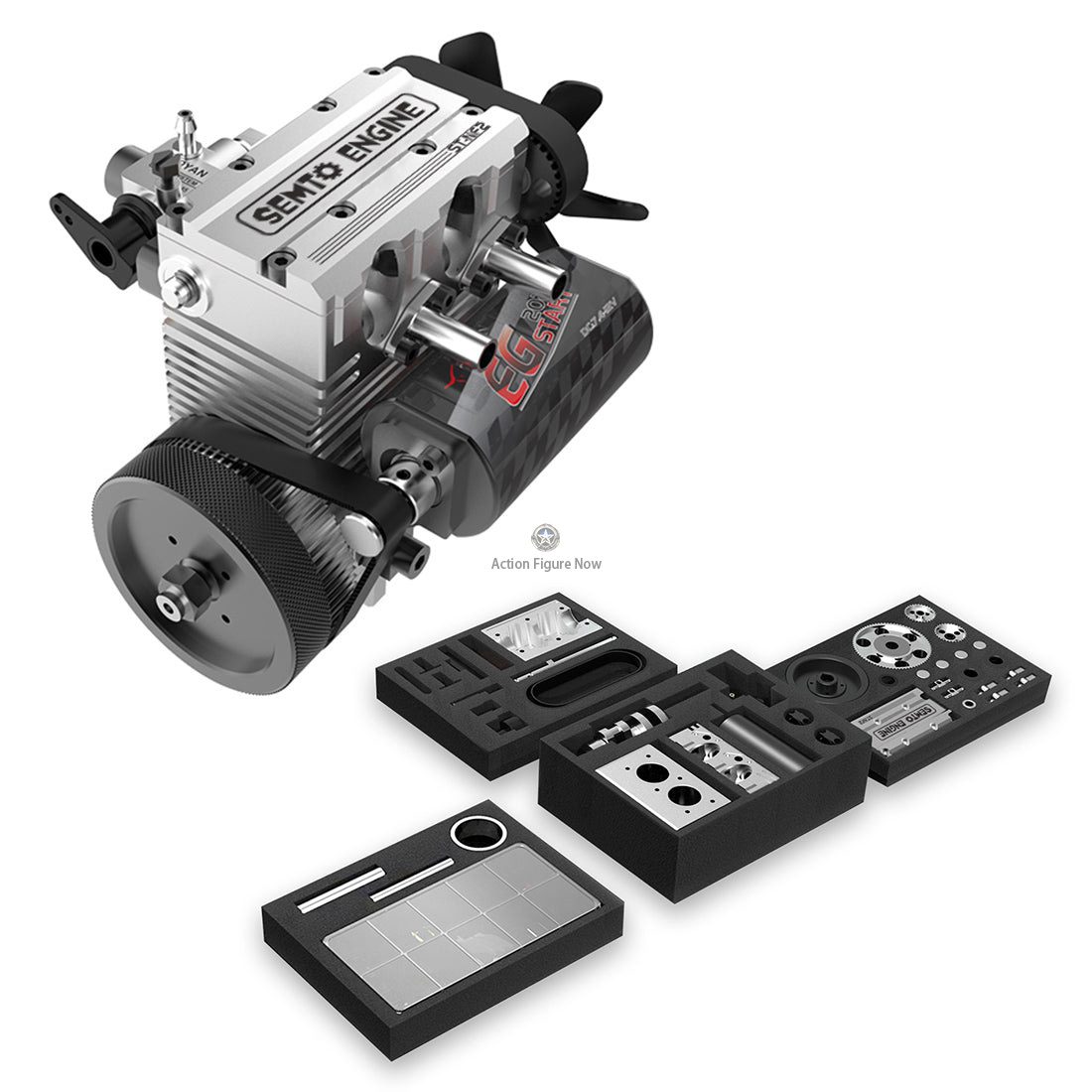

  • 1 SEMTO/OTTO & TOYAN FS-L200AC Engine Kit
  • 1 Instructions

Customer Reviews (4.90)

(29 customer reviews)

29 reviews for Otto Toyan FS-L200AC Engine – Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit

  1. Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Dwayne Cress
    January 22, 2024
    Very well made , would be awesome if it was water cooled, but the fan really keeps it cooled, runs very well, starts in one hit on button, can't wait ...More
    Very well made , would be awesome if it was water cooled, but the fan really keeps it cooled, runs very well, starts in one hit on button, can't wait to see if there will be opportunities to upgrade it, wasn't hard to put together, instruction book was well illustrated, I'm looking at setting up a youth program to teach young teens in skills to build and understand small engines, to maybe rc builds.
    Michael Kwan
    January 16, 2024
    I am missing a spark plug. The engine has 2 cylinders, but only one spark plug in the little round box. Please send me another one so I can try to sta...More
    I am missing a spark plug. The engine has 2 cylinders, but only one spark plug in the little round box. Please send me another one so I can try to start the engine.
    E Griffin
    December 31, 2023
    Got it as a gift, he was very pleased. Bigger than he thought but only took a few hours to put together. Stand and exhaust/fuel come separately.
    Anonymous
    December 7, 2023
    Bought this for my grandsons birthday. Hoping to peak his interest in models/automobiles. At his age I couldn't get enough of assembling models air pl...More
    Bought this for my grandsons birthday. Hoping to peak his interest in models/automobiles. At his age I couldn't get enough of assembling models air plans, battles ships and every make and model of cars. It's how I became a gear head. I have worked on cars and trucks all my life.
    When I was a kid they had plastic models of engines. I remember starting with my first V8 engine that was not so detailed to a 1/4 scale that had every major part and it had a simple DC motor to make it spin.
    I am very surprised that the craftsmanship of this engine. It's of the highest quality. It is a bit small, would have been nice if it was 2X or bigger. GREAT PRODUCT!
    be-pop
    November 16, 2023
    All the parts fit like it should and the instruction booklet was very very helpful,.and it looks good. I hope the base and gas conversion kit comes wi...More
    All the parts fit like it should and the instruction booklet was very very helpful,.and it looks good. I hope the base and gas conversion kit comes with good instruction.
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review

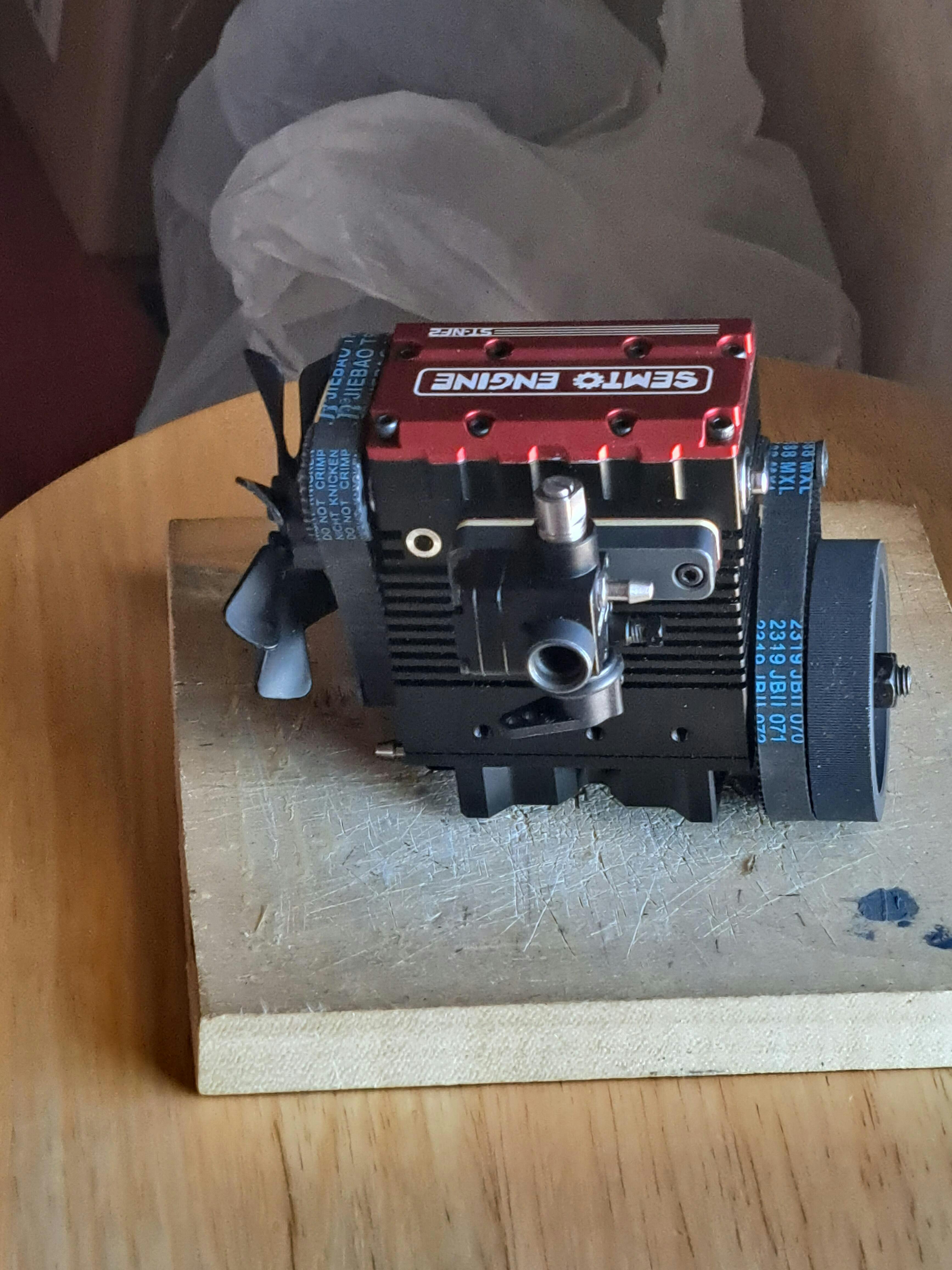

    Leon Brown Jr
    November 13, 2023
    I like the little engine but I don't have the plugs or the other stuff to get it started would like to get it going so I can start it
    T Lapen
    October 15, 2023
    The Semto engine is well built and fun to set up. Be aware that the carb will need to be adjusted and don’t try to start the engine with throttle open...More
    The Semto engine is well built and fun to set up. Be aware that the carb will need to be adjusted and don’t try to start the engine with throttle open as pre-ignition will happen.
    Shaft seals much upgraded from the single cylinder Toyan engine.
    Can’t wait to put it in a crawler!
    James wright
    October 10, 2023
    I thought that the machining was top notch and the engine has an excellent design! And if I where to make any improvement although none was needed, I ...More
    I thought that the machining was top notch and the engine has an excellent design! And if I where to make any improvement although none was needed, I would add a center main bearing to the crankshaft to guard against a broken crankshaft, and make it possible to adjust the valves perhaps with shims under the valve caps outer then that this engine is a1 in my book. The plastic box with the small parts need a piece of foam under the lid.
    Frédéric Dekoninck
    October 6, 2023
    colis livré en Belgique en moins de trois semaines, le moteur a l'air de bonne qualité (à voir après montage et essais). j'ai aussi reçu un petit cade...More
    colis livré en Belgique en moins de trois semaines, le moteur a l'air de bonne qualité (à voir après montage et essais).
    j'ai aussi reçu un petit cadeau avec mon colis ce qui fait toujours plaisir, merci pour cela.
    je trouve juste le plan de montage un petit peux petit mais bon il y a assez de tuto pour le montage.
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Hans Mulder
    October 3, 2023
    Nice building kit of a 7 cc 2 cilinder engine. The kit is very complete, and easy to build. Only one minor detail : the box with small parts and screw...More
    Nice building kit of a 7 cc 2 cilinder engine. The kit is very complete, and easy to build. Only one minor detail : the box with small parts and screws is not transport proof. There is space between lit and box that alows the parts to move and mingle. It becomes a puzzle. The engine is OK after the puzzle is sorted out. Nice engineering.
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Rob Crèvecoeur
    September 11, 2023
    I spent a day to put all the parts together and nothing was missing, no left overs! Nice machining. I used the conversion for gasoline and in the begi...More
    I spent a day to put all the parts together and nothing was missing, no left overs! Nice machining. I used the conversion for gasoline and in the beginning it didn't start. I found out that the hall sensor works only one-way up, so, after turning it around, the motor started and runs very well. I suppose it has to run in, because taking over from stationary to full speed doesn't work so well. I fiddled with the mixture screw, but that did (up to now) not help much. Also it became very hot. After longer run in, i think, it will turn much better! But, all in all, nice motor, well made!
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    S.W.
    June 28, 2023
    I received this little engine a coupple of months ago. delivered fairly fast with DHL. I spend a coupple of evenings putting the parts together as de...More
    I received this little engine a coupple of months ago. delivered fairly fast with DHL.
    I spend a coupple of evenings putting the parts together as described in the manual (online) and the thing would not start no matter what i did. It turned out one glowplug was defective and a little complaint was filed to Engine Diy. one week later a new glowplug (os brand) turned up in my mail box at no cost. this i super service!
    after running the engine wich startet rigt up after the new plug was installed, I broke a starting belt ... simply by running the starter for a wery long period due to the glow plug failure and a lack of attention to the "preload" of the startingbelt. I ordered a new one and wrote afterwards to DIY that they were welcome to send one for free due to the glowplug that lead to the startingbelt issue. a coupple of hours later i recieved a message from DIY: Dear Sir, we will send you two new belts! This is unbelievable god service and I am not sure that I would get such a service even from my local Hobbyshop. I am wery pleased with the service and the shipping time. The engine is nice and priced fair or maybe even cheap to be honest. I would like to se an engine in almost same size that woud deliver aprx. 1,2hp. and with watercooling ... if it was a 300usd. engine it would be ok with me as long as it could deliver more power and run cool (watercooling). Conclusion: super service, cheap, nicely build product, fast delivery ... whats not to like.
    Pierre L
    June 3, 2023
    Very cool looking engine, i got it only for display, so i can't tell how it work. The assembly is very cool, but without instructions it's better to h...More
    Very cool looking engine, i got it only for display, so i can't tell how it work.
    The assembly is very cool, but without instructions it's better to have à YouTube vid holding.
    FRANCIS BRIGANDO
    May 23, 2023
    j' ai bien reçu le colis de ce moteur en parfait état dans une belle boite, le kit de ce moteur est très bien fait avec de belles pièces de mécanique ...More
    j' ai bien reçu le colis de ce moteur en parfait état dans une belle boite, le kit de ce moteur est très bien fait avec de belles pièces de mécanique qui sont très bien réalisées le tout bien rangé, le tout est très soigné, je suis désolé mais je n'ai pas encore monté ce kit mai c'est sans tarder, il est facile de le monter pour un débutant car la notice à téléchargée est elle très bien expliqué pas de soucis de ce coté la, il faut la suivre c' est tout, bon montage à vous je vous le recommande sans problème, je tenais à faire une remarque cette société est très sérieuse, et d'une grande gentilesse , et aussi sympathique, je commande chez eux et en suis très heureux de les connaitre ,cordialement Francis .
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Thabolwethu Lunga
    May 18, 2023

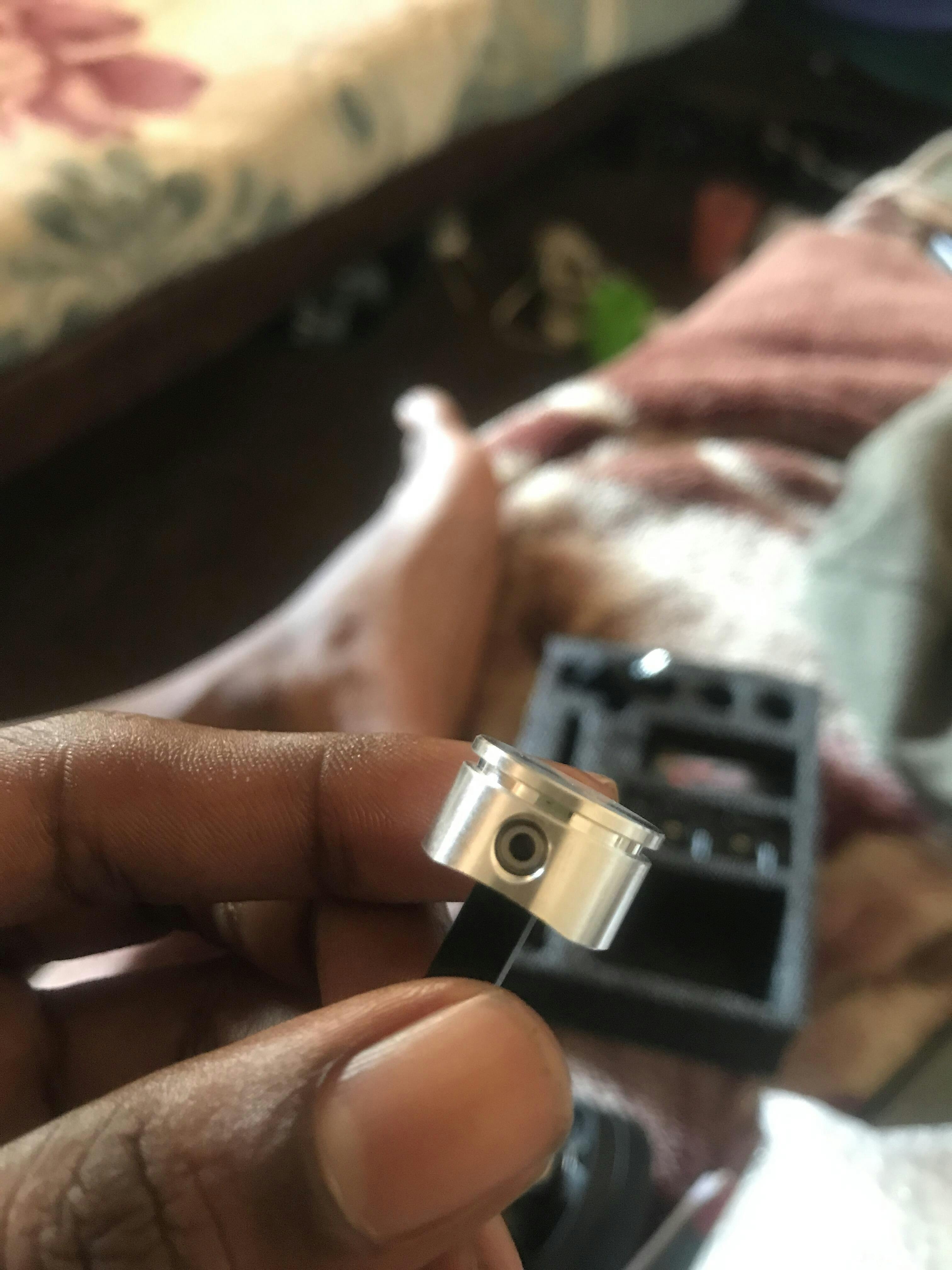

    Piston ring is missing. Can’t find it anywhere
    Cheryl Tesar
    May 16, 2023
    This was a great starter project for our 15th at old. However, the mounting plate that was ordered did not get included.
    Scott Switzer
    May 14, 2023
    I really enjoyed building that semto miniature marvel
    Yunus Emre
    April 23, 2023
    Daha Montaj yapmadım ama malzemelerin kalitesi güzel ve özenle hazırlanmış. Çalışmayacağından şüphem bile yok :)
    rakso Greenaway
    April 7, 2023
    the allen’s on the con rods were stripped when i got them out of the box so waist of money!
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Harold
    March 5, 2023

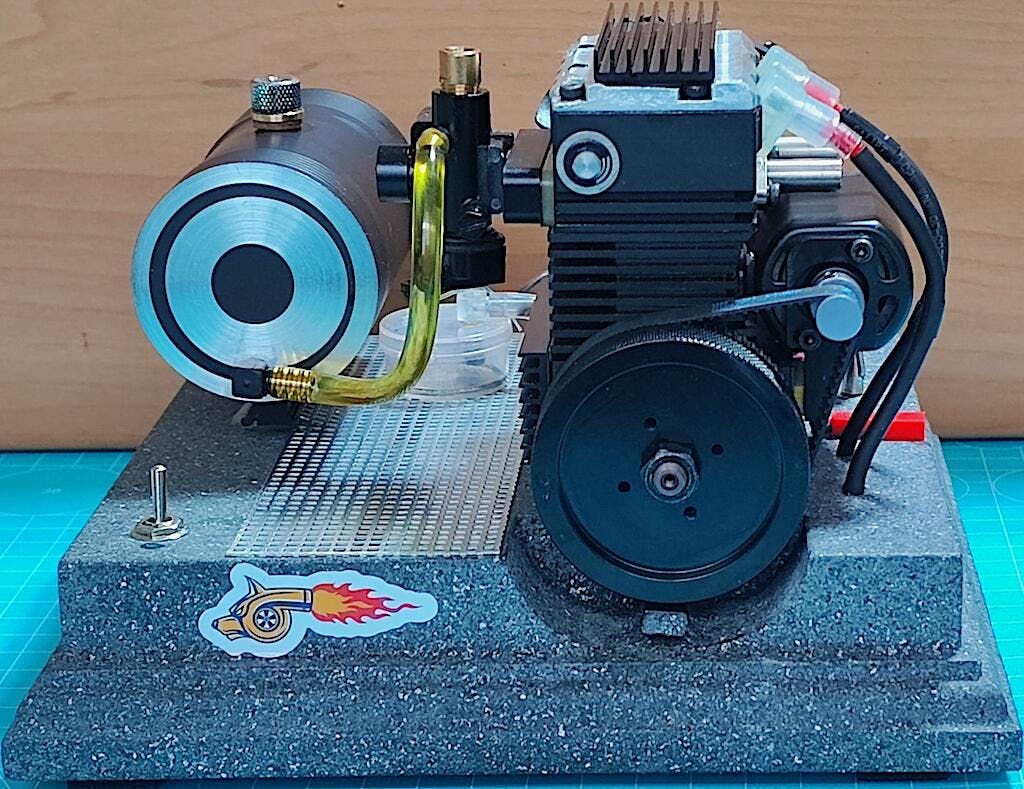

    The Otto-Sempto engine I tested, it is as always with Toyan engines, Toyan can make very precise CNC parts but the concept for engine development shou...More
    The Otto-Sempto engine I tested, it is as always with Toyan engines, Toyan can make very precise CNC parts but the concept for engine development should be reconsidered.
    The engines all have a shortcoming, they leak, the carburetors cannot be adjusted precisely and they get too warm.
    There is considerable potential for improvement here.

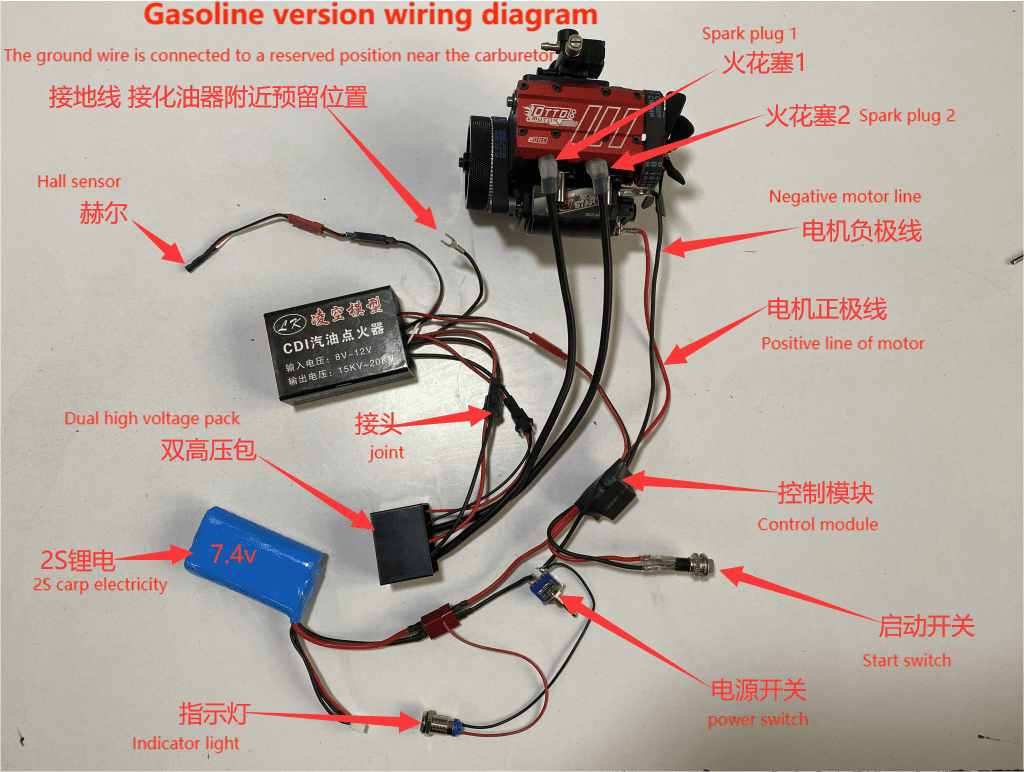

    The conversion kit is not needed to run the engine as a gasoline engine.
    Two solenoids and the Cison double CDI are sufficient.
    Tarkan De Biasio
    February 28, 2023
    I haven't assembled the engine yet. The delivery came etwss delayed and it was missing a partl (I go from the drpber look sus that all other parts are...More
    I haven't assembled the engine yet. The delivery came etwss delayed and it was missing a partl (I go from the drpber look sus that all other parts are available) but the missing part was sent to me quickly without discussion.
    Kelly
    February 9, 2023
    Bought for Christmas for my son but it took over a month to arrive so it was a late gift. He had it built in about 10 minutes too. Very easy build for...More
    Bought for Christmas for my son but it took over a month to arrive so it was a late gift. He had it built in about 10 minutes too. Very easy build for him, but he really likes it. I bought the items suggested to buy together but some things weren’t compatible and we also had an issue with the belt
    Customer
    January 27, 2023
    Not very satisfied. A part was missing and I provided the missing part number for the packing list of what was missing and did get a response. Item ha...More
    Not very satisfied. A part was missing and I provided the missing part number for the packing list of what was missing and did get a response. Item has just been sitting in closet
    Lynn Miner
    January 26, 2023
    This is a very well-made kit and fun to assemble but they sent the wrong starter drive belt. It was WAY too small and there is no way this can fit the...More
    This is a very well-made kit and fun to assemble but they sent the wrong starter drive belt. It was WAY too small and there is no way this can fit the installation. I contacted them (two weeks ago) and they said that a new correct belt would be sent. Nothing yet. If I get the correct belt I plan to update this review to a 5-star rating as I'm very impressed with the quality. The rating of the tech support is on hold until I get the right part.
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Matt Sperring
    January 5, 2023
    I bought this engine for my 11 year old son’s Christmas present for us to assemble together & his words: “the best present I’ve ever got” sums it up p...More
    I bought this engine for my 11 year old son’s Christmas present for us to assemble together & his words: “the best present I’ve ever got” sums it up perfectly! The build quality of this little engine’s unbelievable & the assembly was very straight forward with easy to follow instructions found on the actionfigurenow.com website.
    I highly recommend this engine & the customer service I received when asking questions prior to purchasing this engine was fantastic!
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Ben
    December 31, 2022
    To begin with, I'm really impressed with the quality of the parts for this engine. I enjoyed putting it together as I learnt more about engine basics....More
    To begin with, I'm really impressed with the quality of the parts for this engine. I enjoyed putting it together as I learnt more about engine basics. Very satisfying experience. I would say instructions needs bit more clarity but there are few YouTube videos to help. I also got the starter pack with it, had problems with glow plugs but was sent a new set. Worth the price and it's quite fun. Note to add high temperture grease to the camshaft
    John Bladholm
    December 21, 2022
    The kit arrived some time ago, but I have yet to start work on it. I will give you an update when I get it together. Ramjet.
    Otto Toyan FS-L200AC Engine - Single Overhead Camshaft (SOHC) 4-Stroke, Nitro-Fueled Model Engine Kit photo review
    Filiberto Bagattoni
    December 21, 2022
    Bellissimo motore ben fatto,ottimo rapporto qualità prezzo
    Anonymous
    November 19, 2022
    I just received the engine. It came quickly. The delivery was with a reputable and fast local company! The quality looks good. Very happy with the pur...More
    I just received the engine. It came quickly. The delivery was with a reputable and fast local company! The quality looks good. Very happy with the purchase so far ? Recommend
