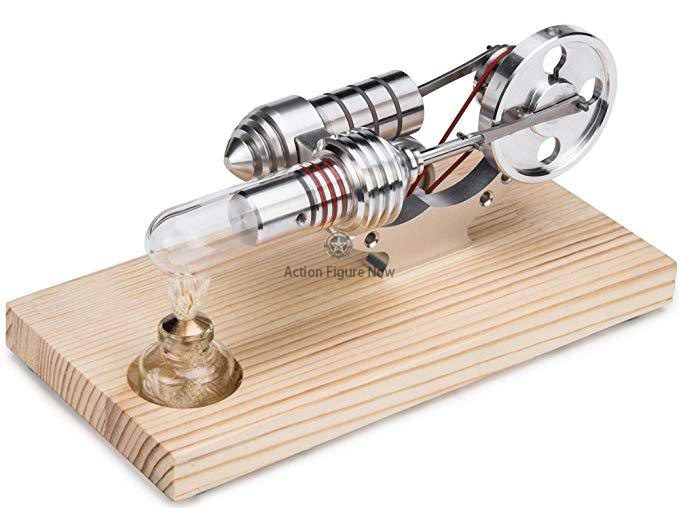

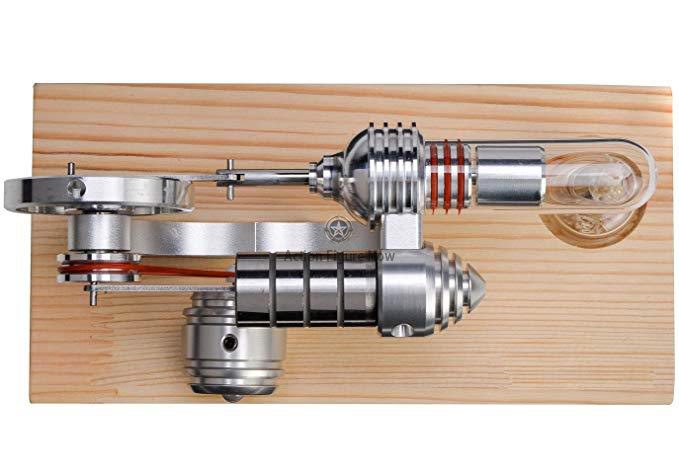

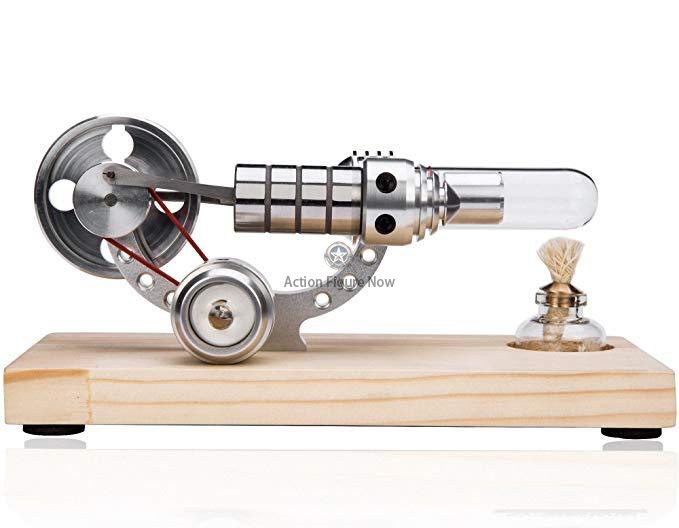

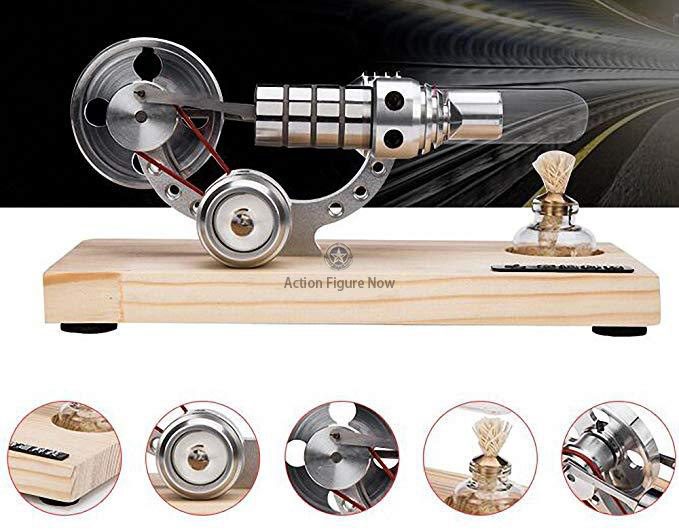

Stirling Engine Kit with Generator and Colorful LED Lights

Description

Hot Air Stirling Engine Colorful LED Single Flywheel Electricity Generator Stirling Engine Education Toy

Features:

1. ATTRACTIVE COLORFUL LED WITH MOTOR INSTALLED—–The Stirling engine equipped with a colorful LED. Because of the heat from high-grade alcohol, the engine will run madly and create the electricity. The power will go through the wire and drive the led light to emit different colors. It’s really interesting and imaginative toy.
2. EXTREMELY WELL-MADE—-The board is made of Russian pine, using fine grinding manufacturing; Stent using mold steel manufacturing, solid and firm; Flywheel, ventilation pistons, aluminum fine cars, fine milling, texture and beauty double combination; Rod made of stainless steel manufacturing; Dynamic link sets of aluminum alloy cylinder, power cylinder and the power piston is SUJ2 material fine grinding surface of special treatment, high hardness. Do not wear high-speed ultra-long-running.
3. EASY OPERATION & LONG LASTING—-Fill the alcohol burner with your 95% alcohol (we recommend this fuel) and light it. Let the light burn the round ended cylinder for about 20 seconds, then give the wheel a gently push, it will run like a charm. It can run for 8+ hours continuous without any broken which test by one customer.
4. STRONG PACKING—-Glass tube is packaged separately with bubble bag to avoid damage during shipment. Easy to take off the package and put it back to the place. Wood base is bare and left unpainted. You can fly your imagination and stain it the color you prefer yourself or with kids, friends.
5. PRIORITY GIFT OPTION FOR MANY APPLICATIONS—-It is an amazing and fantastic product at this price. Its elegant gift package makes it spruce up and presentable. It has a wide range of application as, great gift for Kids’ science project, Physical/mechanical learning, teacher s Demo props on the class, birthday gift for friends, families, parents, kids, etc. Many of our customers come from school, colleague, etc.

Operation Instruction:

1. Placed the Stirling engine in a horizontal position, use your hand to toggle the flywheel to see if it is smooth.
2. Check if every sliding parts is clean.
3. Light the alcohol burner, toggle the flywheel after 2 minutes.

Tips:

1. After using it, please let the engine natural cool. Don’t touch the alchohol burner, burned tube or the metal to avoid scald.
2. 95% alcohol (self-prepared) should be used in the operation. Water, kerosene, gasoline, lighter oil, and liquor should not be added.
3. The Stirling engine model is suit for people over 14 years old. Operate under adults’ supervision.

specifications:

• Item Name: Single Flywheel Stirling Engine Generator
• Material: Stainless Steel + Aluminium Alloy + Hazelnut
• Speed:1300 to 1500 RPM
• Flywheel Diameter: 54mm
• Driving Wheel Diameter: 24mm
• Power Cylinder Inner Diameter: 14mm
• Piston Path: 16.0mm
• Cylinder Inner Diameter: 19.0mm
• Size: 205X100X90mm / 8.07 in 3.93 in 3.54in
• Weight: 480g / 17.74oz
• Packing: Carton Box
• Packing List: 1 x Stirling Engine Model
• 1 x Lamp
• 2 x Wick
