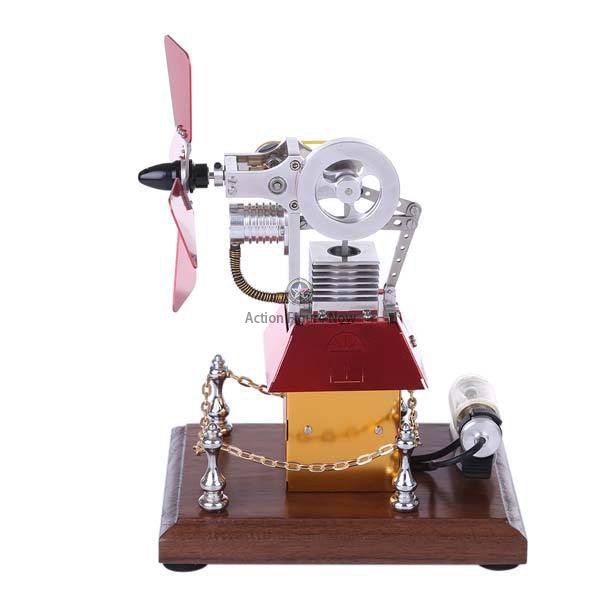

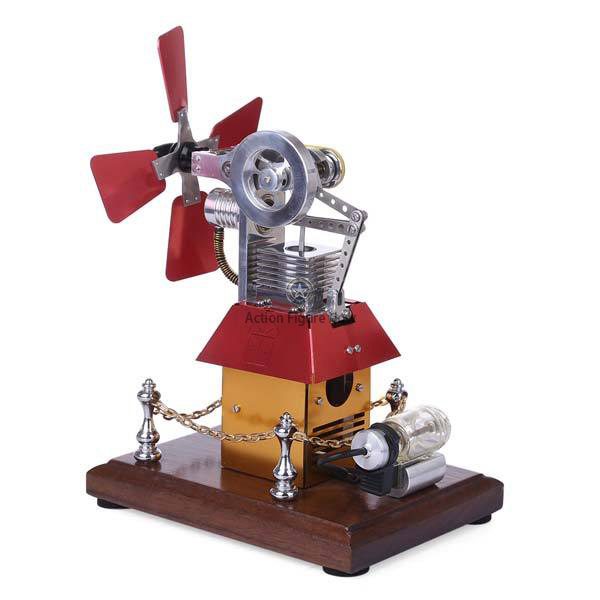

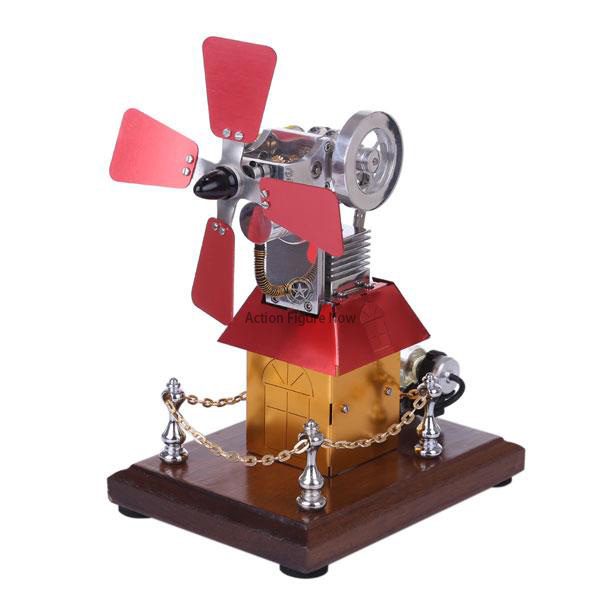

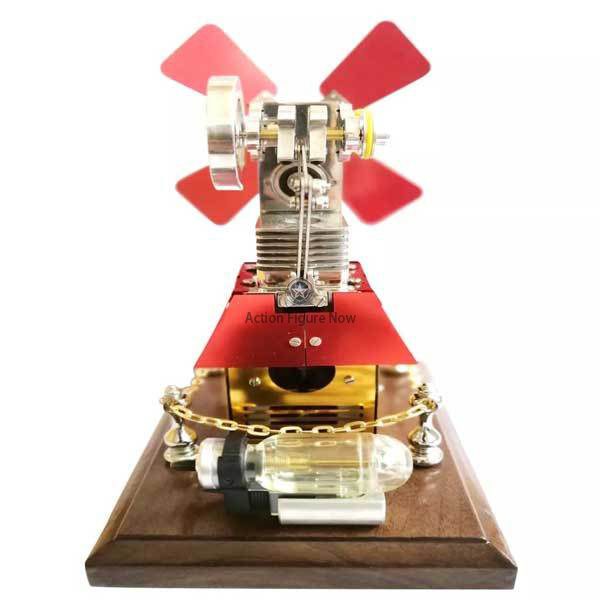

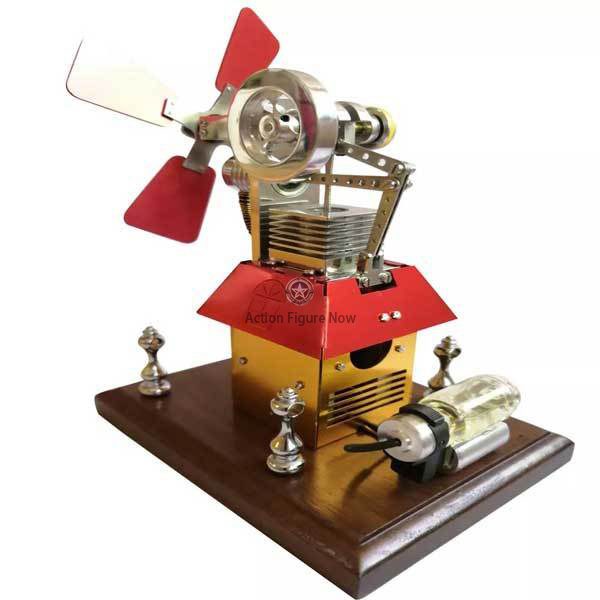

Stirling Engine Model with Windmill Fan

Stirling Engine Kit Windmill Fan External Combustion Engine Model Collection Gift

The Stirling engine replica features a windmill fan design. This Stirling Engine is a heat engine that harnesses a working fluid, such as air or gas, through cyclic compression and expansion at varying temperatures, resulting in the conversion of heat energy to mechanical work. It’s similar to a steam engine, where heat flows through the engine wall.

Attributes:

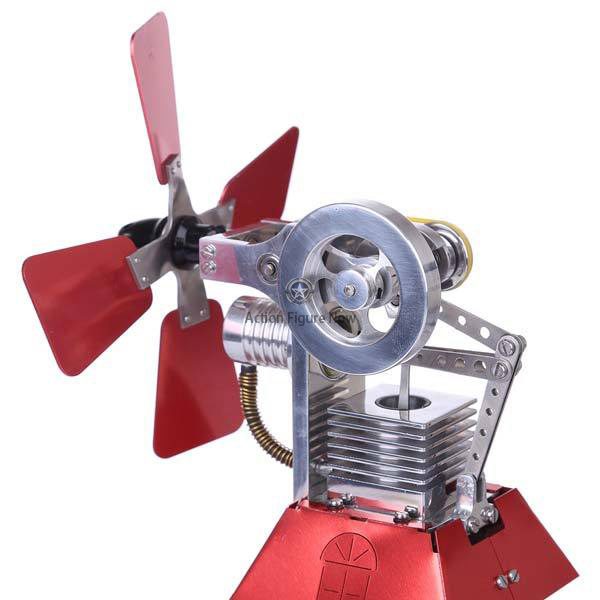

– Innovative Design: Designed with a windmill fan for an elegant aesthetic. A red windmill rotates during operation.
– Exceptional Craftsmanship: Constructed with a solid wood base, 6061 aluminum alloy propeller and engine model (for high strength, weldability, and corrosion resistance), and a 304 stainless steel power and heat cylinder for extended durability.
– Educational Ornament: Rich in physics knowledge and showcases intuitive engine principles. Suitable for educational toys or teaching demonstrations to pique children’s interest in learning. High-end collection piece for engineers and engine enthusiasts.
– Versatile Gift: Ideal for various occasions: science projects, educational experiments, classroom demonstrations, birthdays.

Operating Guide:

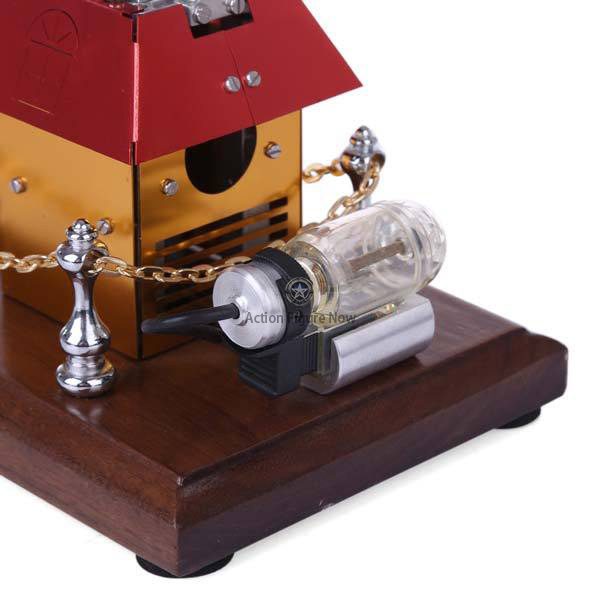

1. Load the tank with butane gas (not included due to shipping regulations).
2. Ignite using the ignition device.
3. Wait 30 seconds for the engine to heat up.
4. Gently rotate the flywheel to initiate the windmill rotation.

Safety Precautions:

– Allow the engine to cool after use.
– Avoid touching hot surfaces.
– Only use butane gas as fuel (self-prepared). Do not add water, kerosene, gasoline, lighter oil, or liquor.
– Stirling engine models are intended for individuals 14 years and older. Operate under adult supervision.

Specifications:

– Engine Body + Propeller Material: 6061 Aluminum Alloy
– Cylinder Material: 304 Stainless Steel
– Base Material: Wood
– Fuel: Butane Gas
– Piston Stroke: 14mm
– Flywheel Diameter: 45mm
– Piston Diameter: 12mm
– Heating Cylinder Outer Diameter: 14mm
– Propeller Diameter: 123mm
– Belt Wheel Diameter: 19mm
– Dimensions: (LWH): 47x12x22mm
– Belt Dimensions: 5×5
– Net Weight: 720g

Package Contents:

– 1 x Windmill Stirling Engine
– 1 x Tool Kit
