TOYAN Model Engine V4 FS-V400WA 14cc Four Cylinder Four Stroke Water-cooled Methanol RC Engine

TOYAN V4 accessories here . Shop TOYAN V8 & accessories here . Shop All TOYAN Engine & Parts here .

Features:

• Powerful Performance: While it starts, the rotate speed can up to 2500-12500rpm/ Mins.
• Fuel: Using methanol as fuel. The fuel formula is generally: 20% castor oil, nitromethane 5-30%, the rest is methanol; this product does not require high concentration methanol fuel, and can be used at a concentration of 20-25%. The process of moving from one end of the cylinder to the other when the piston reciprocates within the cylinder is called a stroke.
• Parts Required for Operation:
• Requires a 7.4v or 11.1v battery to start the battery. The battery needs a T plug, the female end is on the engine side, and the electric fire head is needed. The electric fire head is a general-purpose product, which can be used in our shop or in other stores.
• Priority Gift Option for Many Applications: The four-stroke engine can used on 1:10, 1:12, 1:14 scale car model or ship model and other equipment. Also, it can be used for classroom display as teaching Aids. Besides, it is ideal Gift for engine lovers.

Tips:

• Do not touch the motor fan with your hands to avoid scratching.
• Do not touch the cylinder department with your hands to prevent burns.

Descriptions:

• Item Name: TOYAN FS V400WA V4 Methanol Engine
• Material: Metal

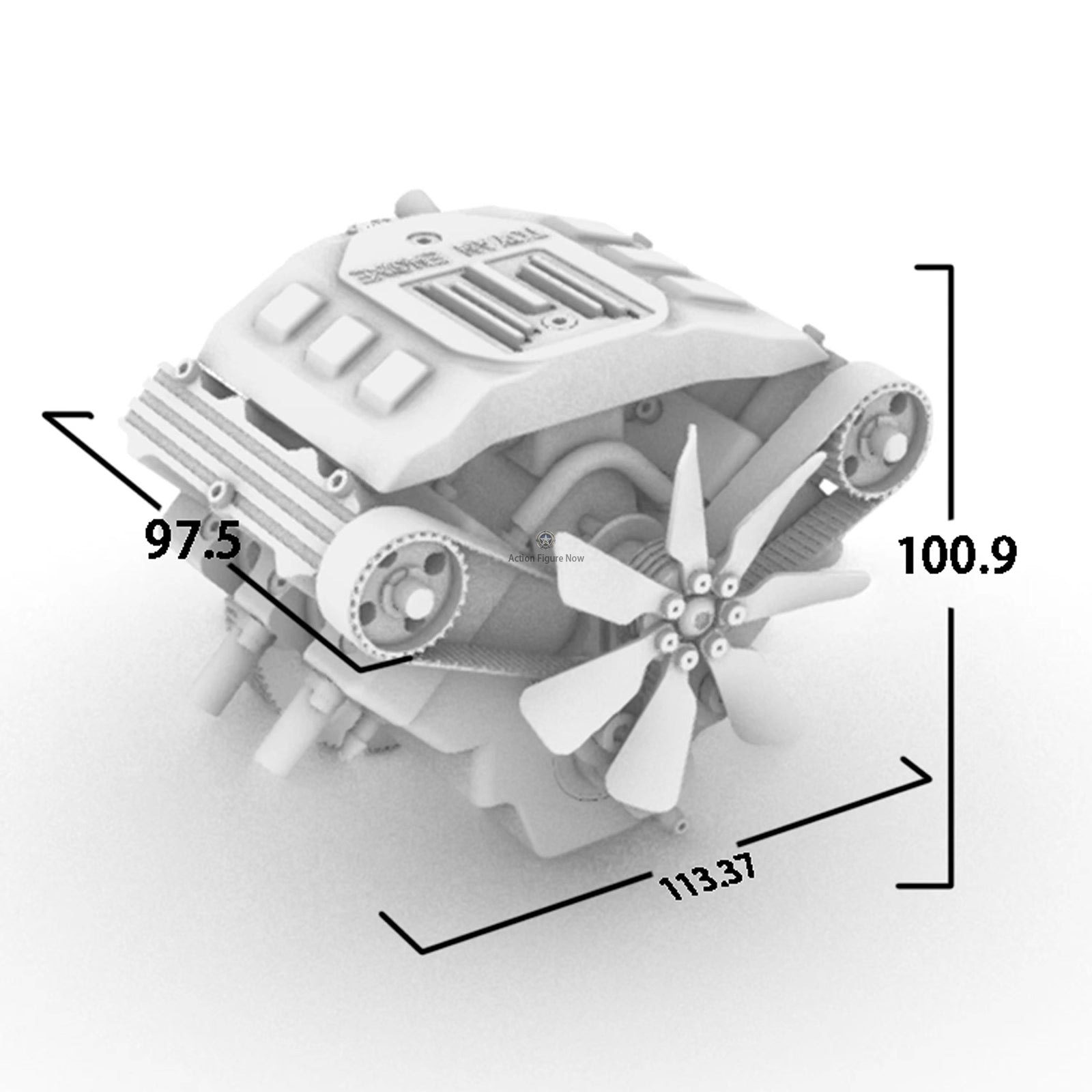

• Engine Dimensions: 113.3 x 97.5 x 100.9mm
• Cylinder Diameter: 17mm
• Piston Diameter: 16.6mm
• Displacement: 3.5cc x 4 (14cc )
• Output Power: 3.2zzps horsepower
• Revolving Speed: 2500-12500rpm
• Cooling Mode: Water-cooled
• Straing Method: Electric
• Needle valve debugging 3.5 laps, idle mixture 3.5 laps, idle speed throttle minimum 2.5mm
• Engine Weight: 1150g
• Package Weight: 3300g
• Package Dimensions: 15 x 15 x 15cm
• Packing: Box

Packing List:

• 1 x TOYAN Engine V4 Four Stroke RC Engine
• 4 x Hot Runners
• 4 x Ignition Modules
