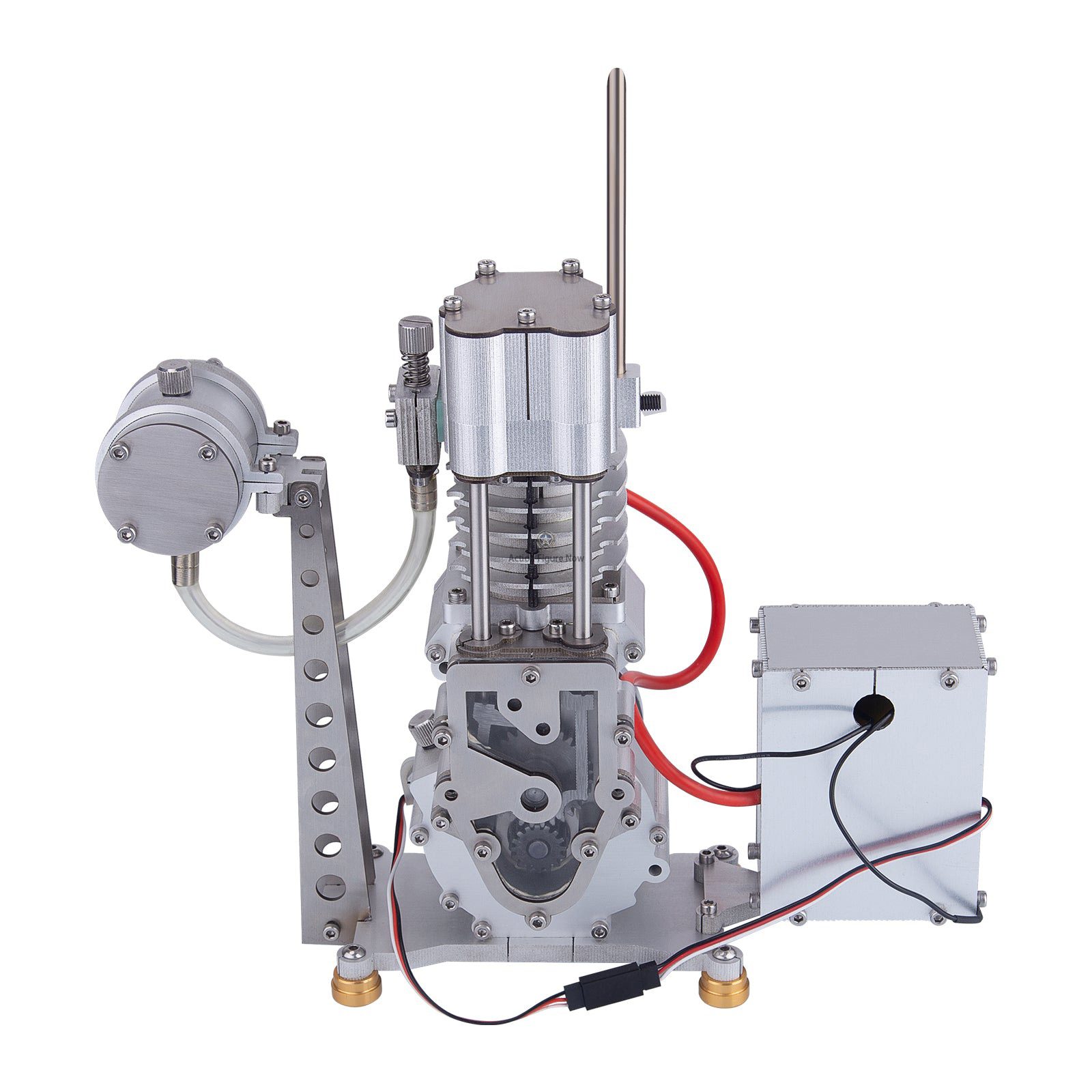

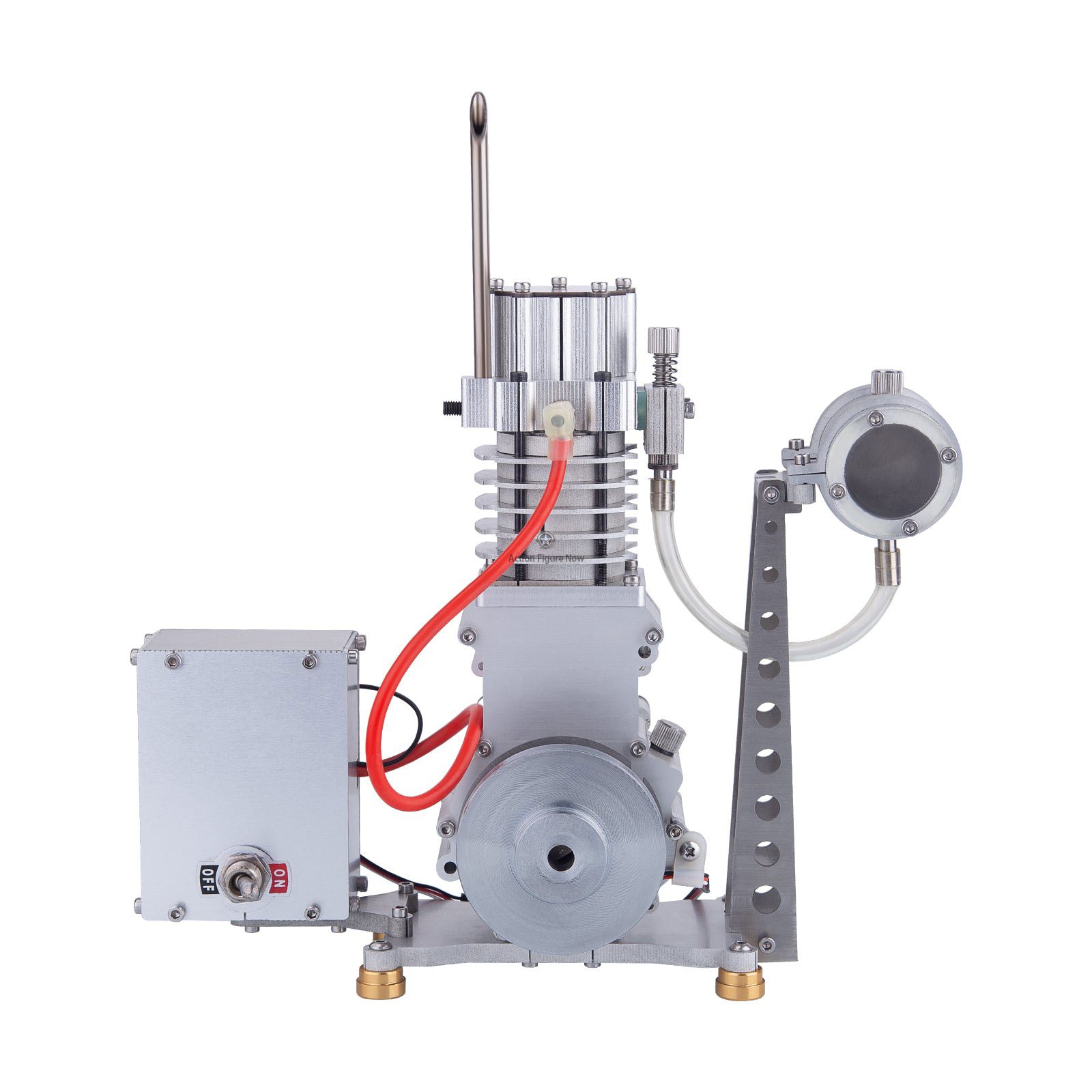

15cc Vertical OHV Single-cylinder Four-stroke Internal Combustion Engine Model

Features:

– Industrial aluminum alloy engine with half-perspective window and flexible cylinder head
– CNC machined internals with a precision of 0.02mm and 0.01mm
– 40Gr hardened crankshaft with a hardness of 55HRC
– Independent lubricating system with 4T engine oil
– Sturdy assembly with shrink fit and wear-resistant valves
– Stable and reliable structure with a 30-minute operating time
– Beginner-friendly and easy to operate
– Collectible gift for machine and engine enthusiasts

Notes:

– This is the high-end edition, which includes the base, power distribution cabinet, and tank.
– Proper operation is required to avoid damage.
– Recommended for ages 14+.

Specifications:

– Material: Metal
– Bare Weight: 1.9kg
– Displacement: 15CC
– Cylinder Diameter: 25mm
– Stroke: 24mm
– Compression Ratio: 5/1
– Valve Mechanism: OHV (Overhead Valve)
– RPM Range: 800-5000rpm
– Lubrication Method: Wet Sump/Splash Lubrication
– Lubricating Oil Type: 5W40 4T
– Lubricating Oil Filling Capacity: 25mL (Open Cylinder Head), 35mL (Enclosed Cylinder Head)
– Cooled Mode: Air-cooled
– Starting Mode: Manual Pull (Rope)
– Ignition Method: CDI Electronic Ignition
– Starting Voltage: Approx. 6V (Without Battery)

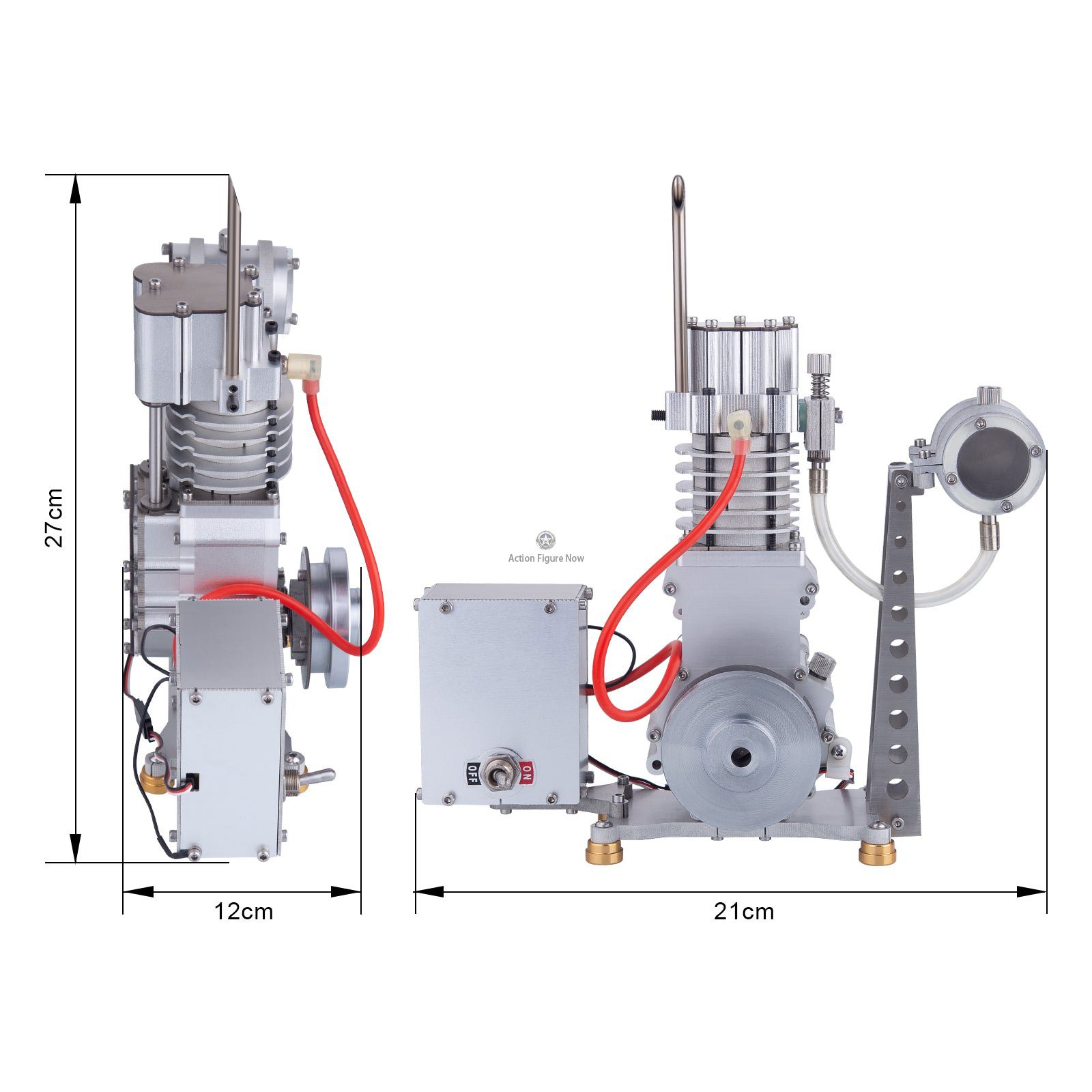

– Product Dimensions: 21 x 12 x 27cm
– Product Weight: 2200g
– Package Dimensions: 25 x 15 x 32cm
– Package Weight: 2500g
– Packing: Box
