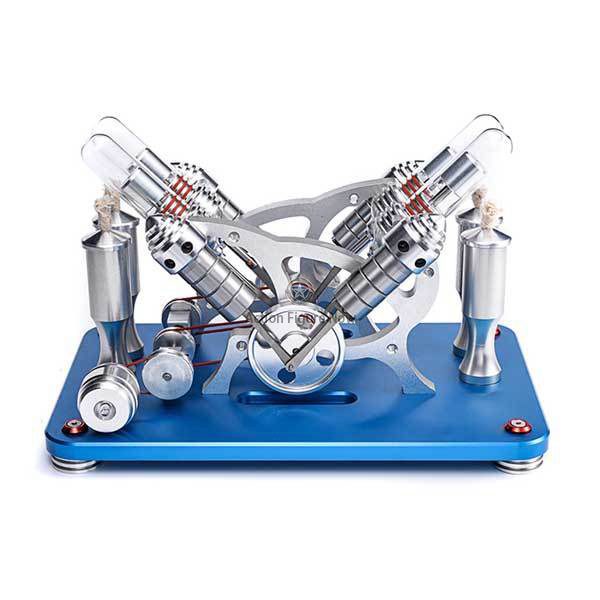

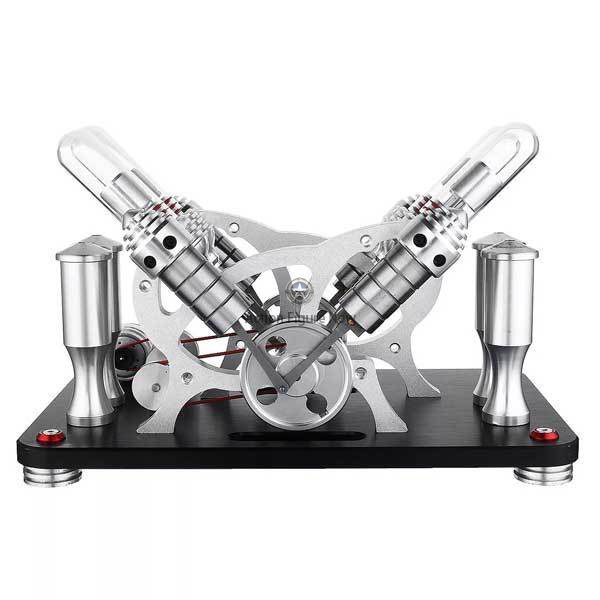

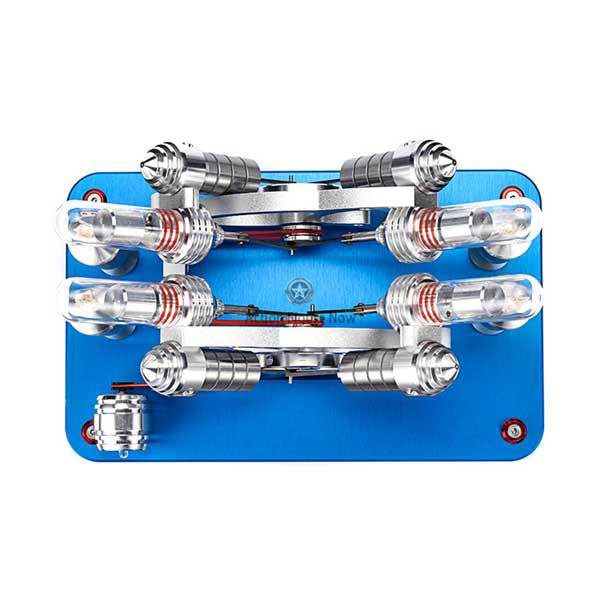

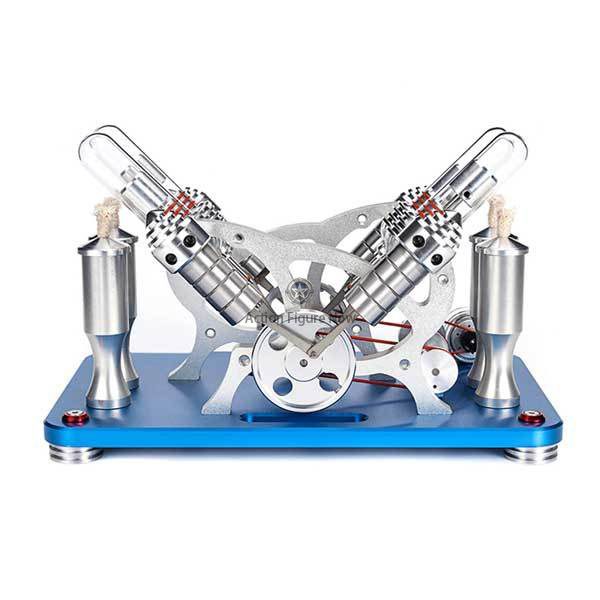

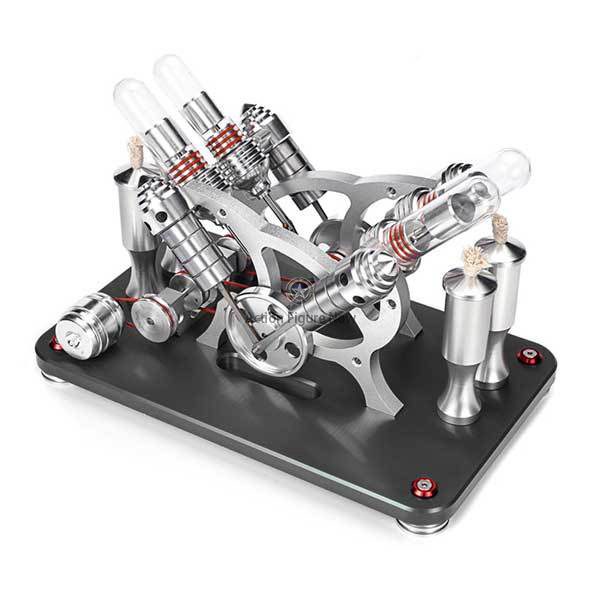

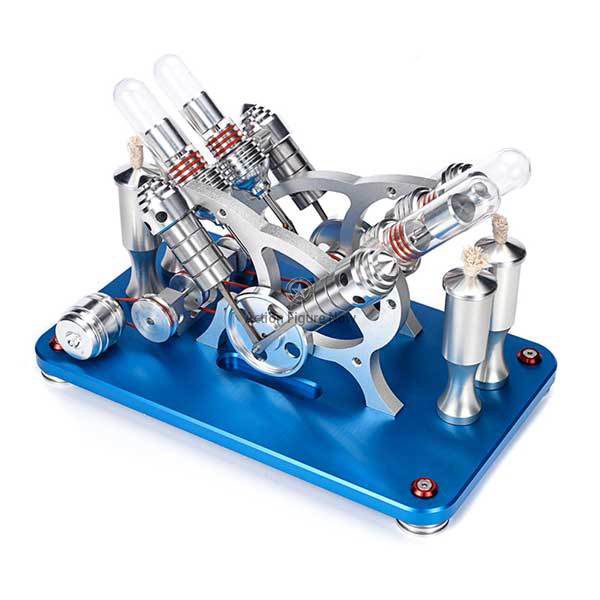

4-Cylinder External Combustion Stirling Engine Model (V4)

Stirling Engine Kit 4 Cylinder V4 Stirling Engine External Combustion Engine Model Gift Collection

Features

– 4 Cylinder Stirling Engine Generator: Power generation voltage of 4-9V, with colorful LED light. Rotates up to 1300-1500 RPM, powering the LED lights.
– Exceptional Power: Boasting superior performance, this engine impresses with its audible sounds and powerful operation.
– Sturdy and Stable: Weighing a substantial 5.2 lb, the 4-cylinder Stirling engine operates steadily on a table surface.
– Precision Craftsmanship: Key parts utilize SUJ2 alloy steel and bearing steel, maintaining tolerance within 0.002mm.

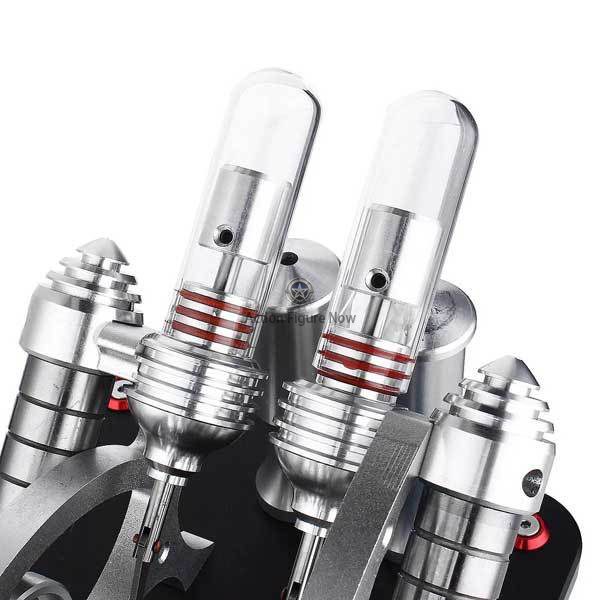

– Detailed Components: Equipped with 16mm power cylinders, 16mm stroke power pistons, 20mm hot cylinders, and a quartz glass cylinder for clear observation.
– Versatile Applications: Ideal for science projects, physical/mechanical learning, classroom demonstrations, birthdays, and more. Frequently purchased by schools, colleagues, and individuals.

Instructions

– Check for smooth operation of the engine by manually rotating the flywheel.
– Obtain 95% purity alcohol (anhydrous industrial alcohol preferred) for the alcohol lamp. Fill the lamp less than two-thirds.
– Light the alcohol lamp and gently rotate the flywheel until it operates automatically. Avoid touching the hot surfaces during the heating process.

Tips

– Allow the engine to cool naturally after use.
– Use only 95% alcohol. Avoid adding water, kerosene, gasoline, lighter oil, or liquor.
– Suitable for individuals over 14 years old. Operate under adult supervision.

Description

Item Name: Four-cylinder Stirling Engine
Status: Assembled
Speed: 1300-1500 RPM
Output Voltage: 4-9V
LED Color: Multicolor
Materials: SUJ2 alloy steel, aluminum, bearing steel, stainless steel, quartz glass, bakelite
Overall Dimensions: 268x162x170mm (L/W/H)
Flywheel Dimensions: 64x8mm (Diameter/Thickness)
Power Cylinder Diameter: 16mm
Power Piston Stroke: 16mm
Hot Cylinder Diameter: 20mm
Net Weight: 2360g
Packaging: Carton Box

Package Contents

– 1 x 4-cylinder Stirling engine

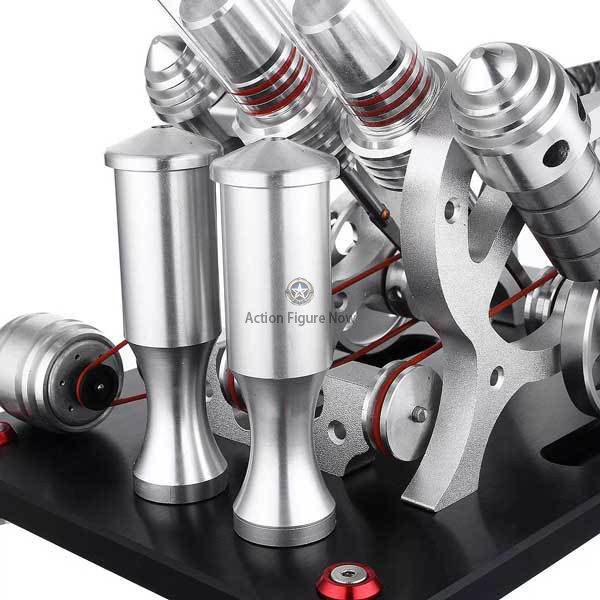

– 4 x Metal alcohol burner
