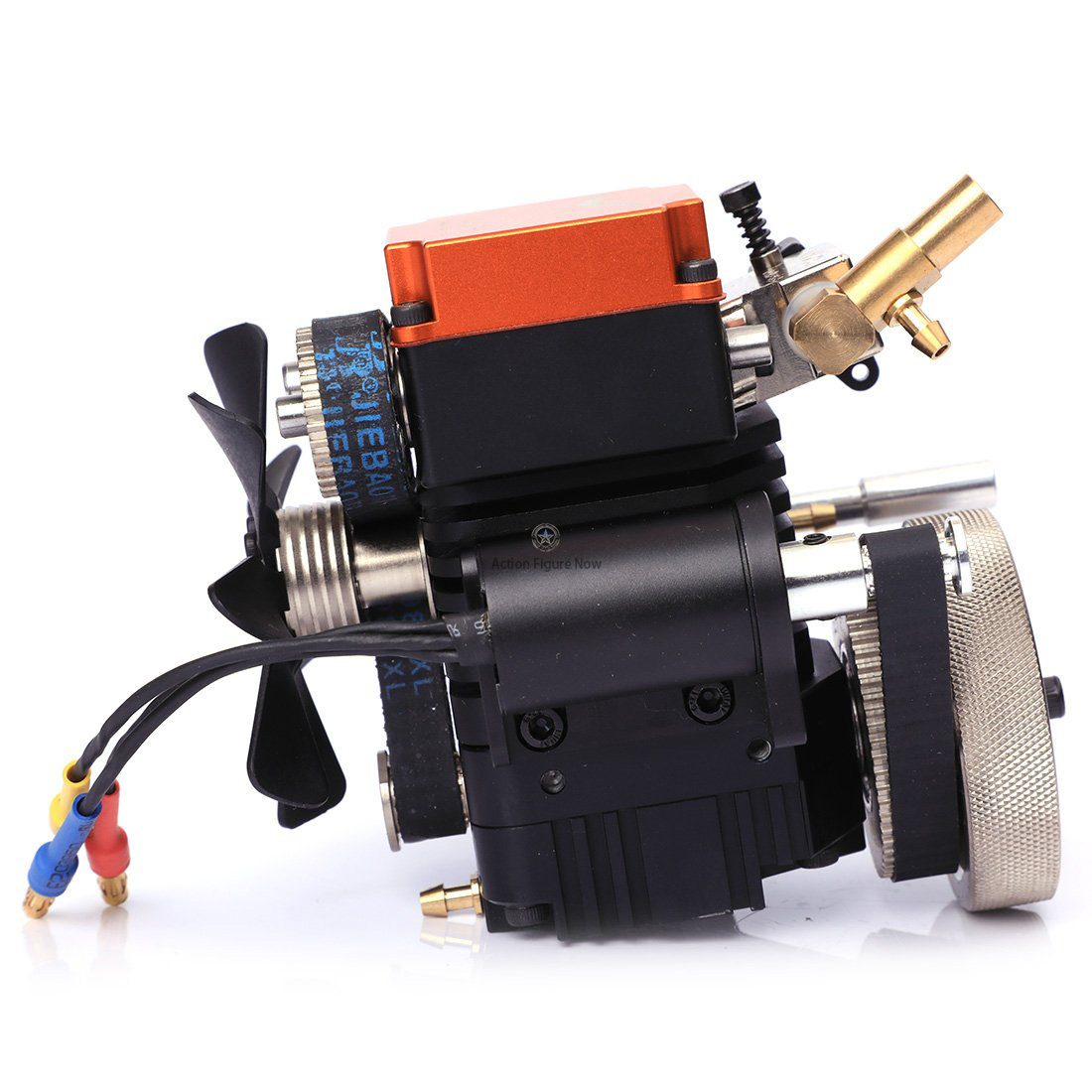

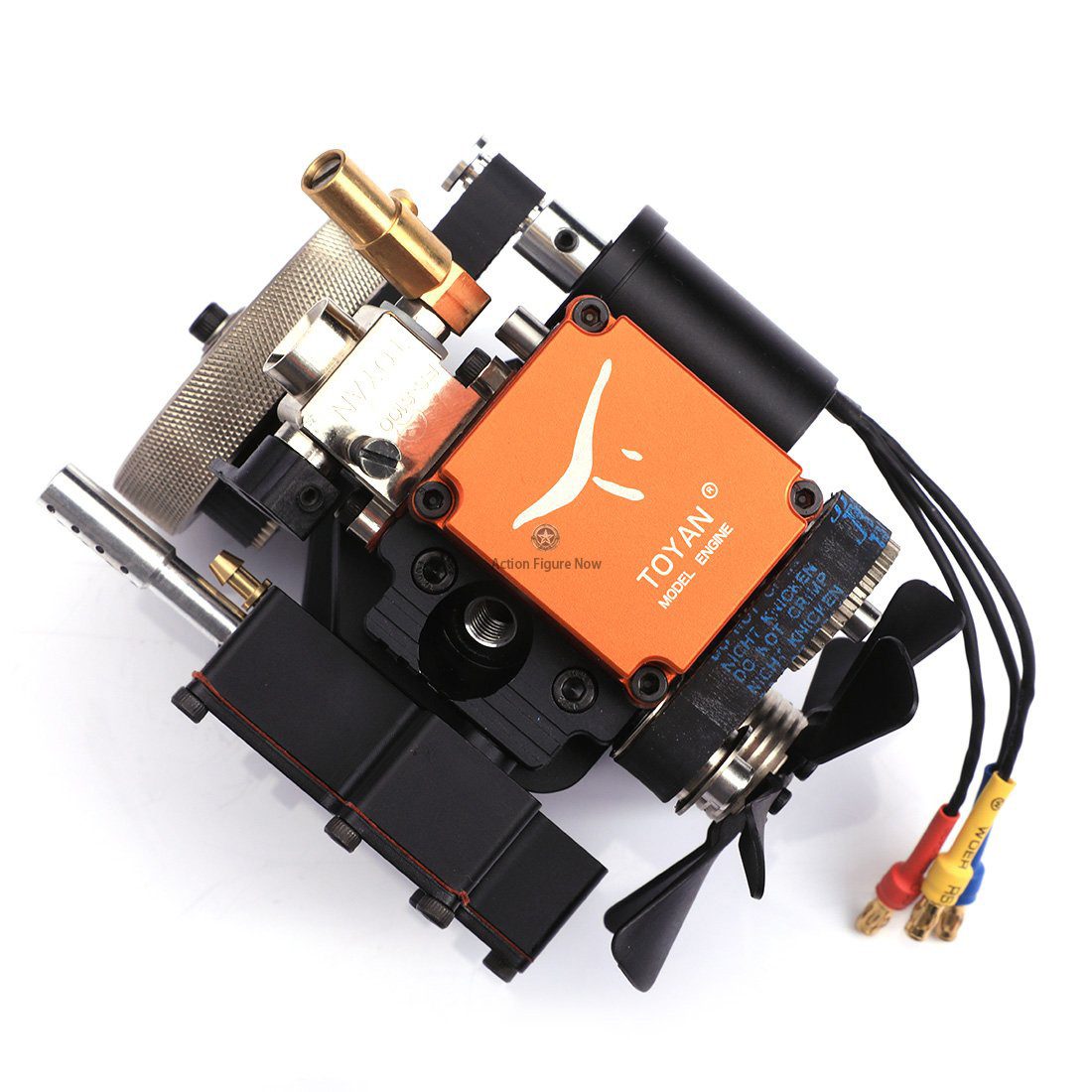

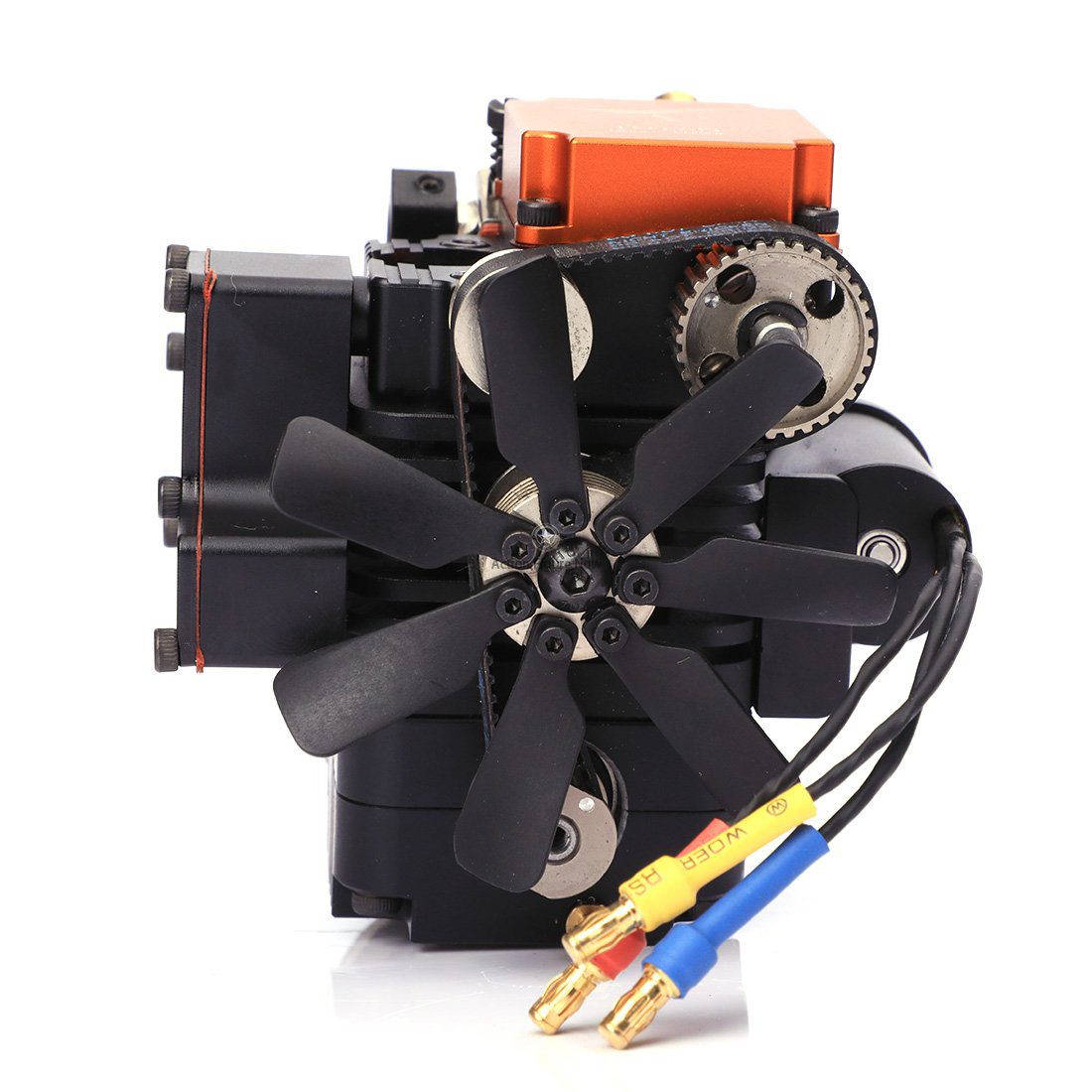

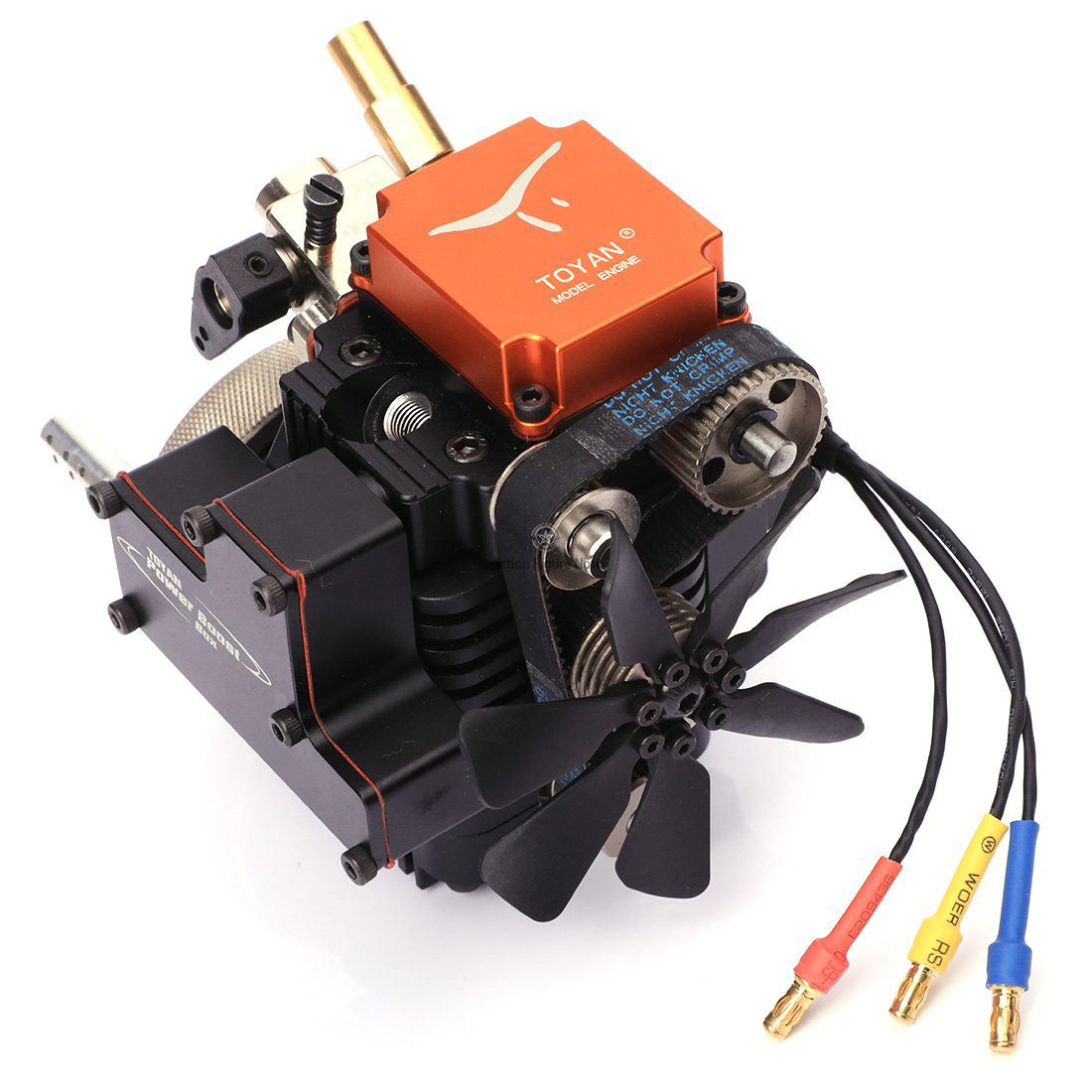

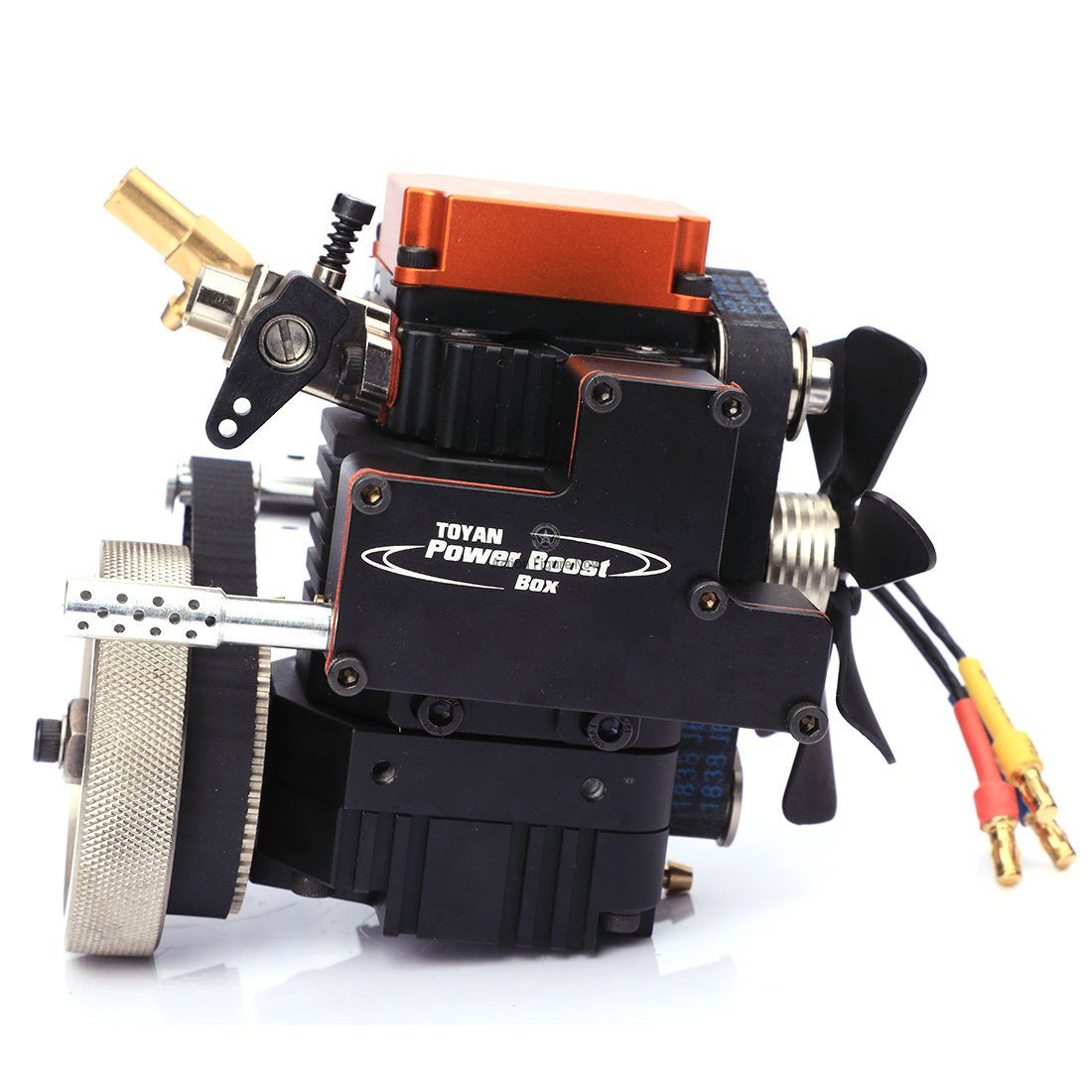

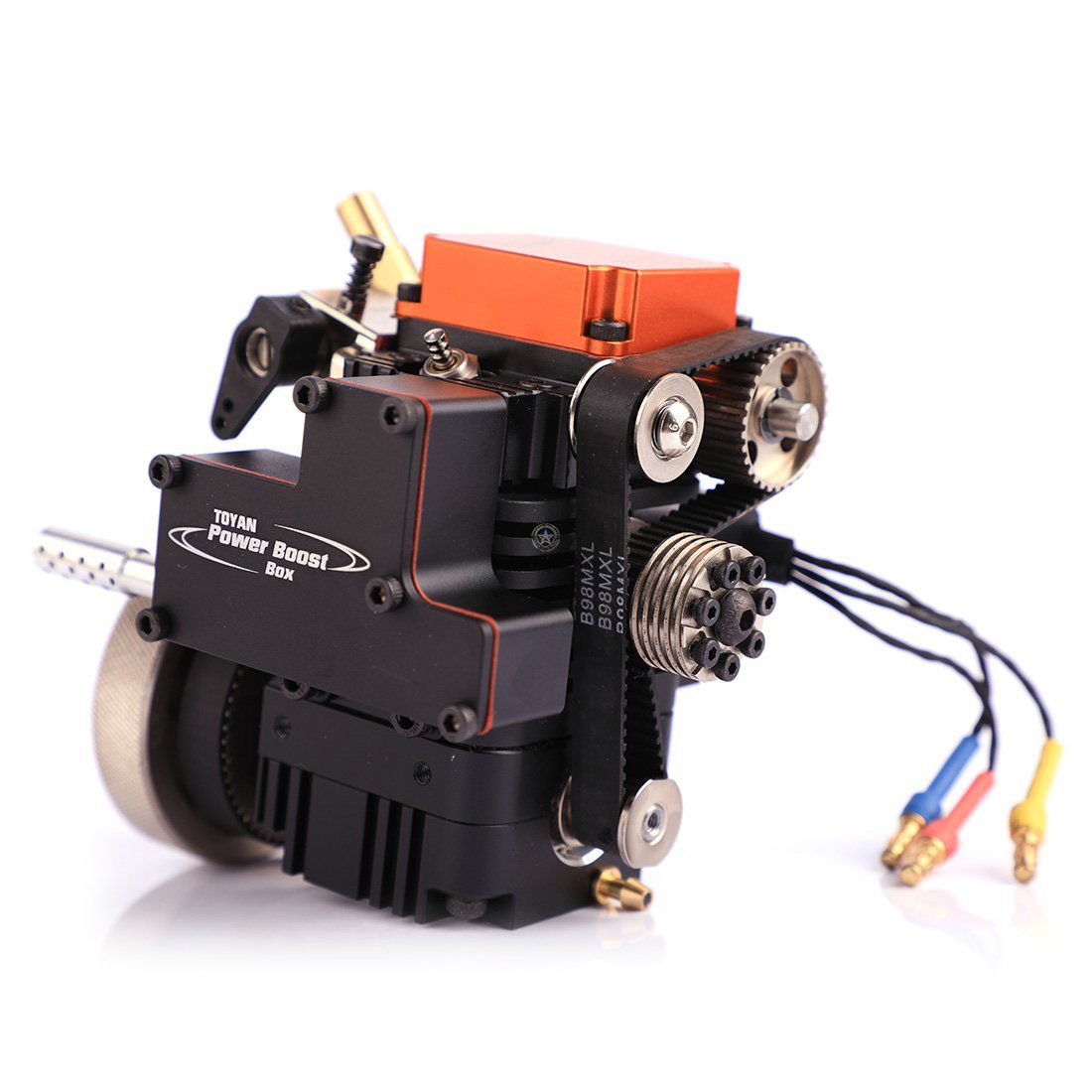

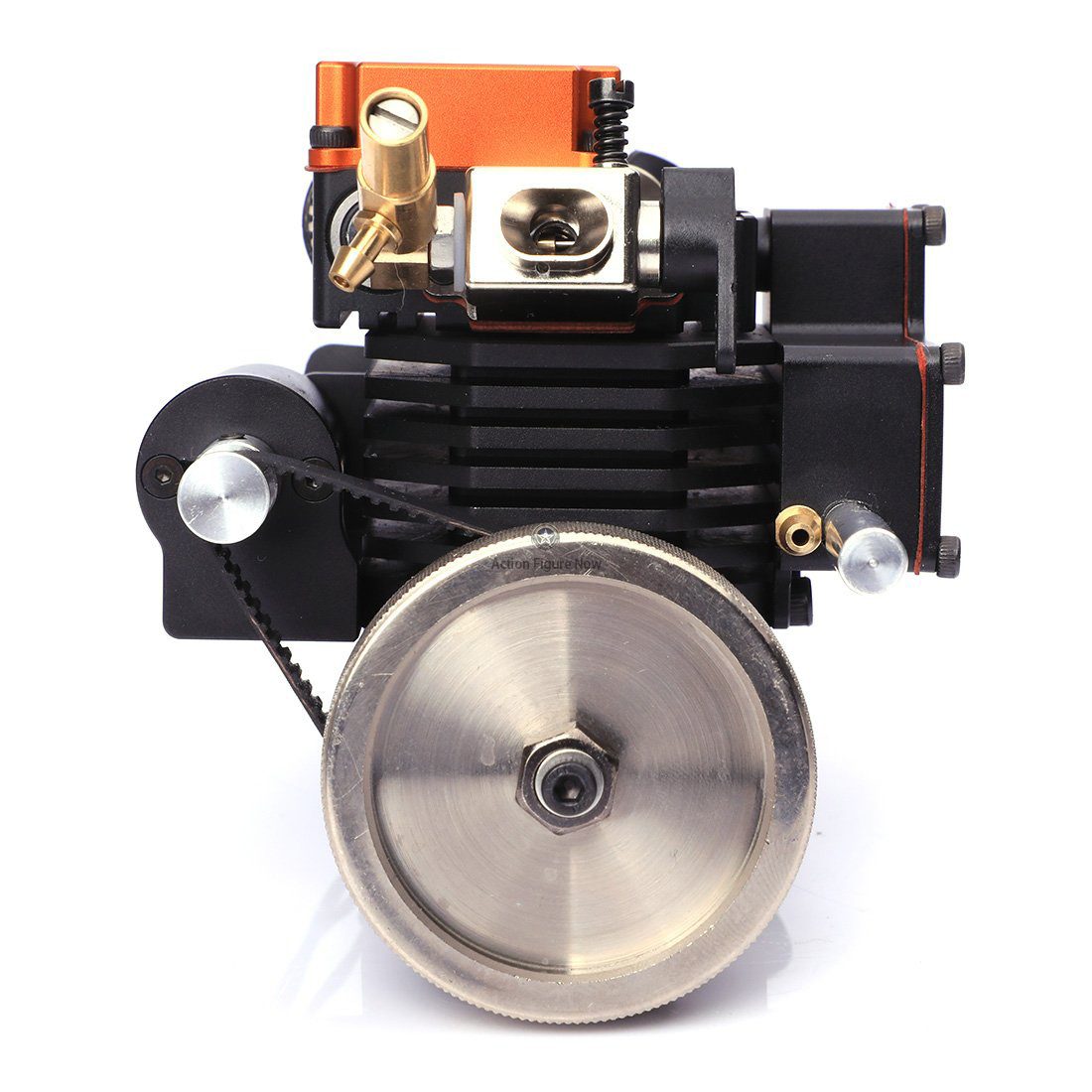

Four Stroke RC Engine Toyan FS-S100 Four Stroke Methanol Engine Kit

Features

Powerful Performance: Rotate speeds up to 13,500 RPM/min
Fuel: 20% castor oil, 5-30% nitro-methane, 20-25% methanol

Required Accessories

Spark plug
Starting ESC module
30cm oil tube
F-shape glow plug (available in store)

Applications

1:10, 1:12, 1:14 scale RC cars, boats, and planes
Classroom display as a teaching aid
Gift for engine enthusiasts

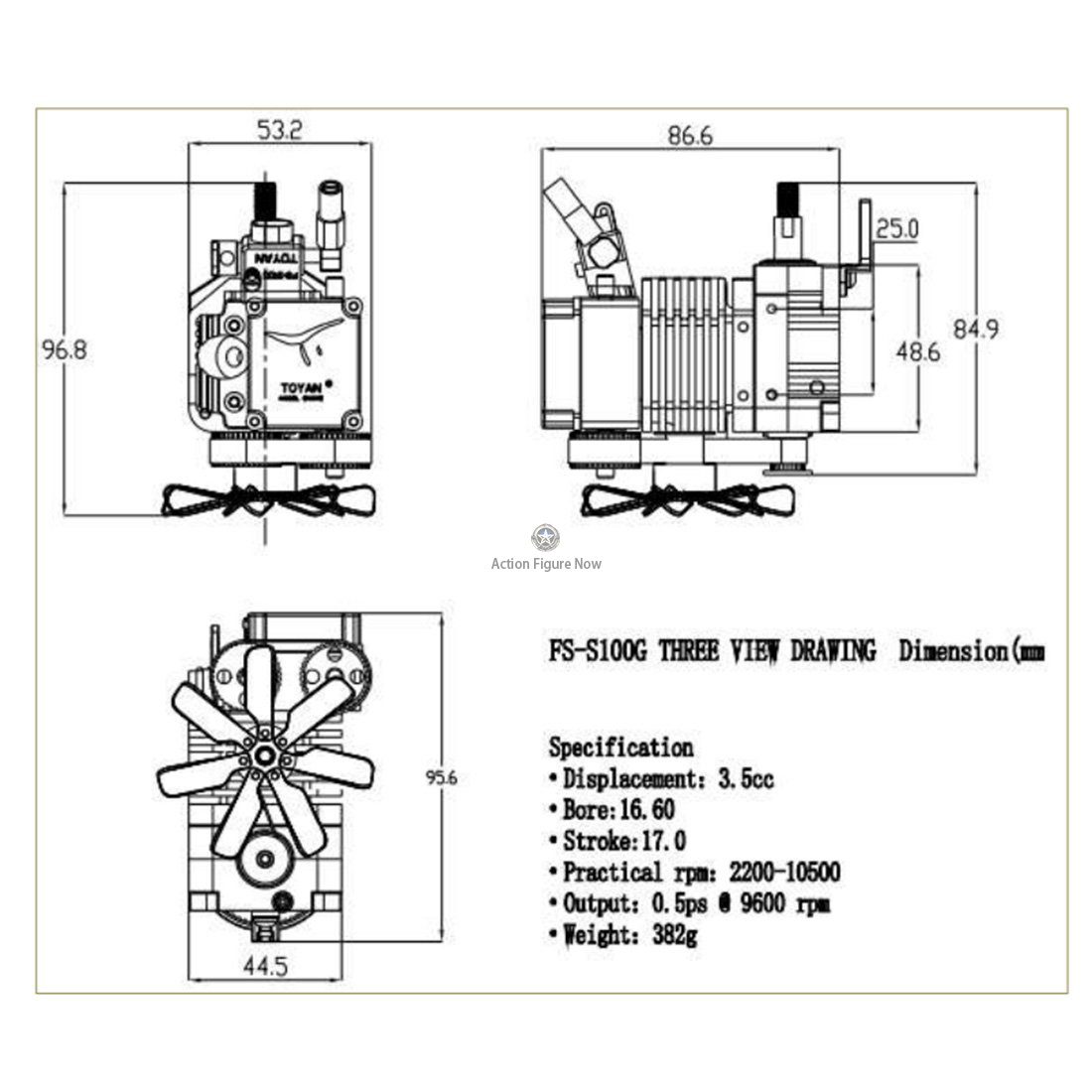

Product Specifications

Material: Metal + Plastic
Engine Dimensions: 100.5 x 85.4 x 86.5mm
Cylinder Bore: 17.0mm
Piston Diameter: 16.6mm
Displacement: 3.5cc
Output Power: 0.5ps
Speed: 2500-13500rpm
Product Dimensions: 10.5 x 8.54 x 8.65cm
Product Weight: 380g
Package Dimensions: 12 x 10 x 10cm
Package Weight: 410g

Operation

Ignition:
Connect the spark plug to the cap and voltage regulator module
Connect to a 7.4V T-Plug battery

Fuel:
Connect the oil tube to the fuel tank and engine

Starting:
Connect the 11V T-Plug battery to the start connector, simulator, and starting motor

Tips

Avoid touching the motor fan to prevent scratches
Use caution around the cylinder to prevent burns
Lubricate the engine before use to prevent wear

Four Stroke Methanol Engine Explained

Intake Stroke: Intake valve opens, allowing air-fuel mixture into the cylinder
Compression Stroke: Piston moves up, compressing the air-fuel mixture
Combustion Stroke: Spark plug ignites the mixture, driving the piston down
Exhaust Stroke: Exhaust valve opens, allowing exhaust gases to escape

Benefits of Methanol Injection

Increased engine power
Cooler intake temperatures
Reduced detonation
Lower cost alternative to race gas
Built-in engine maintenance

Why Toyan Four Stroke Engine?

Higher torque at lower RPM
More fuel efficiency
Less pollution
Longer lifespan
Separate oil chamber
