SKU ENGINE-e1ZdKJ

(3 customer reviews)

$764.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

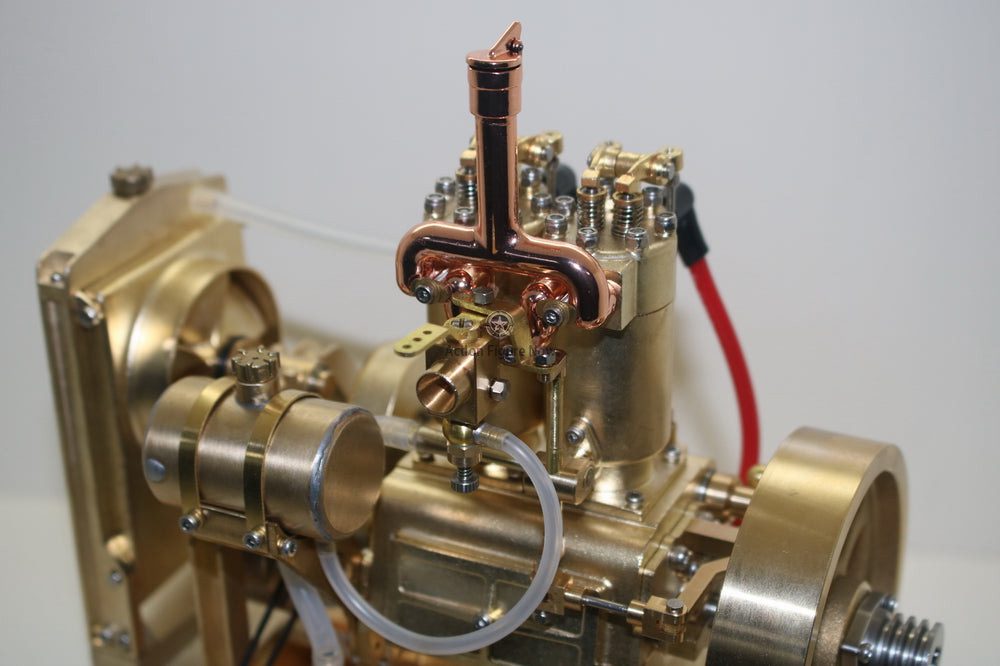

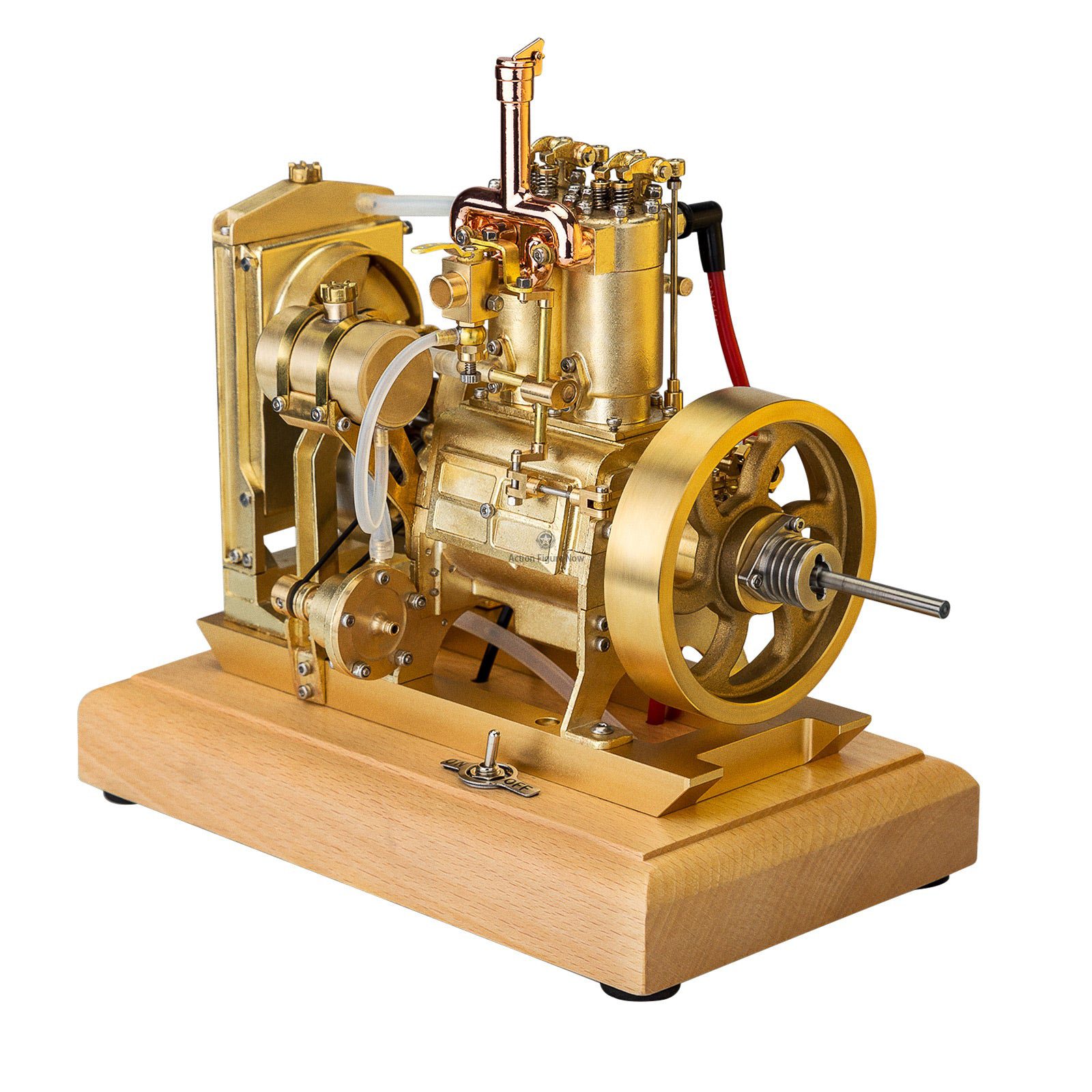

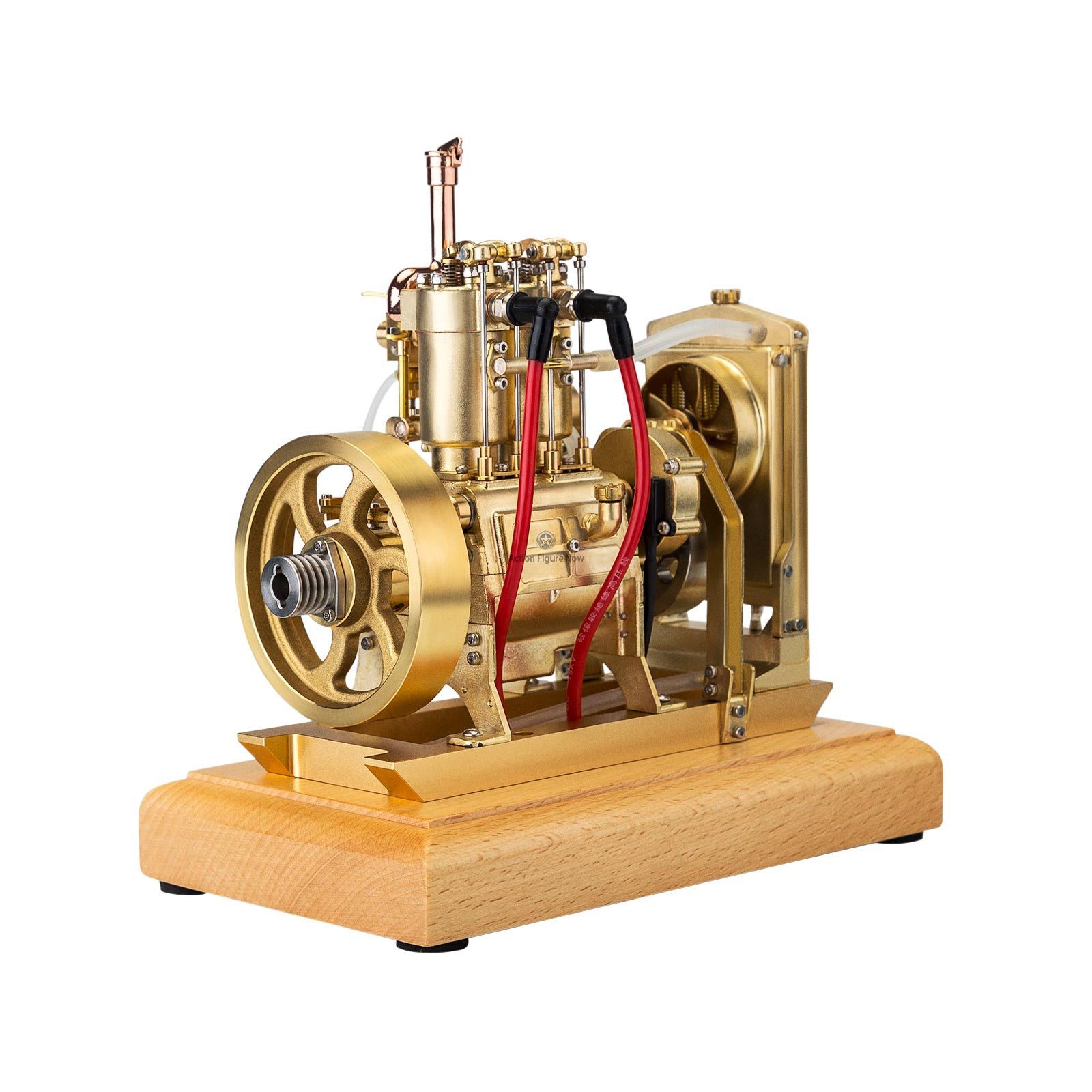

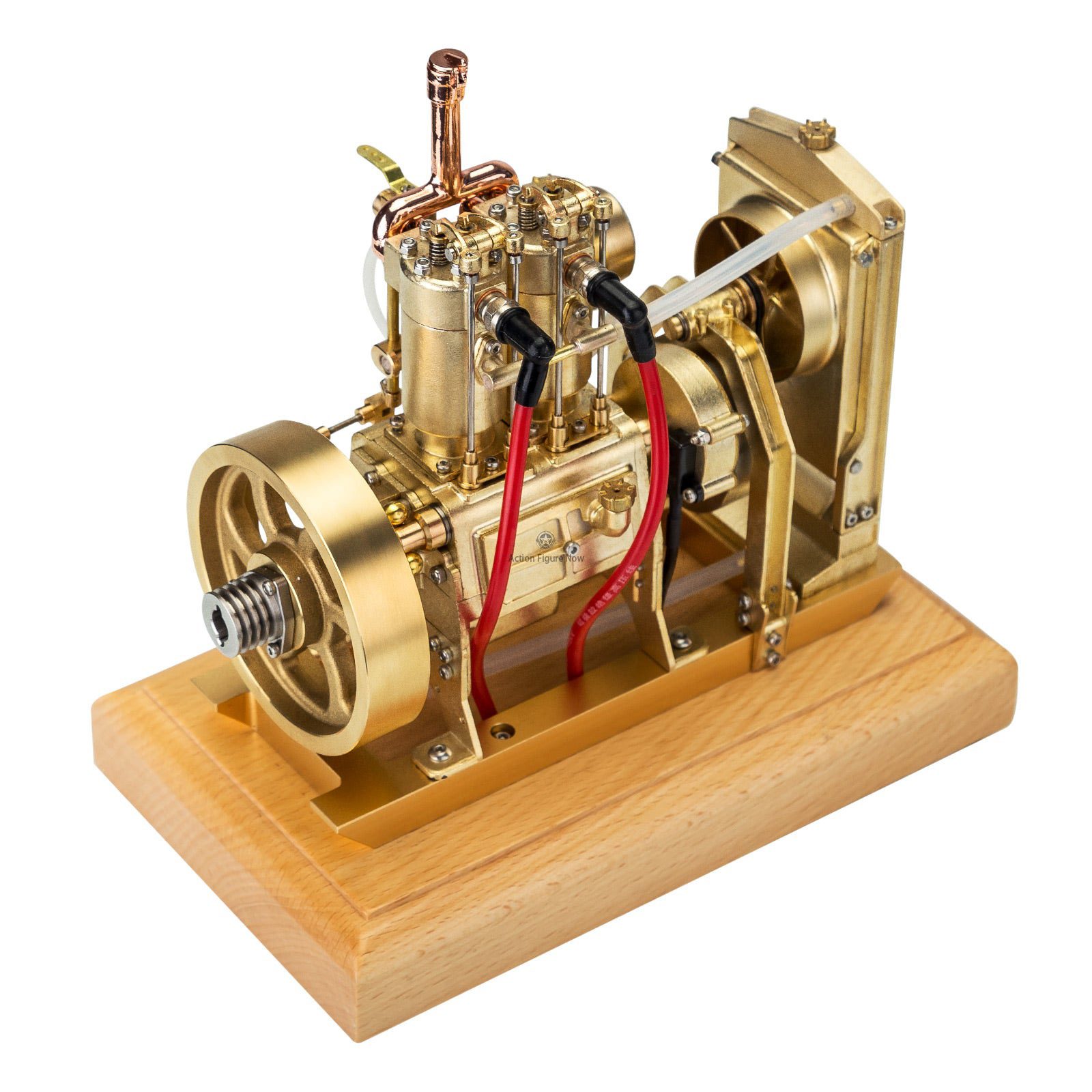

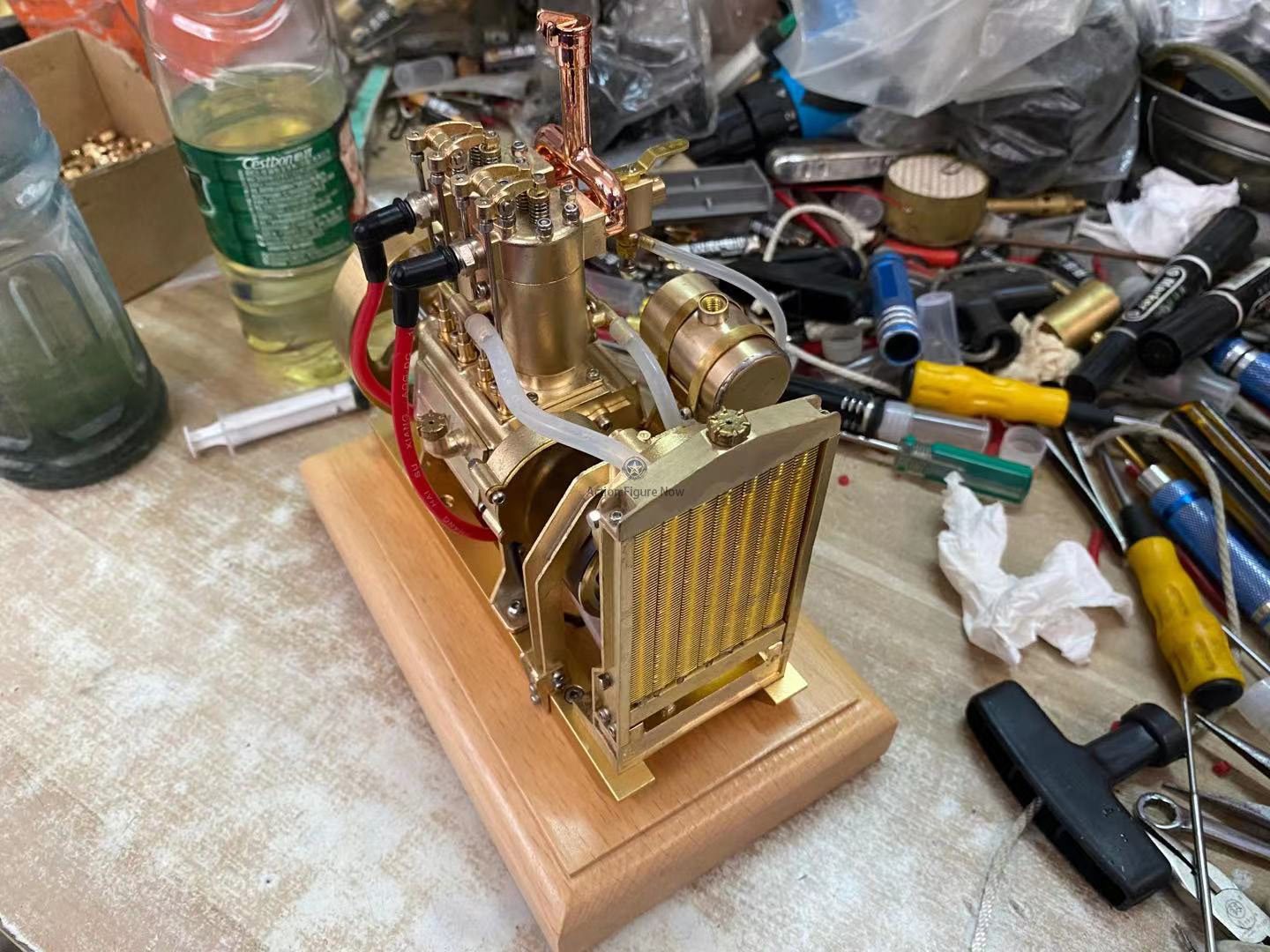

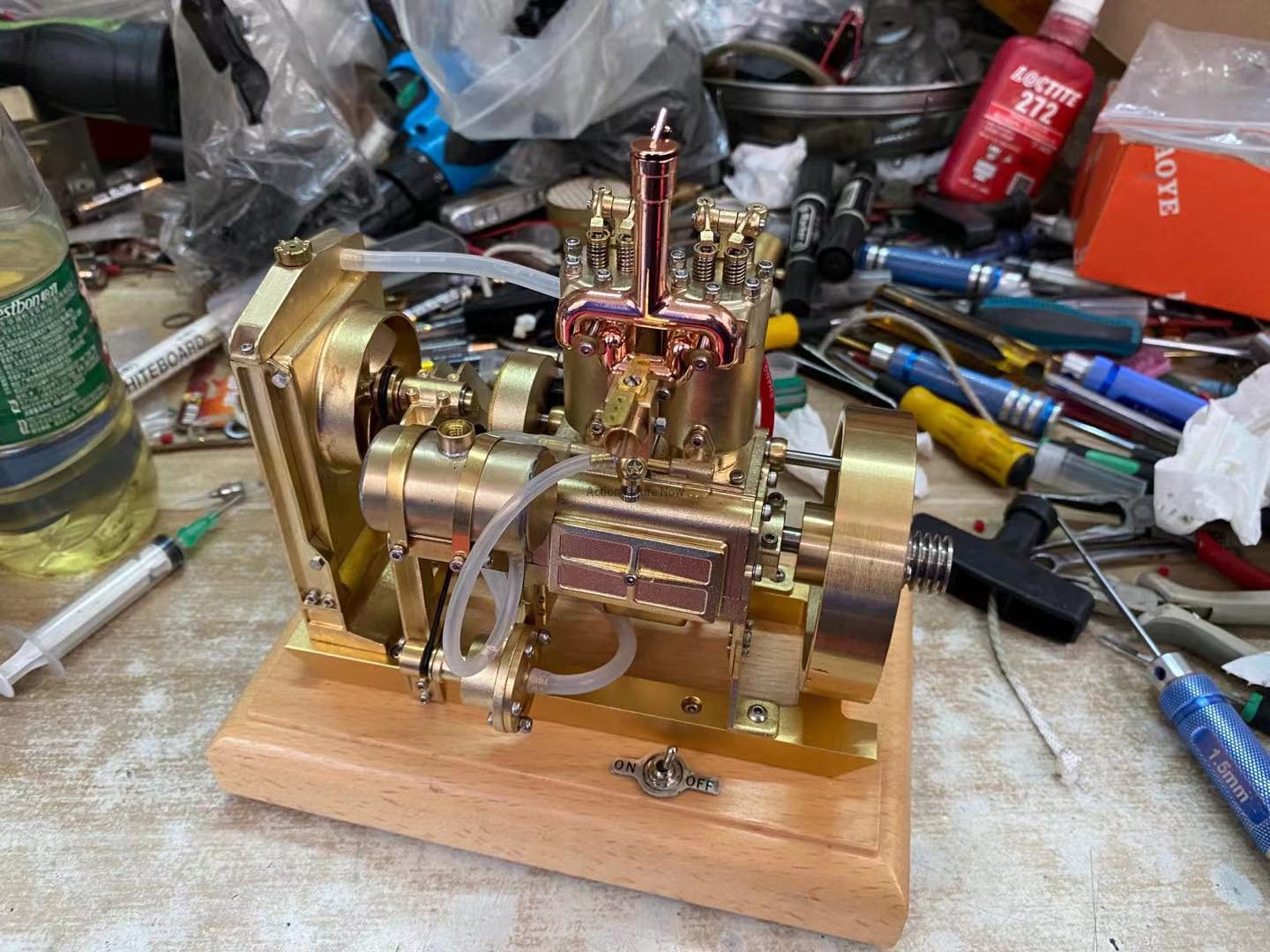

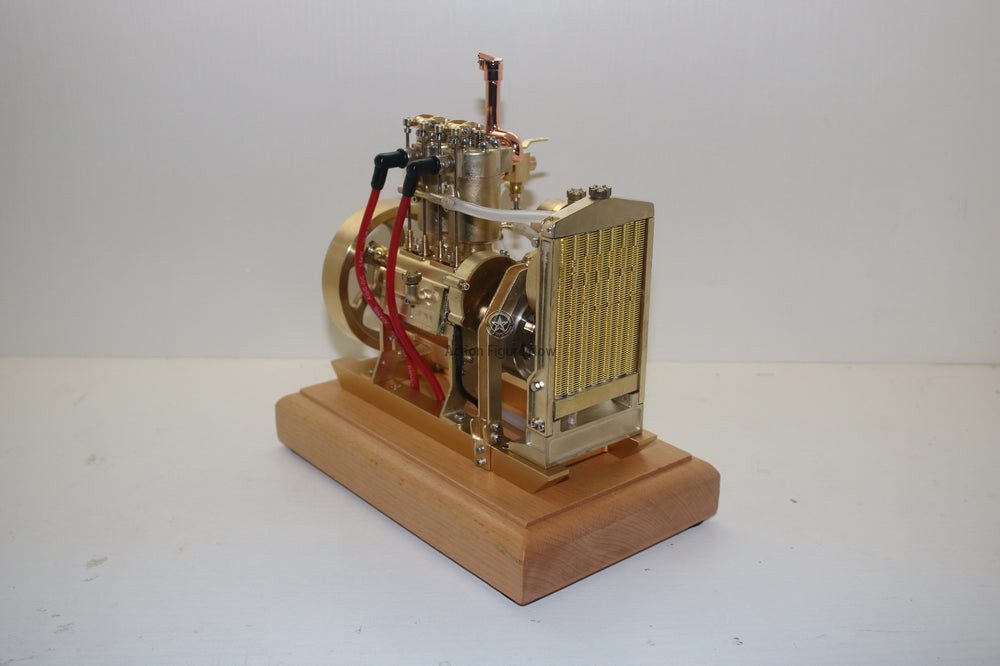

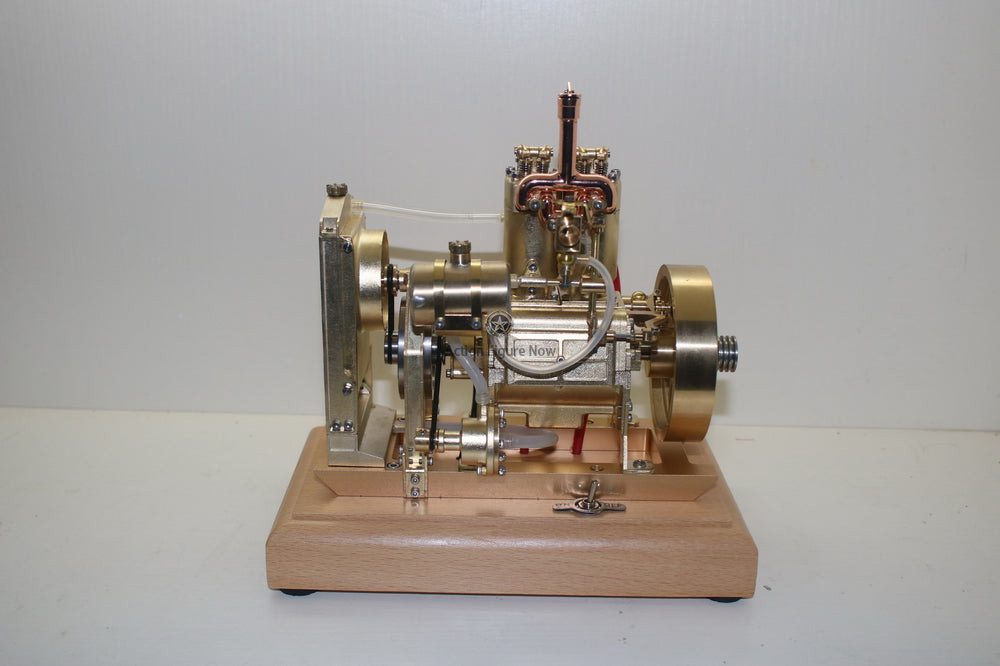

H74 Holt Tractor Engine 5CC 2-Cylinder 4 Stroke Water Cooled Gasoline Engine ICE Model Internal Combustion Engine Vintage Engine

Features

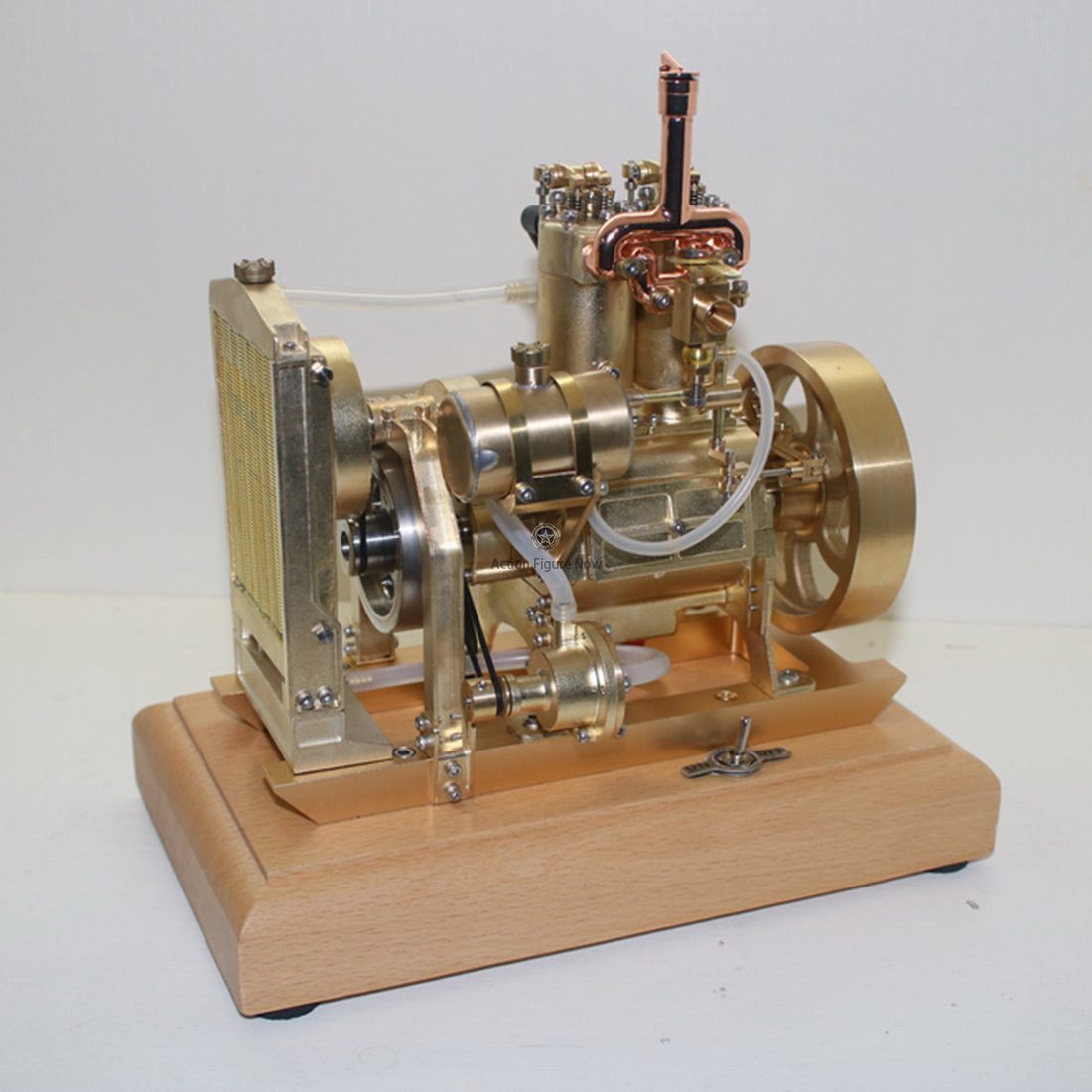

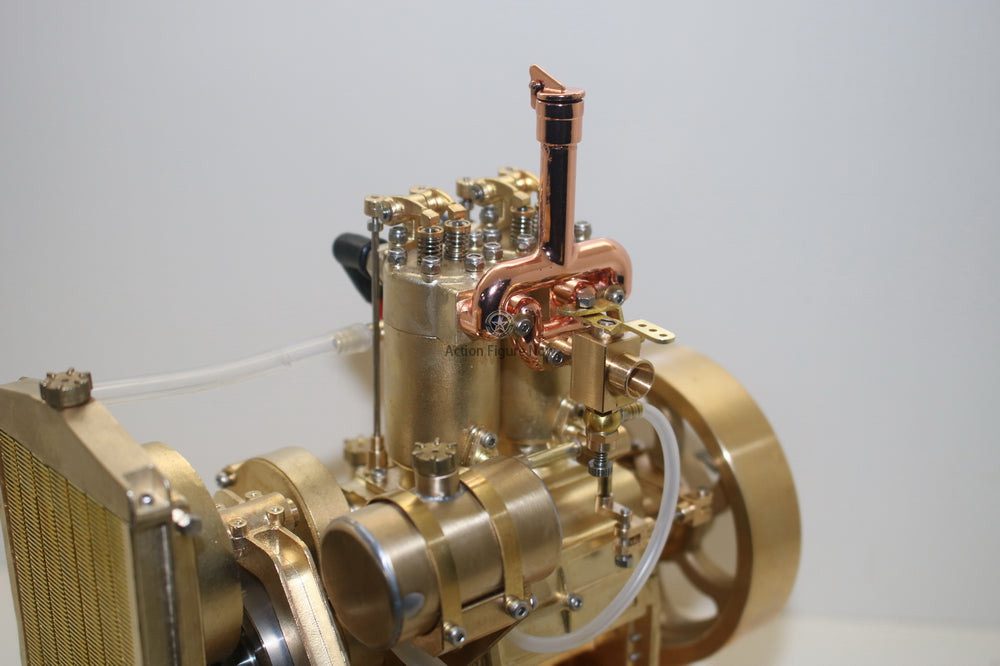

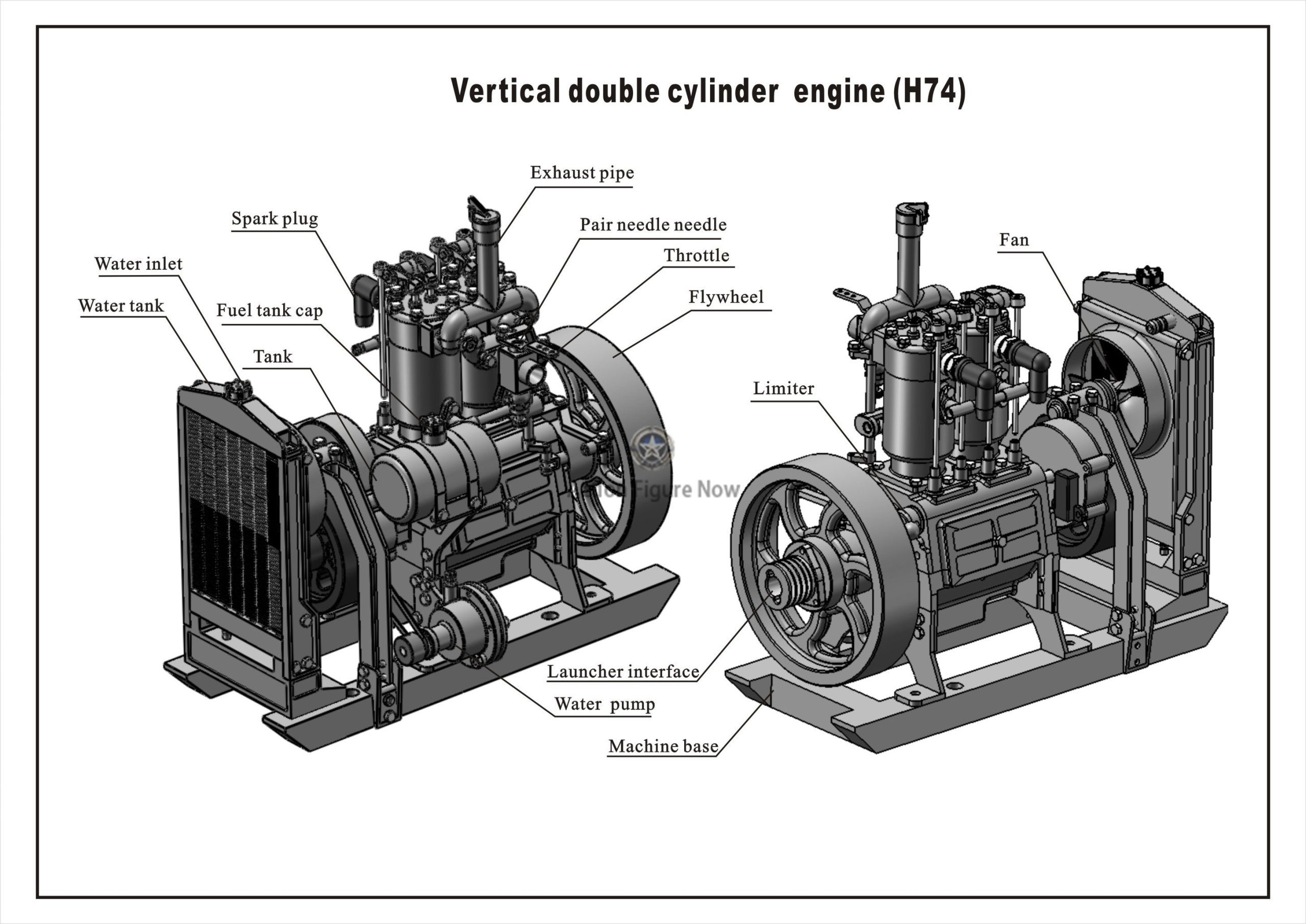

  • This is a vertical dual-cylinder gasoline engine with vintage outlook and mechanical speed governor, and it allows engine to stabilized a set of speed.

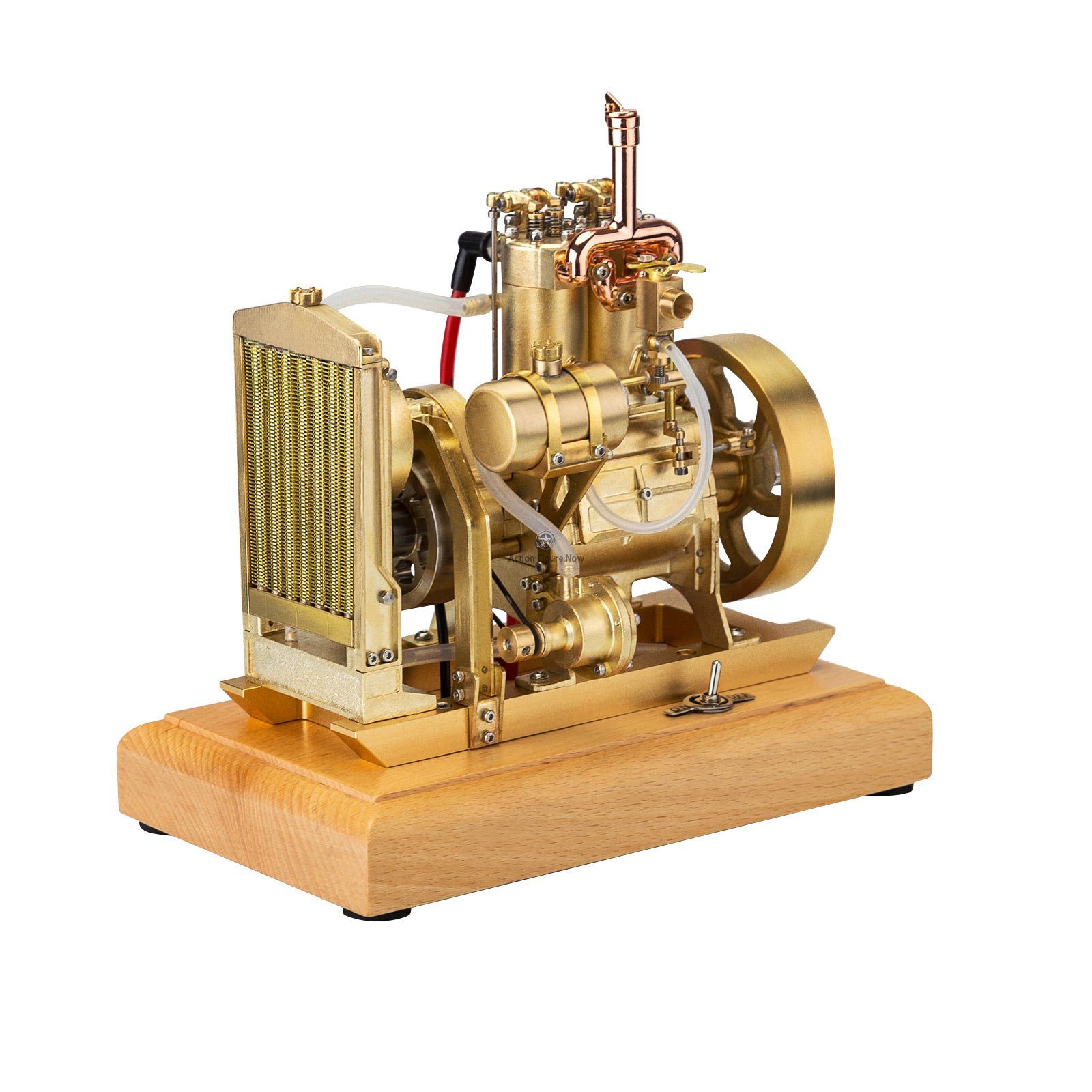

  • The engine adopts water circulation cooled, with radiator tank, water pump and fan.
  • Equipped with ignition system and powered by 4.5V (3 x AA battery).
  • This is a perfect mechanical craft which is made from brass and stainless steel.
  • The product is assembled on the wooden base and ready to run. Adding fuel to work, its good performance will amazed you a lot.

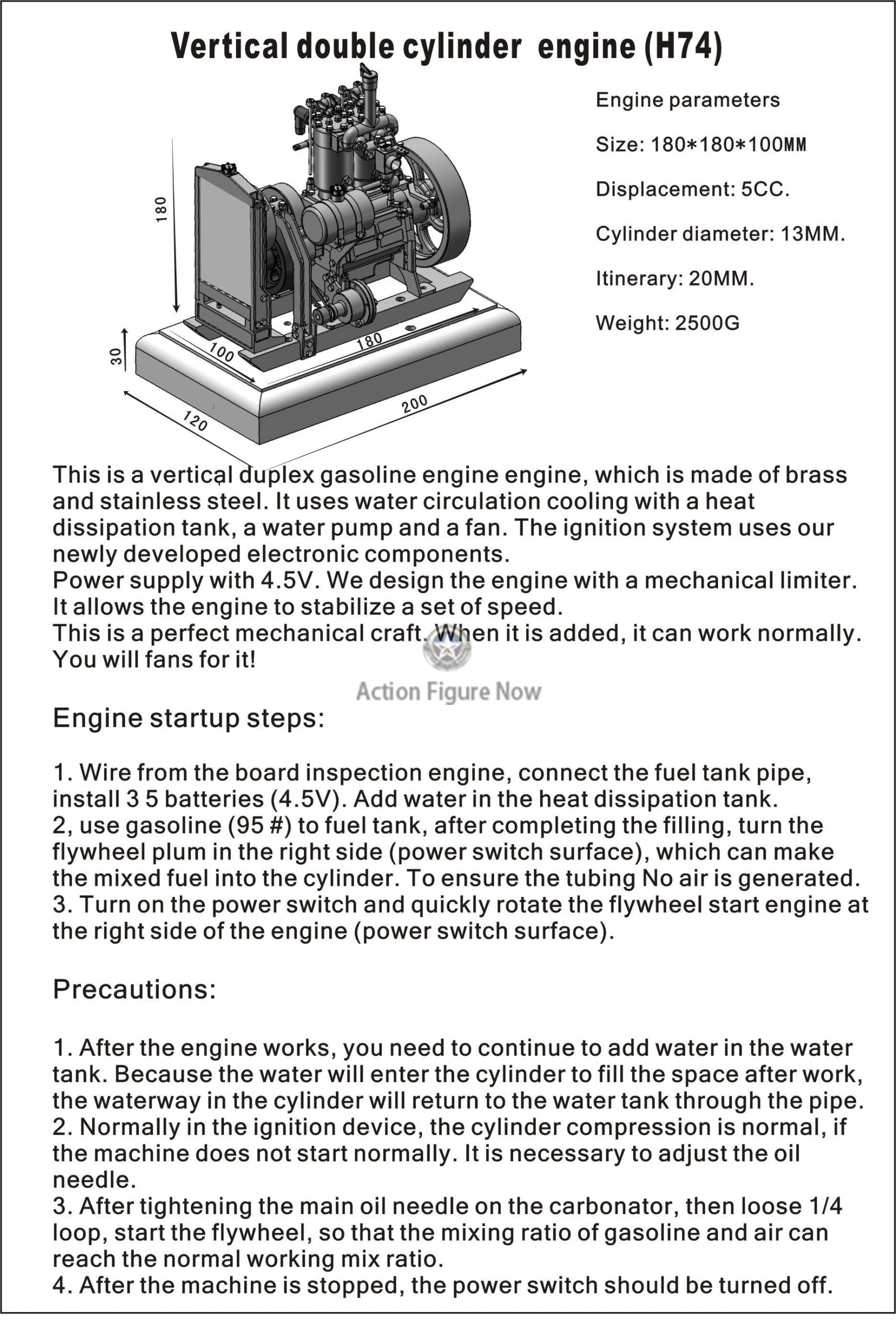

Starting Step

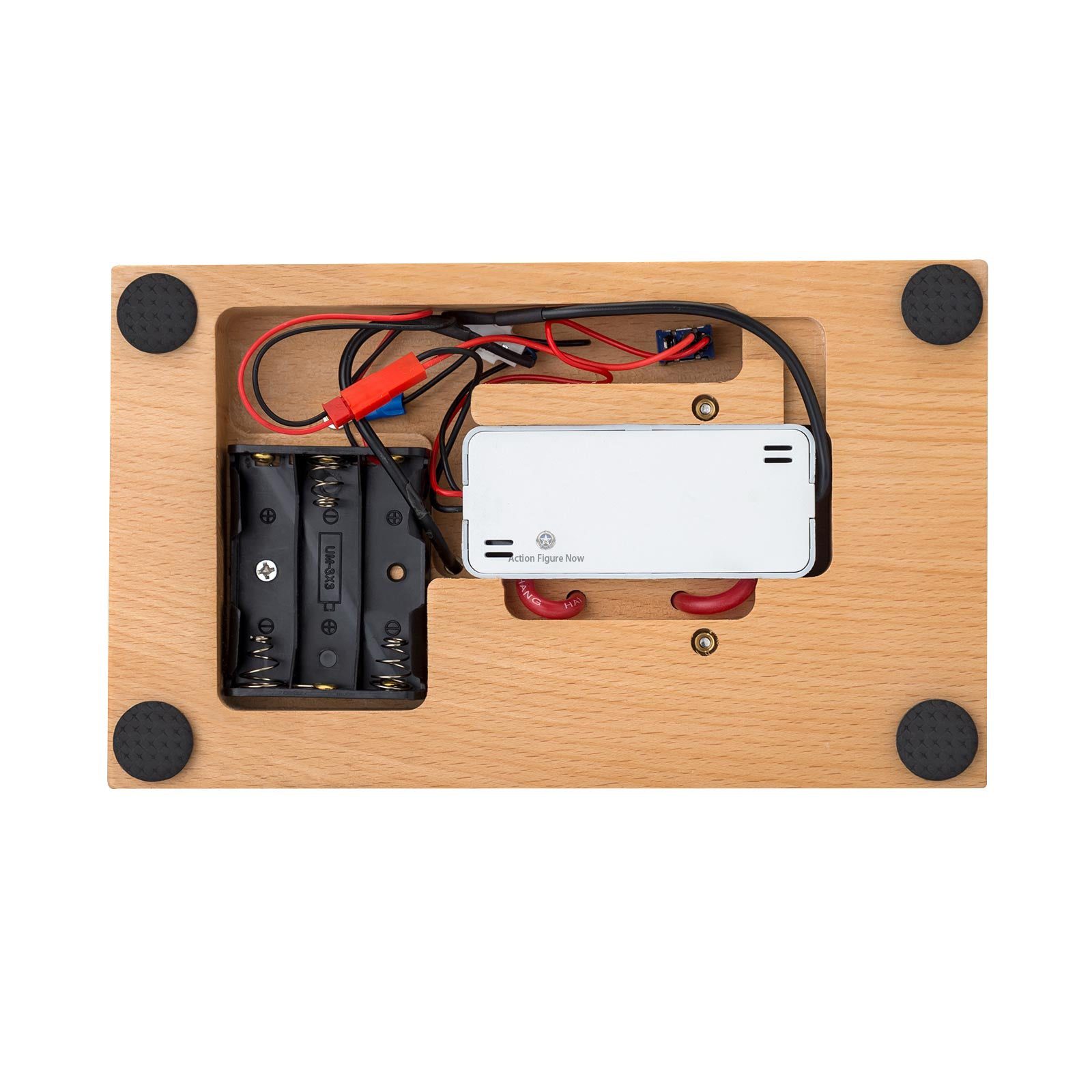

  1. Check the engine wiring under the wooden base, then connect the oil tank and oil tube and install 3 AA battery (4.5V).
  2. Fill the oil tank with 95 gasoline. After filling, rotate the flywheel clockwise on the right side of the engine (power switch surface) for several turns, which can make the mixed fuel fully enter the cylinder and ensure that there is no air in the fuel pipe.
  3. Turn on the power switch then rotate the flywheel clockwise quickly to start the engine on its right.

Note

  1. You need to add some water to the water tank after the engine works, for the water will enter the cylinder to fill the space after work and the water path in the cylinder will return to the water tank through the pipe.
  2. If the ignition device is normal and the cylinder compression is normal and the machine cannot start normally, it is likely that the carburetor needle needs to be adjusted.
  3. After tighten the needle of carburetor, loosen it for 1/4 turn and start the flywheel to make the mixture ratio of the gasoline and air reach the the normal working mixture ratio.
  4. Turn off the power when the machine stop working.
  5. This is an ideal gift for machinery and model fans and it will spent the spare time with you. It can serve as a collection or a gift for Christmas and birthday.

Specifications

  • Material: Brass/Stainless Steel/Wood
  • Art. No.: H74

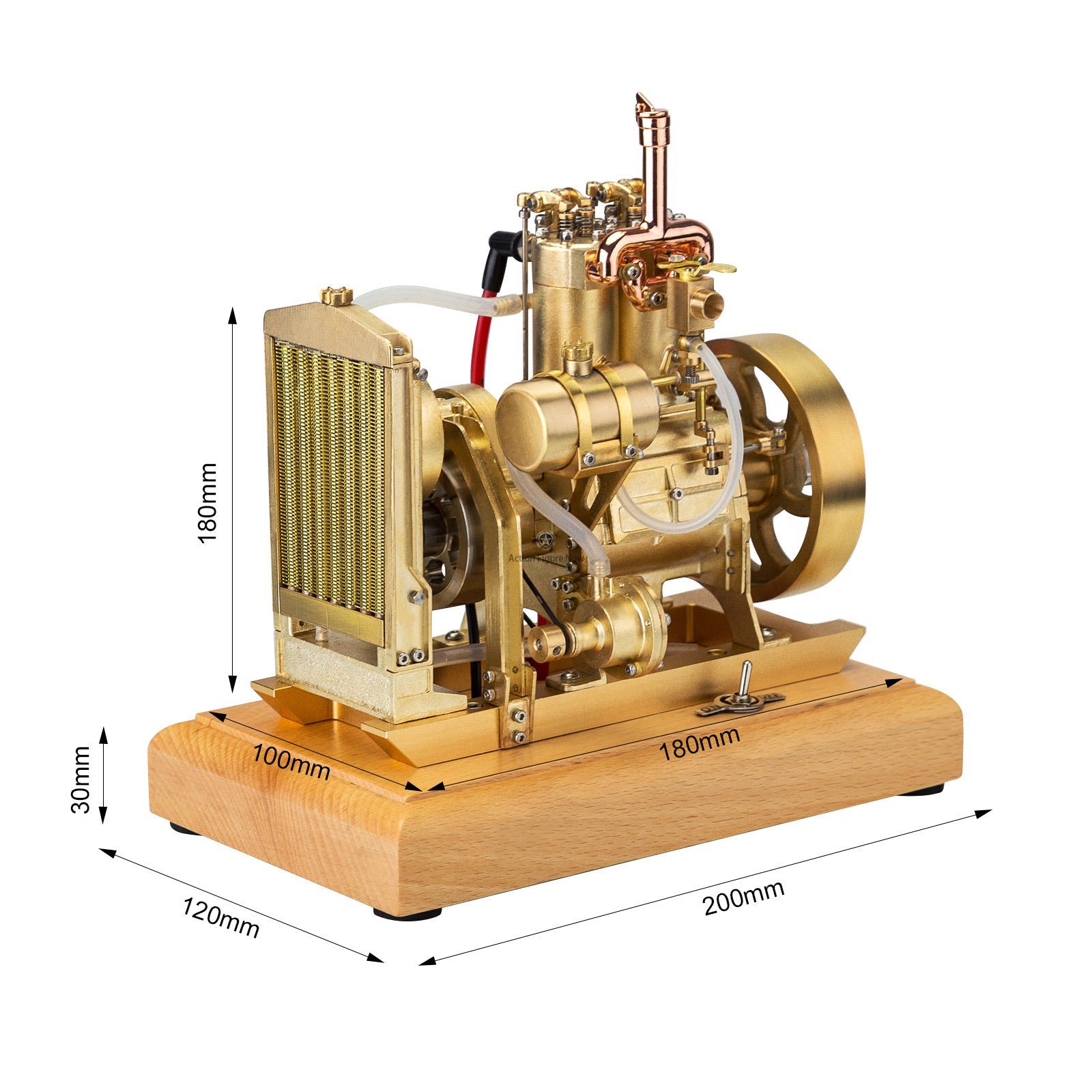

  • Integrated Dimensions: 200 x 120 x 210mm
  • Engine Dimensions: 180 x 180 x 100mm
  • Wooden Base Dimensions: 200 x 120 x 30mm
  • Weight: 2500g
  • Displacement: 5CC
  • Cylinder Diameter: 13mm
  • Stroke: 20mm
  • Ignition Unit Power Voltage: 4.5V
  • Starting Mode: External Force (Electric Drill) or Manual
  • Product Dimensions: 20 x 12 x 21cm
  • Product Weight: 2500g
  • Package Dimensions: 25 x 25 x 25cm
  • Package Weight: 2800g

Packing

  • 1 x H74 Holt Tractor Engine
  • 1 x Instructions

Customer Reviews (4.33)

(3 customer reviews)

3 reviews for H74 5CC 2-Cylinder Water-Cooled Gasoline Engine Internal Combustion Engine Model

  1. Paul Van Rooyen
    September 29, 2022
    Very nice little motor. Struggle to get it to run - overfuel and spit petrol out of exhaust. Not sure what the problem is maybe timing not correct
    Brian
    April 11, 2022

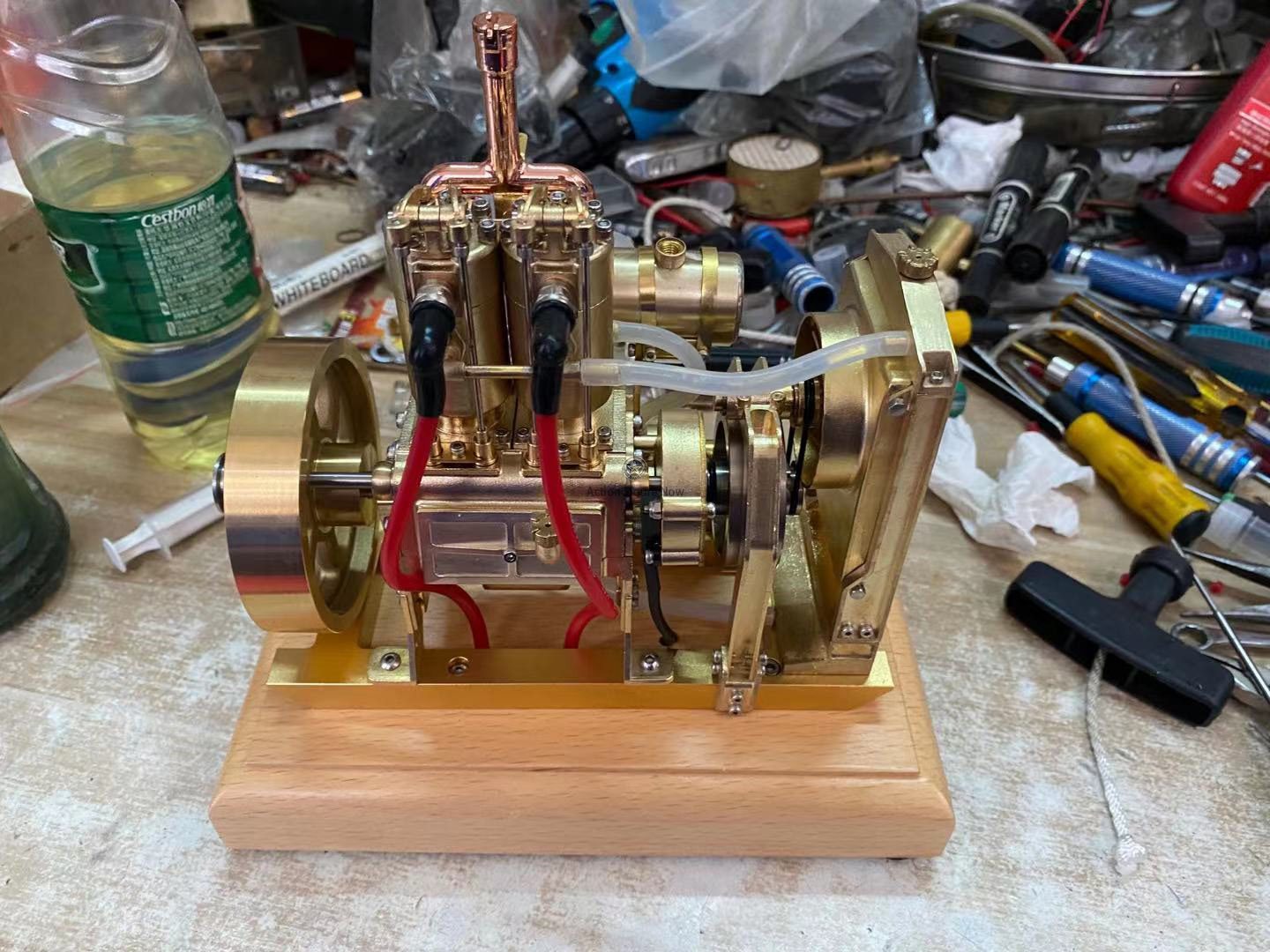

    With a little tweaking and carburetor adjustment the little engine idles and revs nice! I did eliminate the flyball governor and installed a throttle ...More
    With a little tweaking and carburetor adjustment the little engine idles and revs nice! I did eliminate the flyball governor and installed a throttle return spring, only because I prefer a low idle and ability to rev it a little. Overall quite happy with it!
    Stefan Drews
    February 19, 2022
    Der Motor läuft hervorragend. Die Einstellung des Vergasers ist allerdings extrem feinfühlig. Die O-Ringe für den Antrieb der Wasserpumpe und des Lüft...More
    Der Motor läuft hervorragend. Die Einstellung des Vergasers ist allerdings extrem feinfühlig. Die O-Ringe für den Antrieb der Wasserpumpe und des Lüfters sollte man durch etwas Anderes ersetzen, da sie sehr schnell altern und reißen. Leider fehlt ein E-Starter. Damit wäre der optisch sehr ansprechende Motor beispielsweise perfekt für ein offenes Modellschiff oder einen Oldtimer geeignet.
