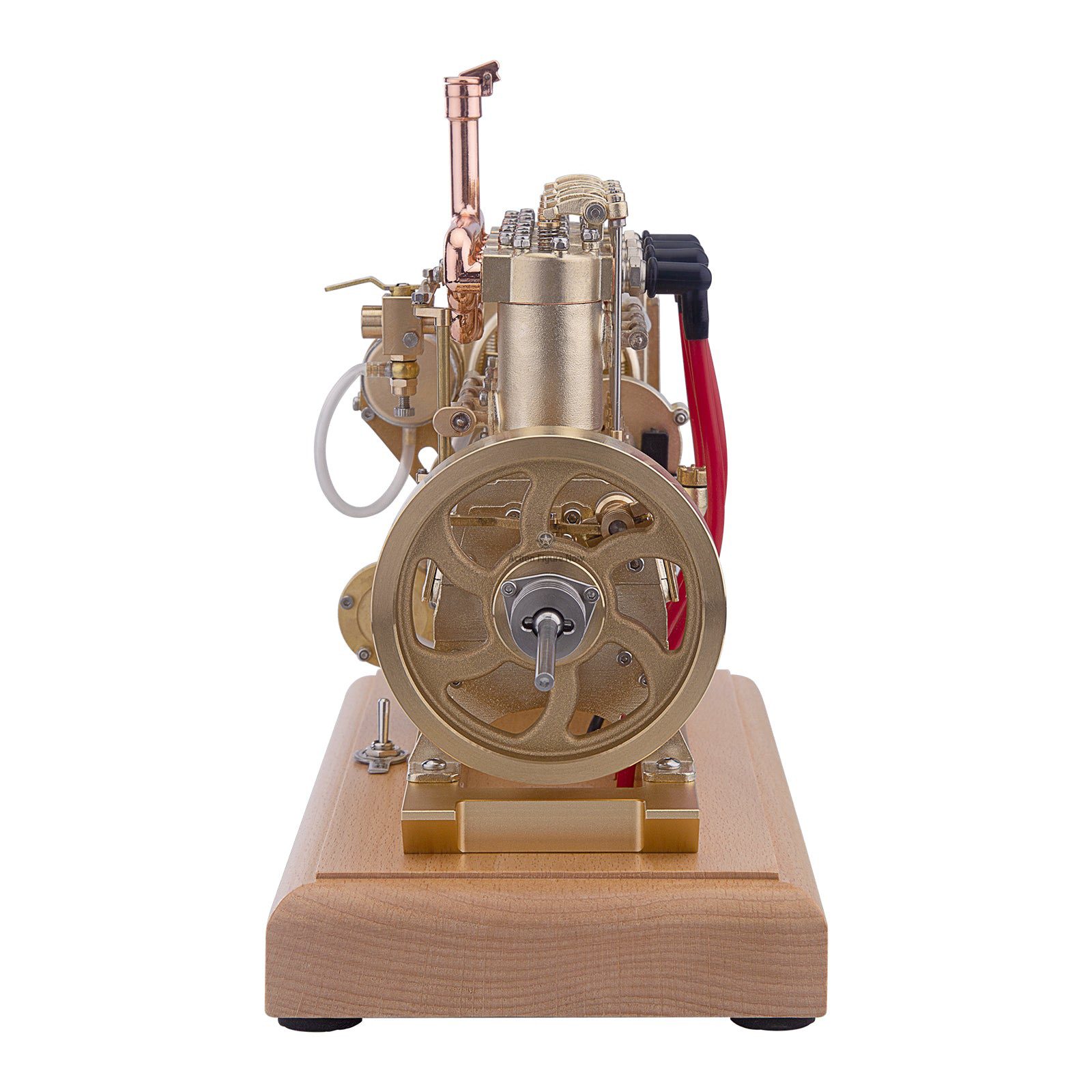

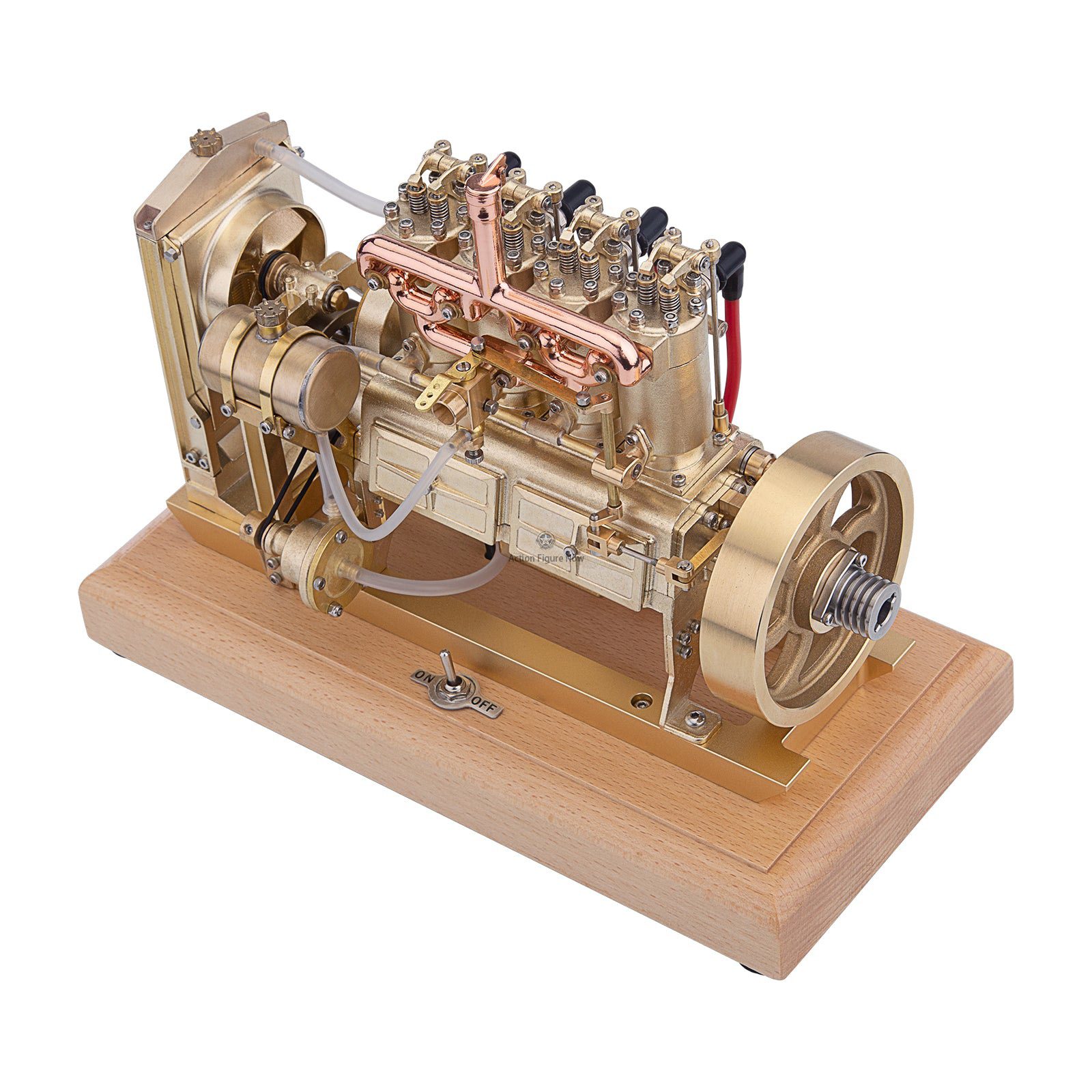

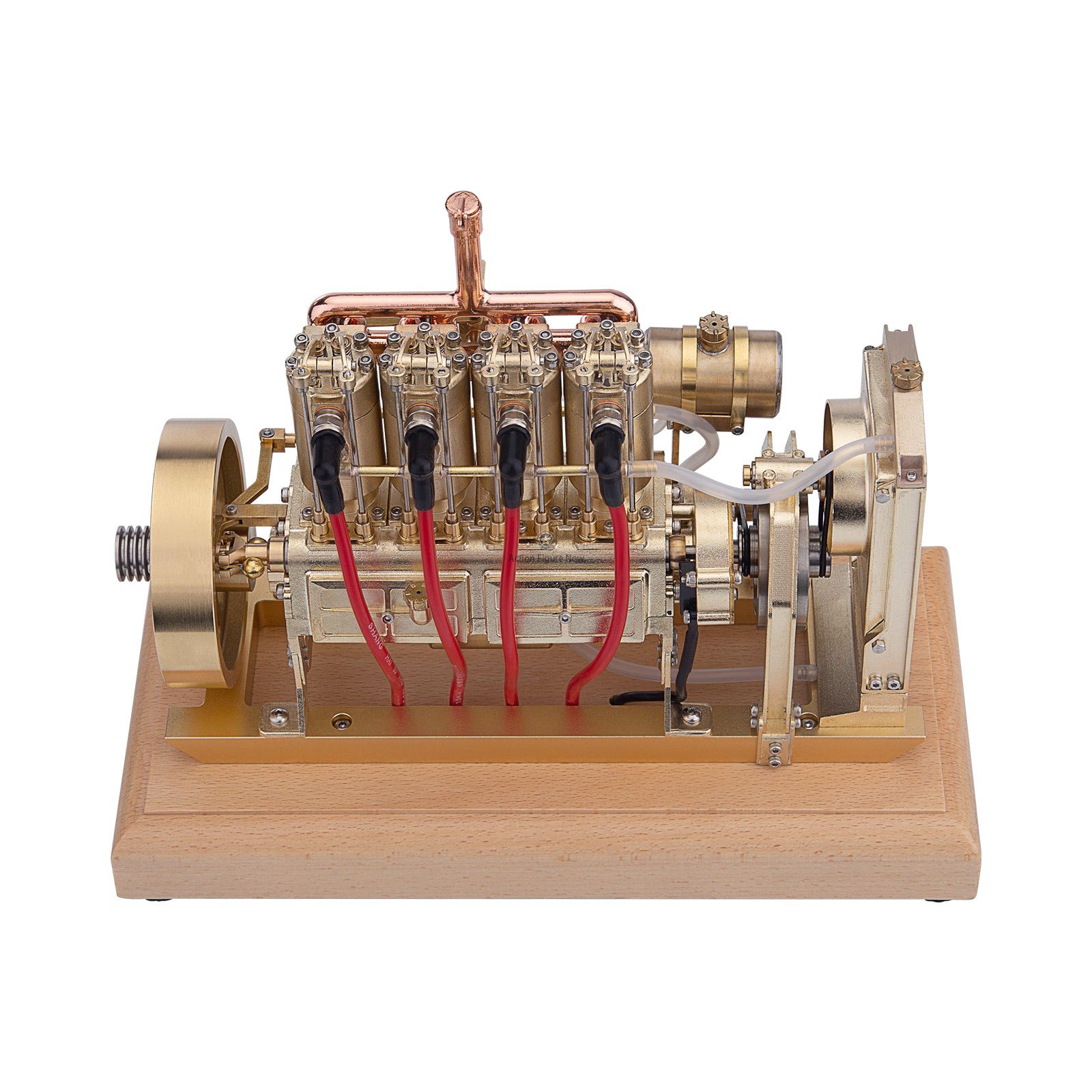

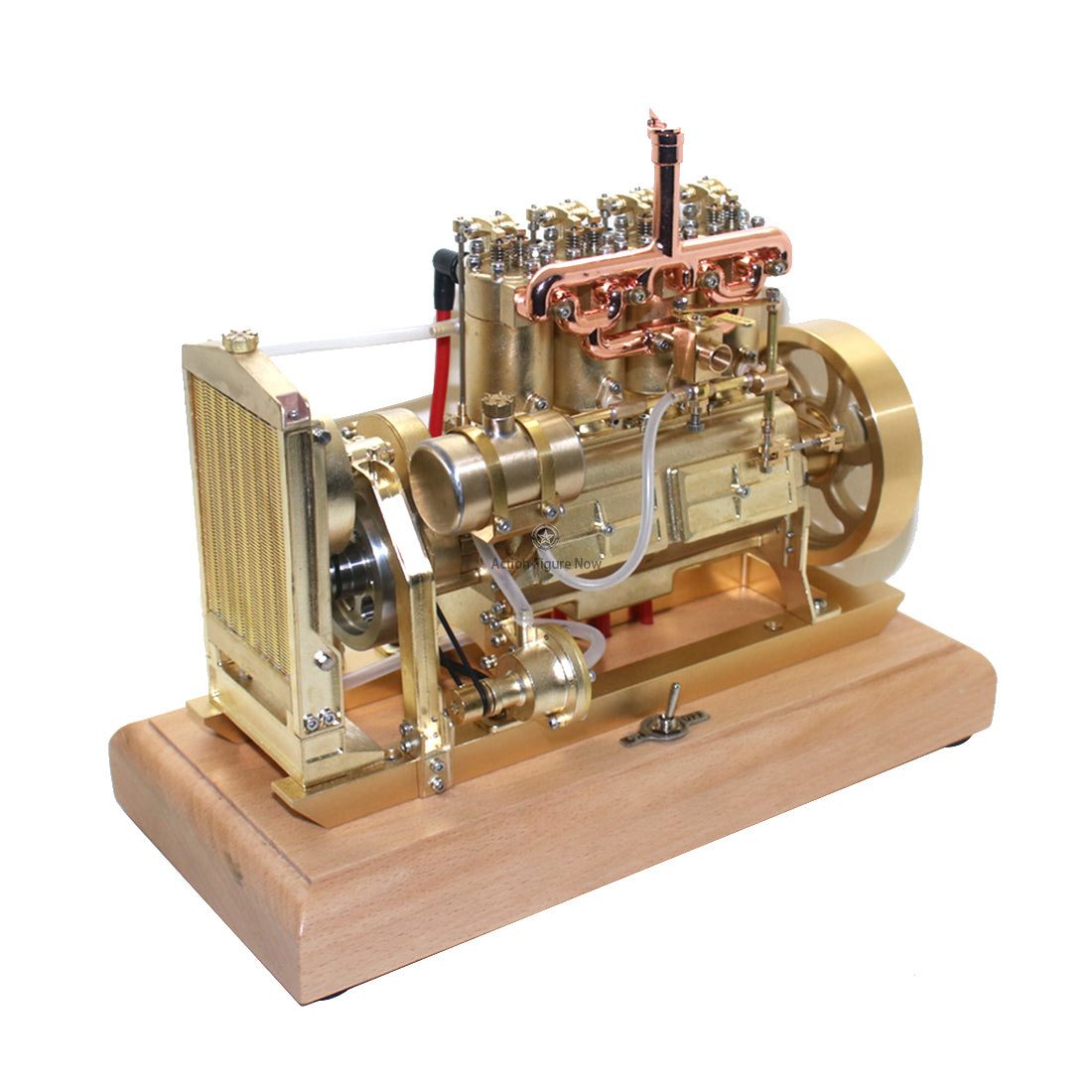

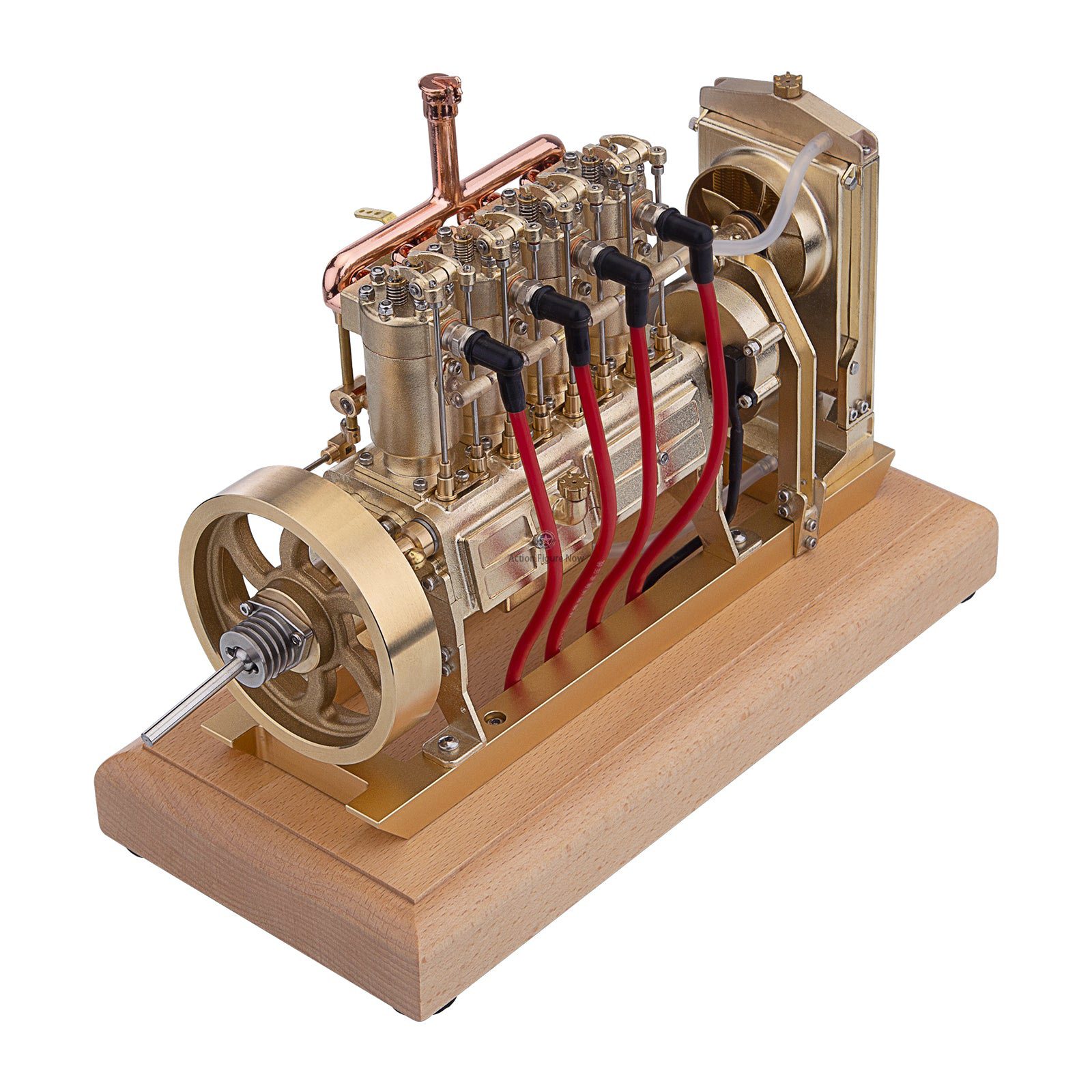

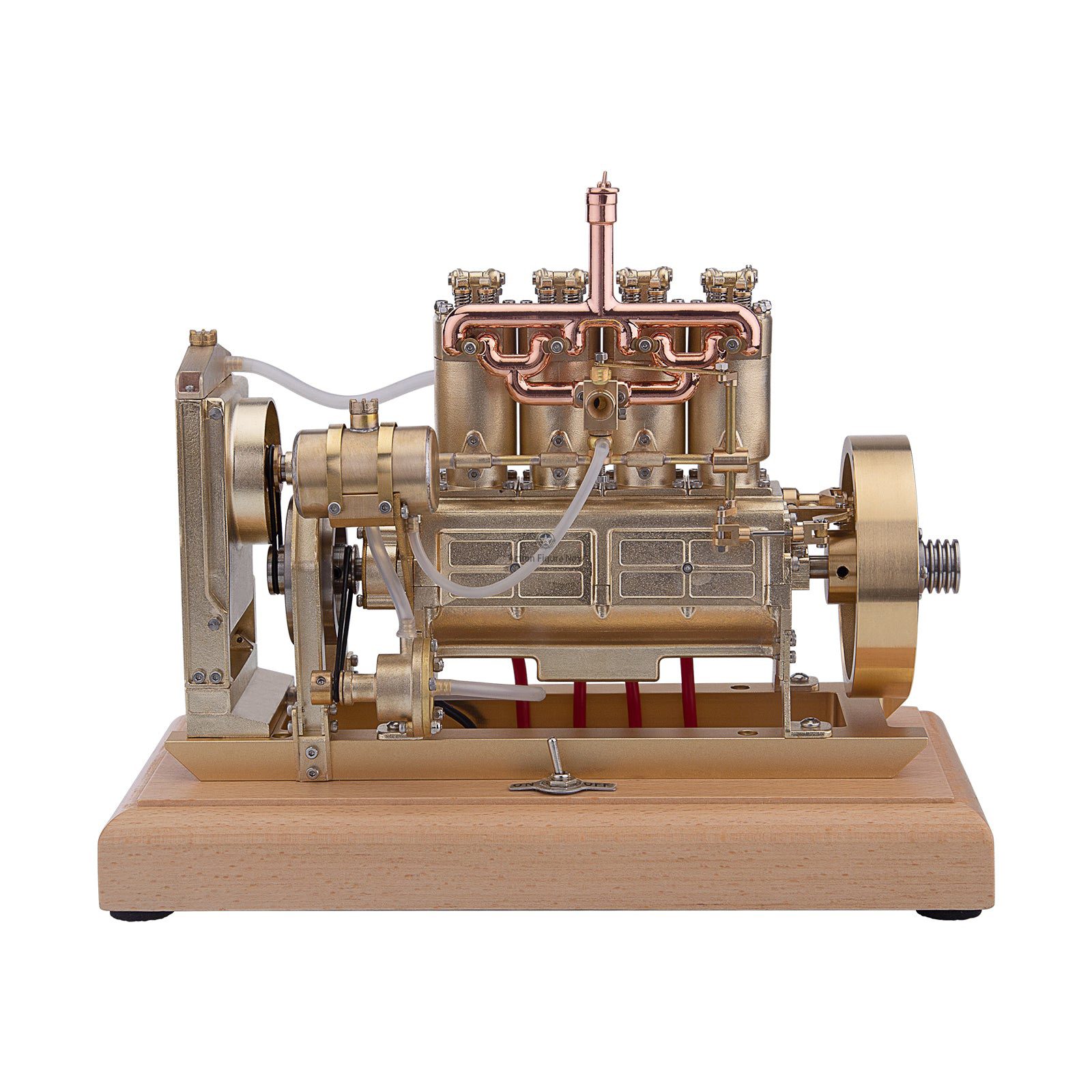

H75 12cc 4-Cylinder Vertical OHV Gasoline Engine with Mechanical Governor and Water-Cooled System for Tractor Model
SKU
$1,274.99
- 🚚 Free Shipping: Available on all products.
- 💸 Discounts: 3% off for 3 items, 5% off for 5 items.
Holt H75 12cc Vertical 4-cylinder OHV Gas Engine Internal Combustion Engine Tractor Engine Model
Features:

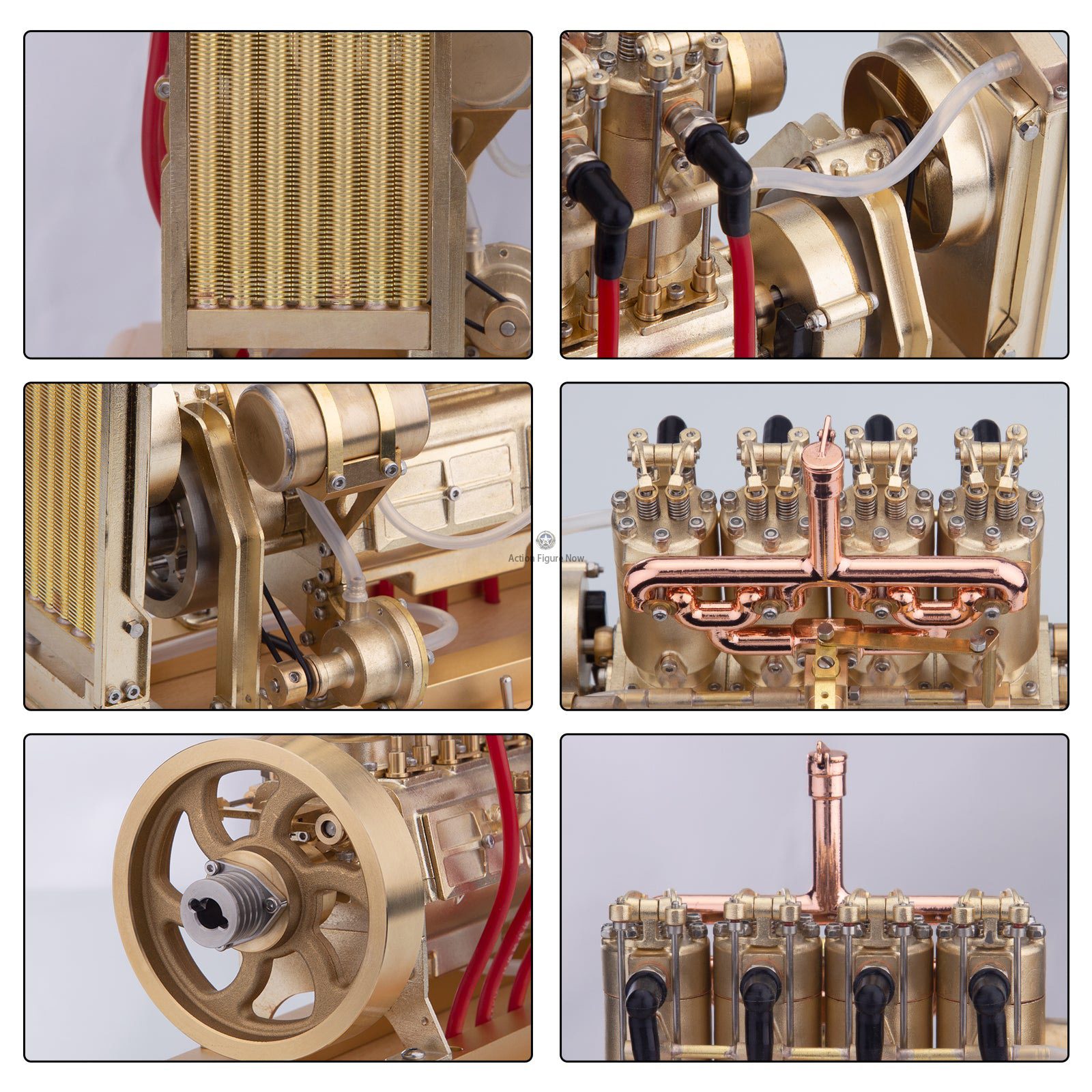

– Vintage Engine: Vertical four-cylinder gasoline engine with vintage design and mechanically limited set speed.
– Water Circulation Cooling System: Heat sink, water pump, and fan for engine cooling.
– Ignition System: 4.5V power supply (requires 3 AA batteries, not included).
– Mechanical Handicraft: Brass and stainless steel construction on a wooden base.
– Ready to Run: Operation begins immediately after refueling.
Engine Start-Up Steps:
1. Connect wiring, fuel tank oil pipe, and 3 AA batteries (4.5V) on the wooden base.
2. Fill the fuel tank with 95 gasoline. Rotate the flywheel clockwise on the engine’s power switch surface multiple times to distribute fuel and remove air from fuel lines.
3. Activate the power switch and turn the flywheel clockwise on the power switch surface to start the engine.
Warm Tips:
1. Continuously fill the water tank after engine start to fill the cylinder and maintain water circulation.
2. Adjust the carburetor oil needle if the ignition device and cylinder compression are normal but the engine fails to start.
3. Loosen the main oil needle on the carburetor by 1/4 turn after tightening, optimizing the gasoline-air mixture ratio for normal operation.
4. Turn the power switch off when the machine stops running.
Gift Idea:
Exceptional toy for mechanical and model enthusiasts, perfect as a collection or personalized gift for birthdays and Christmas.
Specifications:
– Material: Brass + Stainless Steel + Bamboo
– Engine Size: 230 x 100 x 180mm
– Wooden Base Size: 250 x 120 x 30mm
– Displacement: 12CC
– Bore: 13mm
– Stroke: 20mm
– Igniter Power Supply Voltage: 4.5 V (via 3 AA batteries)
– Starting Method: External force (electric drill) or manual
– Suitable Age: 14 years and above

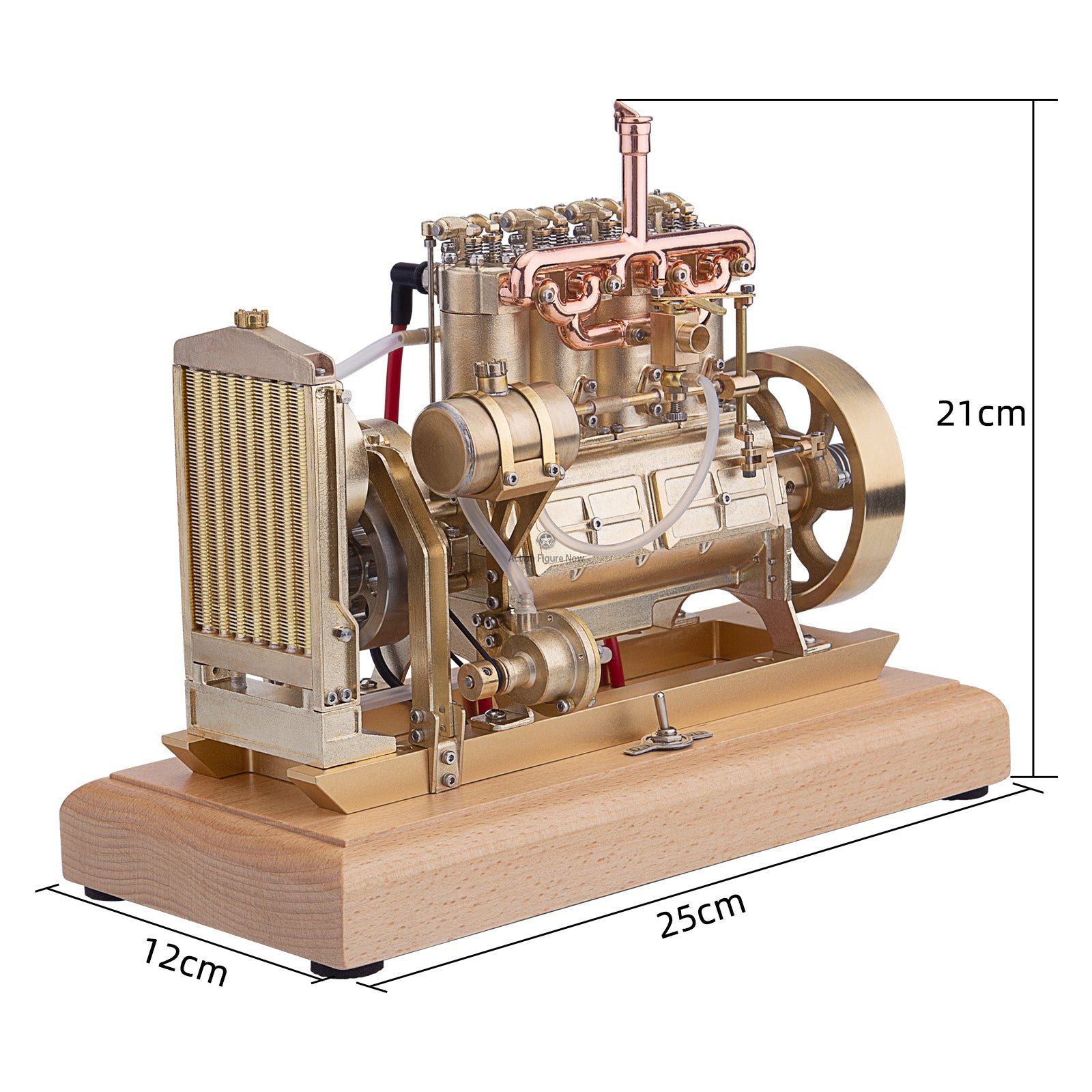

– Product Dimensions: 25 x 12 x 21cm
– Product Weight: 3500g
– Package Dimensions: 30 x 30 x 20cm
– Package Weight: 3800g

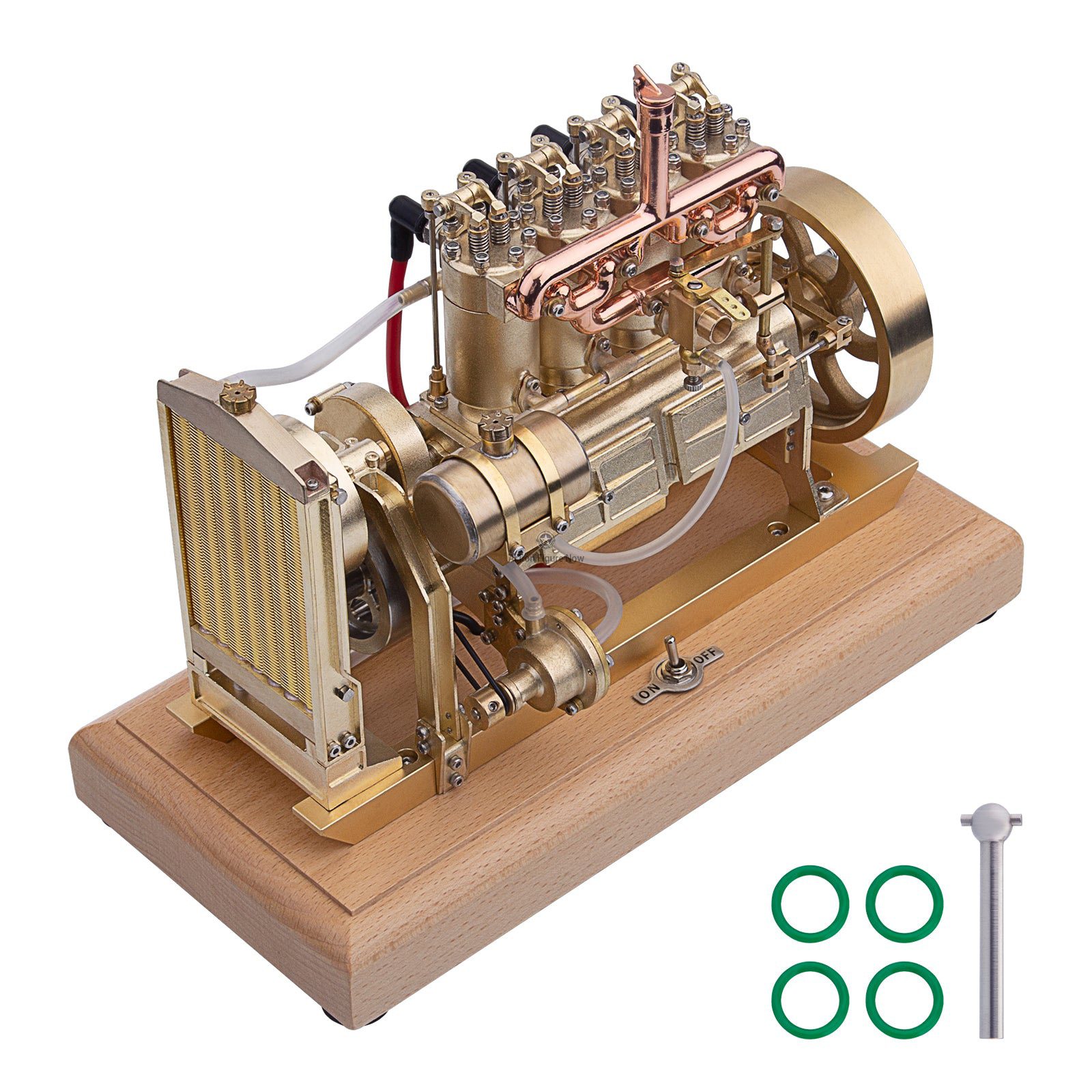

Package Contents:
– 1 x Engine
– 2 x Spare O-ring
– 1 x Start Coupling Shaft
– 1 x Instruction
