SKU ENGINE-0dGHWP

(2 customer reviews)

$288.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

Horizontal Water-cooled Gasoline Combustion Engine Hit and Miss Complete Engine with Hand Starter

Features:

  • . Horizontal gasoline model engine with water cooling ancient structure.
  • . Unique engine cylinder head design with valve mechanism on the left side.
  • . A 90 degree helical gear is used.
  • . Flywheel on the left with a speed limiter connected to a large bevel in the middle.
  • . Unique shape with wooden base for easy placement and operation.
  • . A high-end metal craft internal combustion engine model with upgraded structure for easy operation.
  • . A great personality gift for model fans or friends.
  • . For Ages: 14+.

Engine startup steps:

1.

  • Check engine wiring, connect fuel tank pipe, and install AA batteries.

    • 2.

  • Fill the fuel tank with gasoline (95).

    • 3.

  • Turn counterclockwise by hand to introduce mixed gasoline into the cylinder.

    • 4.

  • Turn on the power switch and turn the flywheel counterclockwise to start the engine.

    • Precautions:

    1.

  • Adjust carburetor needle if the machine does not start normally.

    • 2.

  • Screw the carburetor screw and loosen 1/4 turn to start the flywheel.

    • Specifications:

    • . Color: As Shown
    • . Material: Brass + Stainless Steel + Wood
    • . Item: Horizontal Hit and Miss Complete Engine
    • . No.: M94
    • . Wooden Base: 180 x 66 x 50mm
    • . Displacement: 6CC
    • . Cylinder Diameter: 22mm
    • . Stroke: 20mm
    • . Revolutions: Approximately 1200rpm
    • . Power Supply: 3 x AA batteries (Not Included)
    • . Fuel: 95 Gasoline
    • . Product Size: 18 x 12.5 x 12.5cm
    • . Product Weight: 1610g
    • . Package Dimensions: 25 x 25 x 25cm
    • . Package Weight: 2200g
    • . Packing: Carton Box

    Package Content:

    • .1 x Model Engine
    • .1 x Hand Starter
    • .1 x Manual

    Customer Reviews (5.00)

    (2 customer reviews)

    2 reviews for Horizontal Liquid Cooled Hit and Miss Engine

    1. Tony
      September 18, 2020
      great well made product

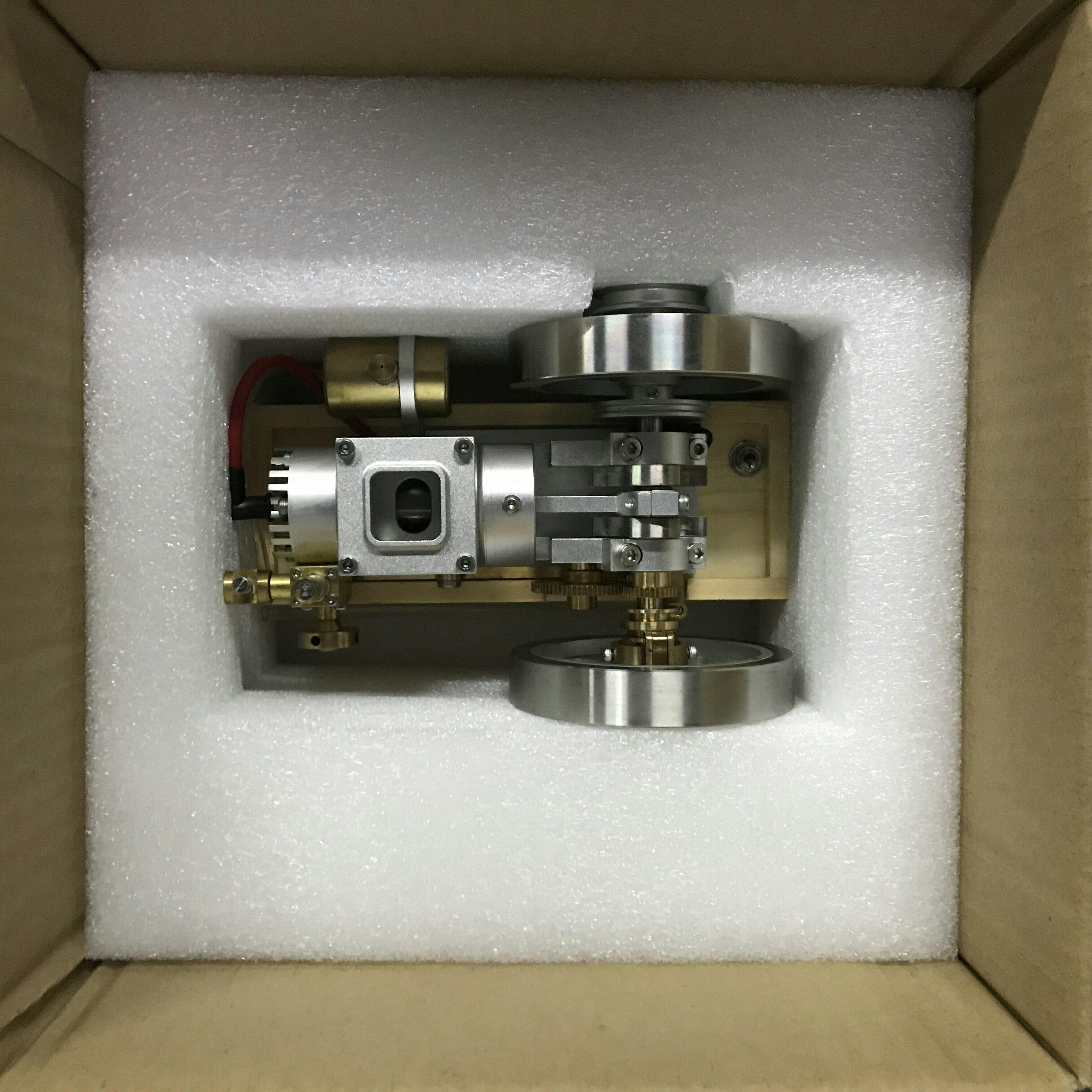

      Horizontal Liquid Cooled Hit and Miss Engine photo review
      tenset
      September 12, 2020
      Fast shipment, quality packaged. Had it in 7 days here in Oregon Ohio(USA)and it ran it ran perfectly, right out of the box!
