A steam engine is a heat engine that performs mechanical work using steam as its working fluid. The steam engine uses the force produced by steam pressure to push a piston back and forth inside a cylinder. This steam engine is with steam engine boiler. It is a single cylinder double acting oscillating steam engine suitable for marine use.

The miniature steam engine with small design, can be placed in the palm of your hand, like a treasure. Meaningful gift for friends, kids.

Features:

1. NICE APPEARANCE: The steam engine is small and novel, can be placed in the palm like a treasure. It is an excellent handicraft that is collected and appreciated.
2. EXTREMELY FINE CRAFTED: The steam engine model is made of brass and stainless steel steel, The boiler is brazed and comes with a miniature safety valve and a lubricating cup. The surface is polished to make it smooth.
3. FUEL: liquid alcohol. Under normal working conditions, 15mL of water can last for about 14 minutes.
4. EASY OPERATION: Add water into the boiler, then add liquid fuel alcohol. Ignite it, after heating for a few seconds, push the steam engine’s flywheel by hand to give it a boost.
5. PRIORITY GIFT OPTION FOR MANY APPLICATIONS: It is an amazing and fantastic product at this price. Its elegant gift package makes it spruce up and presentable. It has a wide range of application as, great gift for Kids’ science project, Physical/mechanical learning, teacher’s Demo props on the class, birthday gift for friends, families, parents, kids, etc.

Specifications:

• Item Name: M6 Mini Steam Engine with Boiler
• Material: Brass + Stainless Steel
• Size: 1206553 mm
• Weight: 225g
• Boiler capacity: 21 ML
• Material: bass,stainless steel
• Cylinder diameter 4.5 mm,stroke 8 mm
• Drive shaft 2 mm
• Package Dimensions: 10 x 6 x 5cm
• Package Weight: 250g
• Packing: Box

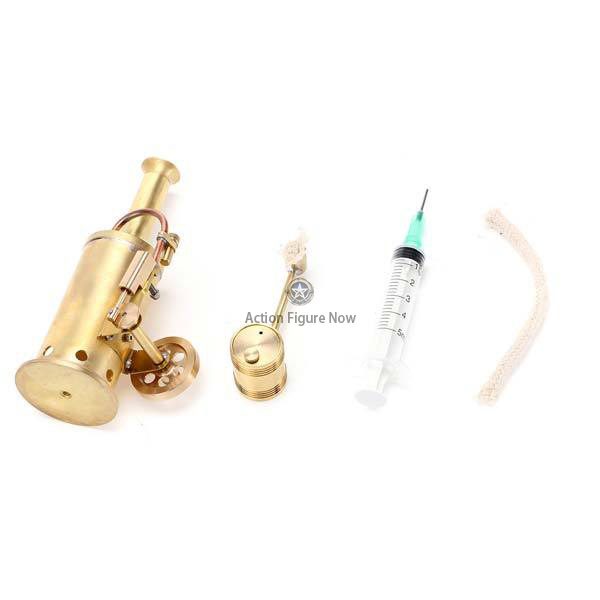

Package Including:

• 1 x M6 Mini Steam Engine with Boiler

Precautions:

1. add water can not fill the boiler.
2. after the boiler is heated and the engine is working, you can nottouch the model with your hands, pay attention to the high temperature!
3. When the engine stops working and the boiler is cooled, the fuel in.

Startup instructions:

1. Unscrew the safety valve above the boiler and add water with a syringe. Be careful not to exceed 3/2 of the boiler capacity. Make sure there is space on the top of the boiler to generate steam.
2. Unscrew the small oil cup on the steam pipe and add oil to the oil.

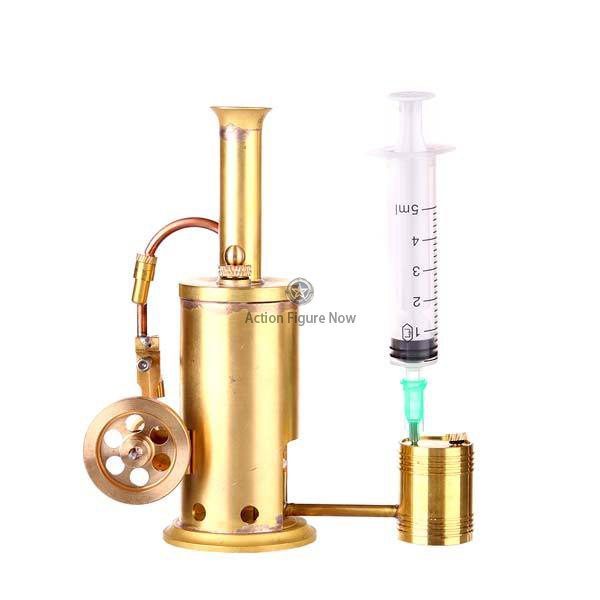

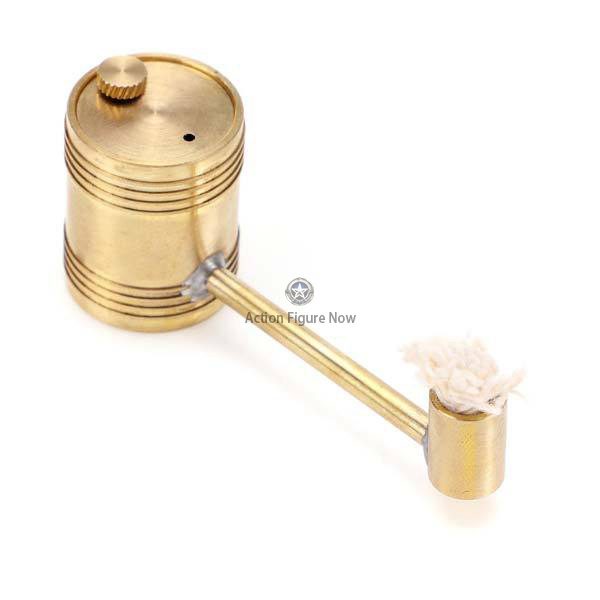

3. Add fuel to the alcohol lamp with a syringe. Then start to heat the boiler.
4. When heating the boiler to generate steam, turn the flywheel clockwise in the direction of the flywheel to start the engine.
