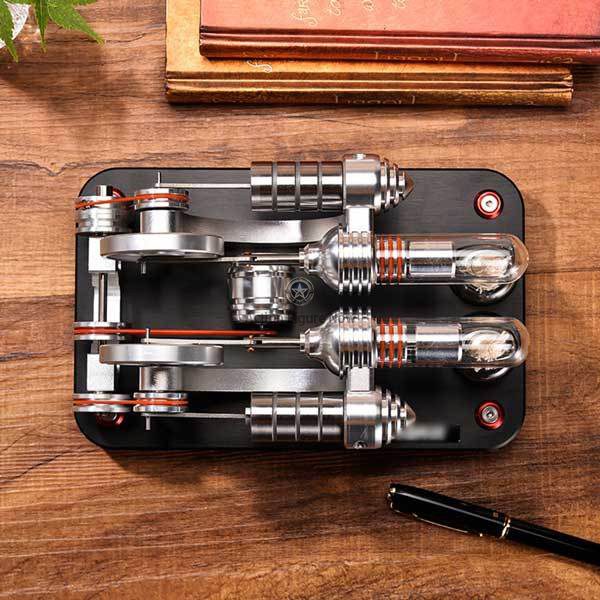

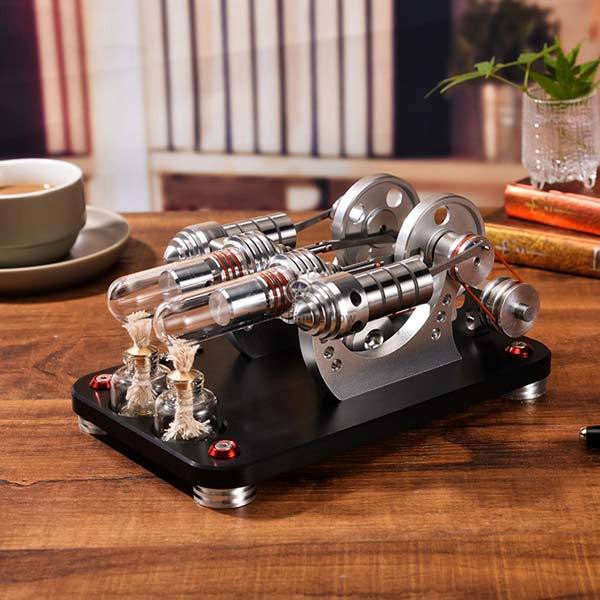

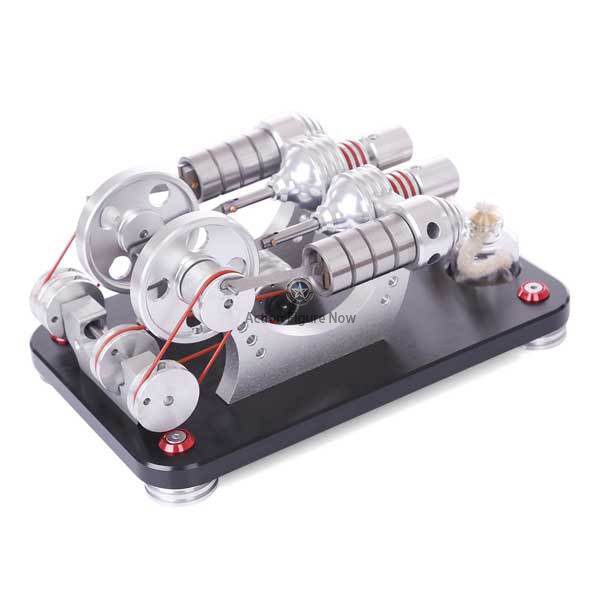

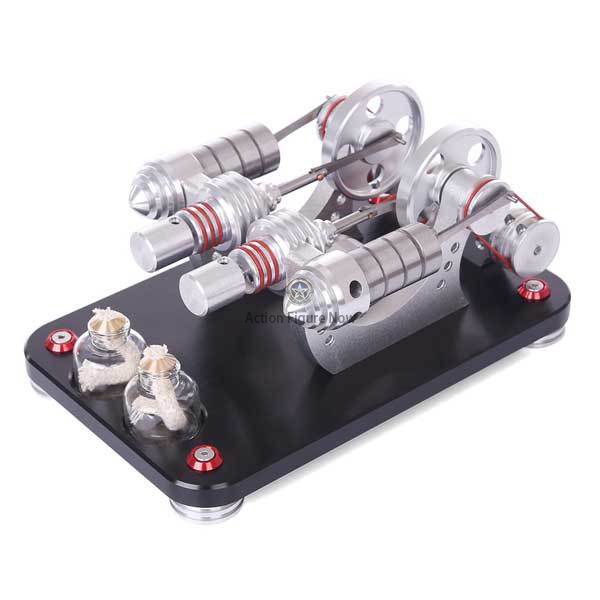

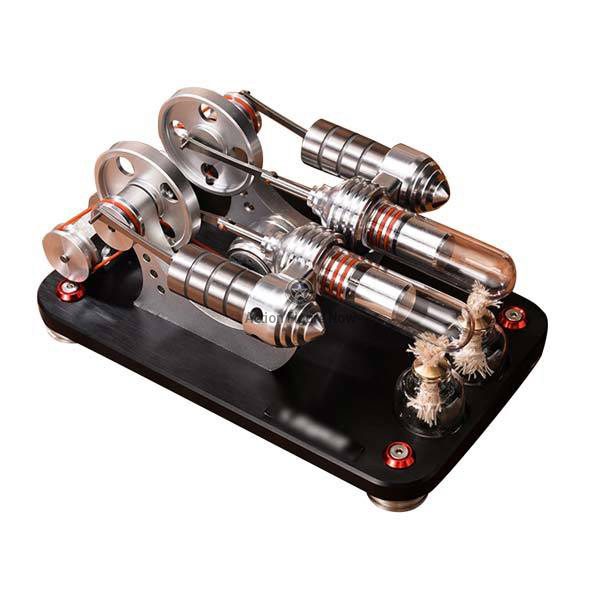

Stirling Engine Kit: Two-Cylinder Stirling Engine with Electrical Generator, Ideal for Model Builders and Educational Collections

Stirling Engine Kit: Two-Cylinder Model with Electricity Generator

Product Description

This educational and captivating Stirling engine model showcases the fascinating principles of thermodynamics.

Features:

– Two-Cylinder Power Generation: Produces voltage ranging from 4-9v, illuminating vibrant LED lights with varying colors.
– Exceptional Craftsmanship: Durable construction features quartz glass cylinders, 6061 aluminum alloy base and bracket, and high-quality SUJ2 power cylinder and piston.
– Protective Packaging: Precision packing ensures the safety of fragile glass tubes during transit.
– Wide Applications: Perfect for science projects, physical and mechanical learning demonstrations, as well as thoughtful gifts for various occasions.

Instructions:

– Ensure smooth rotation of the flywheel by hand.
– Fill the alcohol lamp to less than two-thirds capacity with 95% purity alcohol (anhydrous industrial alcohol preferred).
– Ignite the alcohol lamp and allow 20 seconds before engaging the flywheel.
– Keep away from combustible materials during operation.

Tips:

– Allow engine to cool naturally after use.
– Use only 95% alcohol. Avoid other liquids such as water, kerosene, gasoline, and liquor.
– Supervise operation for individuals under 14 years of age.

Specifications:

– Item Name: Two Cylinder Stirling Engine
– Material: Alloy Steel, Aluminium Alloy, Quartz Glass
– Model Size: 210 x 132 x 100mm
– Weight: 1650g
– Flywheel Diameter: 54mm
– Piston Diameter: 16mm
– Piston Stroke: 16mm
– Inner Diameter of Heating Pipe: 19mm
– Diameter of Belt Pulley: 24mm
– Packaging: Carton Box

Package Contents:

– 1 x Two Cylinder Stirling Engine
– 2 x Alcohol Burners
