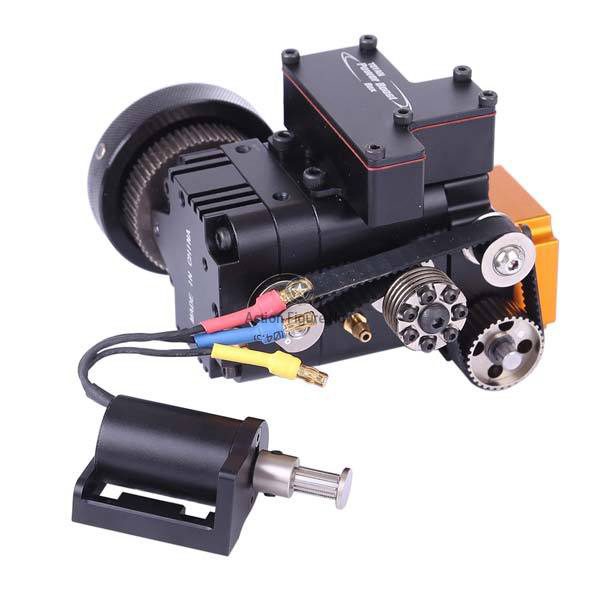

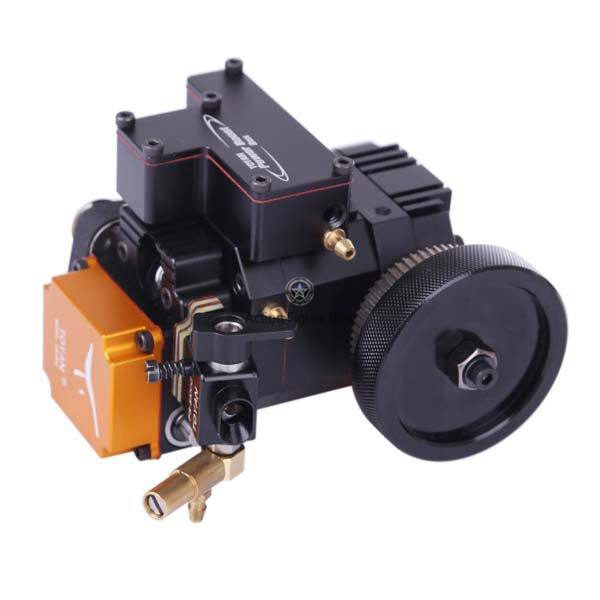

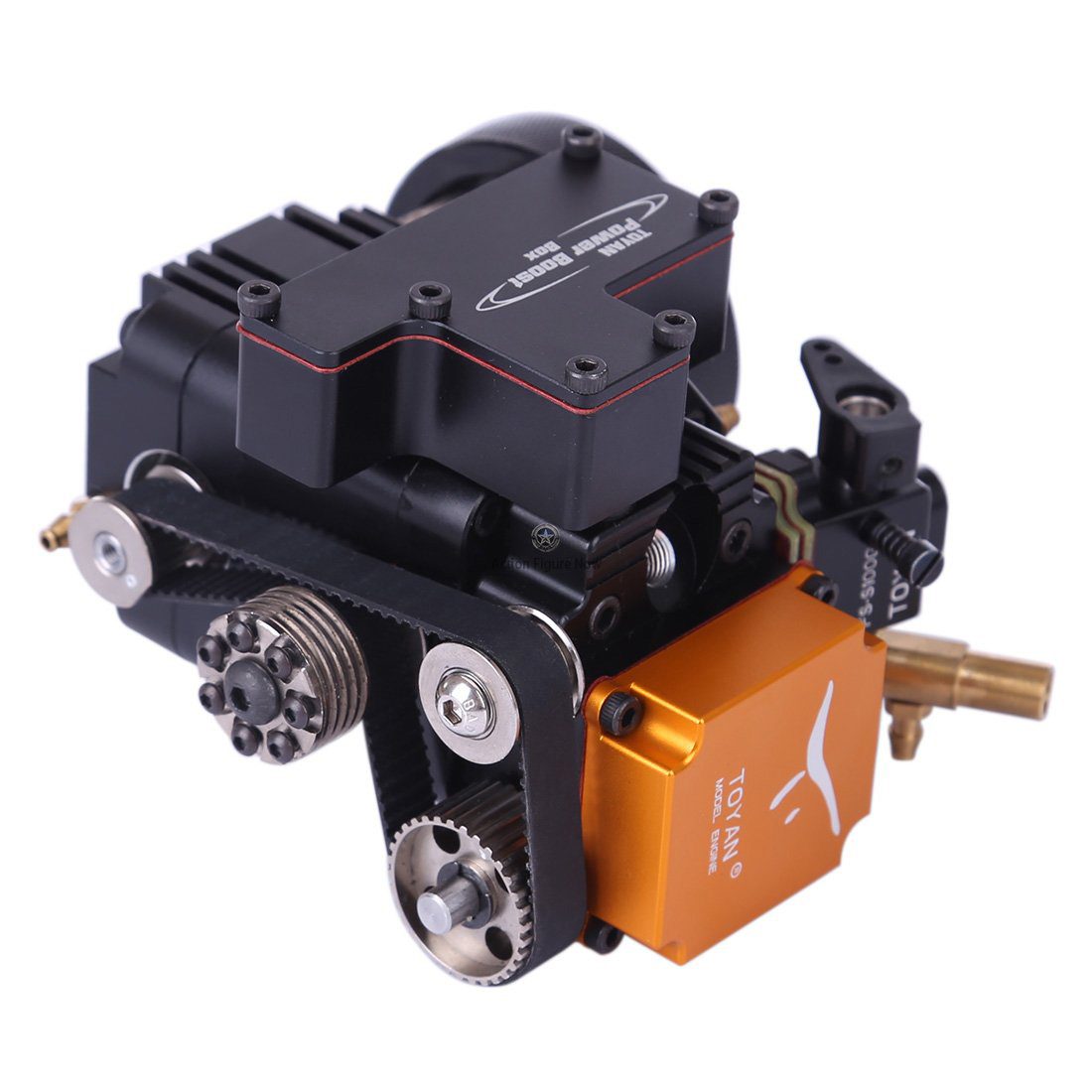

Toyan FS-S100G(w) Water-Cooled 4-Stroke RC Engine Four-Stroke Petrol Engine Kit for RC Car Boat Plane

A four-stroke engine completes four separate strokes while turning the crankshaft, using the Otto Cycle. It utilizes a spark plug for ignition and is found in cars, bikes, and trucks.

Wide Applications:

DIY applications on RC Car, Truck, Motorcycle, Boat, Plane, Marine, etc.

Features:

1. Powerful Performance: Rotate speed up to 13500 RPM/Mins.
2. Fuel: Petrol above No.92 mixed with 2T engine oil at a ratio of 1:25 or 1:30.
3. Accessories Needed: Spark plug, Start ESC Connector, Oil Tank, 30cm Oil Tube, CDI Kit.
4. Gift Option for: 1:10, 1:12, 1:14 scale models, classroom displays, and engine enthusiasts.

Descriptions:

• Engine Dimensions: 100.5 x 85.4 x 86.5mm
• Cylinder Bore: 17.0mm
• Piston Diameter: 16.6mm
• Displacement: 3.5cc
• Output Power: 0.5ps Horsepower
• Speed: 2500-13500rpm
• Net Weight: 395.5g
• Package Dimensions: 12 x 10 x 10cm
• Package Weight: 520g

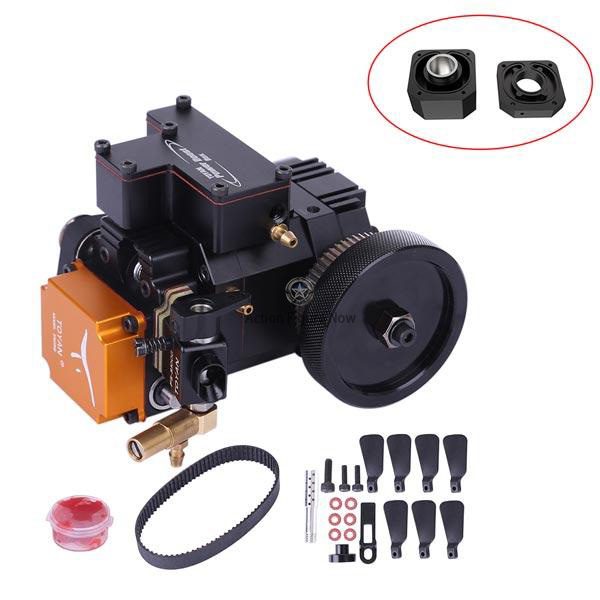

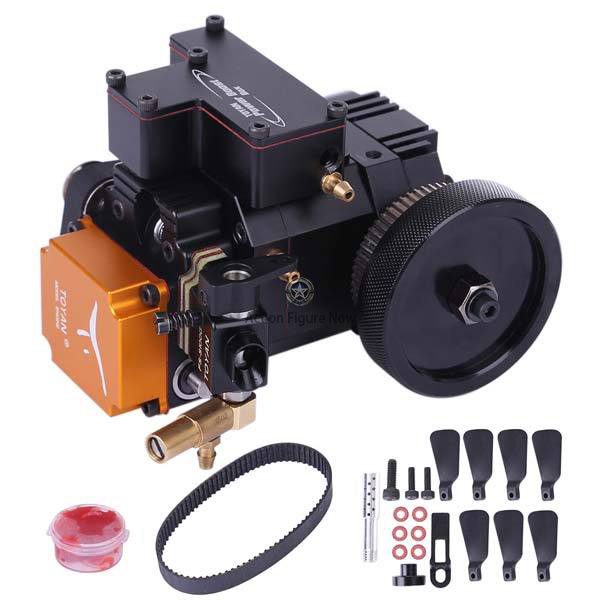

Packing List:

• 1 x Water Cooled Four Stroke Gasoline Engine
• 1 x Starting Motor
• 1 x Lubricating Grease

Operation Methods:

1. CDI Connection:
2. Power wire to sensor at engine bottom. Middle wire to tachometer (optional).
3. CDI only compatible with 7.4V battery.
4. Starter motor to 11.1V battery.
5. Press start button.

Tips:

• Avoid touching motor fan to prevent scratching.
• Do not touch cylinder to prevent burns.
