Description

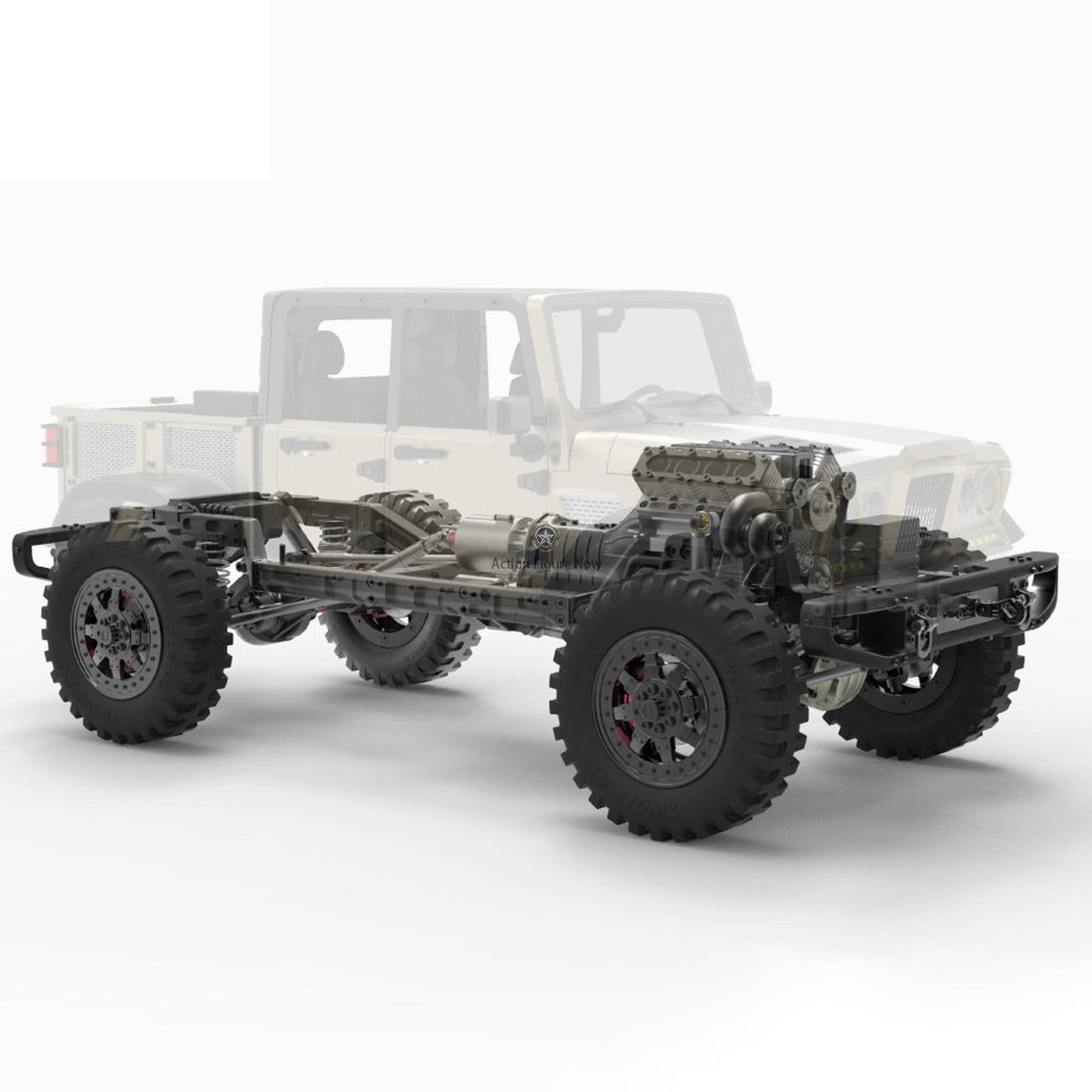

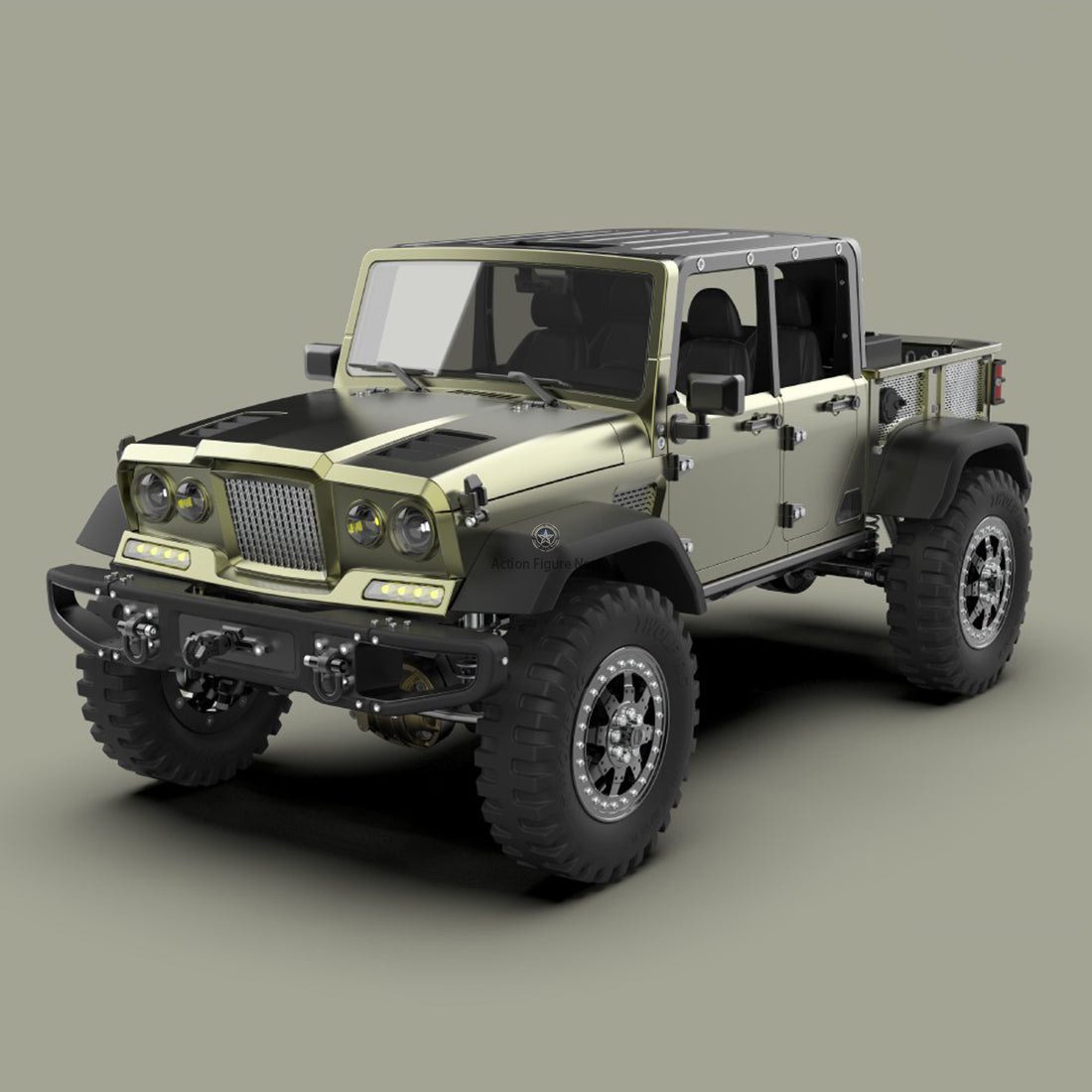

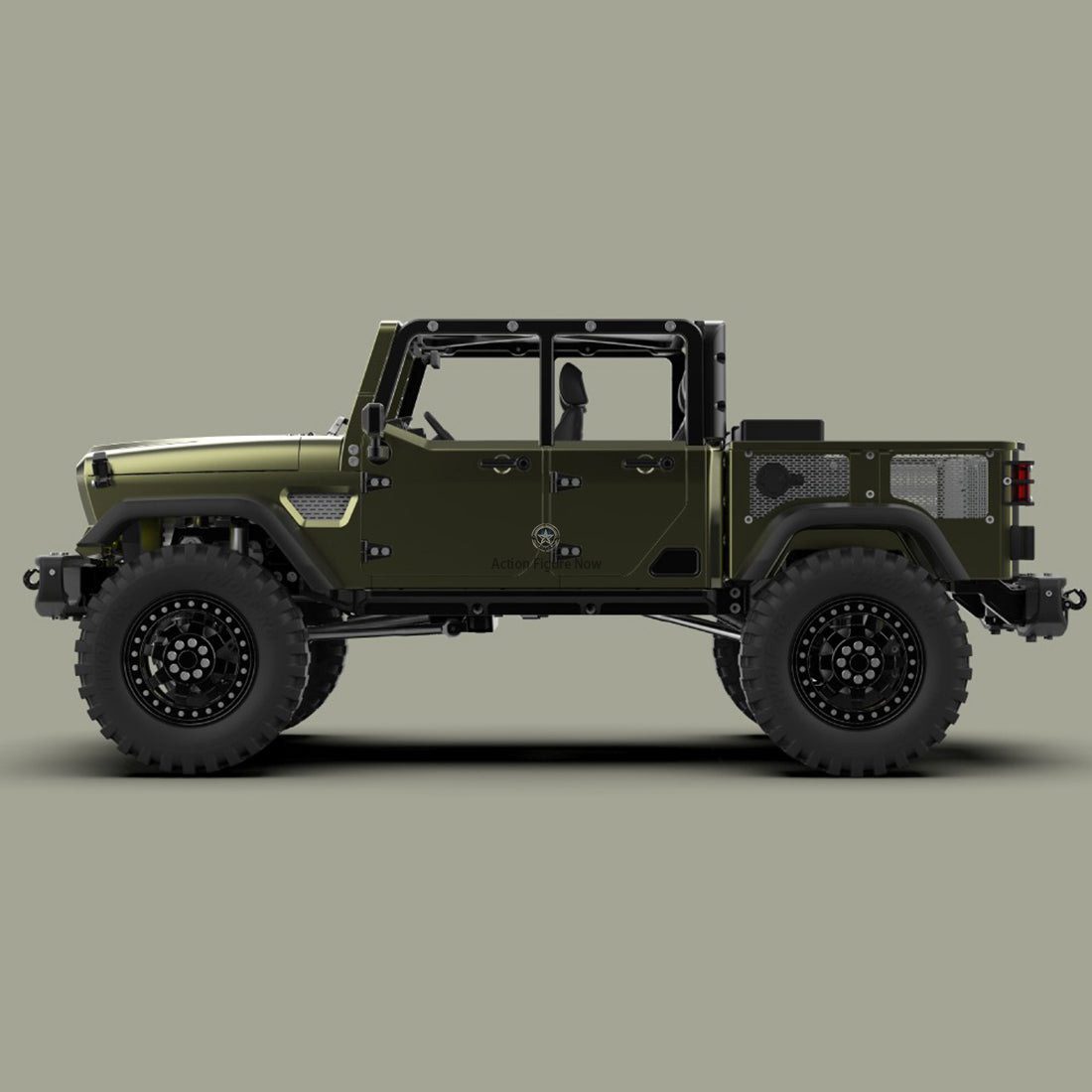

TWOLF TW-715 1:10 RC Off-road Vehicle Crawler 4WD Four-door Pickup Truck with V8 Engine (No Electronic Equipment) – KIT Version
Features:

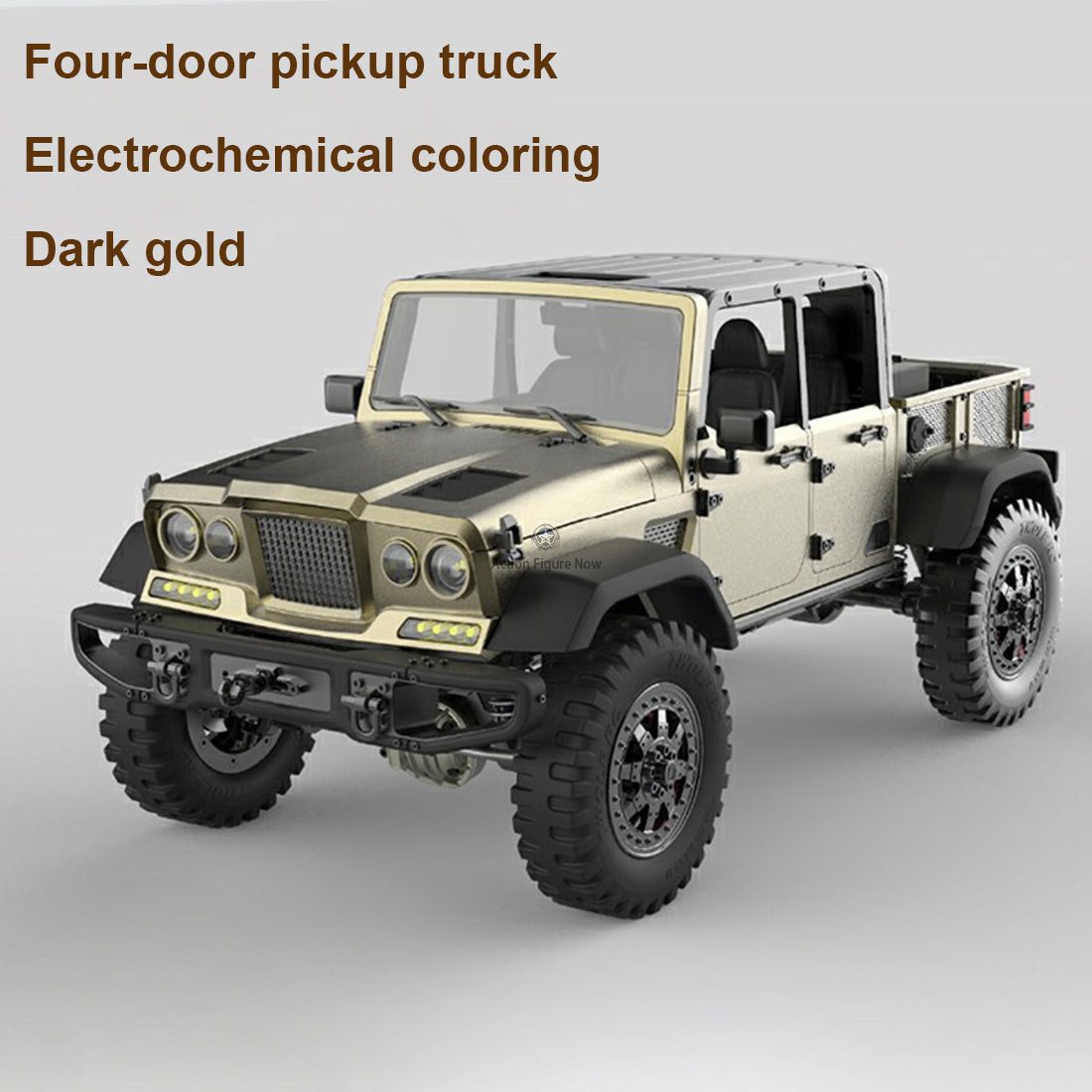

- Electrochemically colored four-door pickup truck

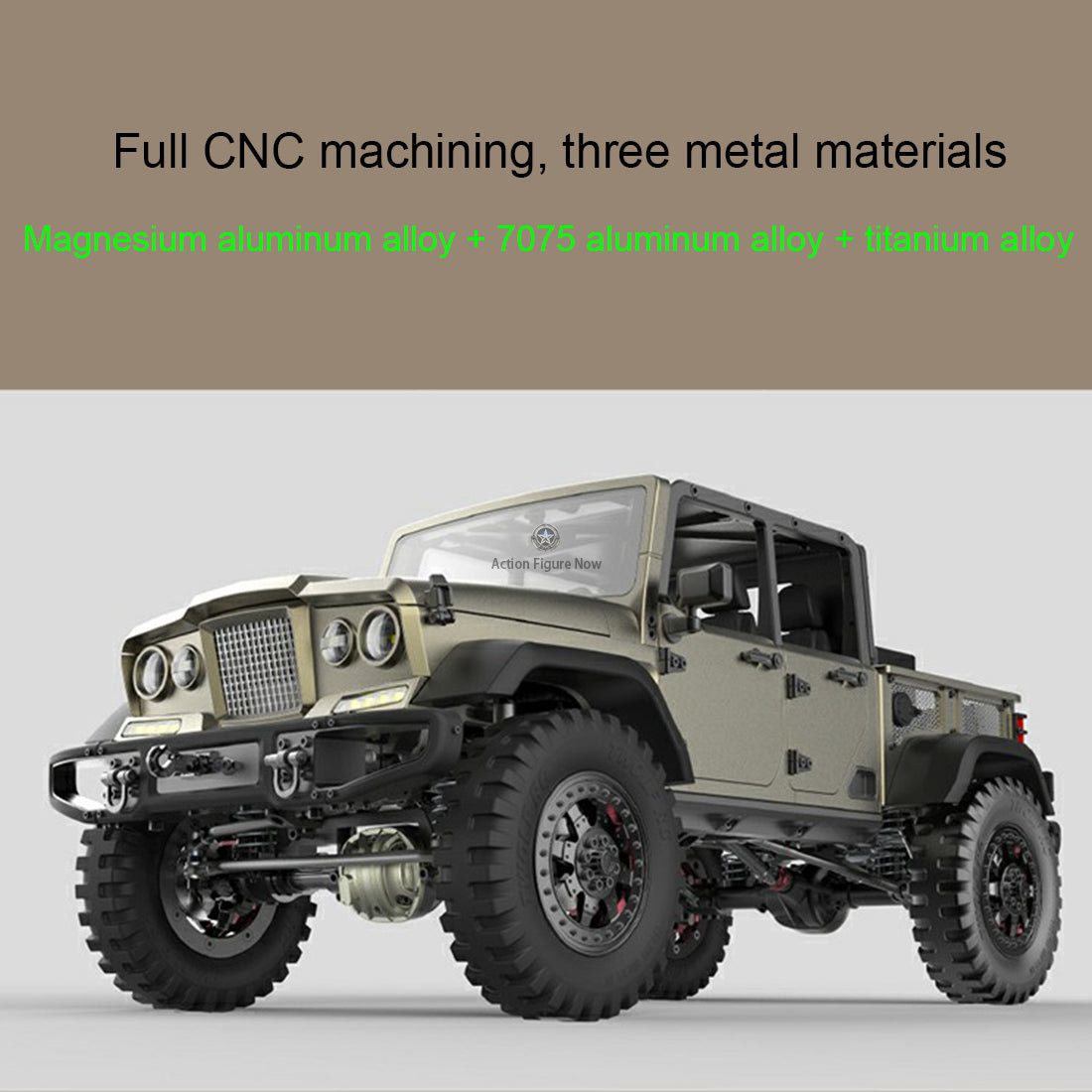

- All-metal CNC machining (magnesium aluminum alloy + 7075 aluminum alloy + titanium alloy)

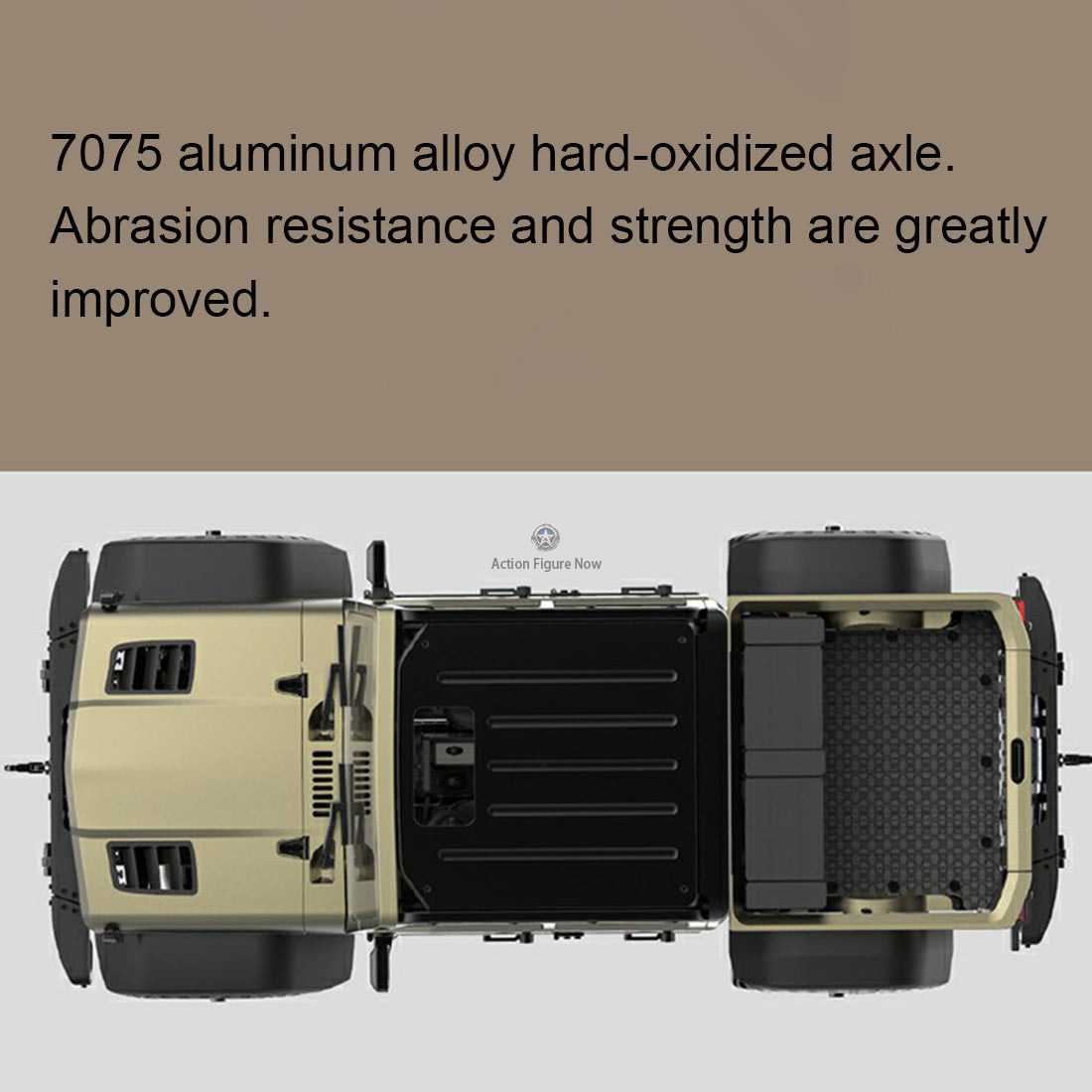

- Hard-oxidized 7075 aluminum alloy axles for improved wear resistance and strength

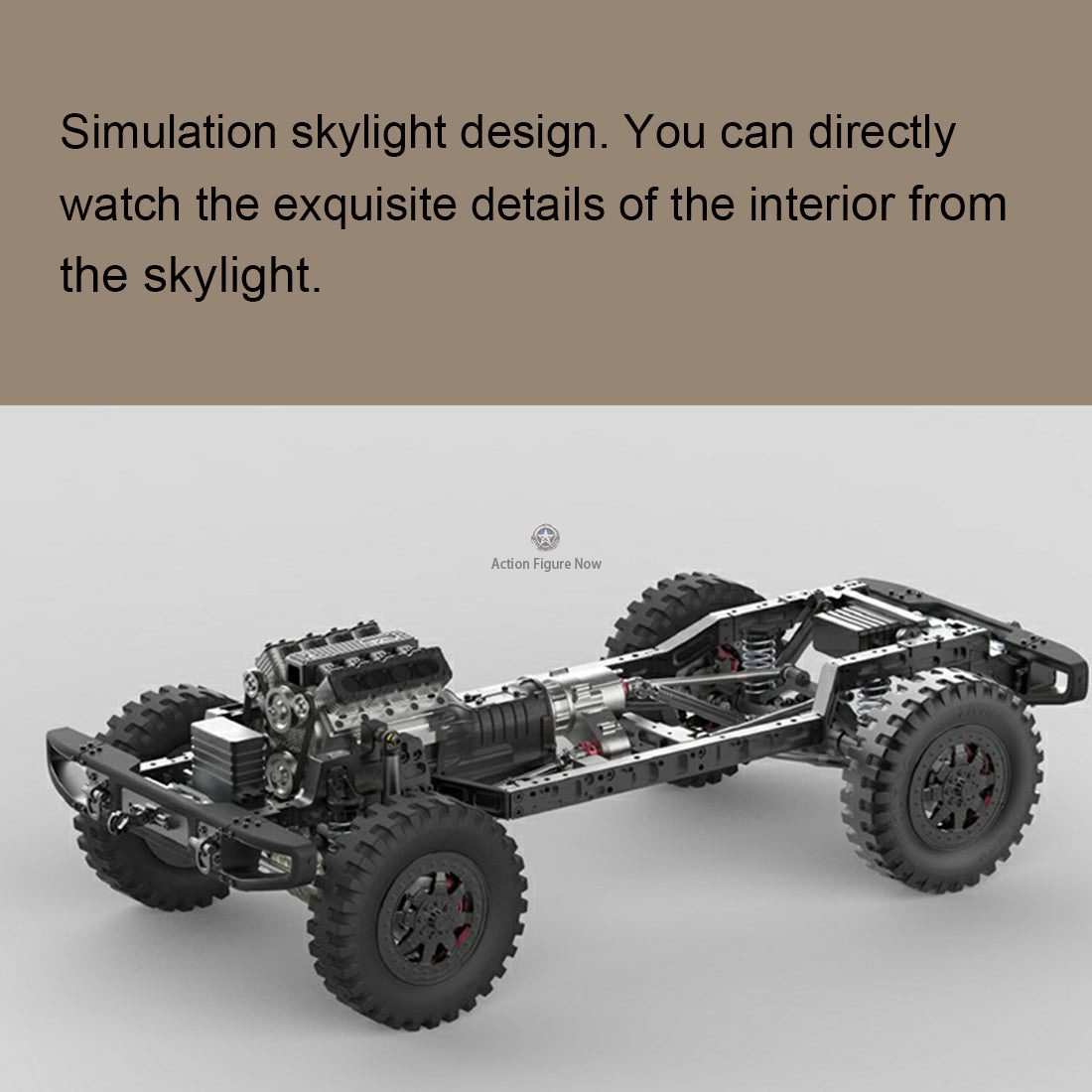

- Simulated skylight design for interior viewing

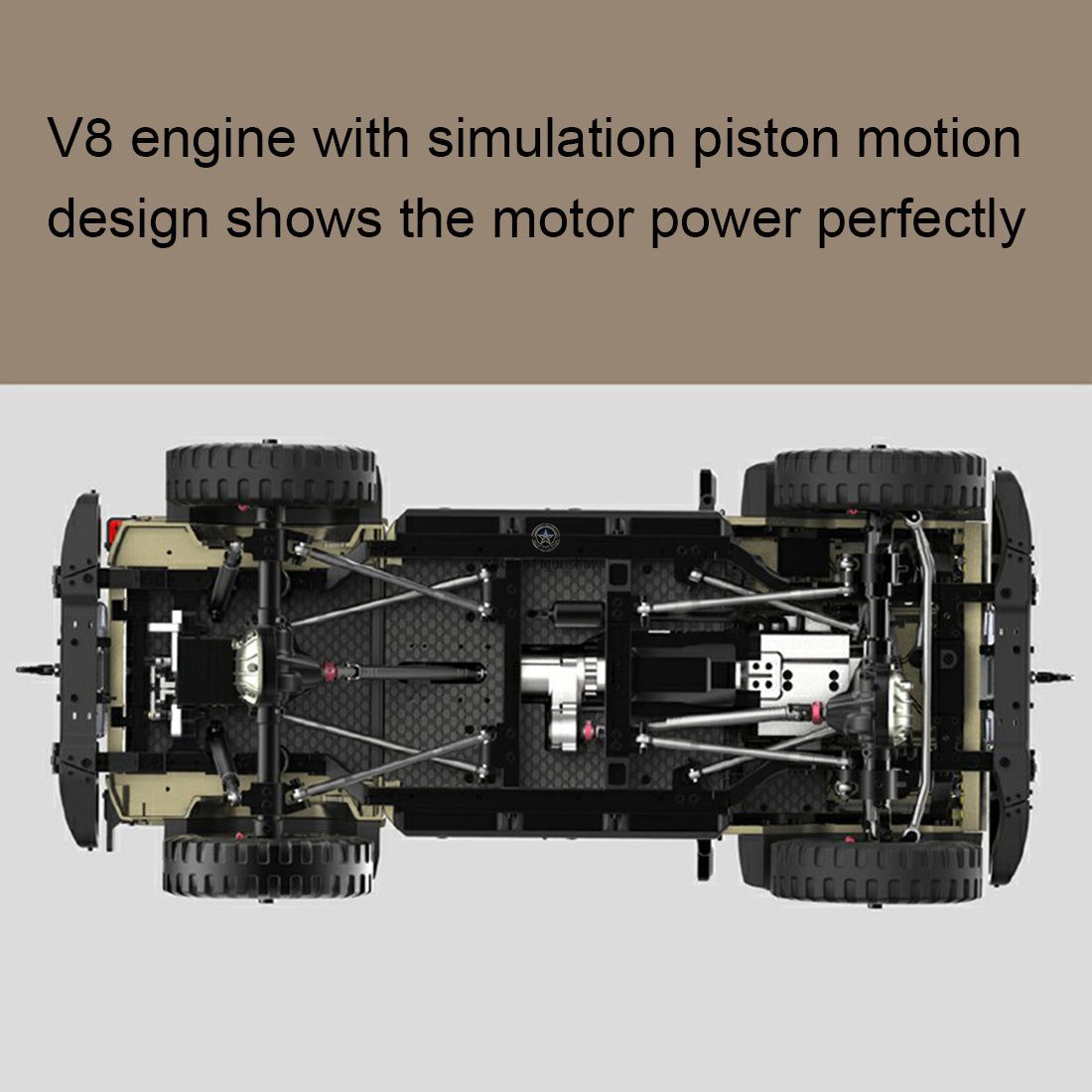

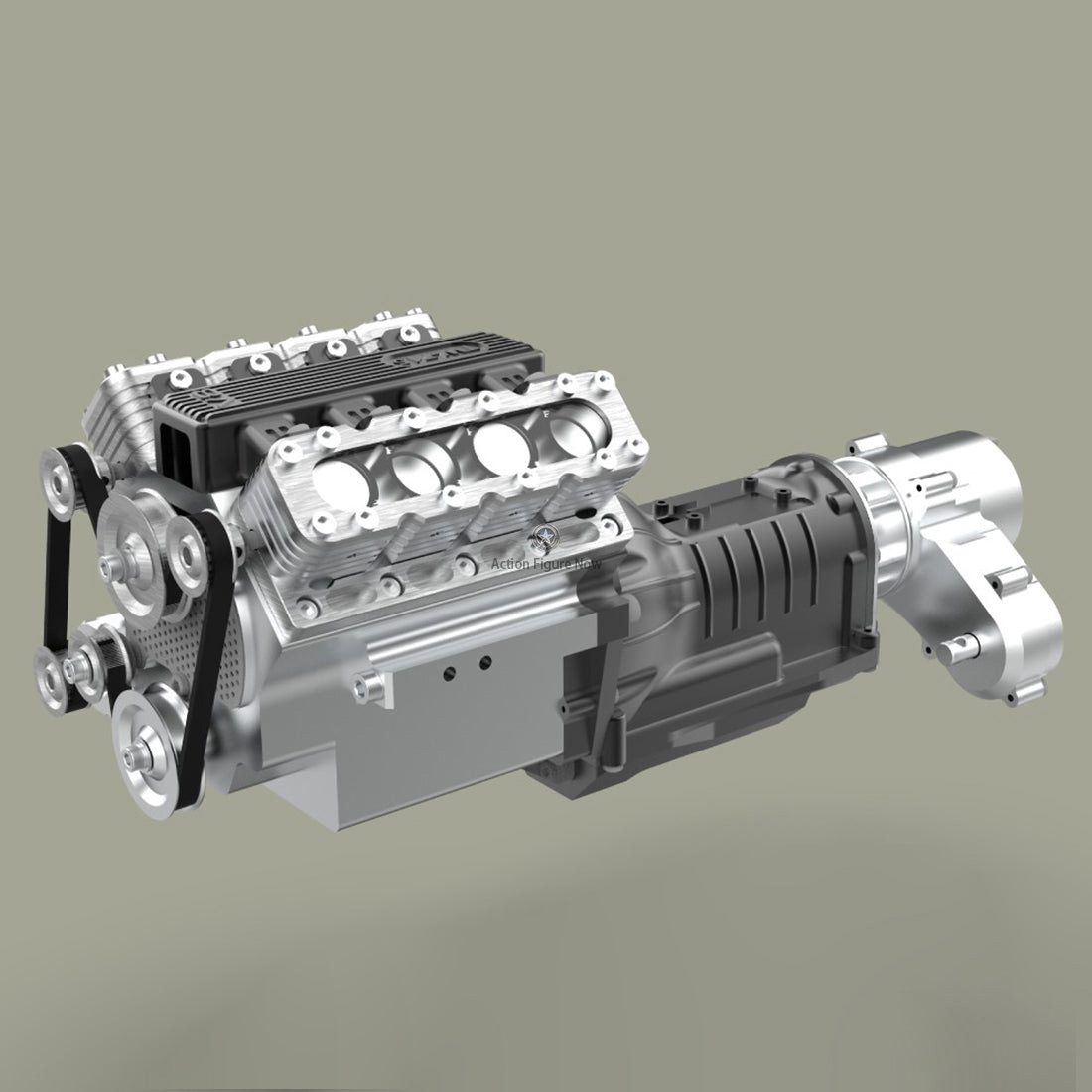

- V8 engine with piston motion design showcasing motor power
- All-titanium alloy tie rod for load-bearing weight of up to 100 kg

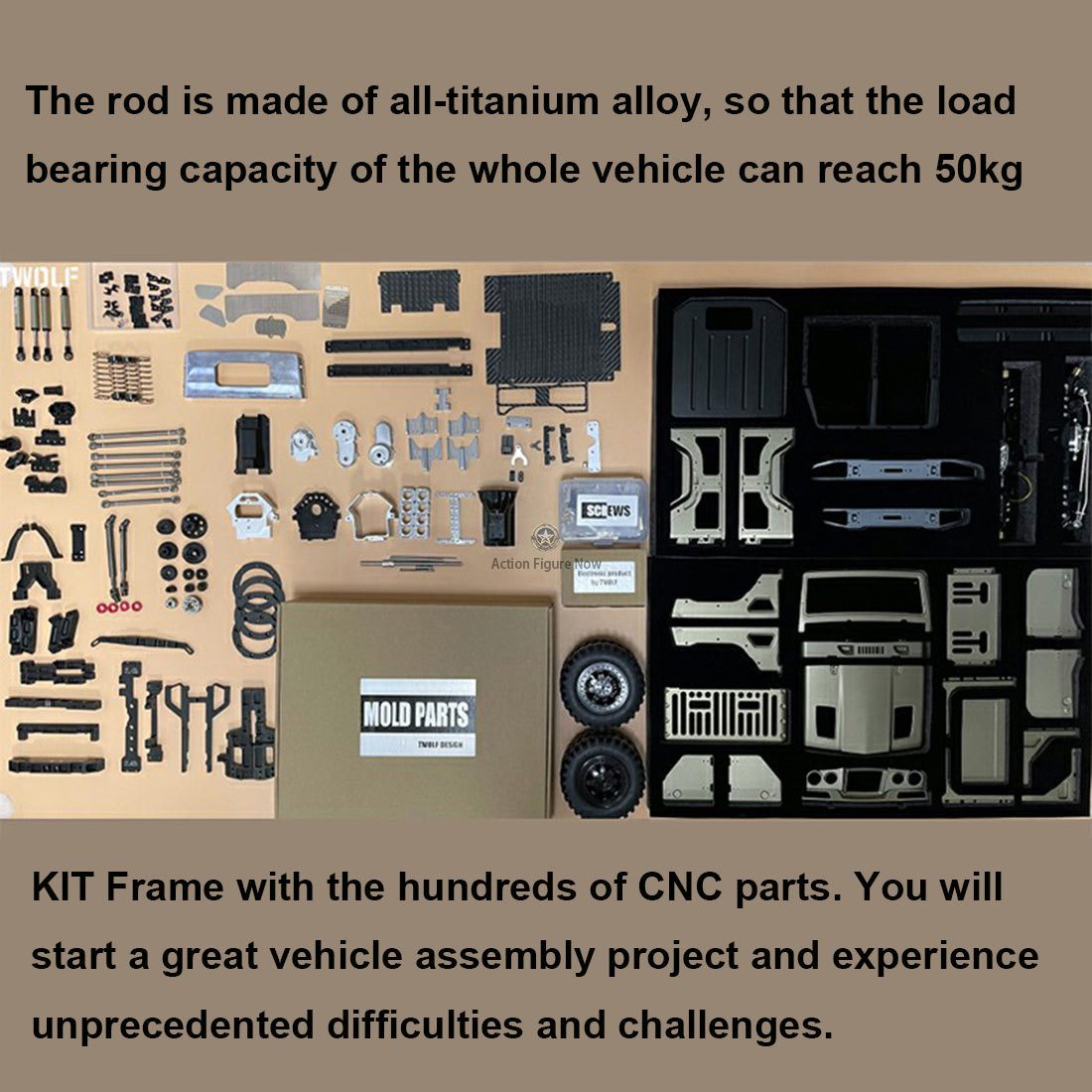

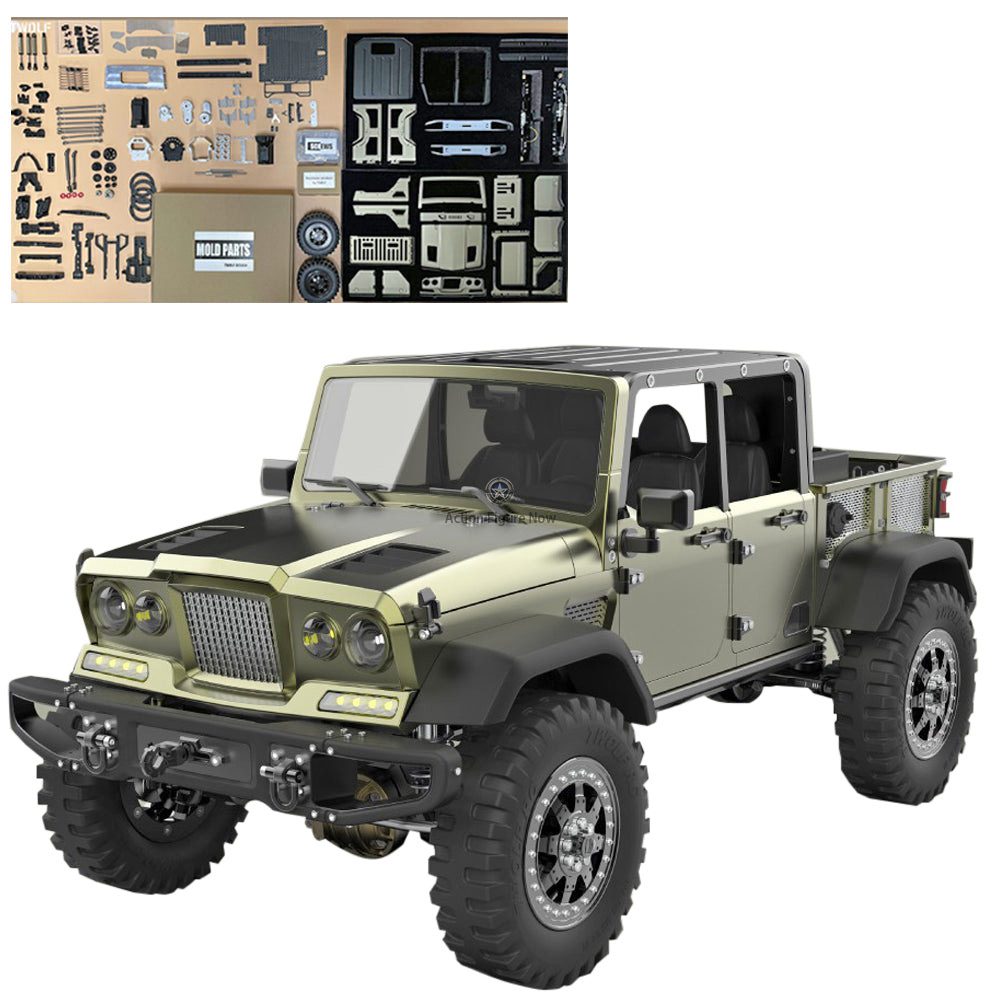

- KIT version with hundreds of CNC parts for an assembly project
- Versatile functions for off-road and climbing modes
- Suitable for both play and collection
- Does not include electronic equipment
Specifications:
- Color: As Shown
- Material: Alloy
- Brand: TWOLF
- Scale: 1:10
- Assembly Type: KIT (excluding electronic equipment)
- Weight: 5.85 kg (excluding OP and electronic equipment lamp set)
- Wheelbase: 332 mm
- Ground Clearance: 75 mm (minimum distance)
- Approach Angle: 49.5°
- Departure Angle: 35°
- Wheel: 2.2 inches
- Tires: 115 mm diameter, 35 mm thickness
- Adapt to Road Surface: Stone road, hard soil road, paved road
- Gearbox: 1 N 2 (low gear, high gear, neutral gear)
- Broken Transmission: Front axle broken transmission (rear axle power output)
- Differential Speed: Synchronous differential speed of front and rear axles
- Drive Mode: Electric drive
- Four-wheel Drive Mode: Time-sharing four-wheel drive
- Chassis Structure: Straight bridge 8 links

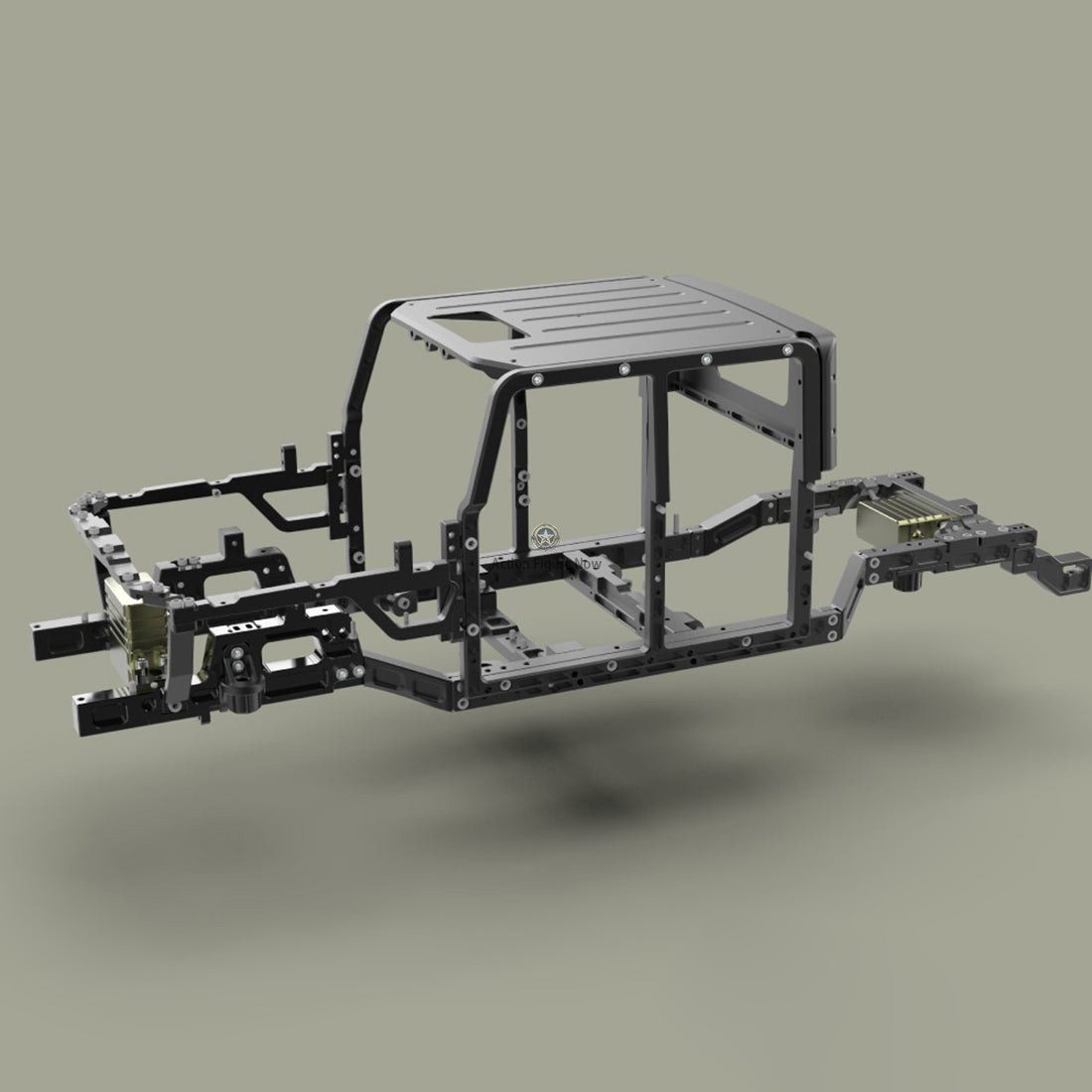

- Front and Rear Axles: Independent straight axles, support differential lock
- Motor: 540 brushed motor recommended (length should not exceed 60 mm)
- ESC: HW 1080 waterproof ESC recommended
- Gear Steering Gear: 9g steering gear recommended x 1
- Transmission Servo: 9g servo recommended x 1
- Steering Wheel Electronic Steering Servo: 9g servo recommended x 1
- Front Steering Steering Gear: Recommended standard steering gear x 1 (about 50 KG)
- Differential Lock Servo: Recommended standard servo x 1 (about 20 KG)
- Engine Type: V8 piston motion simulation engine
- Linkage Mode: Geared motor synchronous wheel linkage
- Remote Controller: 6CH and above remote control recommended
- Car Battery: 11.1V 3S lithium battery recommended

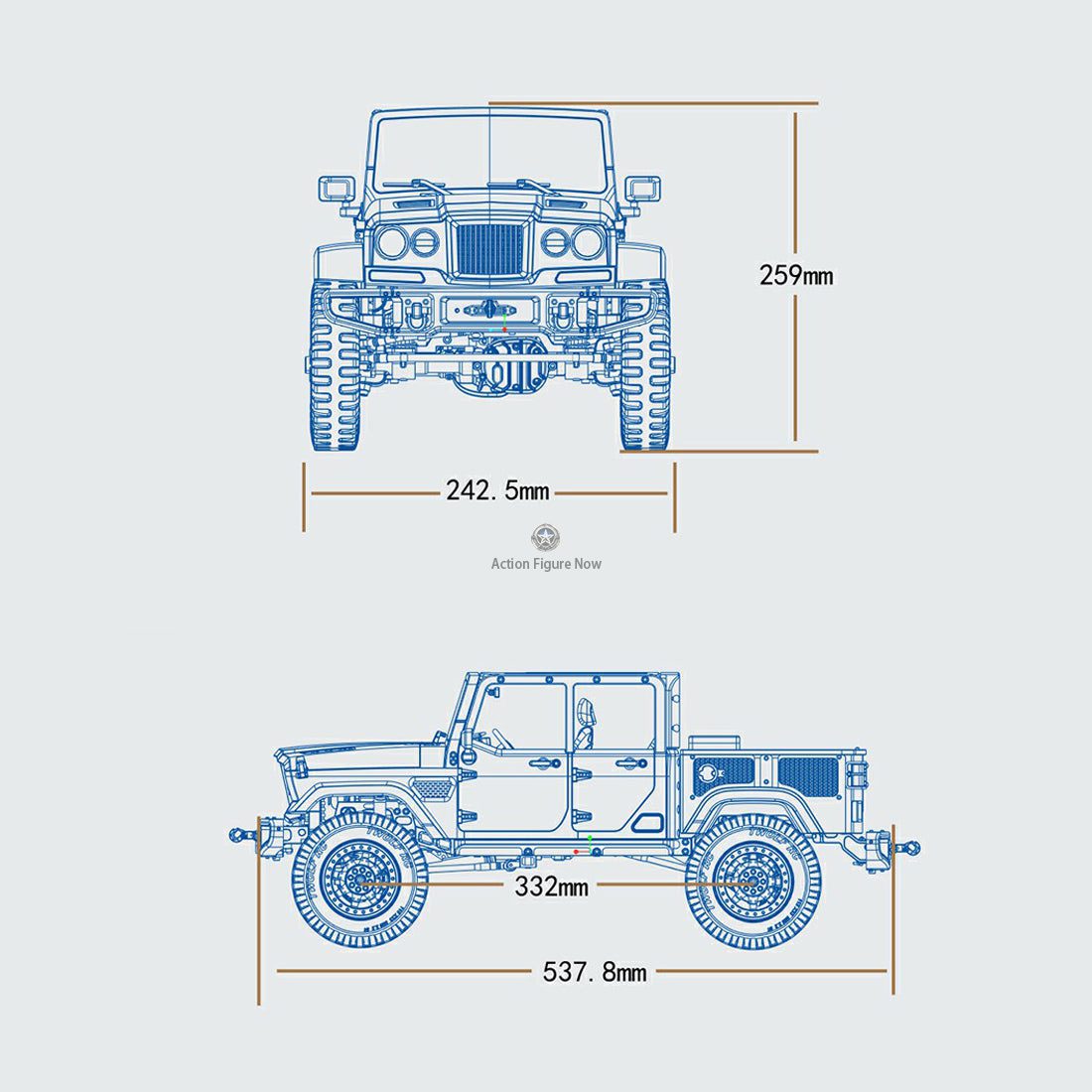

- Product Dimensions: 537.8 x 242.5 x 259 cm
- Product Weight: 5850 g
- Package Dimensions: 630 x 380 x 223 cm
- Package Weight: 7000 g
- Packing: Carton Box
Package Content:
- 1 Set x DIY Assembly Car Kit
- 1 x User Manual
I purchased one but it came without instructions. The supplier is not helpful in getting it to me. Please help me anyone who can.
Thank you.
