Description

Description

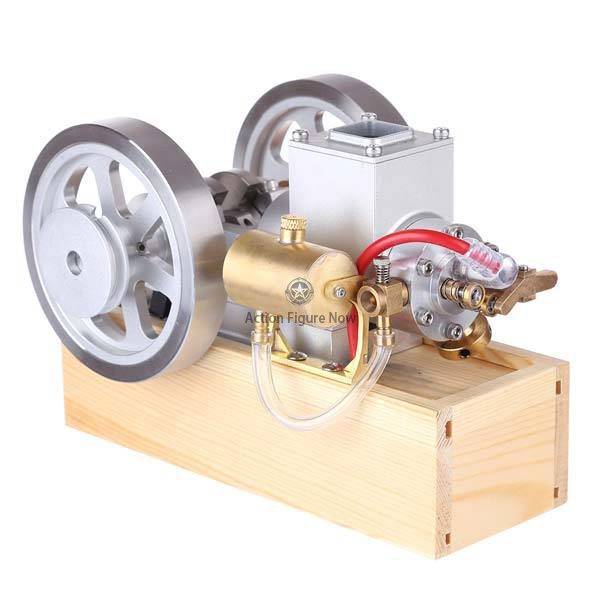

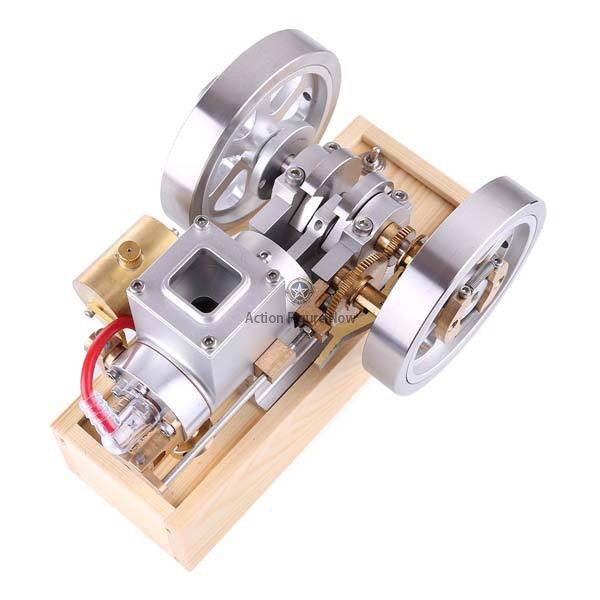

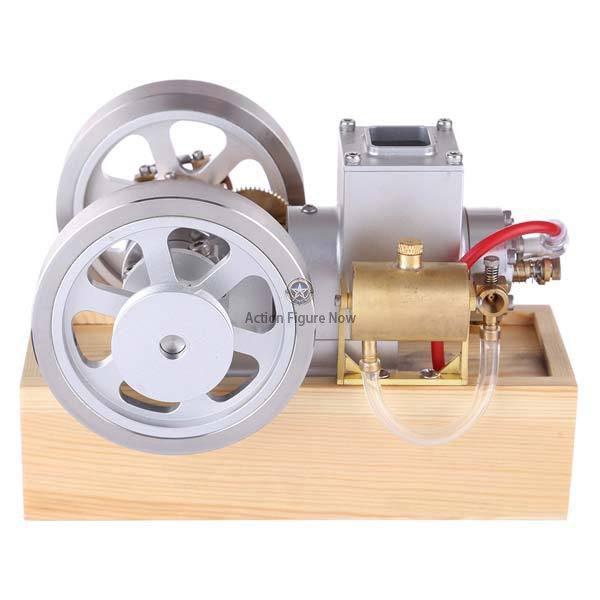

Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base

A hit-and-miss engine is a type of four-stroke internal combustion engine that is controlled by a governor to operate at a set speed. This is an upgraded hit and miss engine. Equipped with wooden base, easy placement and operation.

Description:

  • Item Name: Hit & Miss Gas Engine
  • Color: Silver
  • Material: Aluminum Alloy
  • Weight: About 2.2kg(Engine+Wooden Base)
  • Size Of Engine: 18012575mm(LWH)
  • Size Of Wooden Base: 1806650mm(LWH)
  • Cylinder Diameter: 22mm
  • Ltinerary: 20mm
  • Voltage: 3.5V
  • Fuel: Kerosene or Gasoline
  • The best tappet clearance: 0.5mm
  • Weight: 1610g
  • Revolutions Per minute:1200rmp

Engine Startup Steps:

  1. Open the bottom of base to check the wiring of the engine, connect the fuel tank piep, and install 3 AA batteries.
  2. Fill the fuel tank with gasoline(95). When the filling is completed, make sure there’s no air in the oil pipe.
  3. On the right side of the engine(installation of the flying hammer position), slowly turn counterclockwise by hand to buy more than one turn. Its role can make the mixed gasoline fully enter the cylinder.
  4. Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine(installing the flying hammer position)

Precautions:

  1. If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it’s very likely that the carburetor needle should be adjusted.
  2. Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio gasoline and air reach the normal working mix ratio.

Note:

  1. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
  2. Please allow little differs due to manual measurement.
  3. Kids should be accompanied by adult.
  4. Kids under 8 are not recommended to play.
  5. Please be careful when you add the fuel.
  6. An O-ring, which is not so airtight and can be started better

Package Included:

  • 1 X Hit & Miss Gas Engine (With Base)
Reviews (10)

10 reviews for Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base

  1. Victor Lindgren
    December 20, 2023
    I have received the engine and I was really impressed with the quality and workmanship. I am a retired Engineer and Machinst, so I know quality when I...More
    I have received the engine and I was really impressed with the quality and workmanship. I am a retired Engineer and Machinst, so I know quality when I see it. I look forward to ordering another engine, but I am not sure which one I want yet. I am undecided which type of fuel to use in it. I was wondering about some of the premixed chainsaw fuel, like maybe Stihl premixed fuel. I would appreciate any suggestions. Thank You very much for a great little engine.
    Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Kenneth Lutz
    February 21, 2023
    I really enjoy this engine, It arrived very well packed as in videos on it, find many on youtube. checked it over 100% A-OK. put in batteries, I used ...More
    I really enjoy this engine, It arrived very well packed as in videos on it, find many on youtube. checked it over 100% A-OK. put in batteries, I used 3 as required. Using camp -fuel- Non-Coleman brand, A hint of marvel mystery oil in fuel. use my Cox model aircraft fuel can and pump to fill tank, just the right size to fuel it up with the small tank fill opening. Syringe to oil all moving parts and friction spots. No air in fuel line. turned engine over 2 times to prime switch off, then switch on- pulled 2 times with starter rope included and pop pop pop amazing. It will start without pull rope too just flip flywheel. Runs excellent! slight carb needle adjustment here at 8500 feet elevation. needle very touchy! set it and leave it alone. starts great after running 10-15 mins at a time. Water hopper 3/4 full, have run many times now. I do be critical of oiling it well. inside cylinder as well. Amazing little engine, machining is spot on. I am very pleased with my purchase here with Engine DIY , shipping was trackable and very quick. 2 weeks time in transit or close to. I would purchase from DIY again. Thanks for a quality product DIY, Ken
    Olin Kane
    February 8, 2022
    Really a quality machine. I put weaker springs on the governor to slow it down a bit so that it’s more realistic. Starts easily by hand every time and...More
    Really a quality machine. I put weaker springs on the governor to slow it down a bit so that it’s more realistic. Starts easily by hand every time and is a great conversation piece.
    Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Henry Groen jr
    November 21, 2020
    Great little motor! Some minor adjustments are required. As far as the right type of fuel goes it needs to be naphta based being 95 octain is race car...More
    Great little motor! Some minor adjustments are required. As far as the right type of fuel goes it needs to be naphta based being 95 octain is race car fuel here in the U.S. so that being said use Colman multi fuel with a dash of marvel mistory oil. For more info google it.
    William Rankin
    November 10, 2020
    My uncle owned a hit/miss engine that I had to run on the farm. If you ever experienced that you would never forget it. This exact replica is truly a ...More
    My uncle owned a hit/miss engine that I had to run on the farm. If you ever experienced that you would never forget it. This exact replica is truly a work of art! Mine is currently on my desk and I am asked daily what/where did you get that! The craftsmanship is nothing less that amazing! Mine starts with just a flip spin without the included pull starter. Get one for your collection or for a gift for an engine person you know, you will not be disappointed. Great job "actionfigurenow!!"
    michael van lienden
    September 28, 2020
    Excited about my new hit and miss motor.
    The fit and finish is good, it is really cool to watch that thing run.
    Mrguy
    September 1, 2020
    We got this as a demo for a science class and it really does start and run well - decent amount of torque off the flywheel. Fine craftsmanship as well...More
    We got this as a demo for a science class and it really does start and run well - decent amount of torque off the flywheel. Fine craftsmanship as well. Be sure to lubricate all moving parts right before you run it with some 3in1 oil or something every time to make it last a long time and run smoother. Did have to ever so slightly adjust the mixing screw on the carb for it to run really smooth and best power out of it but it did fire up right outa the box.
    Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Troy Peters
    July 6, 2020
    I used my engine to make a model Rumely Oil Pull tractor. You can see a You Tube video of it here https://www.youtube.com/watch?v=PUeDTHd21DU
    Irv
    May 9, 2020
    In my opinion, this engine and the Sterling engines, are works of art. The service you provide as well as the packaging and shipping, is first class. ...More
    In my opinion, this engine and the Sterling engines, are works of art. The service you provide as well as the packaging and shipping, is first class. The one place for improvement would be the operation instructions provided with the hit and miss engine. It makes no mention of how to lubricate the engine and that the brass fitting below the cylinder is the exhaust pipe. I must say that when I required by email for this information, I received a very quick reply. You operate a first class business.
    Peter Schlebusch
    April 29, 2020
    I was very surprised about the quality of this engine. The engine is a little bit bigger than I supposed. Every detail is well build.
