SKU ENGINE-5wgprY

(10 customer reviews)

$314.99

  • 🚚 Free Shipping: Available on all products.
  • 💸 Discounts: 3% off for 3 items, 5% off for 5 items.

Free Economy Shipping from Greater China to worldwide.(10-25 days)

Special Notice for Cosplay Costumes:
Ordering & Shipping:
Total Delivery Time = Processing Time (7-35 days or more) + Shipping Time (3-16 days)

Processing/Tailoring Time
Most products in our store are not in stock, which are tailor to order, whether you choose a standard size or give us your custom measurements, the costumes are personally tailored for you from scratch, some of which can be adjusted in style and size. Most of our products are handmade, as we know single-piece production is time-consuming and costly, so which will take a processing/tailoring time (7-35 days or more).

For more information click here returns and exchange

2018121401450592

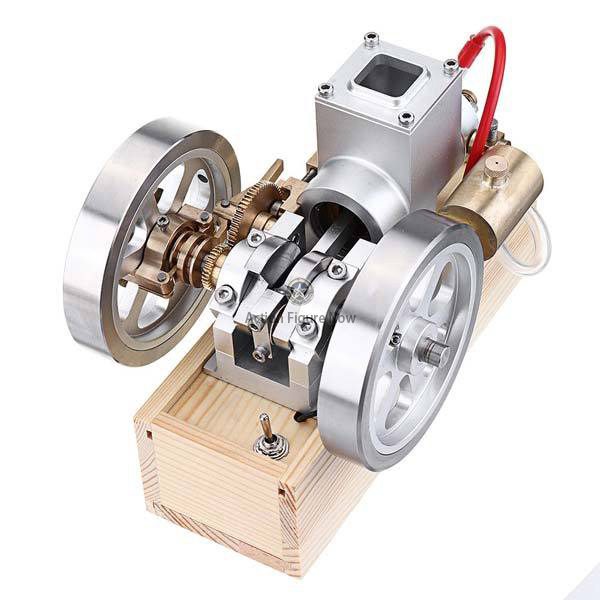

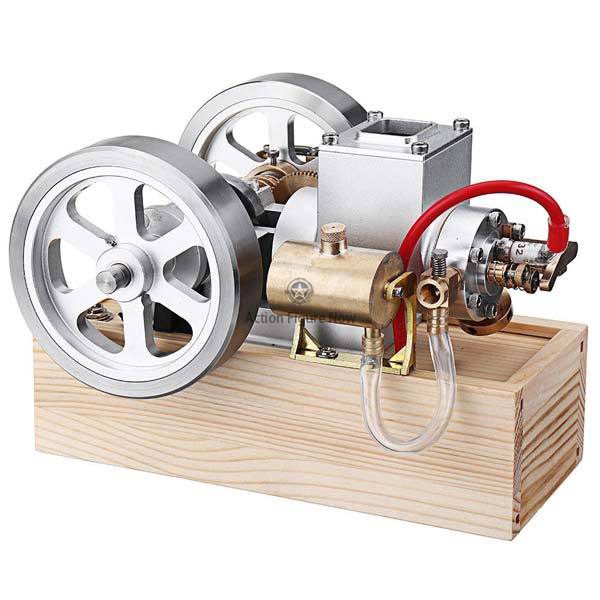

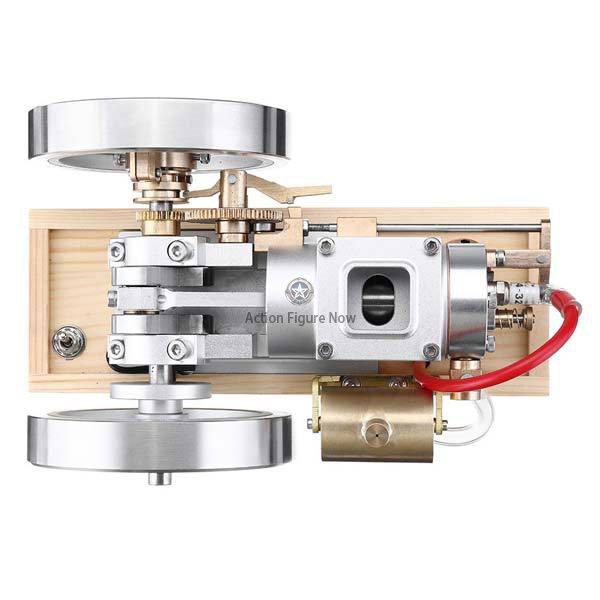

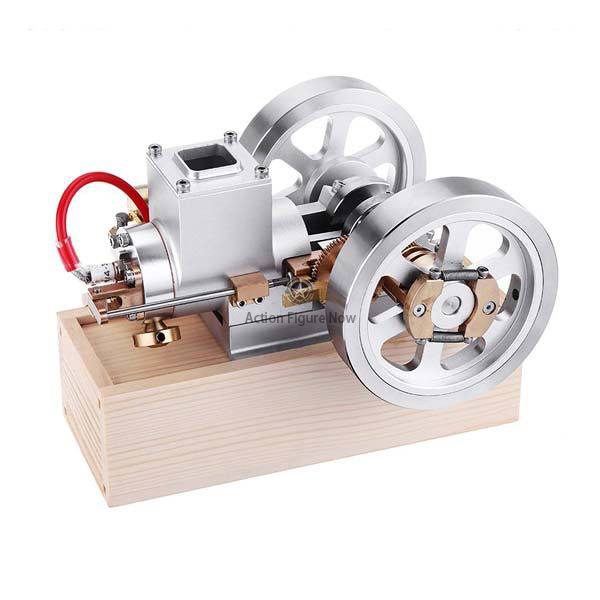

Upgrade Hit & Miss Gas Engine Full Metal IC Engine With Base

A hit-and-miss engine is a type of four-stroke internal combustion engine that is controlled by a governor to operate at a set speed. This is an upgraded hit and miss engine. Equipped with wooden base, easy placement and operation.

Description:

  • Item Name: Hit & Miss Gas Engine
  • Color: Silver
  • Material: Aluminum Alloy
  • Weight: About 2.2kg(Engine+Wooden Base)
  • Size Of Engine: 18012575mm(LWH)
  • Size Of Wooden Base: 1806650mm(LWH)
  • Cylinder Diameter: 22mm
  • Ltinerary: 20mm
  • Voltage: 3.5V
  • Fuel: Kerosene or Gasoline
  • The best tappet clearance: 0.5mm
  • Weight: 1610g
  • Revolutions Per minute:1200rmp

Engine Startup Steps:

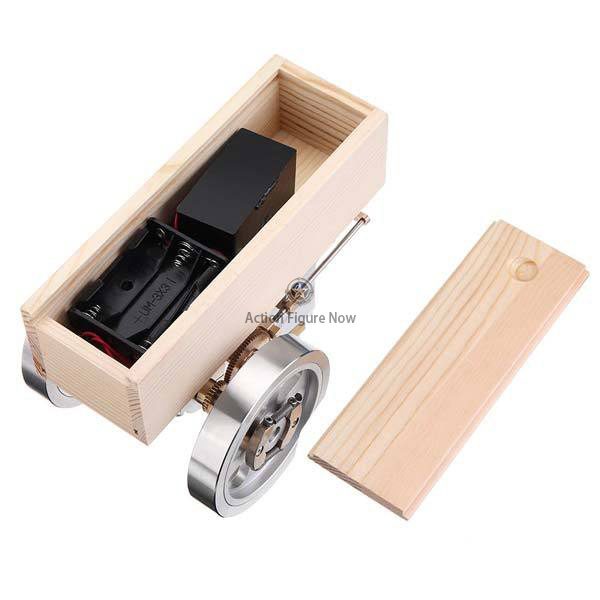

  1. Open the bottom of base to check the wiring of the engine, connect the fuel tank piep, and install 3 AA batteries.
  2. Fill the fuel tank with gasoline(95). When the filling is completed, make sure there’s no air in the oil pipe.
  3. On the right side of the engine(installation of the flying hammer position), slowly turn counterclockwise by hand to buy more than one turn. Its role can make the mixed gasoline fully enter the cylinder.

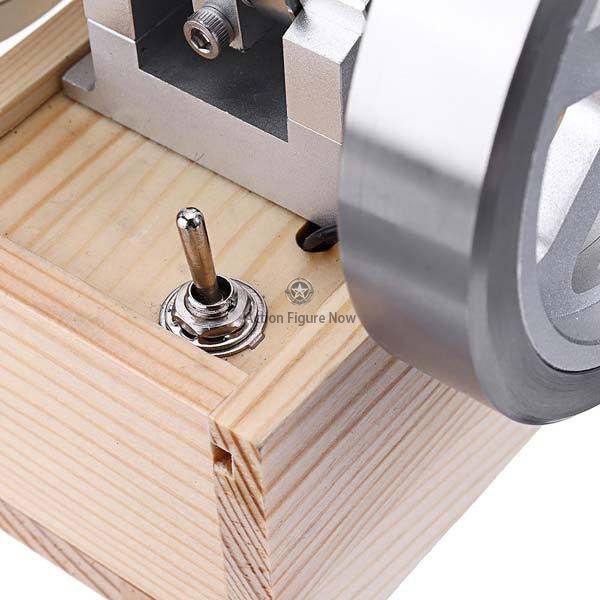

  4. Turn on the power switch and turn the flywheel to start the engine counterclockwise on the right side of the engine(installing the flying hammer position)

Precautions:

  1. If the ignition device is normal and the cylinder is under normal compression, if the machine still does not start normally, it’s very likely that the carburetor needle should be adjusted.
  2. Screw the screw on the top of the carburetor, then loosen 1/4 turn, start the flywheel. This can be done several times to make the mixing ratio gasoline and air reach the normal working mix ratio.

Note:

  1. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding.
  2. Please allow little differs due to manual measurement.
  3. Kids should be accompanied by adult.
  4. Kids under 8 are not recommended to play.
  5. Please be careful when you add the fuel.
  6. An O-ring, which is not so airtight and can be started better

Package Included:

  • 1 X Hit & Miss Gas Engine (With Base)

Customer Reviews (4.90)

(10 customer reviews)

10 reviews for Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base

  1. Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Kenneth Lutz
    February 21, 2023

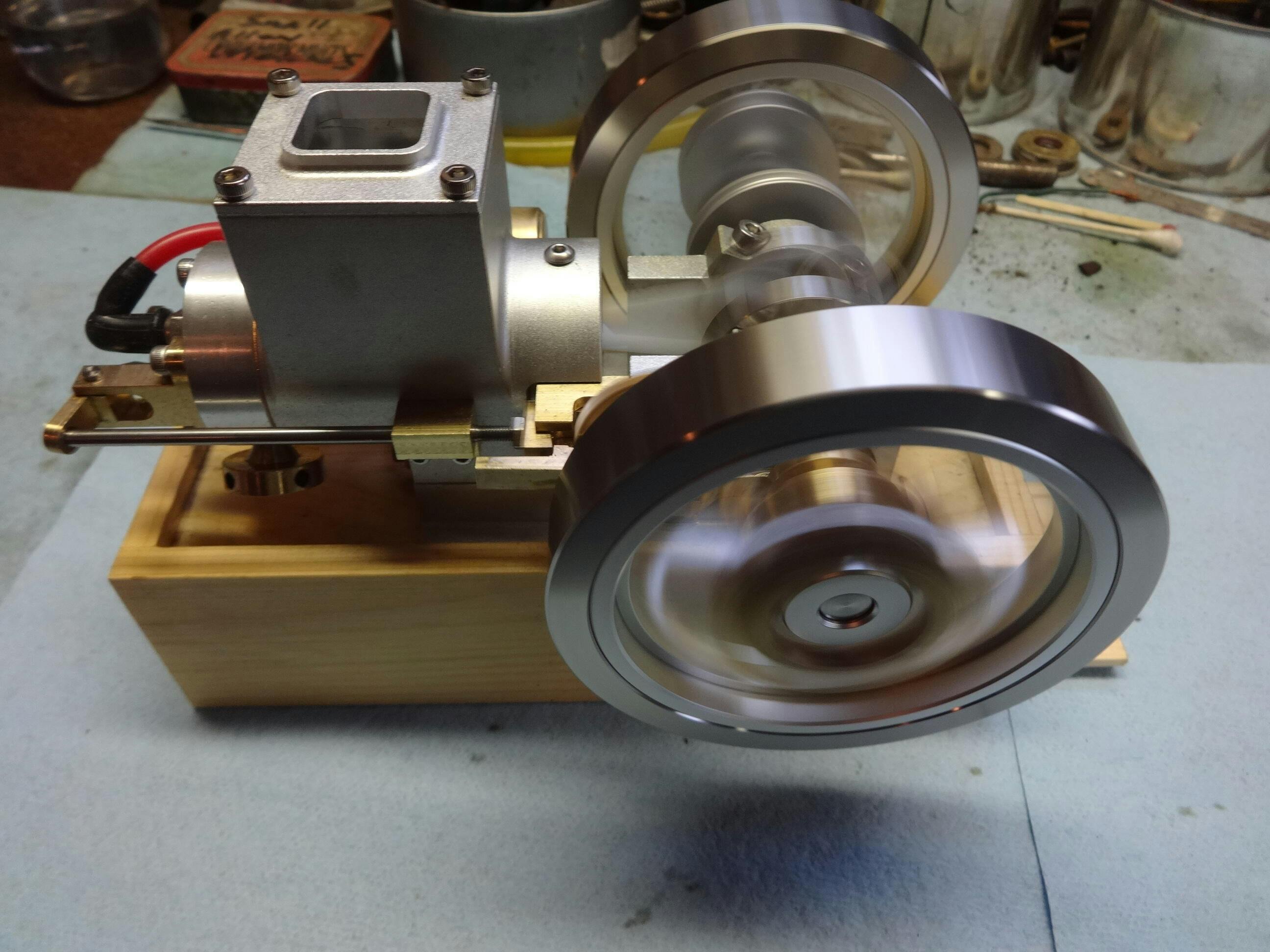

    I really enjoy this engine, It arrived very well packed as in videos on it, find many on youtube. checked it over 100% A-OK. put in batteries, I used ...More
    I really enjoy this engine, It arrived very well packed as in videos on it, find many on youtube. checked it over 100% A-OK. put in batteries, I used 3 as required. Using camp -fuel- Non-Coleman brand, A hint of marvel mystery oil in fuel. use my Cox model aircraft fuel can and pump to fill tank, just the right size to fuel it up with the small tank fill opening. Syringe to oil all moving parts and friction spots. No air in fuel line. turned engine over 2 times to prime switch off, then switch on- pulled 2 times with starter rope included and pop pop pop amazing. It will start without pull rope too just flip flywheel. Runs excellent! slight carb needle adjustment here at 8500 feet elevation. needle very touchy! set it and leave it alone. starts great after running 10-15 mins at a time. Water hopper 3/4 full, have run many times now. I do be critical of oiling it well. inside cylinder as well. Amazing little engine, machining is spot on. I am very pleased with my purchase here with Engine DIY , shipping was trackable and very quick. 2 weeks time in transit or close to. I would purchase from DIY again. Thanks for a quality product DIY, Ken
    Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Henry Groen jr
    November 21, 2020

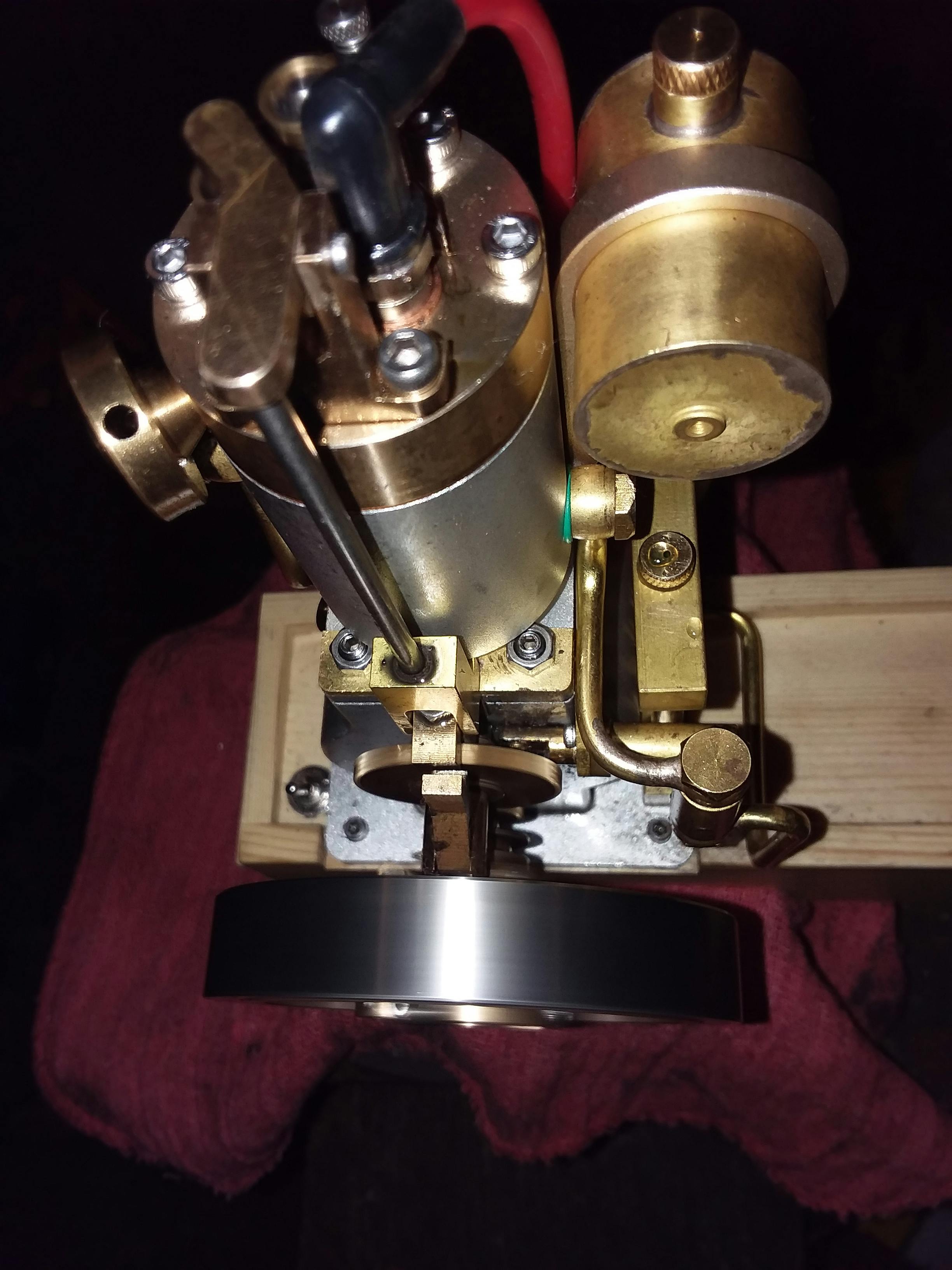

    Great little motor! Some minor adjustments are required. As far as the right type of fuel goes it needs to be naphta based being 95 octain is race car...More
    Great little motor! Some minor adjustments are required. As far as the right type of fuel goes it needs to be naphta based being 95 octain is race car fuel here in the U.S. so that being said use Colman multi fuel with a dash of marvel mistory oil. For more info google it.
    Upgraded M90 Hit & Miss Gas Engine Full Metal I.C. Engine with Base photo review
    Troy Peters
    July 6, 2020

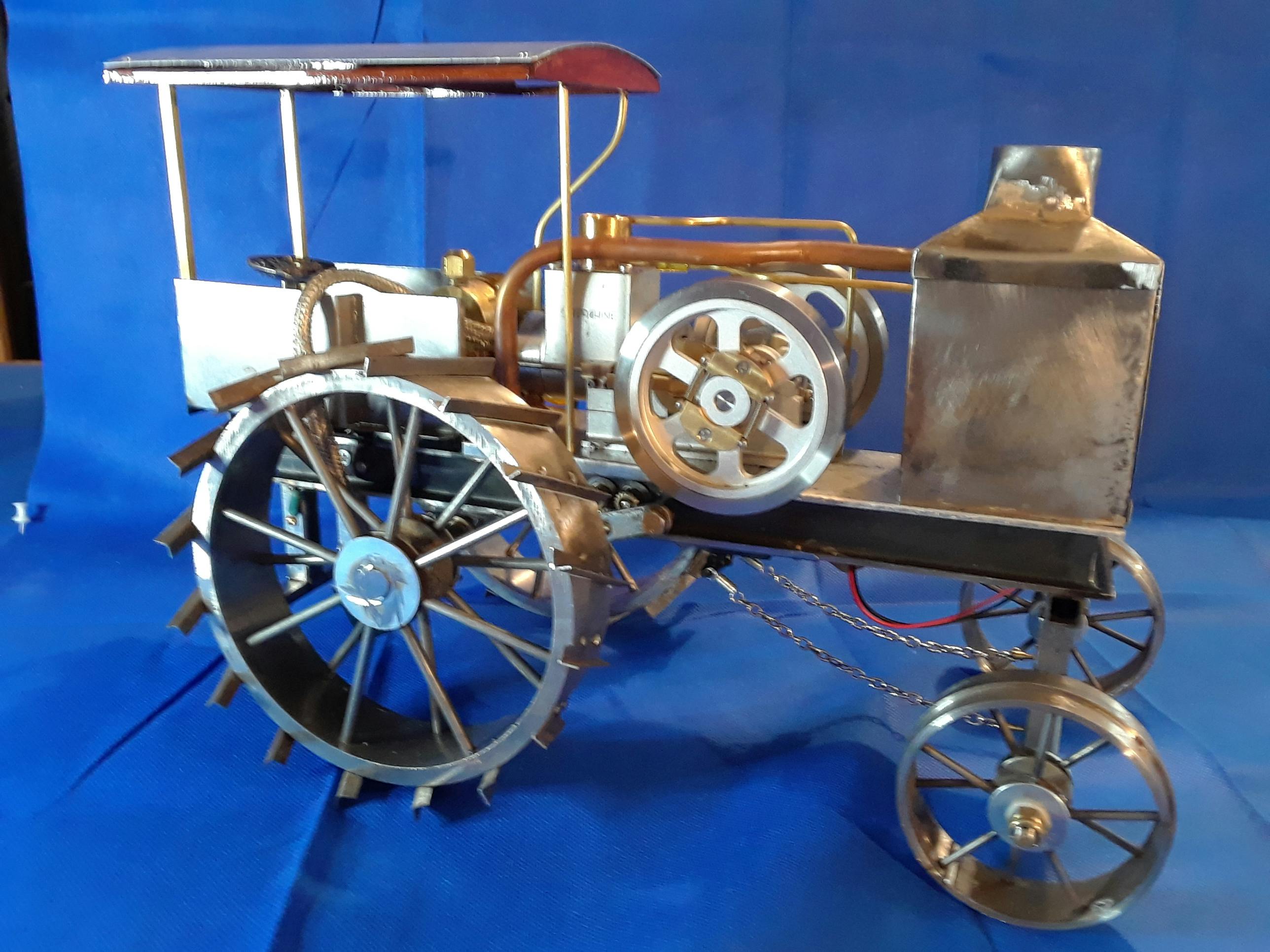

    I used my engine to make a model Rumely Oil Pull tractor. You can see a You Tube video of it here https://www.youtube.com/watch?v=PUeDTHd21DU
