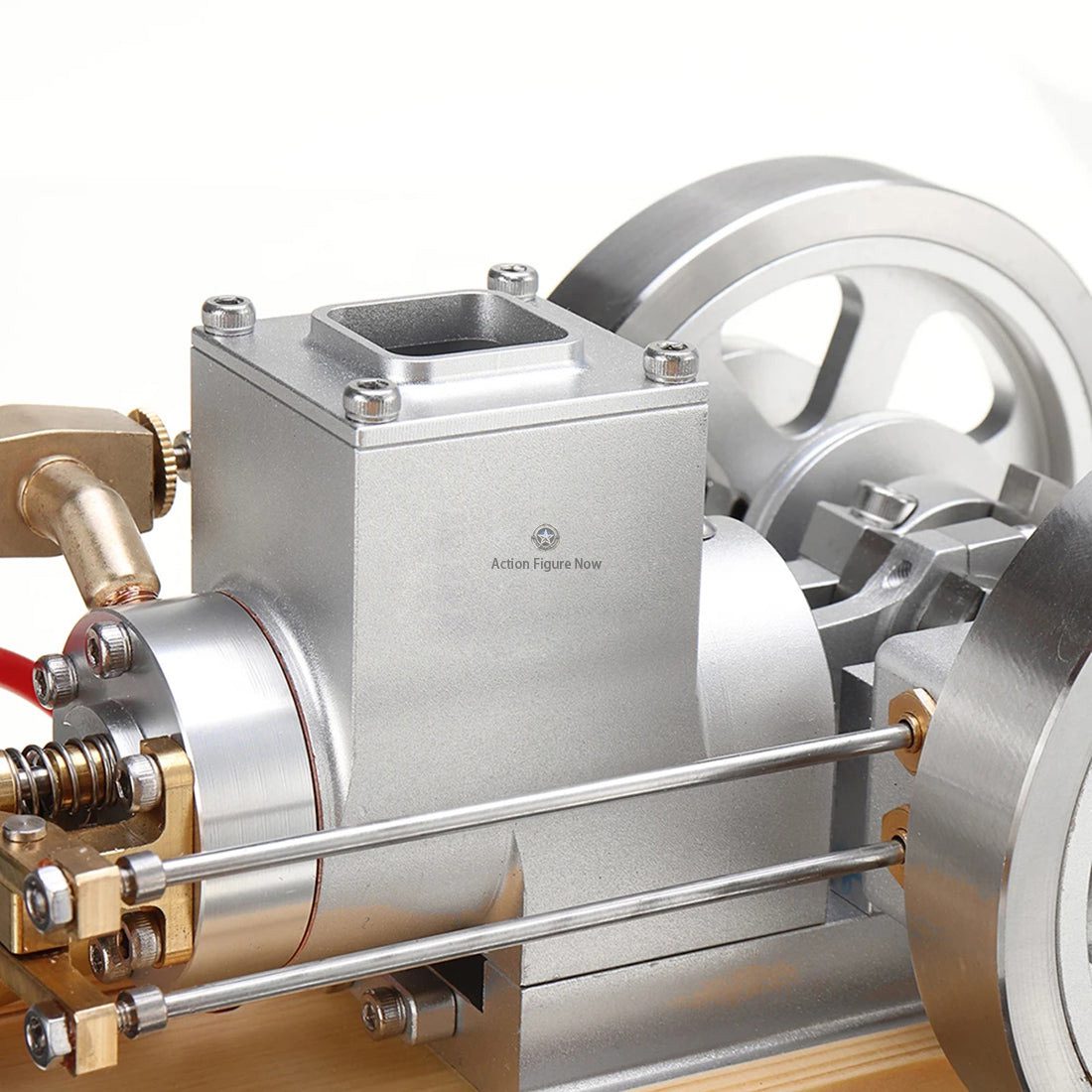

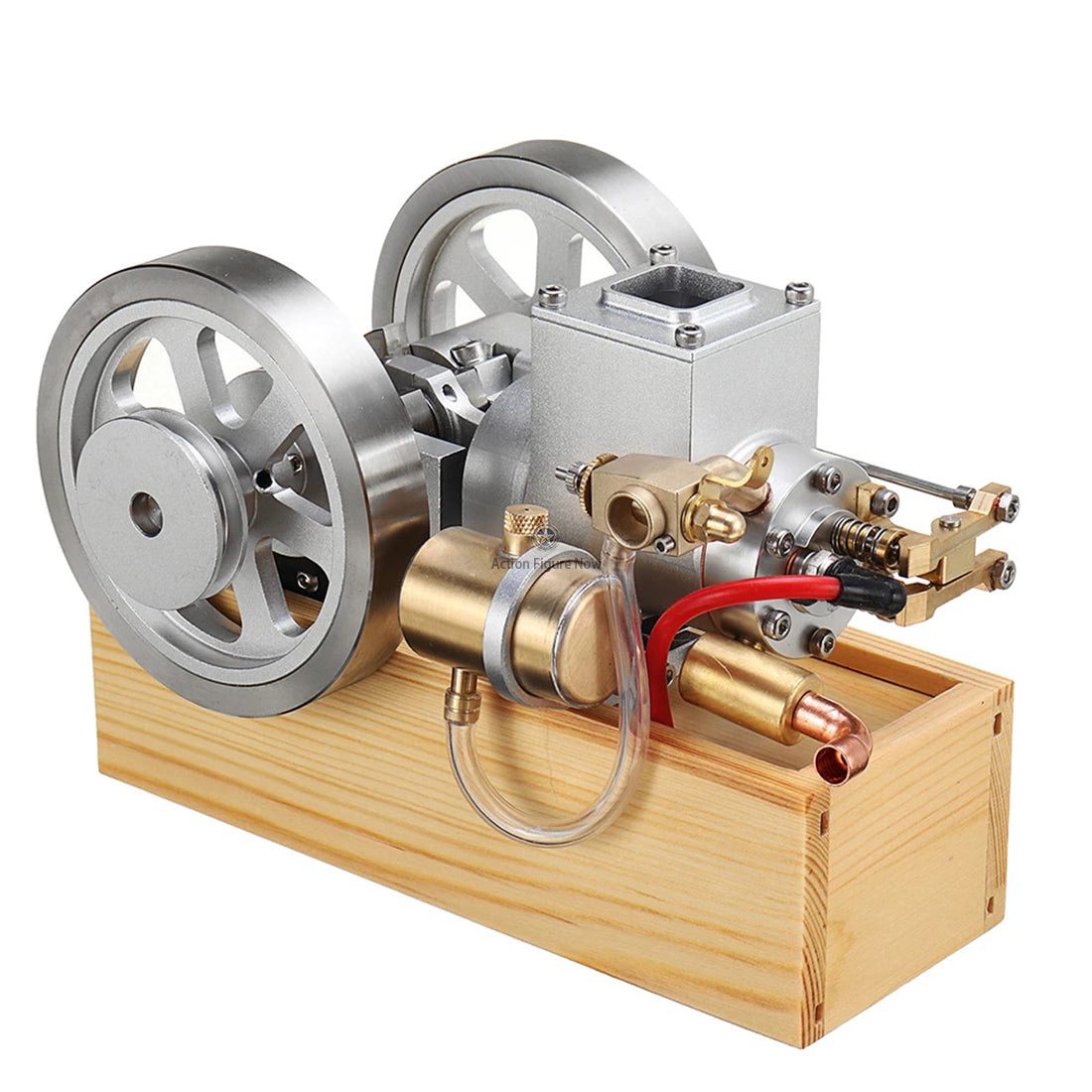

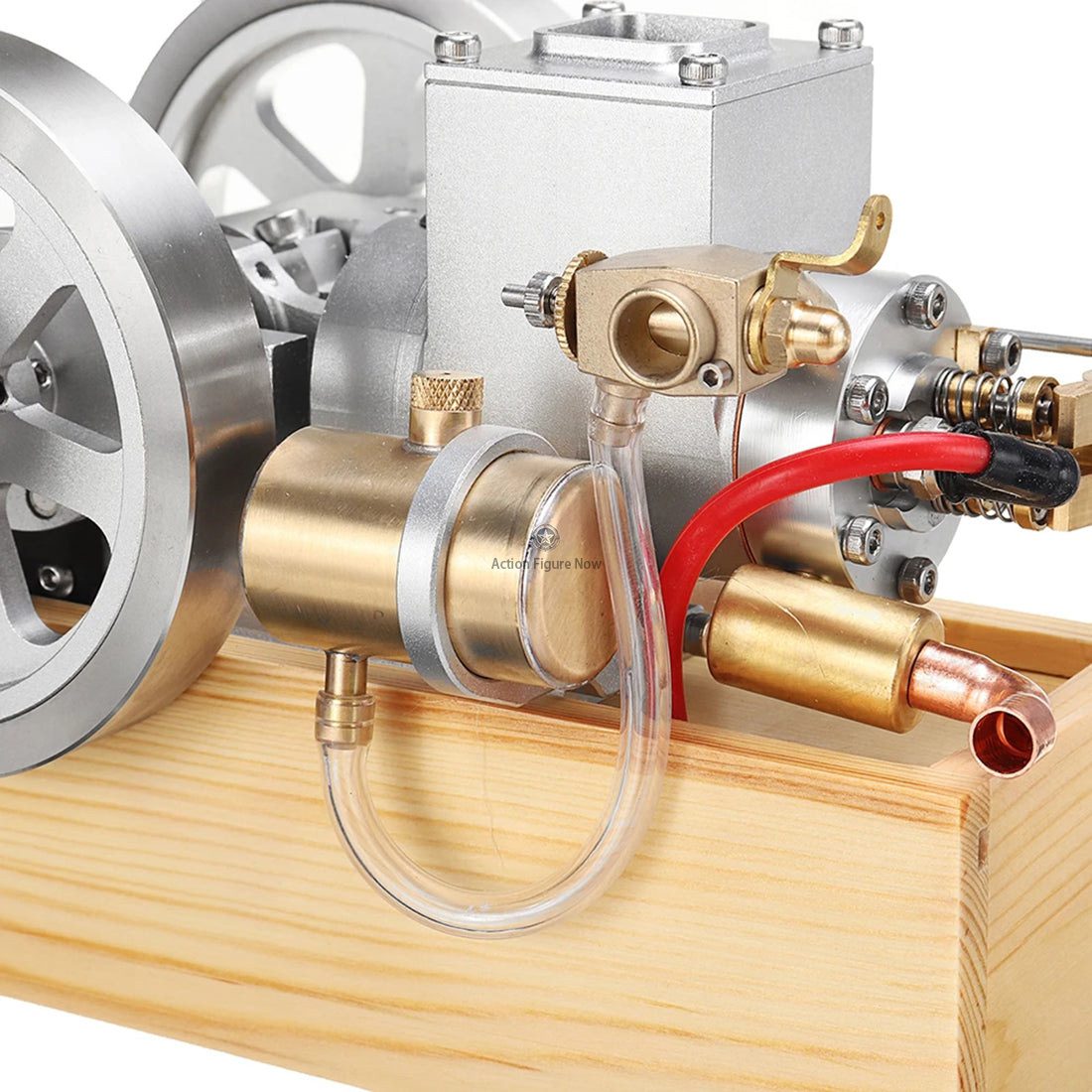

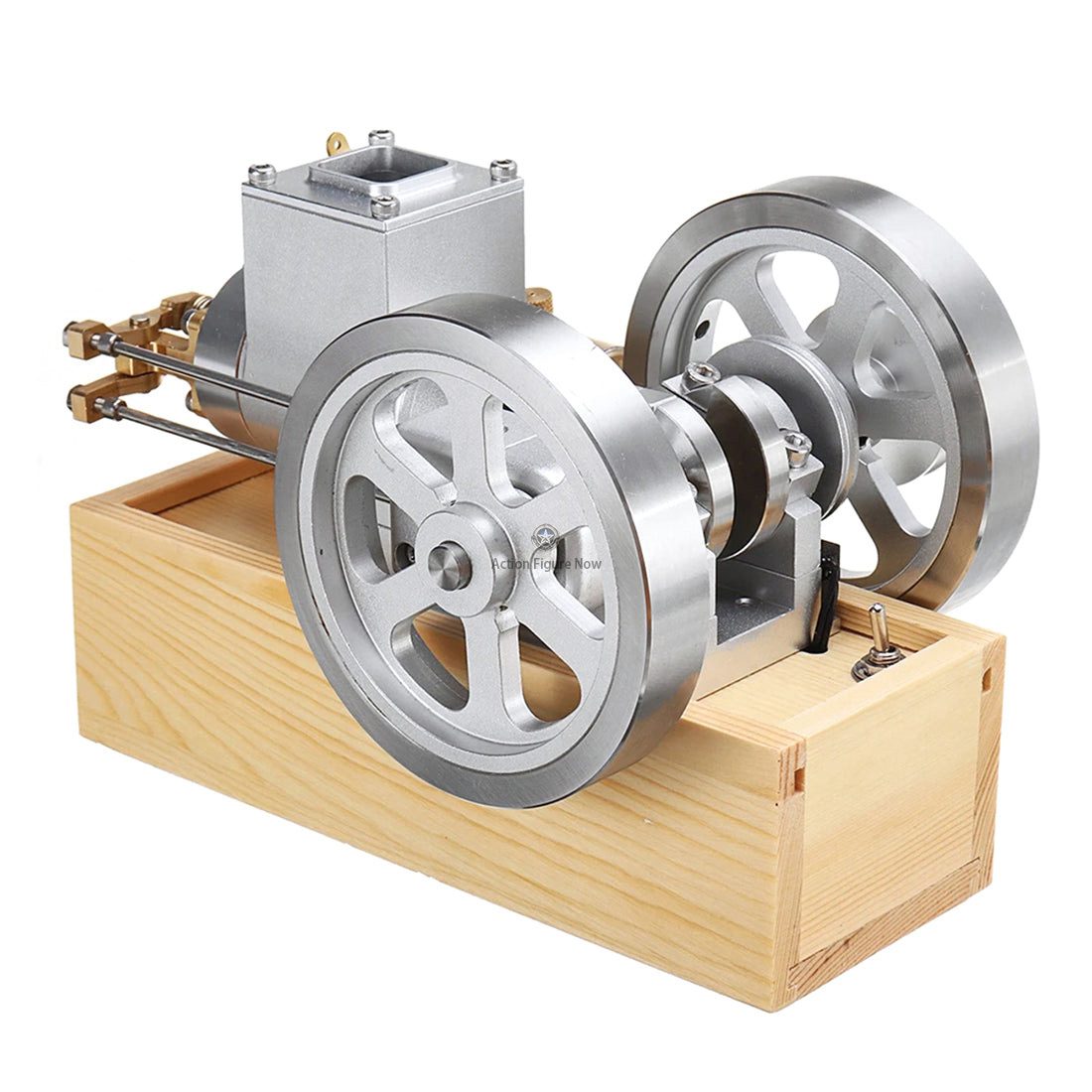

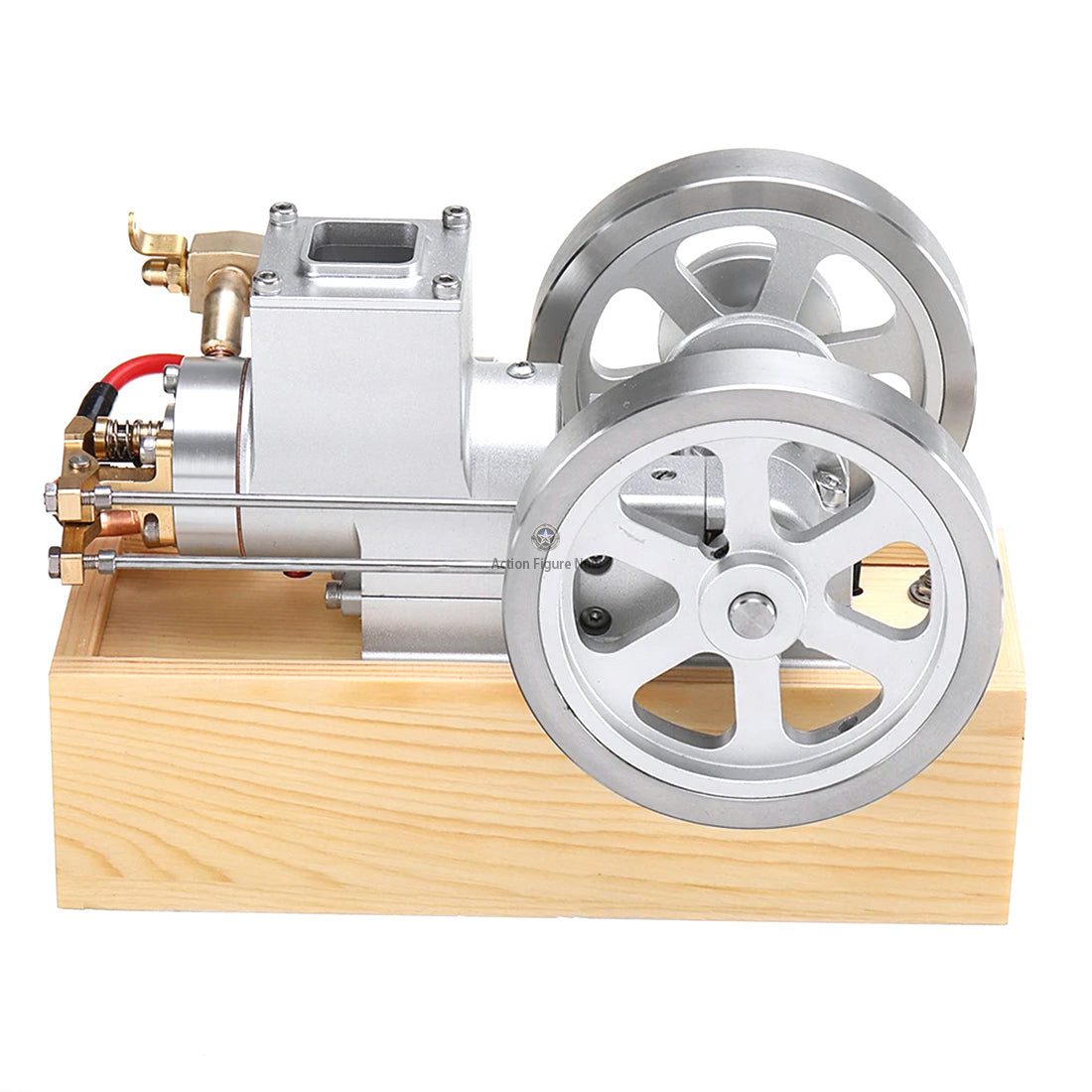

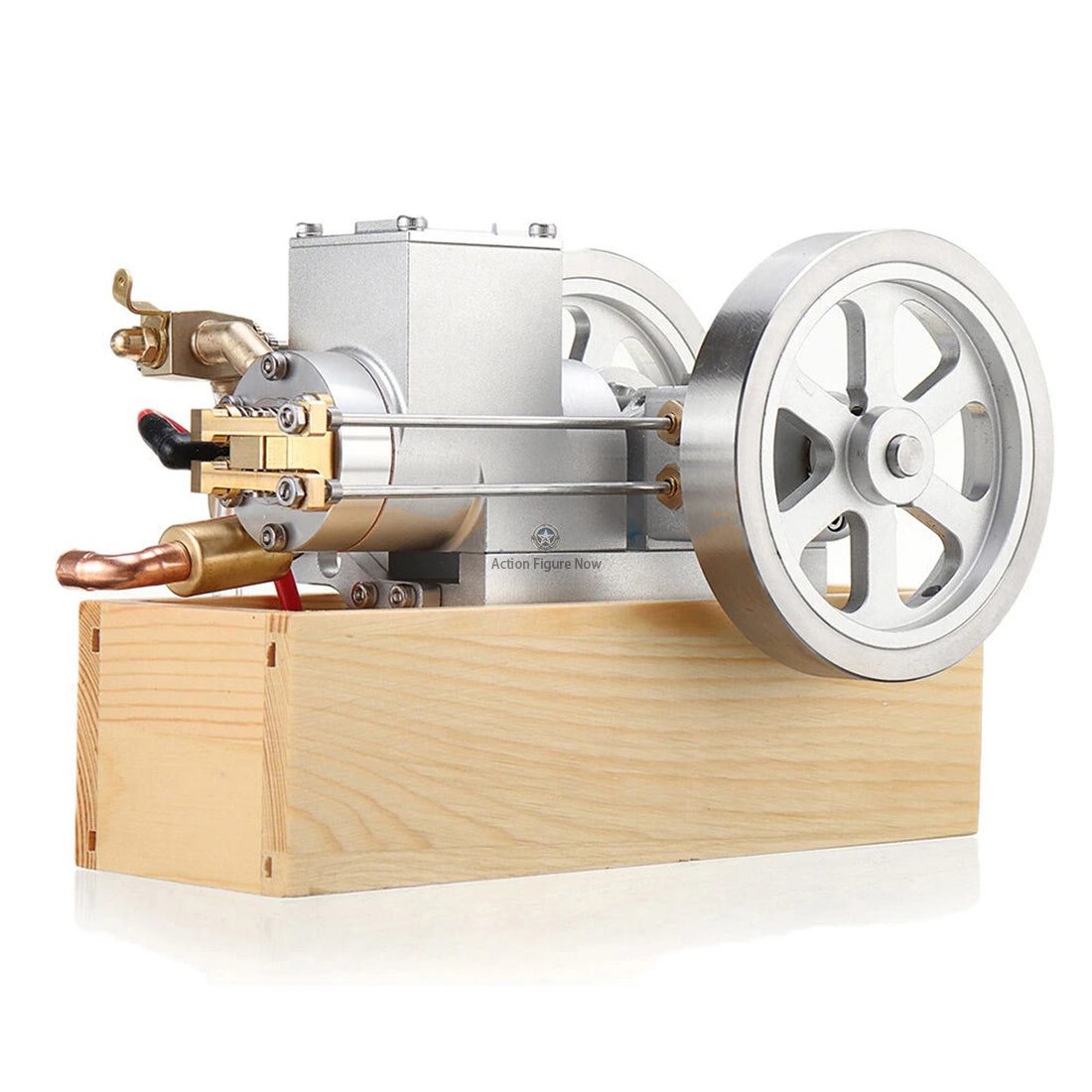

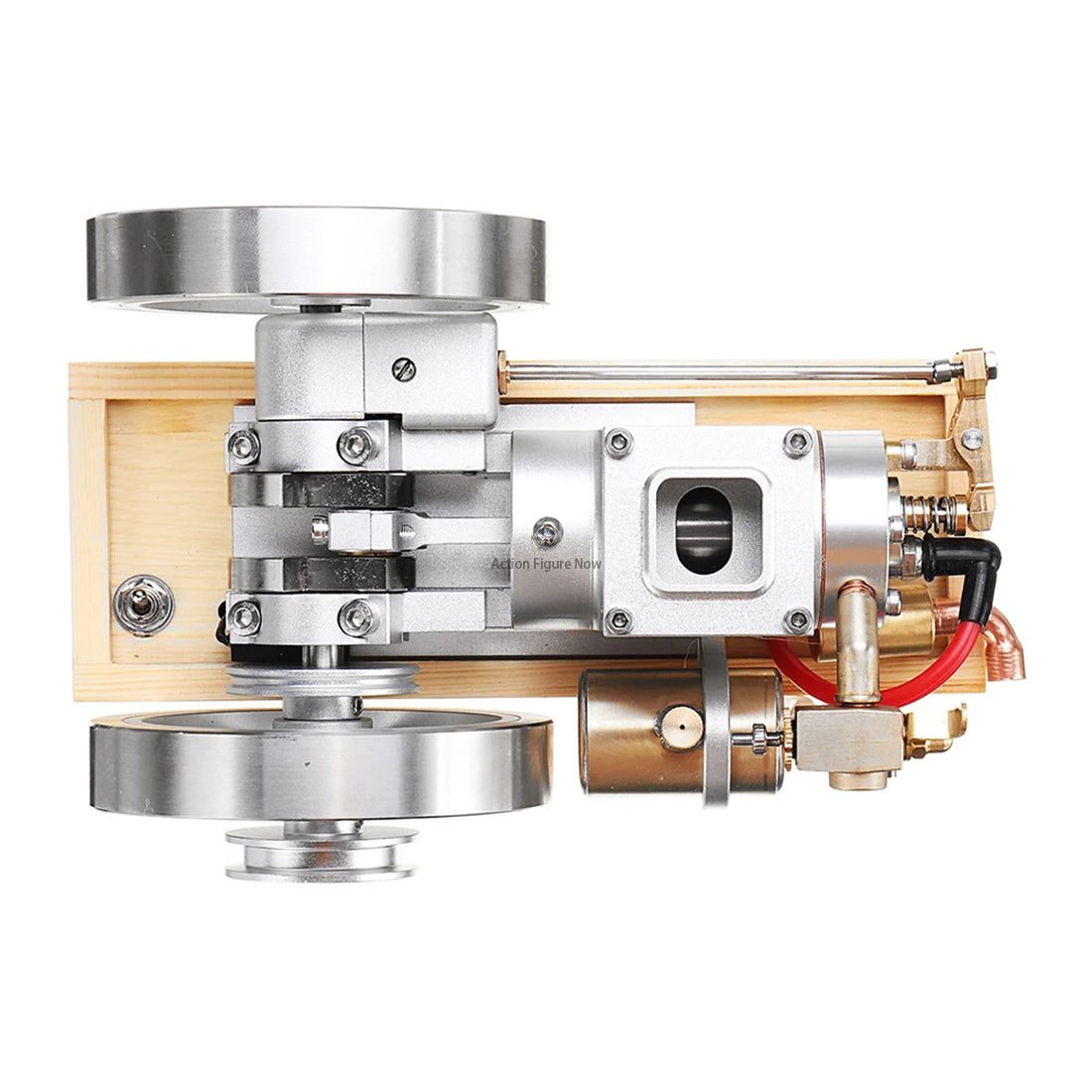

M93 Horizontal Water-cooled Miniature Gasoline Engine Upgraded Hit & Miss Combustion Engine Speed Adjustable

Features:

  • Miniature horizontal gasoline engine model with ancient structure using water cooling and carburetor with adjustable speed.
  • Crafted from brass, aluminum alloy and stainless steel, with unique shape, stable structure and wooden base for easy placement.

Engine Starting Steps:

  1. Check wiring, connect oil pipe and install 3 AA batteries (4.5V).
  2. Add water to water tank and fill fuel tank with 95 gasoline. Rotate flywheel clockwise twice to mix fuel.
  3. Turn power switch on and rotate flywheel clockwise to start engine.

Note:

  • If ignition or compression is normal and engine fails to start, adjust carburetor oil needle.
  • After tightening main oil needle, loosen it 1/4 turn to reach optimal mixing ratio.
  • Turn power switch off and allow engine to cool down when stopping.

Excellent Gift:

  • Easy-to-operate engine model that explains the working process and principle.
  • Perfect as a desktop model or a personalized gift for mechanical crafts fans.

Specifications:

  • Color: As Shown
  • Material: Brass + Aluminum Alloy + Stainless Steel + Wood
  • Engine Size: 180 x 125 x 75mm.
  • Wooden Base Size: 180 x 66 x 50mm.
  • Displacement: 6CC
  • Cylinder Diameter: 22mm
  • Stroke: 20mm
  • Flywheel Diameter: 88mm
  • Ignition Device Power Supply Voltage: 4.5V (using 3 x AA batteries, excluding batteries)
  • Start Mode: External force (electric drill) or hand pull start
  • Fuel Used: Gasoline
  • Product Weight: 1610g
  • Package Dimensions: 20 x 20 x 15cm
  • Package Weight: 2000g

Packing:

  • 1 x Engine
  • 1 x Hand Puller
  • 1 x User Manual

Customer Reviews (5.00)

(2 customer reviews)

2 reviews for Hit and Miss Combustion Engine, M93 – Horizontal, Water-cooled, Gasoline, Adjustable Speed

  1. Patricia Moline
    January 20, 2022
    Excellent craftsmanship on this engine. Works like a charm. Only suggestion would be that you pull up some YouTube videos and see it working first.
    Jack Scuderi
    April 1, 2021
    I have not purchased this engine yet. But I have seen horror stories of this engine being siezed. The reason is because it is not governed. Start this...More
    I have not purchased this engine yet. But I have seen horror stories of this engine being siezed. The reason is because it is not governed. Start this engine at idle. If you cannot then start it at no higher than half throttle. It’s a good engine but you MUST watch out for it. Thanks.
