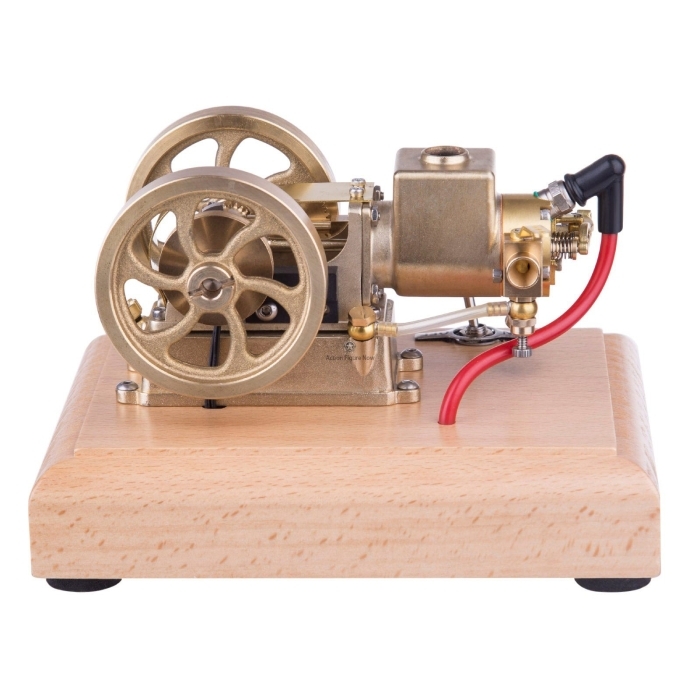

M17B 1.6cc Mini 4-Stroke Horizontal Water-Cooled Gasoline Engine Model with Adjustable Speed

Description

Metal Adjustable Speed Micro Horizontal Water-cooled Gasoline Engine

Features:

• Mini Engine: Miniature with water-cooled structure and adjustable speed carburetor.
• Materials: Brass, stainless steel, and wooden base for placement and operation.
• Exquisite: Unique shape, stable design, high quality, sophisticated craftsmanship, and stable performance.
• Excellent Model: Amazing mechanical craft, exhibiting the charm of engine operation.
• For Crowd: Suitable for ages 14+.

Engine Startup Steps:

1. Check engine wiring and connect fuel tank oil pipe. Install 3 AA batteries (4.5V).
2. Fill fuel tank with 95 gasoline and 4% lubricating oil. Rotate flywheel clockwise several times to mix fuel.
3. Turn on engine and quickly rotate flywheel clockwise to start.

Specifications:

• Color: As shown
• Material: Brass + Stainless Steel + Wood
• Displacement: 1.6cc
• Cylinder Diameter: 13mm
• Stroke: 12mm
• Power Supply Voltage: 4.5V (3-cell AA batteries required)
• Start Mode: External force (electric drill) or manual
• Whole Size: 150 x 120 x 95mm
• Engine Size: 127 x 78 x 65mm
• Wood Base: 150 x 120 x 30mm
• Product Weight: 1100g
• Package Dimensions: 20 x 20 x 15cm
• Package Weight: 1500g

Package Content:

• 1 x Engine
• 1 x Hand Start Device
• 1 x User Guide
